Specification

• Material:Anti-flammable PC

• Voltage:AC 230V,50/60Hz

• Max. Current Load: 16A/3A/3A

• Temperature Accuracy: ±1℃

• Temperature Setting: 5-90℃

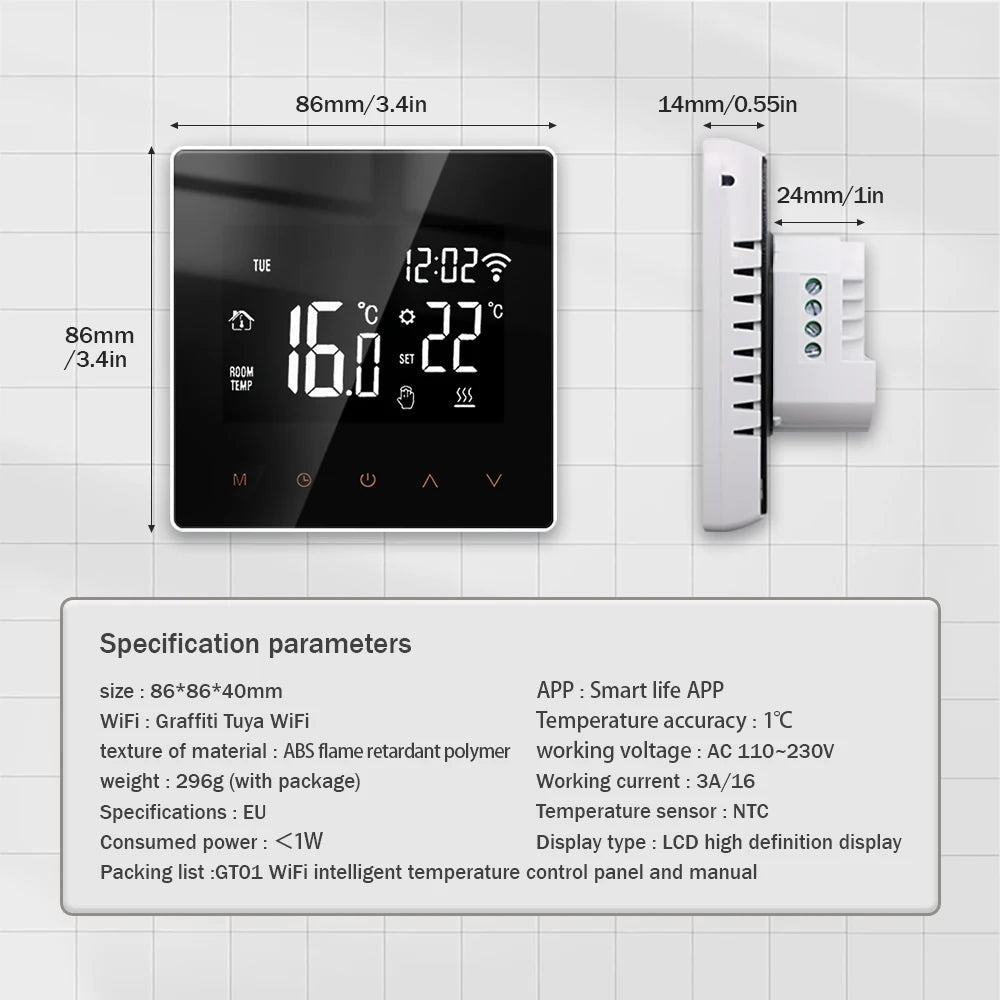

• Item Size: 86 * 86 *mm/ 3.4 * 3.4in

• Power Consumption:＜1W
• Temperature Sensor:NTC

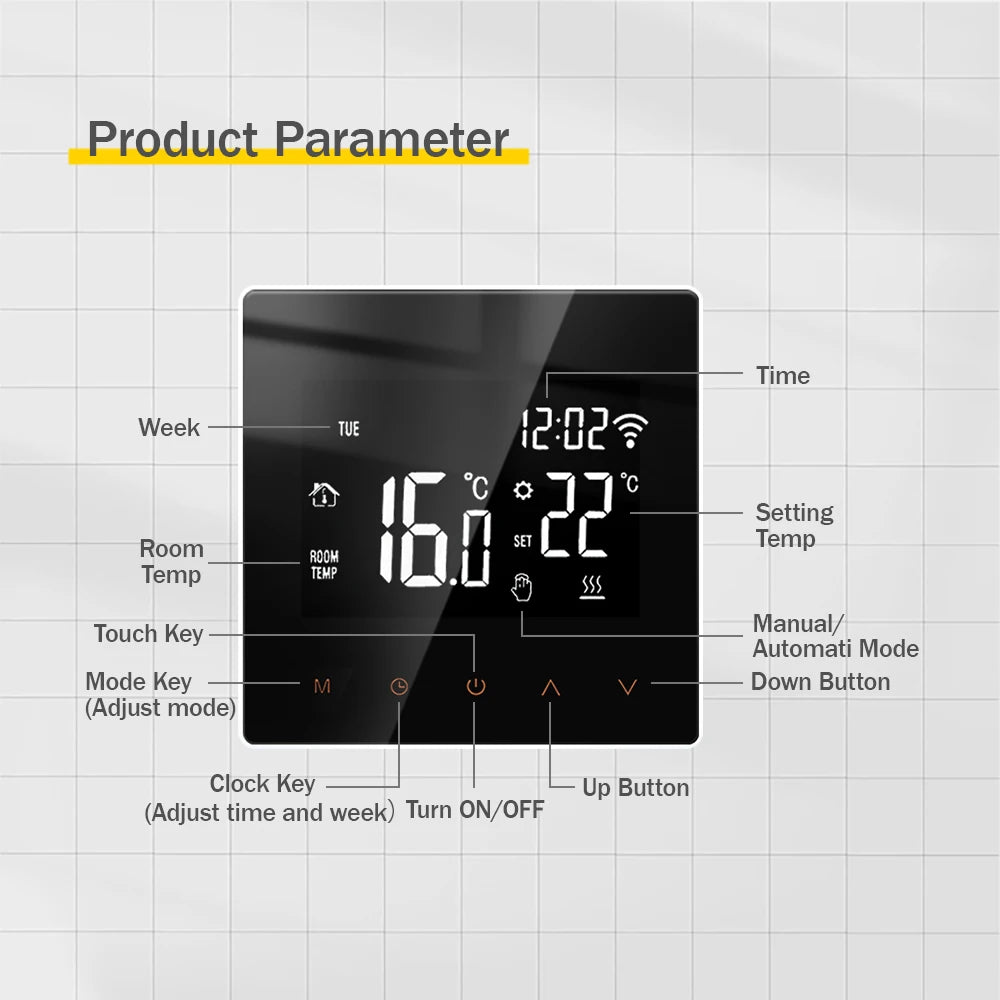

User Operation

• Press"⊙"power button,to turn the system on or off.
• Press"M"button,you can select"period control mode"or "manual mode".
• Under power on: press"∧"or"∨"button to set the temperature and adjust system parameters.press "∧"and "∨"button simultaneously and hold for 5s to enter lock key fuction.
• Under power off:
• Automatically enter WiFi network configuration mode after power on,the wifi signal will flashing slowly.
• Press "∧"and "∨"button simultaneously and hold for 5s,when the buzzer sounds 3 times,the screen displays full display.then press the power button ,the wifi signal will flashing slowly.

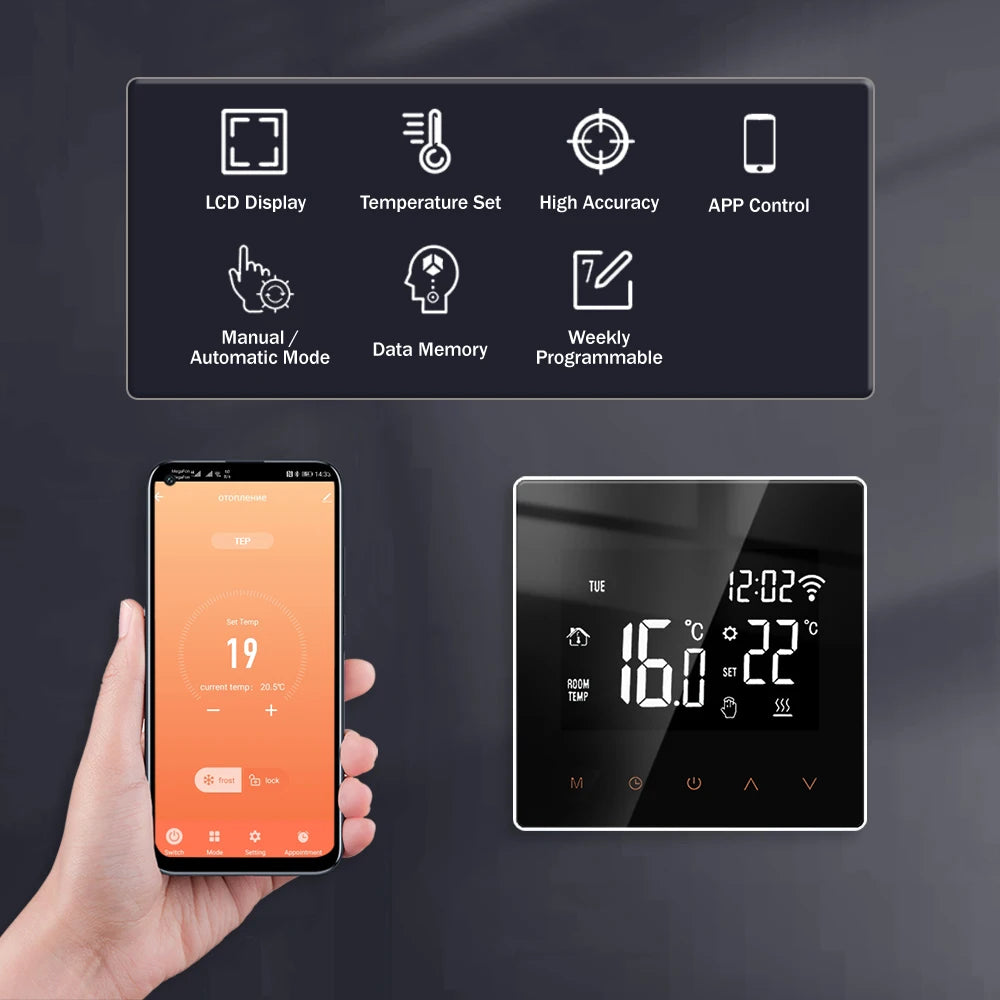

Function

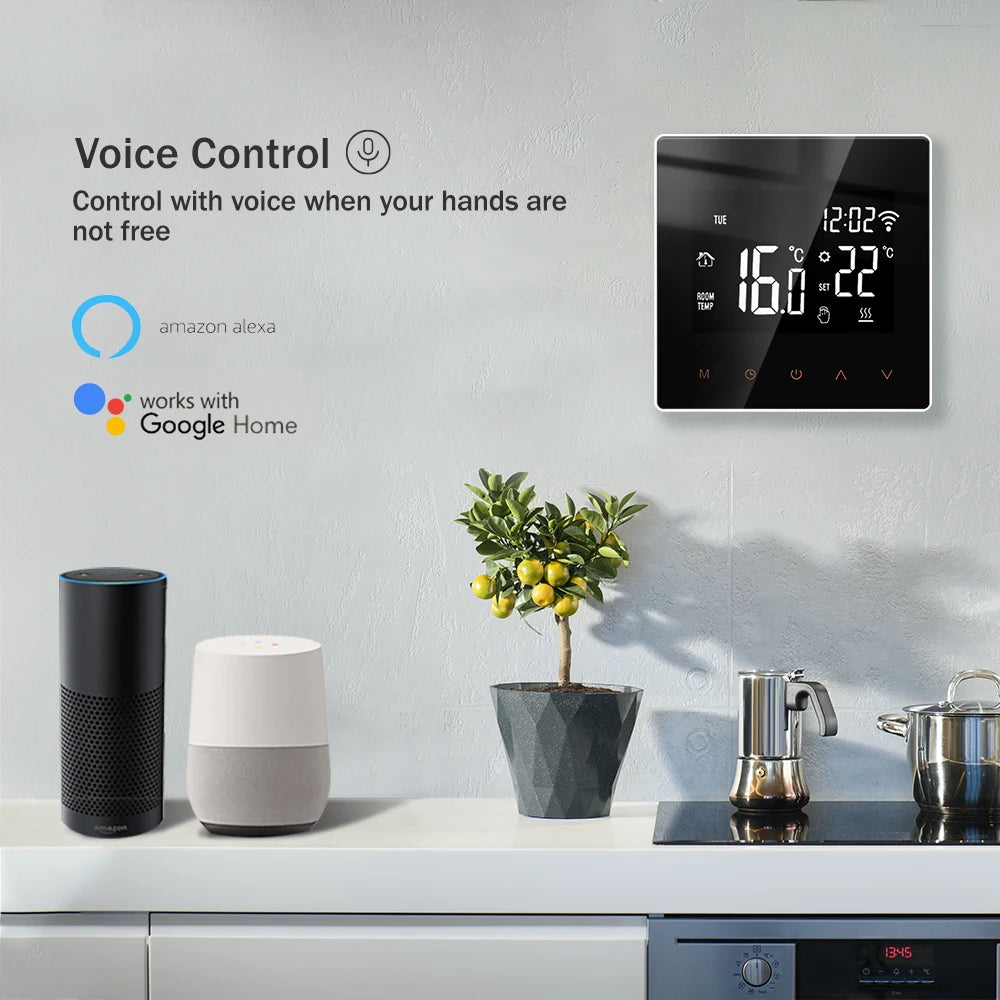

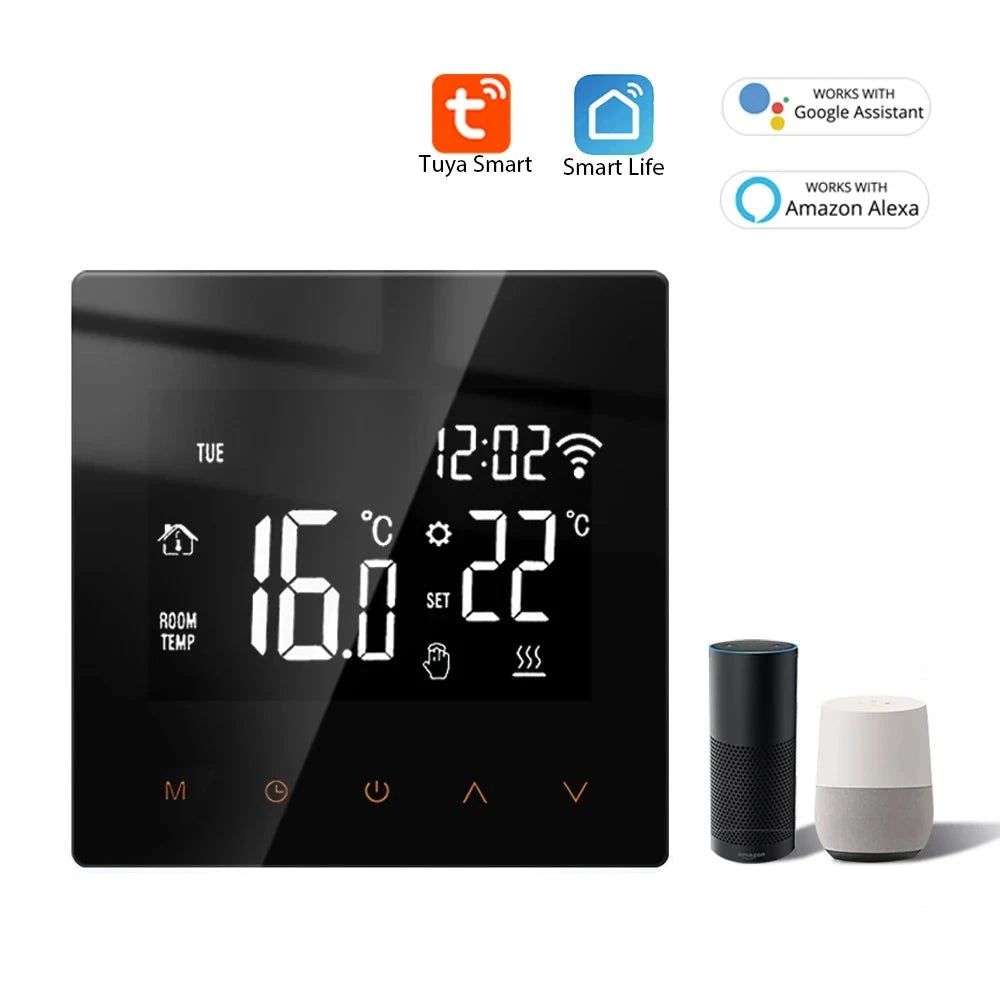

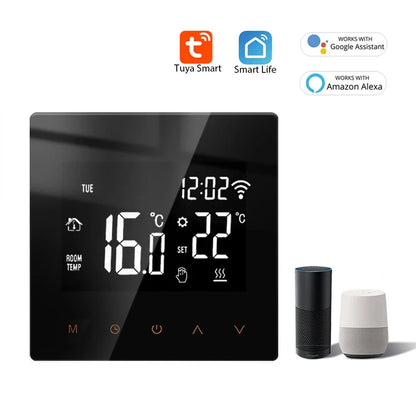

• ·Voice Control--Work with Amazon Alexa,Google Home

• ·LCD Touch Display--Elegant appearance, one face design, anti-scratch. Large LCD touch screen display with back light, easy to read.

• ·APP Control--Smart thermostat that can be controlled by your phone before you come back home.

• ·Manual/ Auto Mode--Free to choose manual mode or auto mode for different purposes.

• ·Accurate Temperature--Internal sensor floor sensor, perceptive ambient temperature and the floor's temperature. Automatically obtain the temperature, 1°C accuracy.

• ·Weekly Programmable--The thermostat supports different temperature setting accordingly with 6 time-modes daily.

• ·Memory Function--No need to worry about power failure, data memory when power is off.

• ·Children Lock--Keypad locking function is designed to prevent children from operating by mistake.

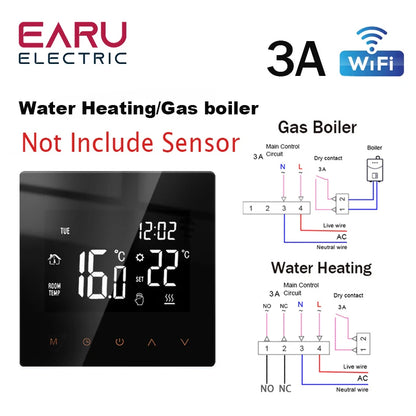

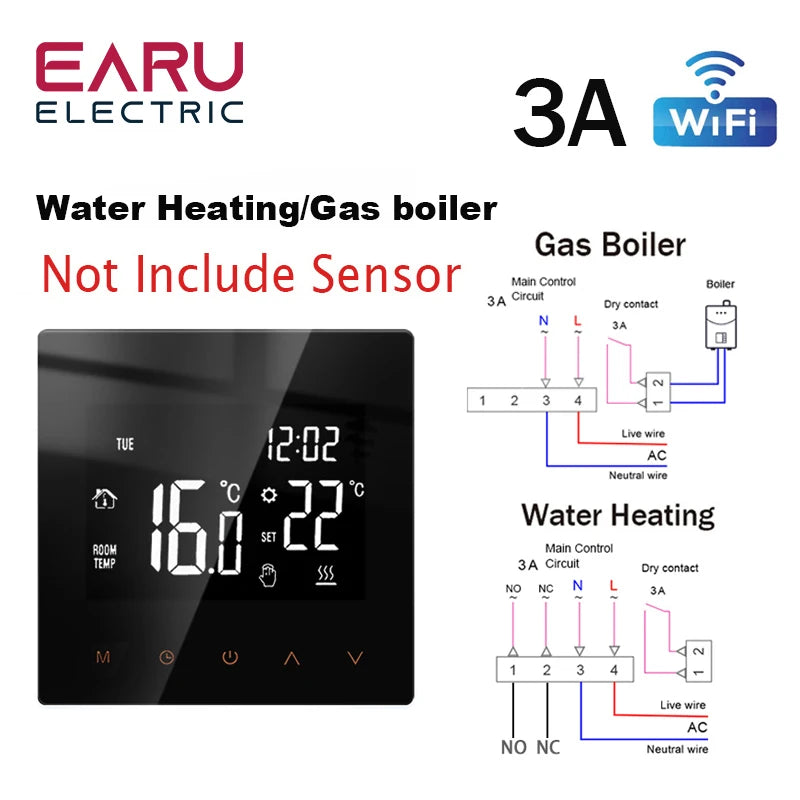

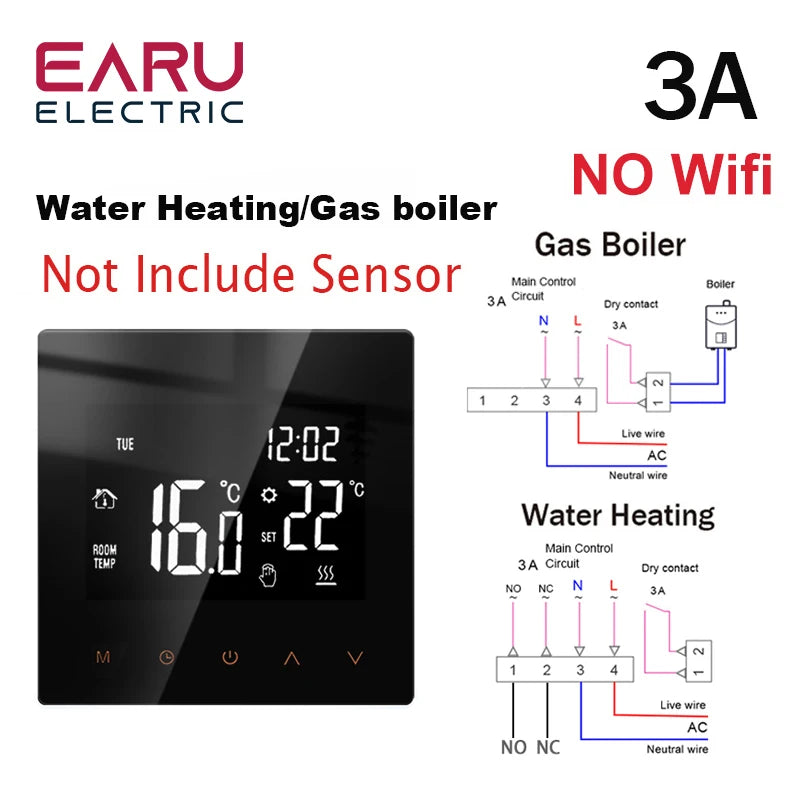

• ·Application--Suitable for electric heating/water gas boiler/water heating.Perfect for home, office, shopping mall, hotel, etc.
• ·Anti-frozen--In the state of shutdown,the thermostat will turn on the heating device automaticlly when the room temperature is below 5℃.when the room temperature is ablve 7℃,the thermostat will turn off the heating device automaticlly.

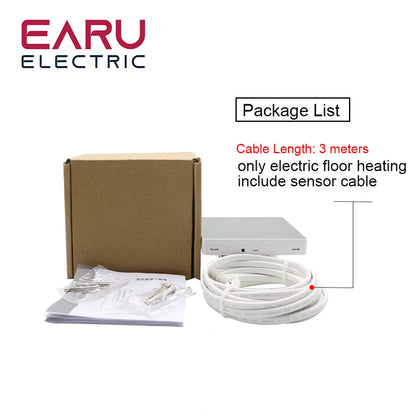

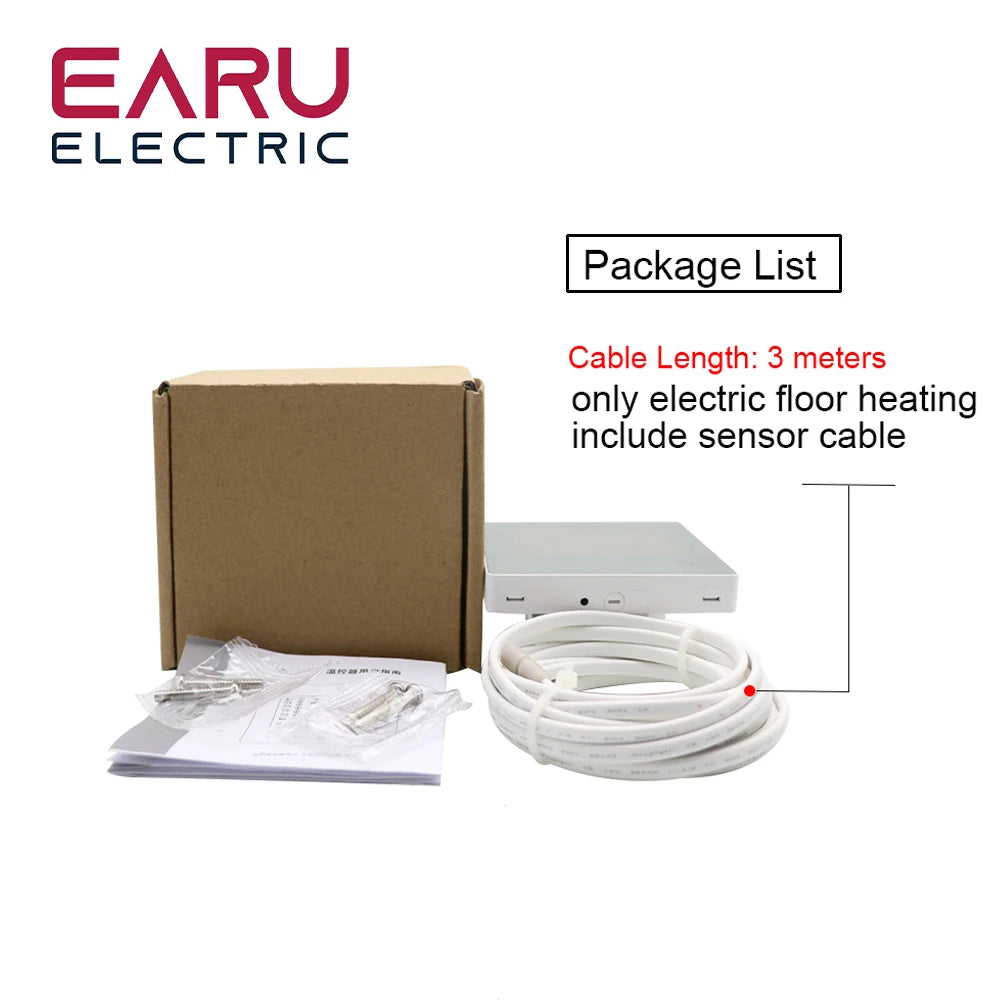

Packing List

• 1*Smart Thermostat

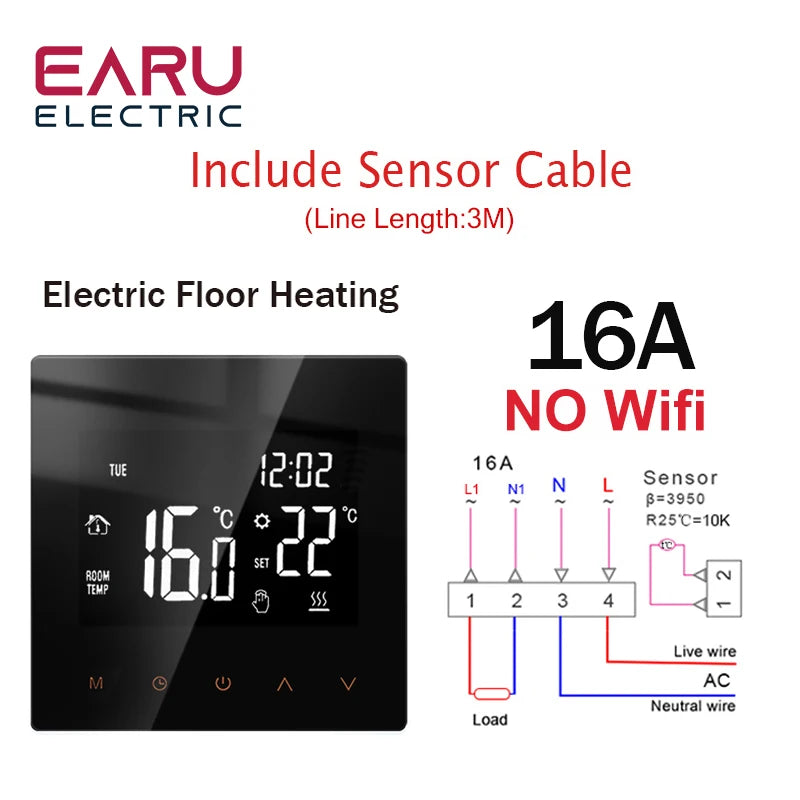

• 1*Sensor Probe(only electric floor heating include sensor cable)
• Screws
• Manual
