PWM 10A 20A 30A 100VDC Solar Charge Controller For 12V 24V 48V Lifepo4 GEL

PWM 10A 20A 30A 100VDC Solar Panel System Charge Controller PV Solar Battery Charging Regulator For 12V 24V 48V Lifepop4 GEL

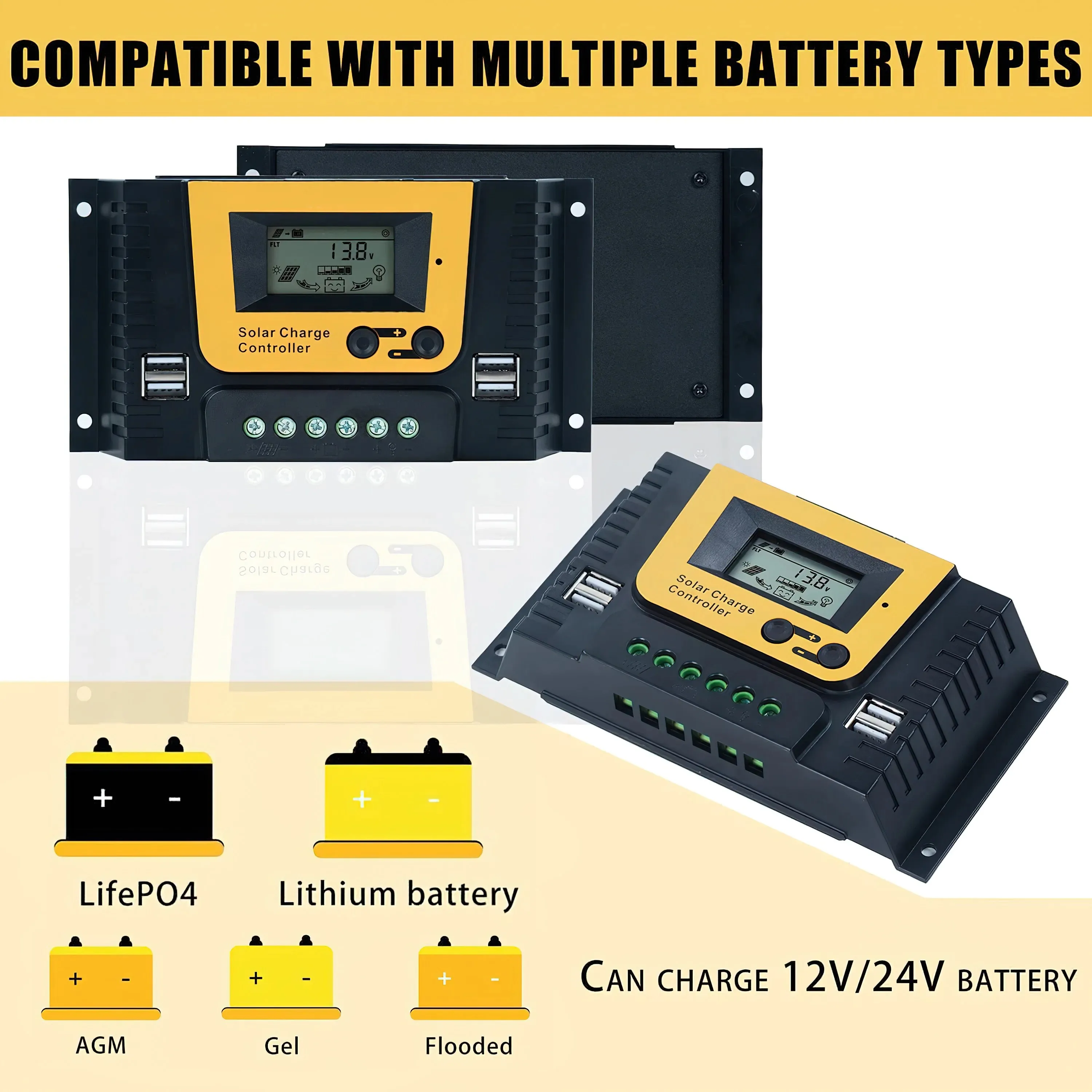

The PWM 10A 20A 30A 100VDC Solar Panel System Charge Controller PV Solar Battery Charging Regulator is an advanced and efficient solution for regulating solar energy in various battery systems. This controller is designed for 12V, 24V, and 48V Lifepo4 and GEL batteries, ensuring optimal performance and longevity.

• Maximum Current: 30A
• Voltage Options: 12V/24V/36V/48V Automatic recognition
• Max Open-Circuit Voltage: 100V
• USB Output: 5V/2A (Double)
• Protection Level: IP32
• Working Temperature: -20℃ to +50℃
• Technical Certifications: CE Certified

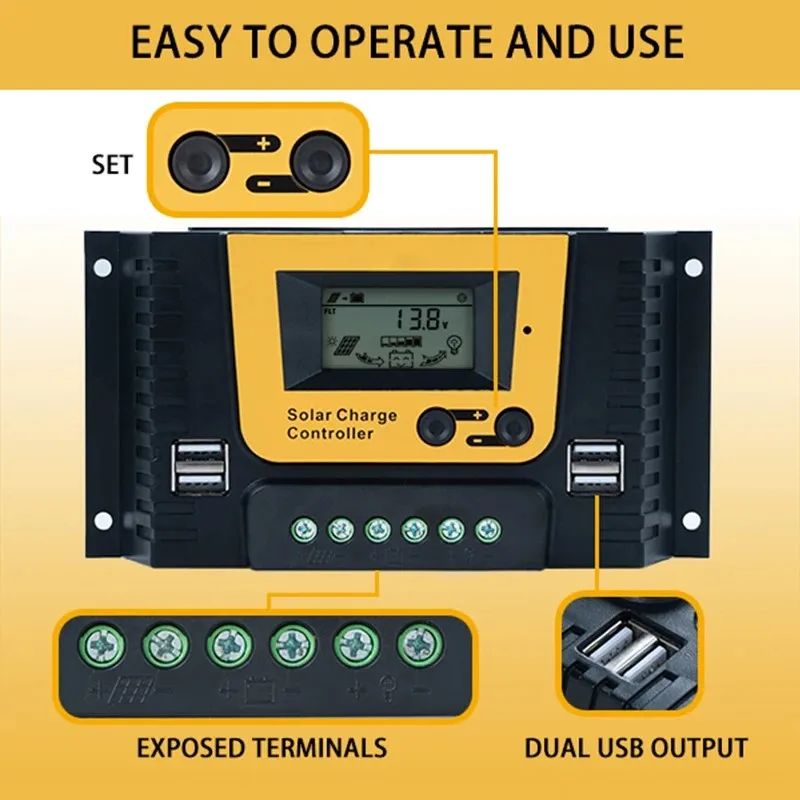

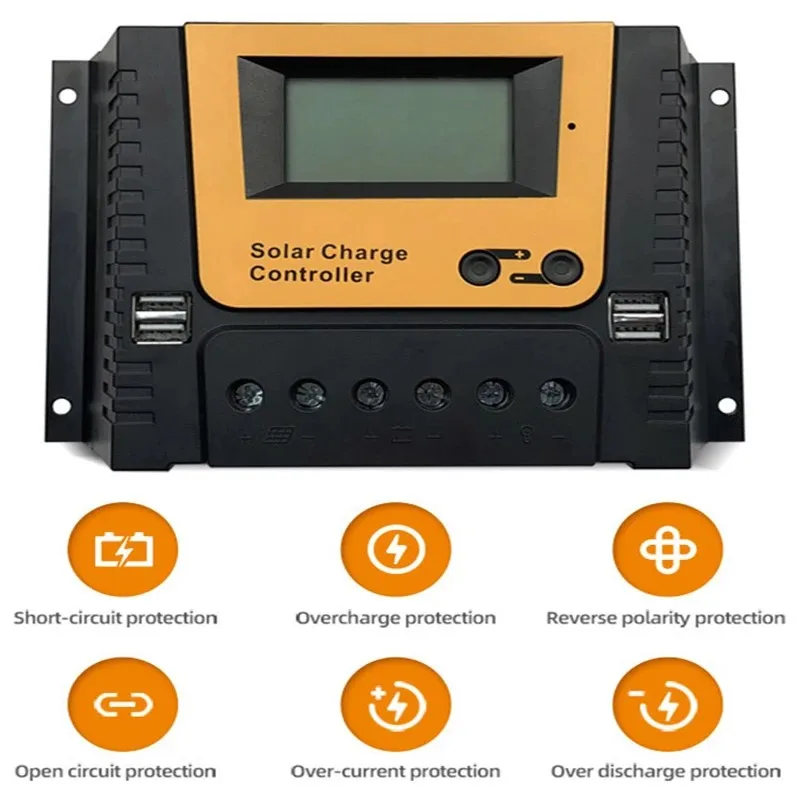

This intelligent PWM charge controller features an LCD display for easy monitoring and incorporates multiple load control modes, suitable for solar off-grid systems, traffic signals, and solar street lights. With automatic battery voltage detection and full protection against over-current, over-load, and reverse polarity, you can trust its reliability.

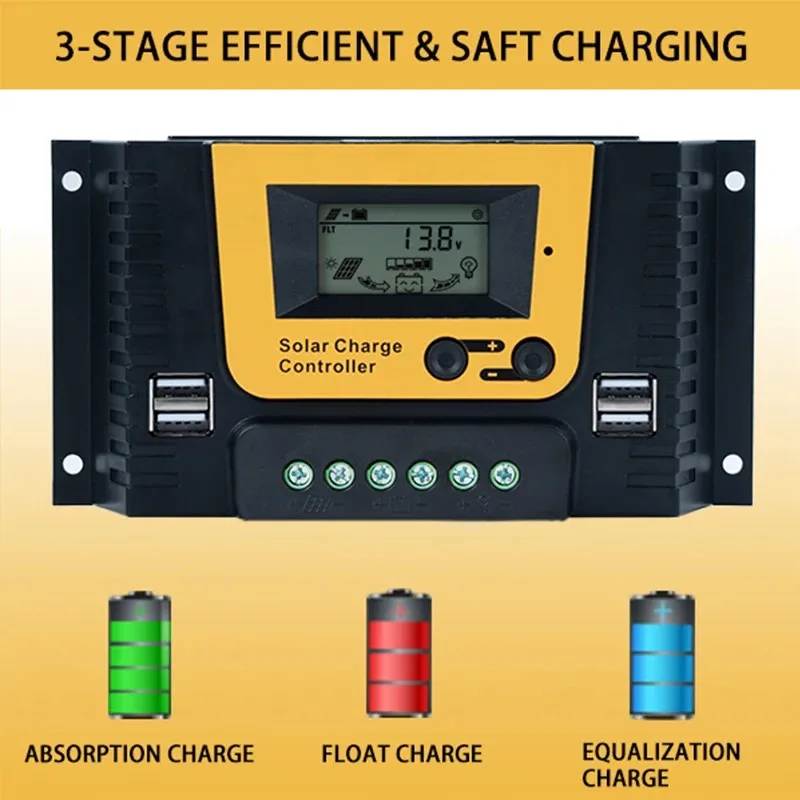

Its advanced 4-stage PWM charging (Bulk, Absorption, Equalize, Float) ensures efficient battery charging while preventing overheating. The controller is also equipped with automatic temperature compensation to enhance performance and reliability.

Upgrade your solar energy system today with the PWM 10A 20A 30A 100VDC Solar Panel System Charge Controller and experience the benefits of an intelligent, efficient, and versatile charging solution!

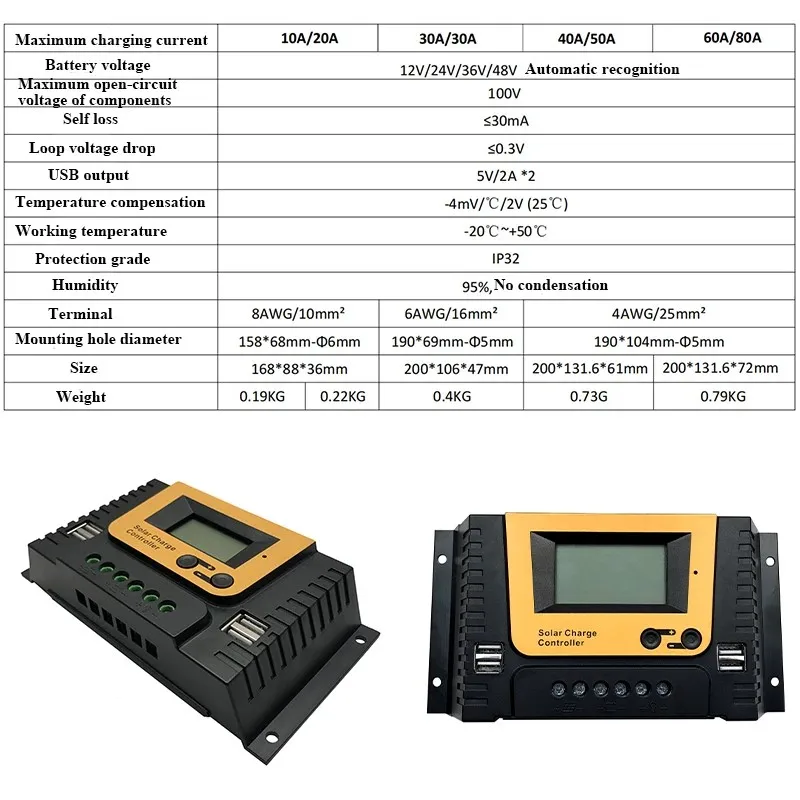

Technical Specifications

• Maximum Current: 30A
• Self Loss: ≤30mA
• Loop Voltage Drop: ≤0.3V
• Temperature Compensation: -4mV/℃/2V(25℃)
• Humidity: 95% No Condensation
• Mounting Hole Diameter: Various sizes available
• Weight: Ranges from 0.19KG to 0.79KG depending on the model

Frequently Asked Questions (FAQ)

• What is the shipping cost? Between $29 and $199 depending on location.
• What are the product specifications? Maximum current: 30A, voltage options: 12V/24V/36V/48V, and max open-circuit voltage: 100V.
