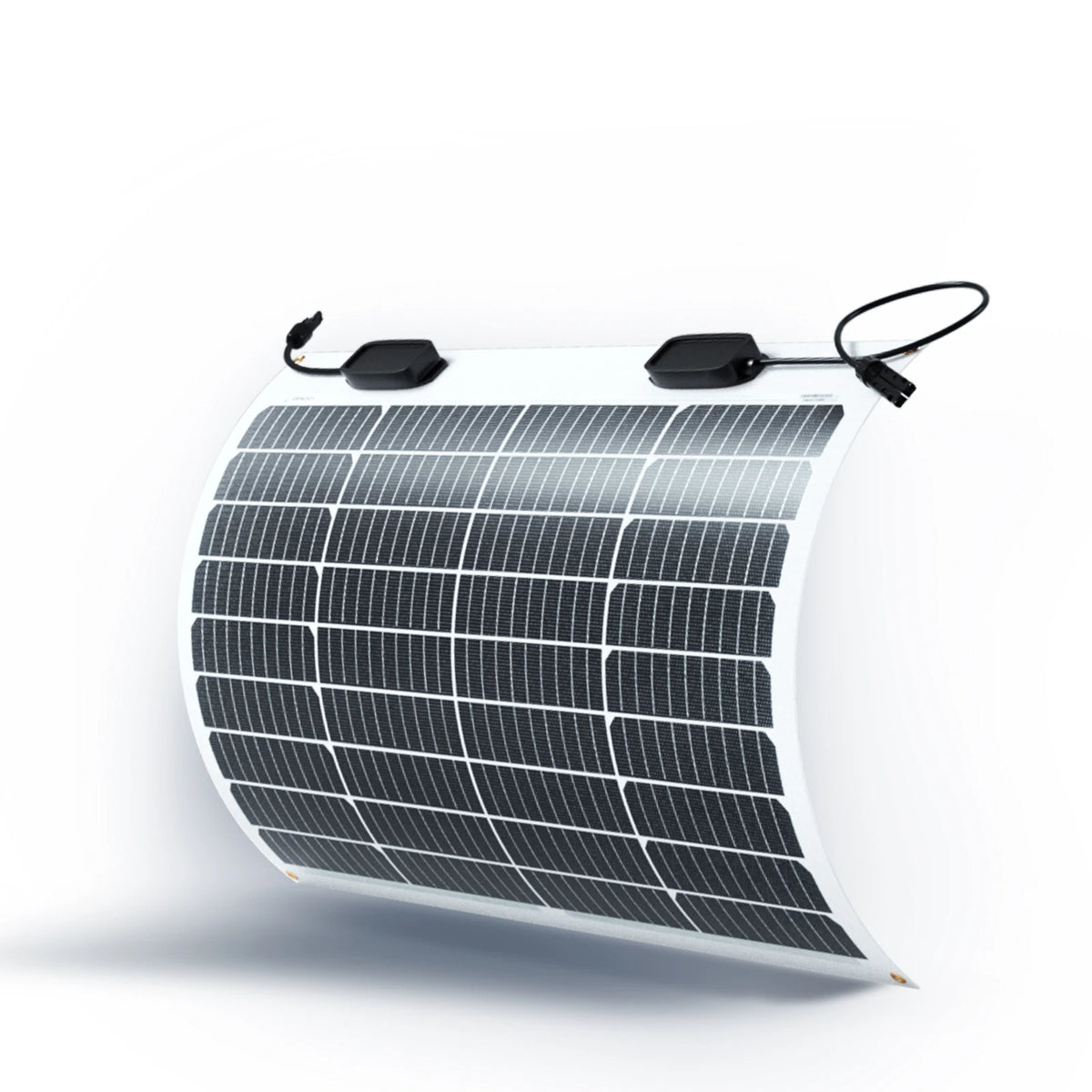

Solar Panel 50W 12 Volt Monocrystalline Semi-Flexible Charger

Solar Panel 50W 12 Volt Monocrystalline Semi-Flexible Charger

Prix habituel $229.07 USD
Prix habituel Prix promotionnel $229.07 USD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.
Color
Ships From

Efficiently charge your devices with our Solar Panel, featuring 50W power, 12V monocrystalline cells, and bendable design for off-grid use. Convert up to 23% of solar energy into usable power and enjoy the flexibility of a semi-flexible, lightweight, and durable panel.

Specifications

  • Maximum Power at STC: 50W
  • Open Circuit Voltage: 24.3V
  • Short Circuit Current: 2.75A
  • Optimum Operating Voltage: 20.3V
  • Optimum Operating Current: 2.47A
  • Module Efficiency: 14.4%
  • Maximum System Voltage: 600 VDC UL
  • Maximum Series Fuse Rating: 15A
  • MECHANICAL SPECIFICATIONS
  • Cell Type: Monocrystalline (6.25 x 1.85 in)
  • Number of Cells: 36 (4 x 9)
  • Dimensions: 26.9 x 20.0x 0.16 in (683 x 508 x 4 mm)
  • Weight: 2.87 lbs (1.3 kg)
  • Front Glass: Tempered Glass 0.13 in (3.2 mm)
  • Frame: Black Anodized Aluminum Alloy
  • Connectors: Solar Connectors
  • Fire Rating: Class C
  • THERMAL CHARACTERISTICS
  • Operating Temperature: -40°F to 185°F(-40ºC to +85ºC)
  • Nominal Operating Cell Temerature (NOCT): 45±2ºC
  • Temperature Coefficient of Pmax: -0.37%/C
  • Temperature Coefficient of Voc: -0.28%/C
  • Temperature Coefficient of Isc: 0.048%/C
  • SOLAR CONNECTORS
  • Rated Current: 30A
  • Maximum Voltage: 1000VDC
  • Maximum AWG Size Range: 10AWG
  • Temperature Range: -40ºF to 194ºF
  • IP Rating: IP 67

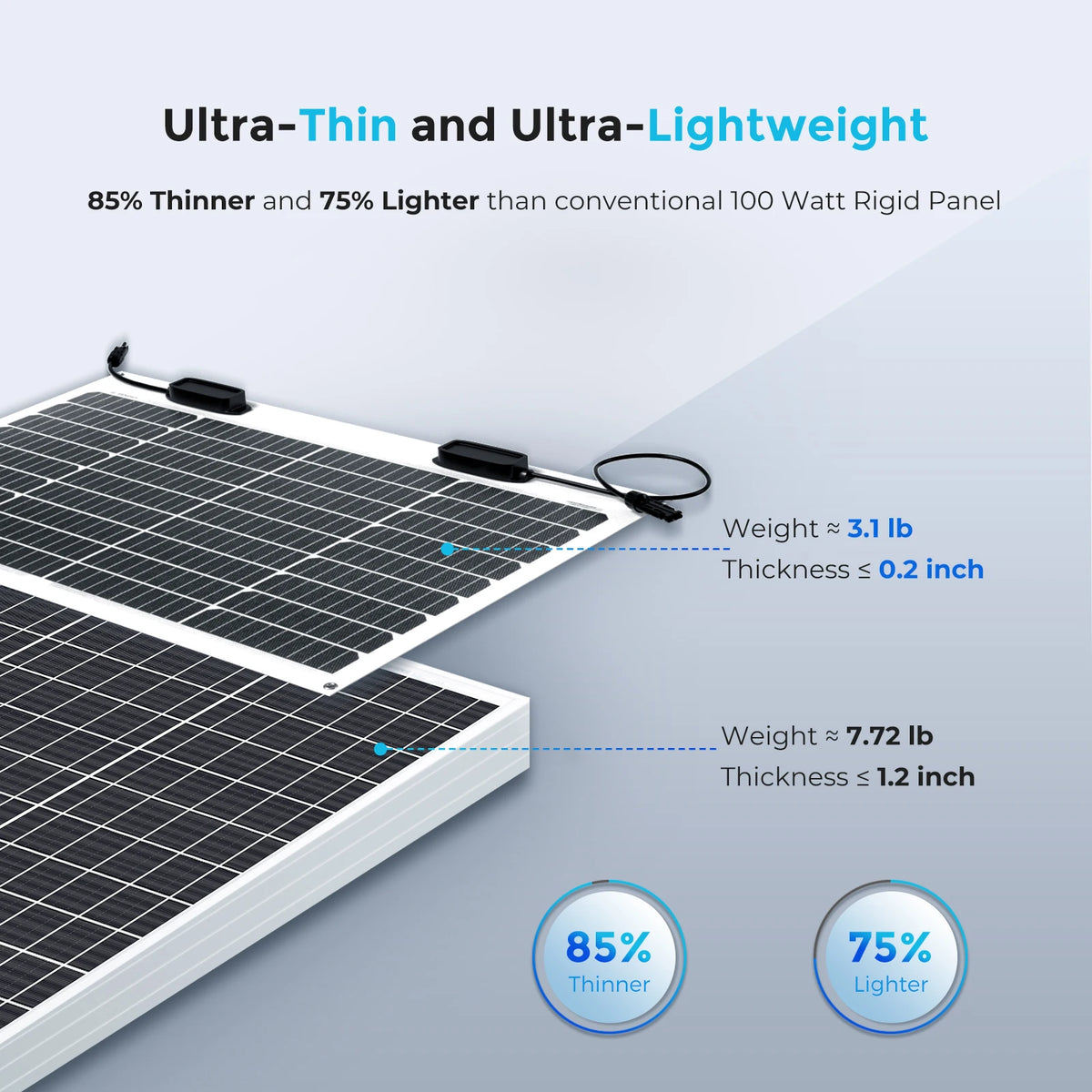

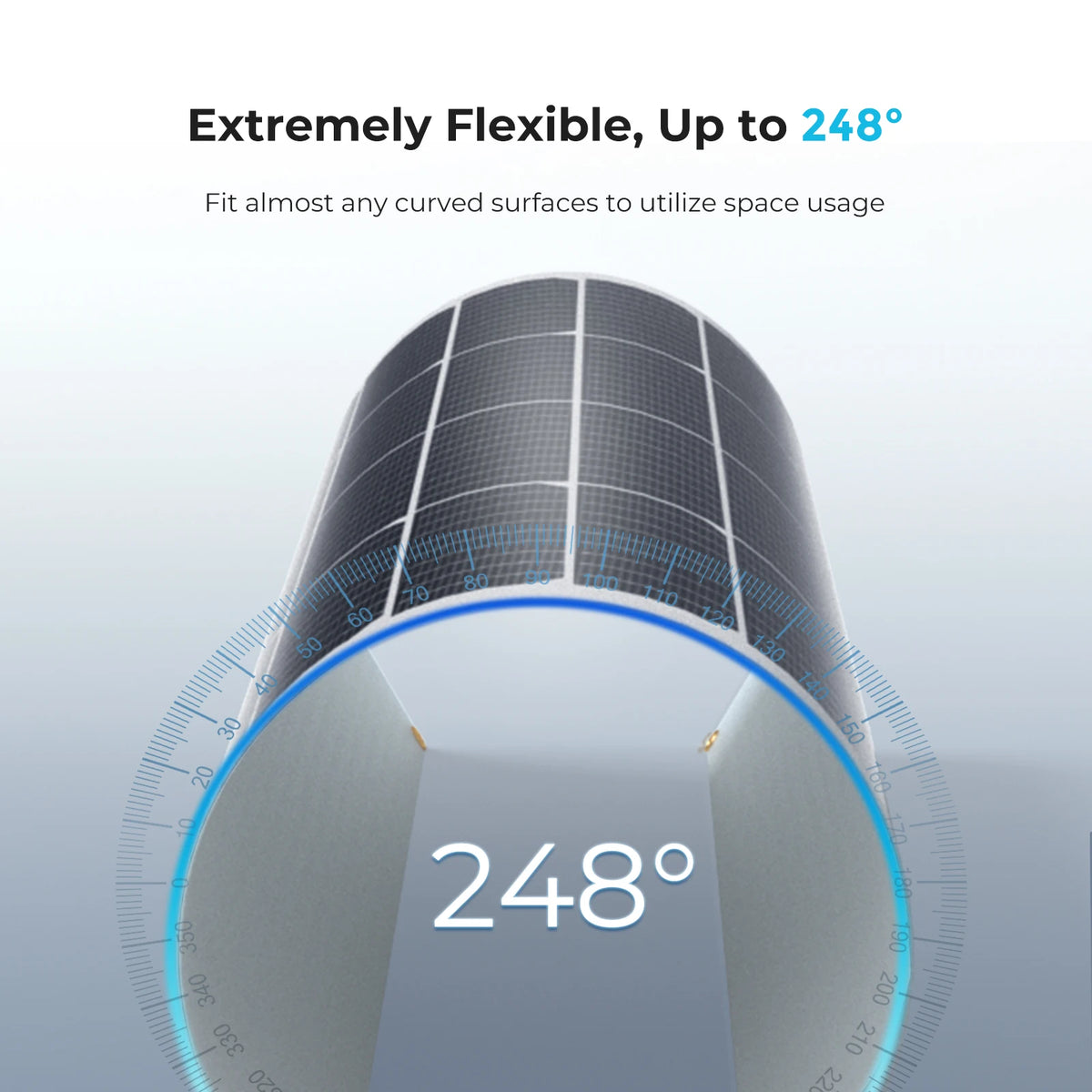

Traditional solar panels are rigid and often enclosed in tempered glass. The Renogy 50W Flexible Solar Panel is anything but traditional. Perfect for marine use or placement on top of a van or vehicle, the Renogy 50W Lightweight Solar Panel is thin and capable of flexing up to 248 degrees. At 2.87 pounds, this flexible solar panel weighs only a quarter of its traditional 50W counterpart. Highly flexible, this lightweight panel can easily be installed on curved surfaces. This 50 watt solar panel can also be used for other various applications, including providing power on a boat or teardrop trailer. The 50W solar panel supports series and parallel connections, and you can expand your flexible solar panel system to meet every need. The Renogy 50 Watt Flexible Monocrystalline Panel can be primarily used on off-grid application.
