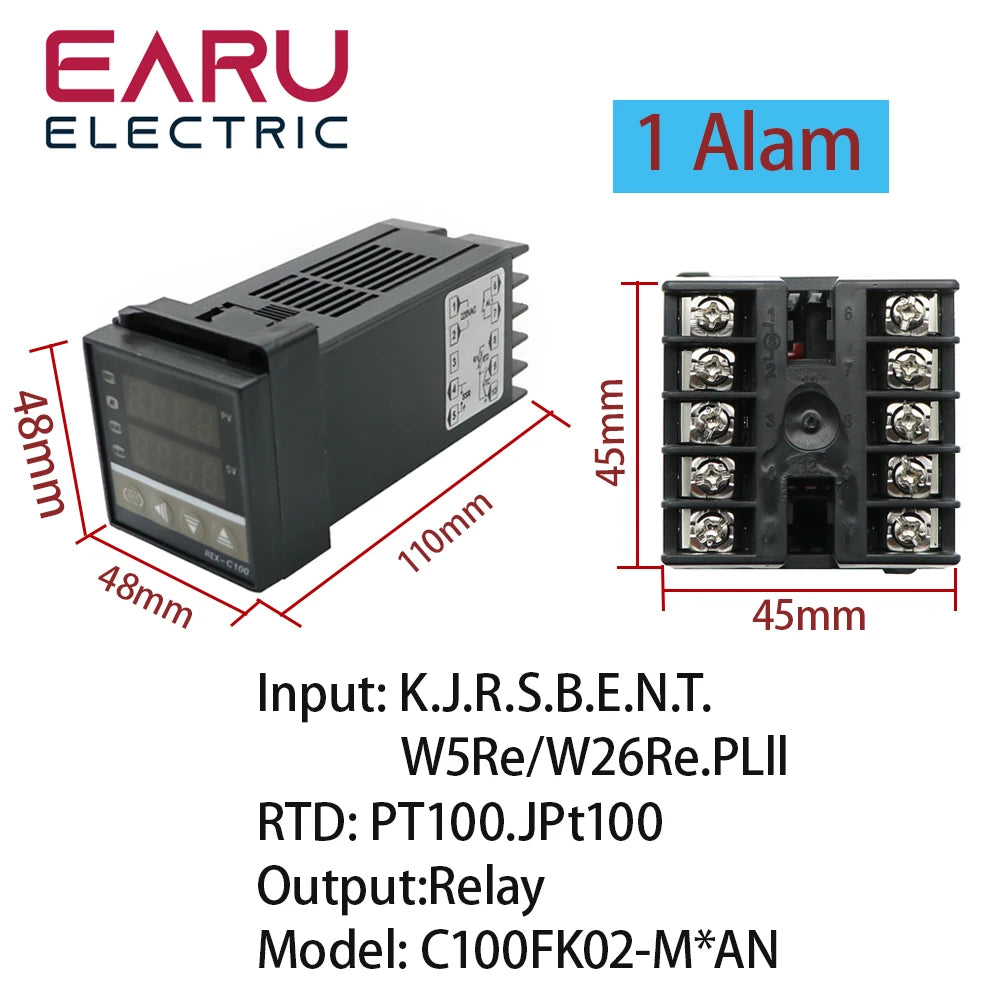

REX-C100 PID Intelligent Temperature Controller Universal REX-C100 Thermostat SSR Relay output Universal K PT100 J Type Input

REX-C100 PID Intelligent Temperature Controller Universal REX-C100 Thermostat SSR Relay output Universal K PT100 J Type Input

Prix habituel $16.70 USD
Prix habituel $0.00 USD Prix promotionnel $16.70 USD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.
Color

The REX-C100 PID Intelligent Temperature Controller is your versatile solution for precise temperature control. With universal compatibility and SSR relay output, it offers an accurate and efficient operation. Enjoy the convenience of K and PT100 J type inputs, ensuring reliable and consistent readings. Improve your temperature-dependent processes with this high-performing and user-friendly thermostat.

SPECIFICATIONS

  • Output: Relay/SSR
  • Power: AC220V
  • Model Number: REX-C100FK02-V*AN DA
  • Measure Type: :K,J,E,R,Js,B,N,T,PT00,Cu50
  • Brand Name: EARUELETRIC
  • Max Measuring Temperature: 120°C & Above
  • Style: Standing Station
  • Model Number: REXC100
  • Theory: Temperature Controller
  • Power Type: None
  • Display Type: DIGITAL
  • Usage: Industrial
  • Measure Type: K
  • Display Size: 1.9 Inches & Under

Specifications:

  • Display: Dual display for Celsius (C)
  • Range: -0-400C (Only when with the factory K type thermocouple)
  • Main Output: SSR/Realy
  • PID cooling/heating control
  • 1 RELAY alarm: Normal open, capacity 250V/3A AC or 30V/3A DC
  • 7 different Dual Output combinations with: high / low / high deviation / low deviation /interval / out of interval / breakage alarm
  • Accuracy: 0.5%
  • Input:K,J,E,R,Js,B,N,T,PT00,Cu50
  • Individually programmable PID control parameters.P, I, d, controlling period, digital filter coefficient, and more
  • SSR control ready to connect
  • Compact design:DIN 1/8 great form-factor to be included/build-in to your product.
  • Alarm output: 1 line output, 7 kinds of alarm mode: high/low/high deviation/low deviation/interval/out of interval/breakage alarm.
