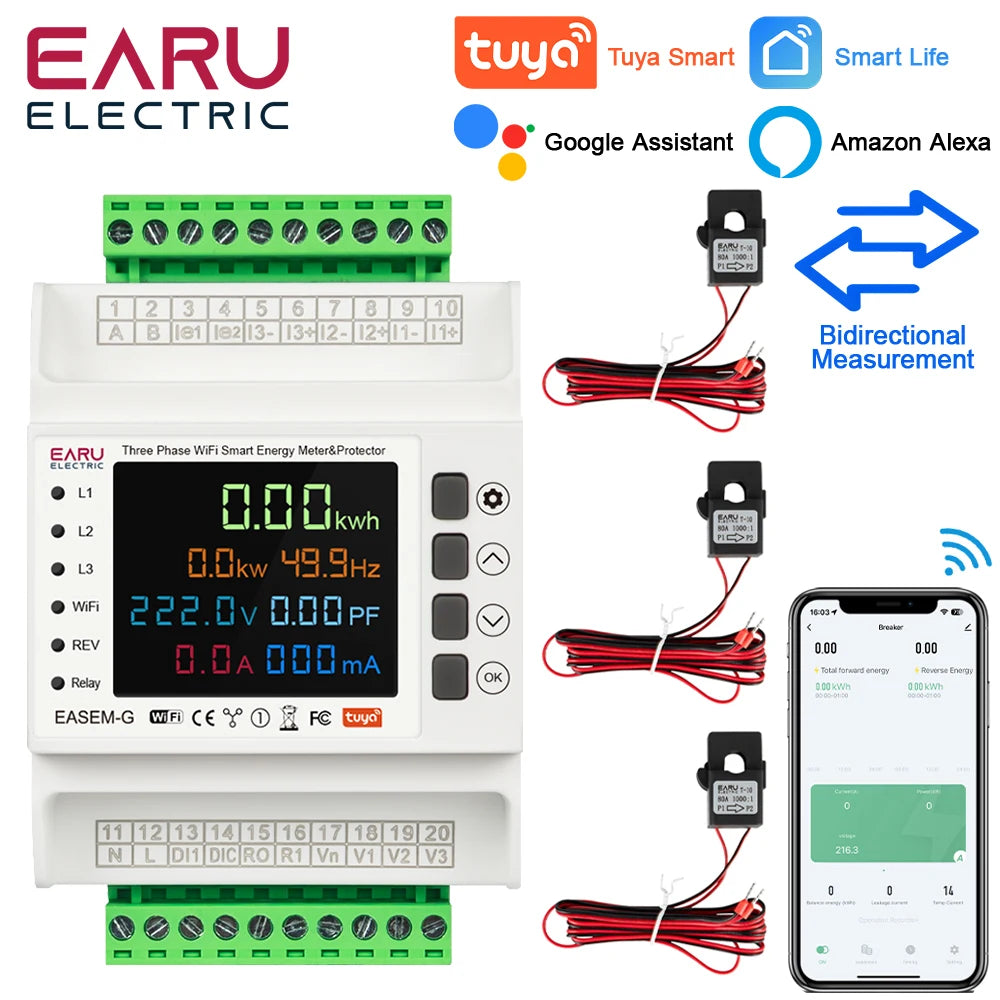

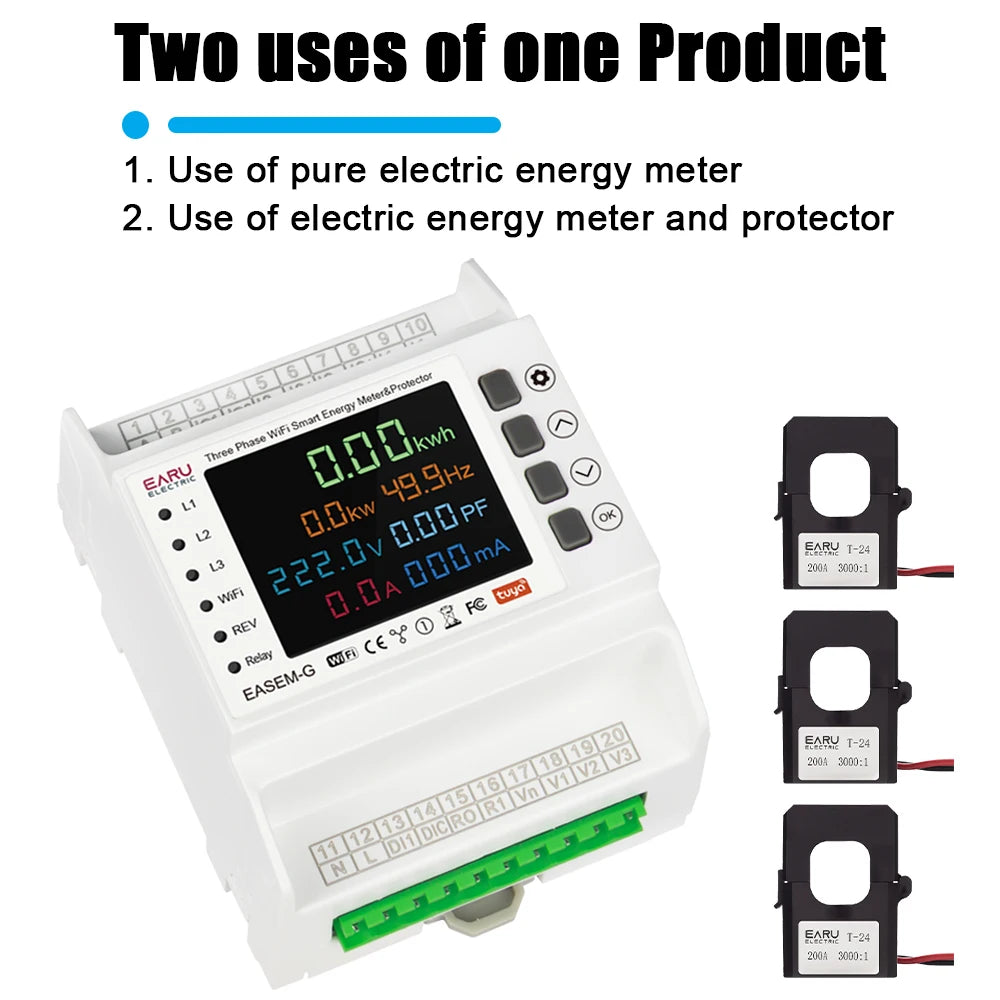

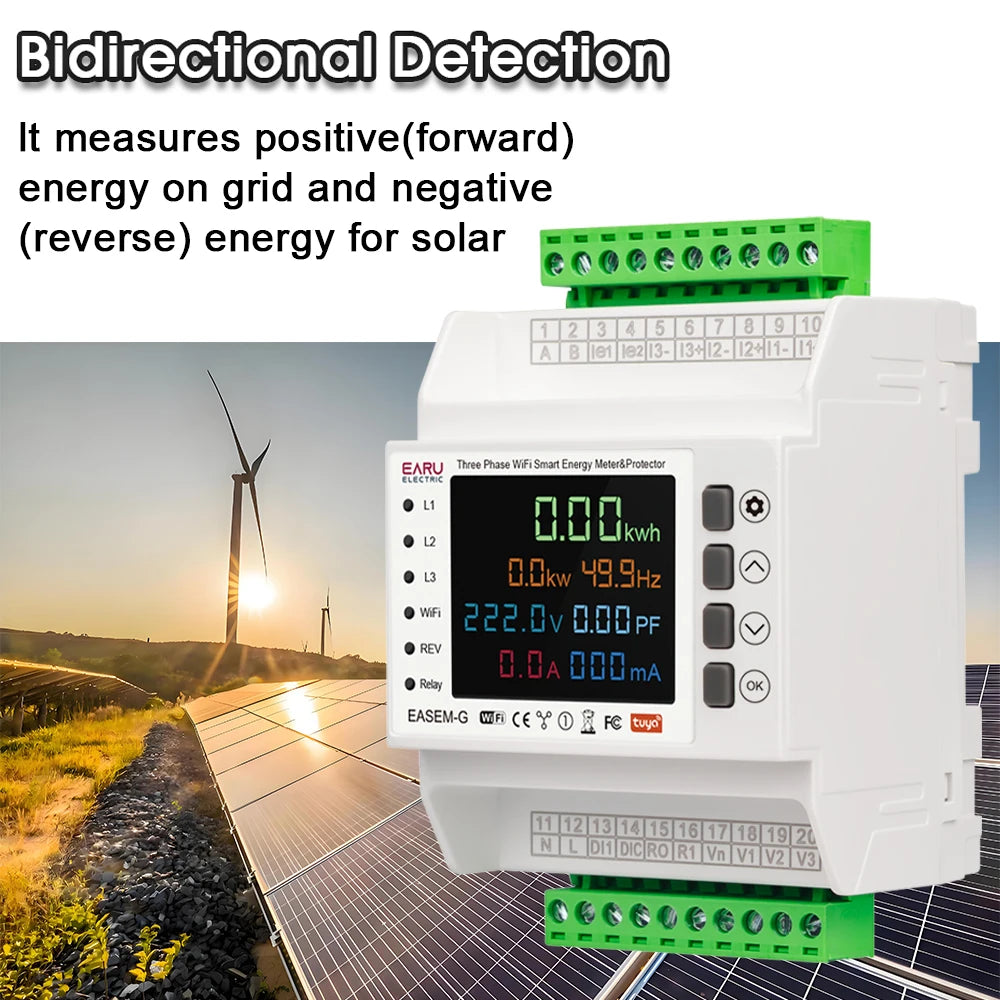

Three Phase Tuya WiFi Smart Bi-Directional Energy Meter with 3 CT Clamps Leakage Over Under Voltage Protector Relay Switch Limit

Three Phase Tuya WiFi Smart Bi-Directional Energy Meter with 3 CT Clamps Leakage Over Under Voltage Protector Relay Switch Limit

$380.05 USD
$0.00 USD $380.05 USD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.
Size

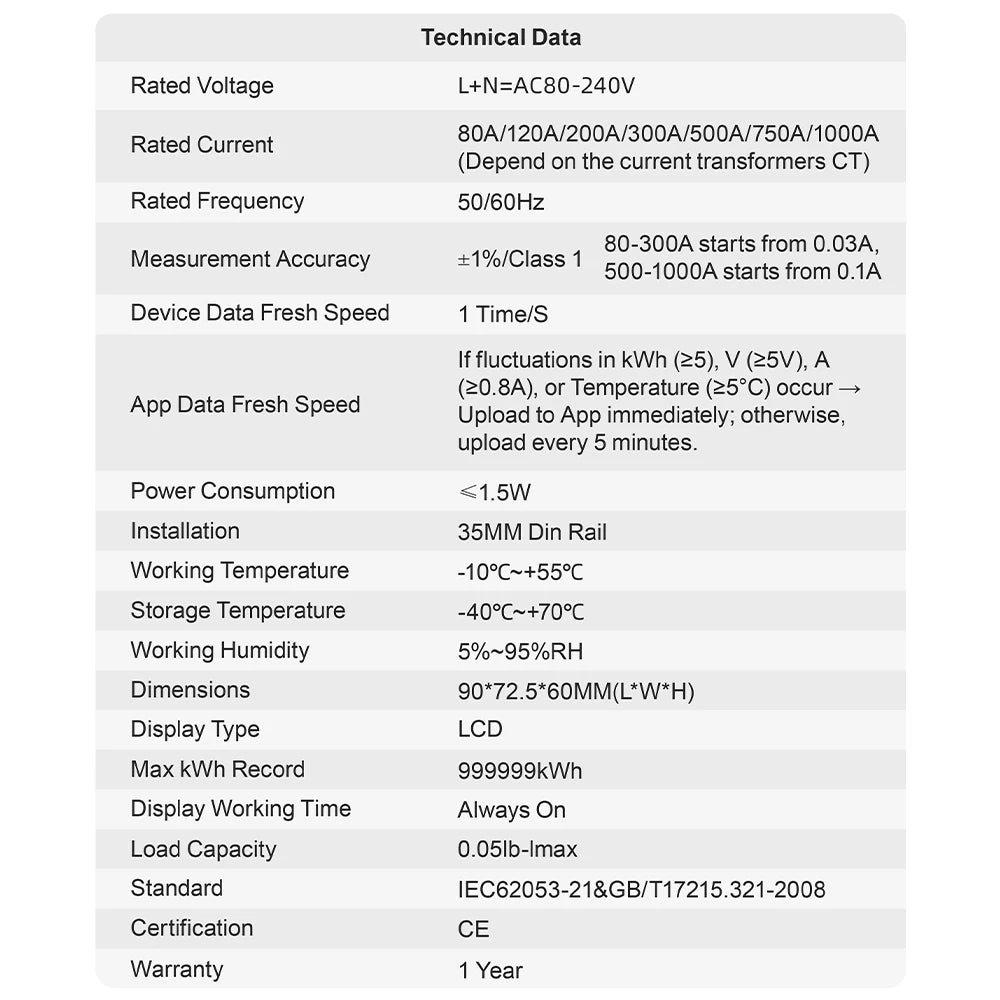

SPECIFICATIONS

Accuracy Class: ±1%

Battery Included: No

Brand Name: EARU

Certification: CE,FCC

Choice: yes

DIY Supplies: Electrical

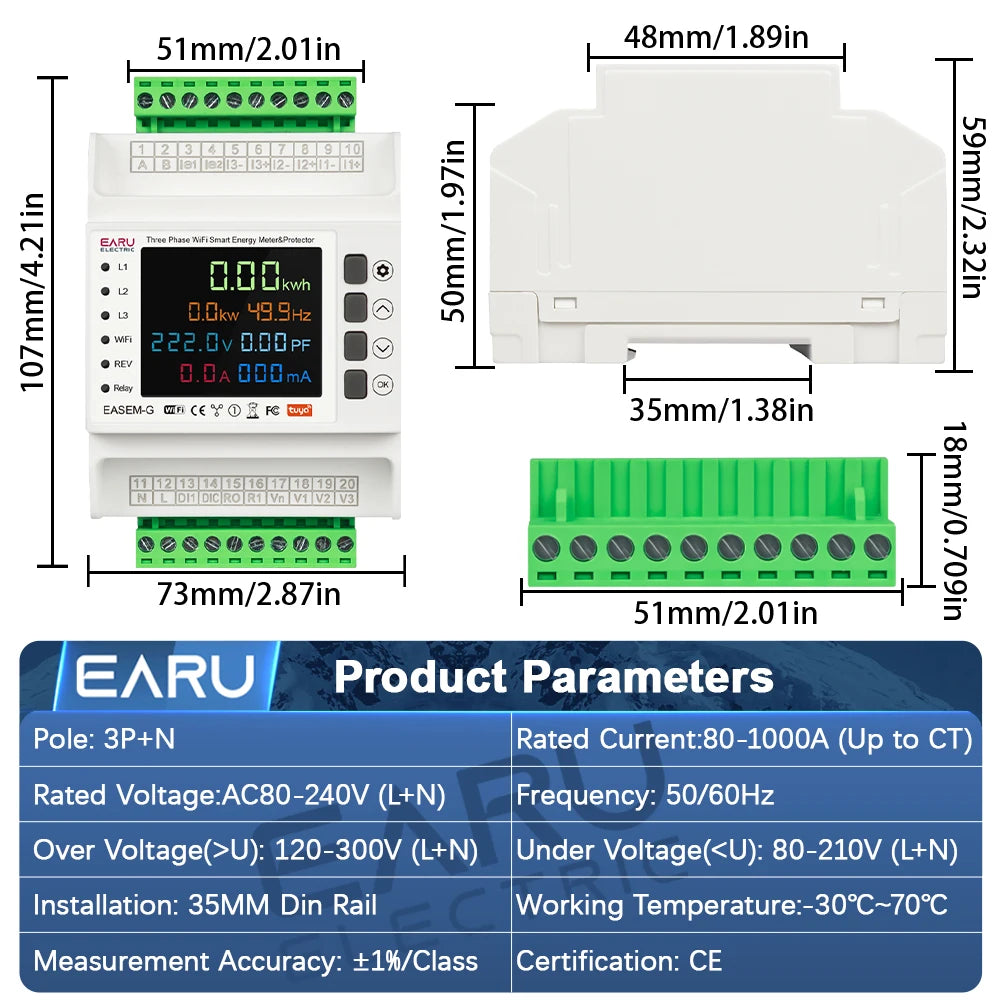

Dimensions: 73*51*59mm

Display Mode: Display Mode 1and2 (Default:Display Mode 1)

Display Type: LCD

High Temperature Alarm: 10℃-85℃ (Adjustable) (Default:85℃)

High-concerned chemical: None

Leakage Current Limit: 10-99A (Adjustable)(Default:29mA)

Lost Current Recovery Delay Time: 1-9999s (Adjustable)(Default:20s)

Max Operating Current: 80A - 99A

Measuring Energy Range: 0-99999.99kWh

Model Number: EASEM-G-TY-W

Operating Temperature: -30℃~70℃

Operation Voltage: AC80V-400V(Single Phase)

Origin: Mainland China

Over & Under Current Protection Delay: 0000-9999s (Adjustable) (Default:5s)

Over & Under Current Protection Recovery Time: 0000-9999s (Adjustable)(Default:20s)

Over & Under Voltage Protection Recovery Time: 1-9999s (Adjustable) (Default:20s)

Over Current Limit: 1-100A (Adjustable)(Default:80A)

Over Voltage Limit: 120-300V (Adjustable) (Default:275V)

Phase: Three Phase

Power Source: AC

Power Supply: AC

Rated Voltage: 380V

Three-Phase Current Imbalance Alarm: 10-100% (Adjustable) (Default:20%)

Time Threshold of Lost Flow Event: 1-999s (Adjustable) (Default:10s)

Under & Over Voltage Protection Delay: 1-9999s (Adjustable) (Default:3s)

Under Current Limit: 1-100A (Adjustable) (Default:10A)

Under Voltage Limit: 80-210V (Adjustable) (Default:175V)

Voltage Three-Phase Imbalance Alarm: 0-100% (Adjustable)(Default:20%)

semi_Choice: yes

Our factory can provide OEM service to manufacture this device with your brand, logo, if you get any need, feel free to contact the buyer!

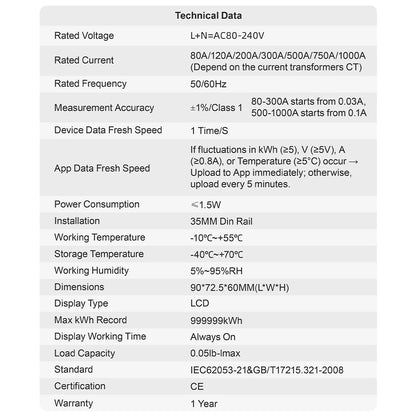

Product Specification

Rated Voltage: AC380V;

Operation Voltage:AC80V-400V(Single Phase);

Frequency: 50Hz/60Hz

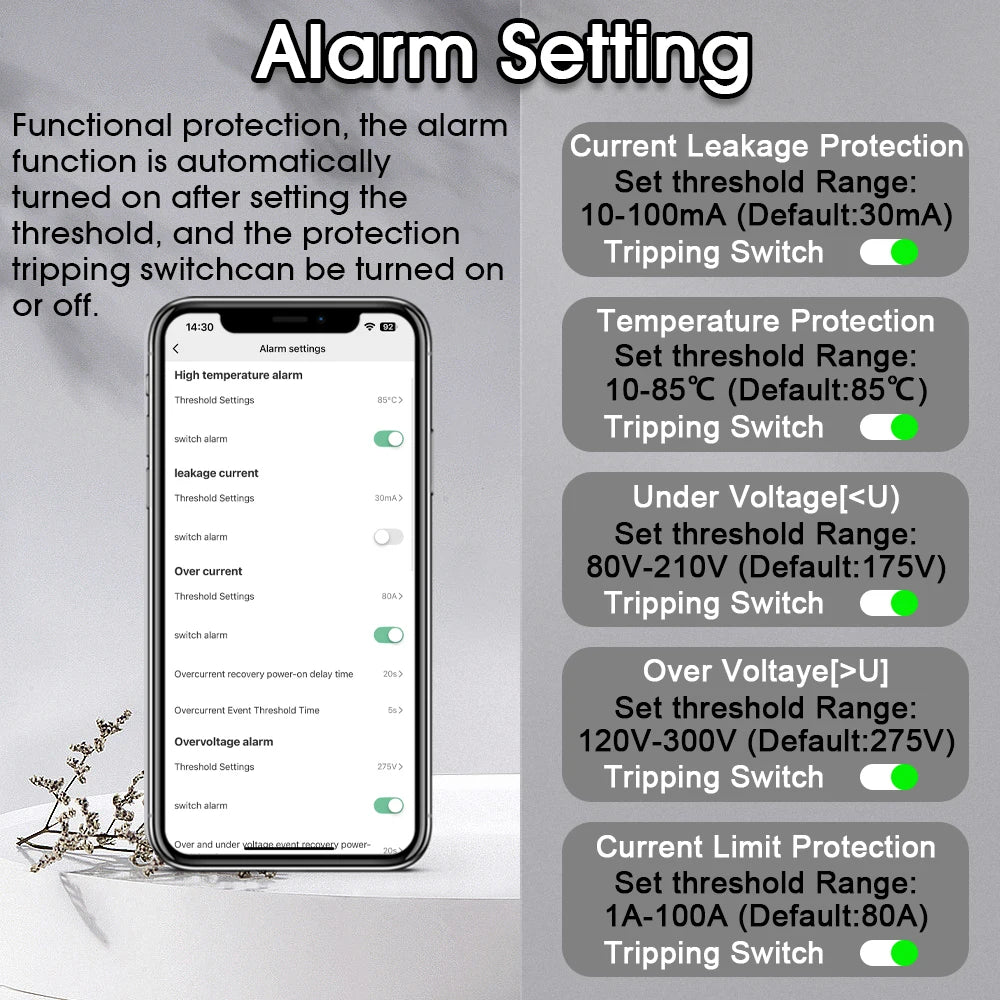

Function:

1.Over Voltage Limit:120-300V (Adjustable)(Default:275V)

2.Under Voltage Limit:80-210V(Adjustable)(Default:175V)

3.Over Current Limit:1-100A (Adjustable) (Default:80A)

4.Under Current Limit:1-100A (Adjustable)(Default:10A)

5.Leakage Current Limit:10-100mA (Adjustable) (Default:30mA)(Used with Transformers)

6.High Temperature Alarm:10-85℃ (Adjustable) (Default:85℃)

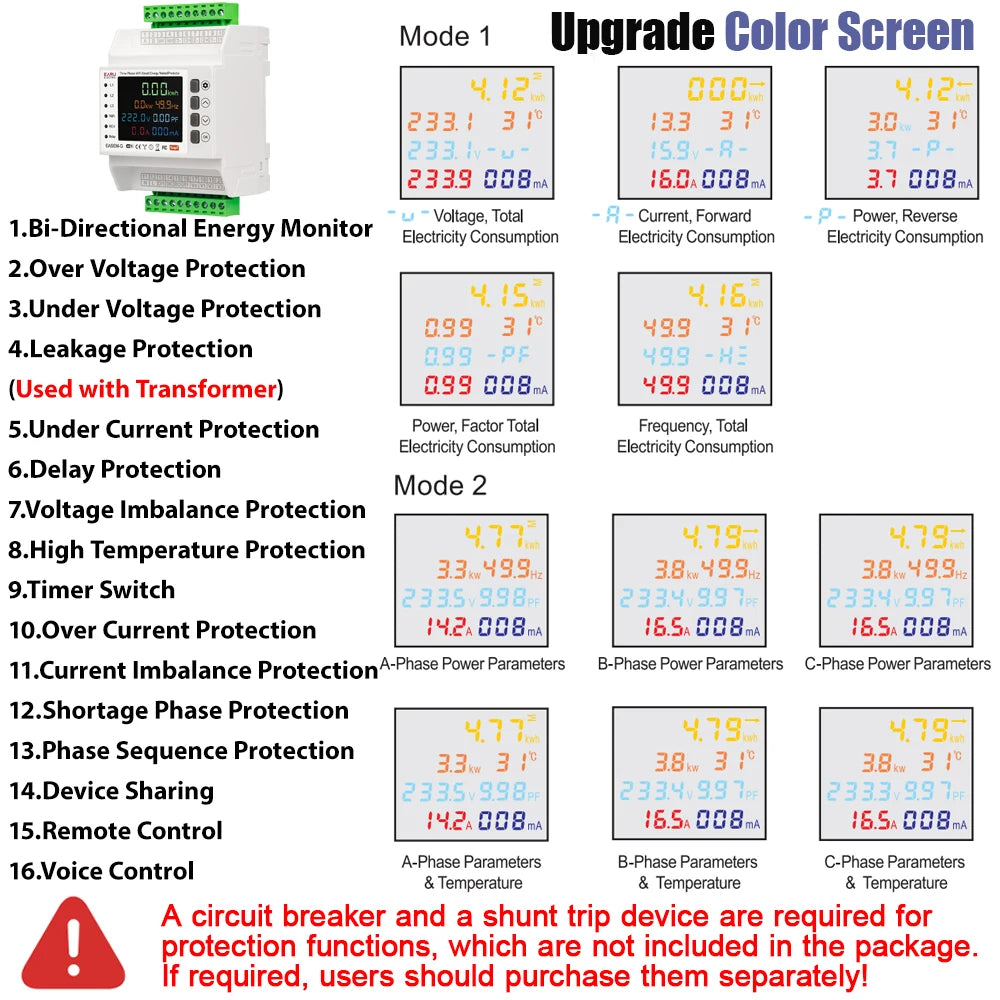

7.Display Mode:Display Mode 1、2 (Default:Display Mode 1)

8.Over & Under Voltage Protection Recovery Time:1-9999s (Adjustable)(Default:20s)

9.Over & Under Current Protection Delay:0000-9999s (Adjustable) (Default:5s)

10.Over & Under Current Protection Recovery Time:0000-9999s (Adjustable) (Default:20s)

11.Under & Over VoltageProtection Delay:1-9999s (Adjustable)(Default:3s)

12.Three-Phase Current Imbalance Alarm:10-100% (Adjustable) (Default:20%)

13.Voltage Three-Phase Imbalance Alarm:0-100% (Adjustable)(Default:20%)

14.Lost Current Recovery Delay Time:1-9999s (Adjustable) (Default:20s)

15.Time Threshold of Lost Flow Event:1-999s (Adjustable)(Default:10s)

16.Energy Consumption Zero Clearing:Default OFF

17.Factory Settings Reset:Default OFF

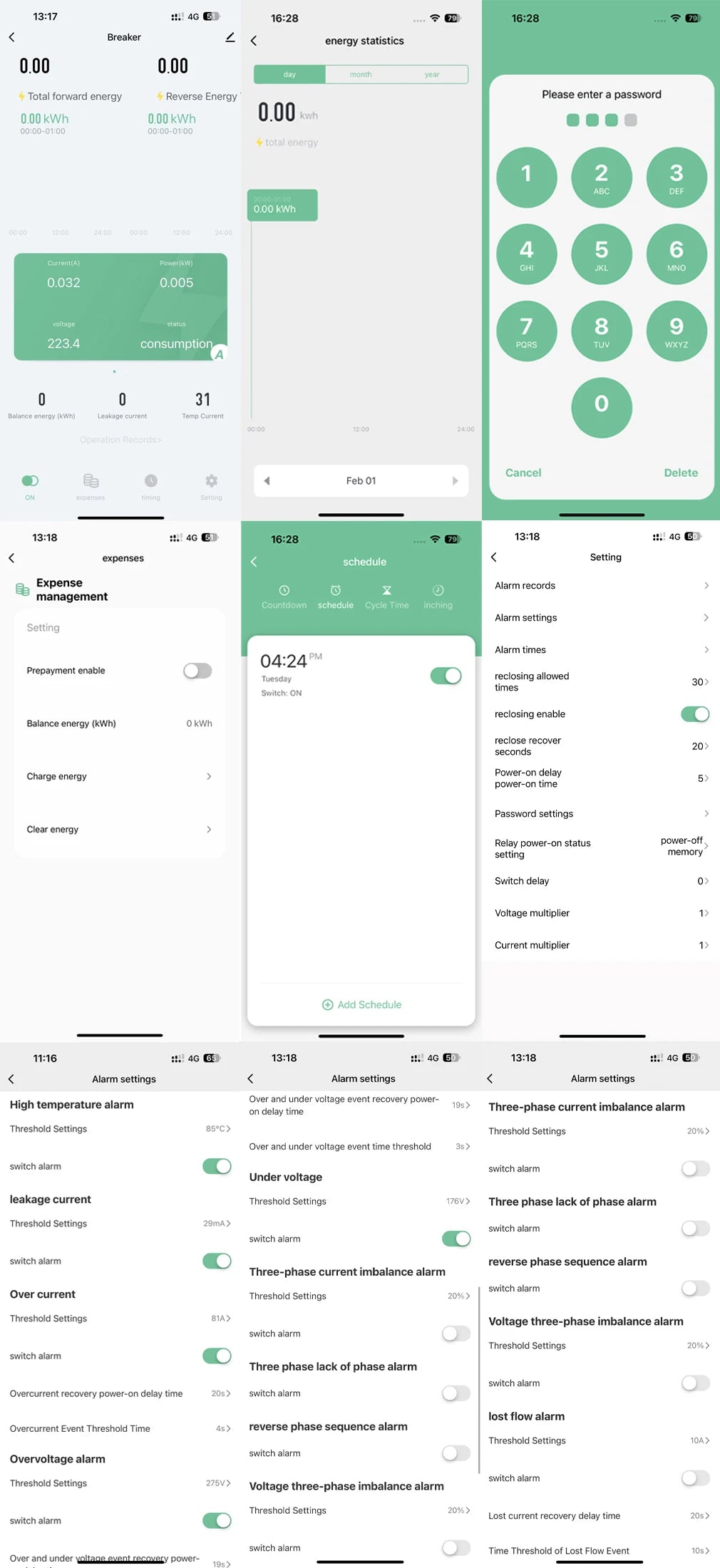

18.Device Sharing

19.Remote Control

20.Voice Control

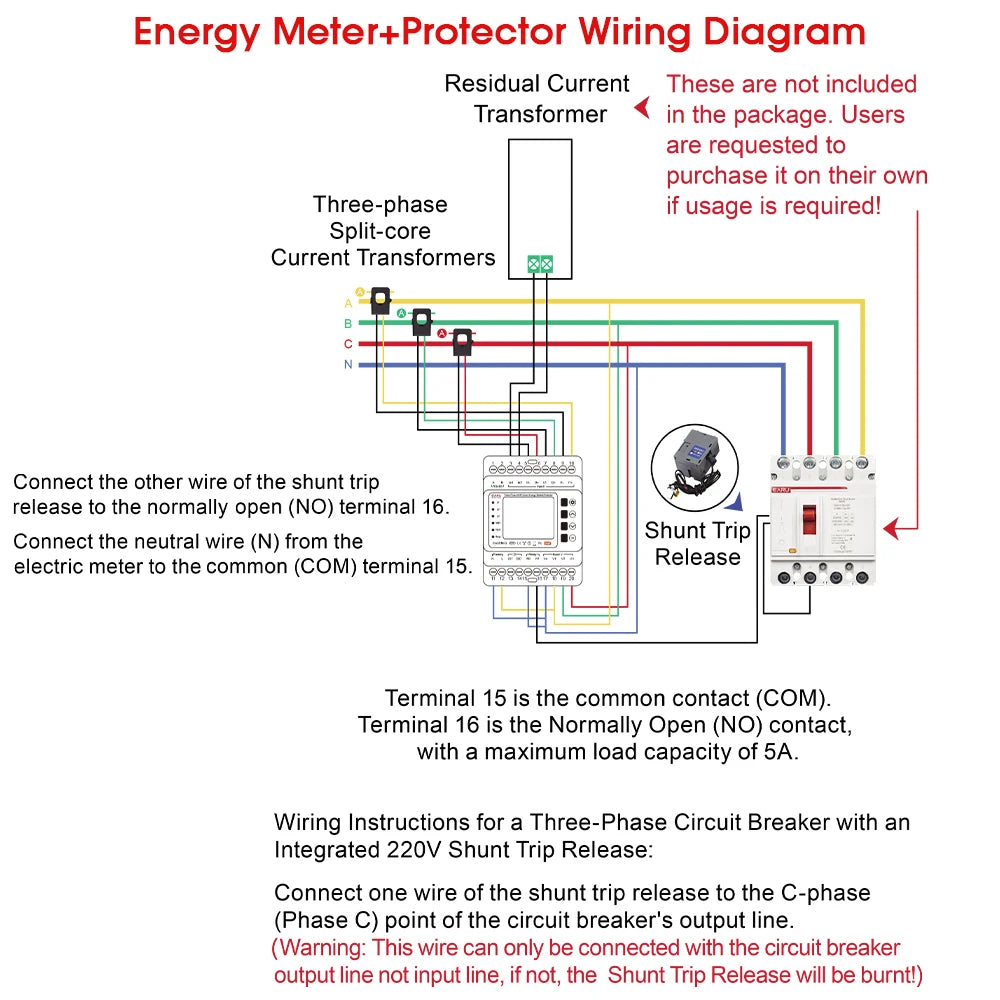

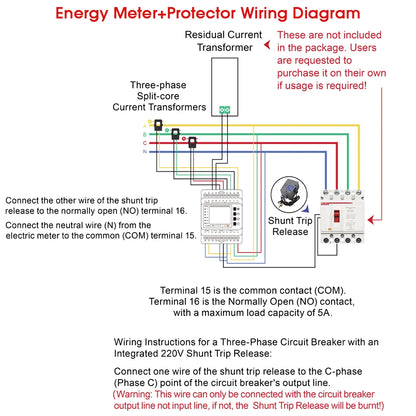

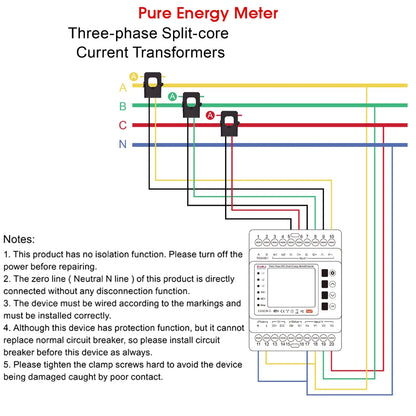

NOTE: A circuit breaker and a shunt trip device are required for protection functions, which are not included in the package. If required, users should purchase them separately!
