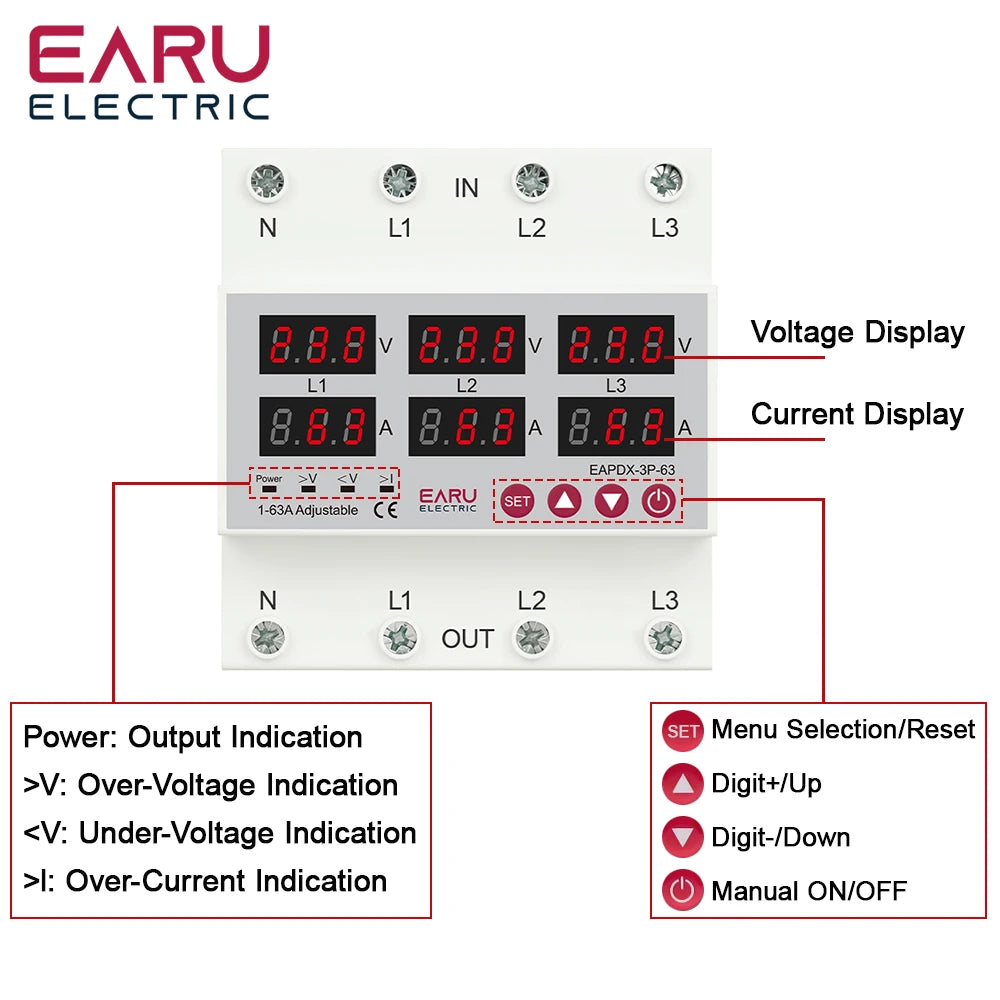

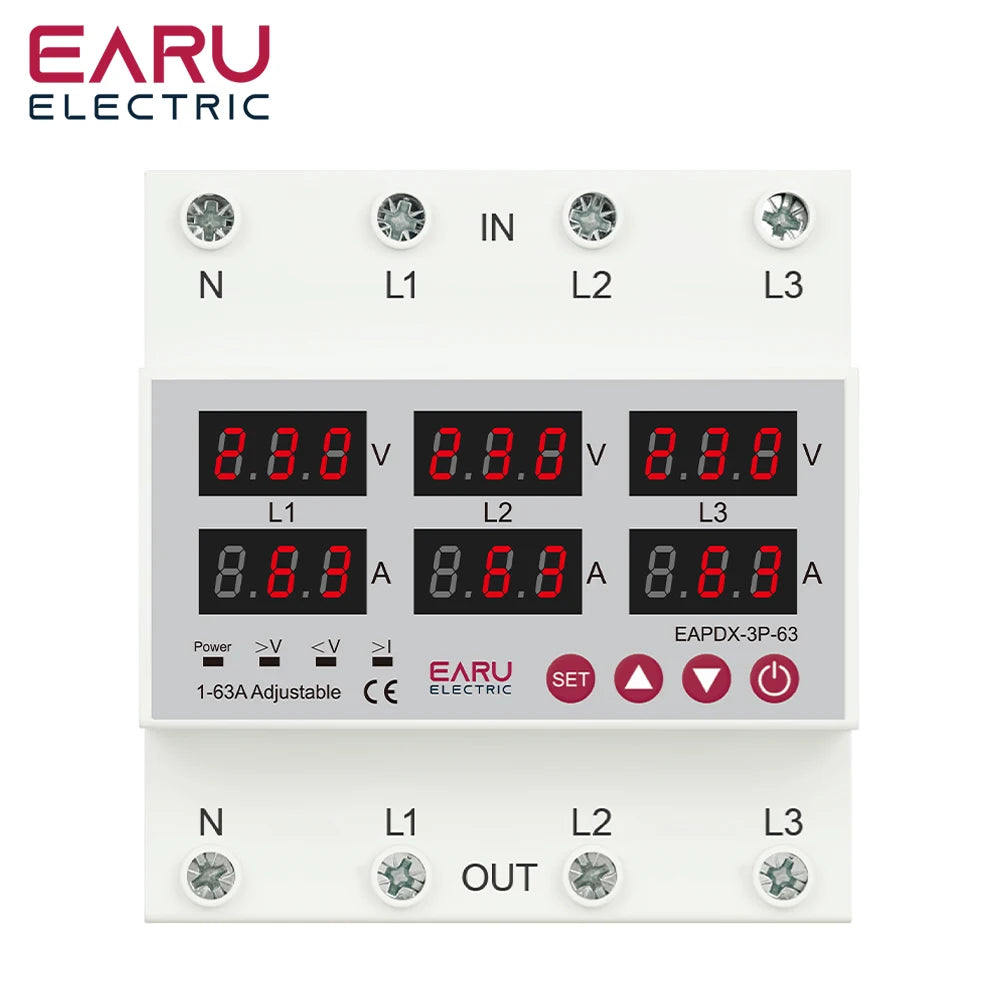

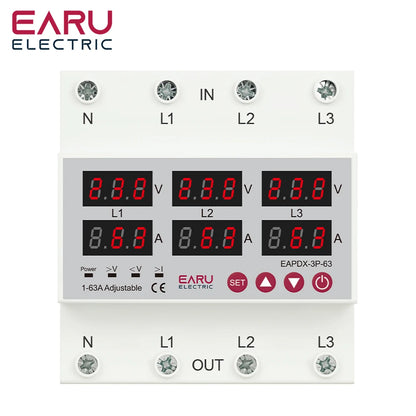

Three Phase Voltage Current Adjustable Over Under Voltage Current Limit Protection Relay Protector 3*220V 380V 63A 100A Din Rail
Three Phase Voltage Current Adjustable Over Under Voltage Current Limit Protection Relay Protector 3*220V 380V 63A 100A Din Rail
Impossible de charger la disponibilité du service de retrait

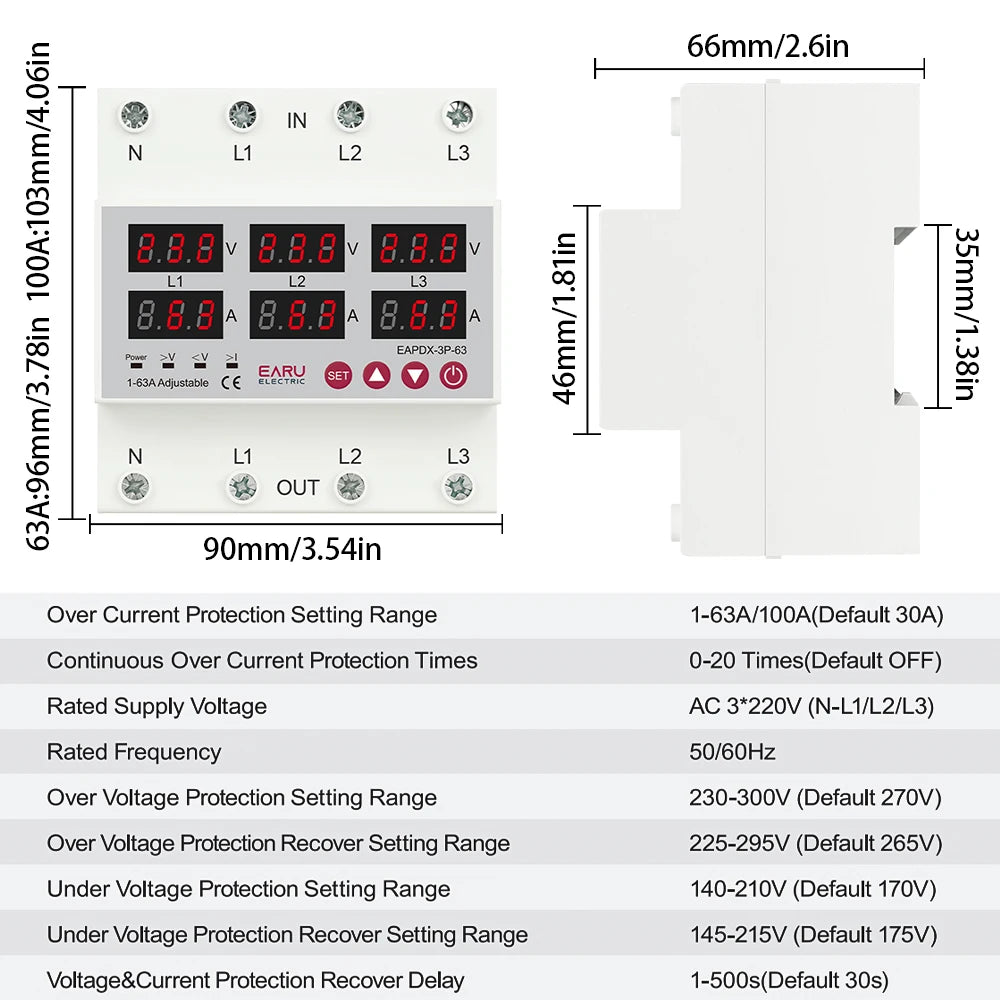

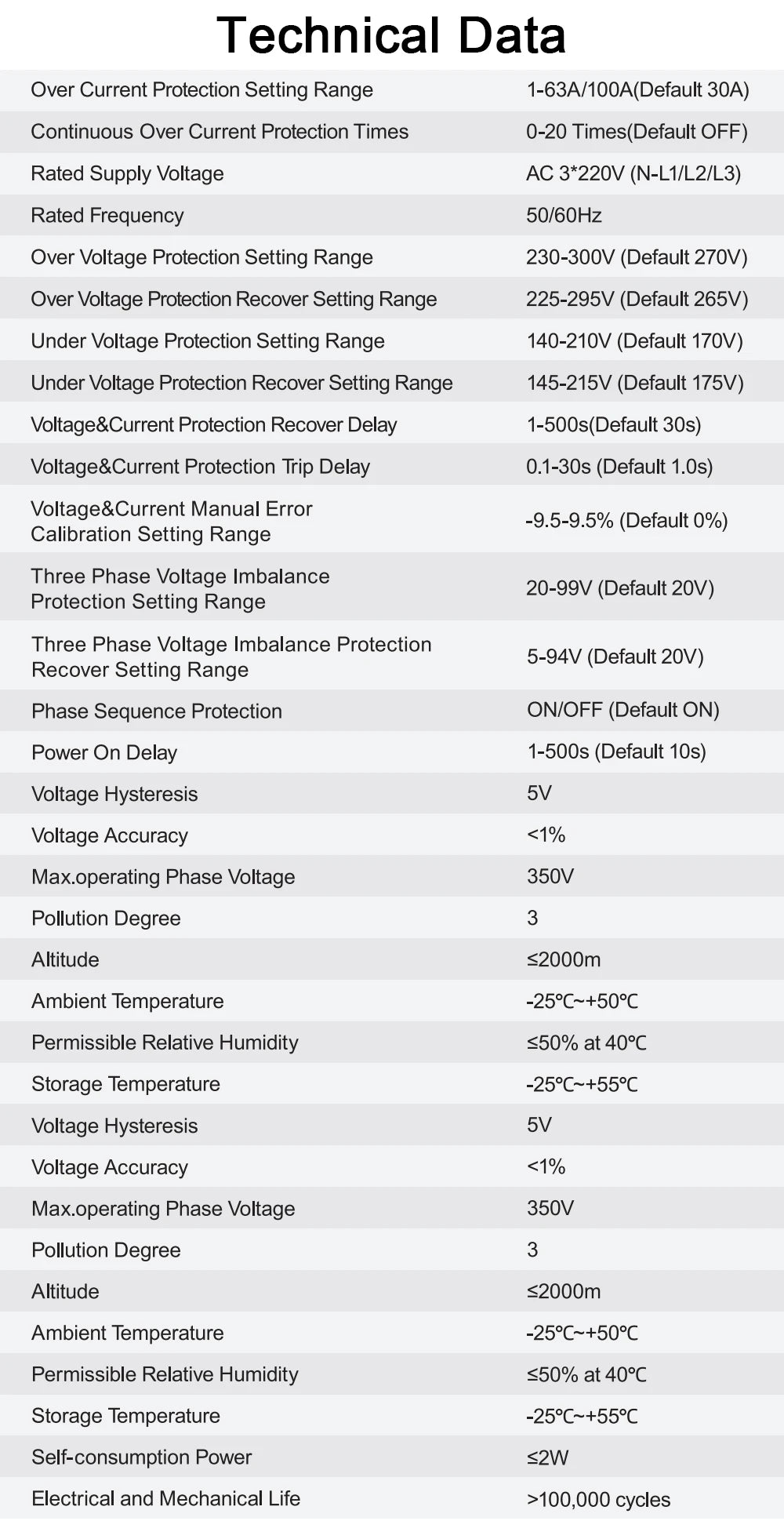

SPECIFICATIONS
Brand Name: EARU
Certification: CE
Choice: yes
Continuous Over Current Protection Times: 0-20 Times(Default OFF)
High-concerned chemical: None

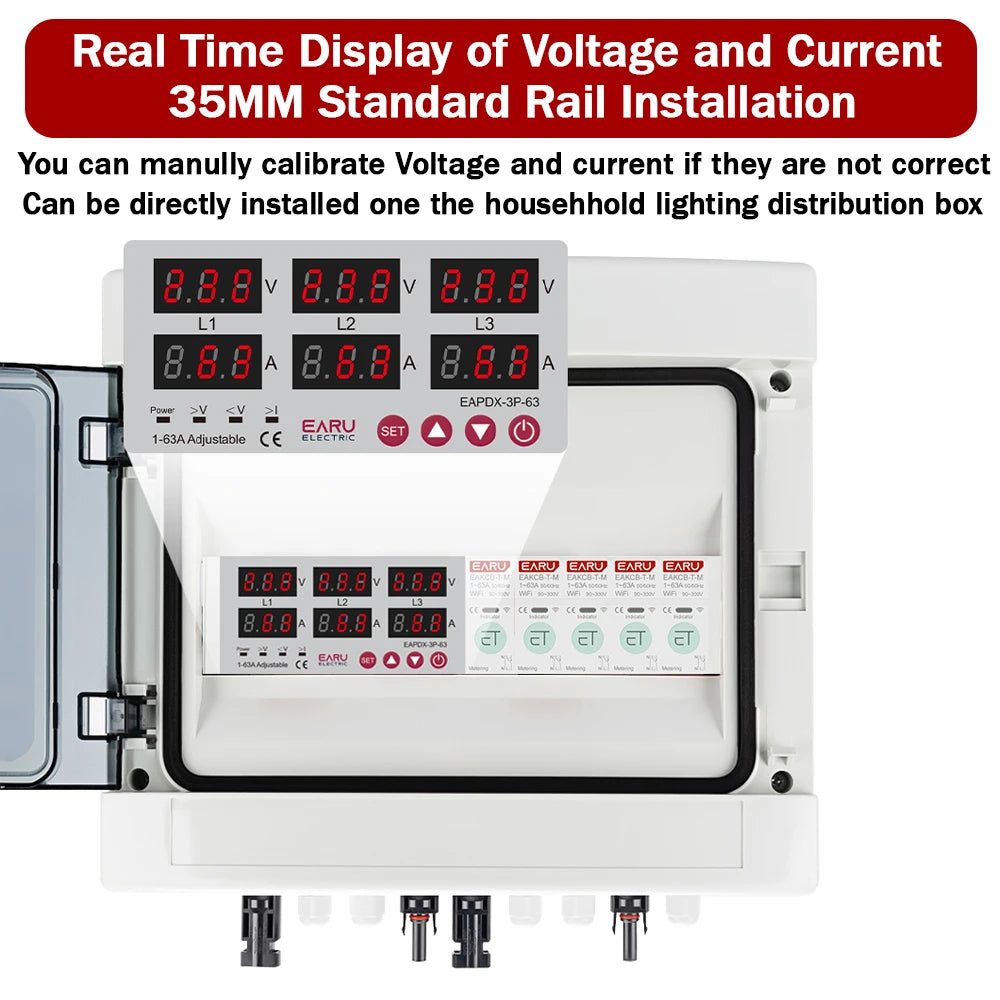

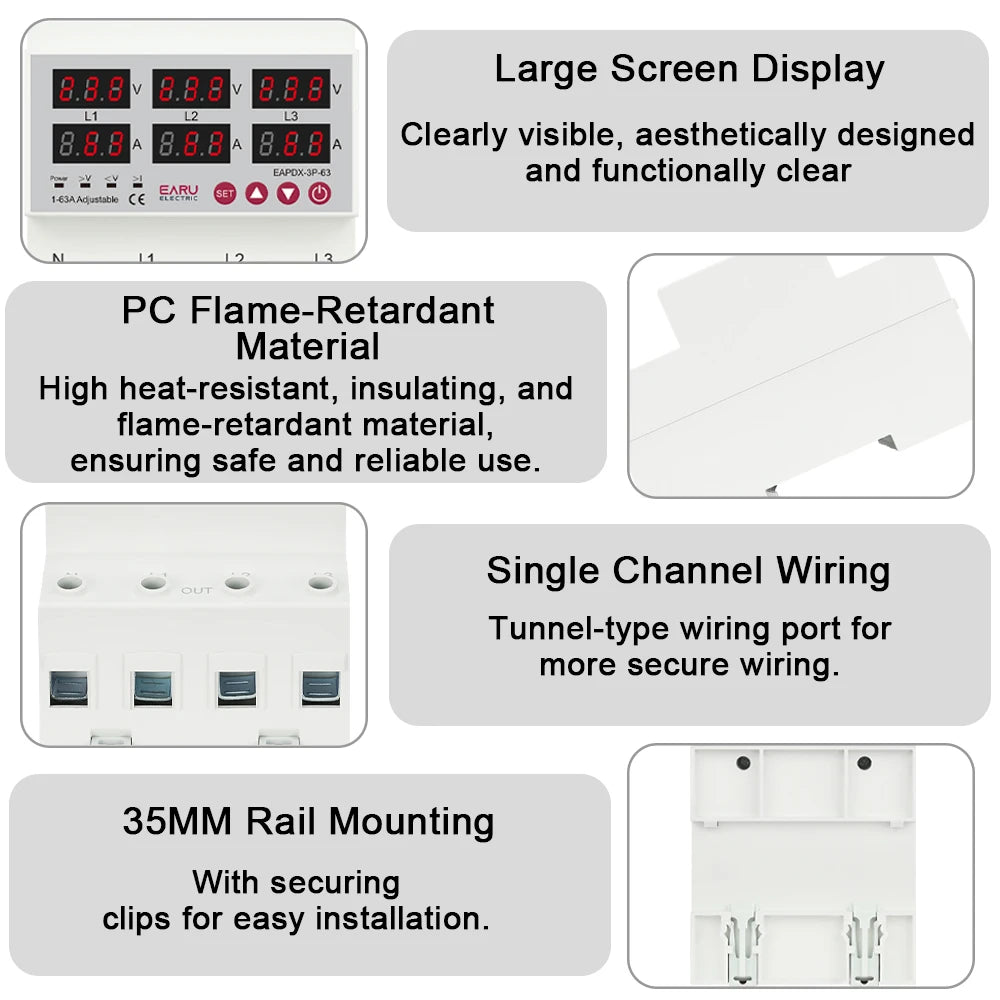

Installation: 35MM Din Rail
Is Smart Device: No
Model Number: EAPDX-3P
Origin: Mainland China
Over Voltage Protection Recover Setting Range: 225-295V (Default 265V)
Over Voltage Protection Setting Range: 230-300V (Default 270V)
Rated Current 1: 1-63A (Adjustable)
Rated Current 2: 1-100A (Adjustable)
Rated Frequency: 50/60Hz
Rated Supply Voltage: AC 3* 220V(N-L1/L2/L3)
Rated Voltage: 220V
Storage Temperature: -25℃~+55℃

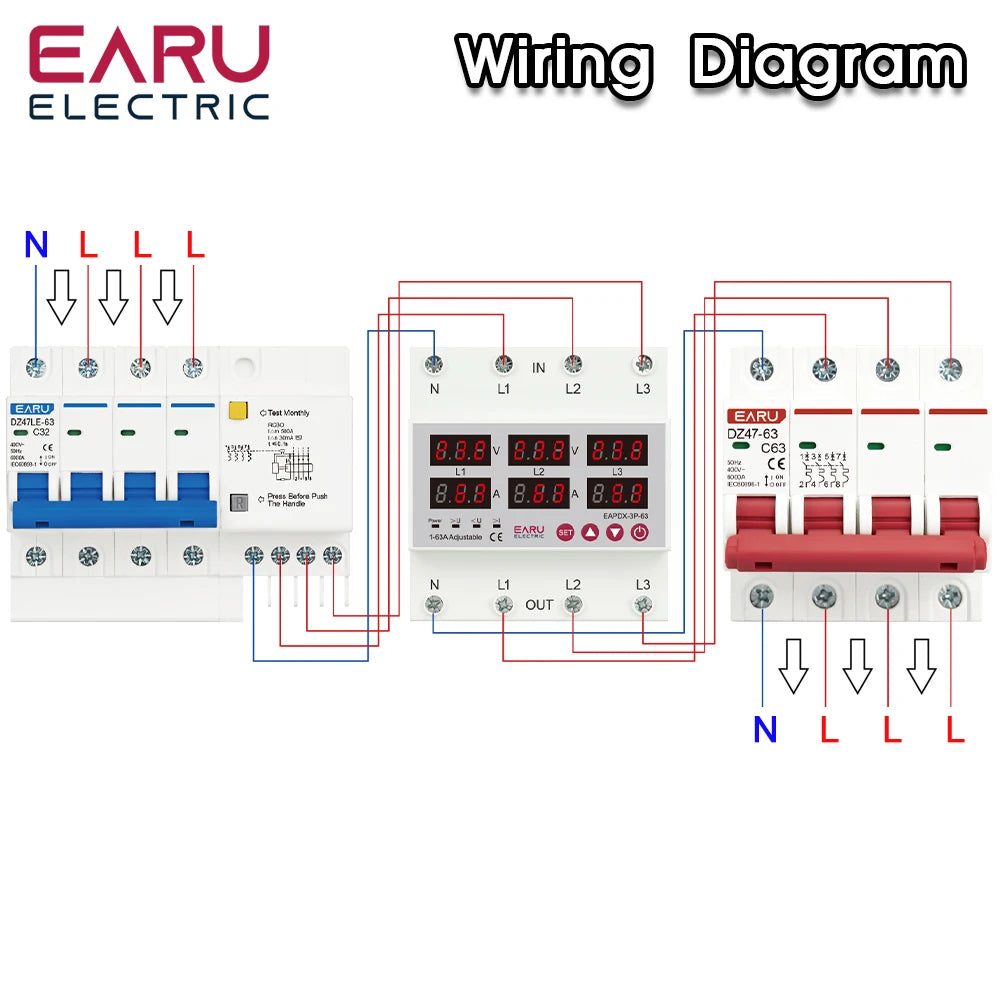

Supply Terminals: N,L1,L2,L3
Type: Mini,Voltage relay
Under Voltage Protection Recover Setting Range: 145-215V (Default 175V)
Under Voltage Protection Setting Range: 140-210V (Default 170V)
Voltage&Current Protection Recover Delay: 1-500s(Default 30s)
is_customized: Yes
semi_Choice: yes

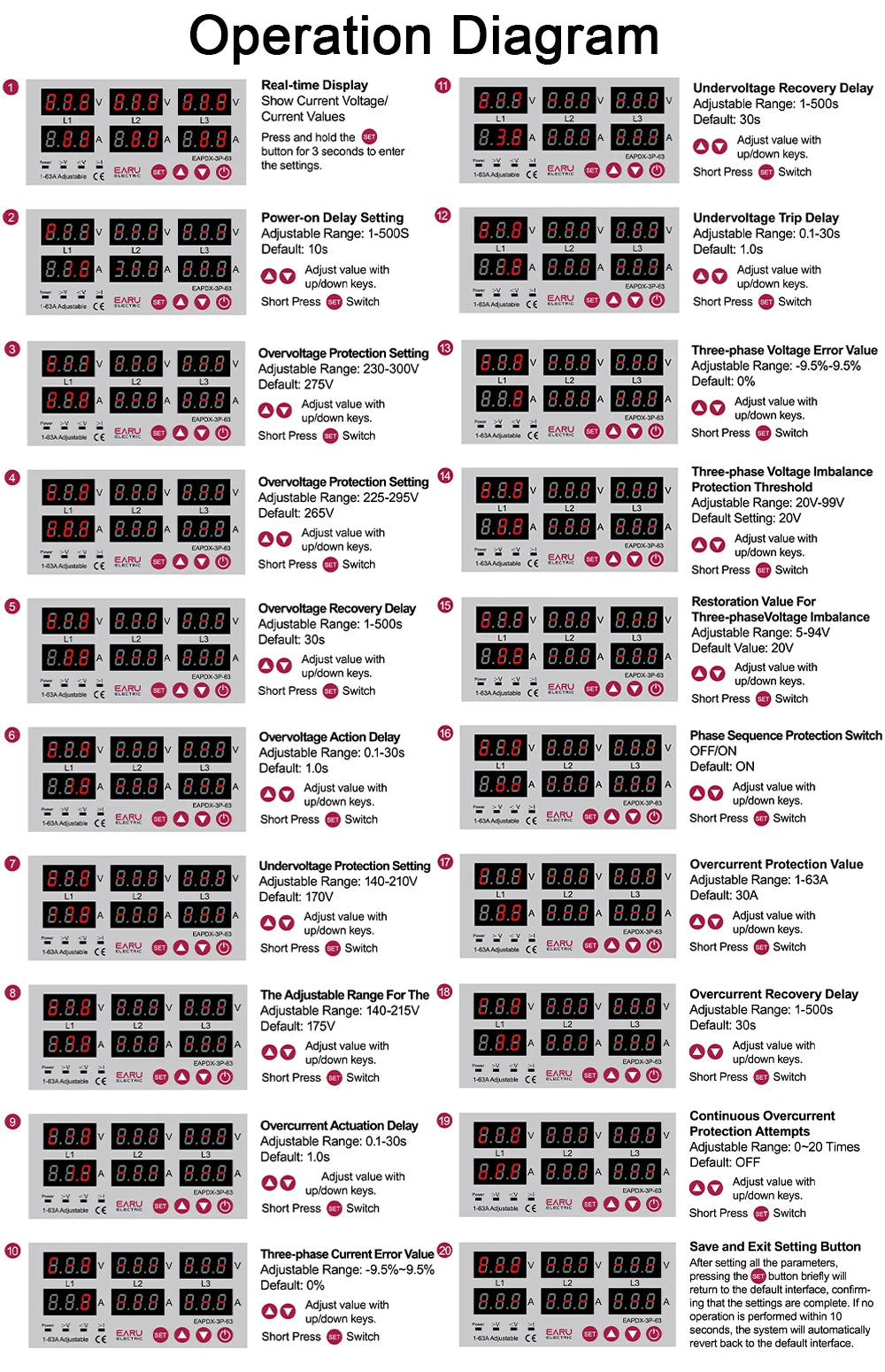

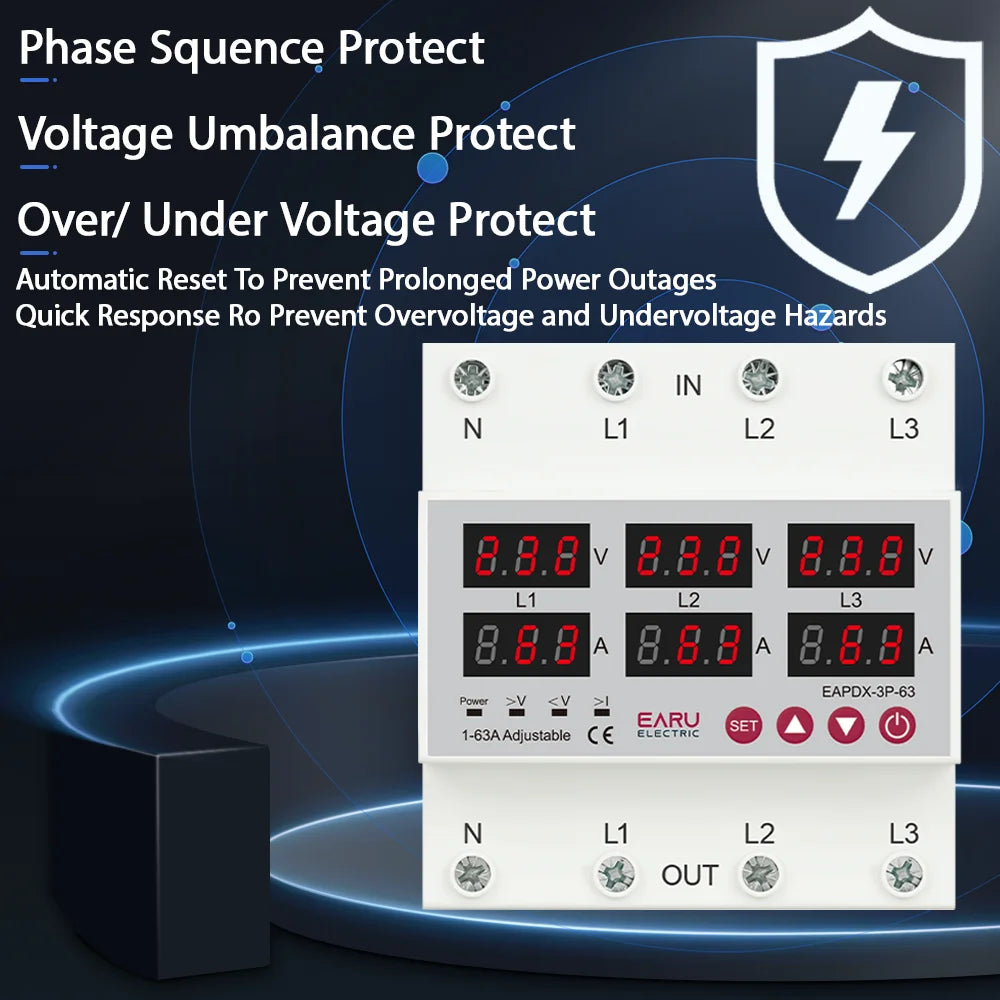

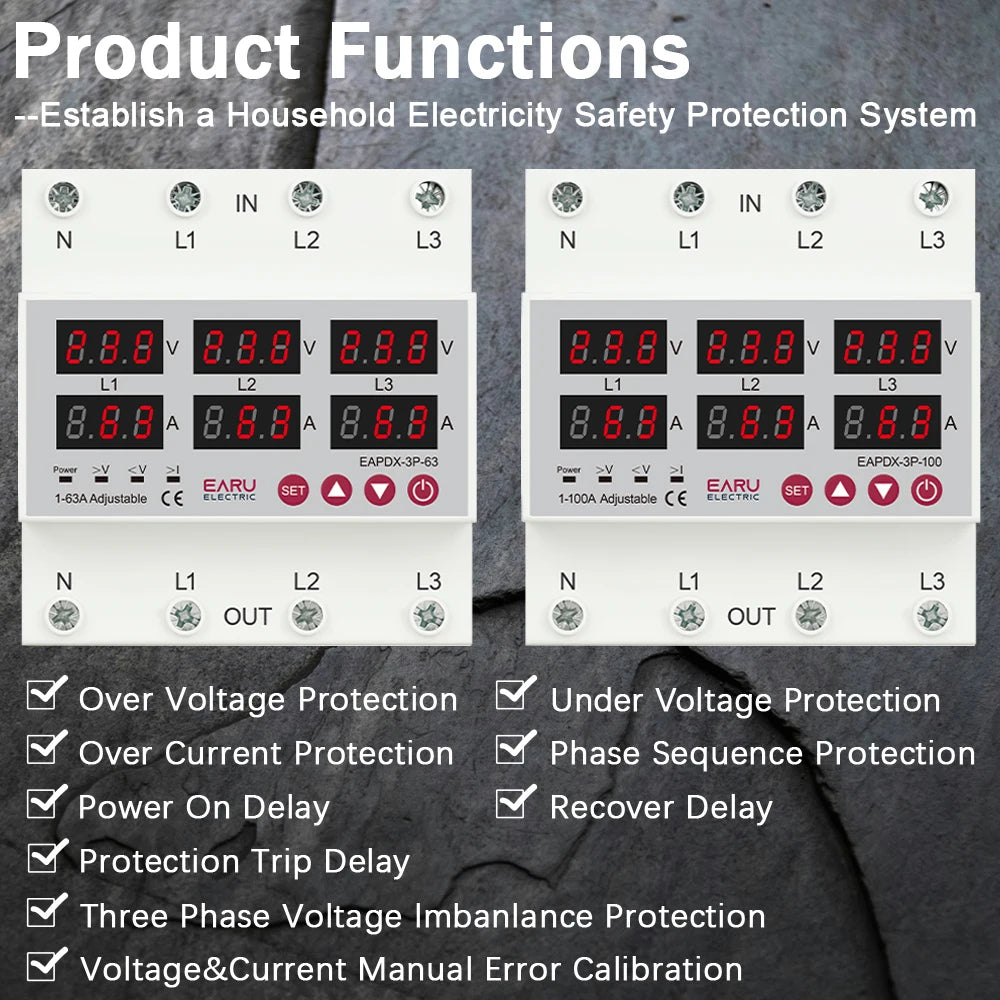

1. Over Voltage Protection
2. Under Voltage Protection

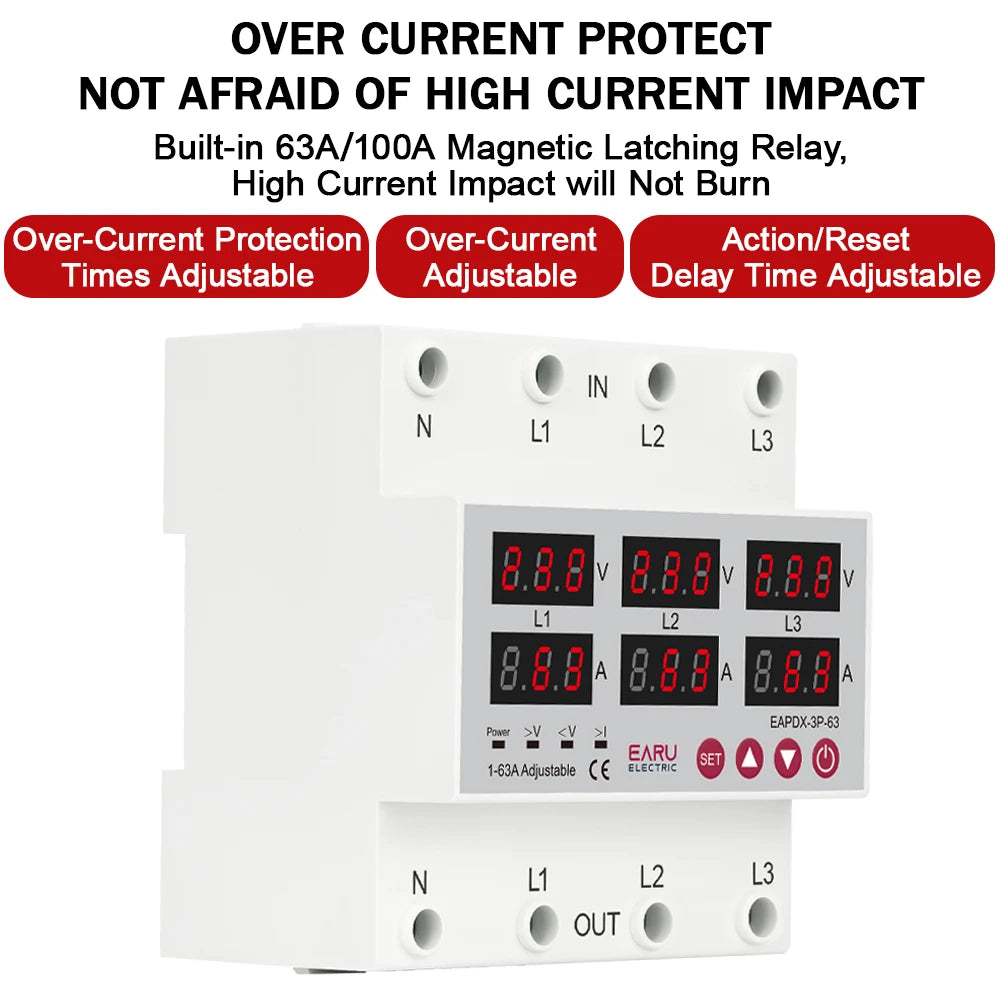

3. Over Current Protection
4. Three Phase Voltage lmbanlance Protection
5. Phase Sequence Protection
6. Voltage & Current Manual Error Calibration
7. Power On Delay
8. Protection Trip Delay
9. Recover Delay
