Three Phase Voltage Current Adjustable Over Under Voltage Current Limit Protection Relay Protector 63A 100A with Automatic Reset
Three Phase Voltage Current Adjustable Over Under Voltage Current Limit Protection Relay Protector 63A 100A with Automatic Reset
Impossible de charger la disponibilité du service de retrait
SPECIFICATIONS
Brand Name: EARU
Certification: CE
Choice: yes
Continuous Over Current Protection Times: 0-20 Times(Default OFF)
High-concerned chemical: None

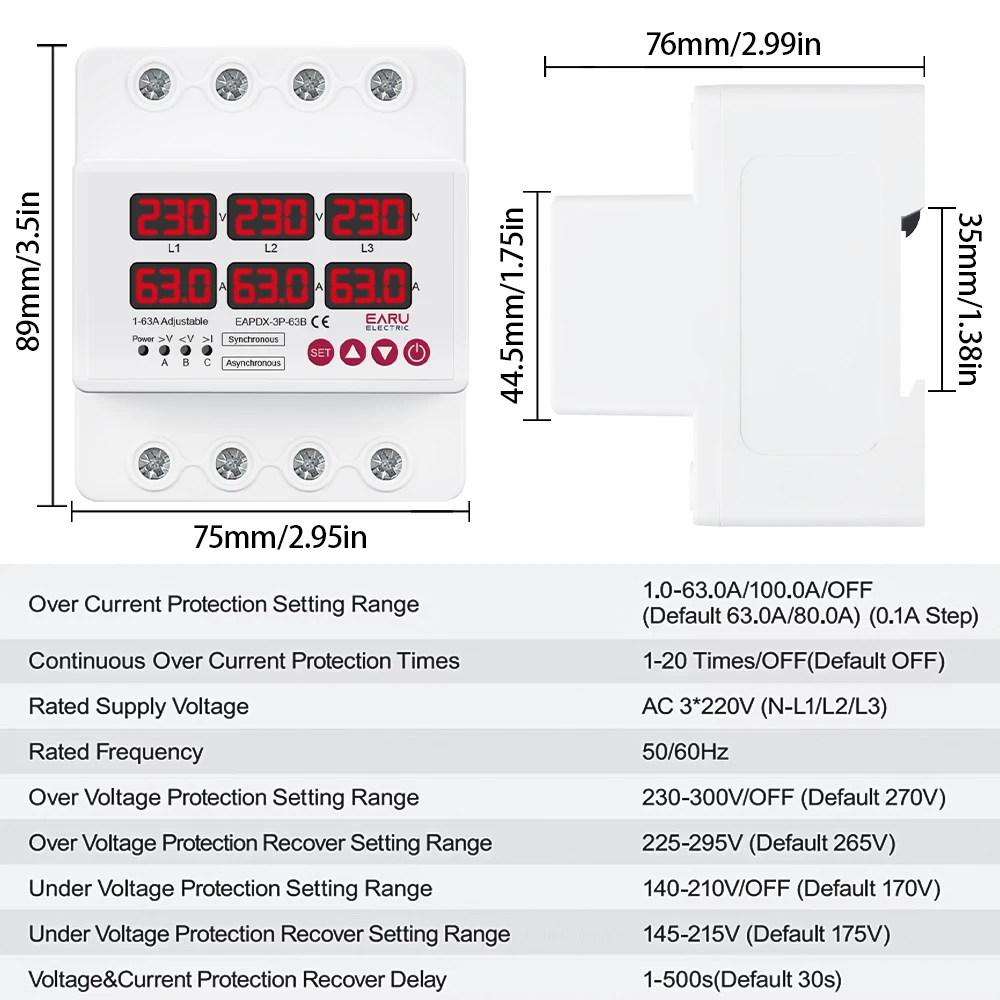

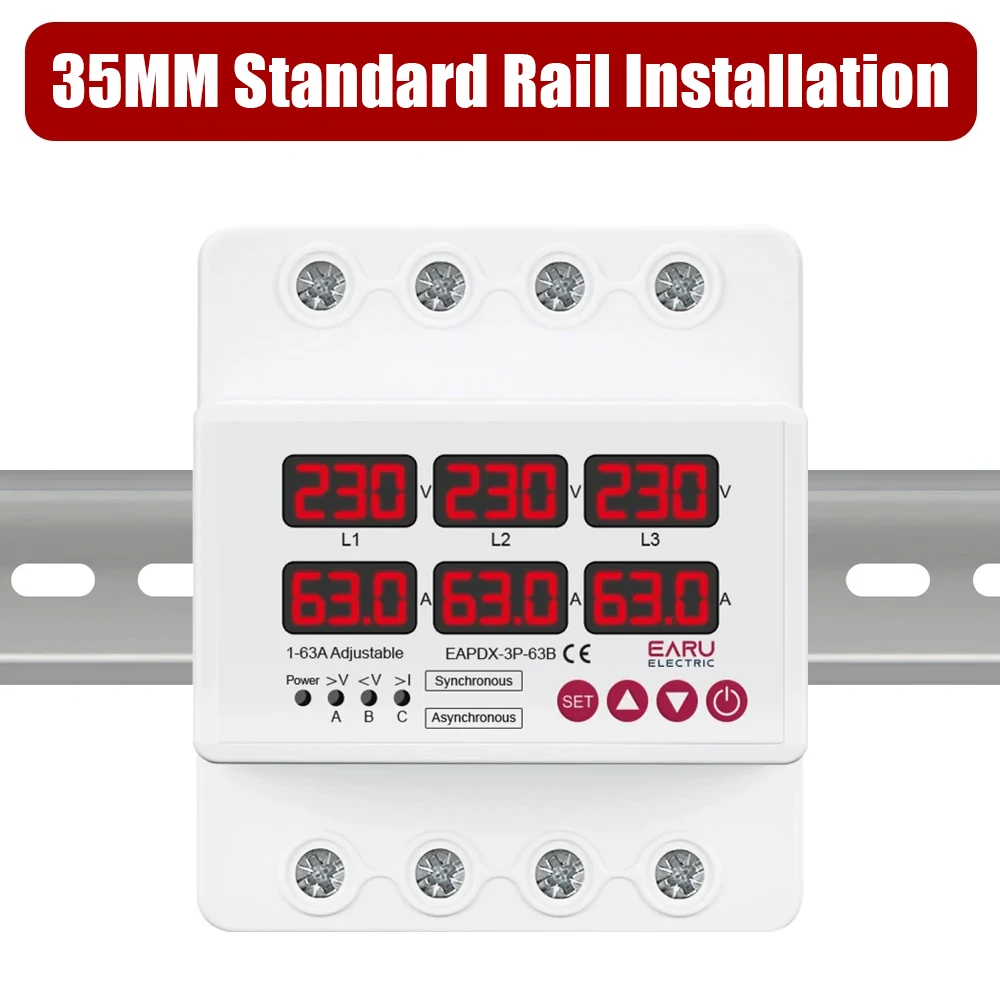

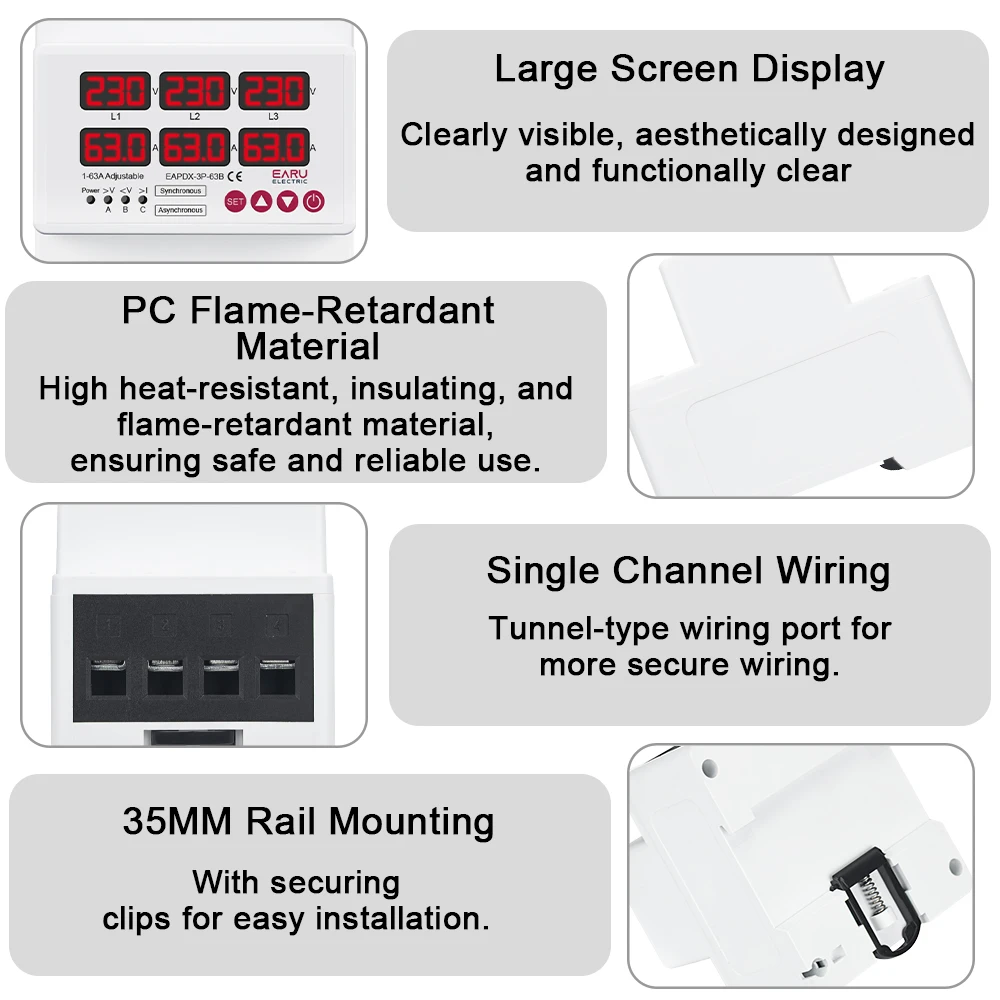

Installation: 35MM Din Rail
Is Smart Device: No
Model Number: EAPDX-3P
Origin: Mainland China

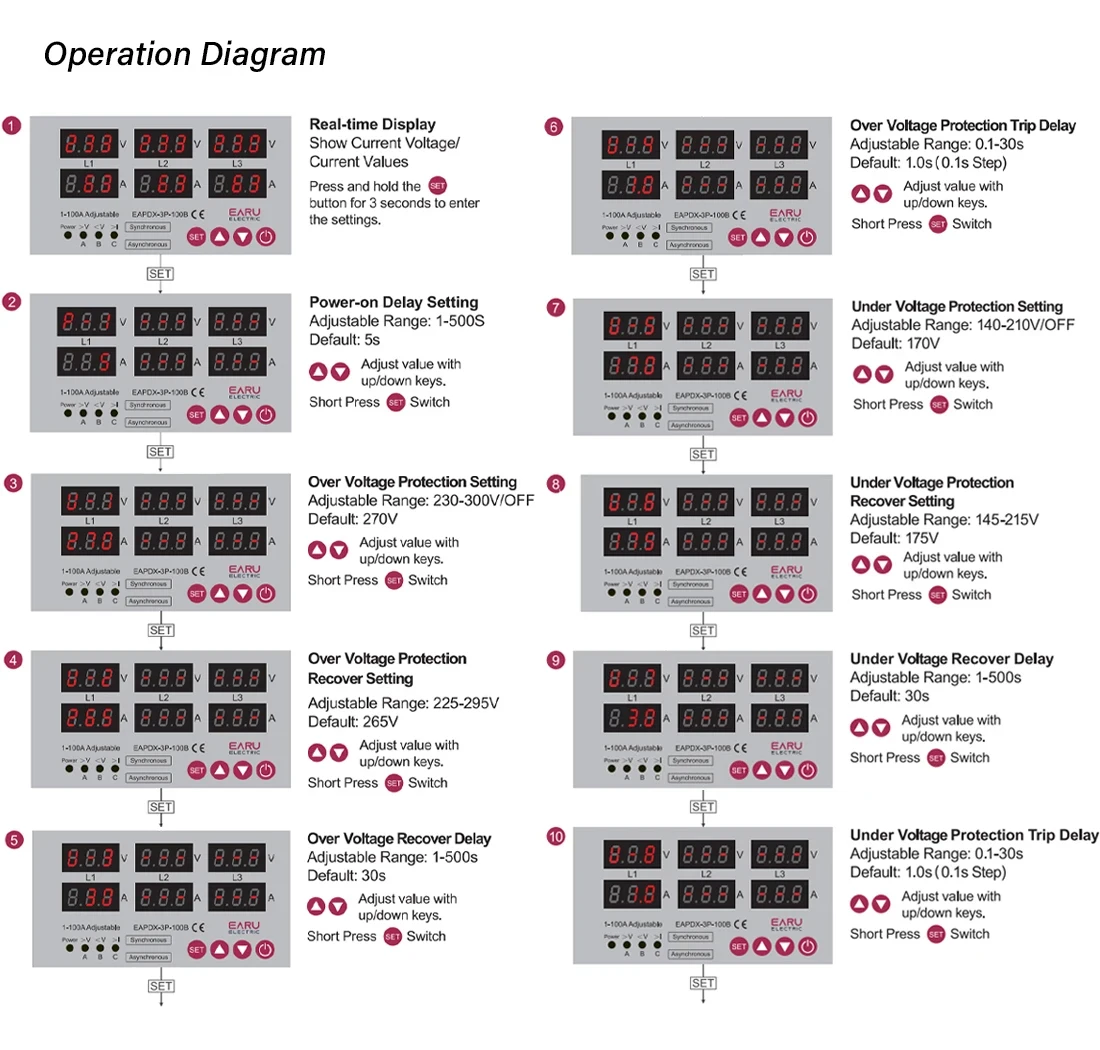

Over Voltage Protection Recover Setting Range: 225-295V (Default 265V)
Over Voltage Protection Setting Range: 230-300V (Default 270V)
Rated Current 1: 1-63A (Adjustable)
Rated Current 2: 1-100A (Adjustable)
Rated Frequency: 50/60Hz

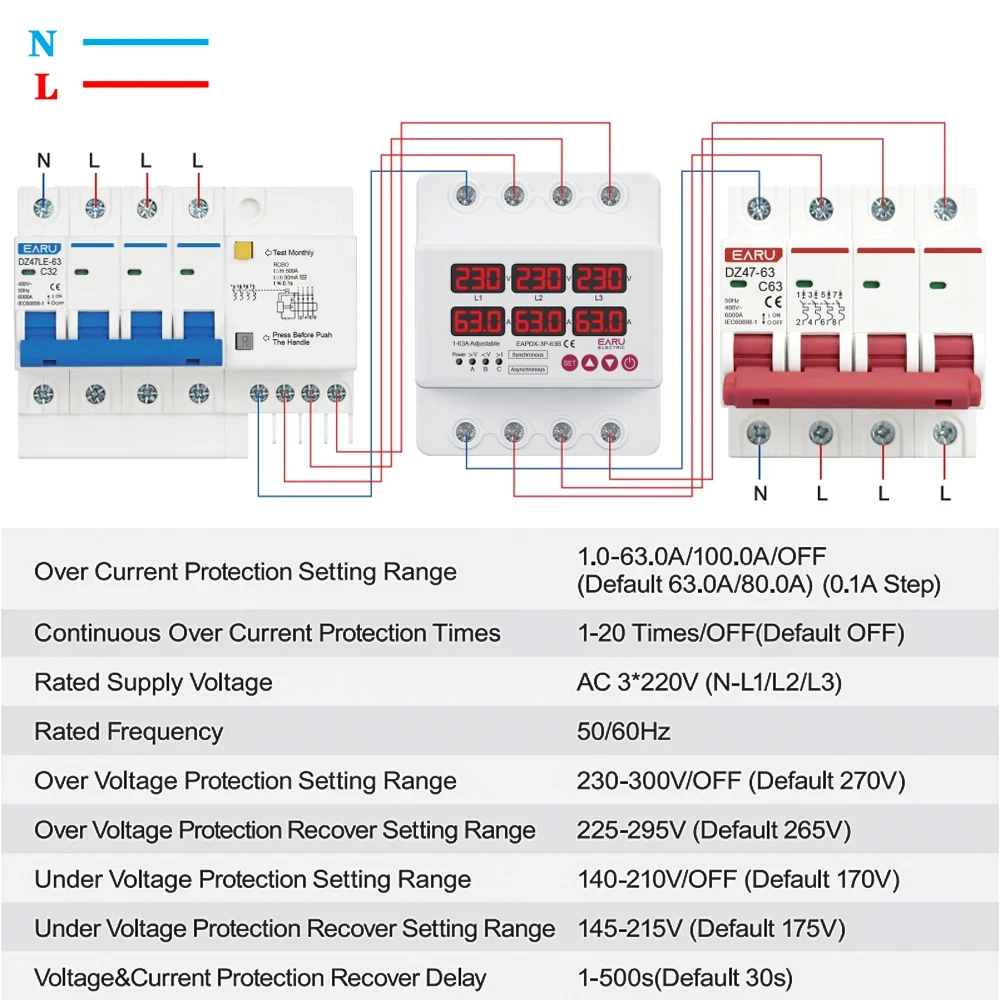

Rated Supply Voltage: AC 3* 220V(N-L1/L2/L3)
Rated Voltage: 220V
Storage Temperature: -25℃~+50℃
Supply Terminals: N,L1,L2,L3
Type: Mini,Voltage relay
Under Voltage Protection Recover Setting Range: 145-215V (Default 175V)
Under Voltage Protection Setting Range: 140-210V (Default 170V)
Voltage&Current Protection Recover Delay: 1-500s(Default 30s)
is_customized: Yes
semi_Choice: yes
1. Over Voltage Protection
2. Under Voltage Protection

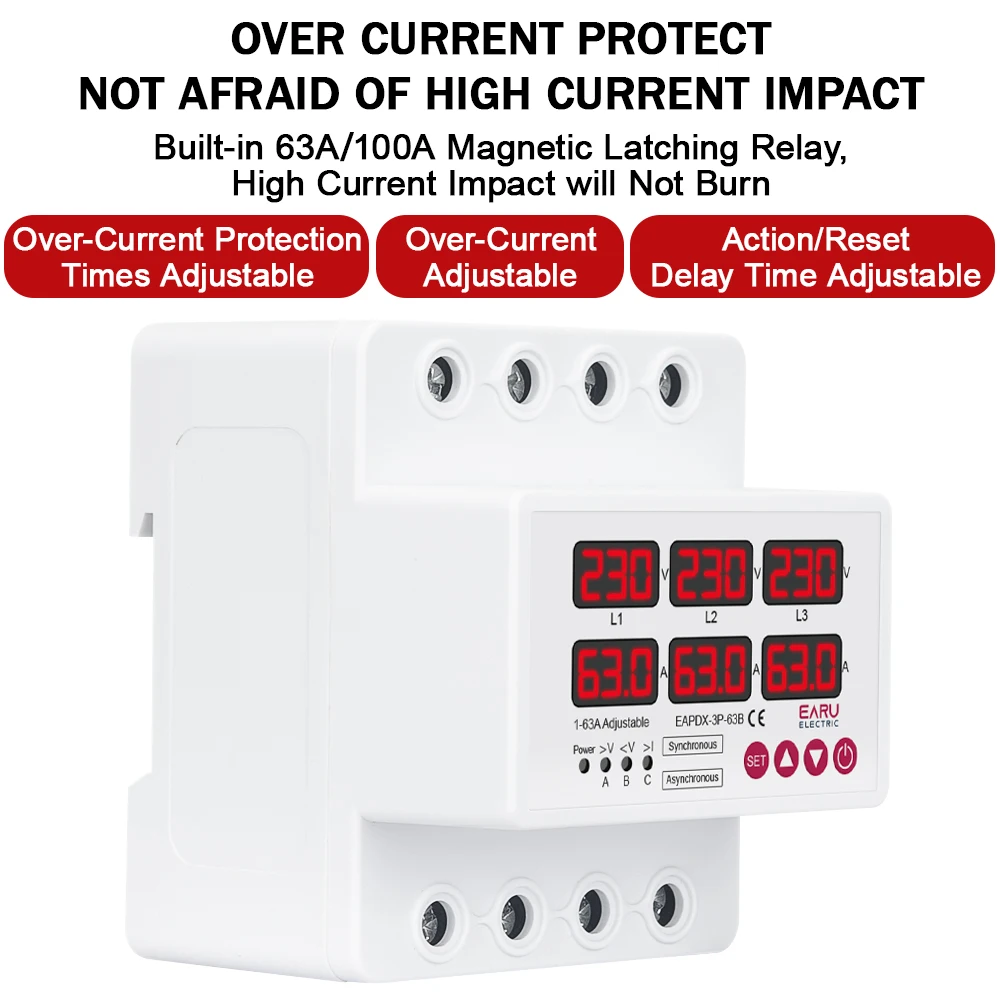

3. Over Current Protection

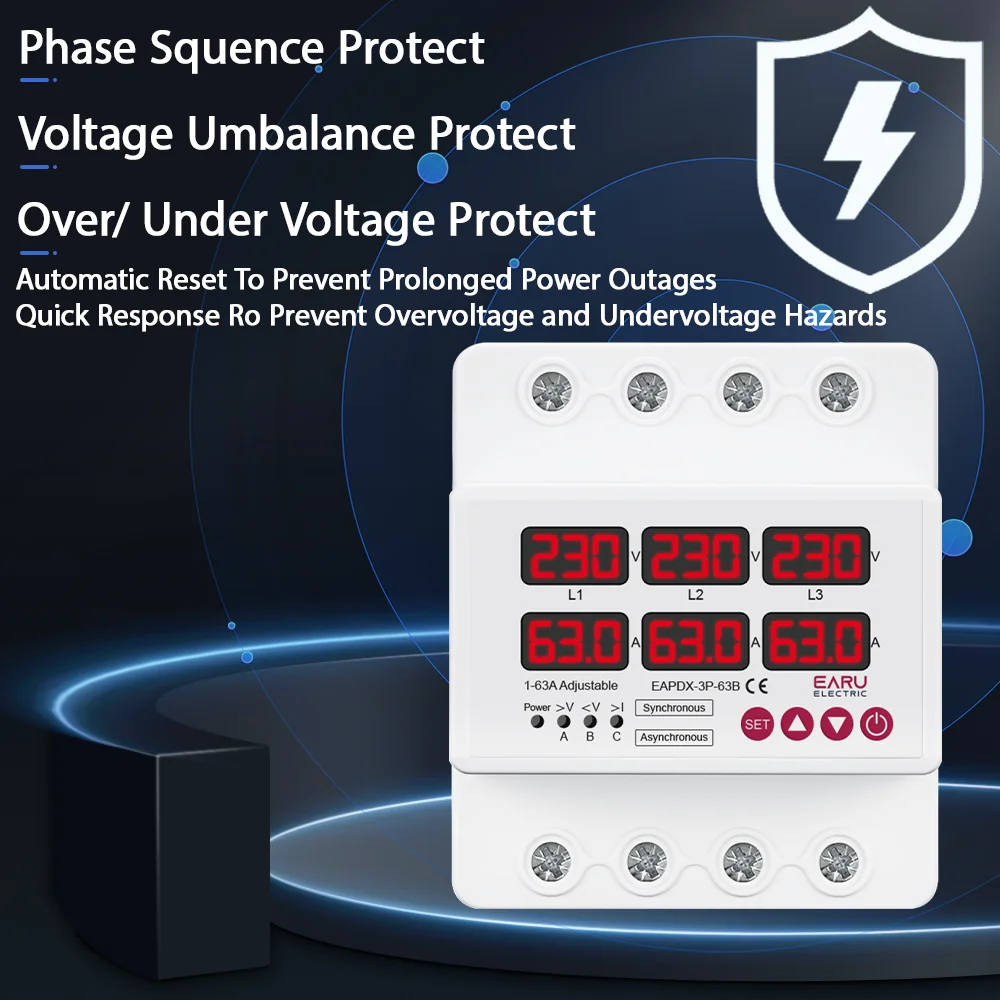

4. Three Phase Voltage lmbanlance Protection
5. Phase Sequence Protection

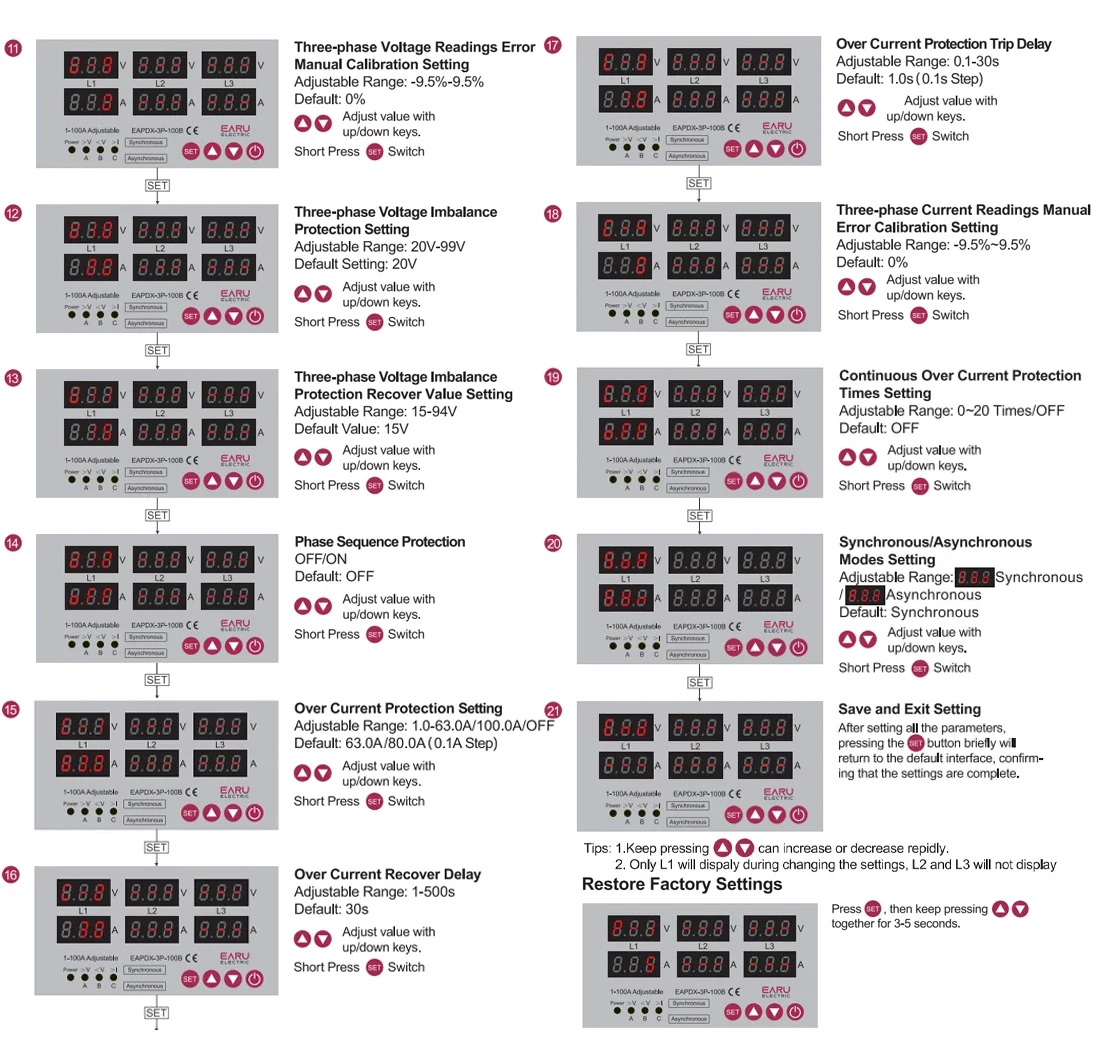

6. Voltage & Current Manual Error Calibration
7. Power On Delay
8. Protection Trip Delay
9. Recover Delay

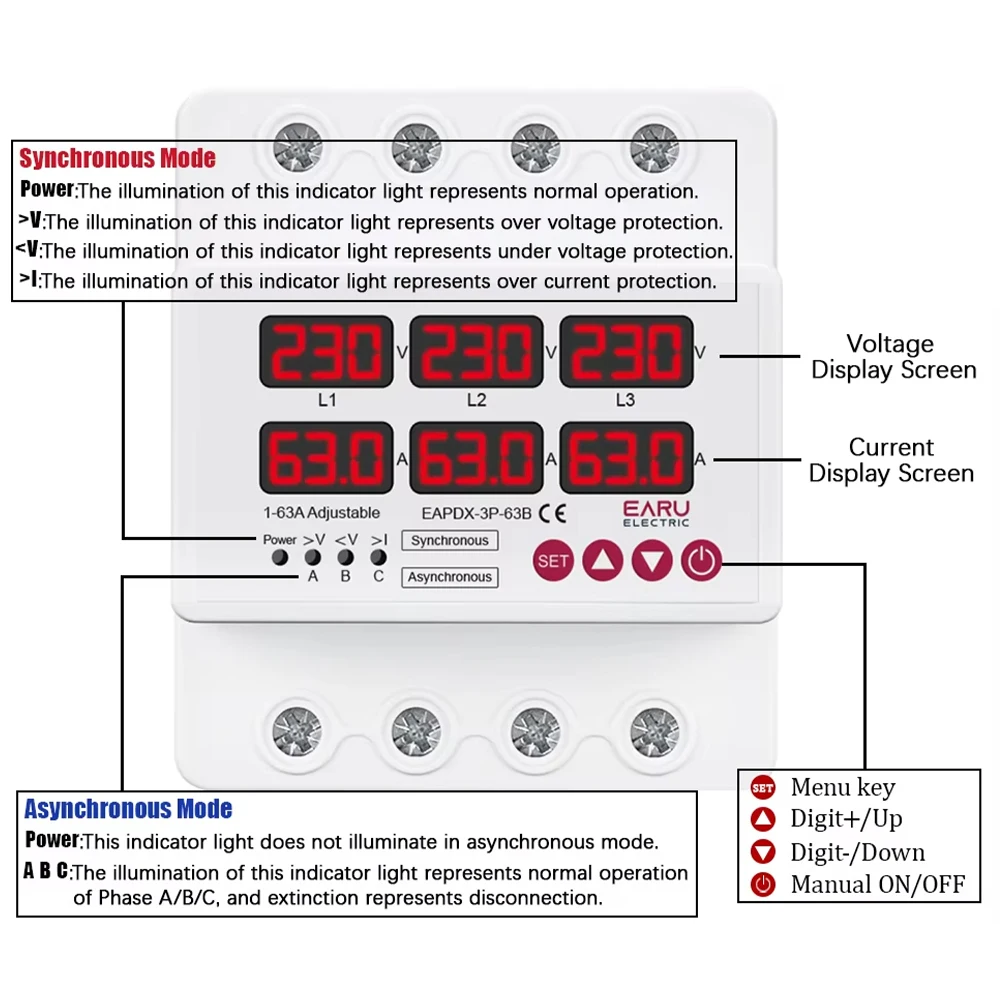

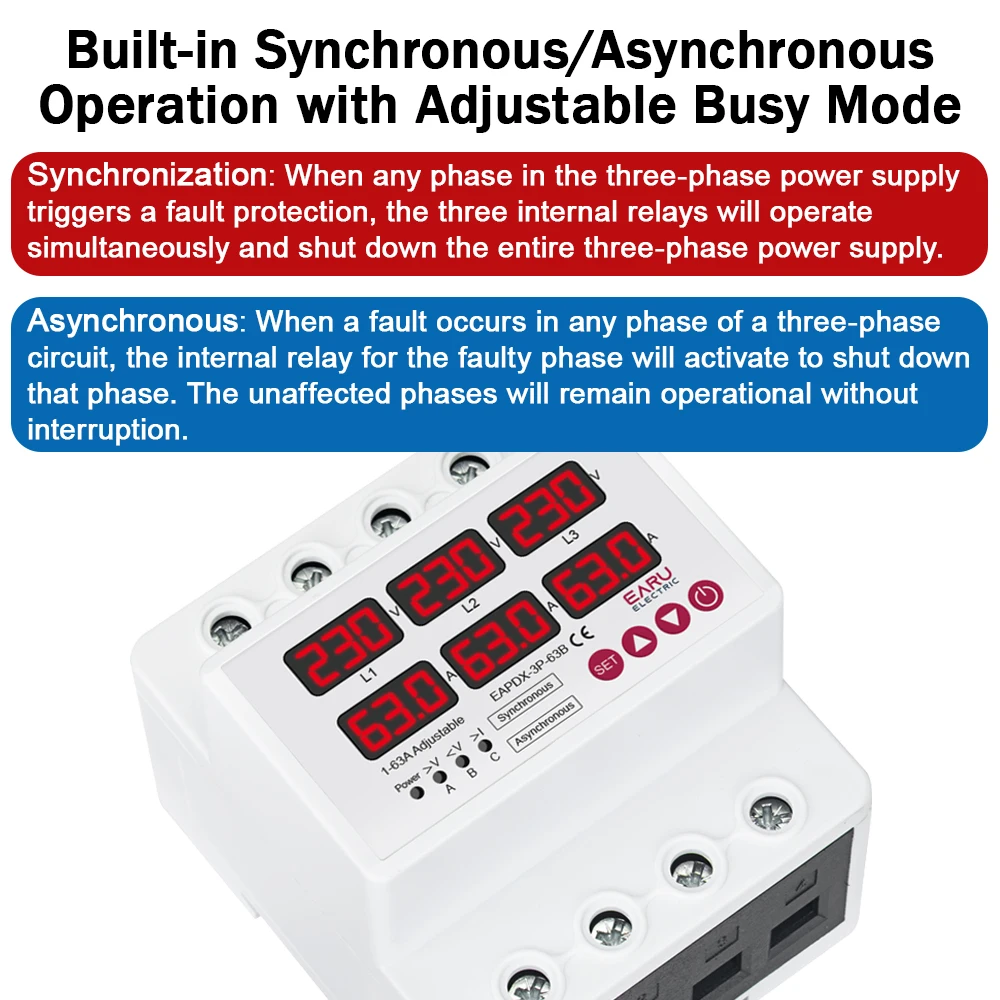

10.Synchronous/Asynchronous Operation
