SPECIFICATIONS

Accuracy Class: ±2%

App: Tuya&Smart Life

Battery Included: No

Brand Name: EARU

Certification: CE

Choice: yes

DIY Supplies: Electrical

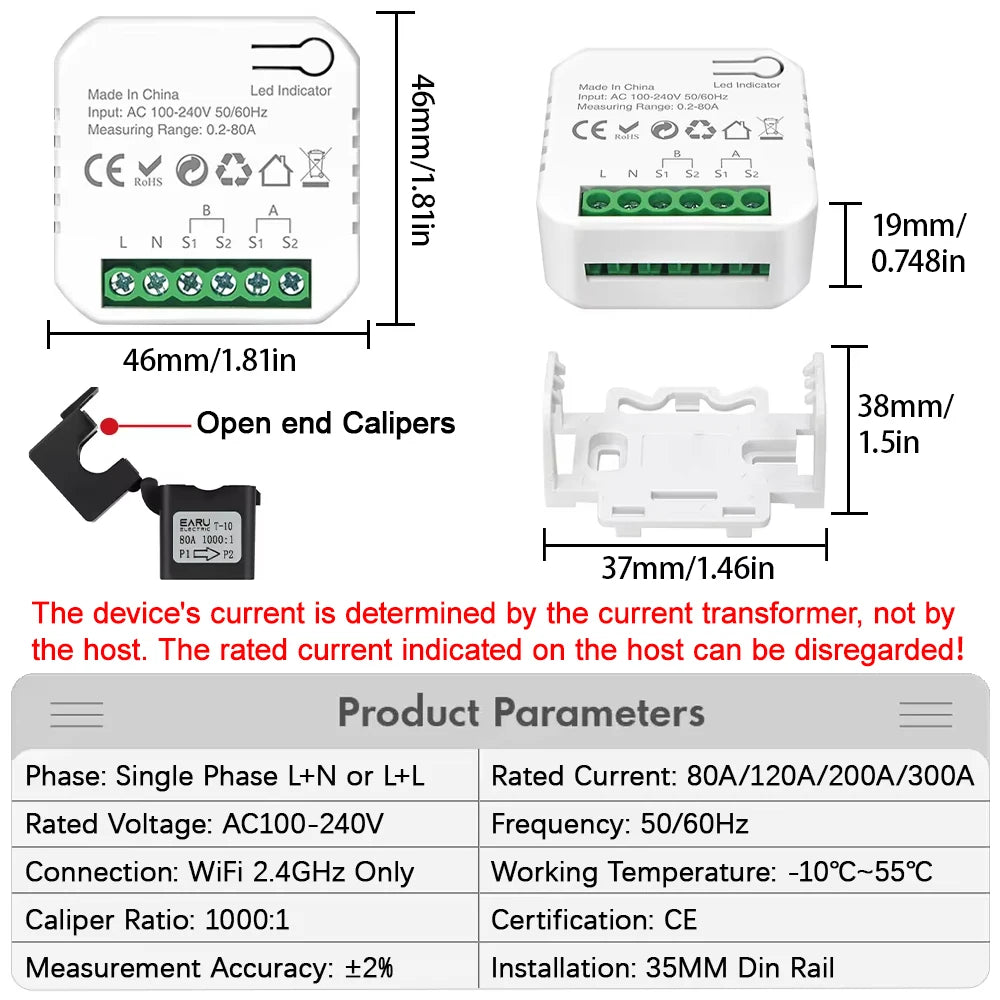

Dimensions: 46*46*19MM

Display Type: Digital Only

Frequency: 50/60Hz

Function 1: Total Charge

Function 2: Current

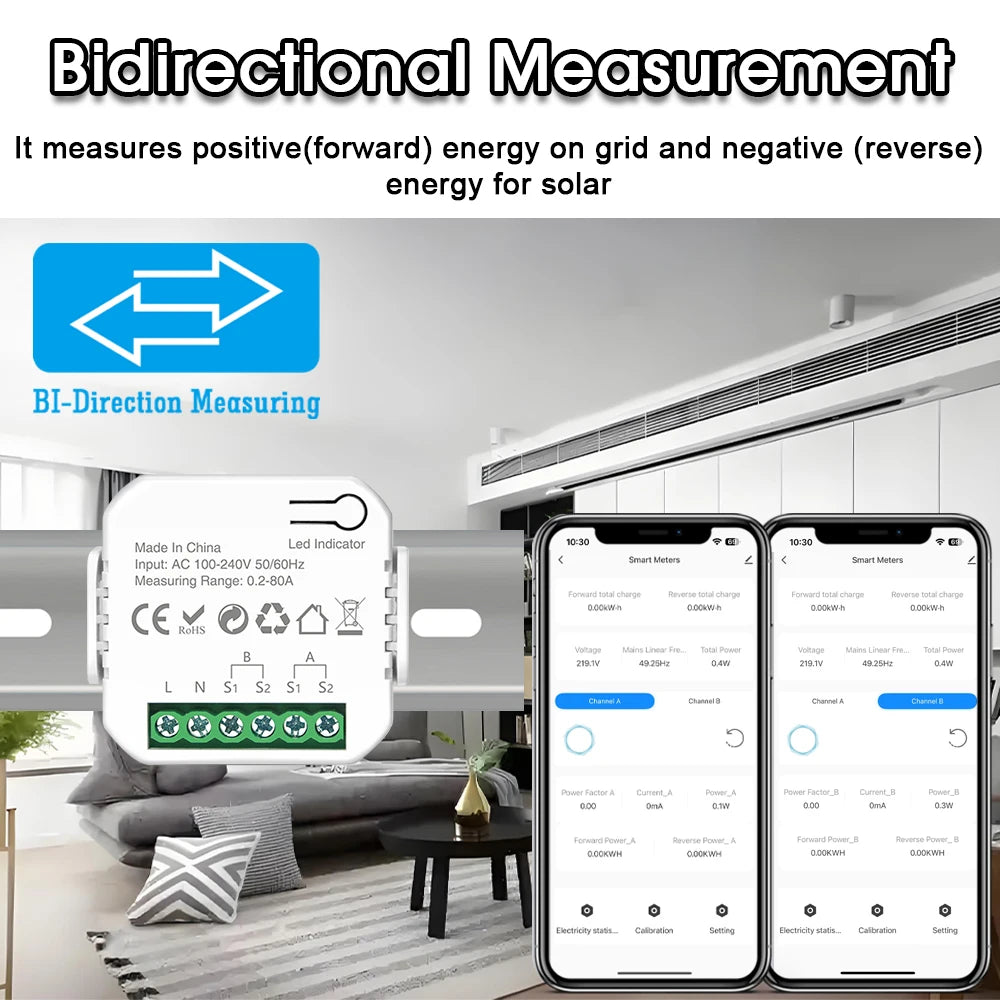

Function 3: Bidirectional Measurement

Function 4: Real-Time Power Usage

Function 5: Voltage

Function 6: Power Factor

Function 7: Active Power

Function 8: Frequency

High-concerned chemical: None

Installation: 35MM Din Rail

Max Operating Current: 150A & Above

Measuring Energy Range: 999999.99kWh

Model Number: EASEM-F-TY-WF

Operating Temperature: -10℃~55 ℃

Origin: Mainland China

Output Voltage: AC100-240V

Phase: single phase

Power Supply: AC

Protocol: WiFi 2.4GHz Only

Rated Current: 80A/120A/200A/300A

Rated Voltage: 240V

Working Voltage: AC100-240V

semi_Choice: yes

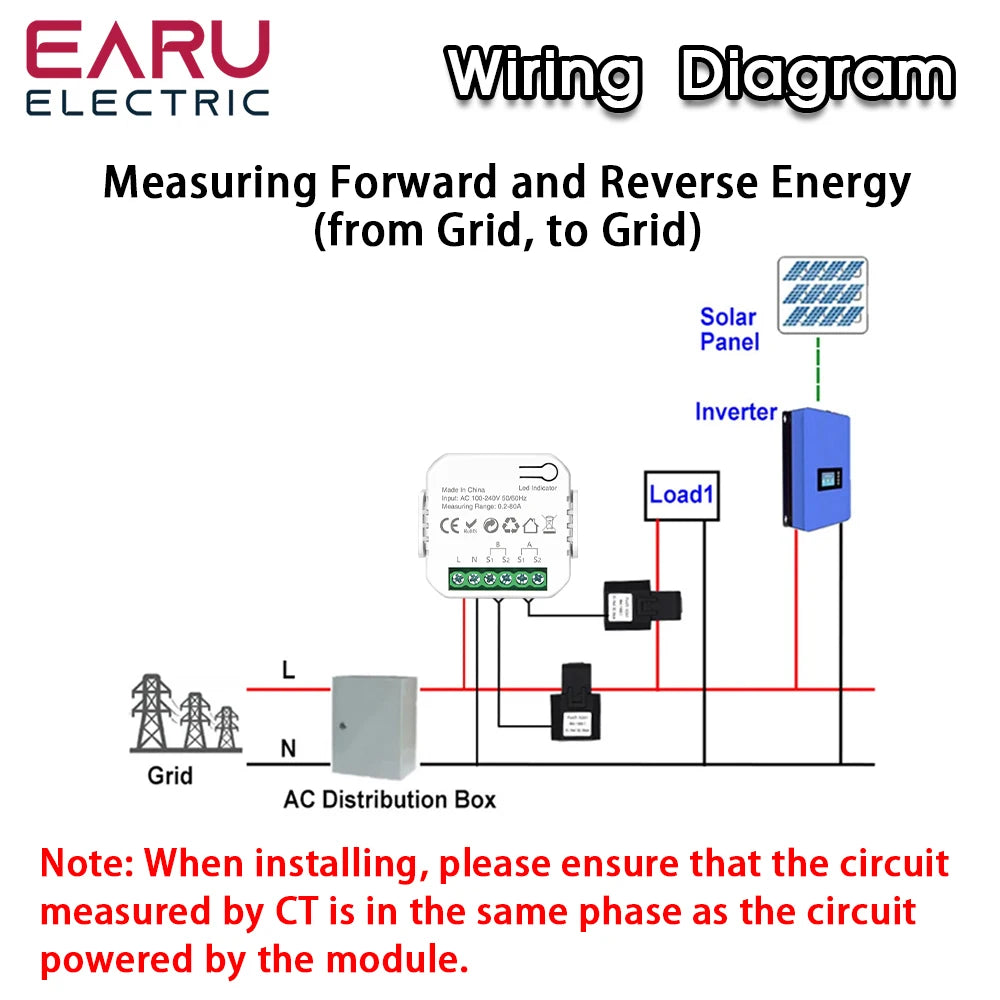

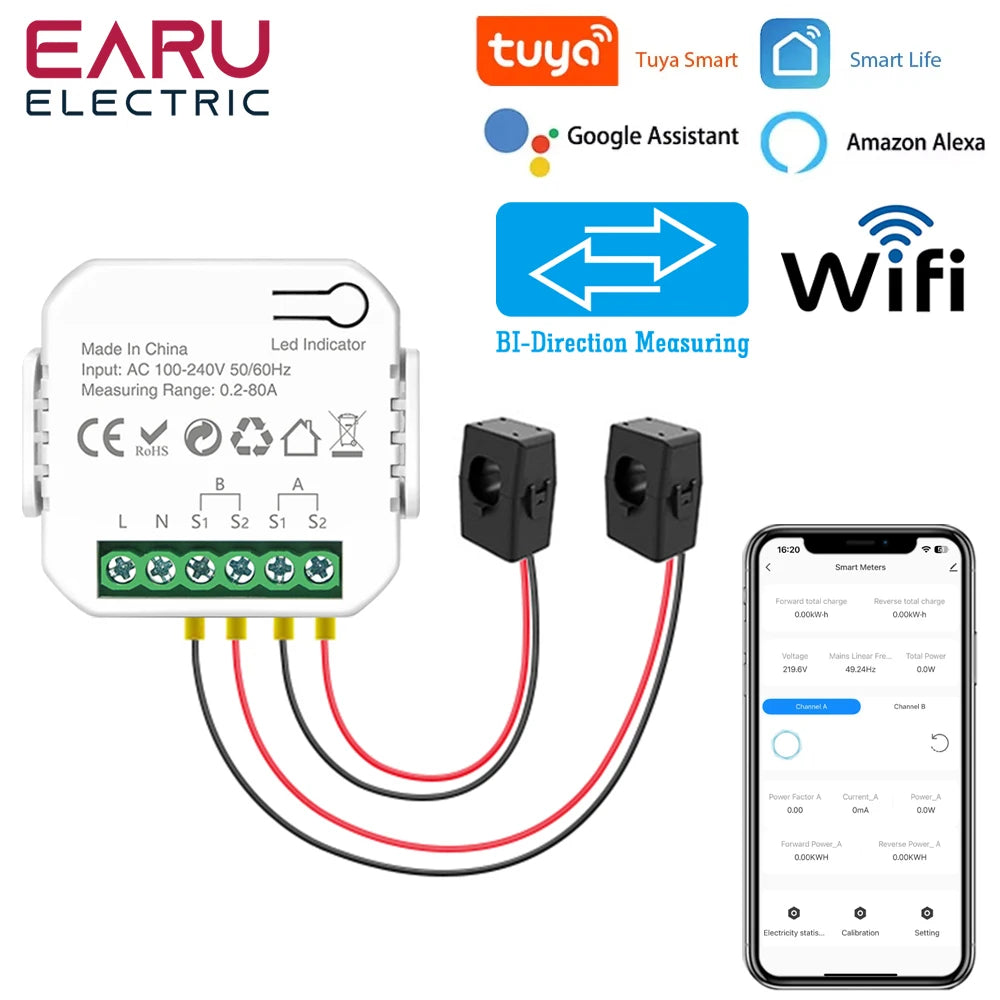

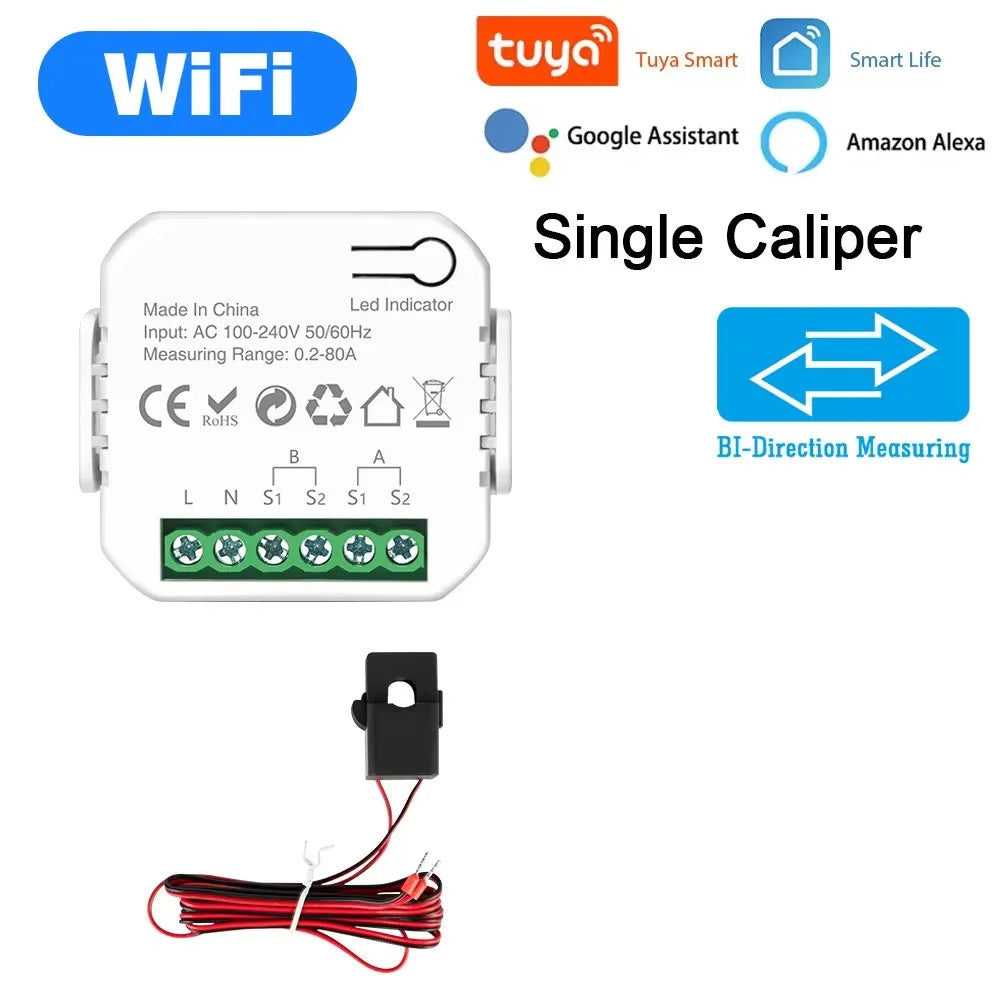

2 Channels For Reverse and Forward direction

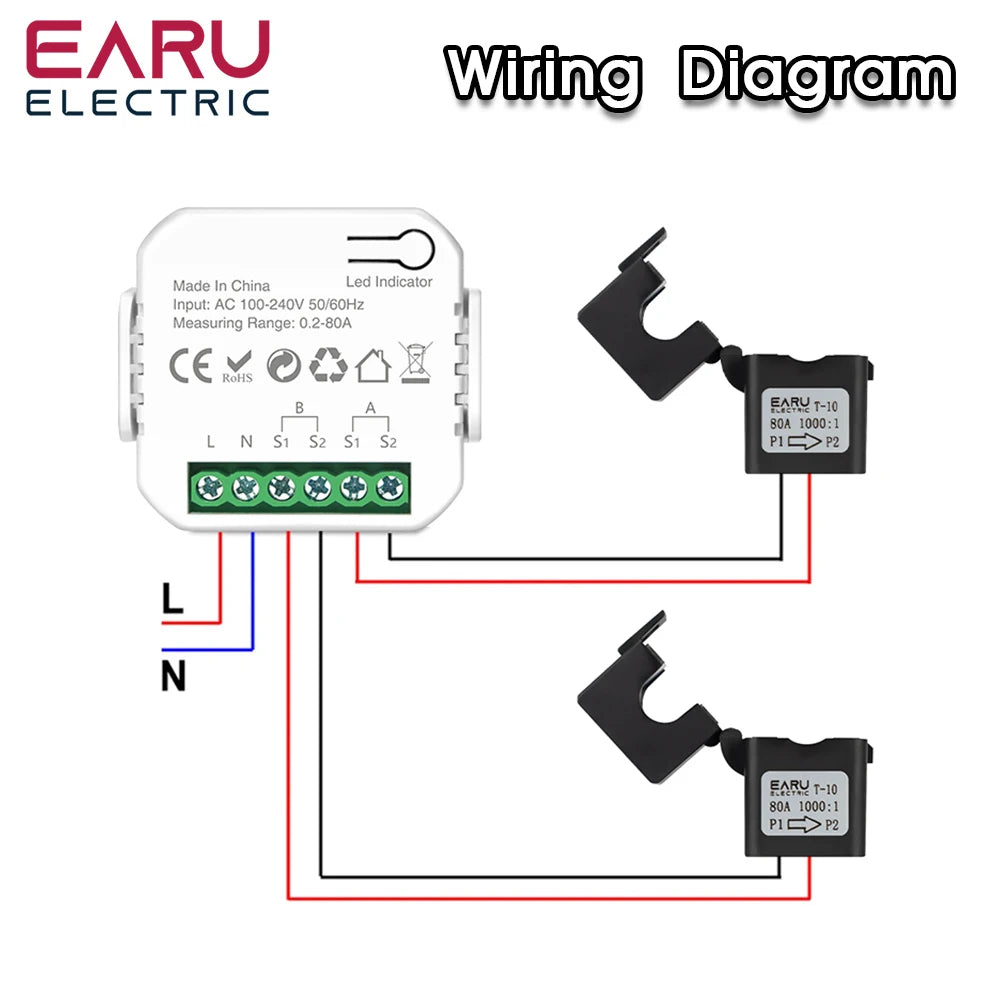

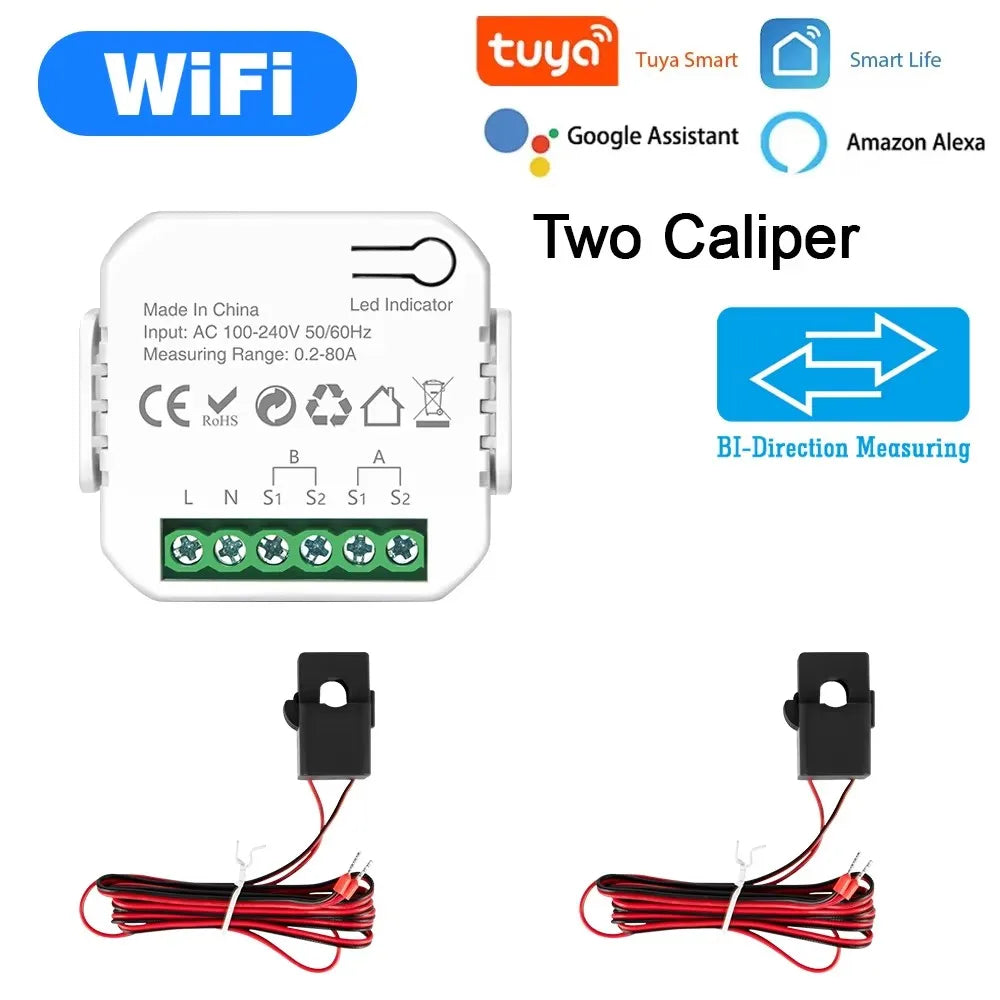

1 Channels or 2 Channels are available to Choose

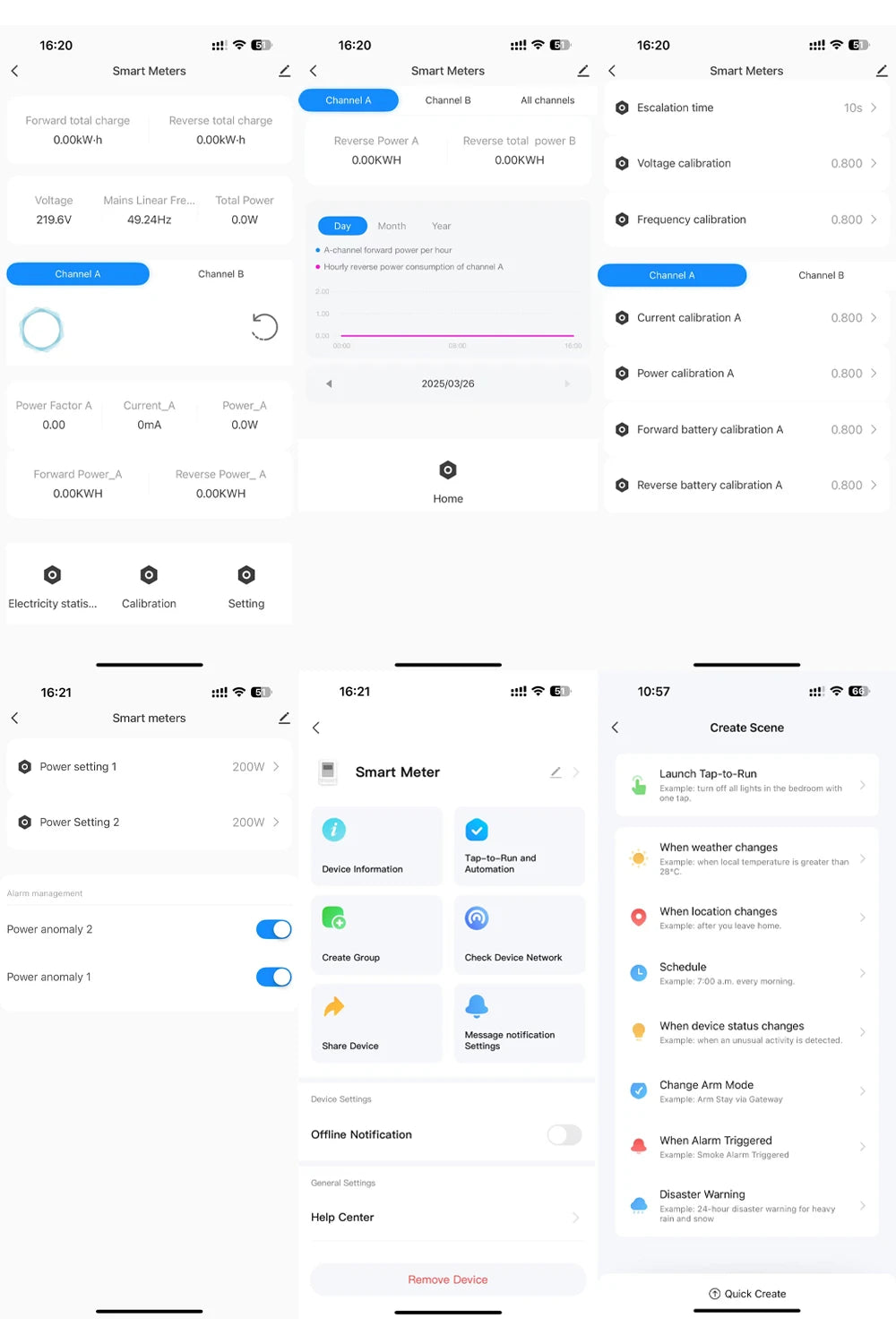

And you can read from App for each Channel

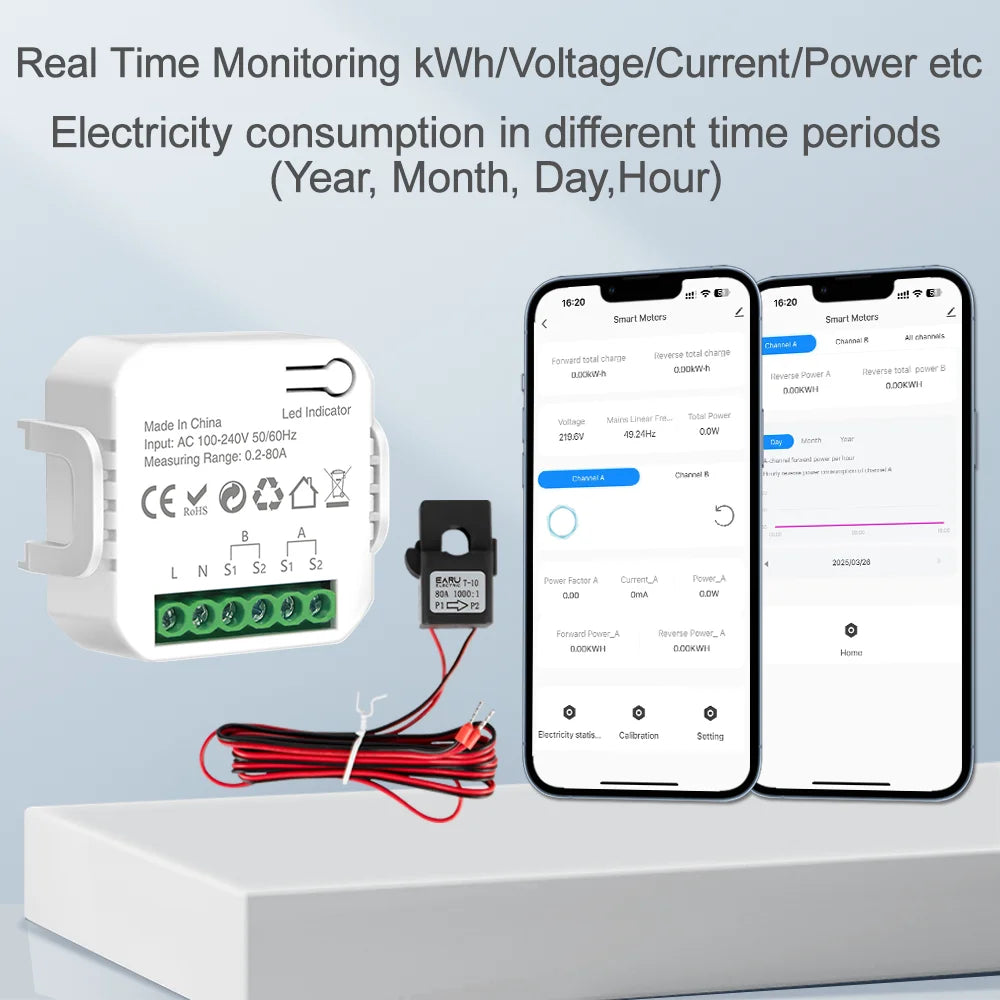

- Real-time total power of 2 channels of reverse and forward direction

- Power for Channel A and B Separately(W)

- Current(mA)

- Voltage(V),

- Power factor, and Frequency(Hz)

Electricity Statistic for each channel in Forward and Reverse direction.

Hourly Elec.(kWh)

Daily Elec.(kWh),

Monthly Elec.(kWh)

-Yearly Elec.(kWh)

Rated Current: 80A/120A/200A/300A

Wireless Type: Wi-Fi 2.4GHz Only，5GHz Not Support

Support System: Android/IOS

Installation: 35MM Din Rail

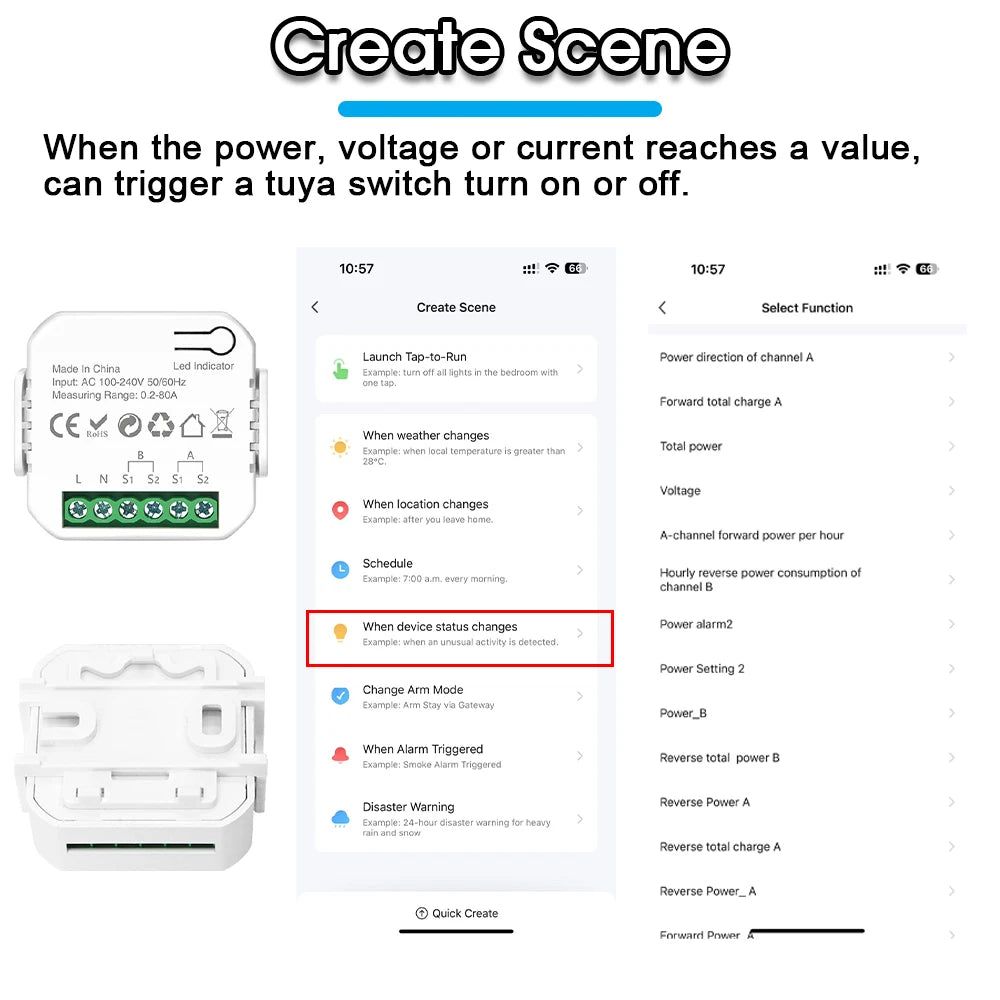

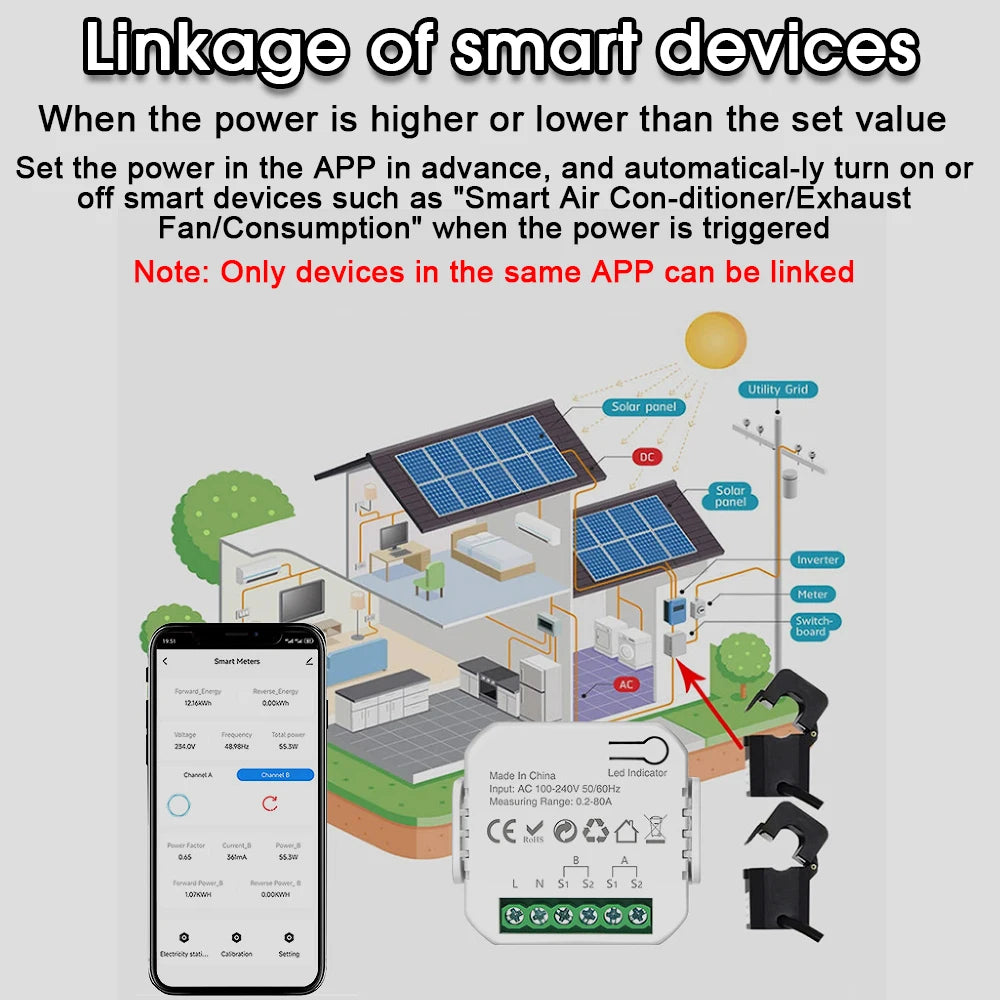

Remote control at anytime from anywhere your mobile phone can get Internet signal by Tuya App/Smart Life App, no distance limit

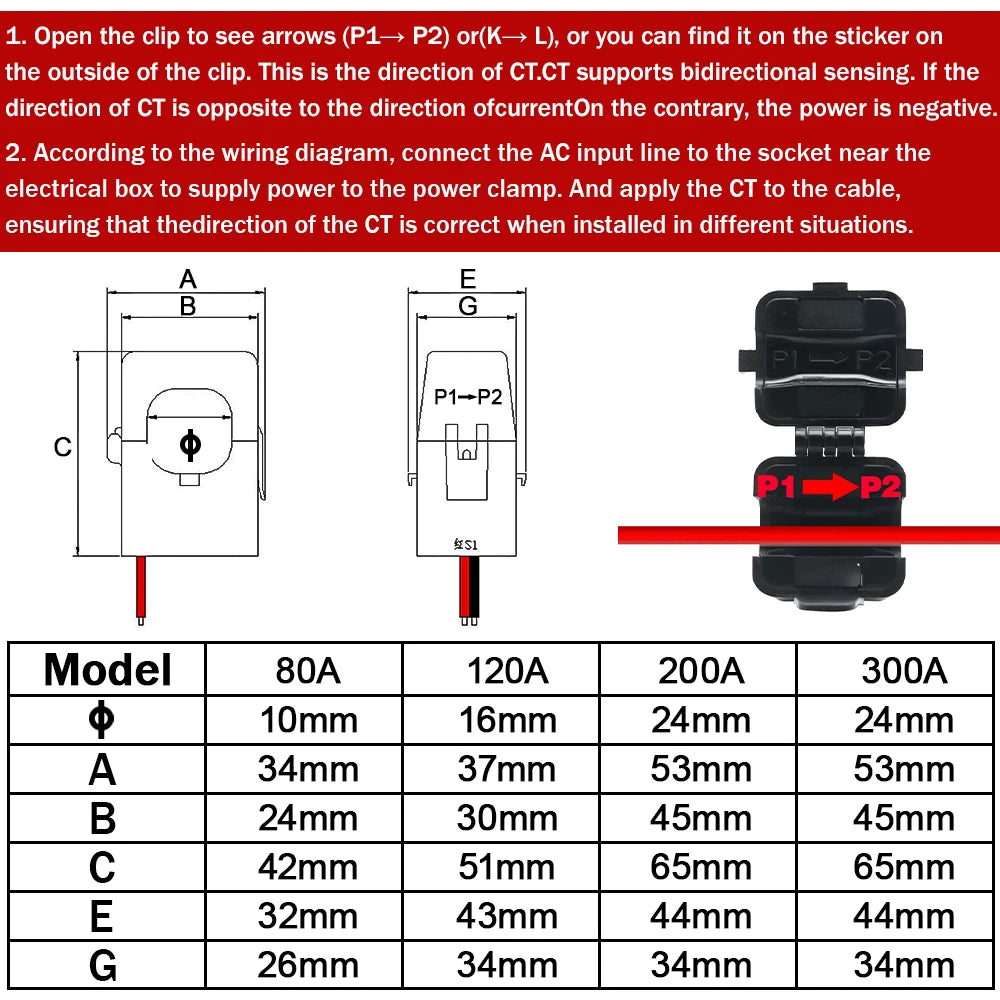

NOTE: The device's current is determined by the current transformer, not by the host. The rated current indicated on the host can be disregarded for reference！
