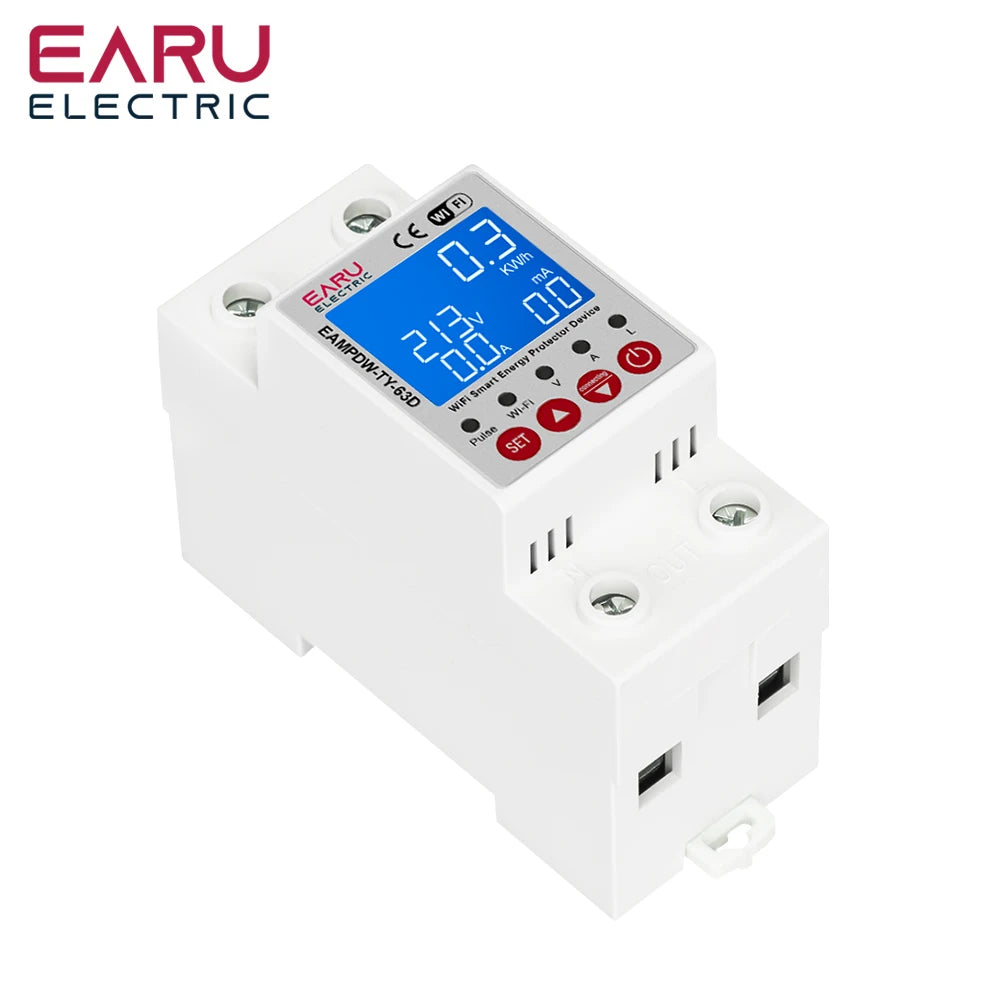

Tuya WiFi Smart Bidirectional Energy Meter Power kWh Meter Earth Leakage Over Under Voltage Protector Timer Relay Switch Breaker
Tuya WiFi Smart Bidirectional Energy Meter Power kWh Meter Earth Leakage Over Under Voltage Protector Timer Relay Switch Breaker
Impossible de charger la disponibilité du service de retrait
SPECIFICATIONS
Brand Name: EARU
Certification: CE
Choice: yes
Function1: Undercurrent protection
Function10: Time period overcurrent protection control
Function2: Over Voltage Protection
Function3: Under Voltage Protection
Function4: Leakage Protection
Function5: Electricity Metering
Function6: Temperature Protection
Function7: Voltage meter
Function8: Ammeter
Function9: Bl-Direction Measuring
High-concerned chemical: None

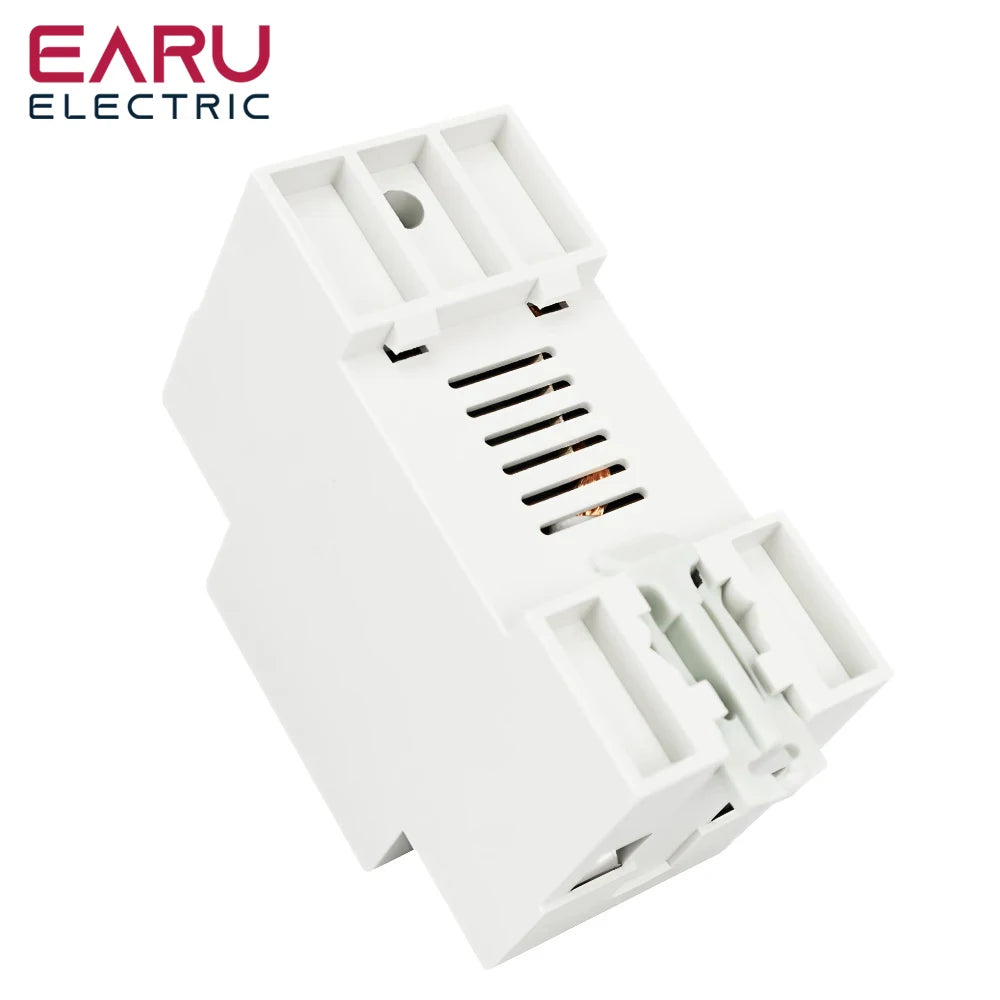

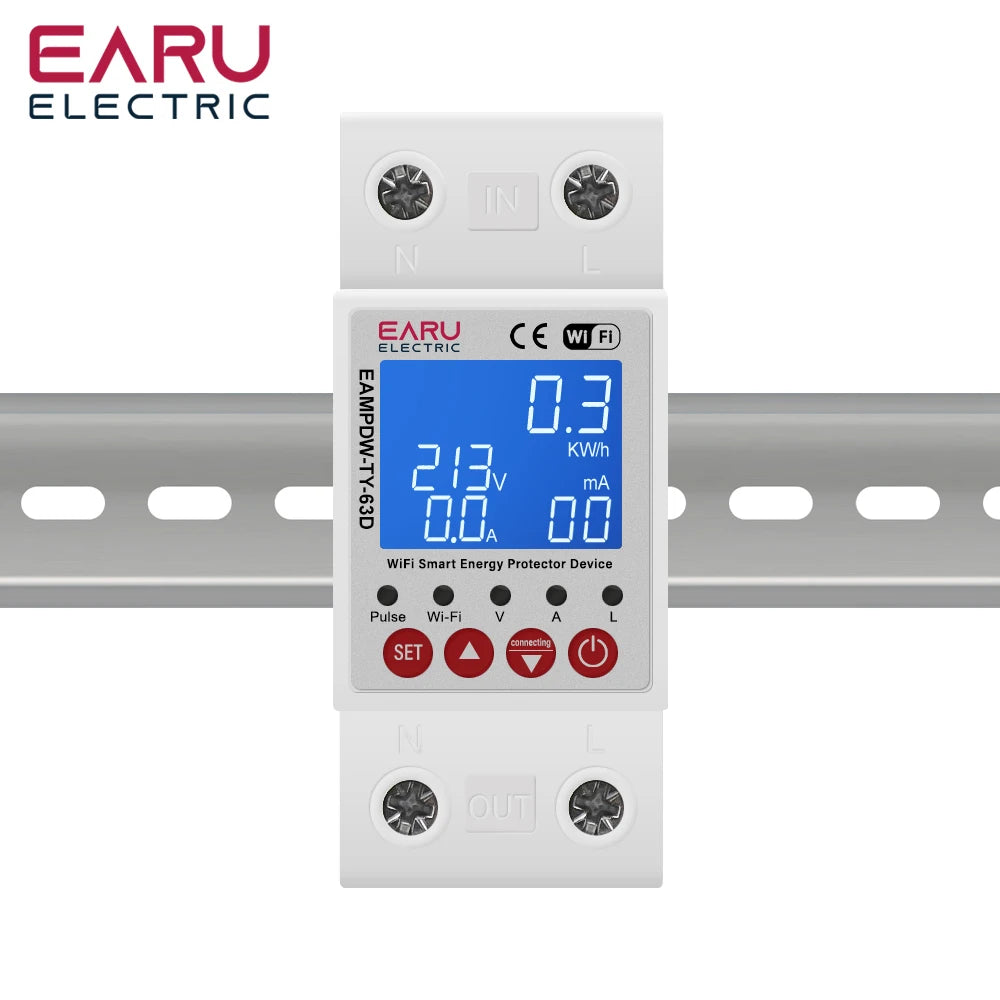

Installation: 35MM Din Rail
Is Smart Device: Yes
Leakage protector setting range: 10-99mA (adjustable)
Model Number: EAMPDW-TY-63D
Operating Temperature: -30℃ to 70°C
Operation Voltage Range: AC80V-400V(Single Phase)
Origin: Mainland China
Output Contact: 1NO
Over Voltage(>U): 120V-300V (adjustable)
Power Display Range: 0-99999.9kw/h
Protection Degree: IP20
Rated Current: 1-63A(adjustable)
Rated Frequency: 50/60Hz
Rated Supply Voltage: AC110V/AC220V
Reset/start delay: 10s-99s
Temperature measurement: 10-85°C(adjustable)
Type: Mini,Circuit breaker
Under Voltage(: 80V-210V (adjustable)
is_customized: Yes
semi_Choice: yes
We are factory, we can provide OEM service, if you need product with your logo, please contact us!

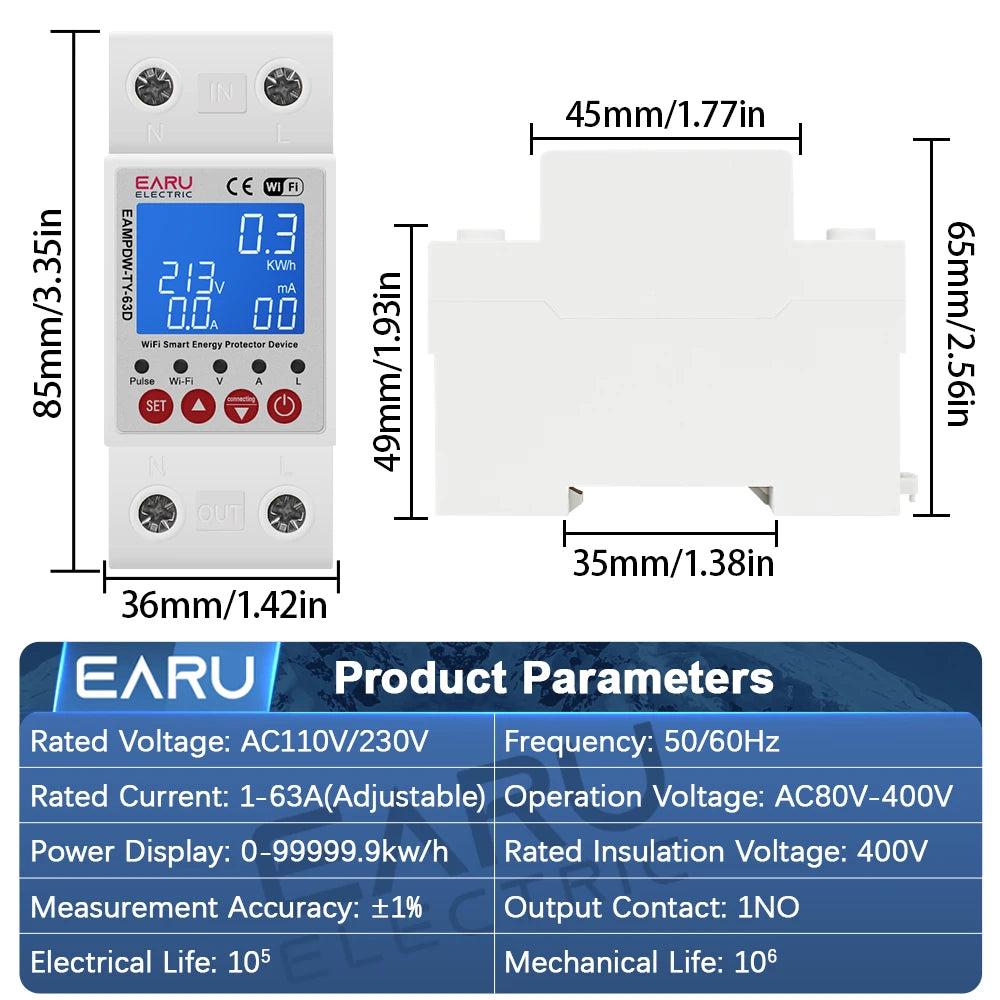

Rated Voltage: AC110V/230V; Frequency: 50Hz/60Hz

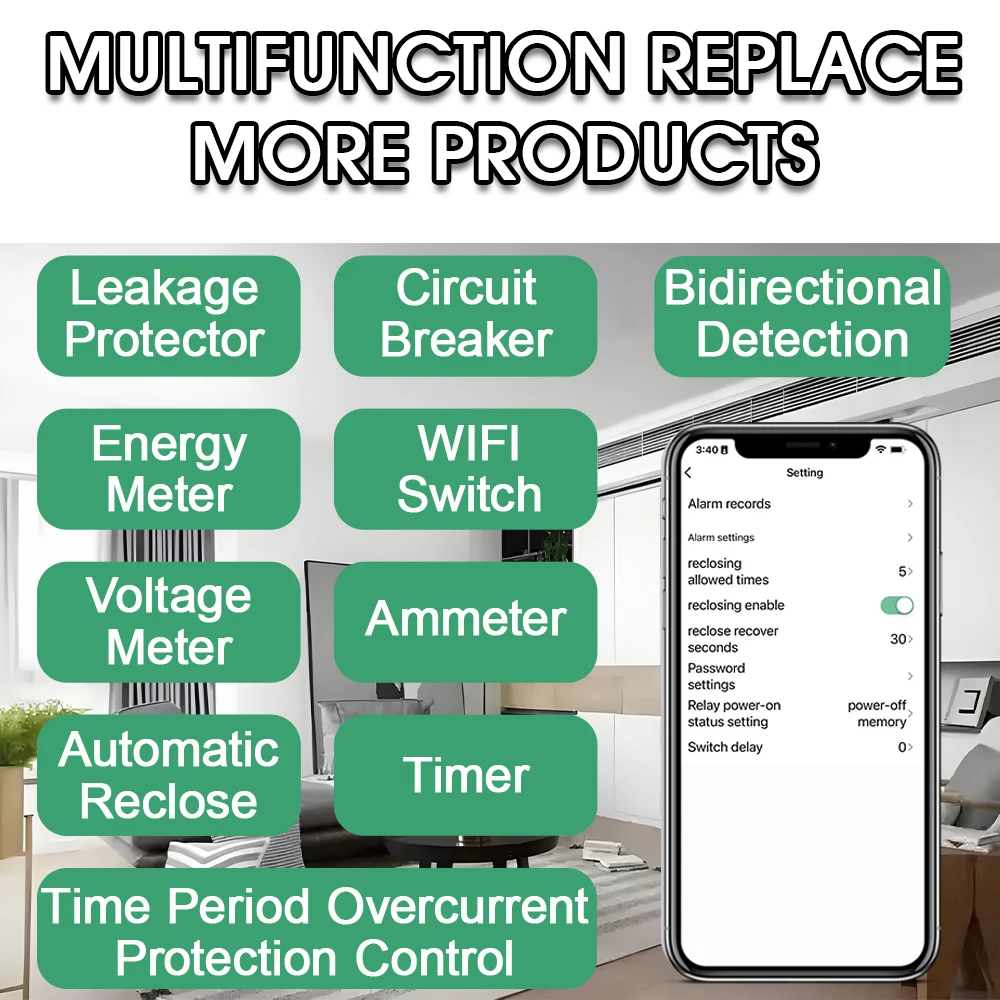

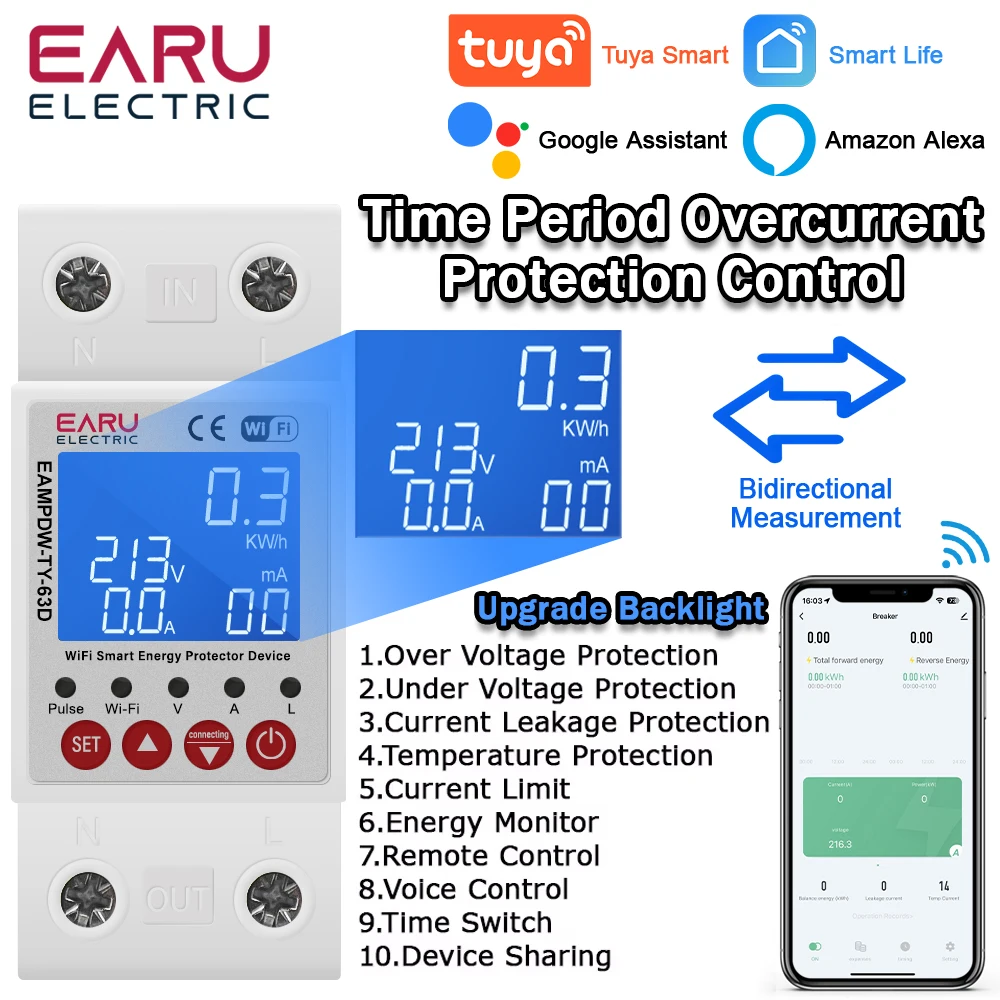

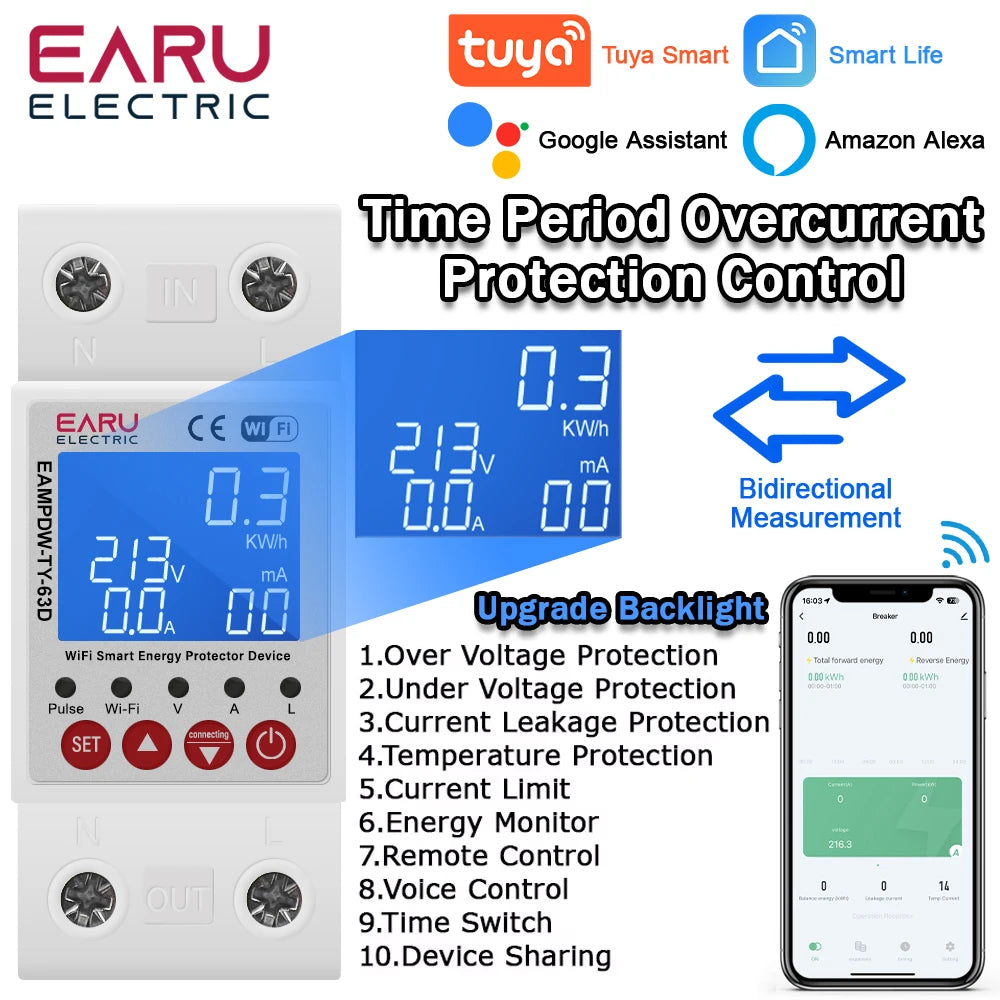

Function:
1. Voltage Meter
2. Ammeter
3. Energy Meter
4. Timer Switch
5. Remote Control ON/OFF
6. Power Failure Memory

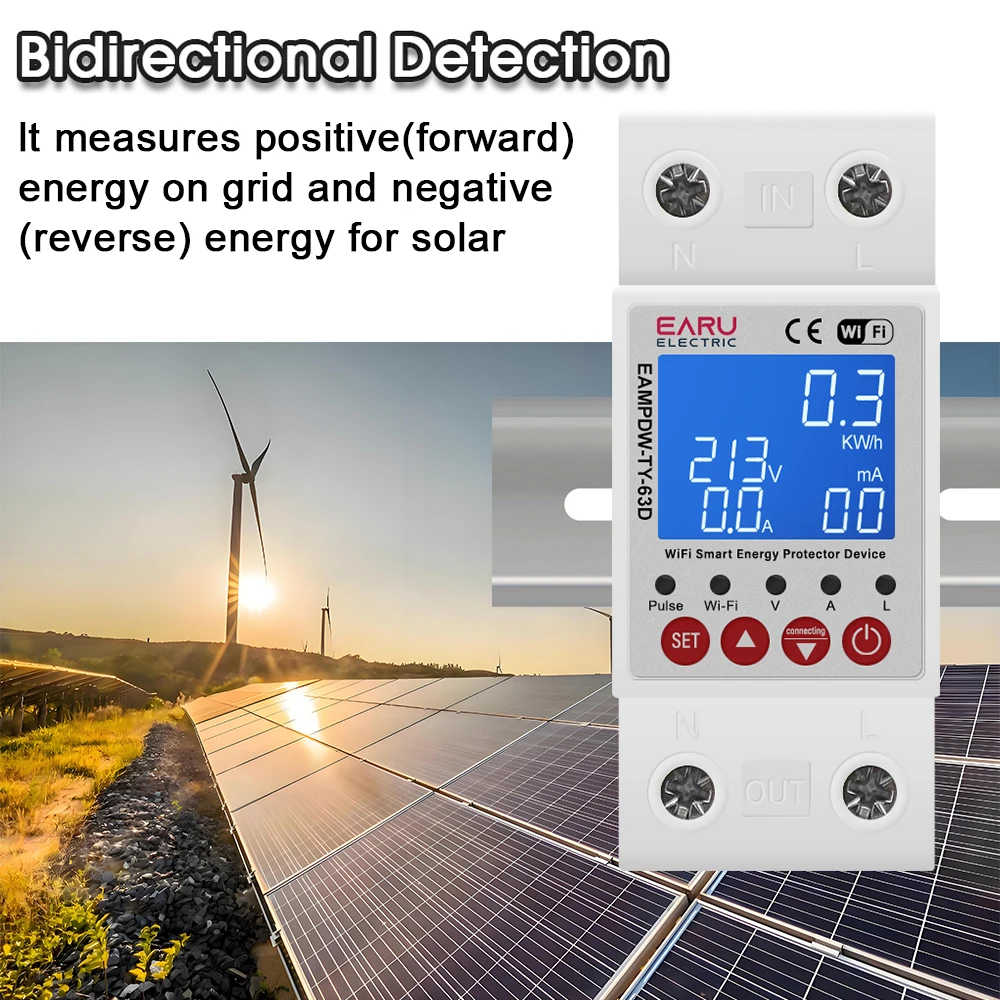

7. Bidirectional Detection

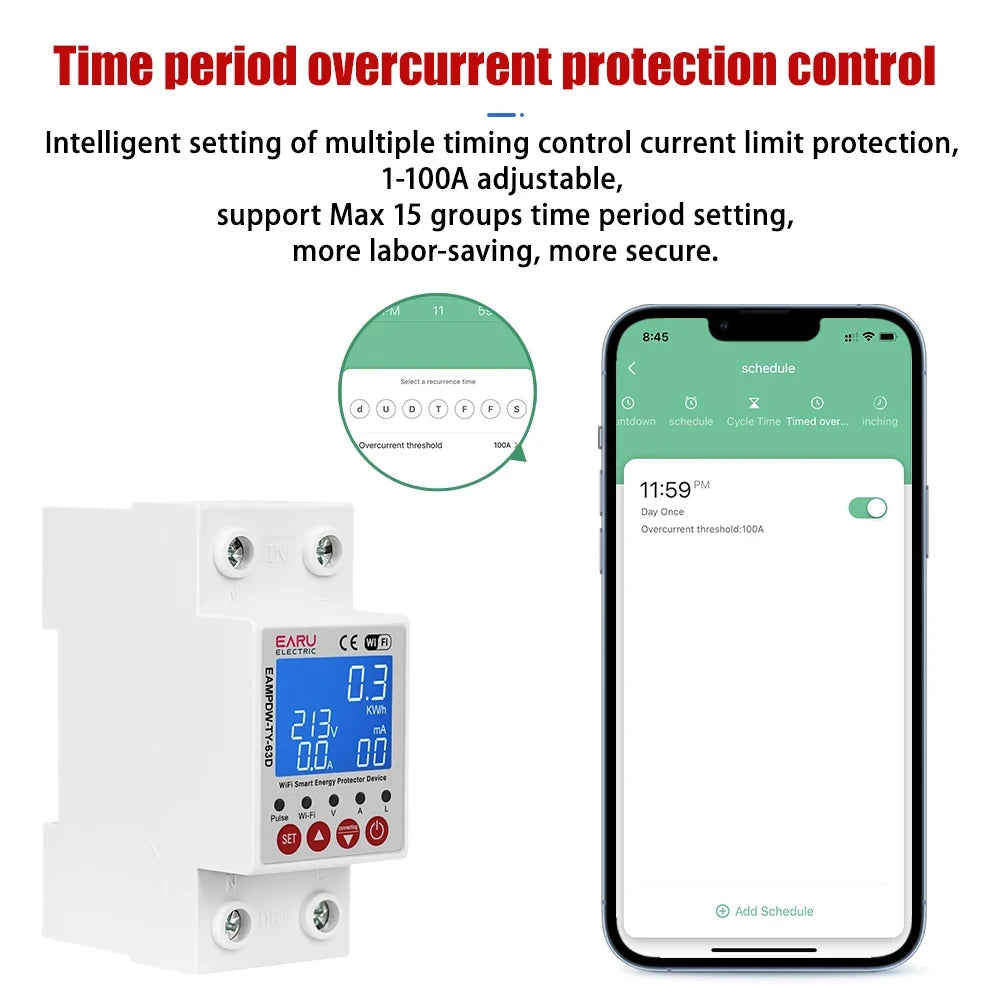

9. Time Period Overcurrent Protection Control (1A-100A Aadjustable)

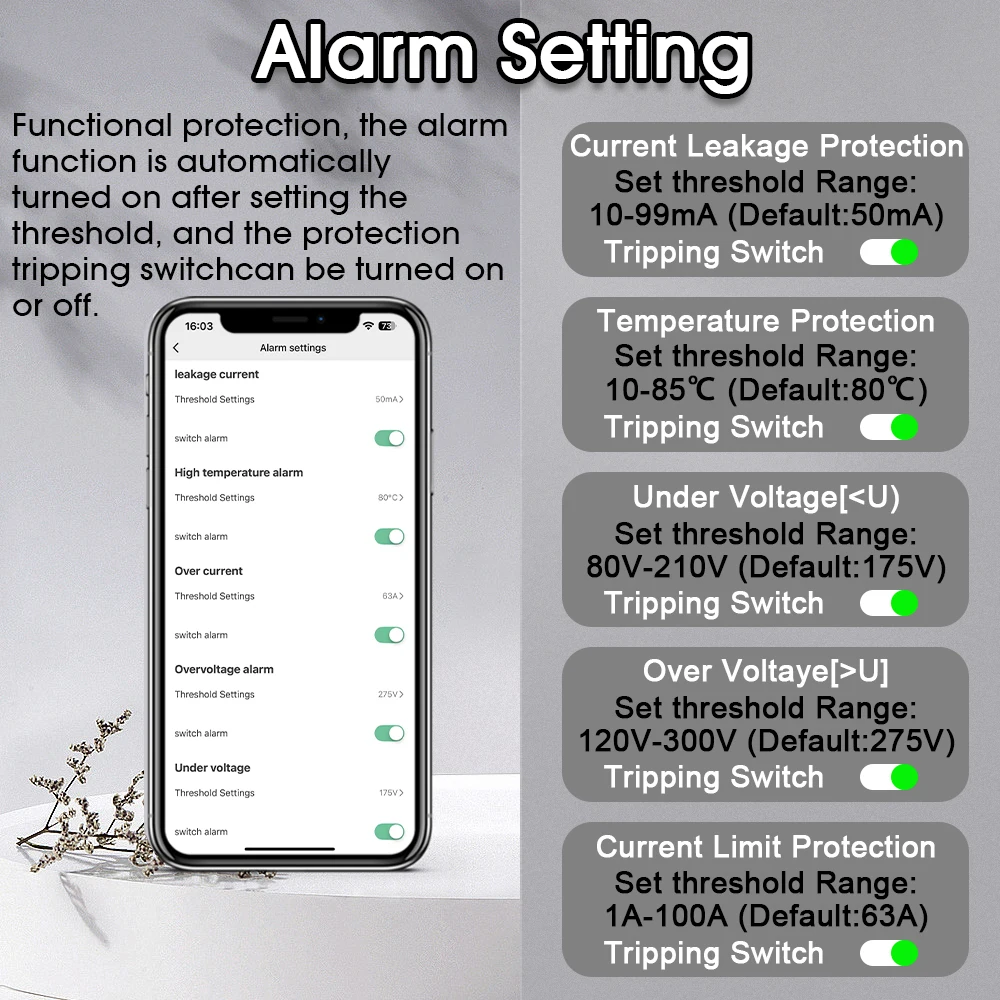

10. Under-Voltage Protection (76V-240V Adjustable)
11. Over-Voltage Proteciton (120V-300V Adjustable)
12. Current Leakage Protection (10mA-99mA Adjustable)
13. Temperature Protection (10°C-85°C Adjustable)
14. Over Current and Leakage Reconnect Times (1-30 Adjustable)
15. Reconnect Time (Delay on time) (10s-90s Adjustable)
