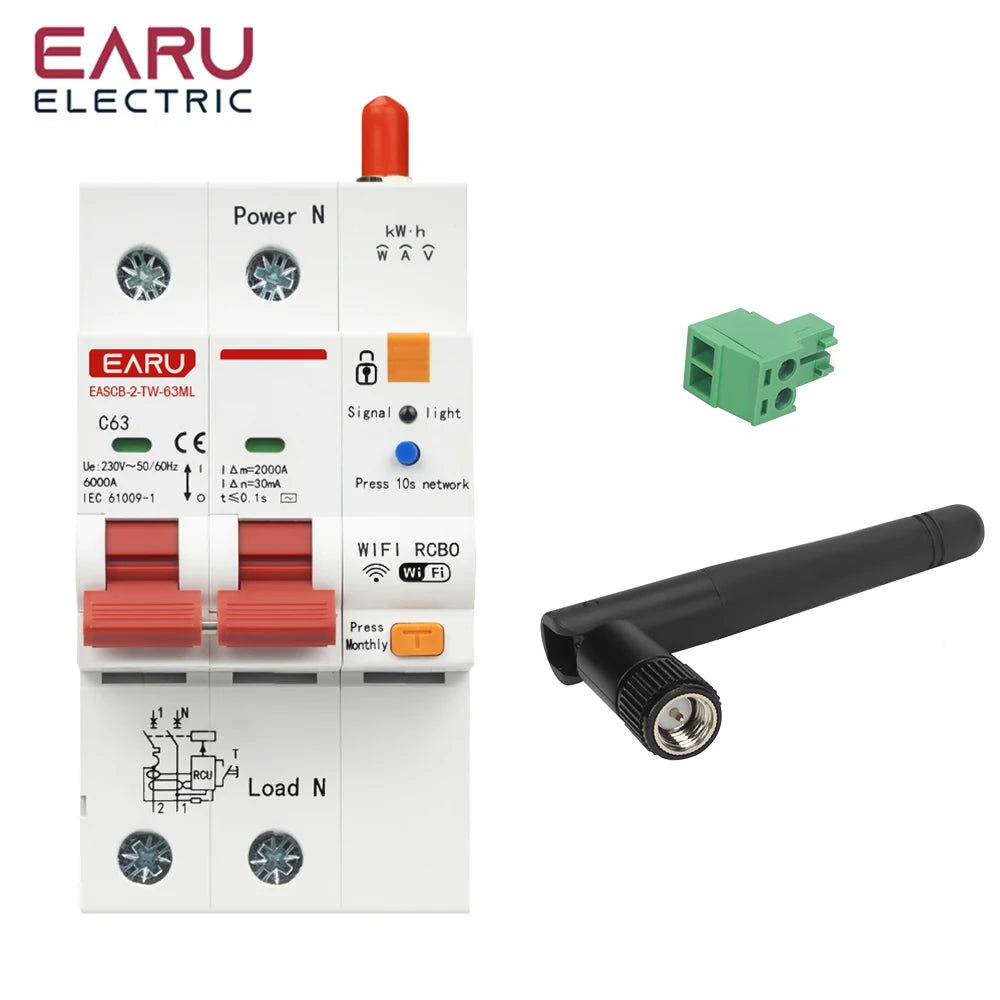

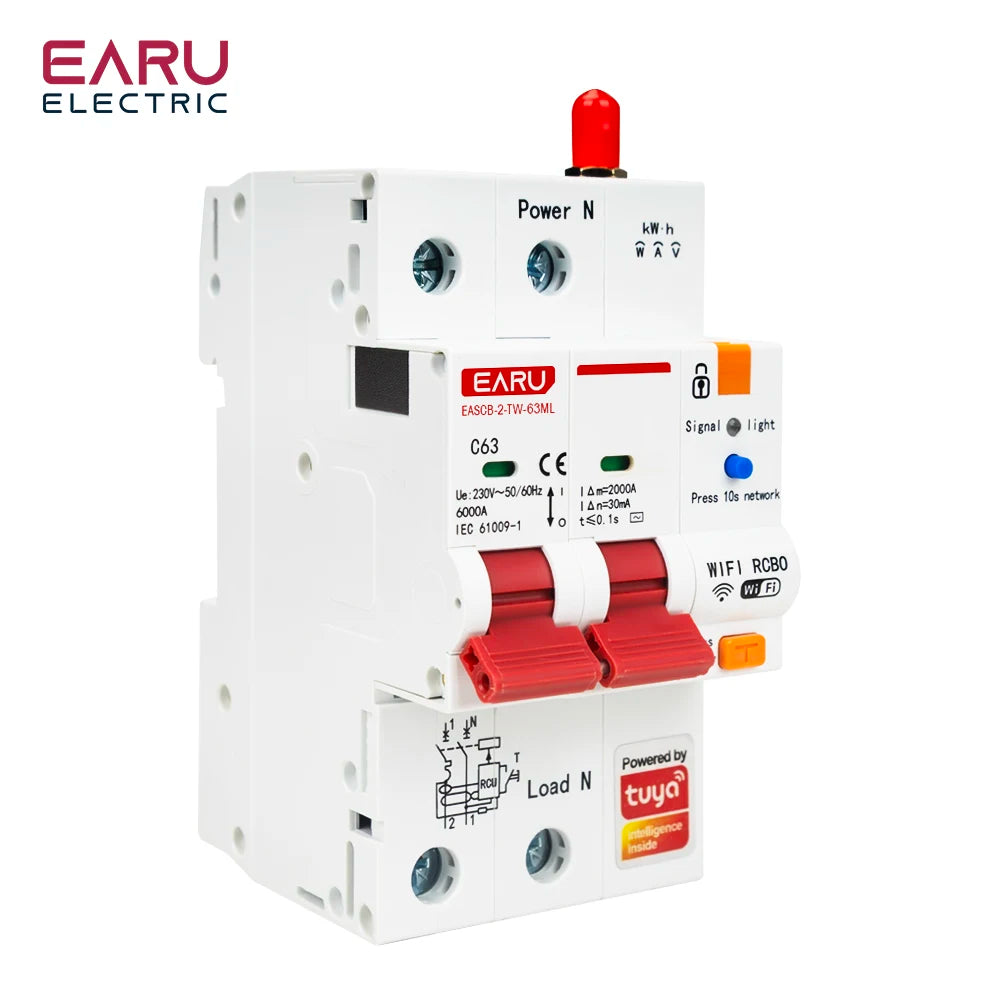

Tuya WiFi Smart RS485 Metering Leakage Circuit Breaker MCB RCBO AC230V Remote Control Circuit Breaker With Leakage Protection

$144.40 USD

~~$0.00 USD~~ $144.40 USD

Promotion Épuisé

Frais d'expédition calculés à l'étape de paiement.

Rated Current 63A

Poles Number 2P

Quantité

SPECIFICATIONS

Brand Name: EARU

Breaking Capability lcs: 6000A

Certification: CE

Choice: yes

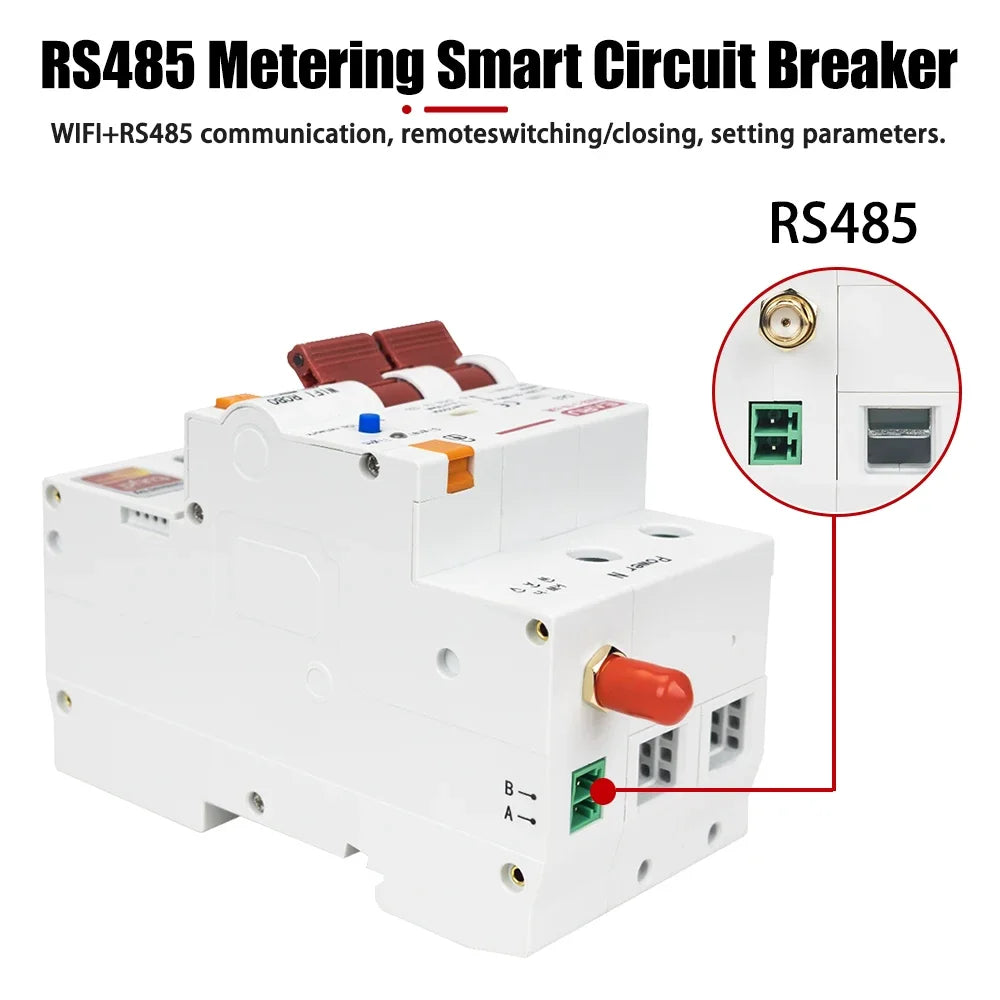

Connection: WiFi+RS485

Frequency: 50/60Hz

High-concerned chemical: None

Is Smart Device: Yes

Model Number: EASCB-2-TW-63ML

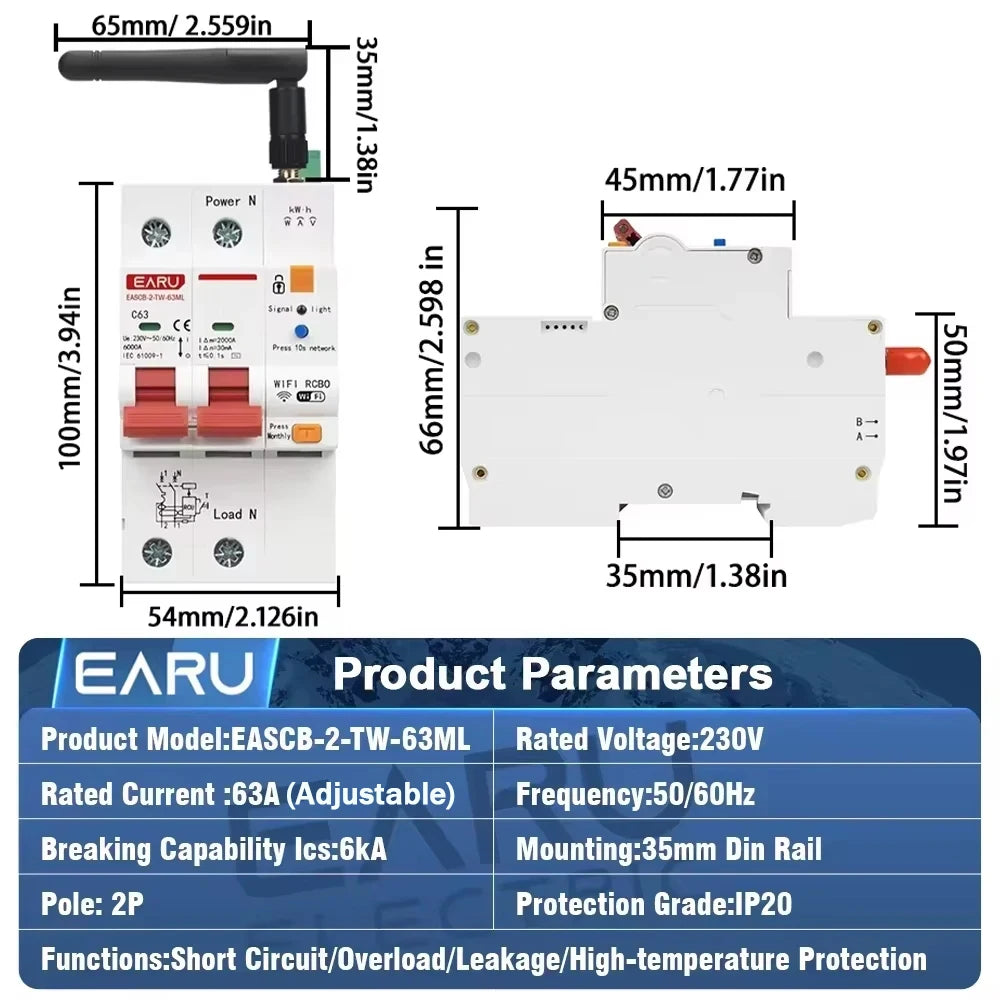

Mounting: 35mm Din Rail

Origin: Mainland China

Rated Current: 1-63A (Adjustable)

Rated Voltage: 220V,AC 230V

Type: Earth Leakage,Circuit breaker

is_customized: Yes

semi_Choice: yes

Scope of Application and Features:

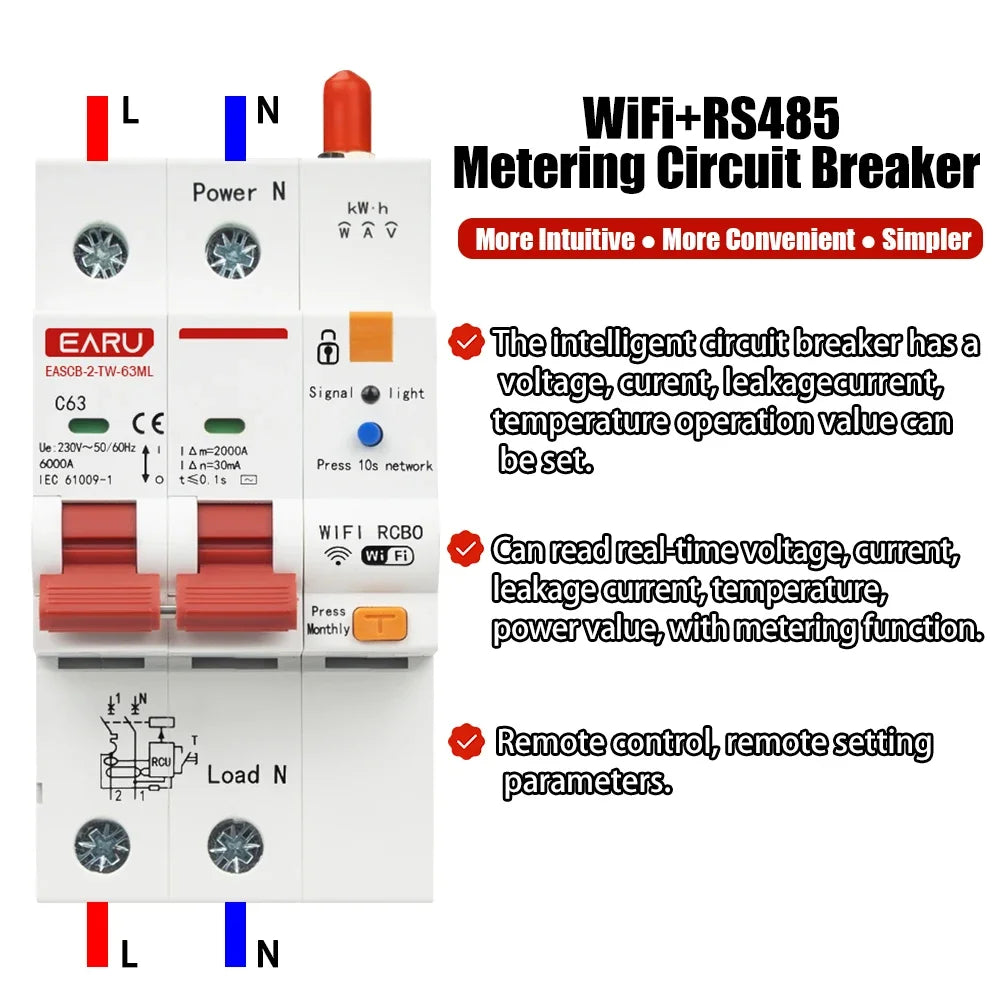

The EASCB-2-TW-63ML series WIFI+RS485 intelligent circuit breaker is suitable for users or loads with AC 50/60Hz, rated operating voltage of 230V, and rated operating current of 63A or less. It protects electrical equipment when the line is over voltage or under voltage (over voltage and under voltage settings); it has overload and short-circuit protection functions, an attractive appearance, excellent and reliable performance, high breaking capacity, fast tripping, remote control, and modular rail installation.

Technical Arameters:

Rated operating voltage: AC230V

Rated current: 1-63A(Adjustable）

Breaking capacity: 6000A

Lifespan: Mechanical life: 10,000 cycles, electrical life: 6,000 cycles

Overvoltage operating characteristics:

1. Over voltage operating value setting range: AC 250-300V.

2. Over voltage recovery value (Uvor): AC 220-250V.

Under voltage operating characteristics:

1. Under voltage operating value setting range: AC 150-200V.

2. Under voltage recovery value (Uvur): AC 170-220V.

3. Under voltage operating delay: 0.5s-6s.

Power recovery after power outage:

If set to automatic mode, the automatic closing time is less than 3s if no fault is detected. If set to manual mode, the switch will not automatically close. Wiring: Clamp-type terminals. The maximum cross-sectional area of the wire is 35mm. Installation: Installed on a 35.5x7.5mm standard rail. Protective action characteristics of the protector: When the air temperature around the protector is 30~35℃ (i.e. without temperature compensation), the action characteristics of the overcurrent release are shown in Table 1. RS485 communication baud rate: 9600: Communication address range: 1-247

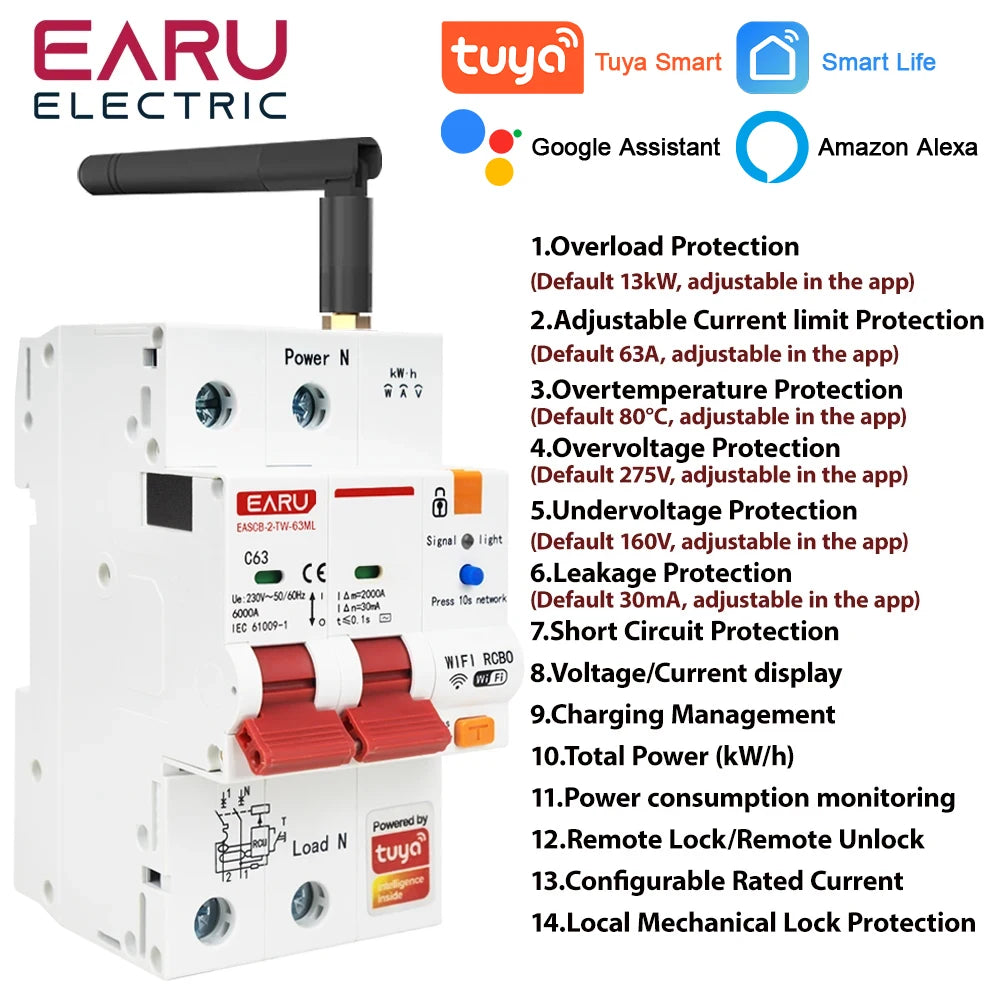

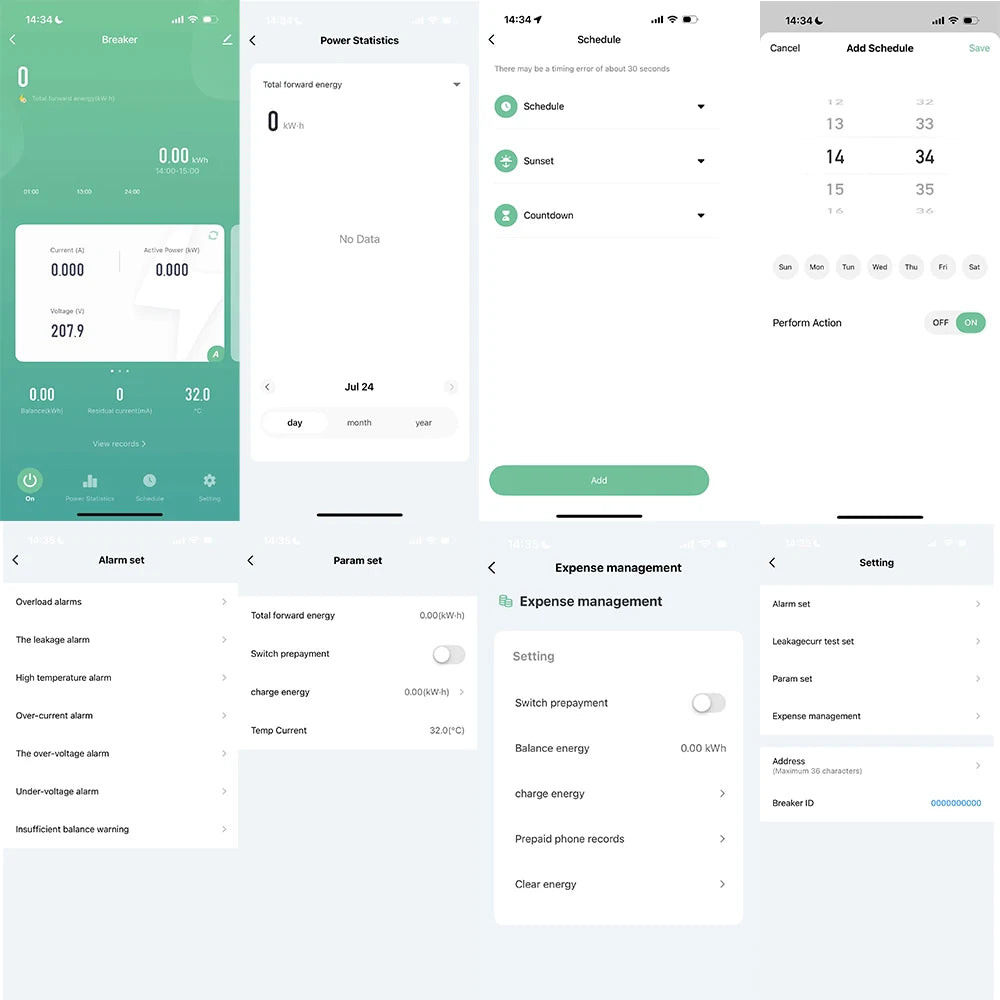

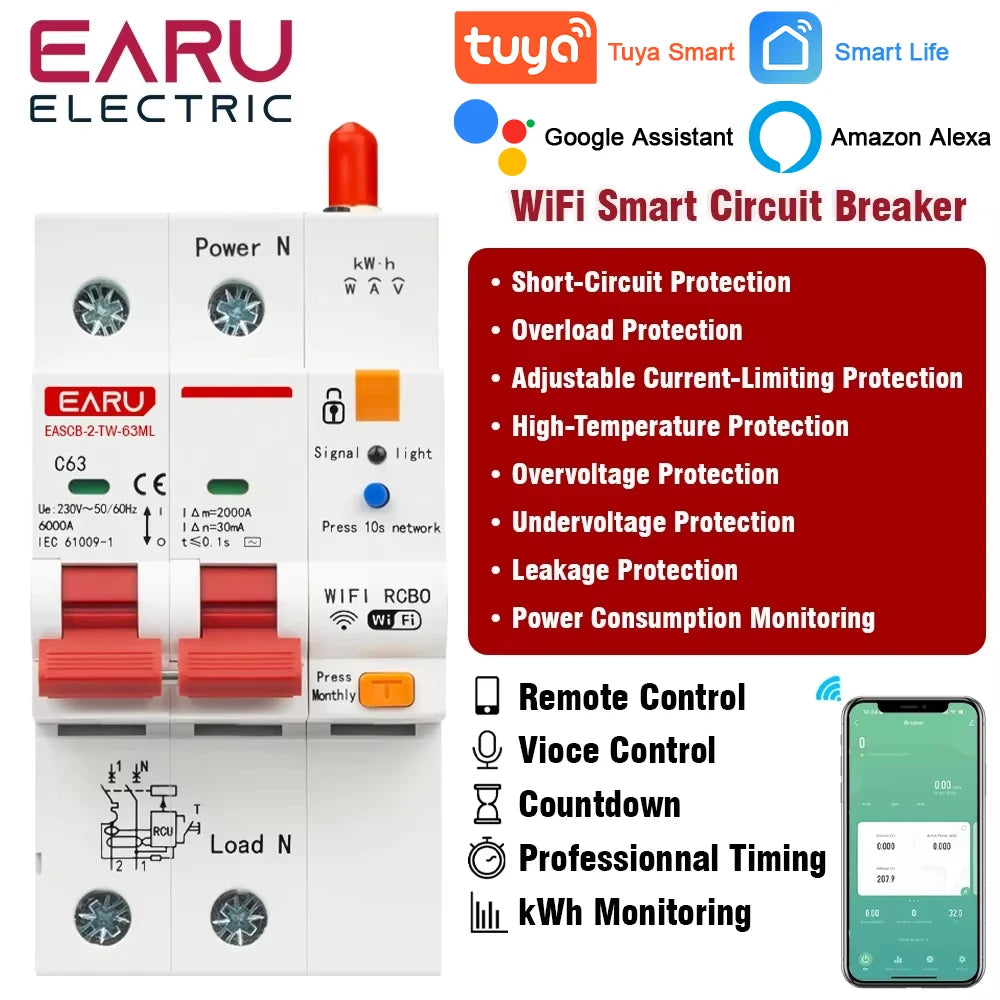

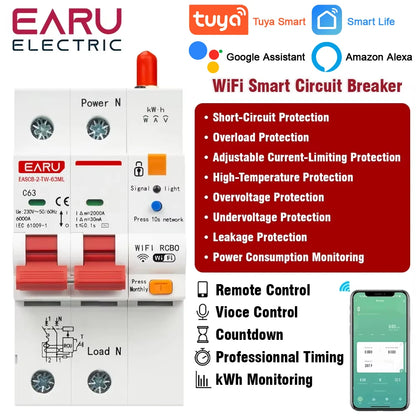

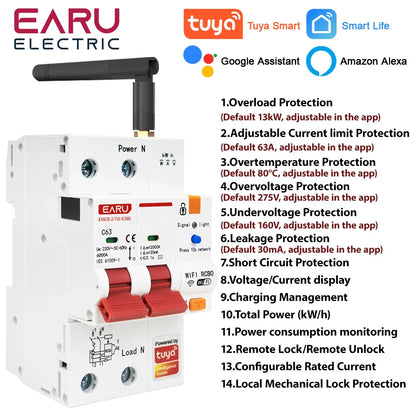

Main Functions:

Short circuit protection

Overload protection

Voltage detection

Leakage detection

Temperature detection

Current detection

Power reading

Over voltage and under voltage setting and disable

Rated current setting

Leakage protection setting and disable

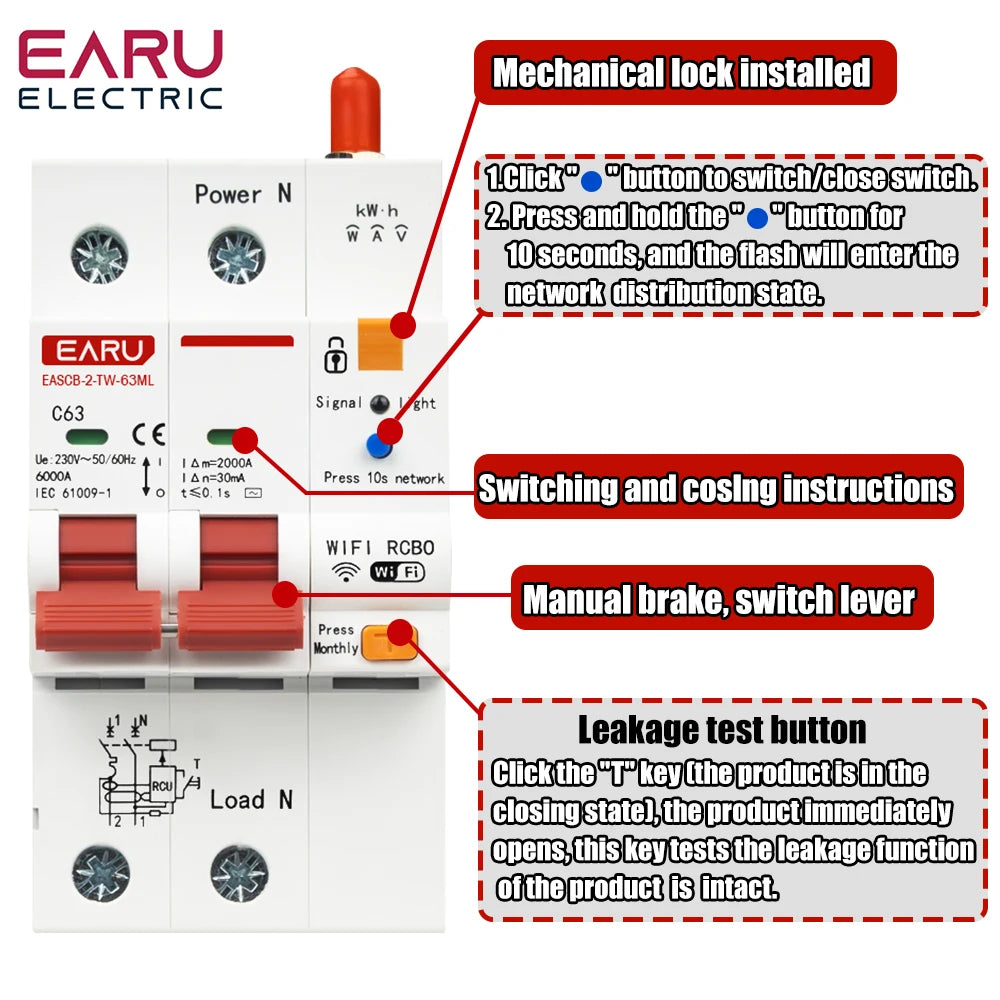

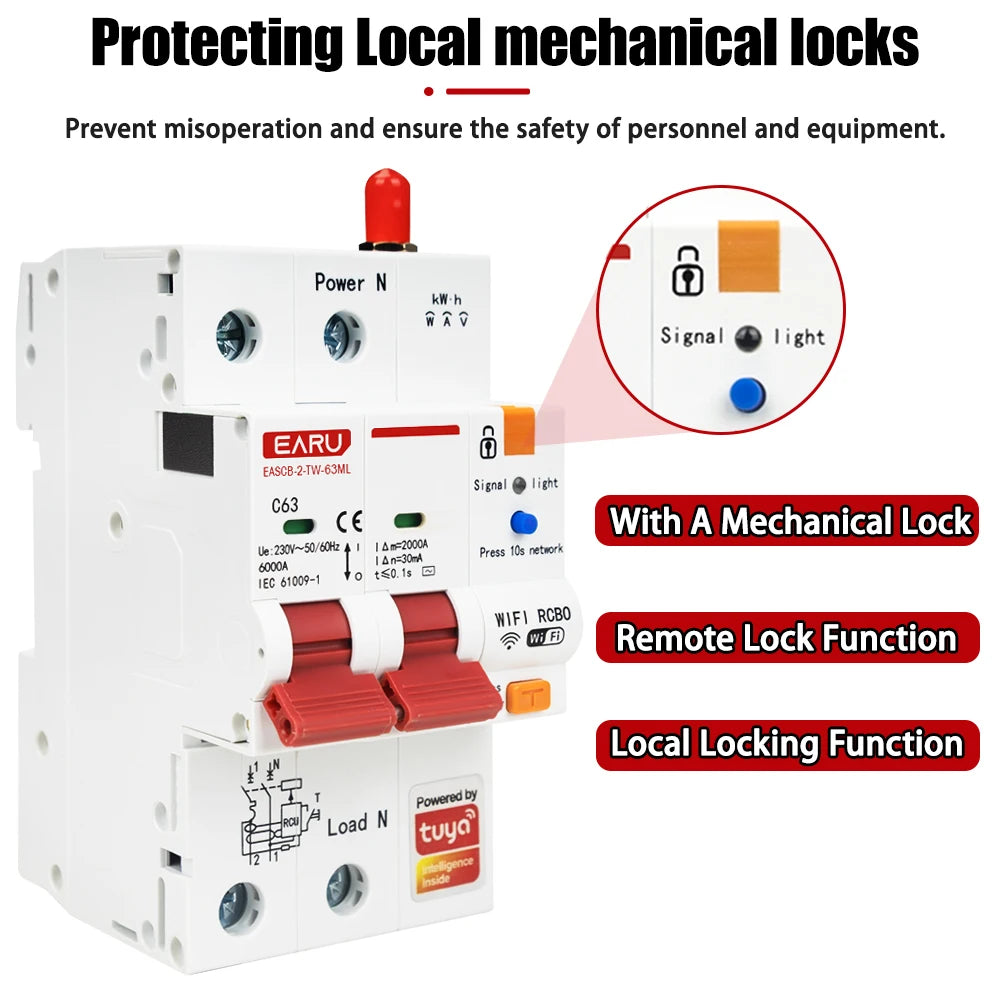

Local mechanical lock
