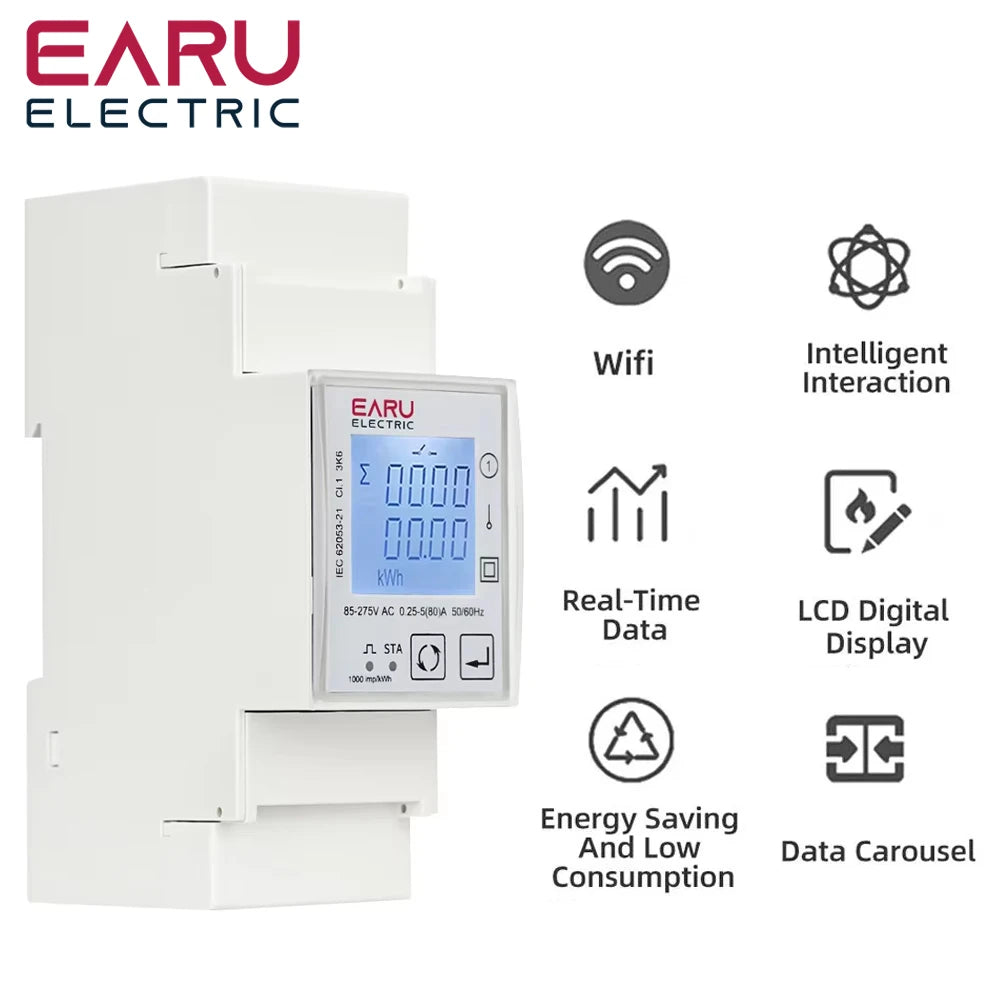

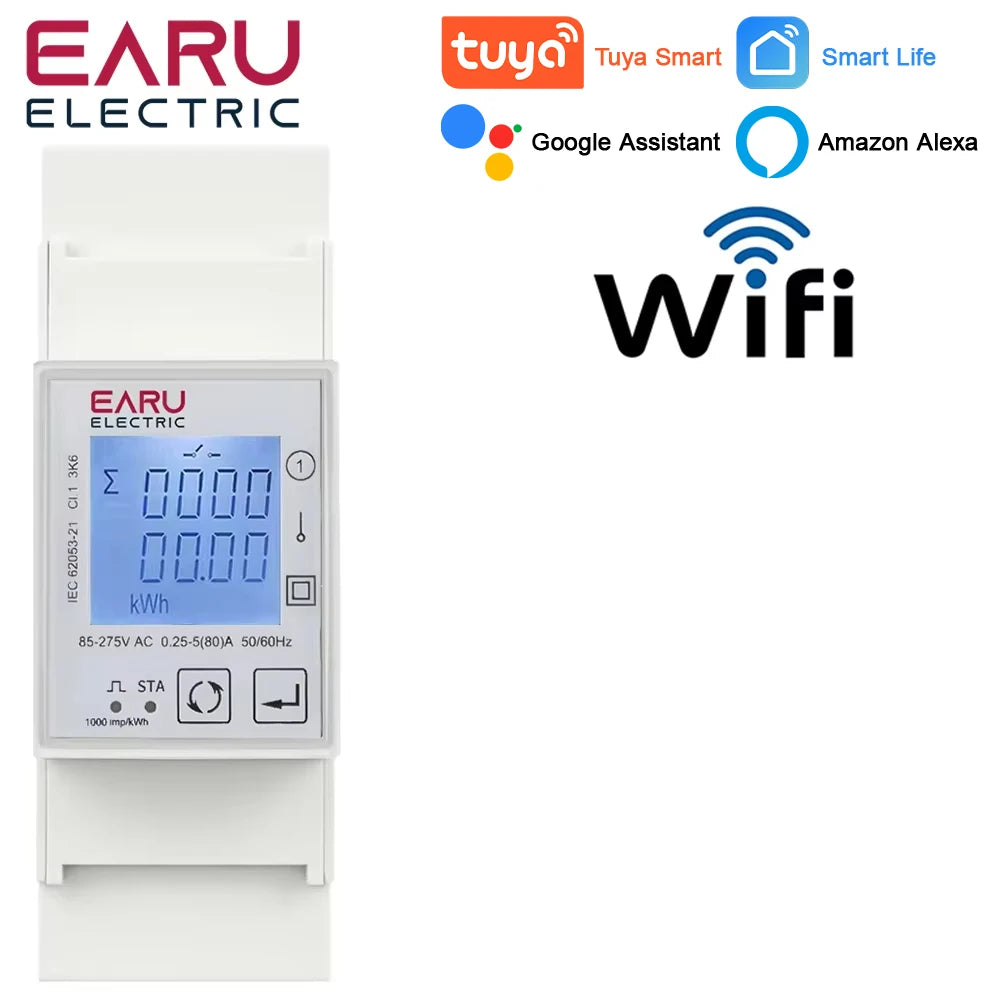

Tuya WiFi ZigBee Smart Energy Meter AC 110V 220V 80A Bidirectional measurement Single Phase Power Consumption Monitor kWh Meter
Tuya WiFi ZigBee Smart Energy Meter AC 110V 220V 80A Bidirectional measurement Single Phase Power Consumption Monitor kWh Meter
Impossible de charger la disponibilité du service de retrait
SPECIFICATIONS
Accuracy Class: 1%

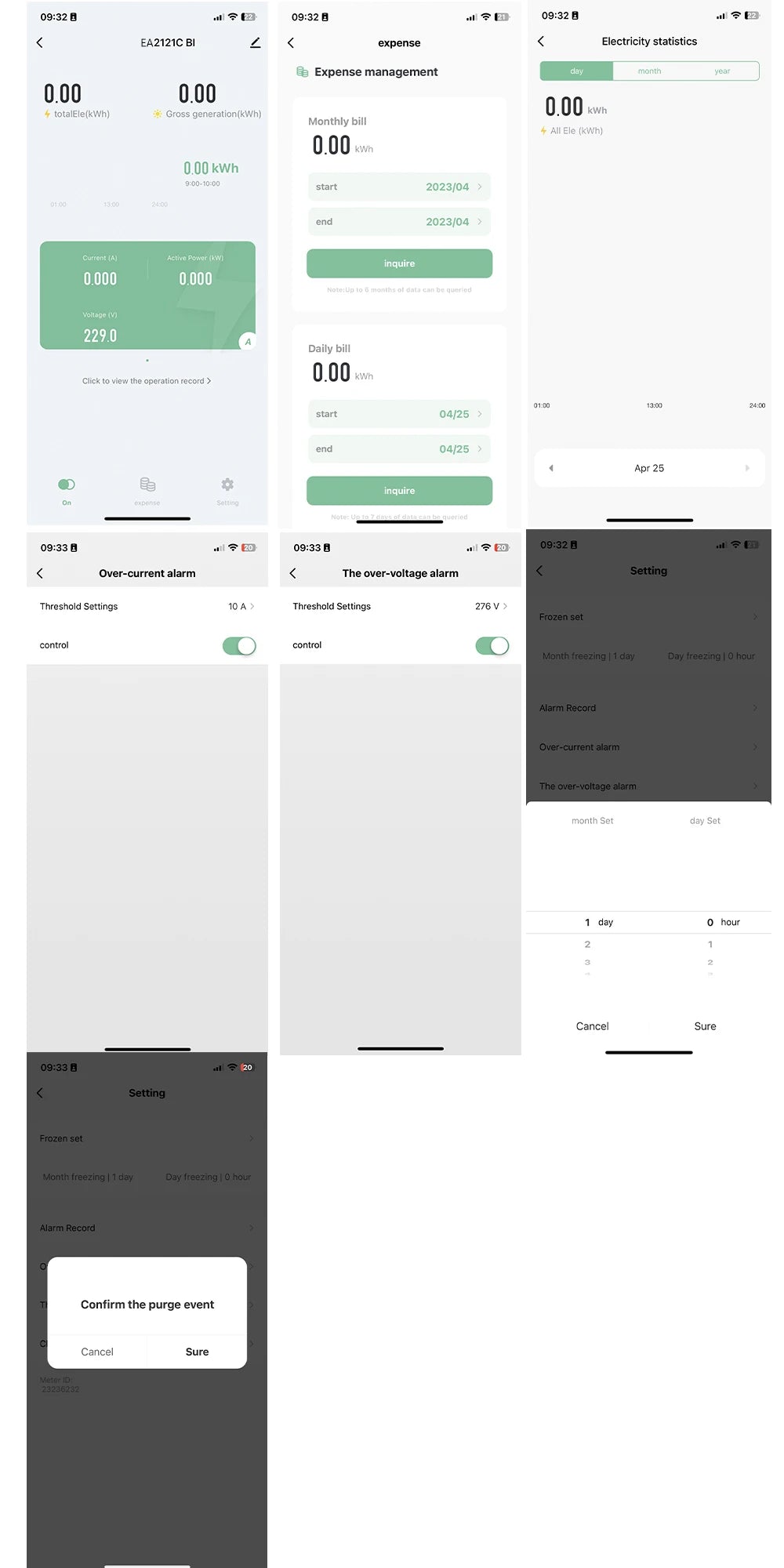

App: Tuya
Battery Included: No
Brand Name: EARU
Certification: CE
Choice: yes
Current Adjustable Range: 10-80A (adjustable)
DIY Supplies: Electrical

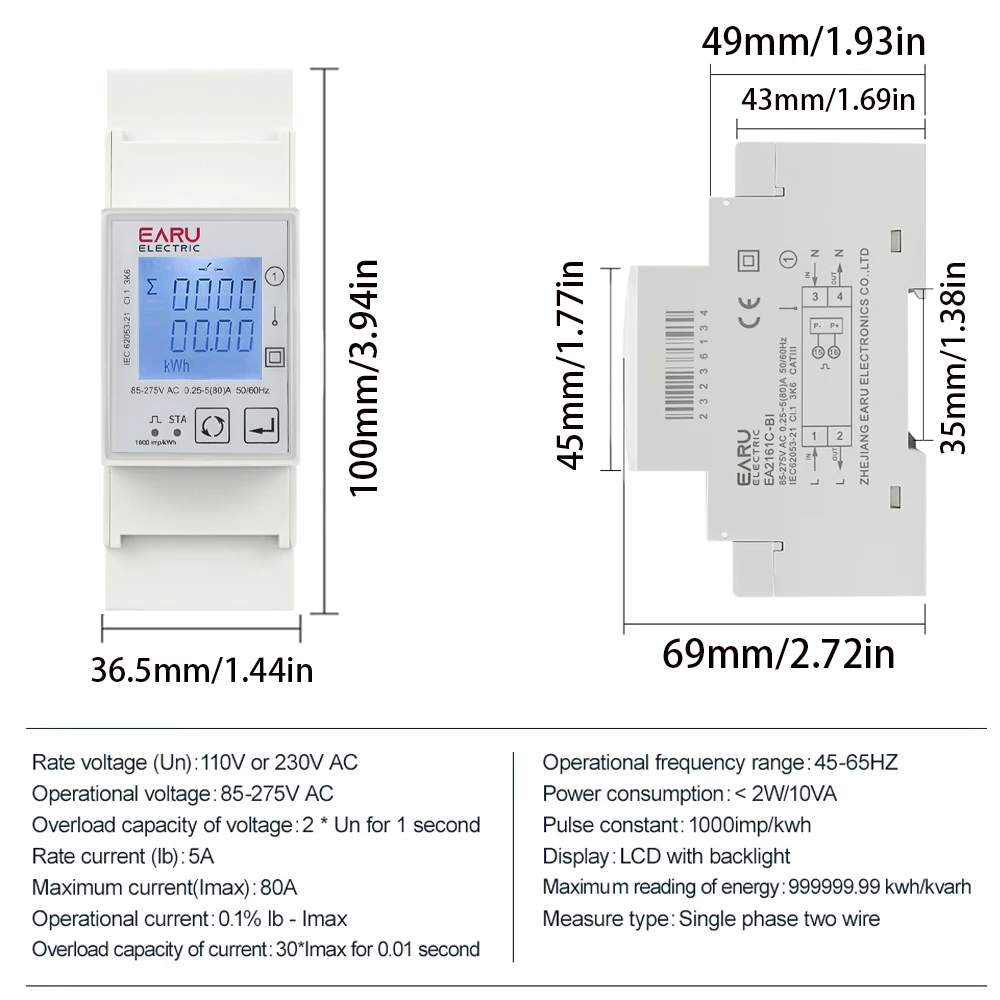

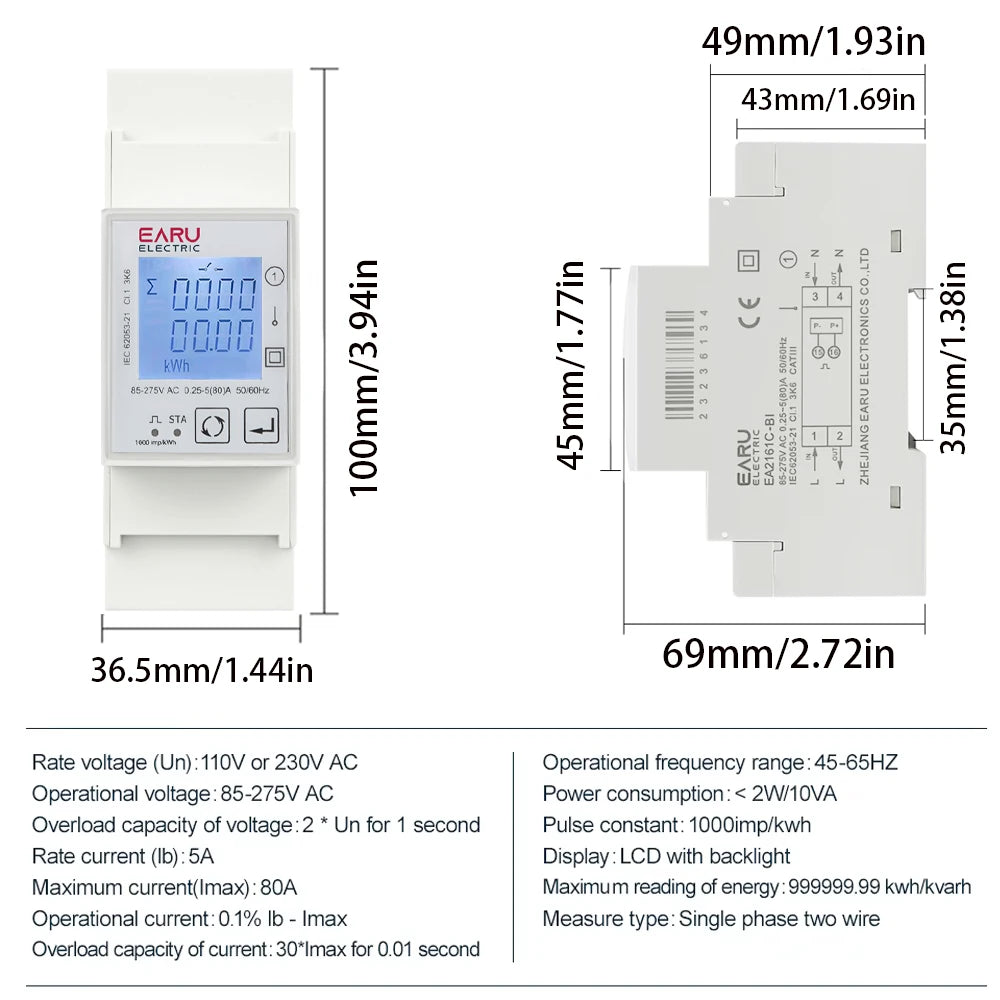

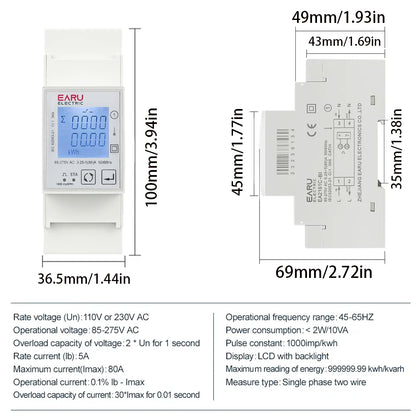

Dimensions: 100mm*36mm*68mm

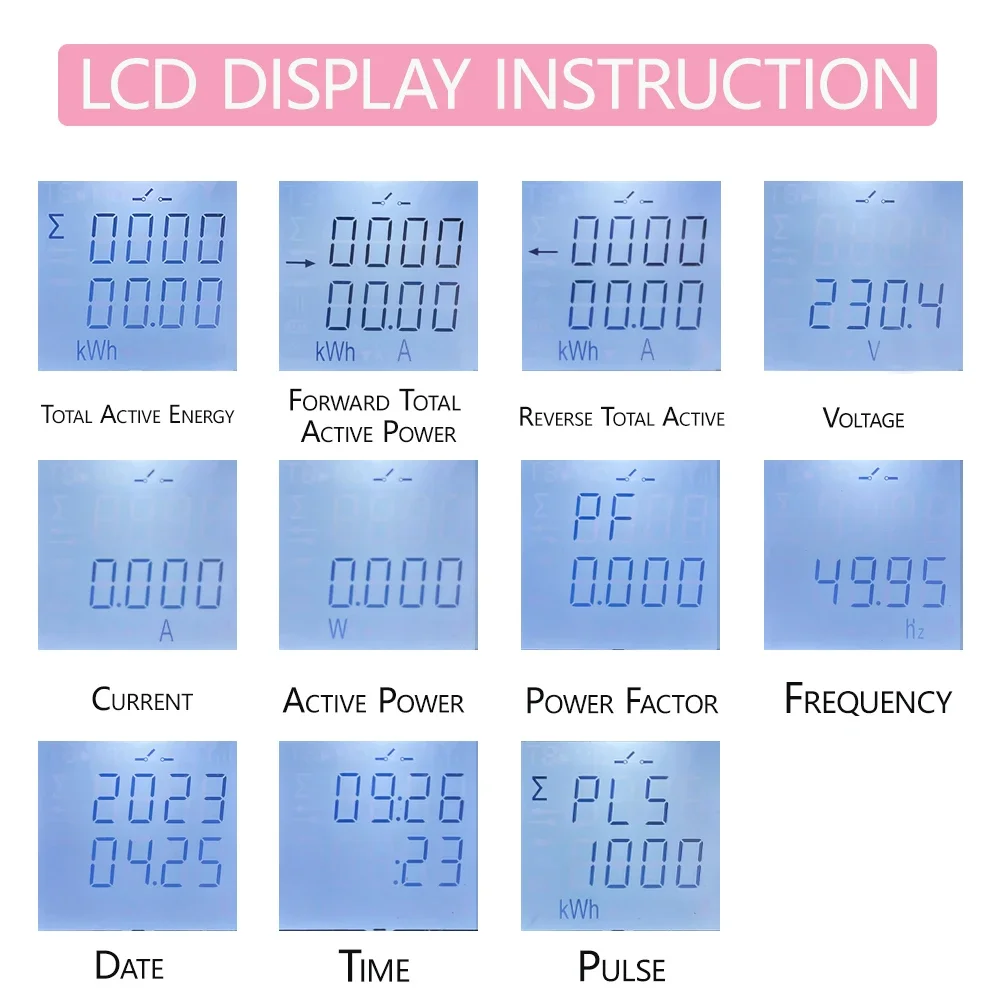

Display Type: LCD
Display screen: LCD with backlight

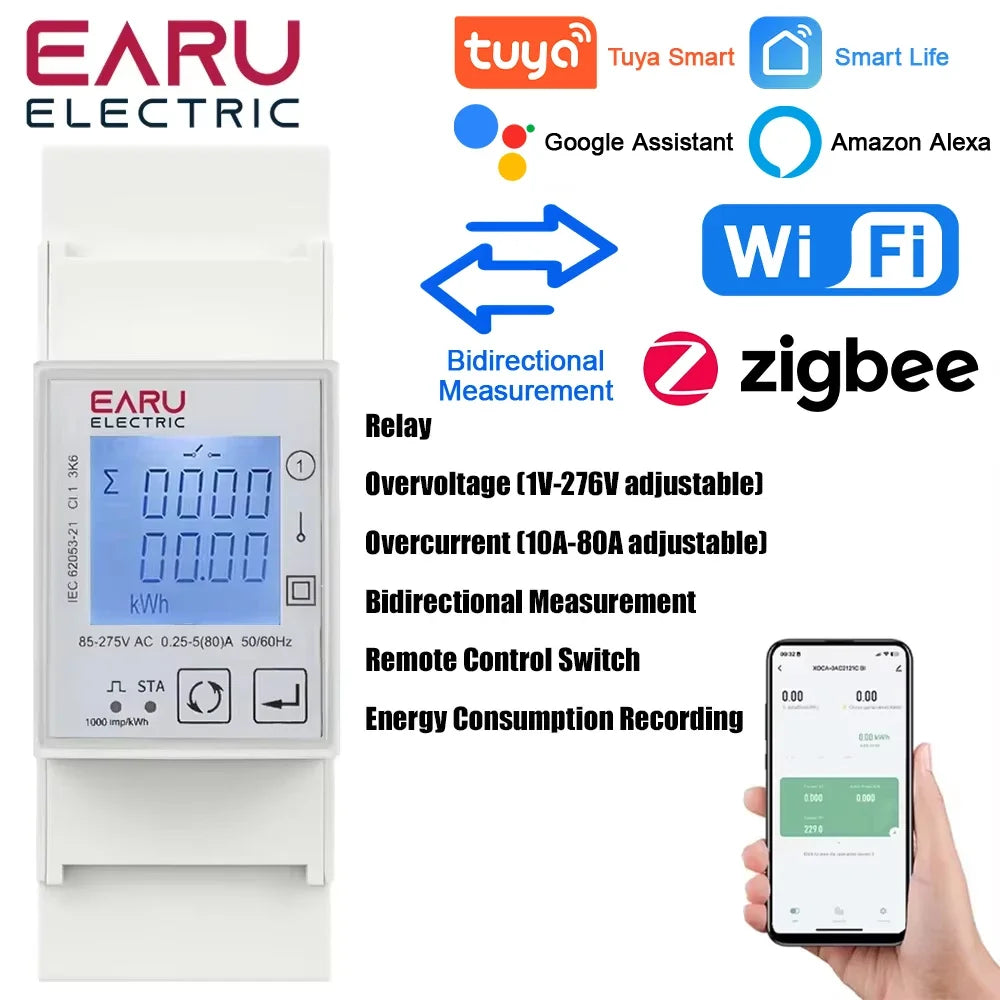

Function 1: Over Voltage Protection
Function 2: Overcurrent protection
Function 3: Current Limiter
Function 4: Remote Control ON / OFF

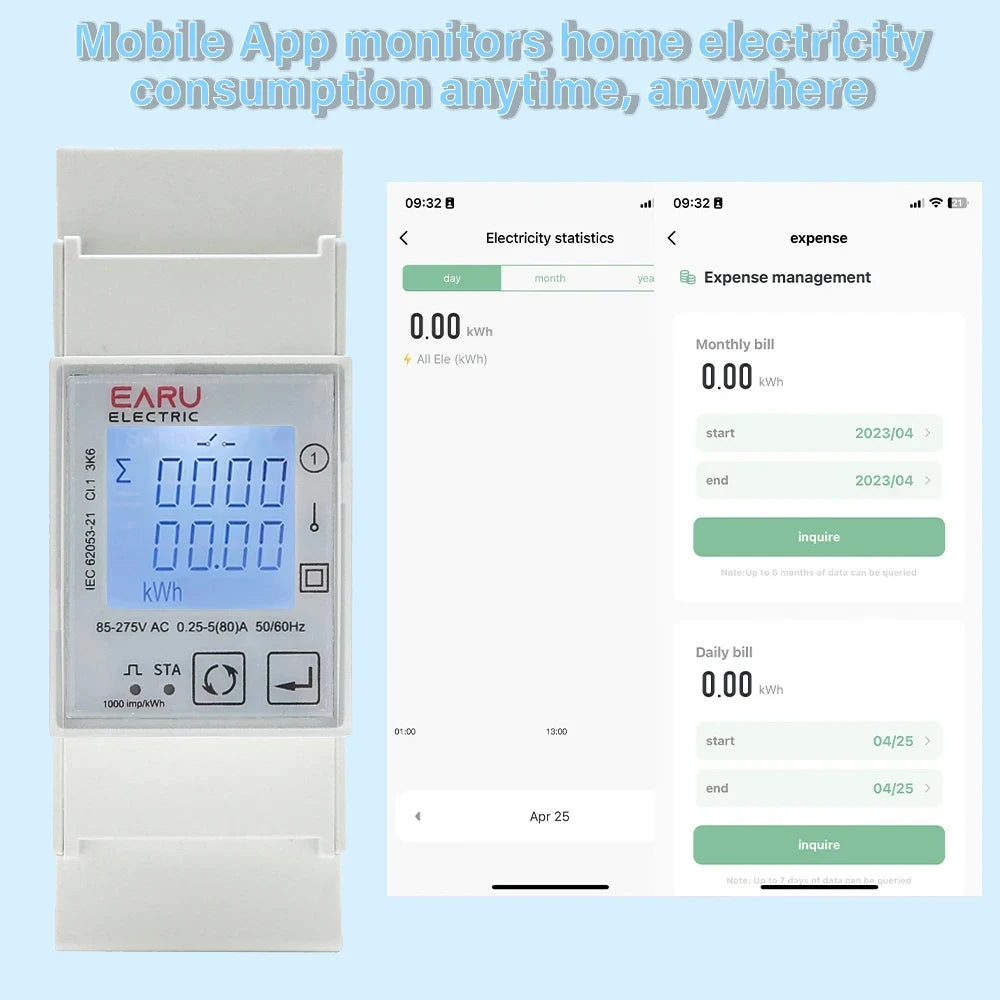

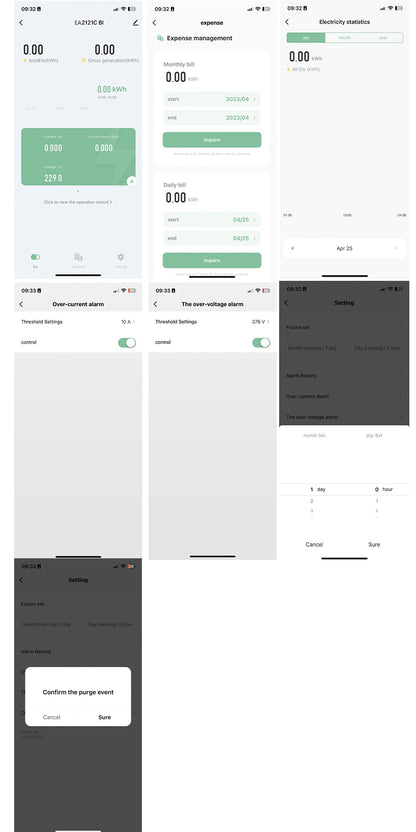

Function 5: Energy Consumption Record
High-concerned chemical: None
Max Operating Current: 80A - 99A
Maximum reading of energy: 999999.99 kWh/kVarh
Measuring Energy Range: 999999.99 kWh/kVarh
Model Number: EA2121C-BI/EA2161C-BI
Operating Temperature: -25-55℃
Origin: Mainland China
Output Voltage: AC85-275V
Over Voltage Adjustable Range: 1V-276V (adjustable)
Phase: single phase
Power Source: AC
Power Supply: AC

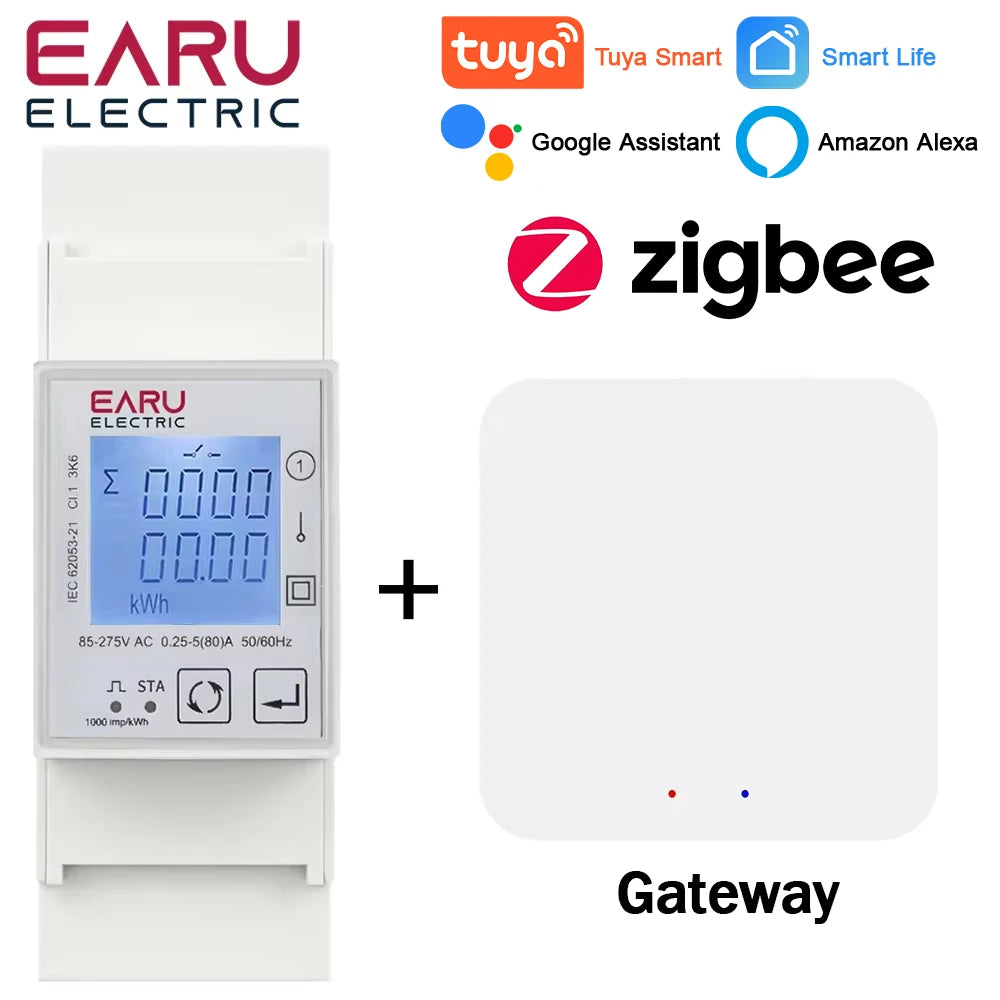

Protocal: WiFi/Zigbee

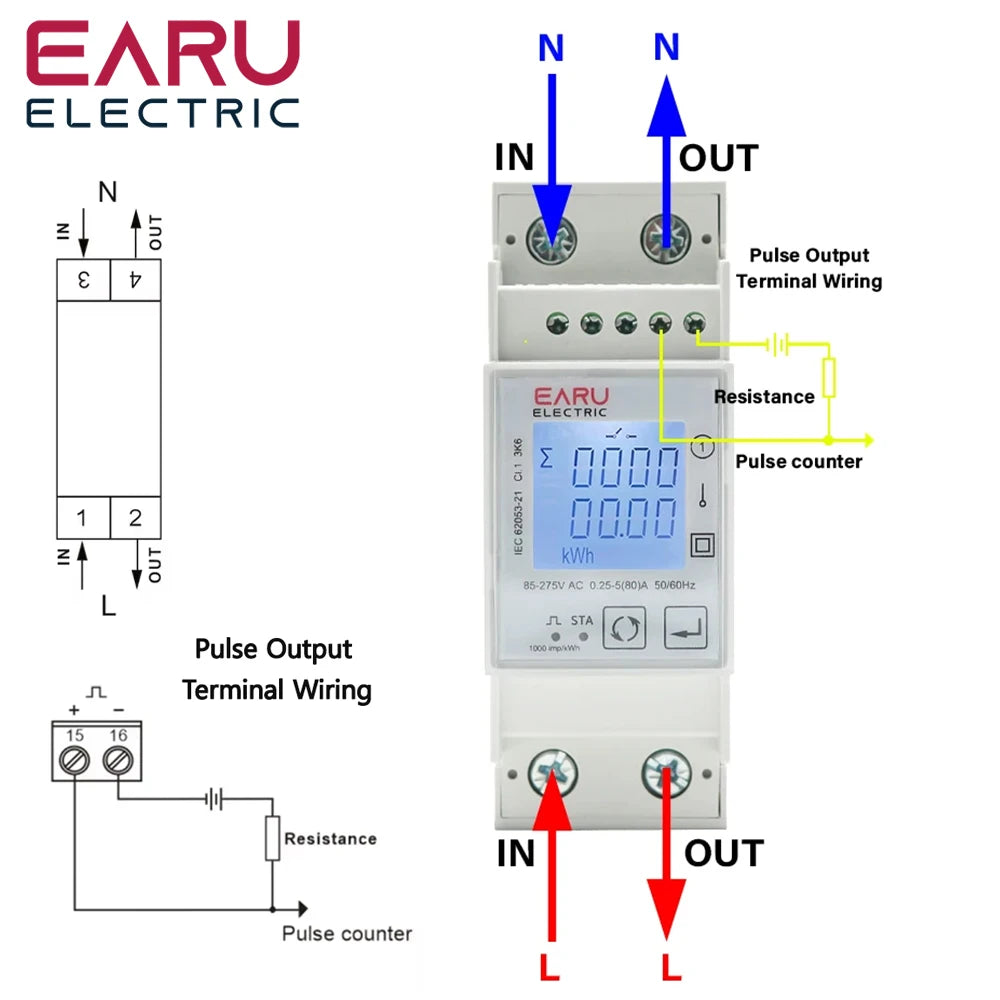

Pulse Frequency: 1000imp/kWh
Rated Voltage: 220V
semi_Choice: yes
Our factory can provide OEM service to manufacture this device with your brand, logo, if you get any need, feel free to contact the buyer!
Product Function
1.Maximum 80A direct access
2.Standard 2 modulus width, TH35-7.5 DIN rail installation

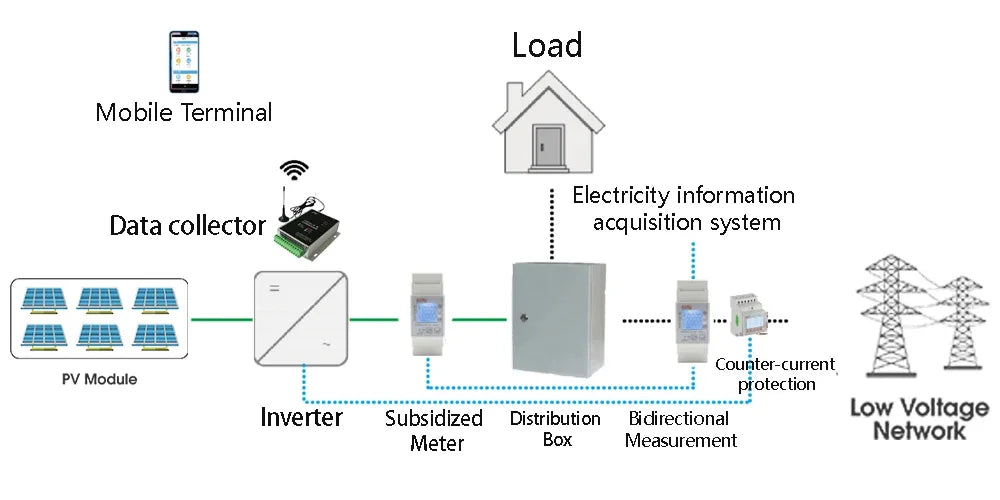

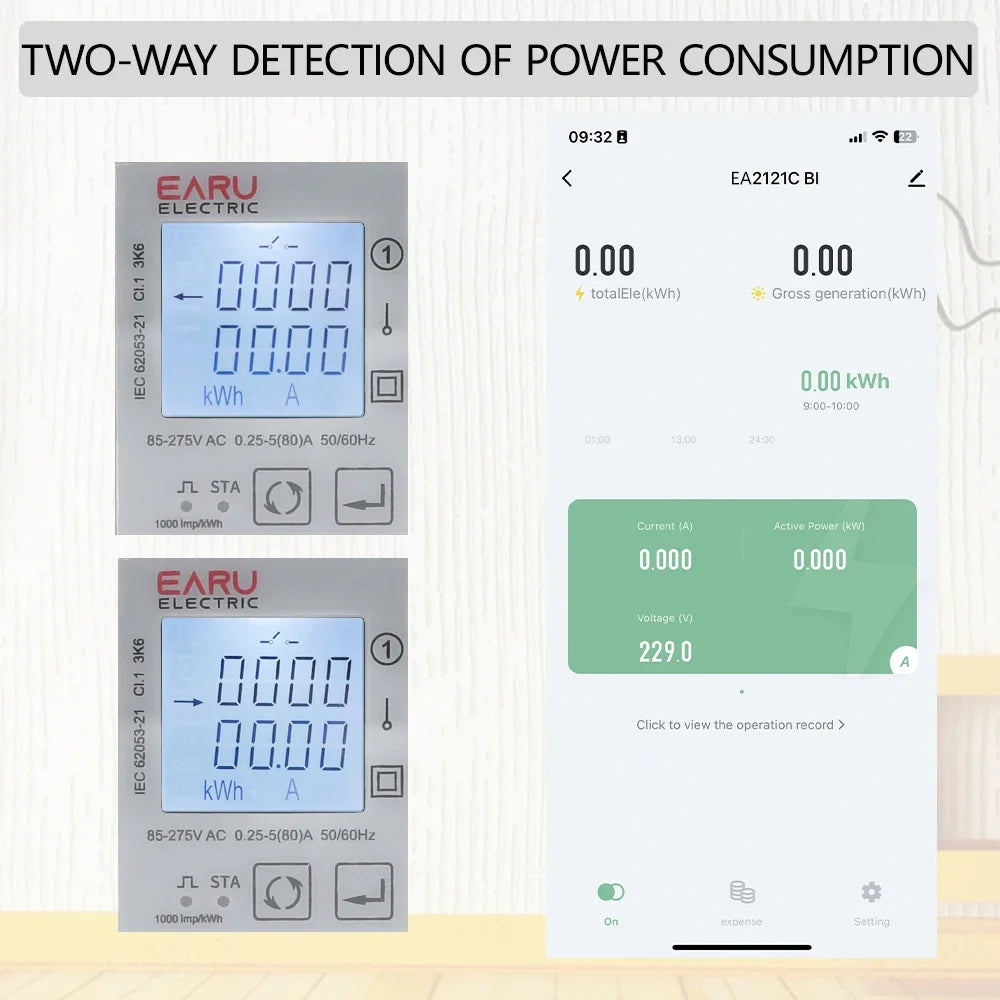

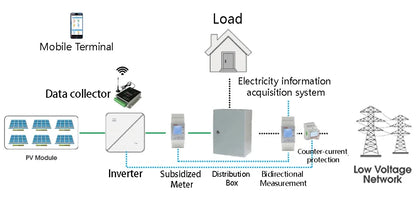

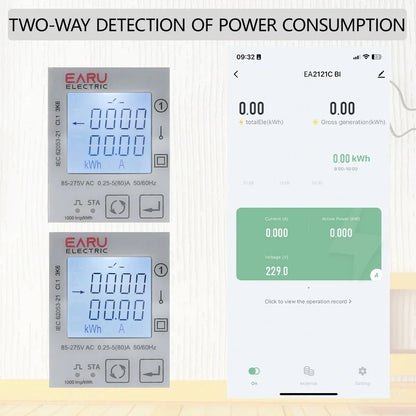

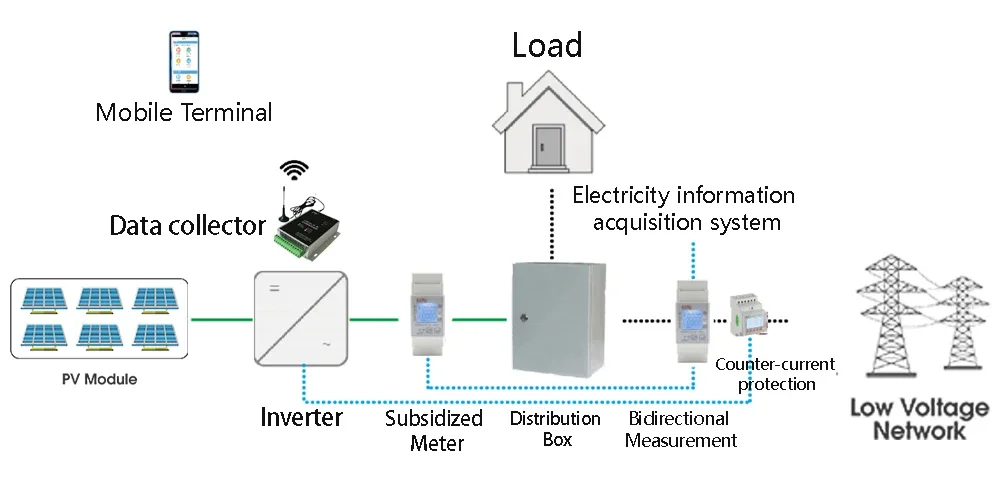

3.Support two-way electric energy and multi-rate electric energy metering, and provide monthly anddaily electricity consumption statistics
4.Built in relay, supporting remote switching, and providing relay operation records

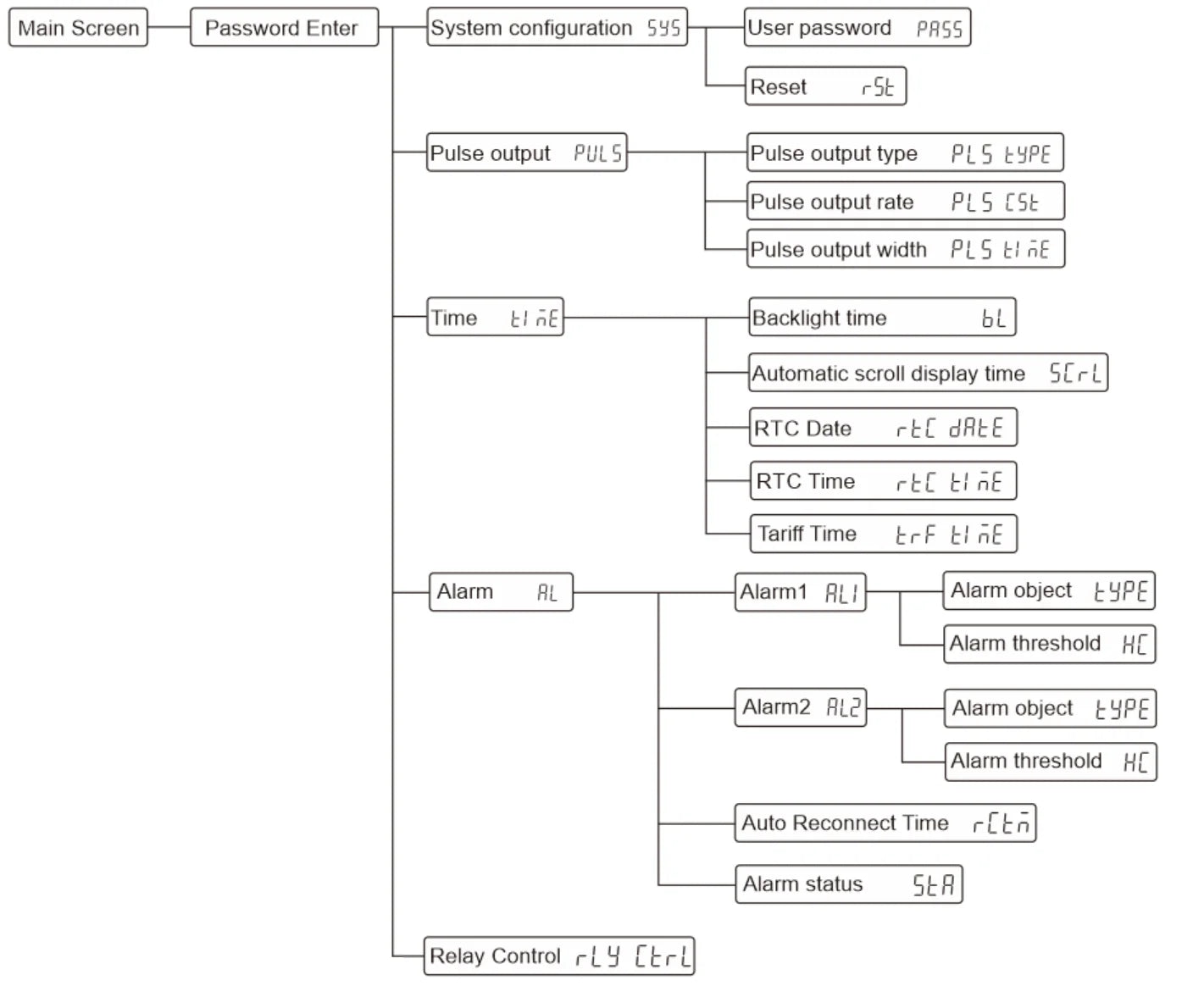

5.Support the automatic power-off protection function of power consumption parameter monitoringalarm (support up to two alarm monitoring)

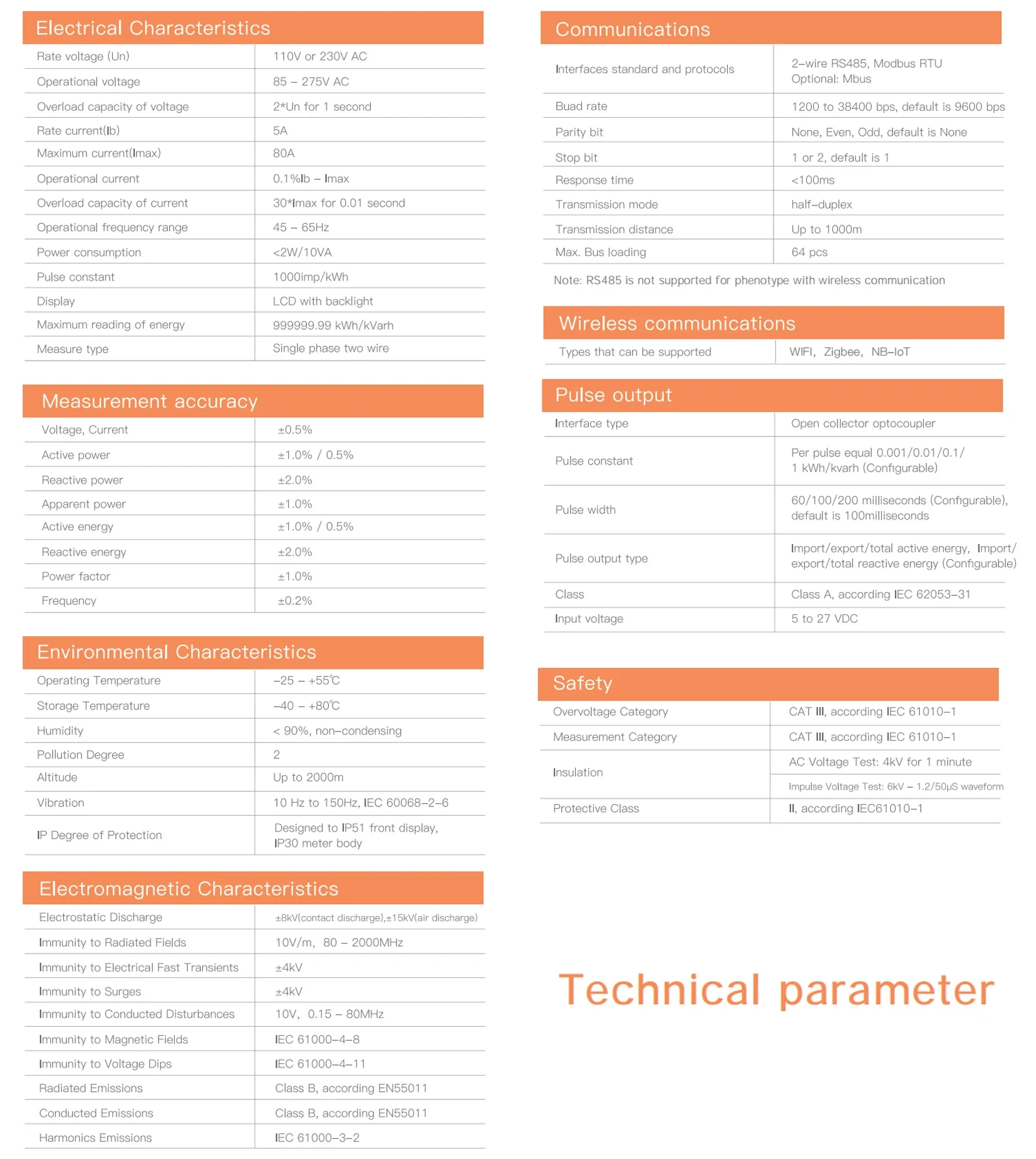

Product Specification
1.Power Supply: 230V AC 50/60Hz
2. Over voltage protecton 1V-276V (adjustable) (default: 276)
3. Over current protection 10A-80A (adjustable) (default: 10A)
4. Voltage meter
5. Ammeter
6. Energy meter
7.Relay (ON/OFF)
8.Pulse Frequency 1000imp/kWh
