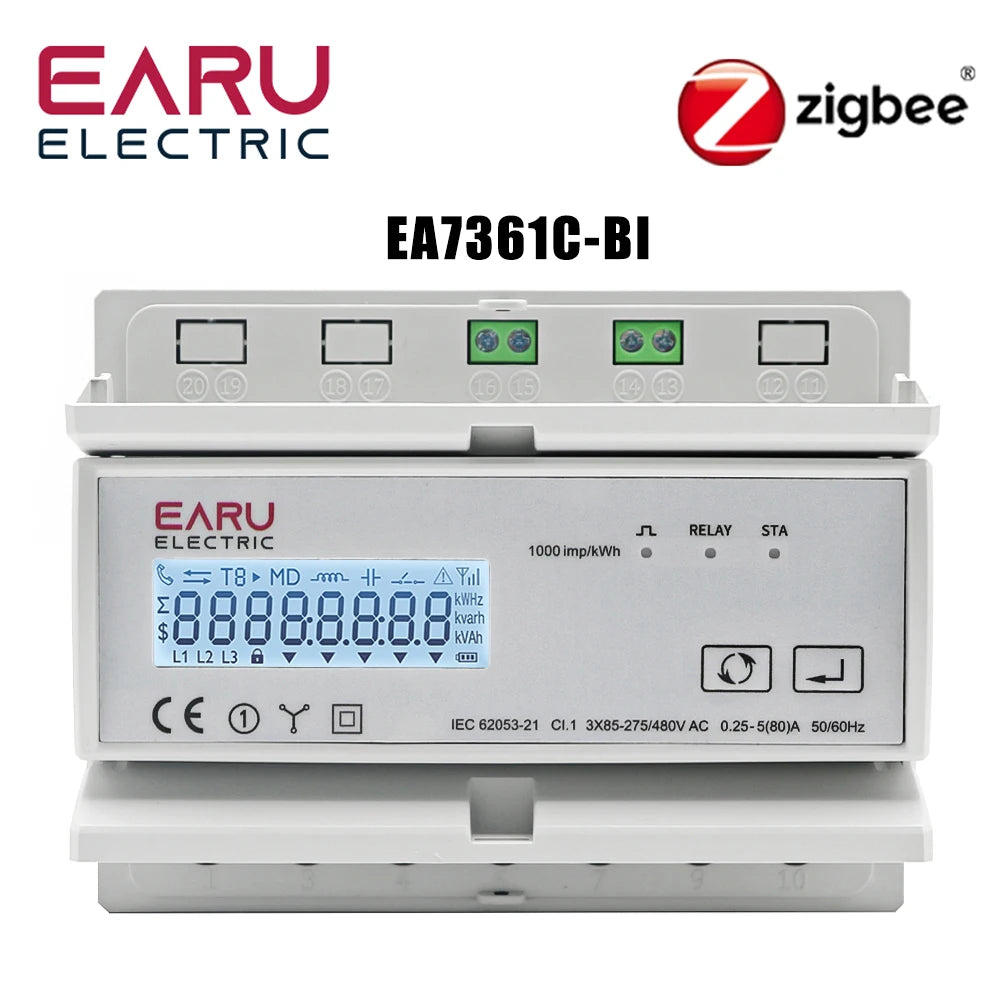

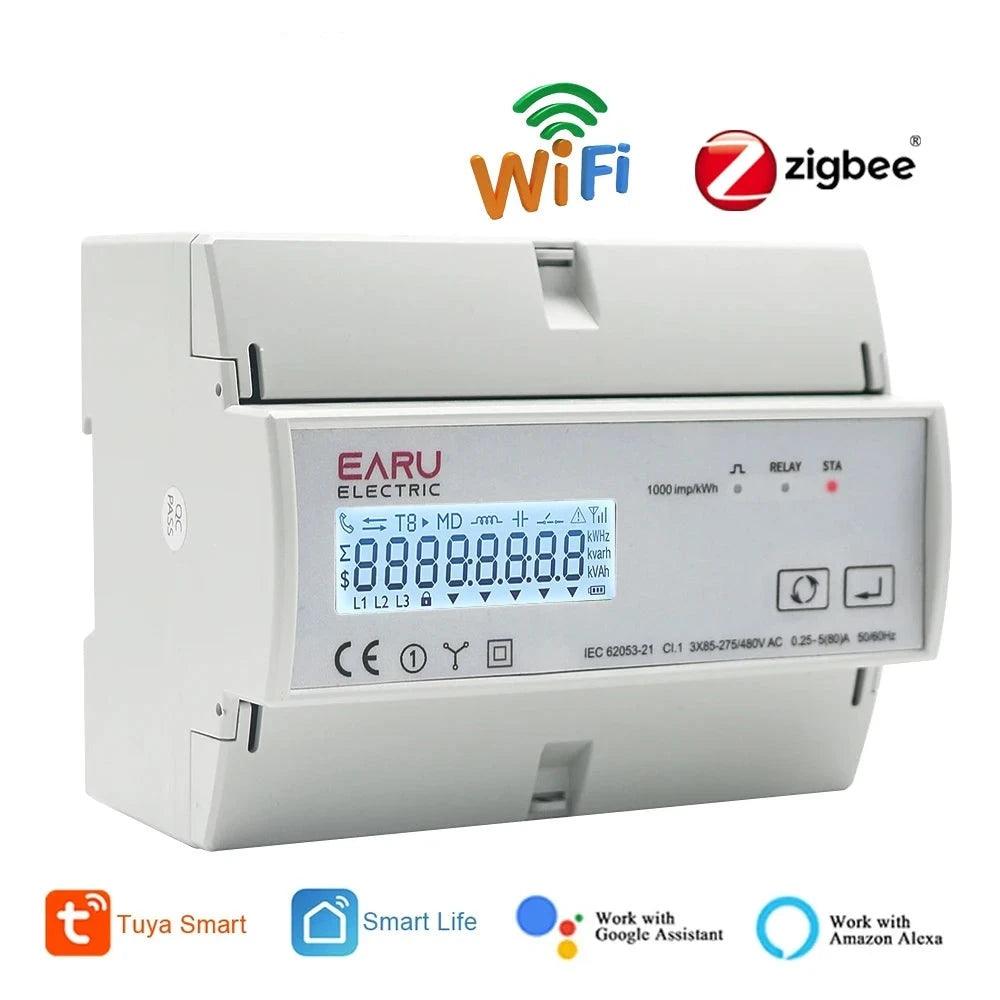

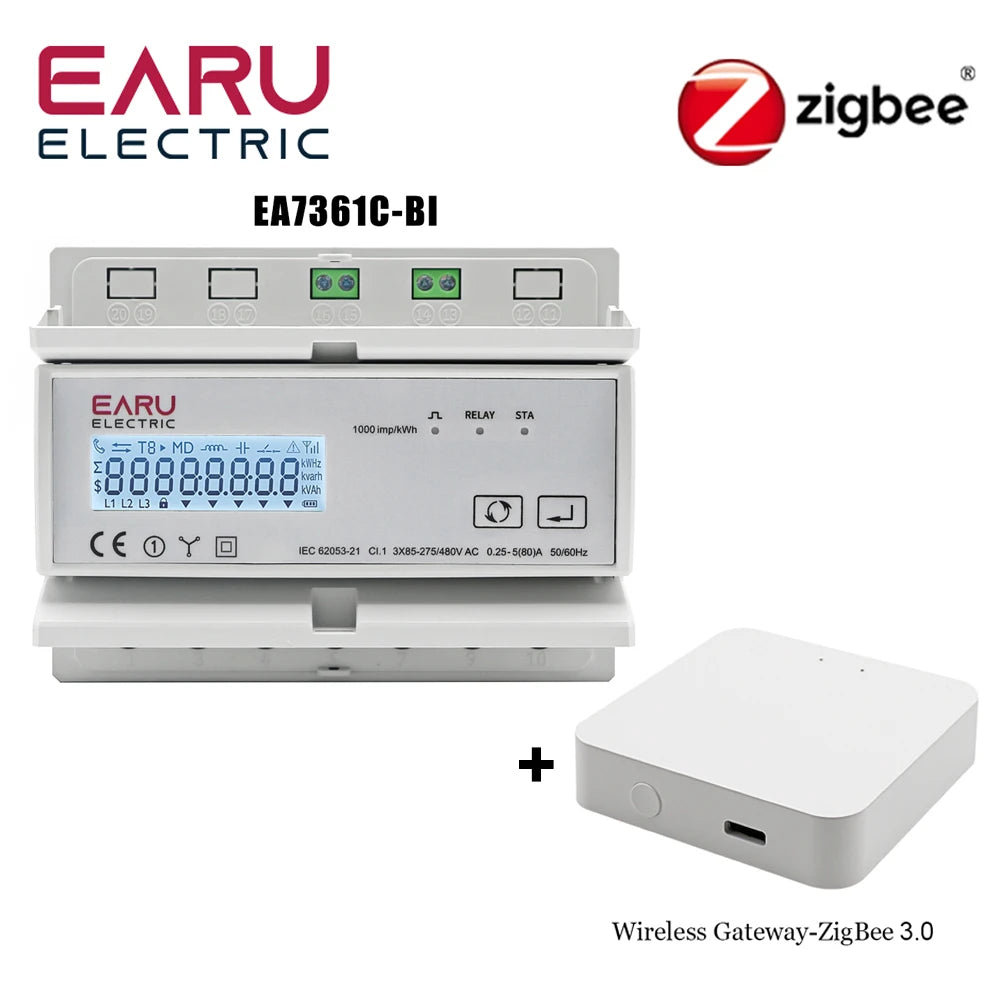

Tuya WiFi ZigBee Three Phase Two-way Bidirectional Energy KWh Meter Monitor Wattmeter Support Modbus RTU 3*85/190V or 230/400VAC
Tuya WiFi ZigBee Three Phase Two-way Bidirectional Energy KWh Meter Monitor Wattmeter Support Modbus RTU 3*85/190V or 230/400VAC
Impossible de charger la disponibilité du service de retrait
Monitor your energy consumption with the Tuya WiFi ZigBee Energy Meter. Track your usage with precision using its Modbus RTU support and bidirectional capabilities for accurate readings. Compatible with 3*85/190V or 230/400VAC, this meter offers a comprehensive solution for monitoring your energy usage.
SPECIFICATIONS
- Power Range: 0 ~ 999999.999 kWh
- Complex Rate Electricity: T1, T2, T3, T4
- Rated Voltage: 230VAC/380VAC
- Measurement Range: 85 ~ 275 VAC/85 ~ 480 VAC
- Frequency: 45-65Hz
- Current Measurement Range: 0.25 ~ 80 A
- Protection Level: Panel-IP51,Gauges-IP30
- Shell Fire Rating: UL 94 V-0
- Operating Temperature: -25 ~ +55℃
- Storage Temperature: -40 ~ +80℃
- Humidity: <90%
- Communication Interface: RS485, Modbus RTU
- Communication Response Time: <100ms
- Installation Method: TH35-7.5 Guide Rail
- Dimension: 126 x 98 x 80 mm
- Protocal: Zigbee/WIFI
- Brand Name: EARUELETRIC
- Power Supply: AC

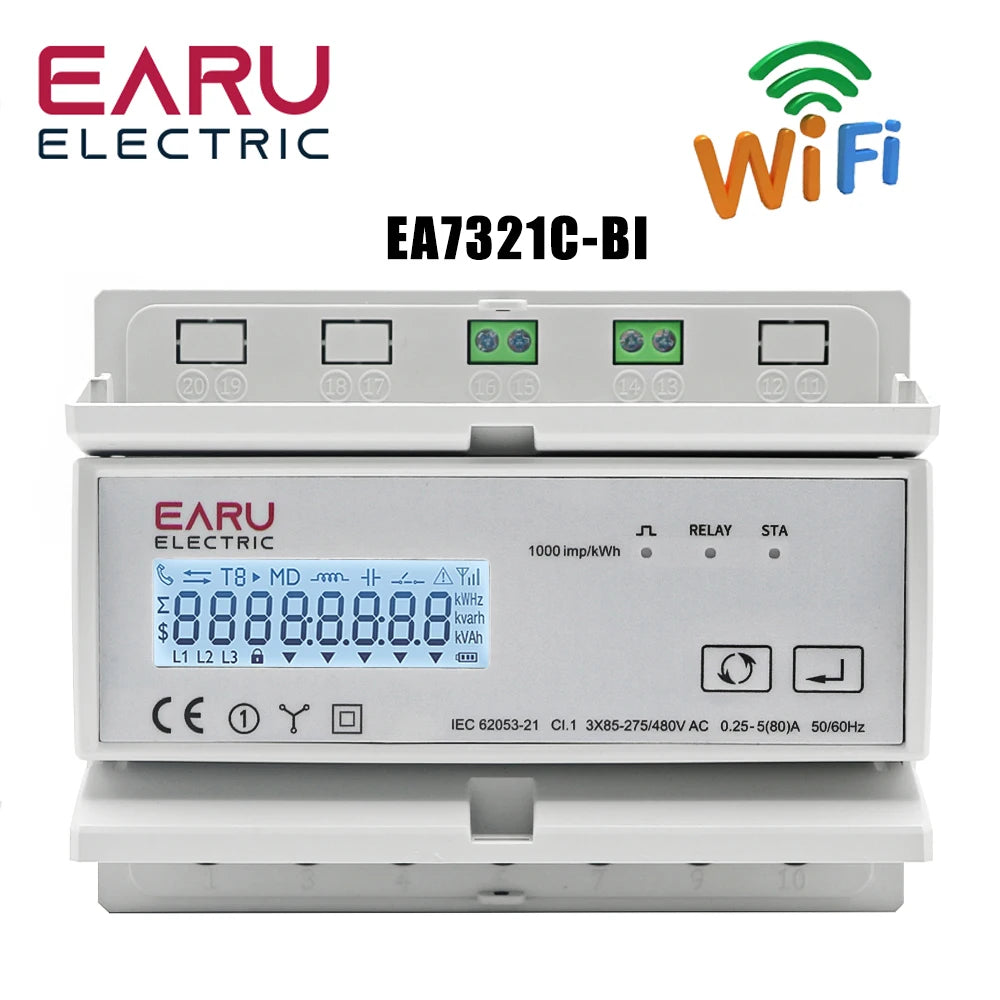

- Model Number: EA7321C-BI
- Display Type: LCD
- Accuracy Class: 1%
- Dimensions: 126 x 98 x 80 mm
- Operating Temperature: -25 ~ +55℃
- Measuring Energy Range: 0 ~ 999999.999 kWh
- Phase: Three Phase
- Max Operating Current: 80A - 99A
- DIY Supplies: ELECTRICAL
Our factory can provide OEM service to manufacture this device with your brand, logo, if you get any need, feel free to contact the buyer!
Features
-

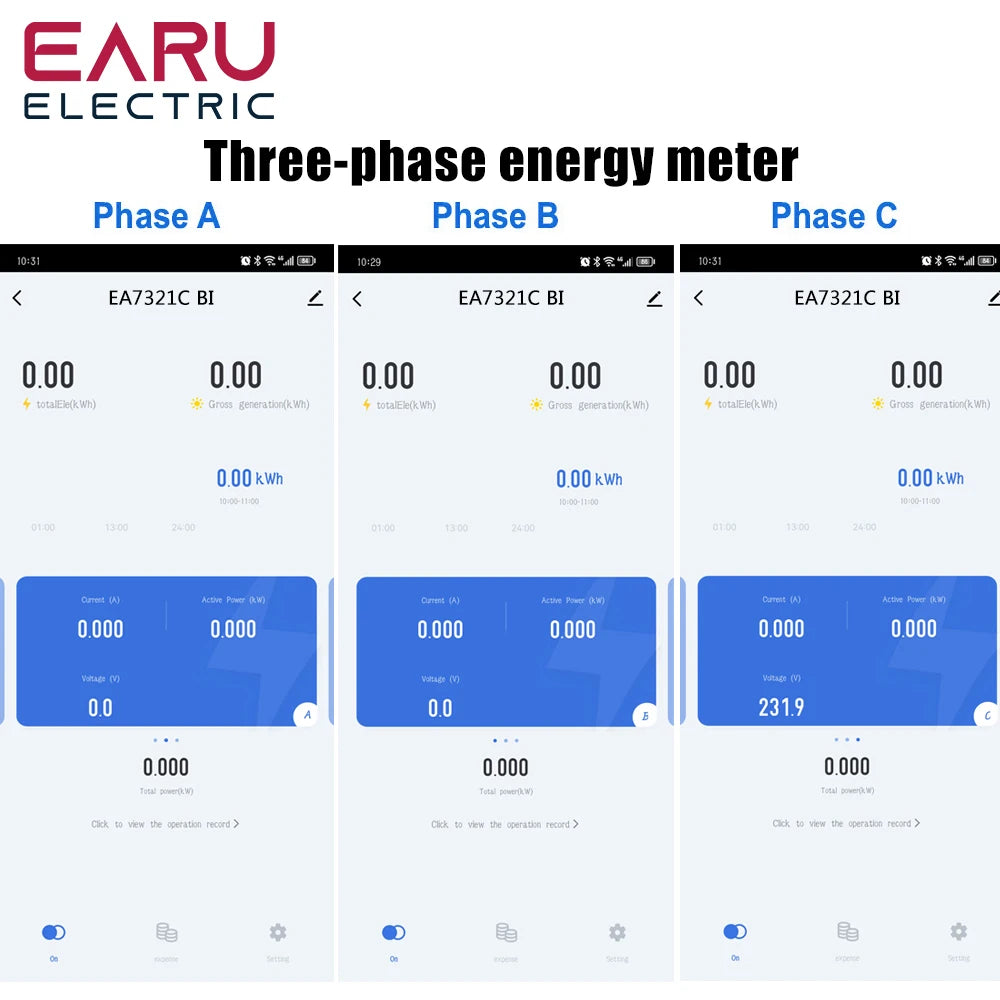

Equipped with Toodle Smart IoT platform, which can realize automatic wireless networking, remote meter reading and pull-close control.
-

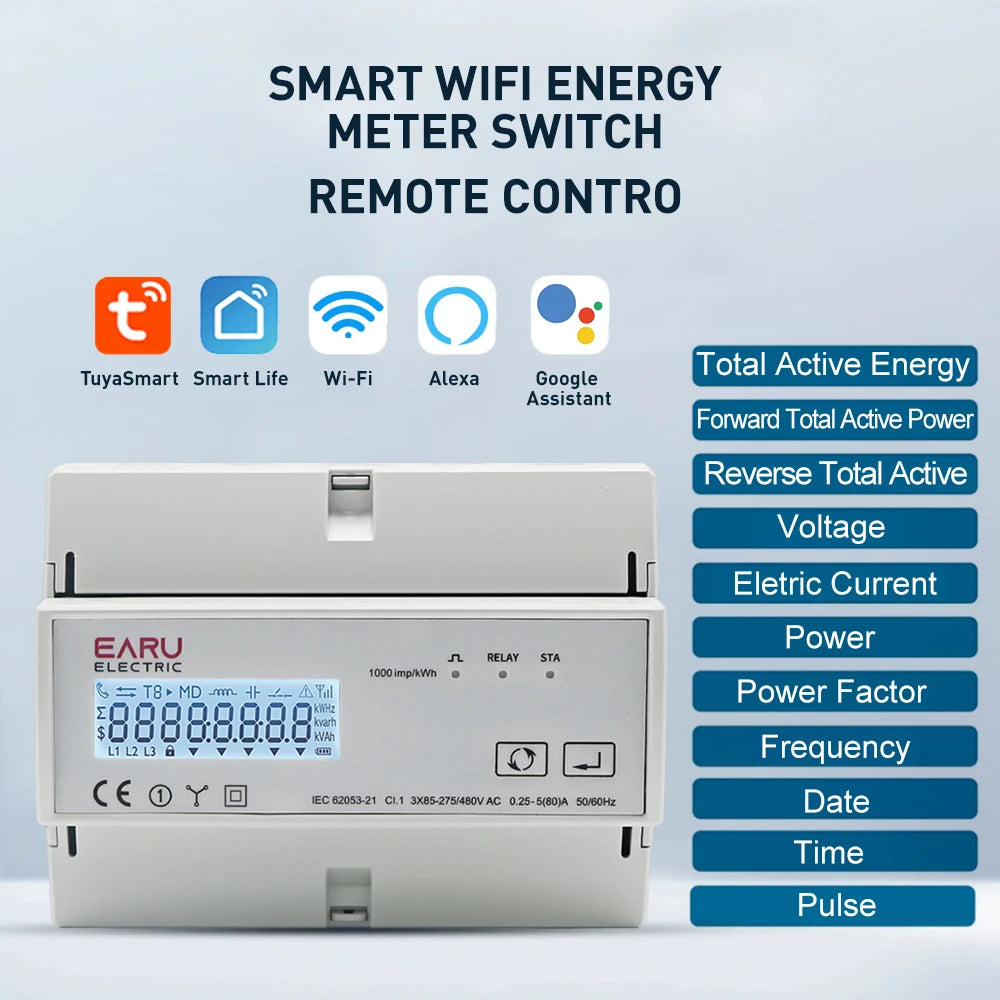

Multifunctional parameter measurement, providing voltage, current, active power, reactive power, apparent power, power factor, phase angle and other abundant.
-

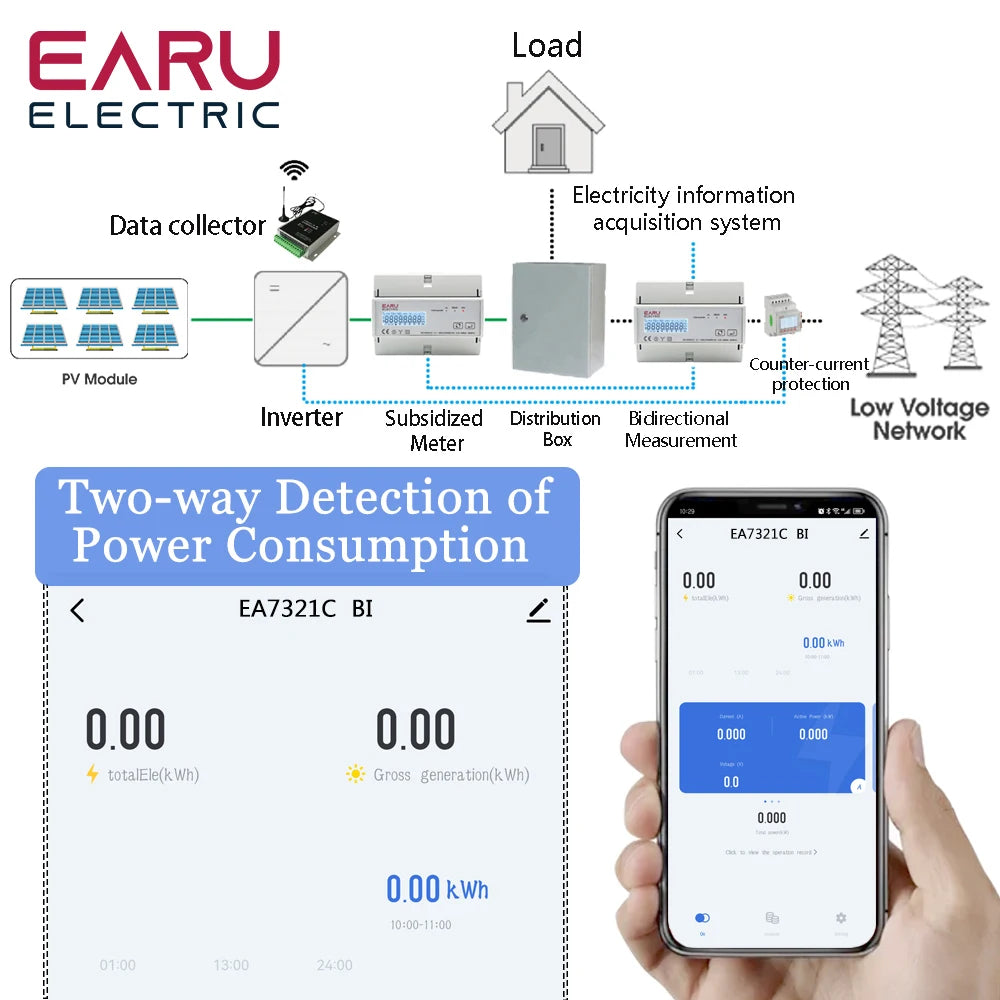

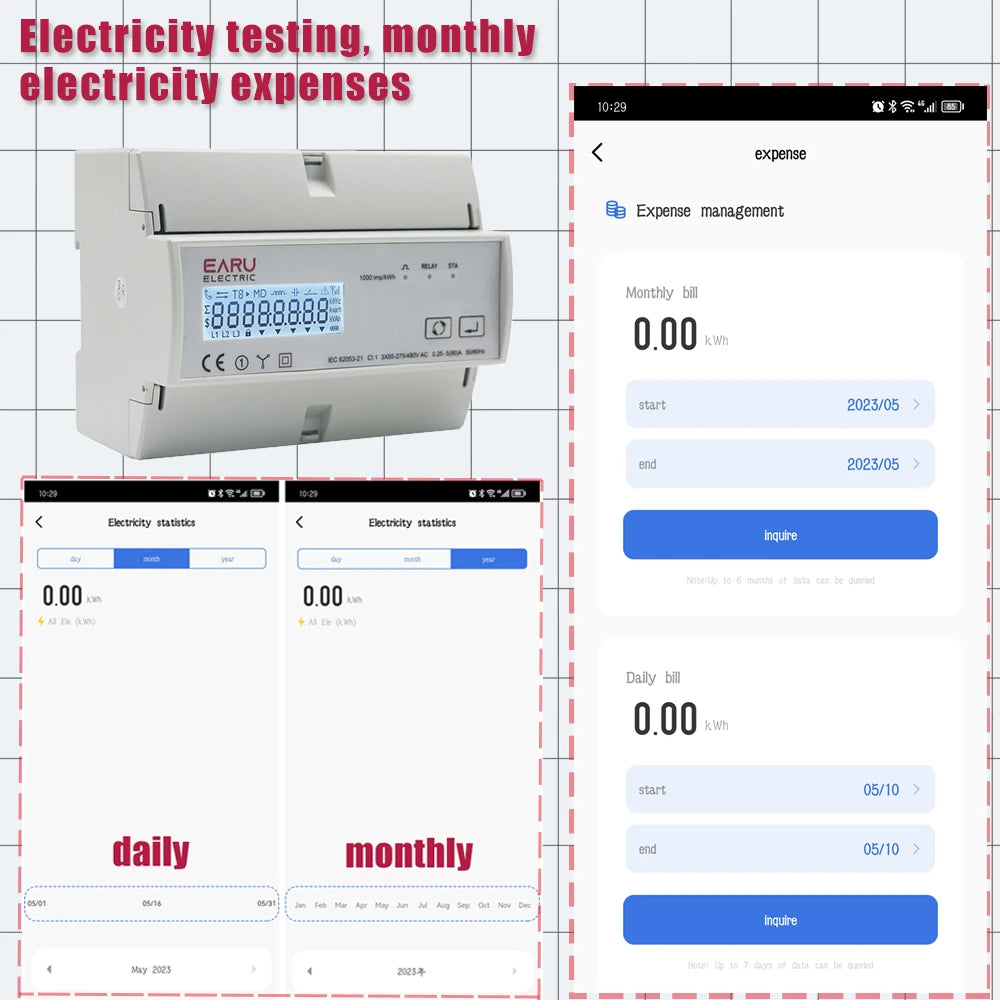

Provides a variety of statistics and local storage functions, such as bi-directional power, demand and other statistics; provides monthly statistics for the last 12 months and daily statistics for the last 31 days.Provides monthly electricity consumption statistics for the last 12 months and daily electricity consumption statistics for the last 31 days.
-
Provides a record of the last 50 relay operations and 10 SOE events.
-
Built-in relay, support remote pull-close control, and prepaid management control.
-
Support RS485 communication function, baud rate up to 9600bps, support Modbus RTU, DL/T645-2007 protocol.
-
Large LCD display with white backlight and adjustable backlight illumination time.
Function
- Over current protection (10-80A adjustable)
- Voltage meter
- Ammeter
- Energy meter
- Relay (ON/OFF)
Mechanical Characteristics

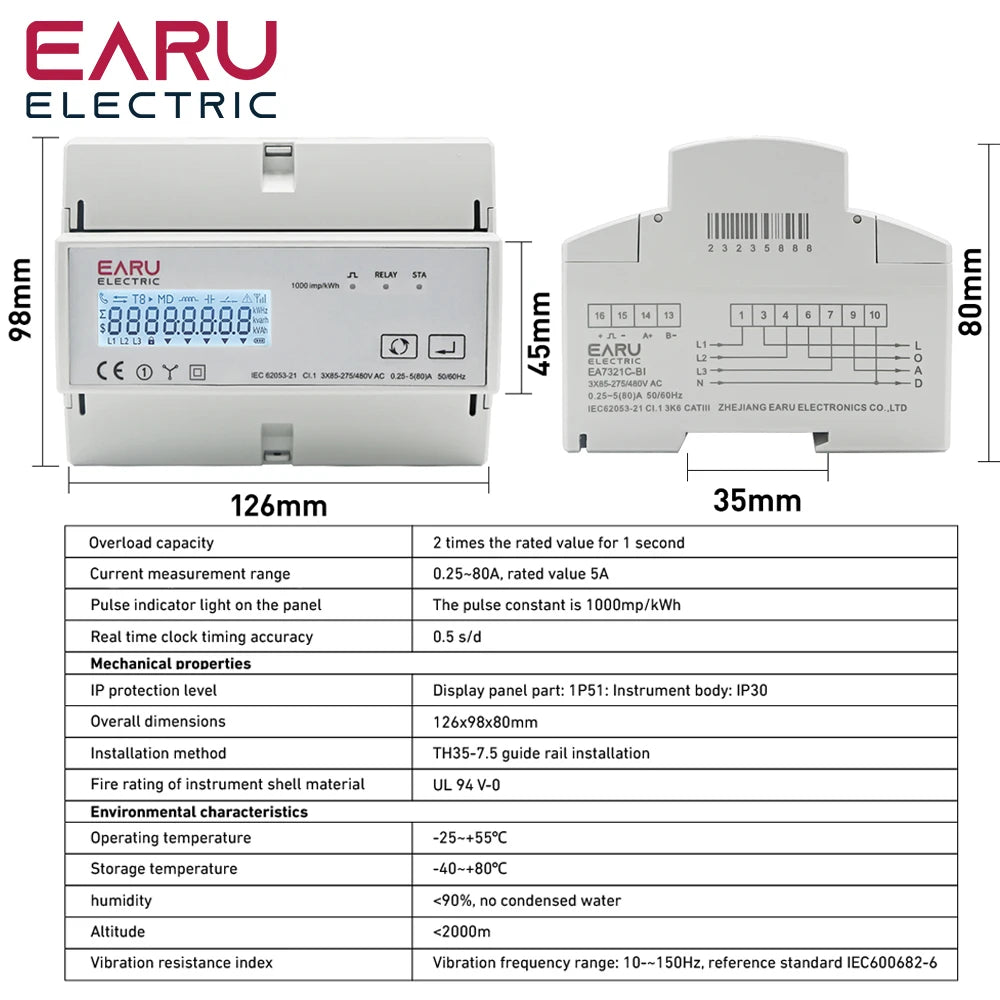

- Dimensions (W * H * D)126 x 98 x 80 mm
- Mounting Position: TH35-7.5 din rail mounting
- Material of Meter Case: UL 94 V-0
- Operating Temperature: -25 to +55℃
- Storage Temperature: -40 to +80℃
- Humidity: < 90%, non-condensing
- Pollution Degree: 2
- Altitude: < 2000m
- Vibration10 Hz to 150Hz, IEC 60068-2-6
Electromagnetic Characteristics
- Electrostatic Discharge Level 4, according IEC 61000-4-2(1)
- Immunity to Radiated Fields Level 3, according IEC 61000-4-3(1)
- Immunity to Electrical Fast Transients Level 4, according IEC 61000-4-4(1)
- Immunity to SurgesLevel 4, according IEC 61000-4-5(1)
- Immunity to Conducted Disturbances Level 3, according IEC 61000-4-6(1)
- Immunity to Magnetic FieldsIEC 61000-4-8(1)
- Immunity to Voltage DipsIEC 61000-4-11(1)
- Radiated Emissions Class B, according EN55011
- Conducted Emissions Class B, according EN55011
- Harmonics IEC 61000-3-2(1)
-
Bus Communication Features
-
Interfaces & Protocols: Two-wire RS485; Modbus RTU (default), DL/T645-2007
-
Baud rate: 1200, 2400, 4800, 9600 bps (default)
-
-
-
