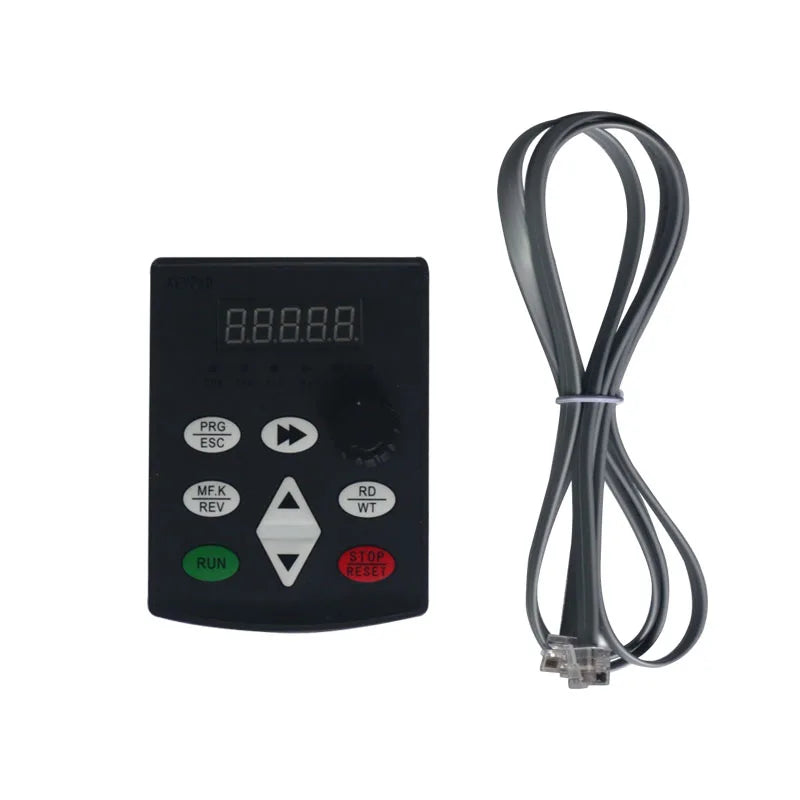

Variable frequency converter 50Hz/60Hz motor inverter Wk310 VFD 1.5kw single-phase 220v input three-phase 220 output

Variable frequency converter 50Hz/60Hz motor inverter Wk310 VFD 1.5kw single-phase 220v input three-phase 220 output

$119.04 USD
$0.00 USD $119.04 USD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.
Color

The Wk310 VFD variable frequency converter allows for a seamless transition between 50Hz and 60Hz power supply, optimizing motor performance. With a single-phase 220v input and three-phase 220 output, it delivers efficient and reliable energy conversion for all your industrial needs.

Specifications

  • Brand Name: NFLIXIN
  • Type: DC/AC Inverters
  • Size: 85mm*125mm*150mm
  • Output Frequency: 0-400HZ
  • Output Type: triple
  • Weight: 1.3kg
  • Output Current: 1.5kw 7A/2.2kw 10A
  • Input Voltage: single phase 220V (Range 15% Abo
  • output Voltage: 3 phase 220V (Range 15% Above or Less)
  • Applications: Universal
  • Level of portection: Ip20
  • Control method: V/F
  • Power: 1.5kw/2.2kw/4kw/5.5kw/7.5kw 220V inerter

1.Output Power:0.75kw/1.5kw/2.2kw/4kw 2.Rated Frequency :50hz/60hz 3.Output Frequency Range:0~400Hz 4.Input Voltage Range:single phase (1 phase) 220V±15% 5.Output Voltage Range:3 phase 220V±15% 6.Control way: Open loop vector control(SVC) V/F control 7.Main function: Control and adjust the speed of the ac motor 8.Size: 85mm*125mm*150mm

Type

0.75kw 220v VFD

1.5kw 220v VFD

2.2kw 220v VFD

4kw 220v VFD

5.5kw 220v VFD

Input  Voltage

220V(+/-15%)

220V(+/-15%)

220V(+/-15%)

220V(+/-15%)

220V(+/-15%)

Output Voltage

220VAC

220VAC

220VAC

220VAC

220VAC

Input  Frequency

50/60Hz

50/60Hz

50/60Hz

50/60Hz

50/60Hz

Output Frequency

0~400Hz

0~400Hz

0~400Hz

0~400Hz

0~400Hz

Rated  current

4A

7A

10A

16A

20A

Input  Phase

1 phase

1 phase

1 phase

1 phase

1 phase

Output Phase

3 phase

3 phase

3 phase

3 phase

3 phase
