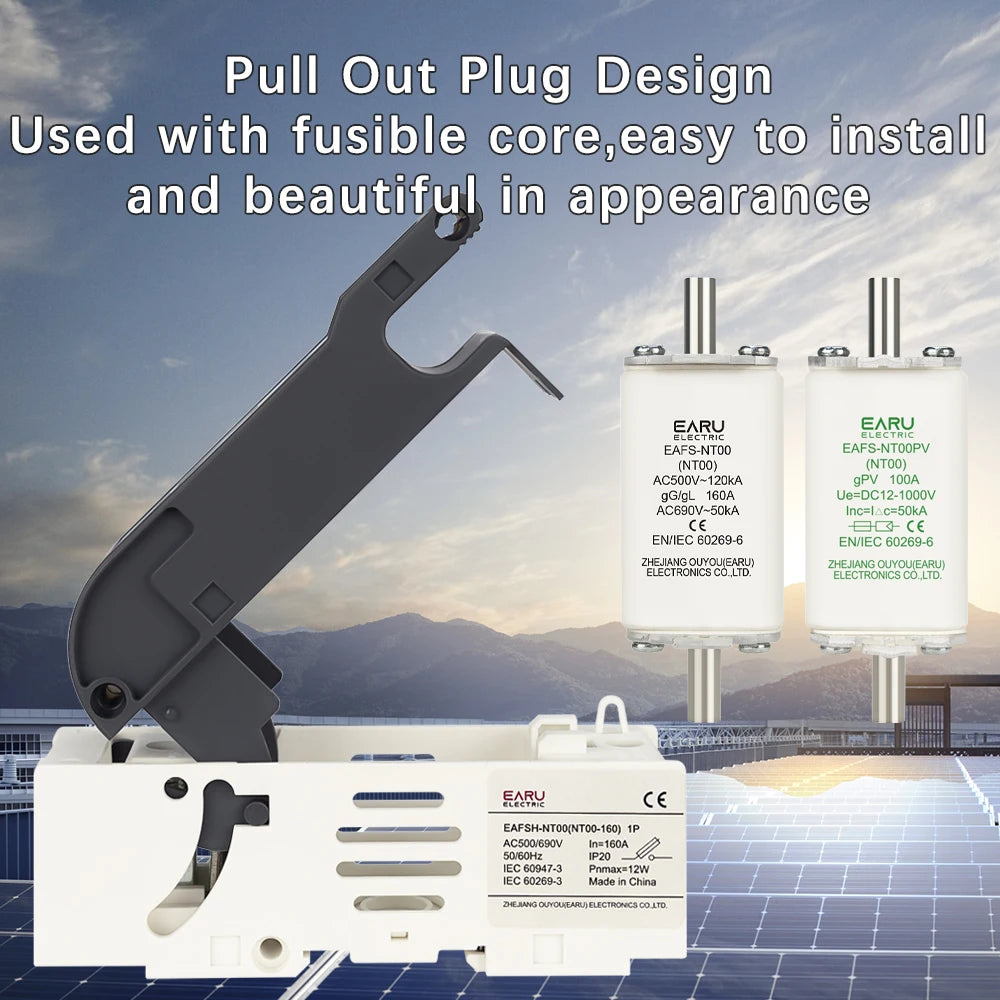

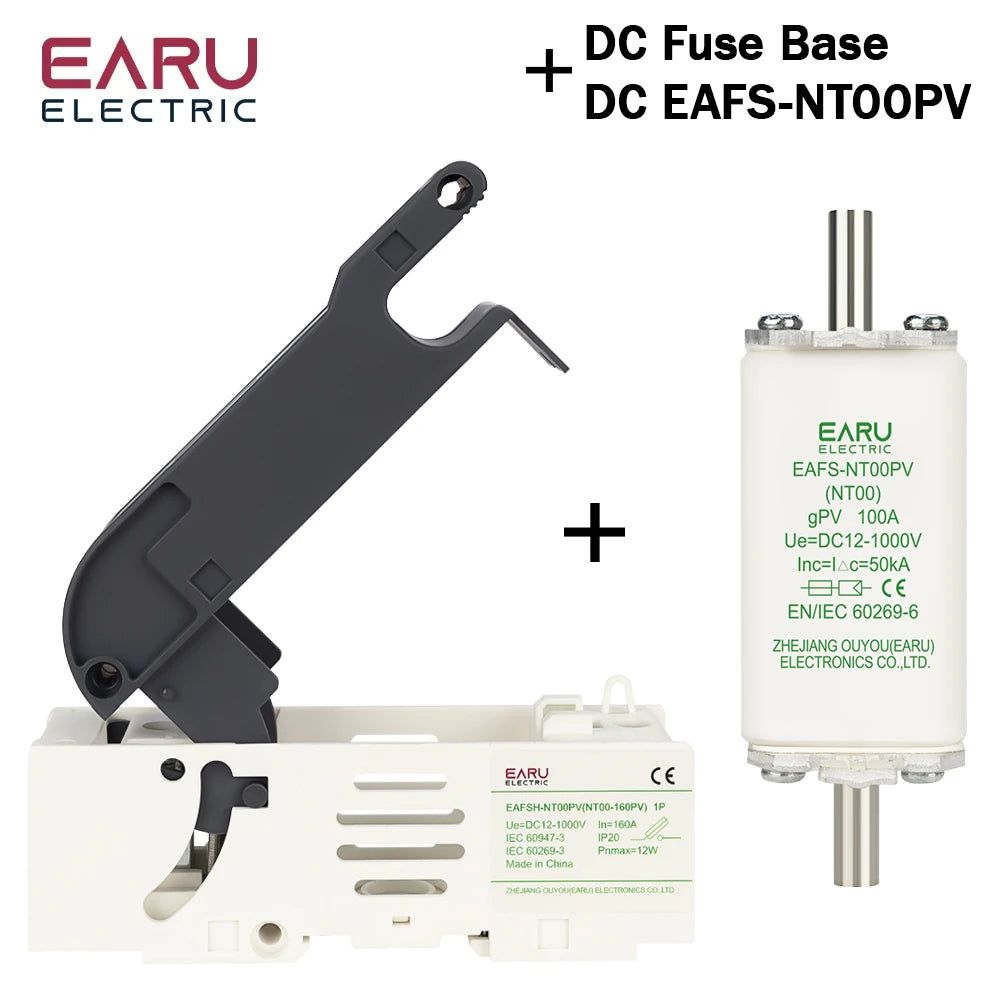

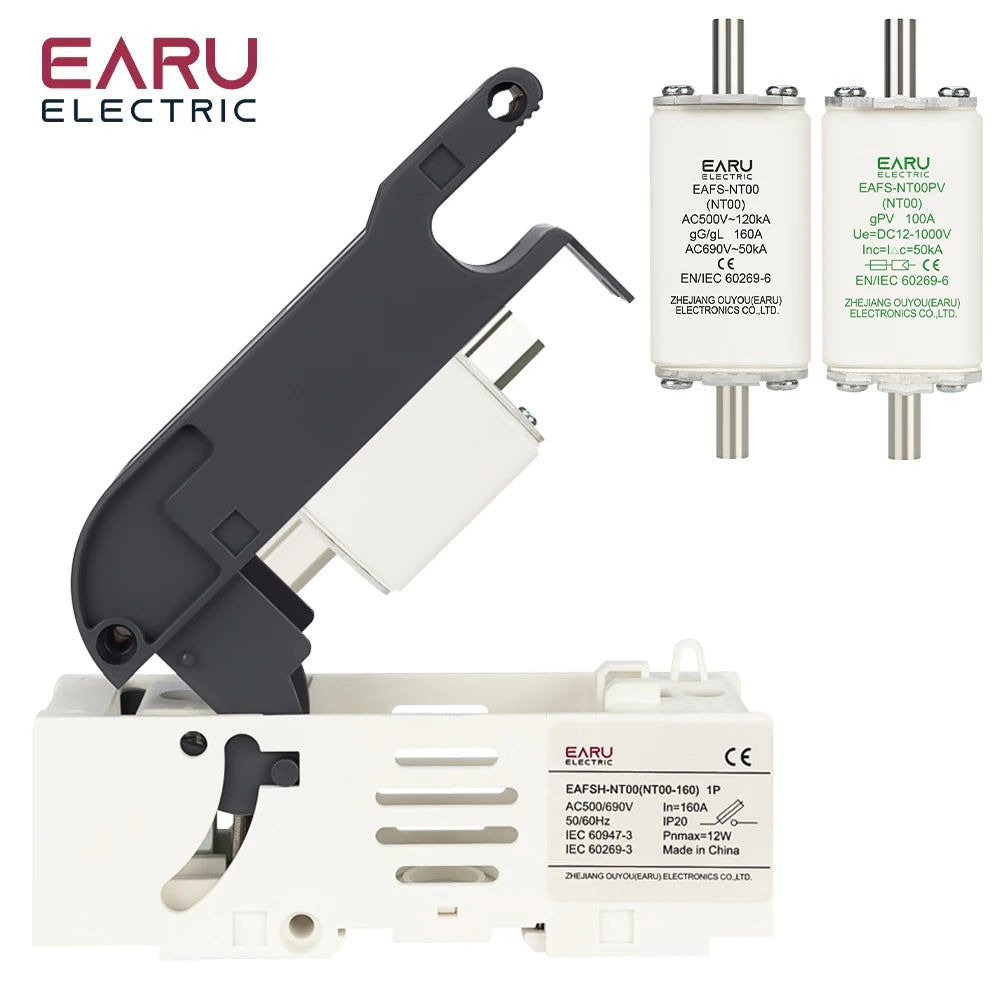

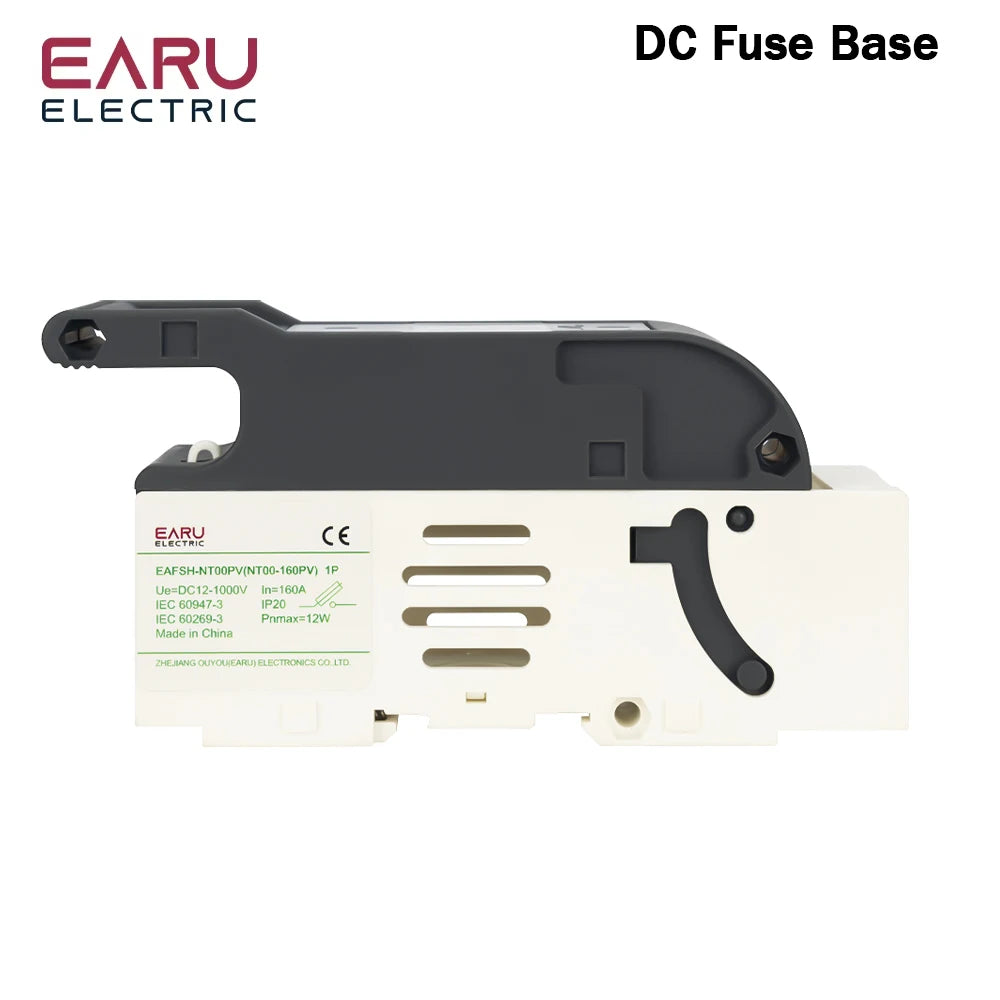

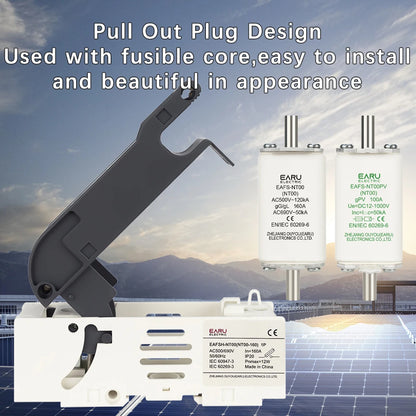

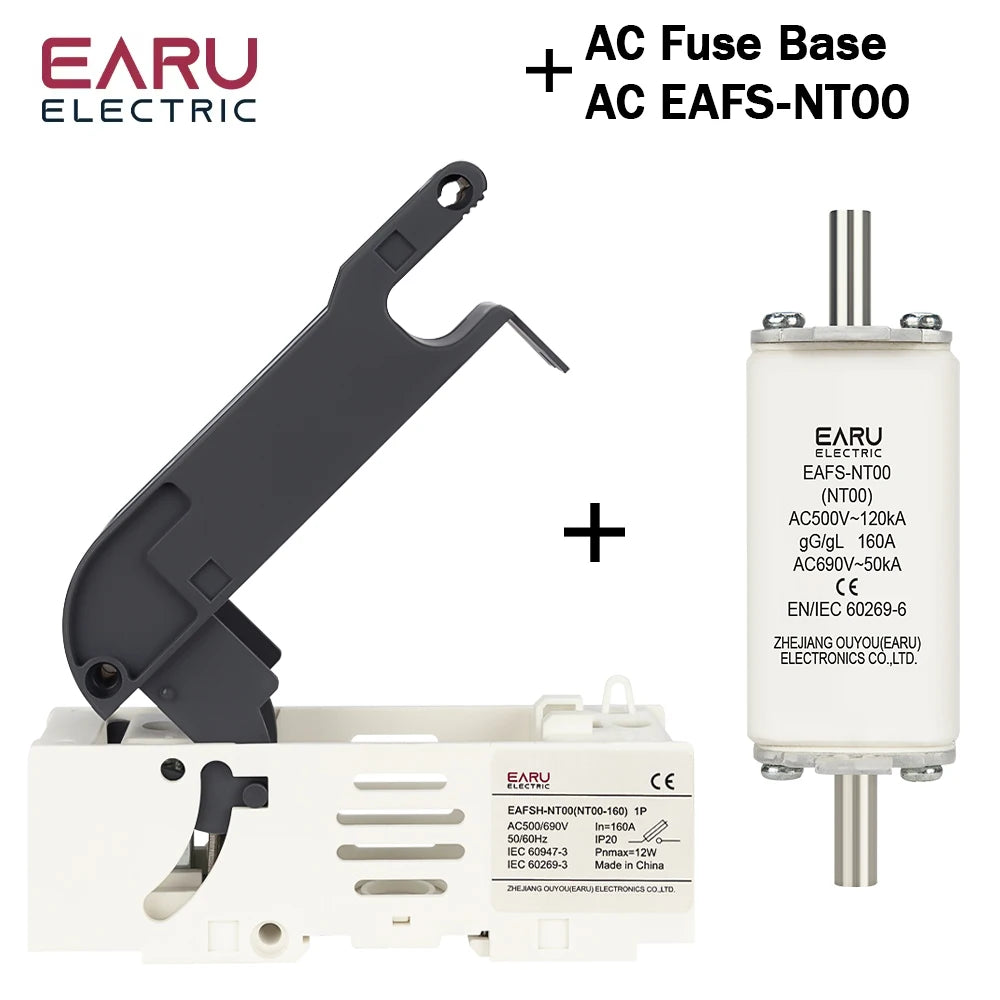

1Pcs Fuse Disconnector Switch for 100A 160A NT00 Battery Fuse Plug-in Knife Type Installation Suitable DC 12V-1000V AC 500V 690V
1Pcs Fuse Disconnector Switch for 100A 160A NT00 Battery Fuse Plug-in Knife Type Installation Suitable DC 12V-1000V AC 500V 690V
Regular price
$15.14 USD
Regular price
$0.00 USD
Sale price
$15.14 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: EARU
Breaking Capacity: High
Certification: CE
Choice: yes
High-concerned chemical: None
Model Number: EAFSH-NT00PV/EAFSH-NT00
Origin: Mainland China
Safety Standards: IEC
Use: High Voltage
is_customized: Yes
semi_Choice: yes

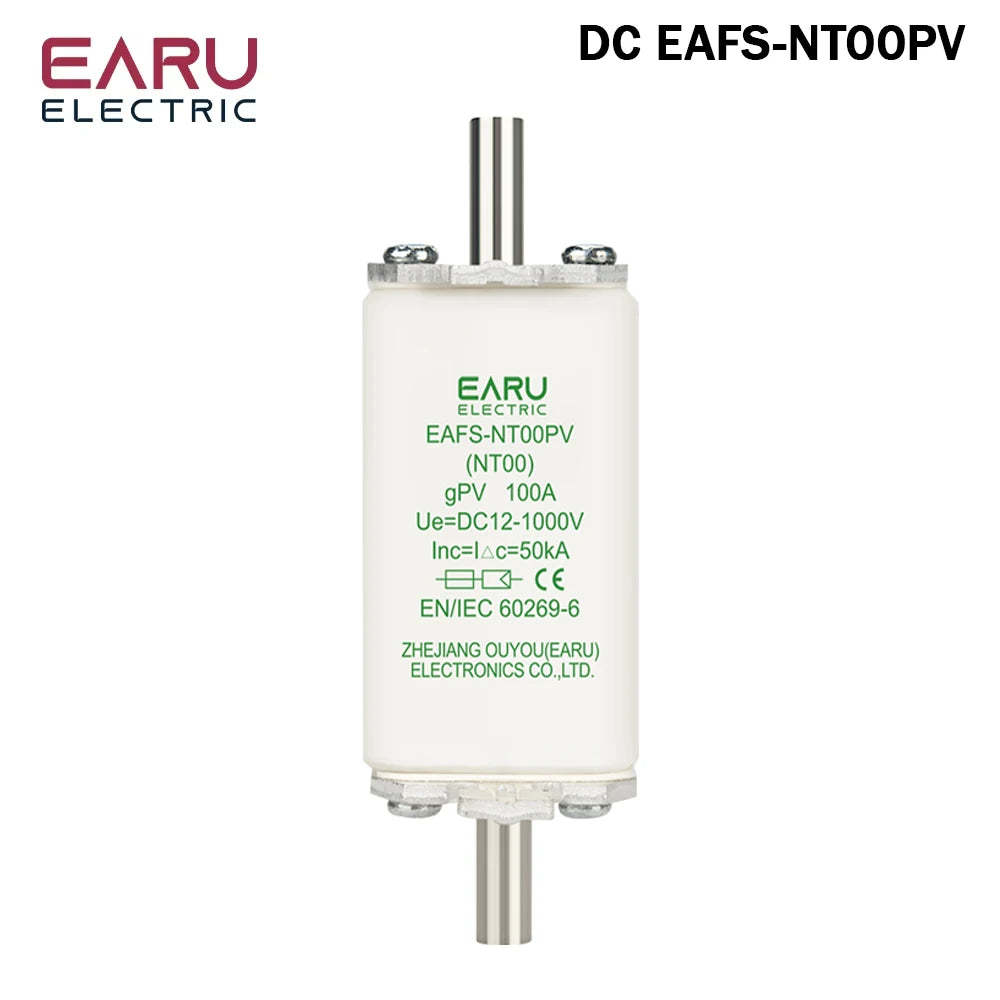

Fuses are categorized into AC (Alternating Current) and DC (Direct Current) types. There is no visual difference between them; the only distinction lies in their internal materials, with DC fuses typically utilizing higher-quality red copper. Customization of fuse link current specifications is supported, with AC and DC current specifications available in 6/10/16/20/25/32/40/50/63/80/100/125/160A.
Type |
EAFSH-NT00PV-100A |
EAFSH-NT00PV-160A |
EAFSH-NT00-100A |
EAFSH-NT00-160A |
|
With fuse |
Rated operational Voltage Ue |
AC500/690/DC12-1000V |
|||
Rated operational currentle |
100A |
160A |
100A |
160A |
|
Rated Insulation Voltage Ui |
AC690/DC12~1000V |
||||
Agreed heating current lth |
100A |
160A |
100A |
160A |
|
Rated impulse withstand Voltage Uimp |
120kV |
||||
Rated limiting short-circuit current lg |
AC 120kA
DC 50kA
|
||||
Use Category |
AC-23B(AC500)/AC-21B(AC690) |
||||
With isolating knife |
Electrical operating life |
200 times |
|||
Rated operational Voltage Ue |
AC380/400/DC12-1000V |
||||
Rated operational current le |
100A |
160A |
100A |
160A |
|
Rated Insulation Voltage Ui |
690V/1000V |
||||
Agreed heating current lth |
100A |
160A |
100A |
160A |
|
Rated impulse withstand Voltage Uimp |
8KV |
12KV |
|||
Rated limiting short-circuit current lcw |
8kA/1s |
10kA/1s |
15kA/1s |
||
Use Category |
AC-21B |
AC-23B |
|||
Electrical operating life |
200 times |
||||
Common parameters |
Rated frequency |
50/60HZ |
|||
Number of poles |
3Pole |
||||

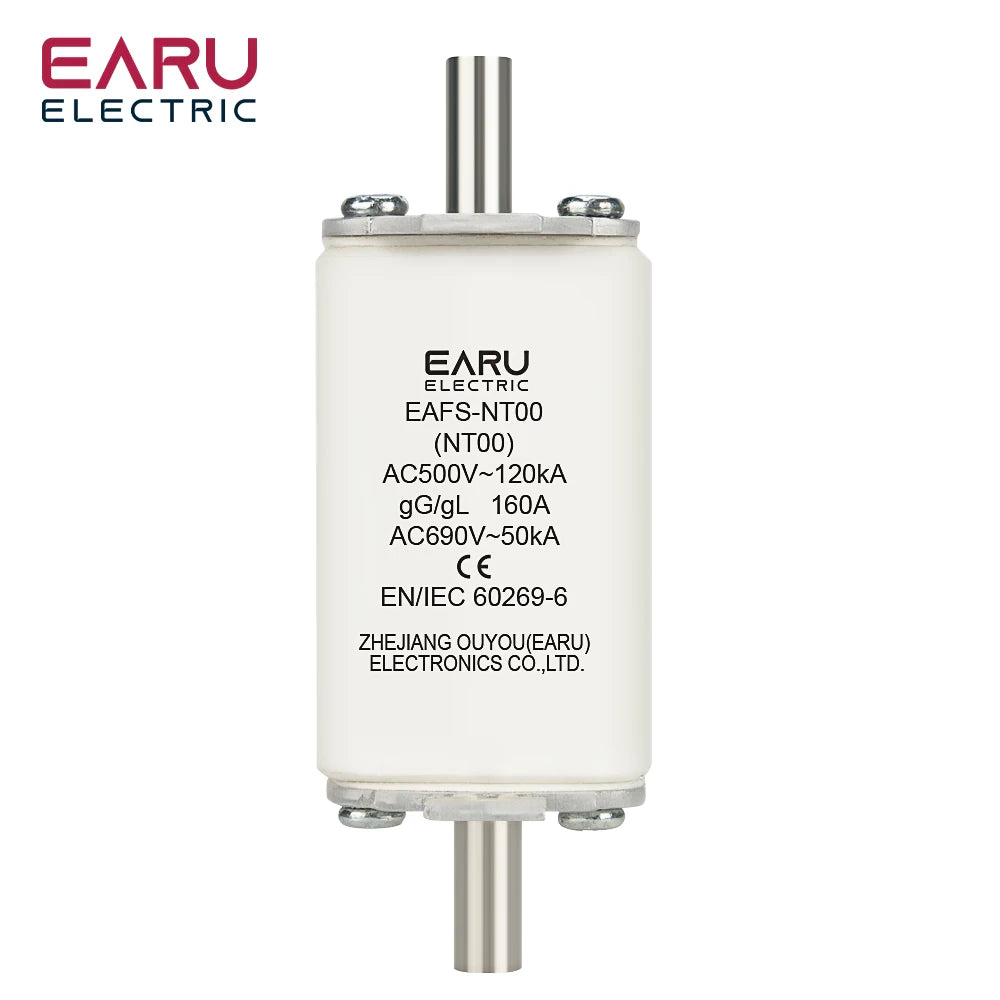

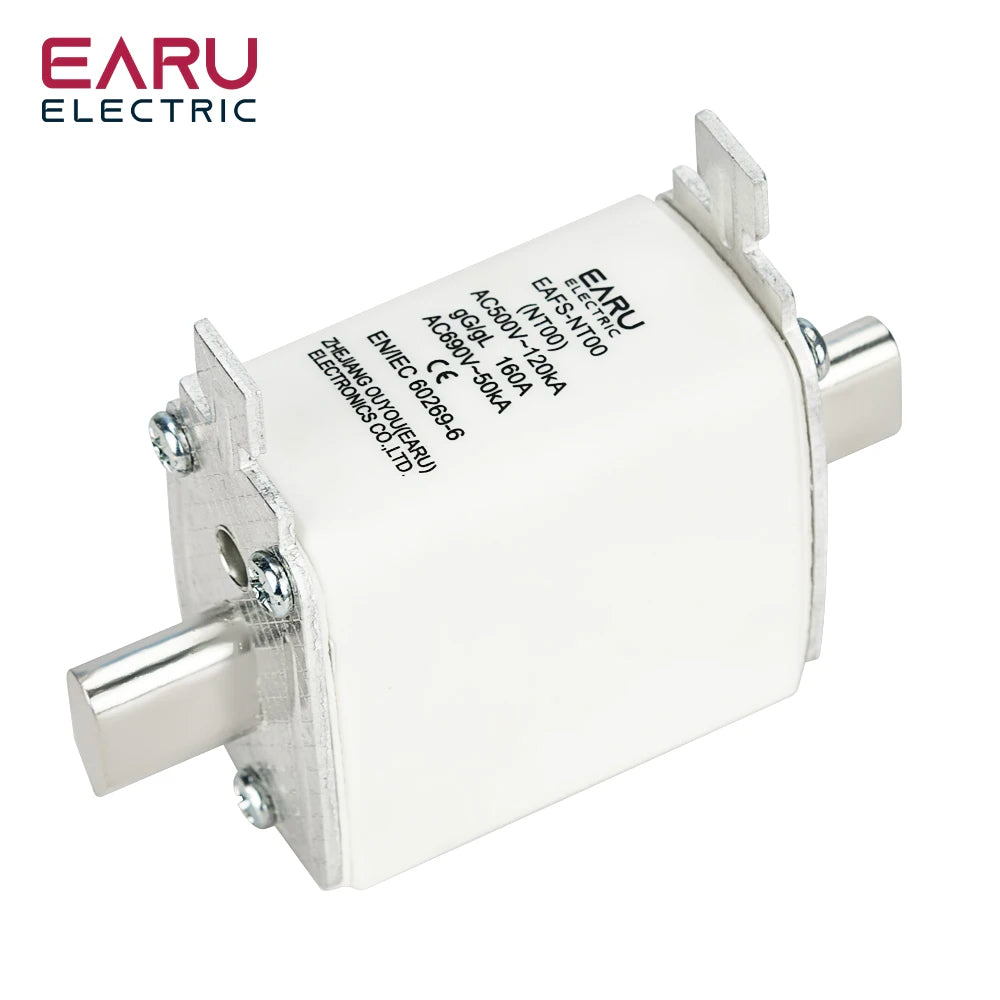

FUSE |
Fuse size |

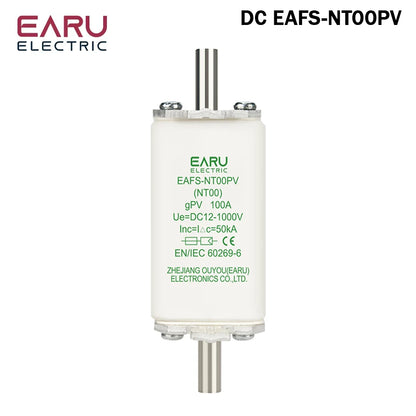

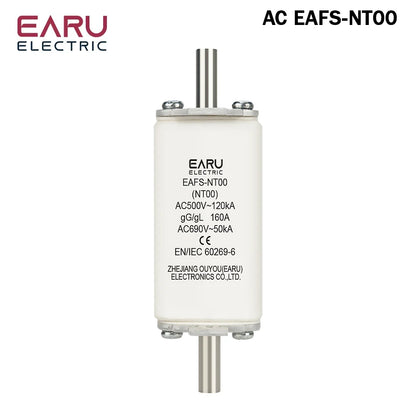

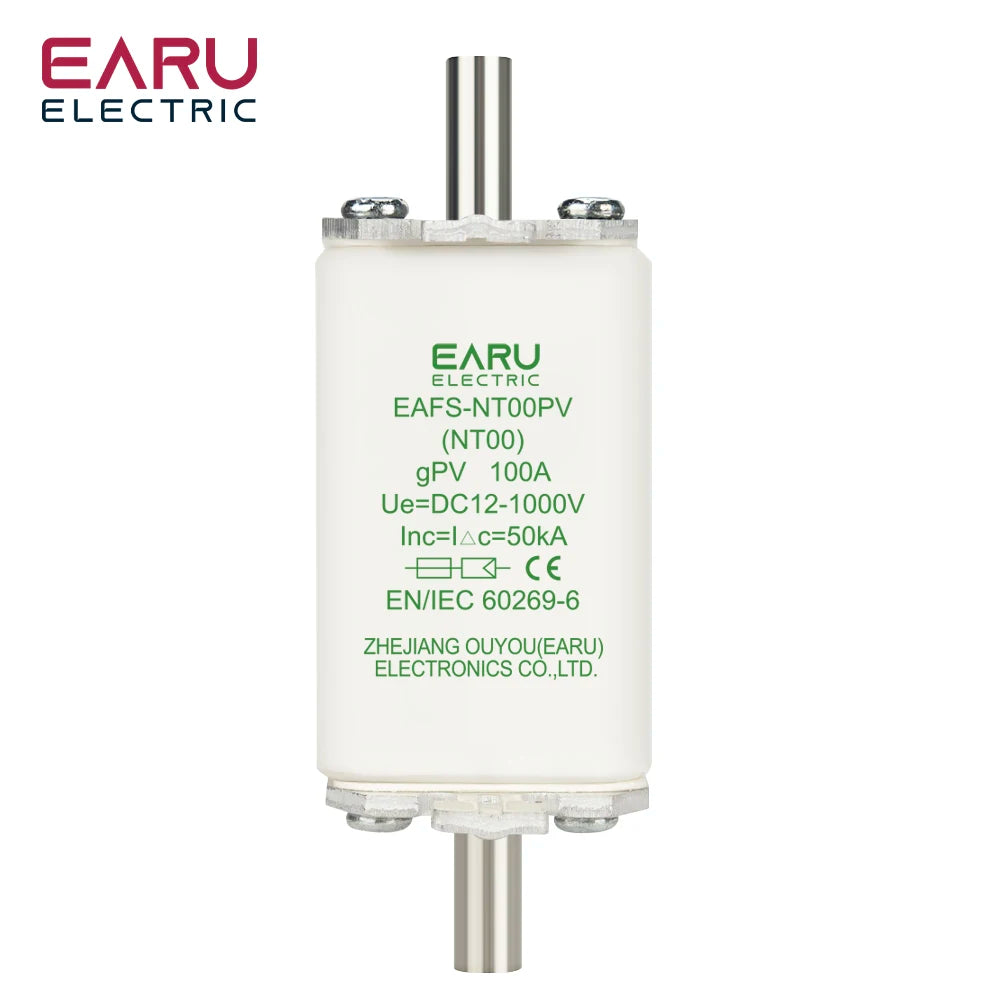

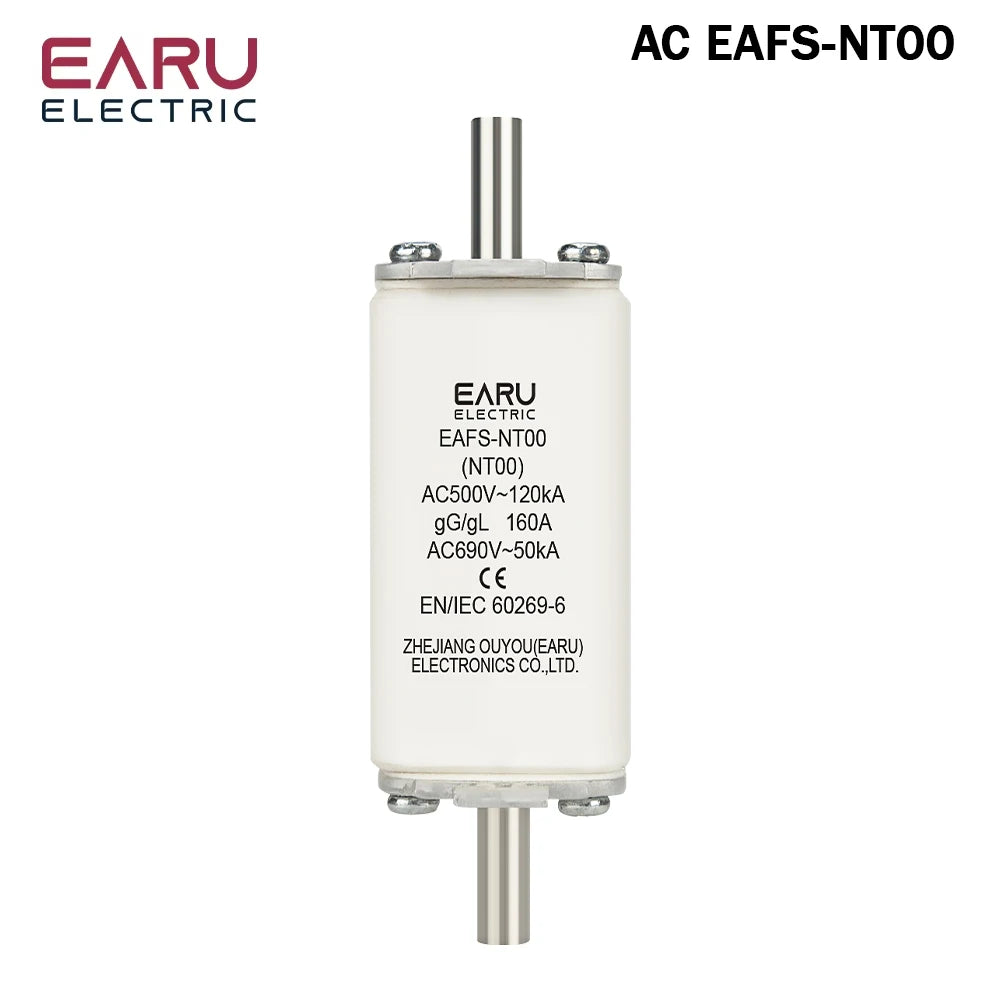

EAFS-NT00PV(NT00) |
EAFS-NT00PV(NT00) |
EAFS-NT00(NT00) |
EAFS-NT00(NT00) |
Rated operational current le |
100A |
160A |
100A |
160A |
|
Power waste P |
12W |
18W/32W |
28W/40W |
40W/50W |
|
Mechanism |
Mechanicallife |
1000 times |
800 times |
||
Degree of protection(positive) |
On:IP20/Off:IP30 |
||||
