100 Meters Infrared Warm Floor Cable 12K 33ohm/m Electric Carbon Heating Wire Coil 3.0mm Fiber Wire Floor Hotline Thickening
100 Meters Infrared Warm Floor Cable 12K 33ohm/m Electric Carbon Heating Wire Coil 3.0mm Fiber Wire Floor Hotline Thickening
Regular price
$49.52 USD
Regular price
$0.00 USD
Sale price
$49.52 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Efficiently heat your floor with our 100 meters long infrared warm floor cable. Made with 12K 33ohm/m electric carbon heating wire coil, our 3.0mm fiber wire floor hotline ensures optimal heat distribution and thickness. Enjoy the comfort and warmth of a heated floor all season long.
SPECIFICATIONS
- Core size: 12K
- Resistance: 33 Ohm/m
- Outer jacket: Silicone rubber
- Voltage: 7~300 V
- Brand Name: EARUELETRIC
- Voltage: 220V
- Model Number: AG-12K
- Material: Anti-flammable PC
- Floor Heating Part Type: Floor Heating Cables
- Power: 150w/m2
- Type: Floor Heating Parts
Technical Datas:
- Conductor resistance: 33±10% Ω/m
- Infrared wavelength: 8UM-18UM
- Colors: Red
- Diameter: 3±0.1 MM ( Thicker and Safer; Толще и безопаснее)
- The product can withstand max power: 25W/M
- Leakage current: 0.05mA/m
- Heating conductor: 12K
- Heating temperature: based on the using length
- Max enduring temperature: 200C degrees
- Insulating material: Silicone rubber
- Product Name: Carbon fiber heating wire
- What is the power of the cable? And what is heating temperature?
The power of the cable is based on the length that you use, you can calculate the power according to above examples.
- Power = 5W/m, the temperature is about 30~40C degrees;
- Power = 10W/m, the temperature is about 40~50C degrees;
- Power = 15W/m, the temperature is about 50~60C degrees;
- Power = 20W/m, the temperature is about 60~70C degrees;
- Power = 25W/m, the temperatuee is about 70~90C degrees.
Please notice that this is for your reference, not exactly right because of different test conditions.
How to calculate power?
- 220V*220V÷(15meters*33Ω)=100W
100w/15m=6.66w/m - For example, using15m 12K carbon fiber cable on 220V, the power is: 220V*220V÷(10meters*33Ω)=150W
150w/10m=15w/m - For example, using 10m 12K carbon fiber cable on 220V, the power is: 12K=33ohm/meter Voltage*Voltage÷resistance=electric power
Package Includes:

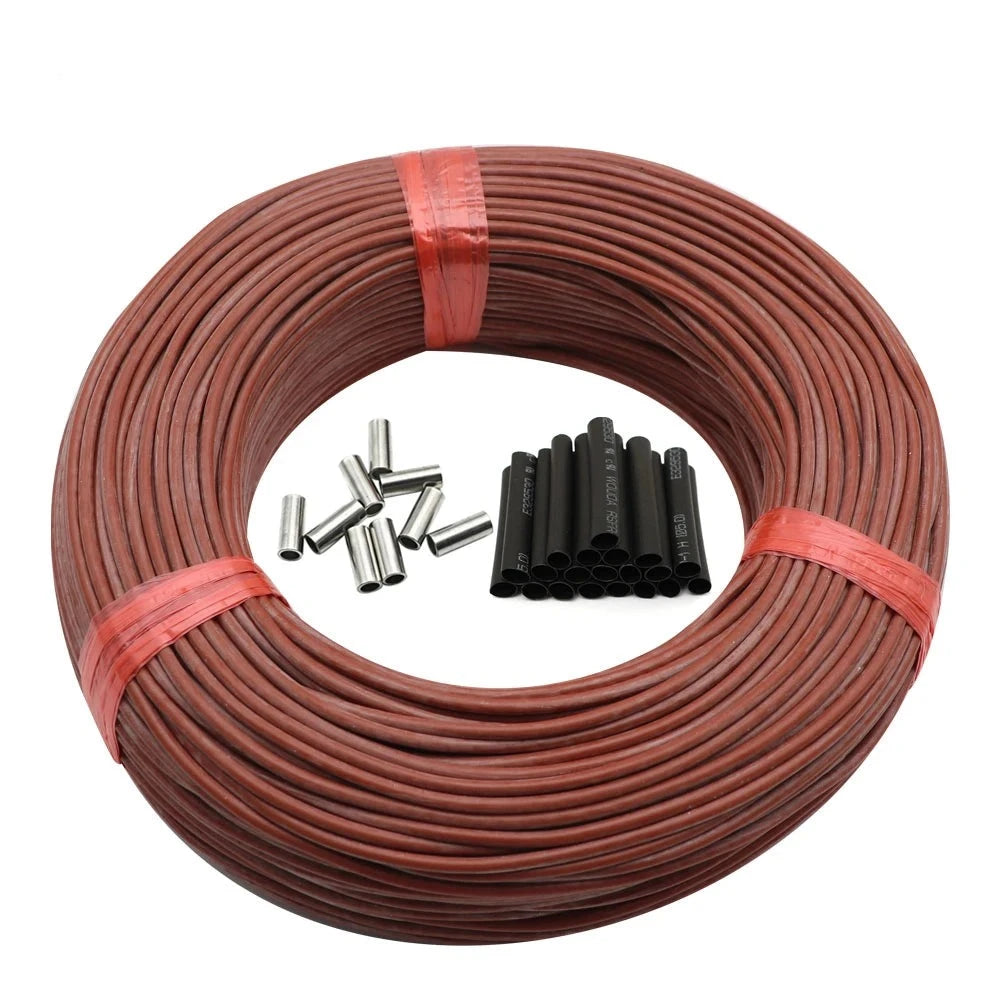

- Buy 100m = 100m cable + 20 pcs copper tube + 20 pcs sleeves
