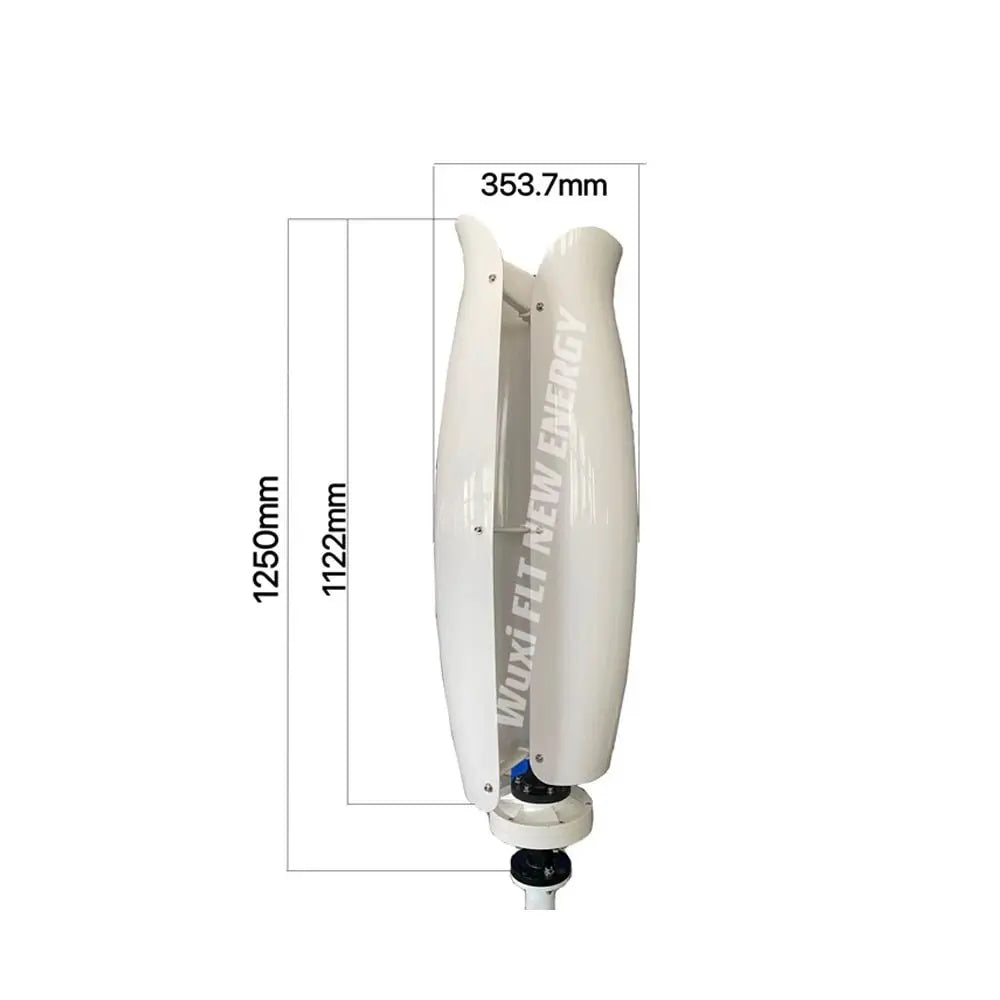

Vertical Wind Turbine Power Generator 12-48V Windmill 220v AC Output With Controller 1000-2000W

Vertical Wind Turbine Power Generator 12-48V Windmill 220v AC Output With Controller 1000-2000W

Regular price $847.08 USD
Regular price Sale price $847.08 USD
Sale Sold out
Shipping calculated at checkout.
Voltage
Specification
Color|Wattage

Specifications:

  • Weight: 19kg
  • Type: Wind Power Generator
  • Start Wind Speed: 2m/s
  • Shell Material: Alloy
  • Shaft Material: iron
  • Rated Wind Speed: 13m/s
  • Rated Voltage: 12V /24V/48V
  • Rated Power: 600W 800W 1000W 1500W 2000W
  • Mounting Base: With Mounting Base
  • Generator Type: 3 phase permanent magnet suspension Motor
  • Color: White
  • Blades: 2 pcs 3pcs

1000W 2000W Vertical Wind Turbine Power Generator Free Energy 12V 24V 48V Windmill 220v AC Output Household Kit With Controller.


Features

1. Meglev generator Coreless generator, Horizontal rotation with high efficiecny

2. Blades with curved design,utilizes wind resource effectively and obtains a higher power generation

3. 20 years use life and 1 year for warranty, warmly welcome to be our agent.

4. small ,light ,stable and safely, special control principle expended the wind speed to 2.5 ~ 25m/s, utilizes wind resource effectively and obtains a higher power generation.

5. Certified with:CE

6. High efficiency, could be hybrid system with solar panels for home use, LED street light, planting room...ect

7. Applications: Marine, Boat,Streetlights, Home, Openning Plaza lighting...

Specification


MPPT BOOST WIND CONTROLLER(optional)

MPPT BOOST WIND CONTROLLER(optional)
This controller has basic control and protect functions, and provide low voltage charging function. the battery could be charged under low speed wind. Pls click below pictures to get the specification of MPPT wind controller:

MPPT BOOST HYBRID CONTROLLER(optional)

This controller has basic control and protect functions, and provide low voltage charging function. the battery could be charged under low speed wind.
It allows solar panel input, default solar capacity is 200W, Optional solar capacity could reach 1000W maximium.
It 's 12V/24V system auto recognizing.
It has 2 DC outputs, 12A each.
It has 2 setting buttons which could check and modify the controller parameters.(only for experienced technicians).
there is also TL232 port. with a cable (TL232 to USB), the controller parameters could be modified on computer .(only for experienced technicians). (the cable needs additional cost).
Pls click below pictures to get the specification of MPPT hybrid controller:

Packing List

wind turbine only:
1.wind turbine 1set(hub,tail, blades,generator,hood,bolts and nuts)
2. installation tool 1 set.
3.flange 1 piece.

With MPPT Controller:
1.wind turbine 1set(hub,tail, blades,generator,hood,bolts and nuts)
2. installation tool 1 set.
3.flange 1 piece.
4.MPPT Controller 1piece

With Hybrid Controller:
1.wind turbine 1set(hub,tail, blades,generator,hood,bolts and nuts)
2. installation tool 1 set.
3.flange 1 piece.
4.Hybrid Controller 1piece

With off grid system:
1.wind turbine 1set(hub,tail, blades,generator,hood,bolts and nuts)
2. installation tool 1 set.
3.flange 1 piece.
4.Hybrid Controller 1piece
5.Inverter 1piece
