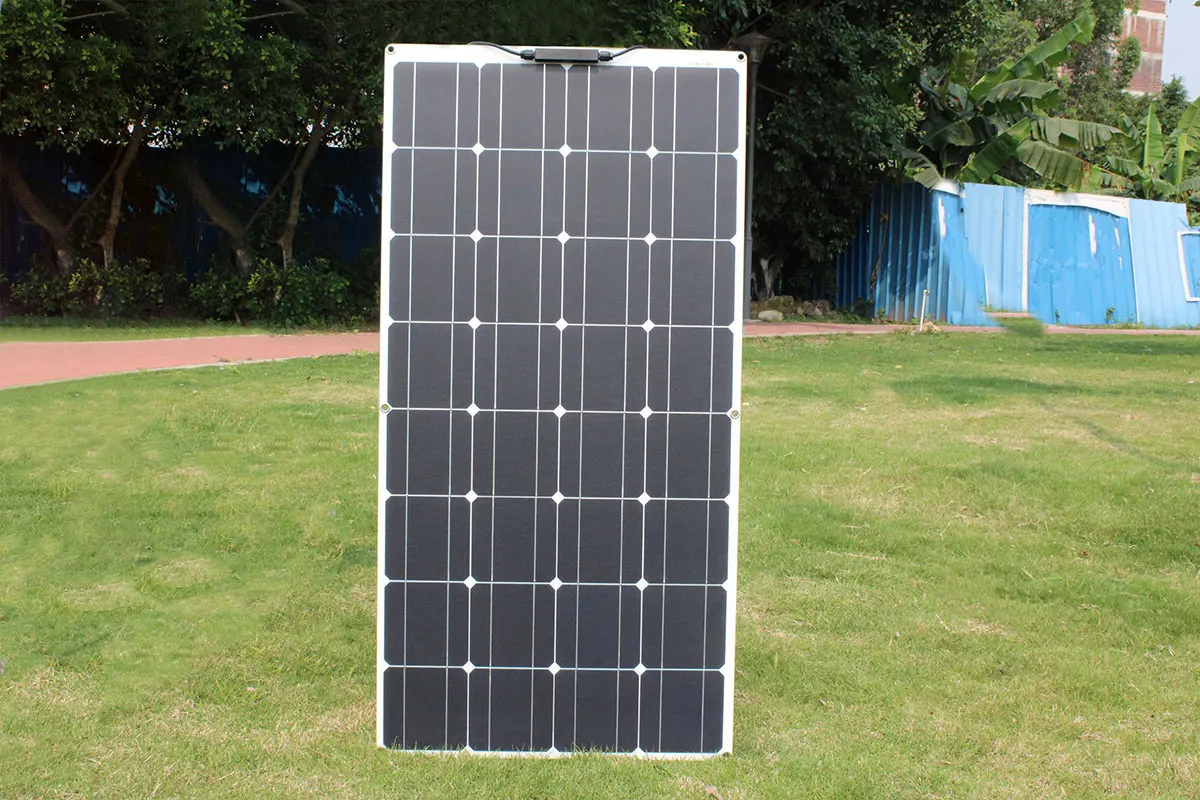

Solar Panel flexible 12/24 V 100 W monocrystalline battery charger
Solar Panel flexible 12/24 V 100 W monocrystalline battery charger
Solar Panel flexible 12/24 V 100 W monocrystalline battery charger
Specification
- is_customized: Yes
- Type: Solar Panel
- Size: 1050*530*2.5mm
- Origin: CN(Origin)
- Number of Panels: >20
- Number of Cells: 32
- Nominal Capacity: 100w
- Model Number: RGN32-100
- Max. Power: 100w
- Material: Monocrystalline Silicon
- Foldable Solar Panel: No
- Flexible Solar Panel: Yes
- Certification: RoHS
- Certification: CE

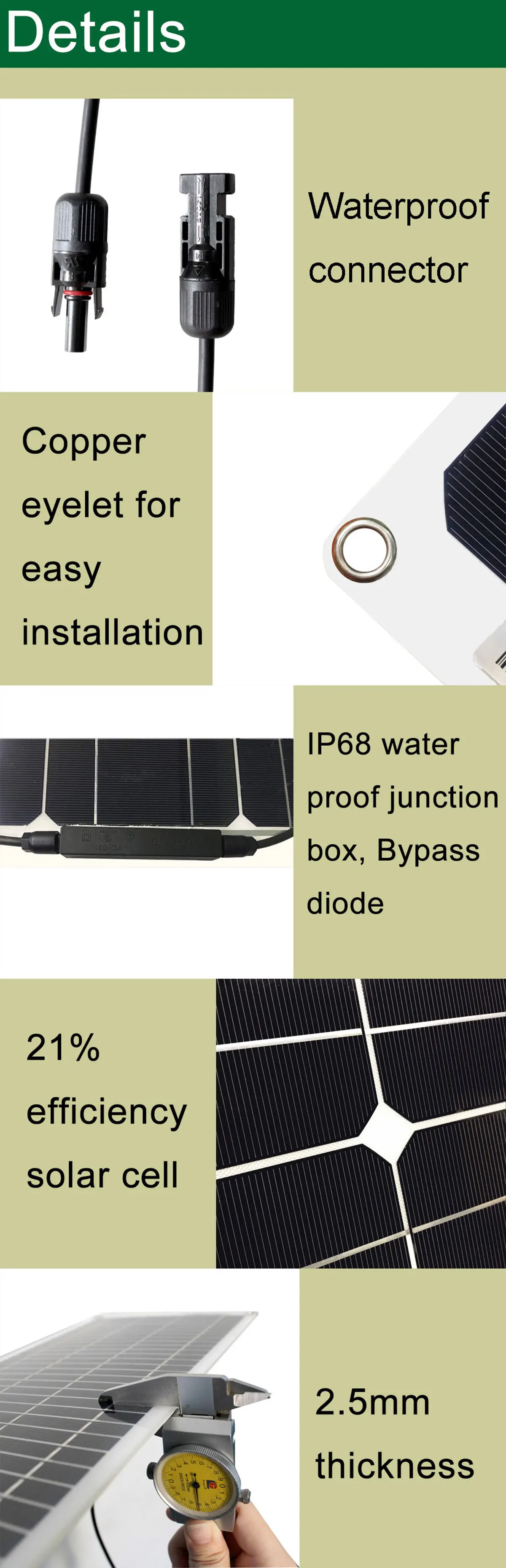

Advantages
Super Lightweight: With polymer materials, this product weighs 70% less than conventional solar panels, making transportation and installation a breeze.
High Efficient: High efficiency solar cell: Monocrystalline 21%.

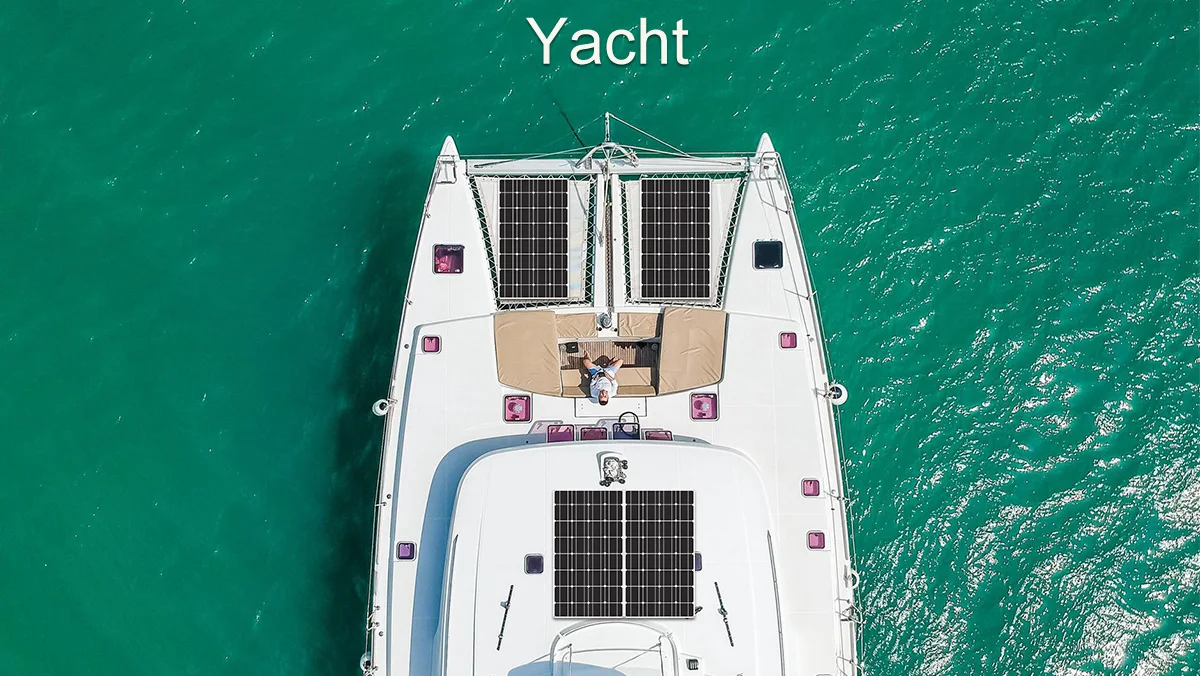

Extremely Flexible: This panel is capable of
meeting a wide range of applications where standard panels can be inconvenient to mount, such as on the curved roof of an airstream.
Super Thin: Hardly noticeable, the 100W Lightweight Panel laid flat is only a tenth of an inch tall! Approximately 95% thinner than its rigid counterpart, this panel is ideal for a stealthy solar setup.
Protection: Bypass diodes minimize power drop caused by shade and ensure excellent performance in low-light environments.
Highly Durable: Rigorously tested, the 100W panel was designed to withstand extreme wind and snow loads and marine environment.
Easy to install: Metal holes in the corners of the product for fixing screws and mounting.
Electrical Characteristics |
Thermal Characteristics |
||
Max Power Pmax |
100W |
Temperature coefficient of Pmax |
-0.38%/℃ |
Max Power voltage Vmp |
16V |
Temperature coefficient of Voc |
-60.5mV/℃ |
Max Power Current Imp |
6.25A |
Temperature coefficient of Isc |
2.2mA/℃ |
Open Circuit Voltage Voc |
19.2V |
NOTC |
47℃+/-2℃ |
Short Circuit Current Isc |
6.68A |
Operating Temperature |
-20℃ - +65℃ |
Maximum System Voltage |
700V |
Mechanical Characteristics |
|
Number of cells in Series |
32 |
Dimension |
1050X530X2.5mm |
Cell size |
125X125mm |
Weight |
1.9kg |
Max Power tolerance |
±3% |
Cable |
0.9 meter 2X2.5mm |
