Wind and Solar Hybrid Controller, Battery Charge controller 24V/48V, for 1KW Wind / 300W Solar Panel
Wind and Solar Hybrid Controller, Battery Charge controller 24V/48V, for 1KW Wind / 300W Solar Panel
Couldn't load pickup availability
⚡ Wind and Solar Hybrid Controller, Battery Charge controller 24V/48V, for 1KW Wind / 300W Solar Panel
Upgrade your system with our high-performance Wind and Solar Hybrid Controller, Battery Charge controller 24V/48V, for 1KW Wind / 300W Solar Panel. Built for reliability, efficiency and seamless integration with modern setups.
📌 Key Benefits
- ✅ High-efficiency design for superior performance
- ✅ Optimized heat dissipation and durability
- ✅ Plug-and-play compatibility for easy integration
- ✅ Ideal for industrial and residential use
📄 Technical Specifications
Specifications:
- is_customized: Yes
- Wind Turbine Brake Current: 42A
- Rated Wind Turbine Input Power: 1000W
- Rated Solar Input Power: 300W
- Rated Battery Voltage: 24V/48V
- Protection Function: Over Load Protection/Automatic Brake
- Maximum Current: 60A
- Certificate: CE/ROHS/ISO9001
- Application: Charger Controller
1000W Wind/Solar Hybrid Controller, Battery Charge controller 24V/48V, for 1KW Wind Generator and 300w Solar Panel
Technical Parameter:
|
Product Model |
WWS10-24-N |
WWS10-48-N |
|
Rated Battery Voltage |
24V |
48V |
|
Rated Wind Turbine Input Power |
1kW |
1kW |
|
Maximum Wind Turbine Input Power |
1.5kW |
1.5kW |
|
Wind Turbine Brake Current |
42A |
21A |
|
Rated Solar Input Power |
300W |
300W |
|
Floating Charging Voltage |
29V |
58V |
|
Display Mode |
LCD |
|
|
Quiescent Current |
≤20mA |
|
|
Ambient Temperature & Humidity |
-20～+55℃/35～85%RH（Without Condensation） |
|
|
Communication Mode (Optional) |
RS232、RS485、RJ45、GPRS (optional) |
|
|
Temperature Compensation Function (Optional) |
-4mV/℃/2V ，–35℃--+80℃ ，Precision：±1℃ |
|
|
Dimension (L x W x H) |
440×425×170mm |
|
|
Net Weight |
11kg |
|

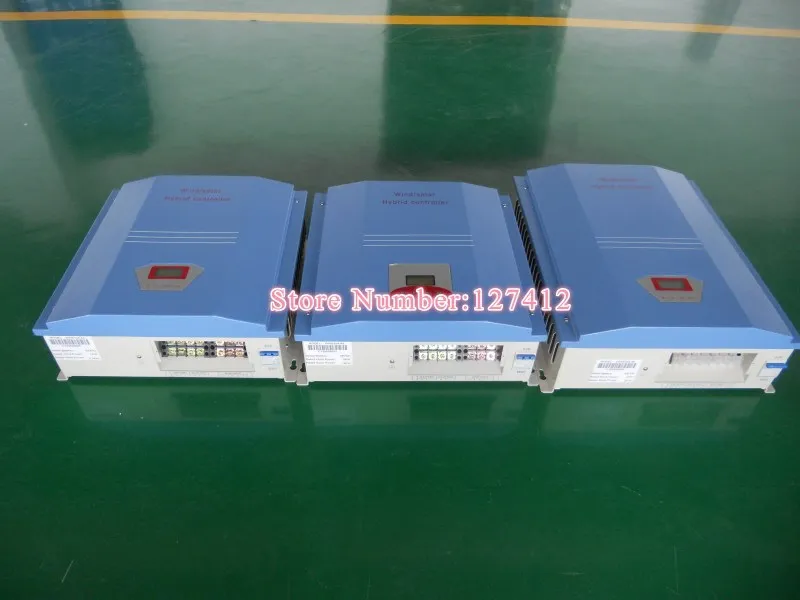

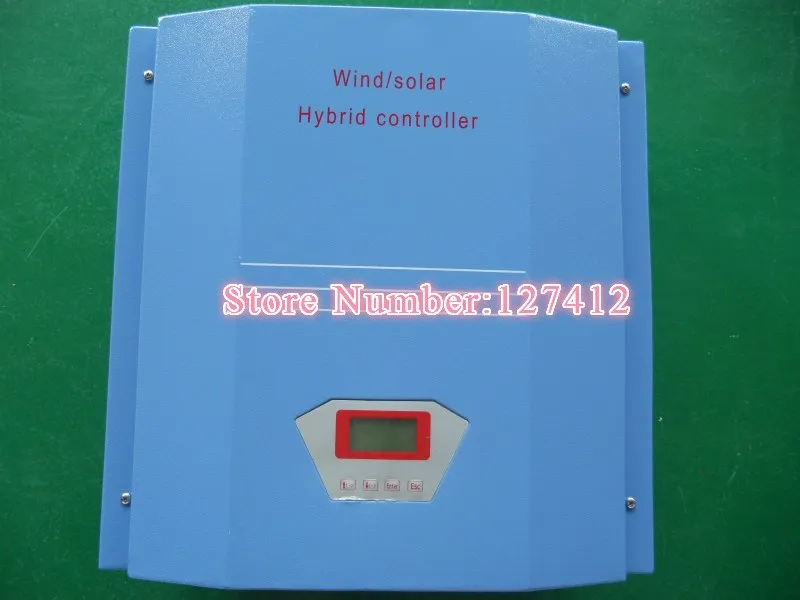

Detailed Product Photos:
❓ Frequently Asked Questions
❓ 1 - Do you provide installation services?
❌ No, we do not. Please note that we do not provide personalized technical consulting or installation services, as customer needs vary greatly across different regions.
🌍 2 - Do you ship to my country?
Yes, we deliver worldwide. Products are shipped from suppliers located in North America, Europe, and Asia, with delivery times between 5 to 15 business days.
⏳ 3 - What is the delivery time?
Delivery time is 5 to 15 business days.
💳 4 - How can I pay?
Payments accepted via Stripe: credit card, debit card, and Apple Pay — all directly on our website.
📄 5 - Where can I find technical information?
All technical information is available on the product sales page.
❓ 6 - Can I request a quote or estimate?
🚫 No quote is necessary. You can purchase all products directly through our website with transparent pricing.

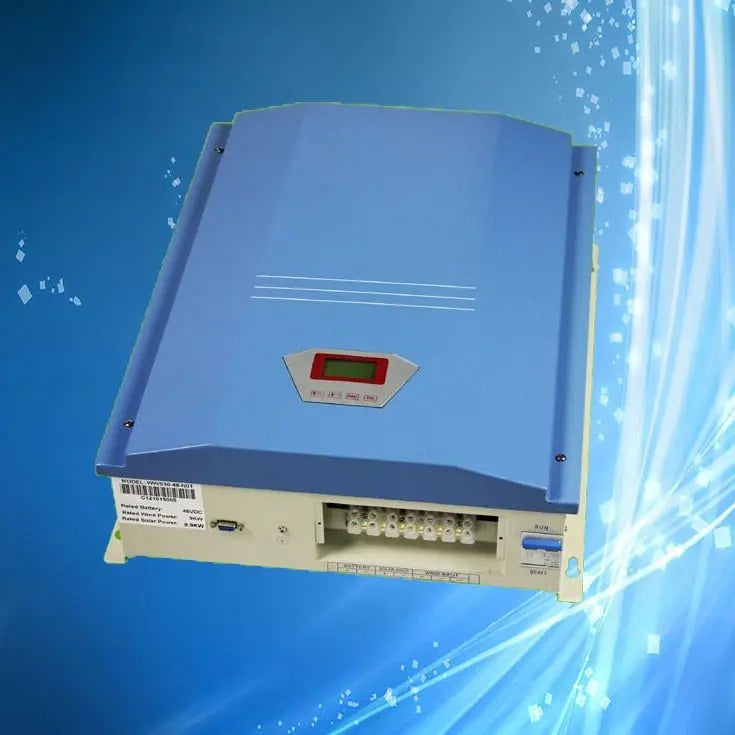

🖼 Product Images
