100A MPPT Solar Charge Controller Max 480VDC Input 9600W Regulator

100A MPPT Solar Charge Controller Max 480VDC Input 9600W 8400W 7200W 6000W Solar System Charging Regulator For 48V 60V 72V 96V

The 100A MPPT Solar Charge Controller Max 480VDC Input 9600W 8400W 7200W 6000W is an essential component for optimizing your solar energy system, designed specifically for reliable battery charging in off-grid applications. This advanced controller maximizes energy utilization with a conversion efficiency of up to 97%, making it a smart choice for eco-conscious consumers.

Key features include:

• Max DC Voltage Input: 480V
• Rated Charging Current: 100A
• Battery Compatibility: Supports Lead Acid, Gel, LiFePO4, and more.

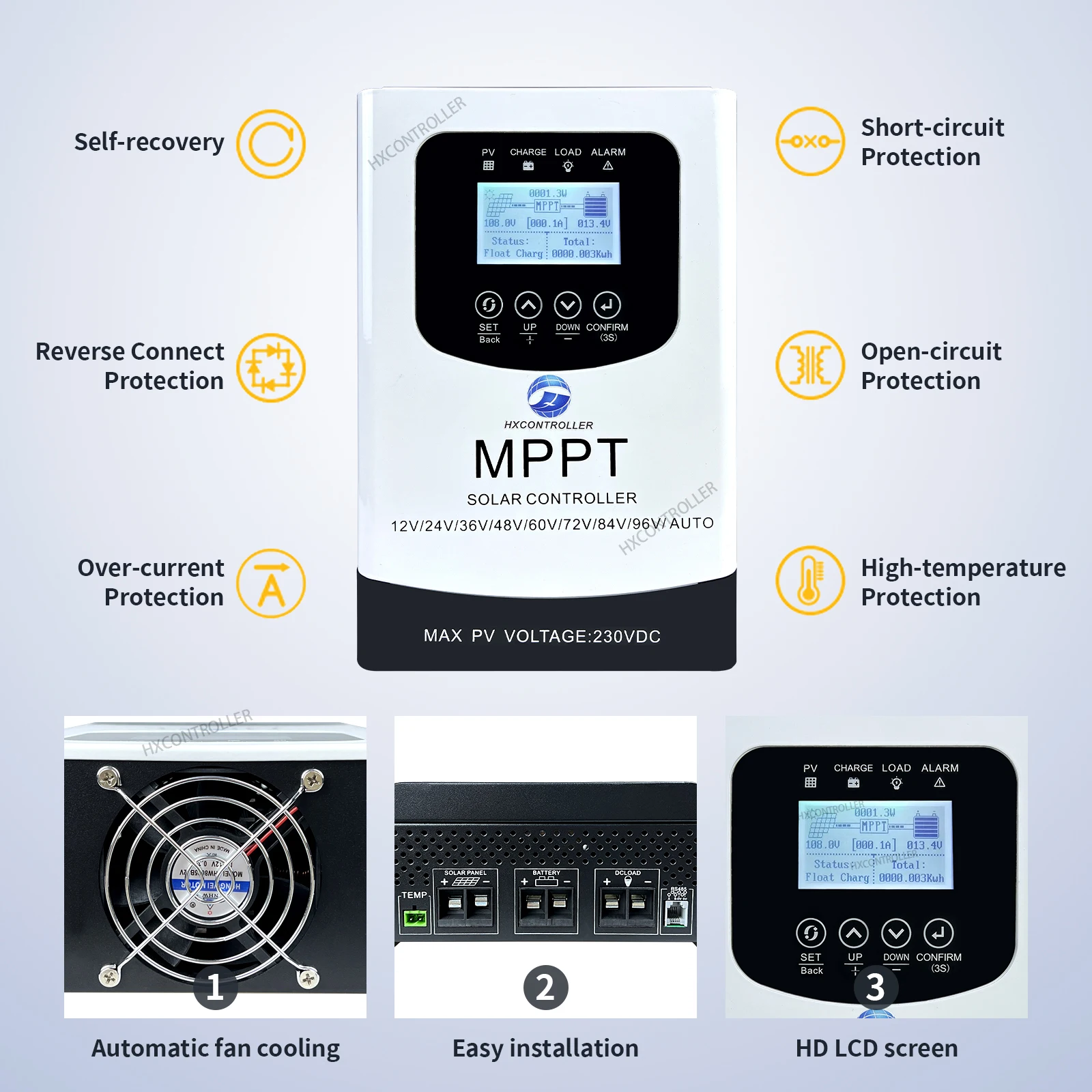

• Protection Features: Overcharge, overdischarge, overload, and short circuit protection.

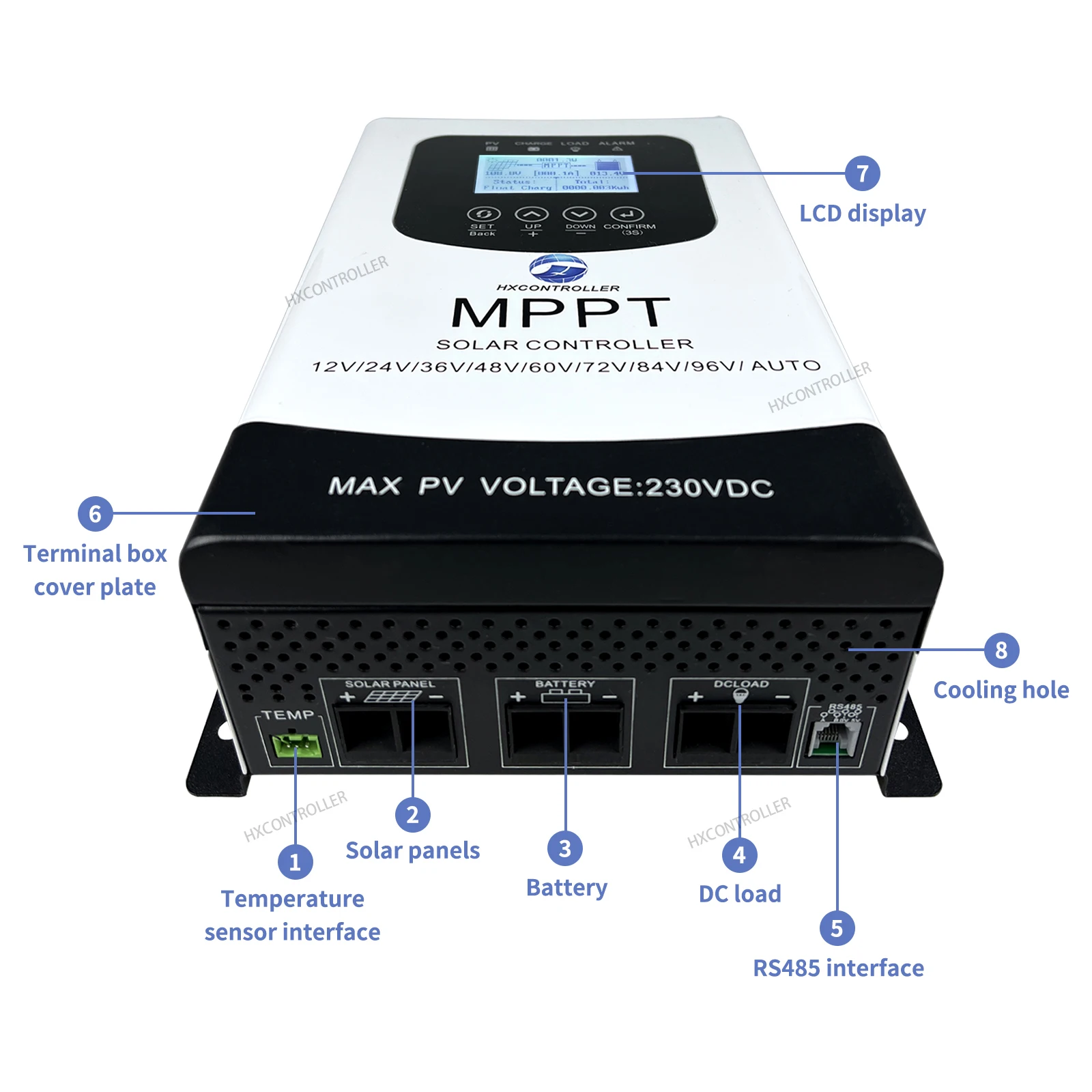

• RS485 Communication: Enables multi-machine communication for convenient monitoring.

This innovative solar charge controller utilizes maximum power point tracking (MPPT) technology, which efficiently scans the I-V curve of solar panels to ensure optimal charging. It adjusts the charging process based on battery status, thereby extending battery life and enhancing overall system performance.

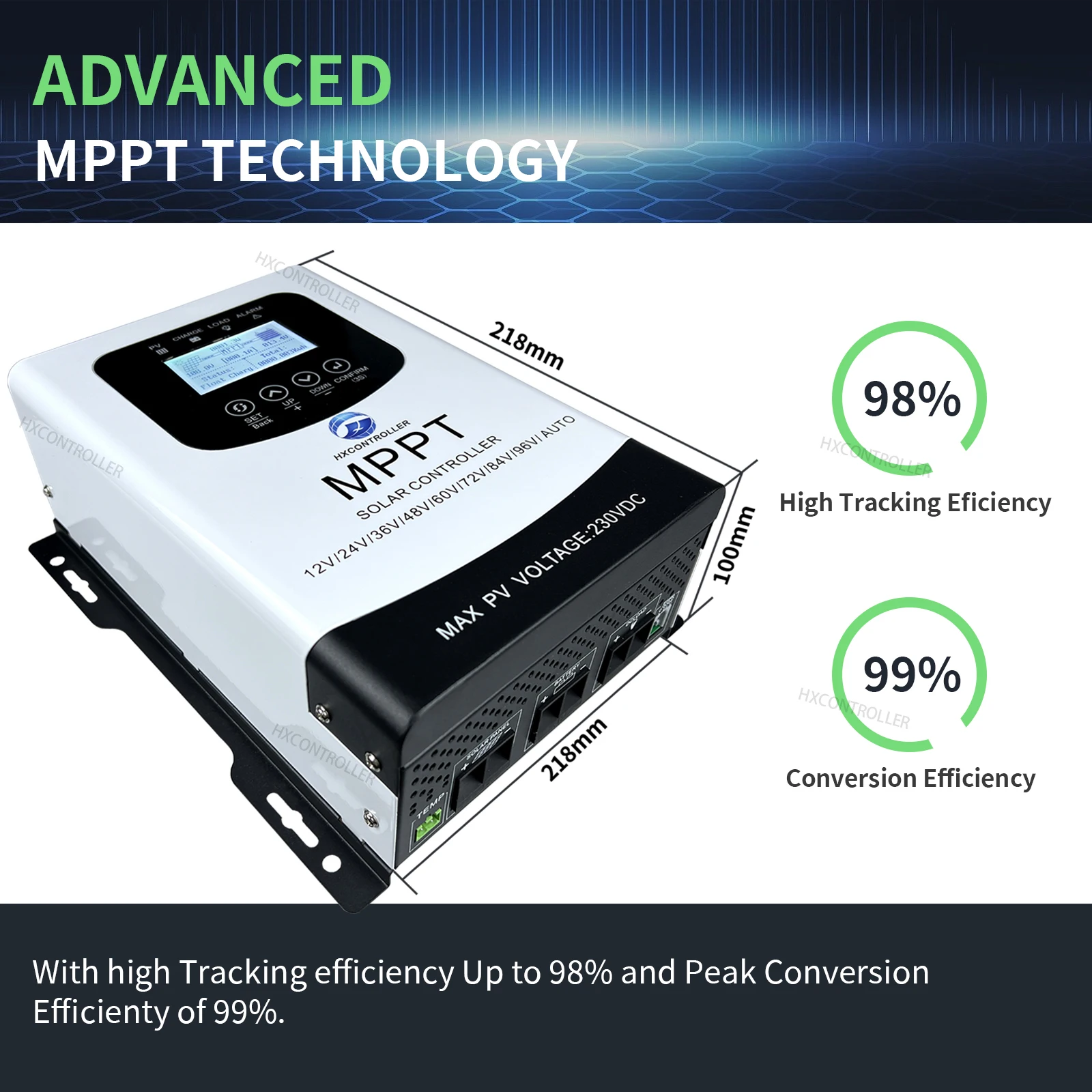

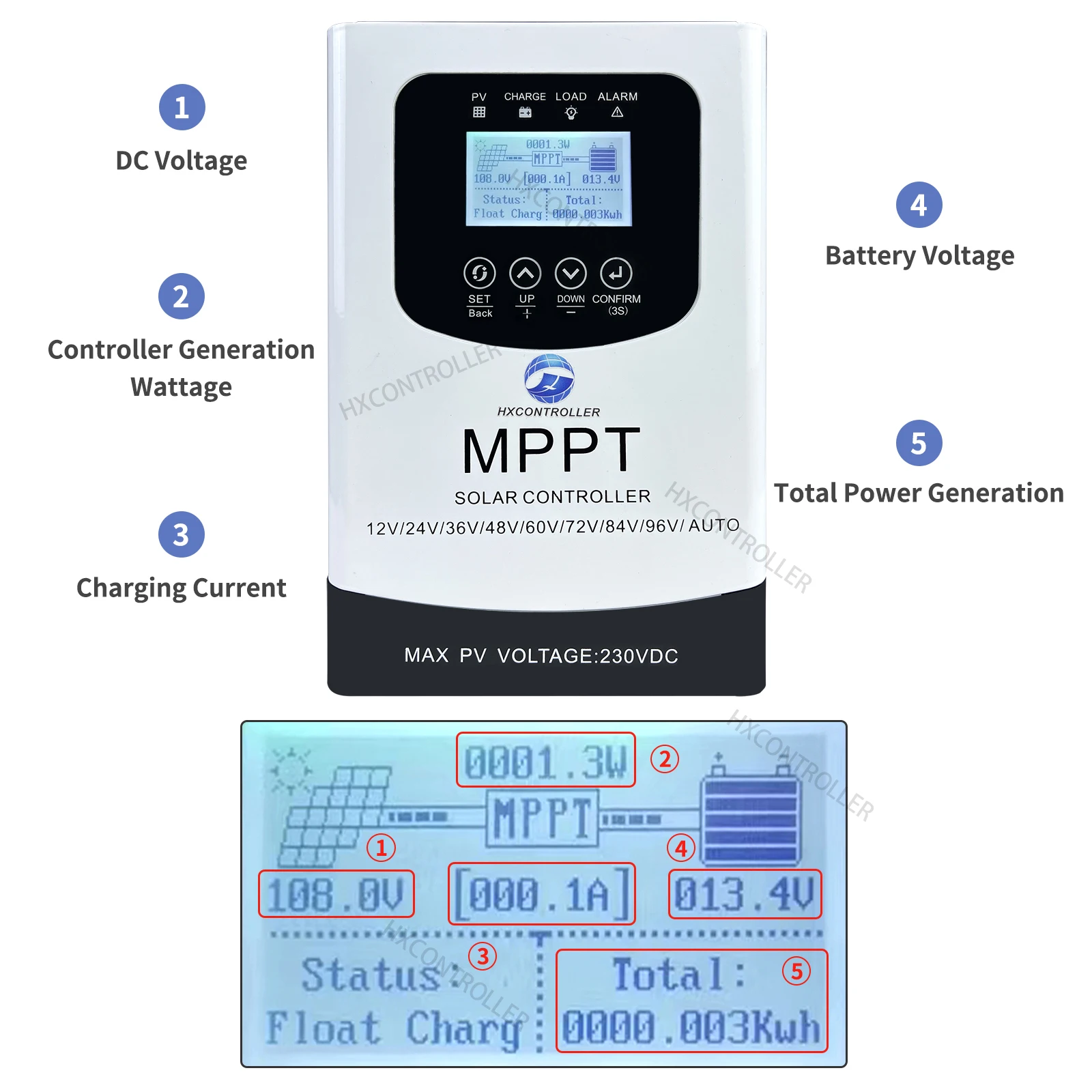

The 100A MPPT Solar Charge Controller is designed with ease of use in mind. It features a clear LCD display showing key metrics such as battery voltage, charging current, and operational status. Its compact dimensions (202mm x 215mm x 100mm) and lightweight design (1.95KG) make installation straightforward.

Ensure your solar energy system is equipped with the best technology available. Explore our range of solar products to complement your setup!

Technical Specifications

• Power Output Options: 9600W, 8400W, 7200W, 6000W
• Voltage Battery Options: 48V, 60V, 72V, 96V
• Operating Temperature: -10°C to +45°C
• Humidity Tolerance: 0~90% RH (non-condensing)
• Mechanical Protection Level: IP21

Frequently Asked Questions (FAQ)

• What is the shipping cost? Between $29 and $199 depending on location.
• What are the product specifications? 100A rated current, supports 48V/60V/72V/96V options with a max input of 480VDC.
