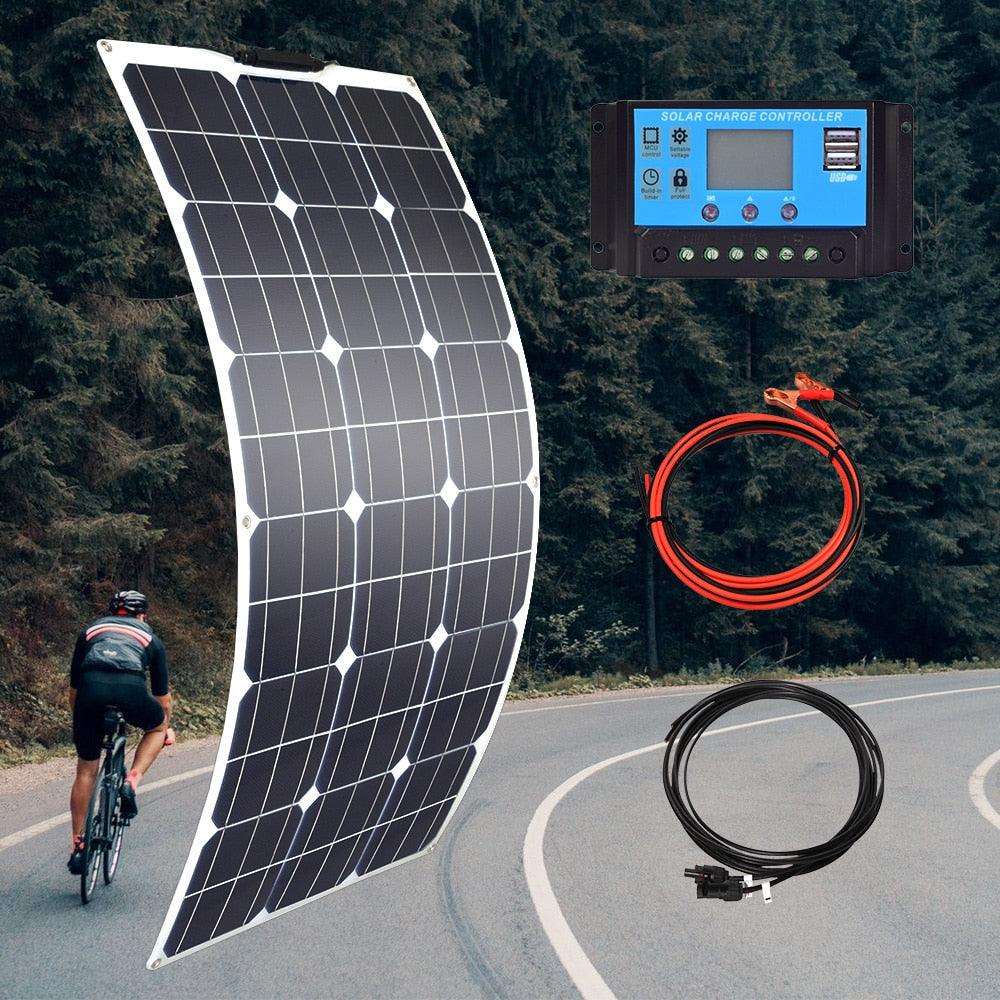

1. 1 pcs 100w solar panel

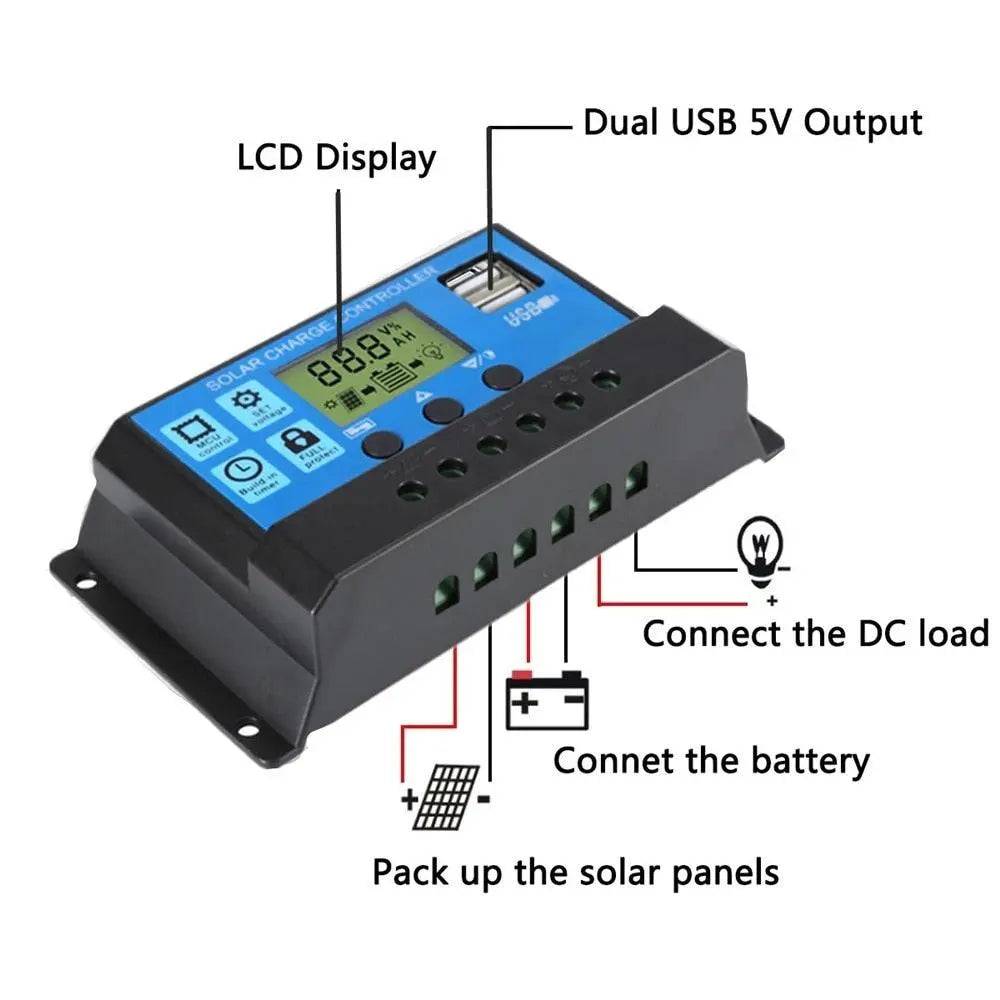

2. 10A 12v/24v charge controller
3. 1 set Extension cable with PV connector
4. 1 set cable with alligator clip （connect to battery）

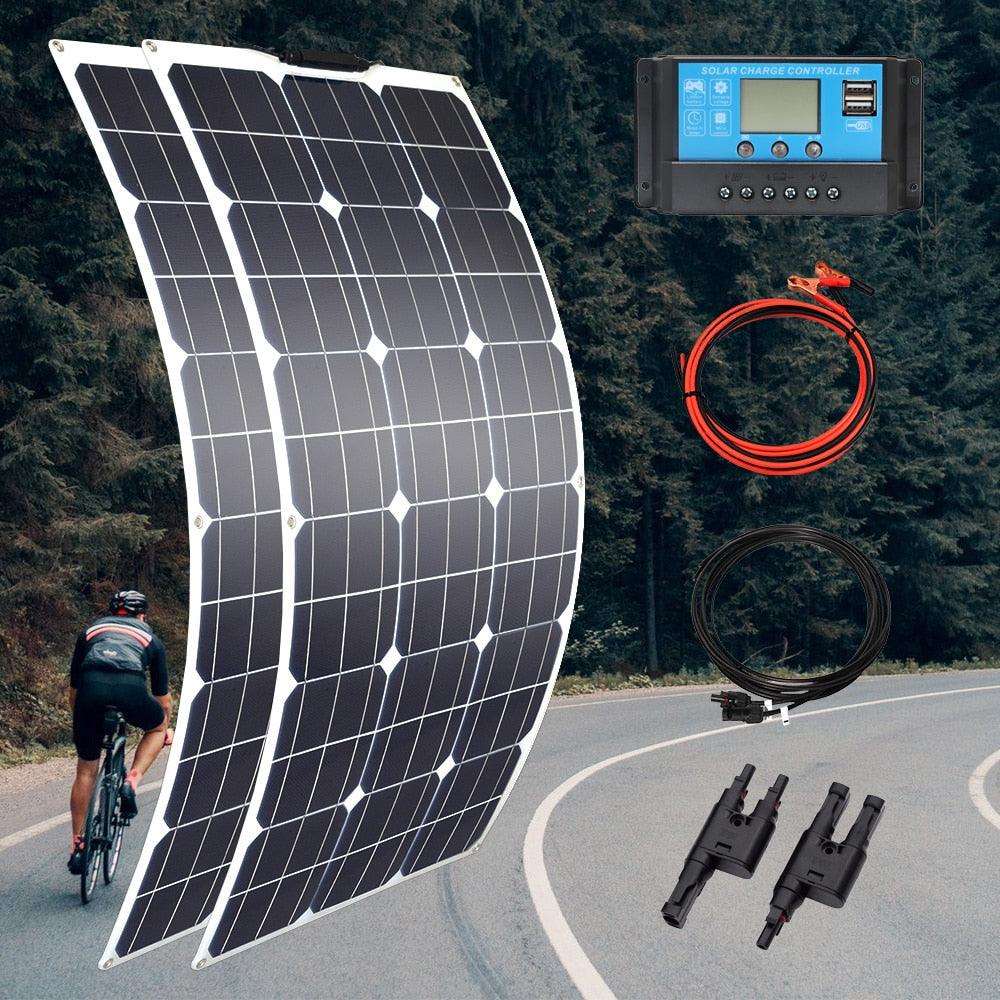

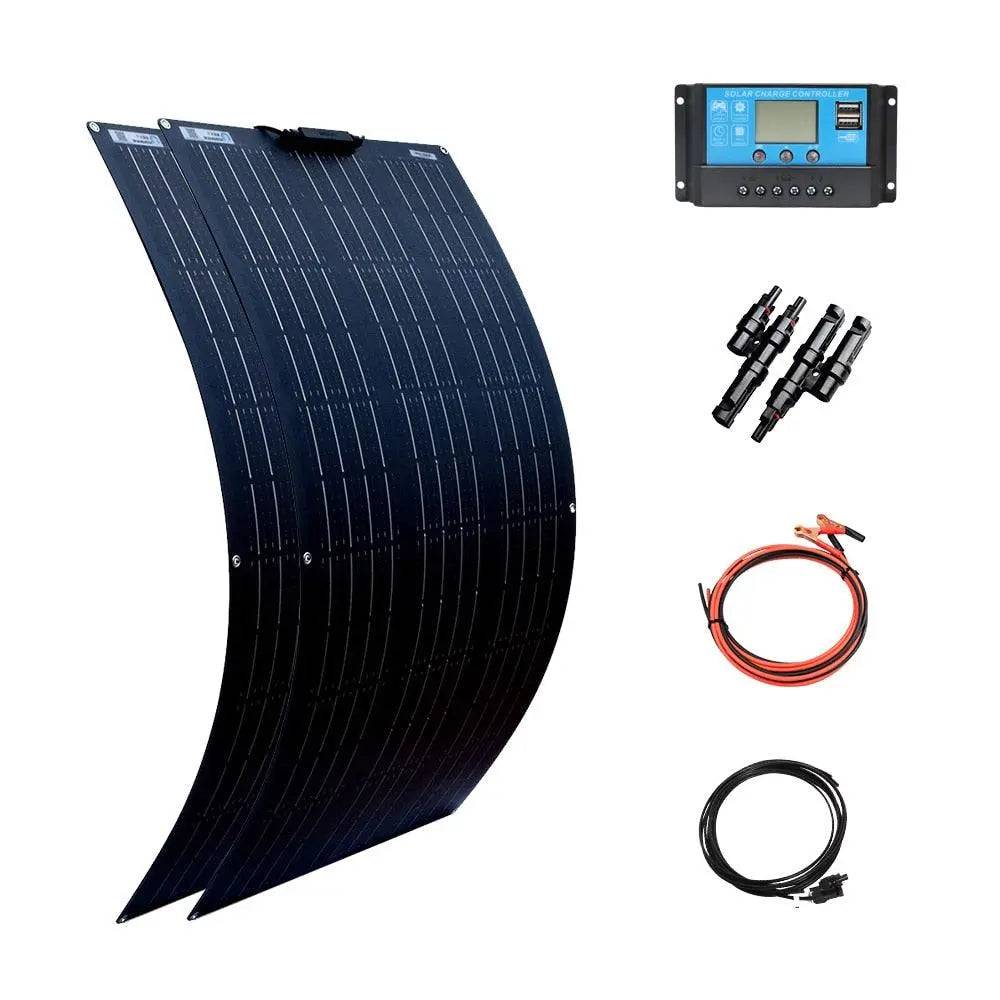

200W kit

Packing listing：

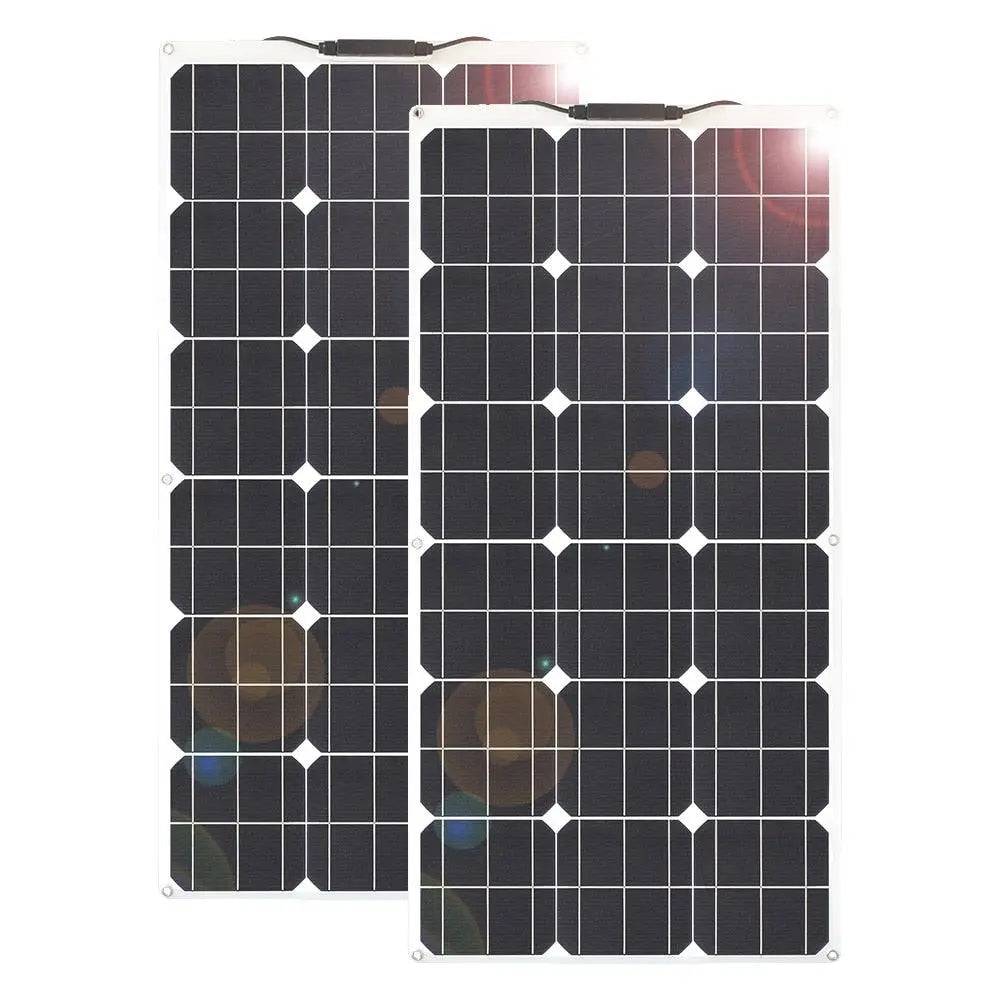

1. 2pcs 100w solar panel
2. 20A 12v/24v charge controller
3. 1 set Extension cable with PV connector
4. 1 set cable with alligator clip （connect to battery）
5. 1 set 2 in 1 PV connector （in parallel solar panel

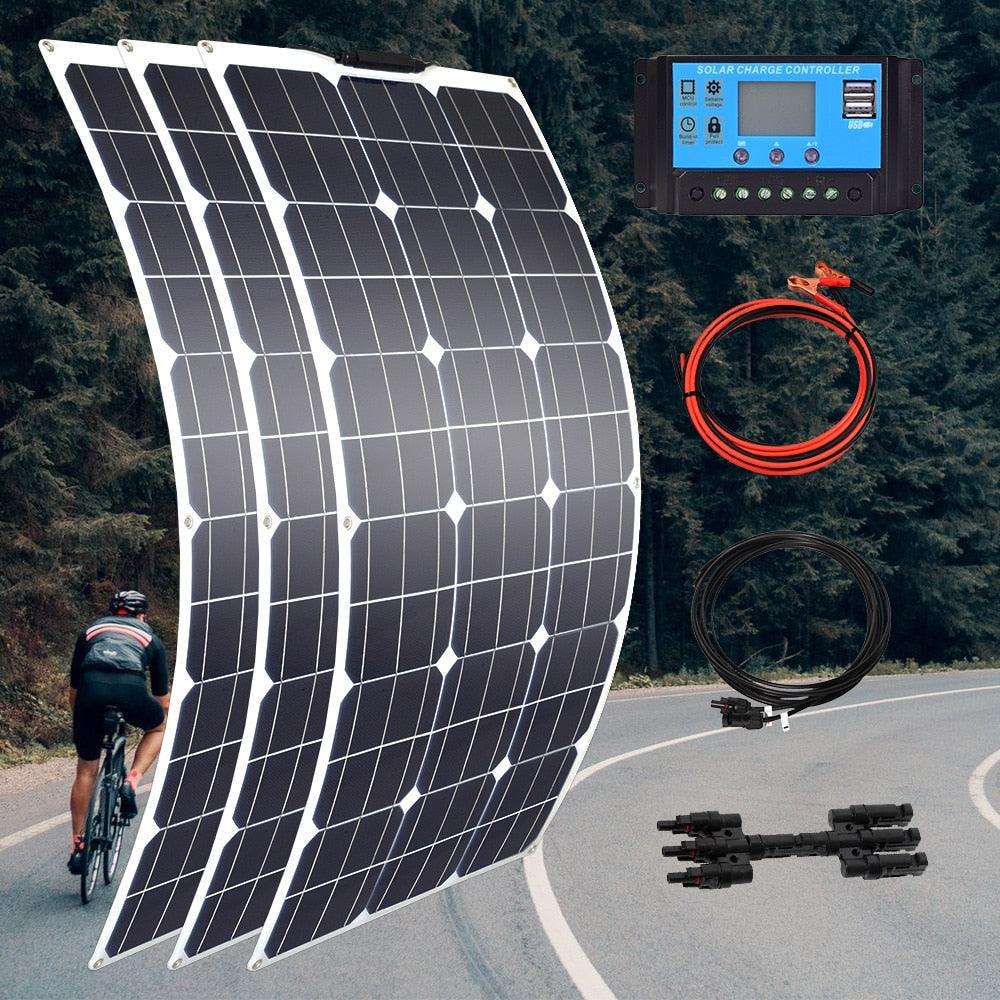

300W kit (3pcs 100w solar panel kits)

Packing listing：

1.  3pcs 100w solar panel
2.  30A 12v/24v charge controller
3.  1 set Extension cable with PV connector
4. 1 set cable with alligator clip （connect to battery）
5. 1 set 3 in 1 PV connector （in parallel solar panel

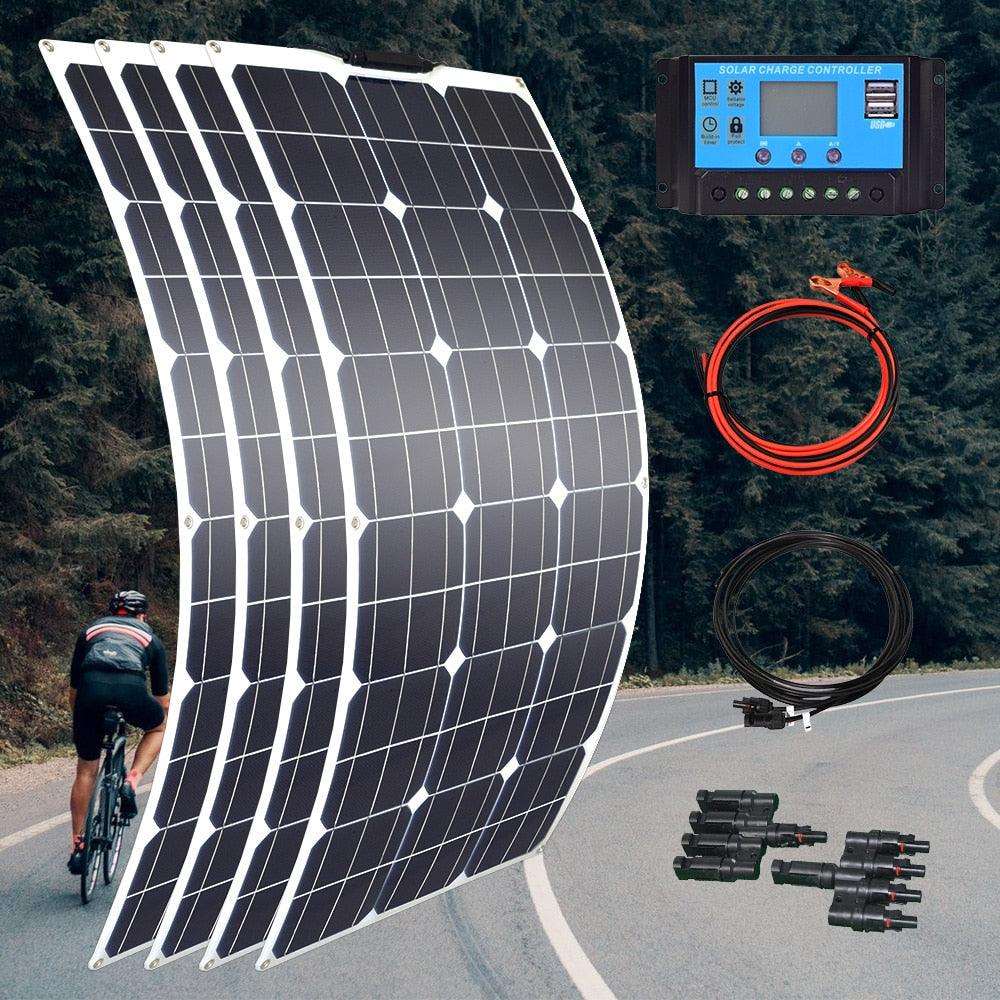

400W kit (4pcs 100w solar panel kits)

Packing listing：

1. 4pcs 100w solar panel
2. 40A 12v/24v charge controller
3. 1 set Extension cable with PV connector
4. 1 set cable with alligator clip （connect to battery）
5. 1 set 4 in 1 PV connector （in parallel solar panel

Features:

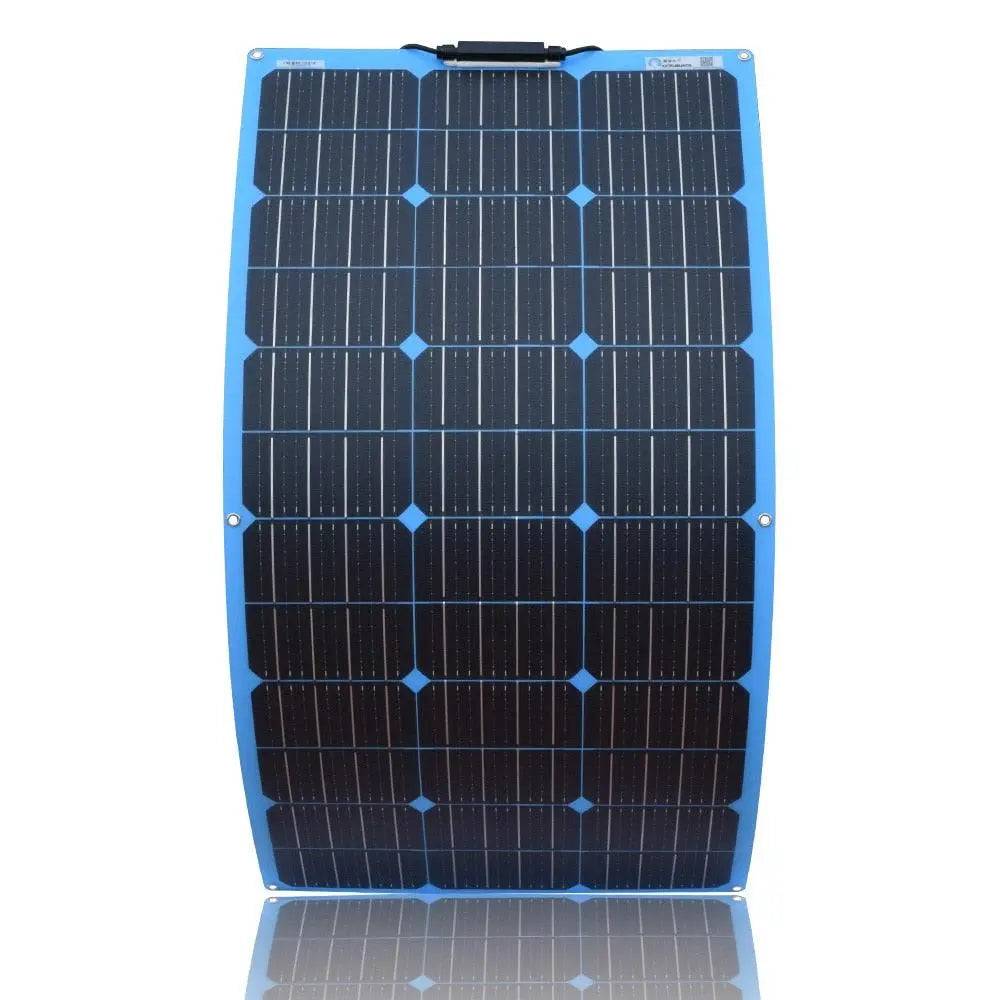

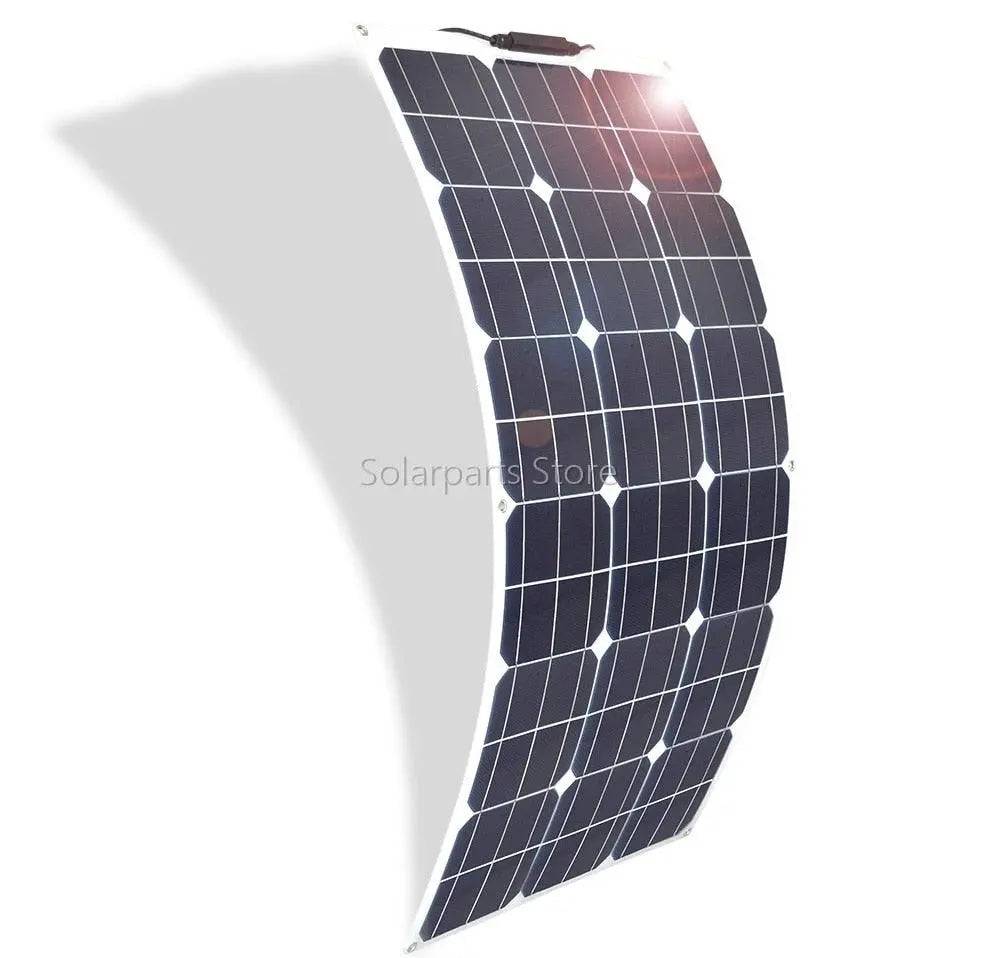

1. Select high-efficiency 158*158mm lines monocrystalline silicon solar cells, the power generation efficiency is about 1.3 times that of conventional polysilicon, and the overall area is smaller at the same power.

2. Semi flexible design,Graceful appearance, delicate and cabinet;

3. The surface is made of PET and treated with a special process, which is more wear-resistant and improves the absorption efficiency of sunlight.

4. Convenience to take , fashionable elegance. PV connector can be suitable to connect controller.Especially suitable for anywhere can obtain sunshine, realize high-efficient charging, use convenient and safe, environmental protection, energy saving.It is good for promotion, sales, gifts etc.

5. The junction box adopts IP67 waterproof design, contains bypass diode, and the circuit adopts overcharge and reverse current protection design.

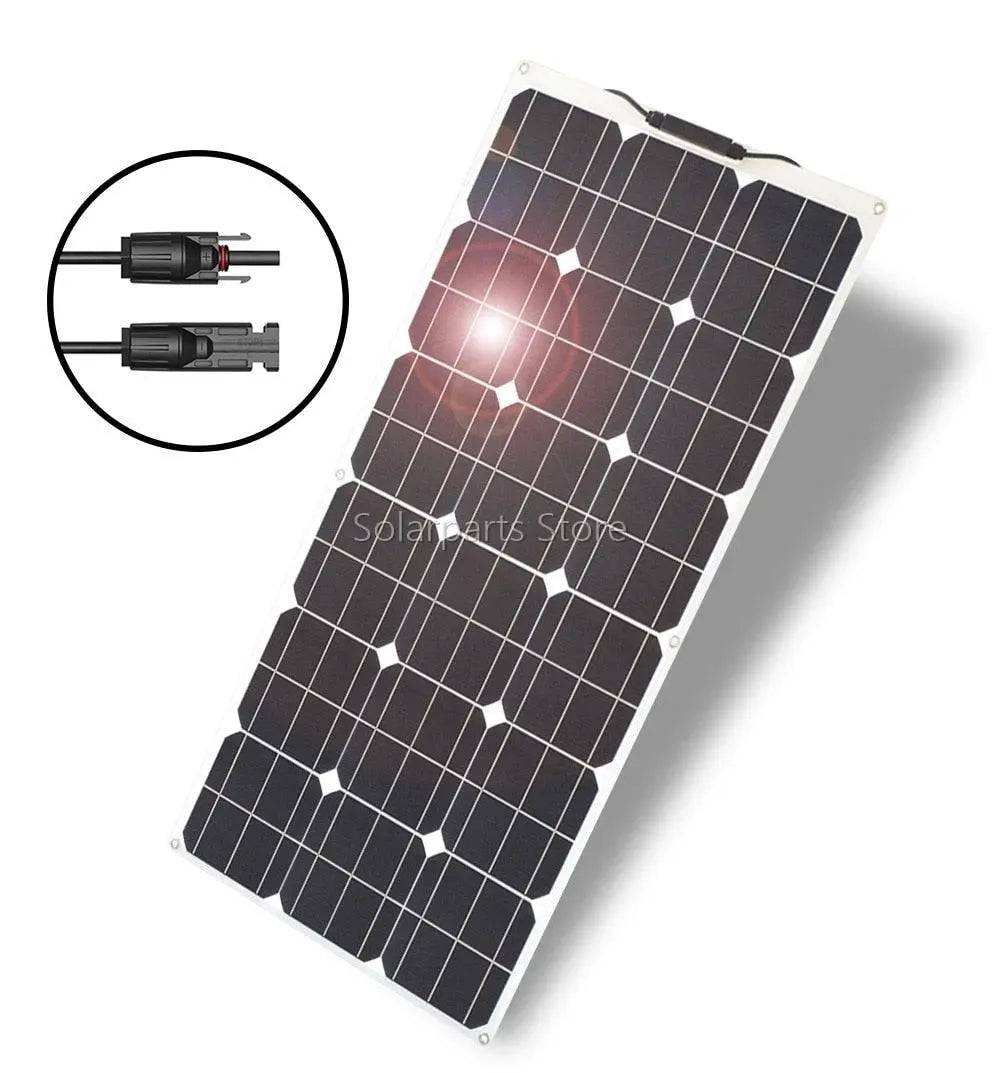

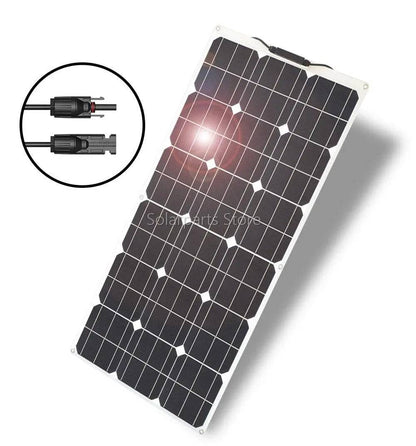

6. Use photovoltaic special cable and PV connector, outdoor use is safe, waterproof, high temperature resistance and weather resistance. PV connector is easy to use, plug and play.

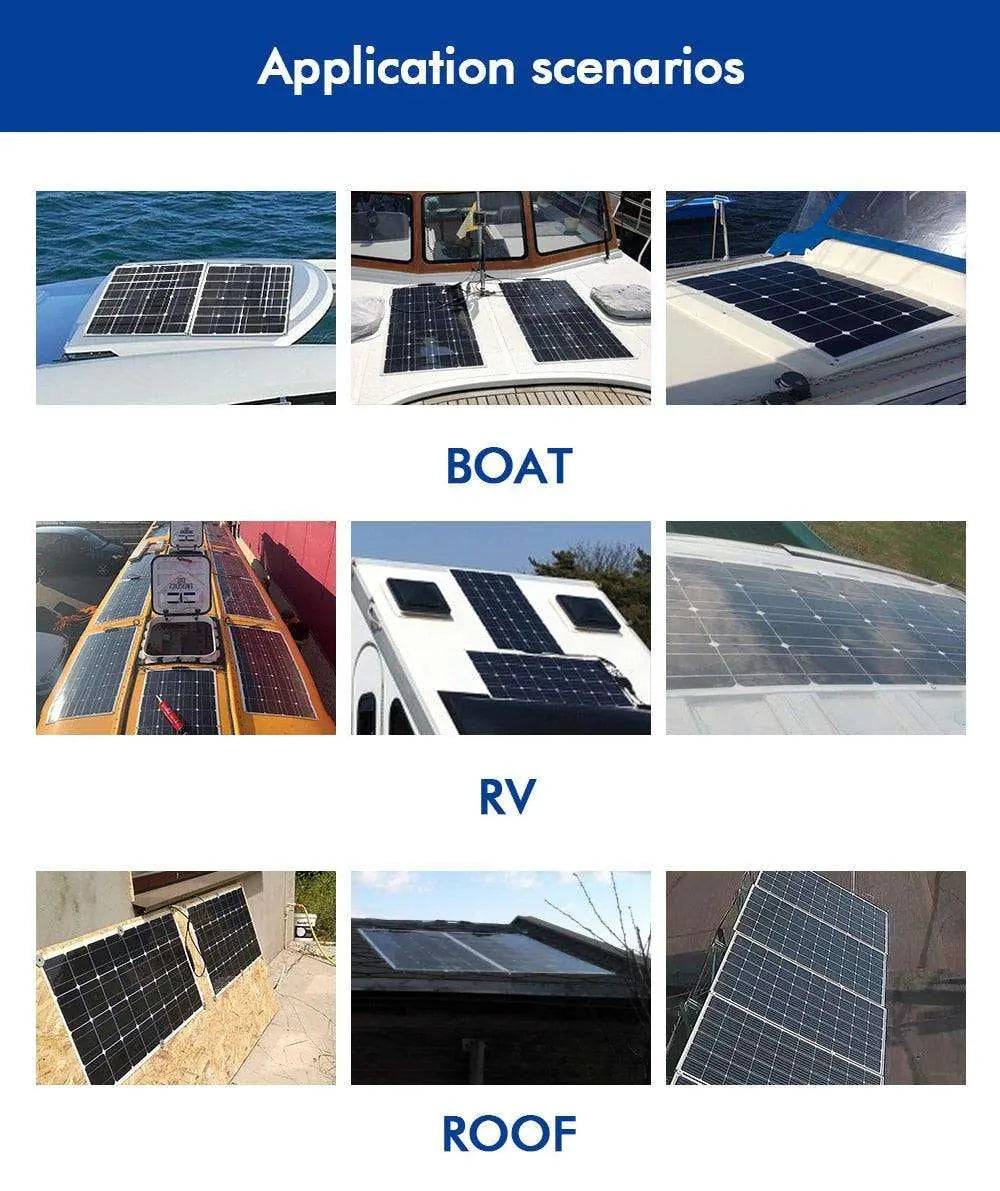

7. This product is a solar module. It is recommended to be used with controllers and batteries. It can be used in various scenarios such as households, camping, RVs, yachts, street lights and solar power stations.

Solar panel Technician Specification

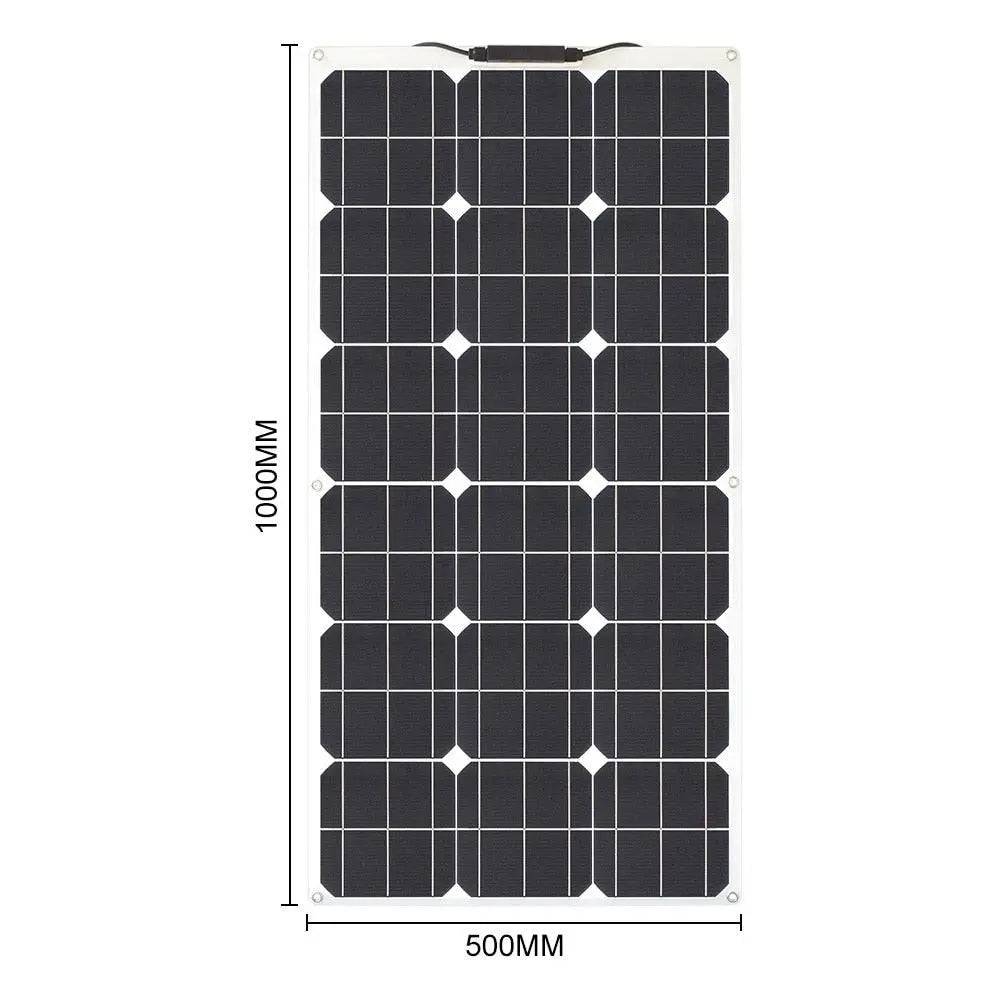

Length	1000mm	Weight	1650 G
Width	500mm	Main material	Monocrystalline silicon
Height	2.5 mm	Frame material	PET+EVA+Cell+TPT

Solar panel Electrical Specification

Performance Under Standard Test Conditions(STC*)

Maximum power	Pmax	100 Wp
Open circuit voltage	Voc	21.6 V
Maximum power point voltage	Vmpp	18 V
Short-circuit current	I sc	6 A
Maximum power point current	I mpp	5.5 A

Minor reduction in efficiency under partial load conditions at 25degC: at 100 W/m2, 95%- (+/-3%) of the STC efficiency (1000 W/m2) is achieved.

Solar panel Component Material

Cells per module	36	Cell dimensions	158mm*158mm/158*79mm
Cell type	Monocrystalline Silicon	Front	EVA+Plastic Cover

System Intergration Technician

Maximum system voltage SC II	1000 V	Maximum reverse current	10 A
Maximum system voltage USA NEC	600 V	Increased snowload acc. to IEC 61215	5.4 kN/msup2;

Thermak Characteristics

NOCT	47 degC	TC Voc	-0.33 %/degC
TC Isc	0.042 %/degC	TC Pmpp	-0.45 %/degC

Solar panel Extra Specification

PTC rating	100 W	Module efficiency	22.0%
Junction box	IP67	Plus-Sorting*	Pflash ge Pmax
Cable Length	0.9 M	Power tolerance*	+/- 5 %
