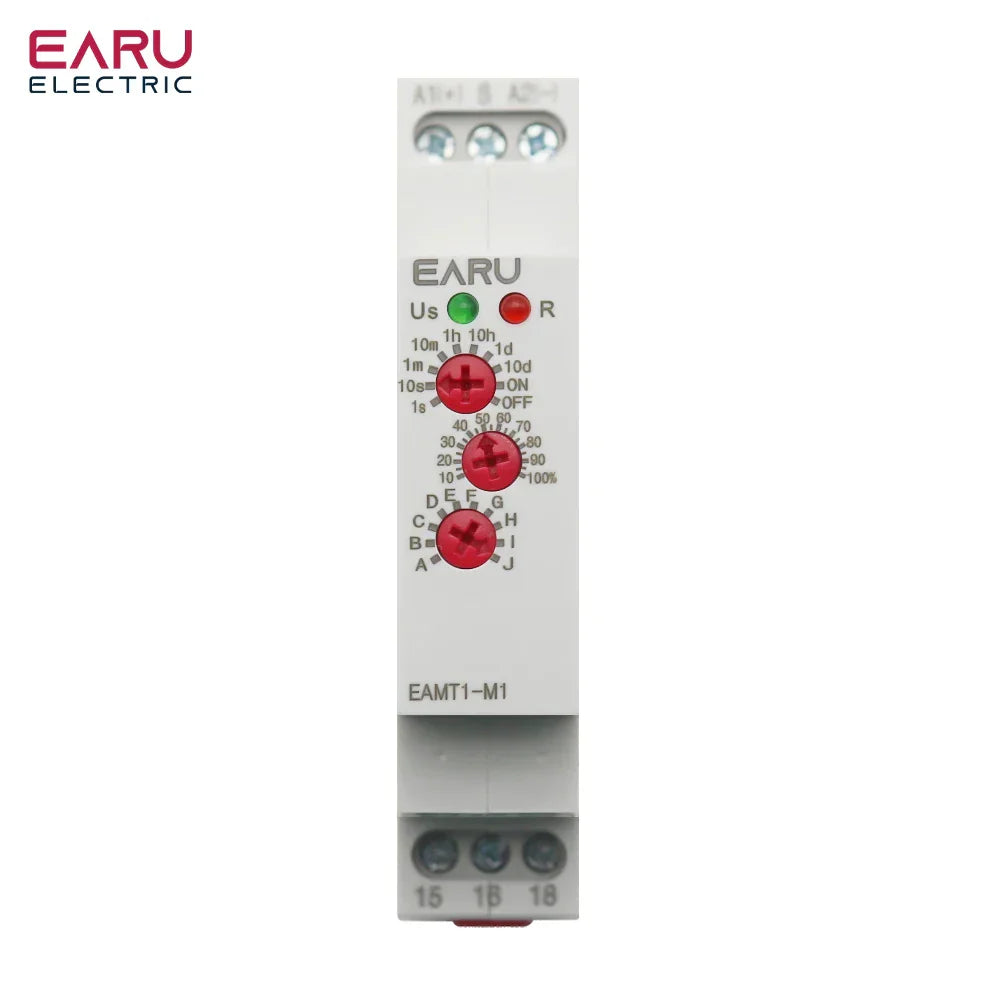

12-240VAC/DC Din Rail Type 0.1 second -10 days Time Delay Relay 16A/250VAC Multifunction Timer Relay with 10 Function Choices
12-240VAC/DC Din Rail Type 0.1 second -10 days Time Delay Relay 16A/250VAC Multifunction Timer Relay with 10 Function Choices
Couldn't load pickup availability
This multifunction timer relay offers accurate and versatile timing capabilities, with a range of time delay options from 0.1 seconds to 10 days. Compatible with 12-240VAC/DC input, it features a Din Rail Type design for easy installation. With a maximum output of 16A/250VAC, it offers 10 function choices for added flexibility and convenience. Improve your control and efficiency with this reliable time delay relay.
SPECIFICATIONS
- Product Name 1: Time Relay
- Voltage: AC/DC 12-240V
- Time Range: 0.1s-10days
- Rated Frequency: 50/60Hz
- Output Contact: 1NO1NC 2NO2NC
- Function: Delay on, Delay off, Interval, Cycle, Single Shot, Pulse
- Rated Current: 16A
- Product Name 2: EAMT1-M2
- Brand Name: EARUELETRIC
- Voltage: 220V
- Model Number: EAMT1-M1
- Theory: Time Relay
- Usage: General Purpose
- Power Source: AC
- Functions Diagram
A:On Delay(Power On)
When the input voltage U is applied, timing delay t begins,Relay con-tacts R change state after time delay is complete.Contacts R return to theirshelfstatewheninputvoltageU is removed.Trigger switch is not used in this function.
B:Interval (Power On)
When input voltage U is applied,relaycontacts Rchange state immediately and timing cycle begins. When timedelayiscomplete,contactsreturnto shelf state. When input voltage U isremoved,contacts will also return to their shelfstate. Trigger switch is not used in this function.
C:Repeat Cycle(Starting Off)
When input voltage U is applied, time delay t begins.When time delay tis complete, relay contacts Rcharnge state for time delay t. This cycle will repeat until input voltage U is removed. Trigger switch is not used in this function.
D:Repeat Cycle(Starting On)
When input voltage U is applied, relay contacts R change state imme-diately and time delay t begins. When time delay tis complete,contacts return to their shelf state for time delayt.Thiscyclewillrepeatuntilinput voltage U is removed. Trigger switch is not used in this function.
E:Off Delay(S Break)
Input voltage U must be applied continuously. When trigger switch S is clo-sed,relay contacts R change state. WWhen trigger switch S is opened, delay t bogins. When delay tis complete.contactsRreturntotheirshelfstate. If trigger switch Sis closed before time delay t is complete, then time is reset. When trigger switch Sis opened, the delay begins again, and relay contacts Rremain in their energizedstate.If input voltage U is removed. relay contacts R return to their shelf state.
F:Single Shot
Upon application of input voltage U,the relay is ready to accept trigger signal S.Upon application of the trigger signal S,the relay contacts R transfer and the preset time t begins. During time-out, the trigger signal Sis ignored. The relay resets by applying the trigger switch S when the relay is not energized.
G:Single Shot Trailing Edge(Non-Retriggerable)
Upon application of input voltage U, thee relay is ready to accept trigger signal S.Upon application of the trigger signal S,therelaycontactsRtransferandthe preset time t begins.At the end of the preset time t, the relay contacts R return to their normal condition unless the trigger switch Sis opened and closed prior to time outt(before preset time elapses).Continuouscyclingofthetriggerswitch SataratefasterthanthepresettimewillcausetherelaycontactsRtoremain closed.If input voltage U is removed,relay contacts R return to their shelf state
H:On/Off Delay
Input voltageU must be applied continuously. When trigger switch Sis closed,timedelaytbegins.Whentinhe delay tis complete,relay contacts Rchangestateandremaintransferred until trigger switch Sis opened. If input voltage U is removed,relaycontacts R return to their shelf state.
I:Latching relay
Input voltage U must be applied continuously. Output changes state with every trigger switch S closure.If input voltage U is removed,relay contacts Rreturn to their shelf state.
J:Pulse generator
Upon application of input voltage U.asingle output pulse of 0.5 seconds is delivered to relay after time delay t.Power must be removed and re-applied to repeat pulse. Trigger switch is not used in this function.
