SPECIFICATIONS:
-
Type: DC/AC Inverters
-
Size: 330*165*85
-
Output Frequency: 50HZ/60HZ
-
Output Type: single
-
is_customized: Yes
-
Output Current: 6.8A/13.6A
-
Output Power: 1 - 200KW
-
Weight: 3.3KG
-
Model Number: SP-1500L
-
Certification: CE
-
Certification: FCC
-
Certification: RoHS
|
Model
|
sp12/110-1500L
|
sp24/110-1500L
|
sp48/110-1500L
|
sp12/220-1500L
|
sp24/220-1500L
|
sp48/220-1500L
|
|
Continuous Power
|
1500W
|
|
Surge Power
|
3000W
|
|
Frequency
|
50HZ±0.5HZ or 60HZ±0.5HZ
|
|
Wave Form
|
Pure Sine Wave
|
|
AC Regulation
|
THD<3%(Linear Load)
|
|
Output Efficiency
|
92%
|
|
DC Voltage
|
DC12V
|
DC24V
|
DC48V
|
DC12V
|
DC24V
|
DC48V
|
|
AC Voltage
|
120VAC ±5%
|
230VAC ±5%
|
|
No Load Current Draw
|
0.9A
|
0.45A
|
0.25A
|
0.9A
|
0.45A
|
0.25A
|
|
DC Voltage Range
|
10-15V
|
20-30V
|
40-60V
|
10-15V
|
20-30V
|
40-60V
|
|
Low Voltage Shut Down
|
10±0.5V
|
20±0.5V
|
40±1V
|
10±0.5V
|
20±0.5V
|
40±1V
|
|
Over Voltage Shut Down
|
15±0.5V
|
30±0.5V
|
60±1V
|
15±0.5V
|
30±0.5V
|
60±1V
|
|
Low Voltage Recovery
|
12.5V
|
25V
|
50V
|
12.5V
|
25V
|
50V
|
|

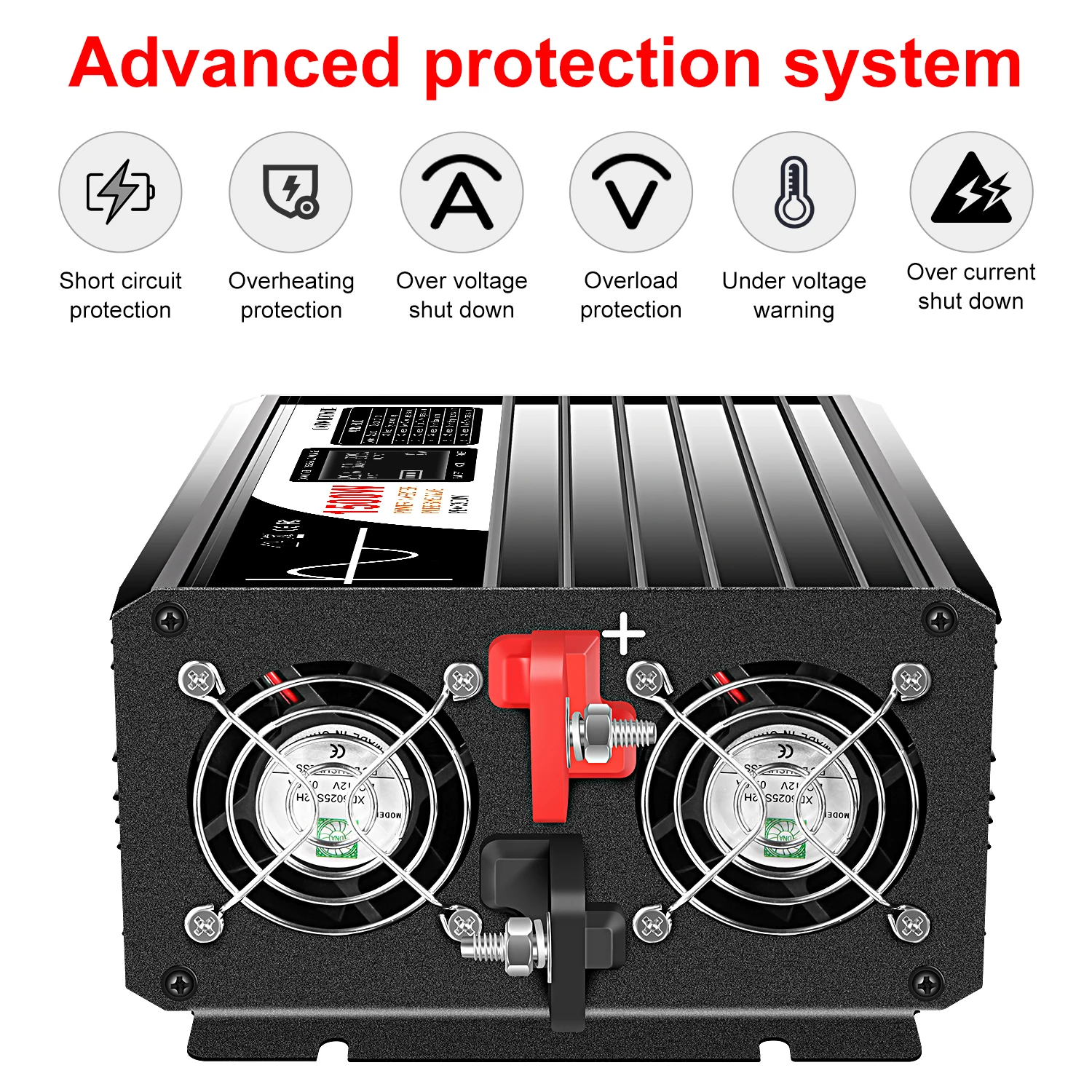

Protection
|
Low Voltage/Over Voltage
|
LED Alarm and Automatic Recovery.
|
|
Overload
|
LED Alarm and Automatic Recovery.
|
|
Over Temperature
|
LED Alarm and Automatic Recovery.
|
|
Short Circuit
|
LED Alarm and Automatic Recovery.
|
|
Working Temperature
|
-10°- +50°
|
|
Storage Temperature
|
-30°- +70°
|
|

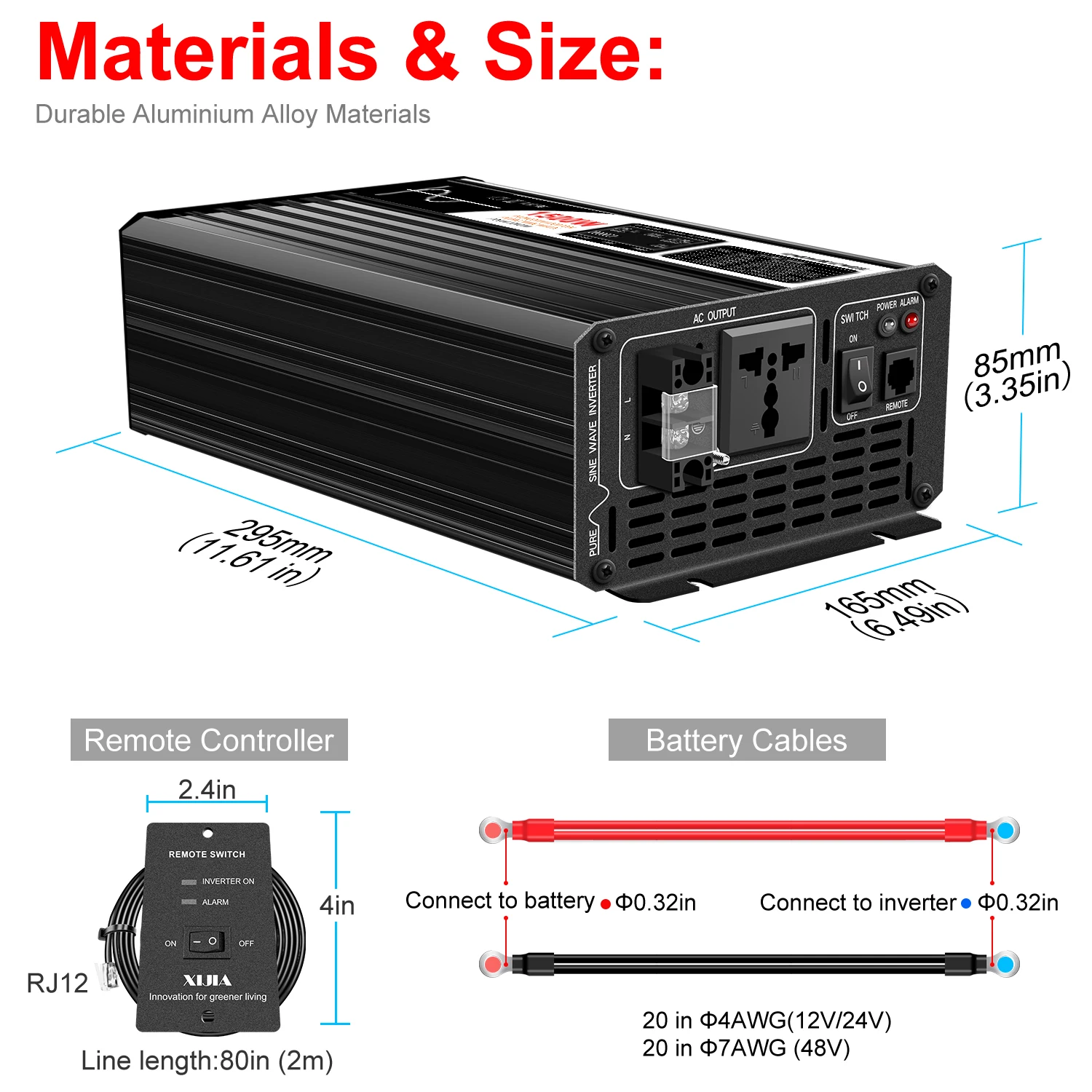

Production Size
|
300*165*85(mm)
|
|
Package Size
|
350*235*150(mm)
|
|
N.W/G.W
|
2.8/3.5(kg)
|
|
Start
|
soft-start
|
|
Cooling Way
|
Intelligent Cooling Fan
|
|
|
|
|
|
|
|
