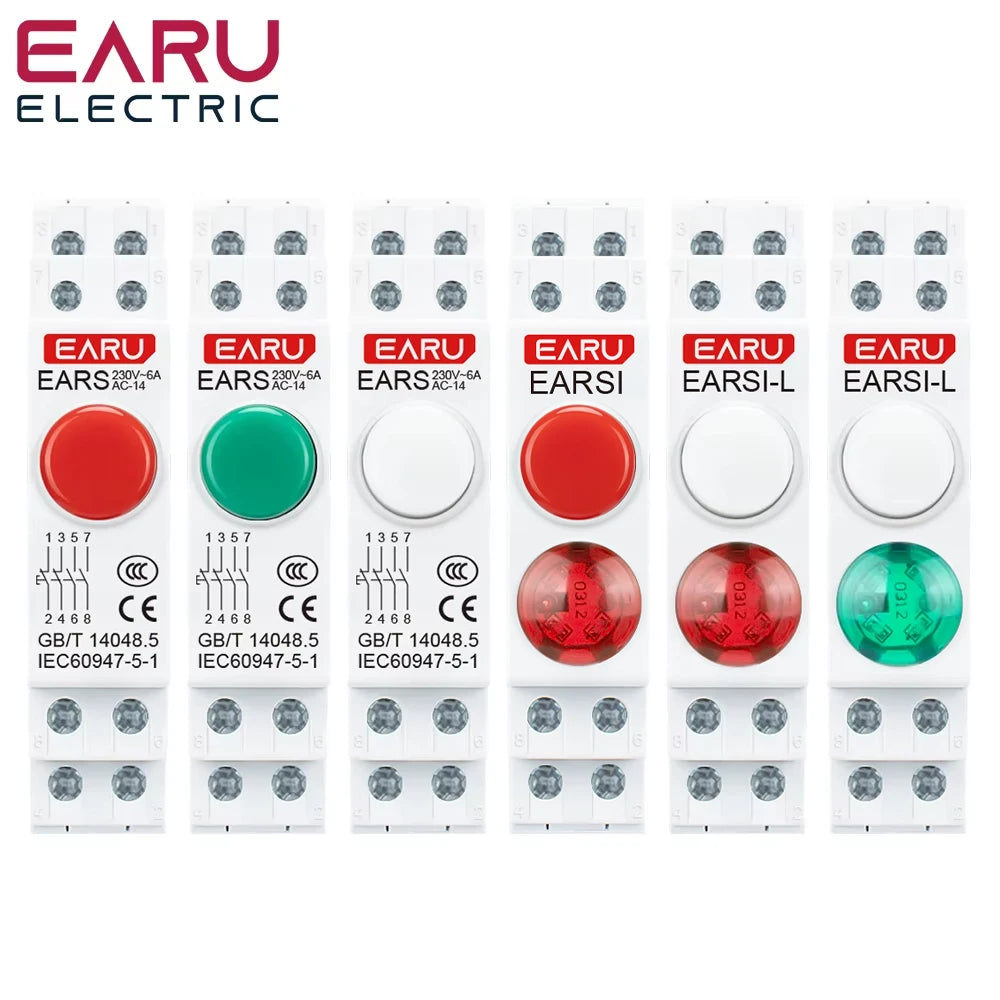

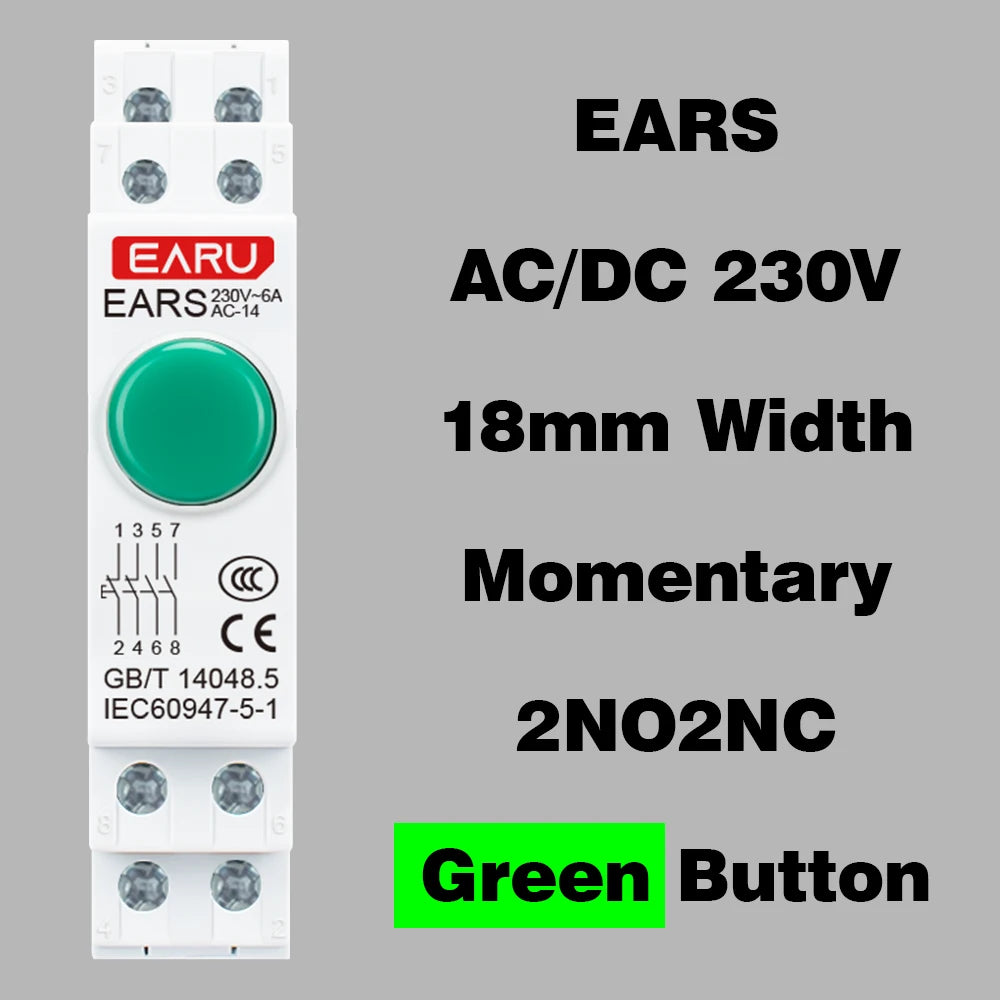

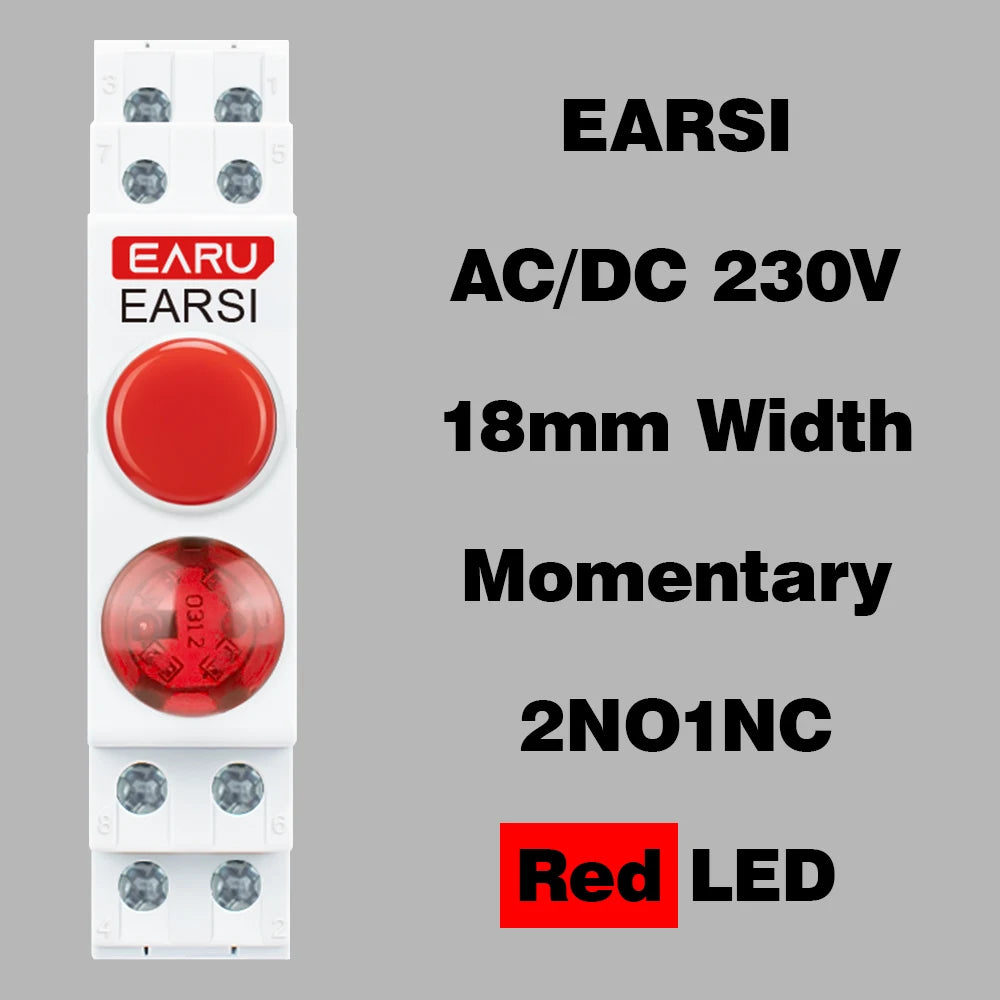

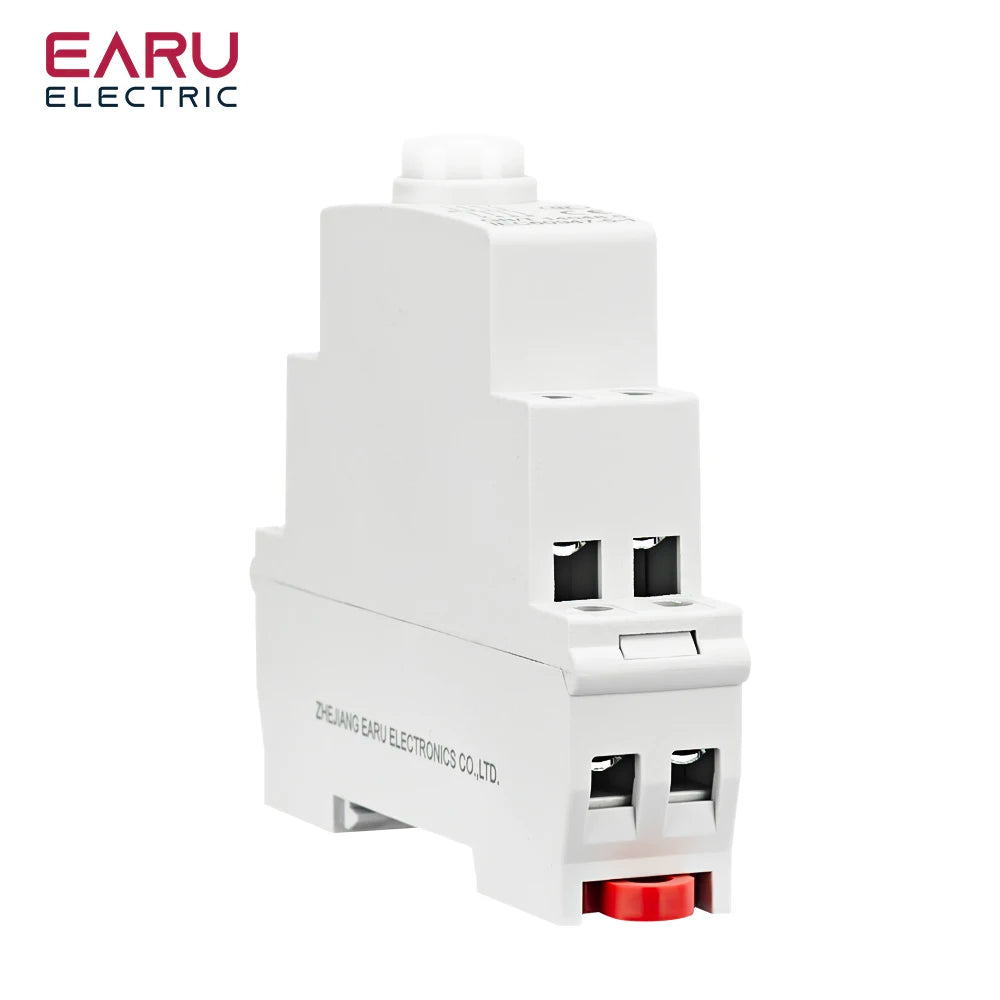

18MM Din Rail Mount LED Signal Lamp Button Switch Series AC/DC 220V Indicating Indication Pilot Lights Green Momentary Latching
18MM Din Rail Mount LED Signal Lamp Button Switch Series AC/DC 220V Indicating Indication Pilot Lights Green Momentary Latching
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: EARU
Certification: CE,CCC,CCC,ce
Choice: yes
Current: 6A

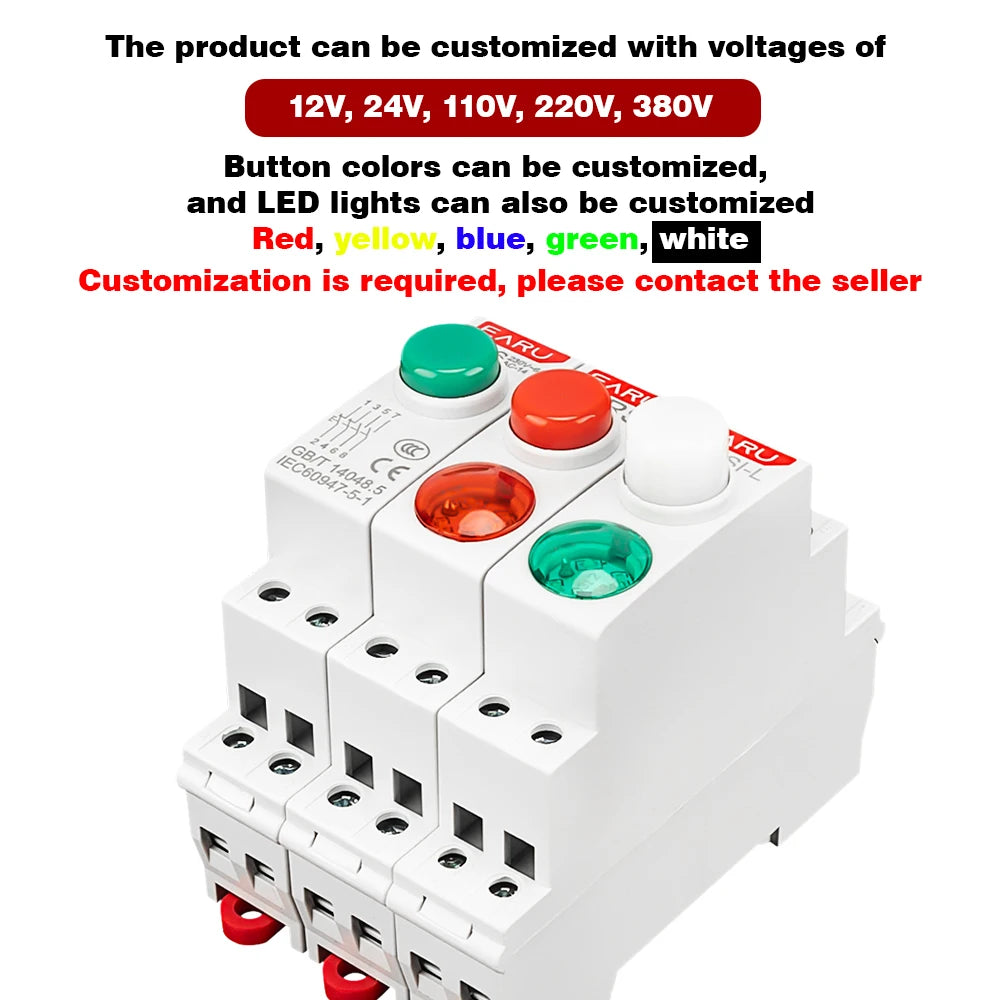

Customized Voltage: 12V 24V 110V 220V 380V
High-concerned chemical: None
Installation method: DIN-Rail Mounting
Is Smart Device: No
Item Type: SWITCHES
LED color: Red, yellow, blue, green, white

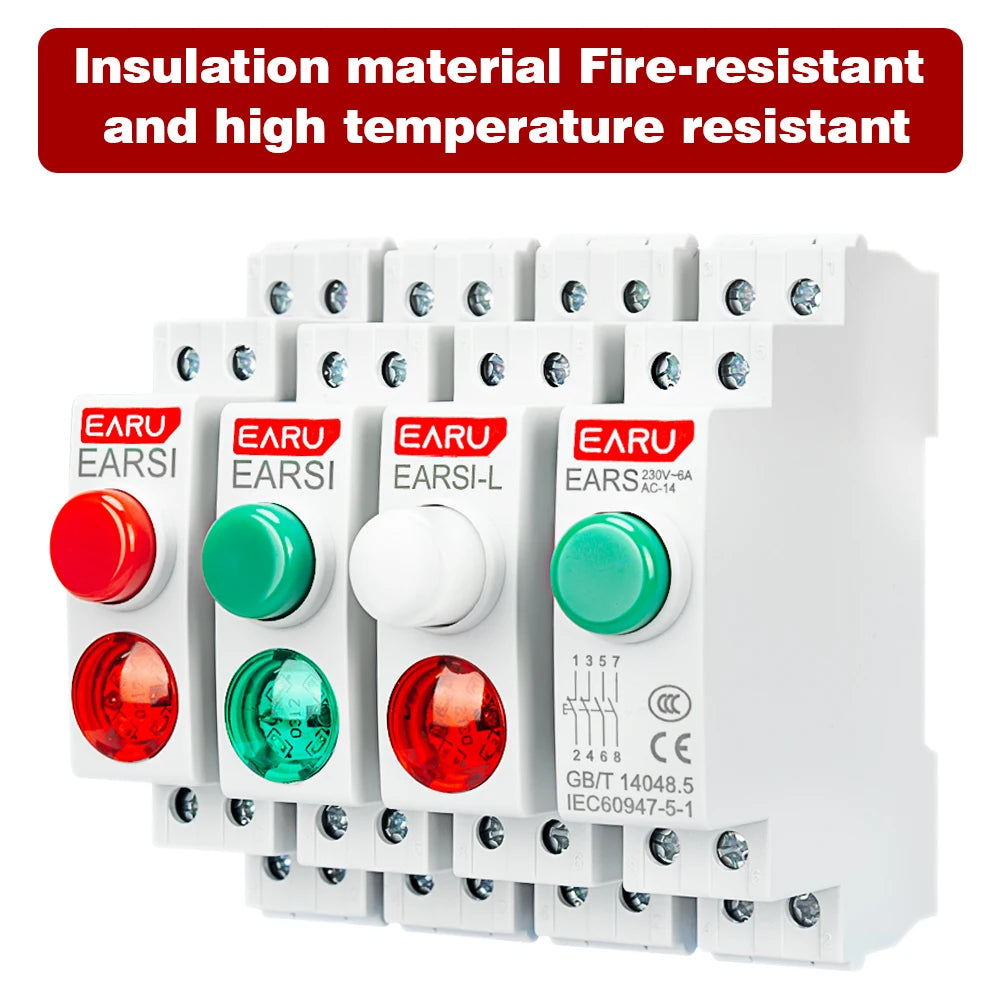

Material: Plastic
Model Number: EARS
Origin: Mainland China
Switch Type: Push Button Switch

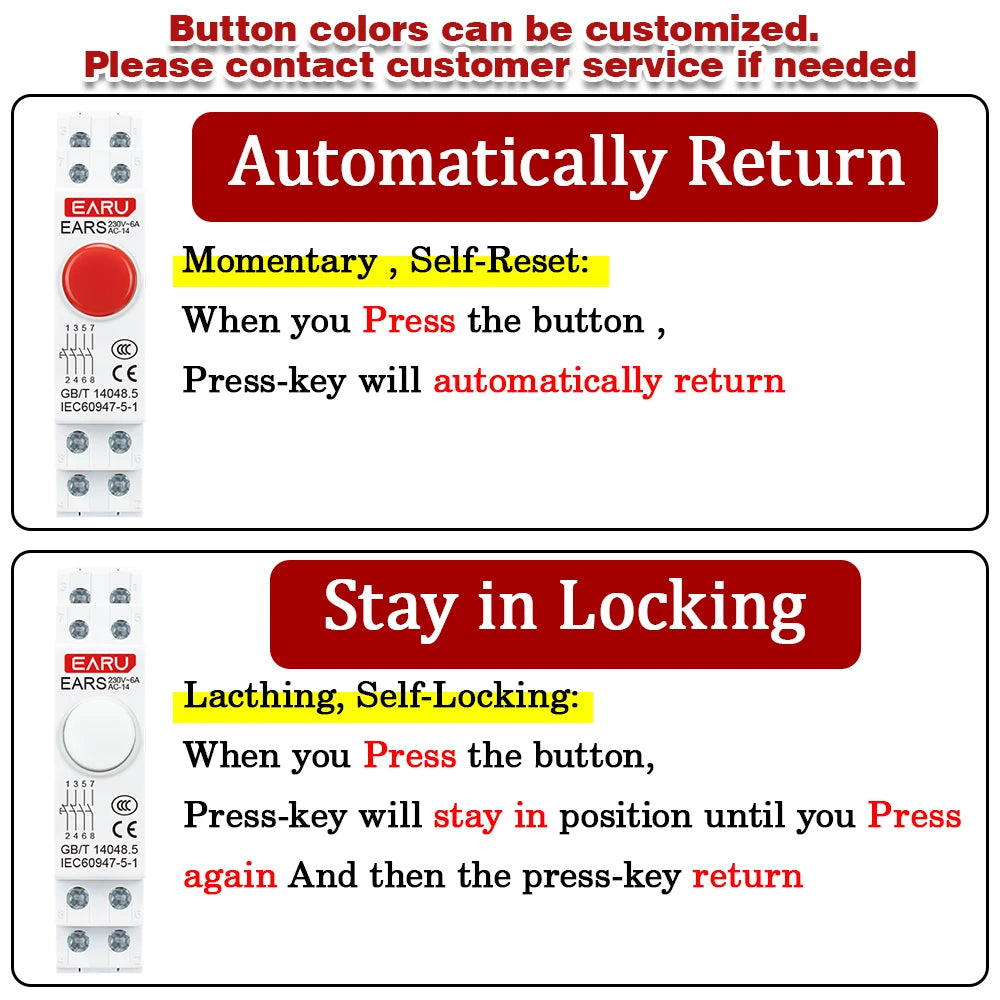

Type: self resetting self-locking
Voltage: AC/DC 230V
semi_Choice: yes

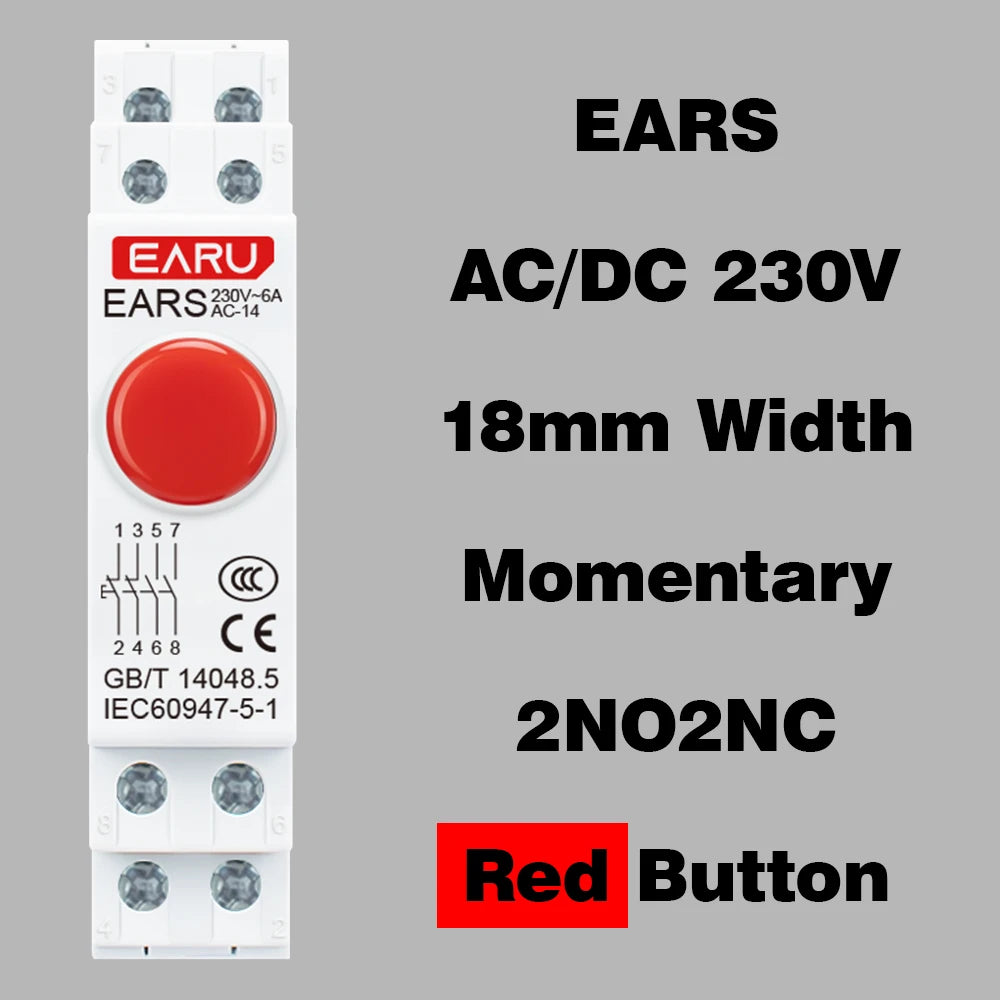

Product Description
The EARS button is suitable for use in AC 50Hz/60Hz, rated voltage up to 230V circuit control systems, as a magnetic starter contactor and for controlling other electrical circuits. The illuminated button is also suitable for various places where light signals are indicated.

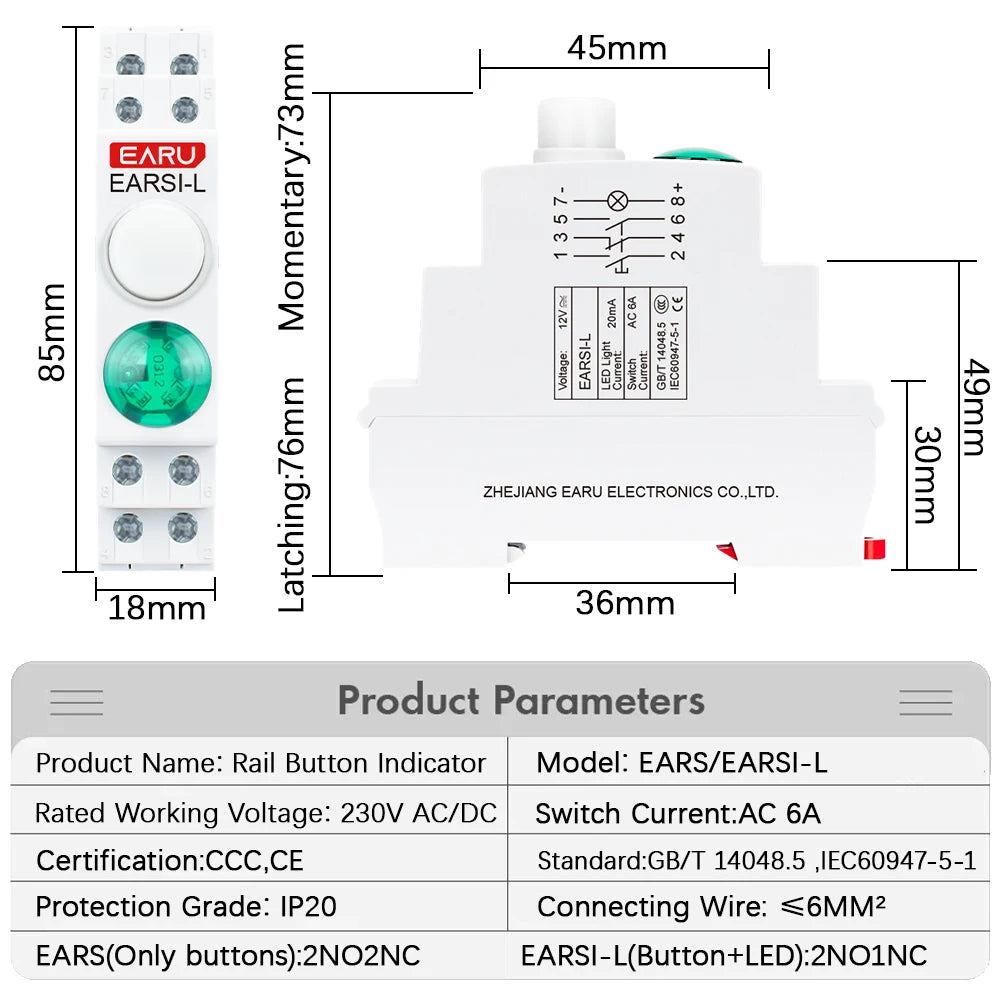

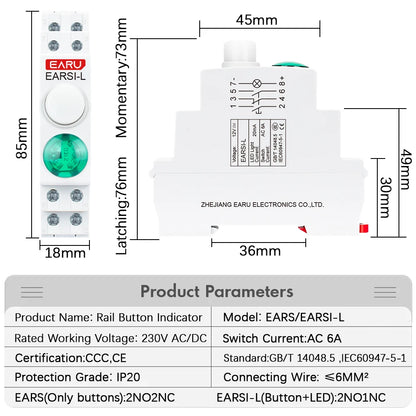

Specifications
Rated working voltage: 230V AC/DC (other voltages can be customized, please contact customer service)
Rated working current: ≤ 20mA
Switch current:AC 6A
Working life: 30000 hours
Connection line: ≤ 6mm2
Tightening torque 0.8N-m
Protection level: IP20
Color
Red/Yellow/Blue/Green/White(other colors can be customized, please contact customer service)
