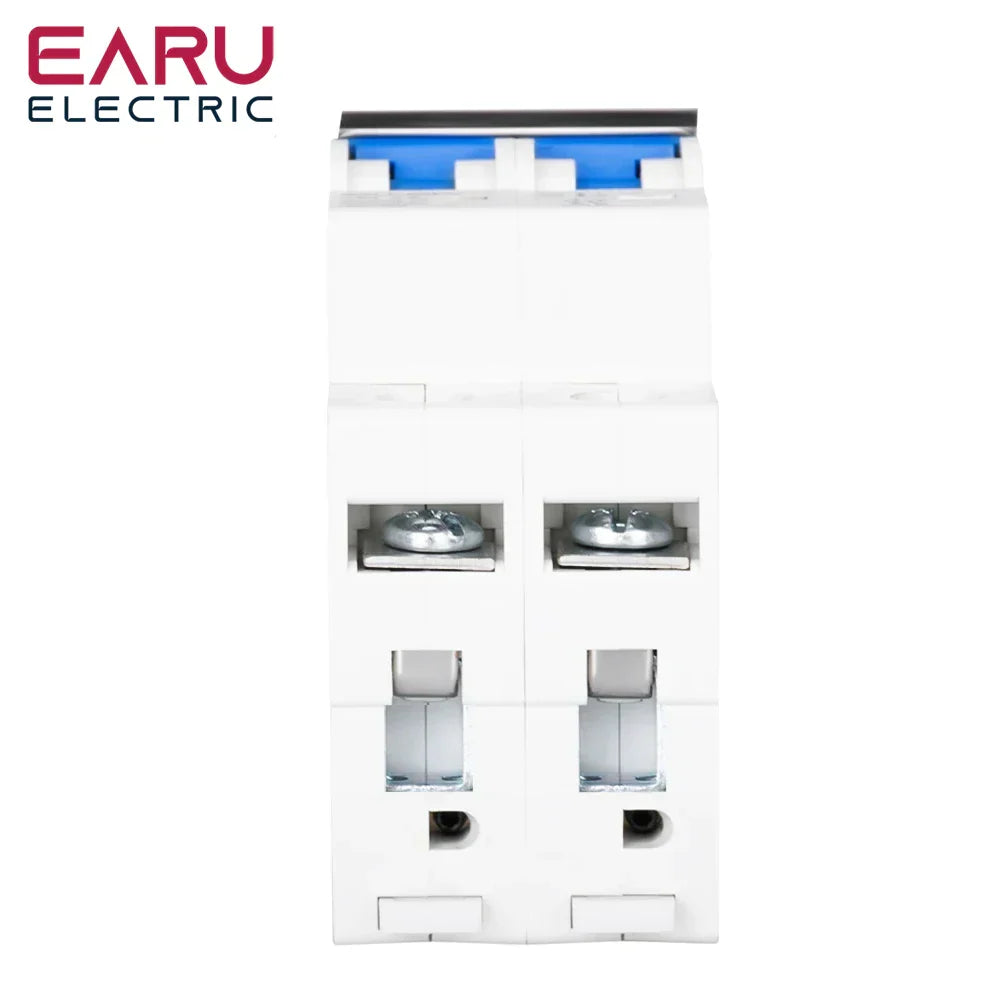

1P 2P 3P 4P DC 1000V AC 240V 400V MCB Solar PV Circuit Breaker Overload Protection Short Circuit Protection Switch Photovoltaic
1P 2P 3P 4P DC 1000V AC 240V 400V MCB Solar PV Circuit Breaker Overload Protection Short Circuit Protection Switch Photovoltaic
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: EARU
Certification: CE
Choice: yes
Function1: Overload Protection
Function2: Short Circuit Protection
High-concerned chemical: None
Is Smart Device: No
Model Number: EAL7-80PV
Number of poles: 1P 2P 3P 4P
Origin: Mainland China
Rated current: 6A 10A 16A 20A 25A 32A 40A 50A 63A 80A
Rated voltage 1: 1000VDC
Rated voltage 2: AC 240V/400V
Short circuit capacity(icu): 10kA
Standard: IEC60947-2
Type: Mini,Circuit breaker
Uimp: 6kV
is_customized: Yes
semi_Choice: yes
Parameter
EAL7-80PV Series DC/AC miniature circuit breakers are mainly used for overload and short circuit protection in DC/AC distribution systems and solar photovoltaic systems.
DC Circuit Breaker EAL7-80PV
Number of poles: 1P 2P 3P 4P
Standard:IEC60947-2
Rated Current :6A 10A 16A 20A 25A 32A 40A 50A 63A 80A
Rated voltage:1P AC240V DC1000V 2P/3P/4P AC400V DC1000V
Ultimate Breaking Capacity lcu 10KA
