1P TUYA APP Zigbee WIFI Smart Energy Power Consumption kWh Meter Circuit Breaker Time Relay Switch Leakage Voltage Protection
1P TUYA APP Zigbee WIFI Smart Energy Power Consumption kWh Meter Circuit Breaker Time Relay Switch Leakage Voltage Protection
Couldn't load pickup availability

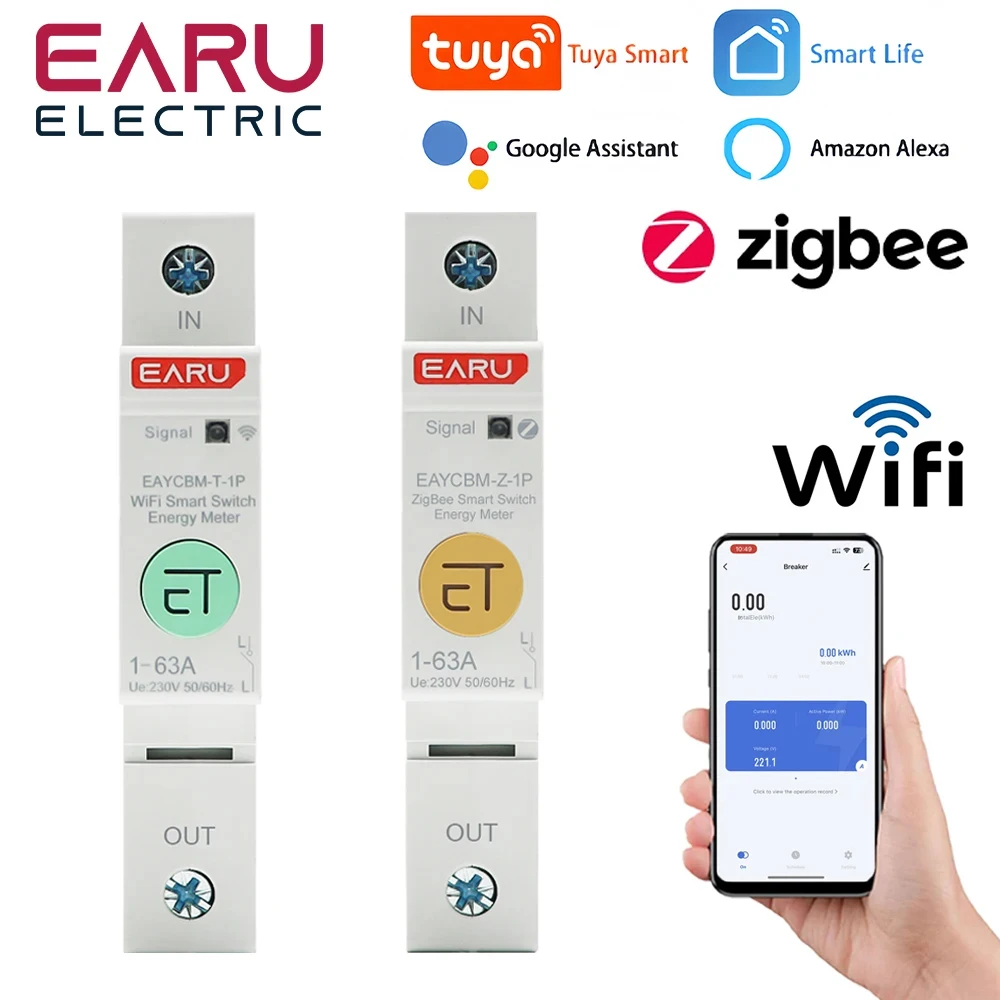

Monitor and protect your energy usage with the 1P TUYA APP Zigbee WIFI Smart Energy Power Consumption kWh Meter. This innovative circuit breaker features a time relay switch and leakage voltage protection, all controllable through the TUYA app. Stay connected and in control of your power consumption.
SPECIFICATIONS
- Brand Name: EARUELETRIC
- Type: Moulded Case
- Rated Voltage: 220V
- is_customized: Yes
- Type: Circuit breaker
- Model Number: EAYCBM-T-1P
- Fuction 1: On/off Switch
- Fuction 9: Remote control at anytime from anywhere
- Share: Share with All Family Mebmer
- Working Voltage: AC90-240V
- Fuction 2: Time Relay Switch
- Fuction 3: Voltmeter
- Fuction 4: Ammeter
- Fuction 5: Power Meter
- Fuction 6: Current Limit
- Frequency: 50/60Hz
- Working Current: 10-63A
- APP: Tuya
- Control: Remote control Connection 2.4G WIFI
- Poles: 1P
- Fuction 7: Voltage protection
- Fuction 8: Overcurrent protection
- WiFi Frequency: 2.4GHZ
We can offer OEM service to print your logo on the circuit breaker,if you get any need, feel free to contact the seller!

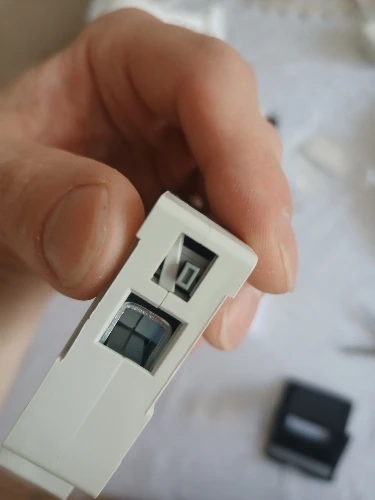

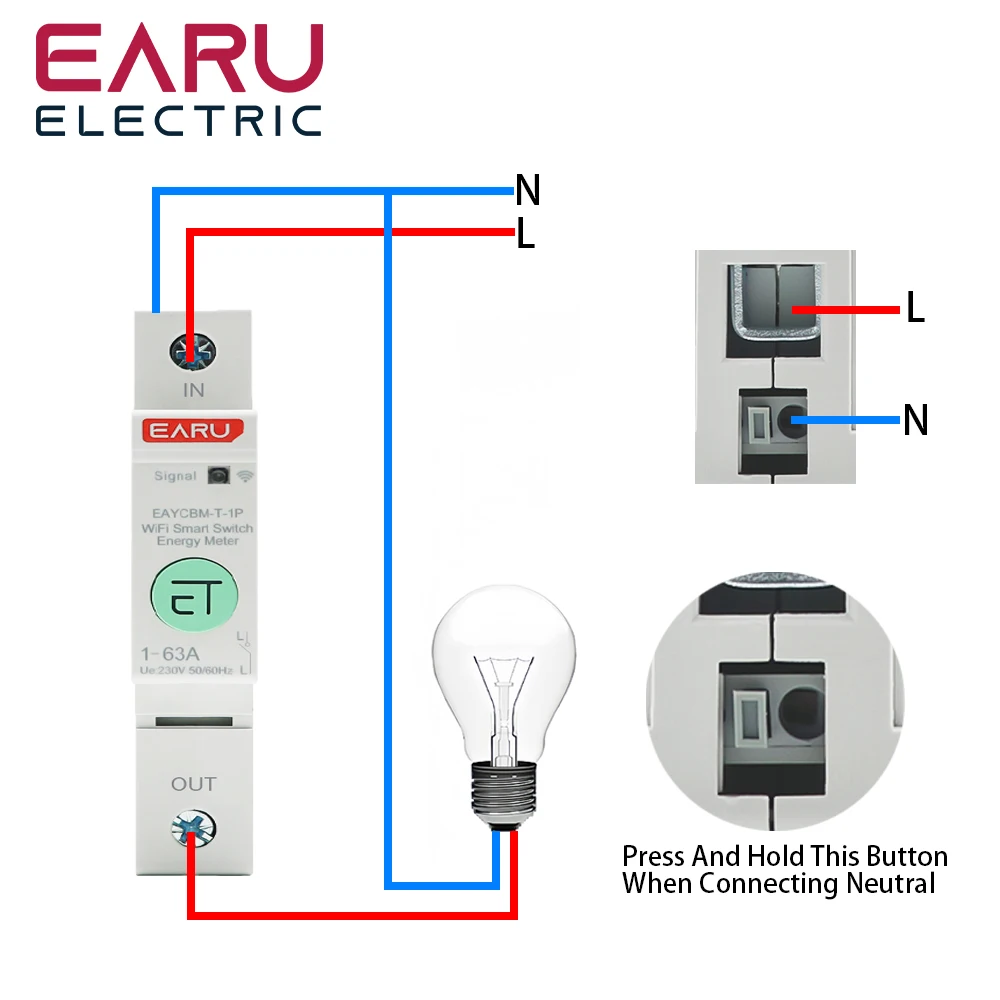

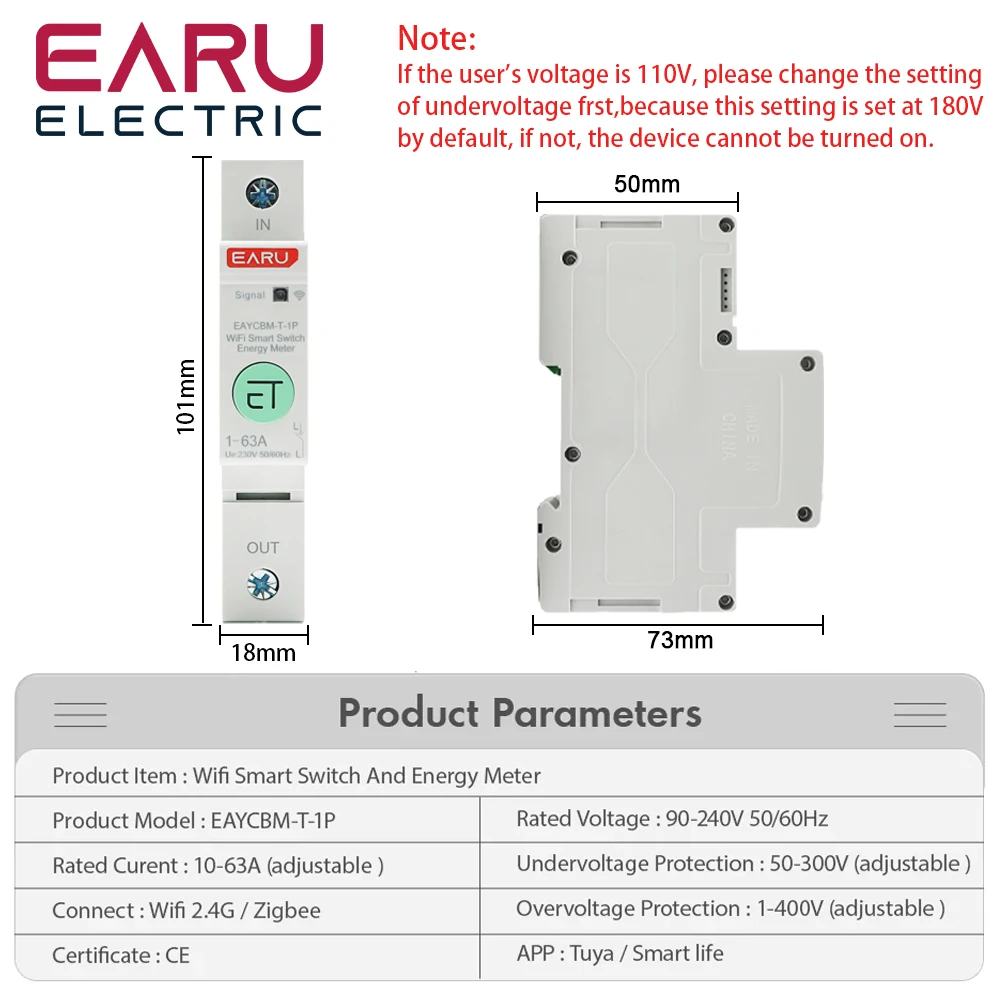

Notice: The N wire end needs to hold the button for wirin. If the user's voltage is 110V, please change the setting of undervoltage first,because this setting is set at 180V by default, if not, the device cannot be turned on.
Wiring: Power must enter from the top and must be Live line + Neutral Line (L+N). Live line + Live line (L+L) cannot be used.
Features

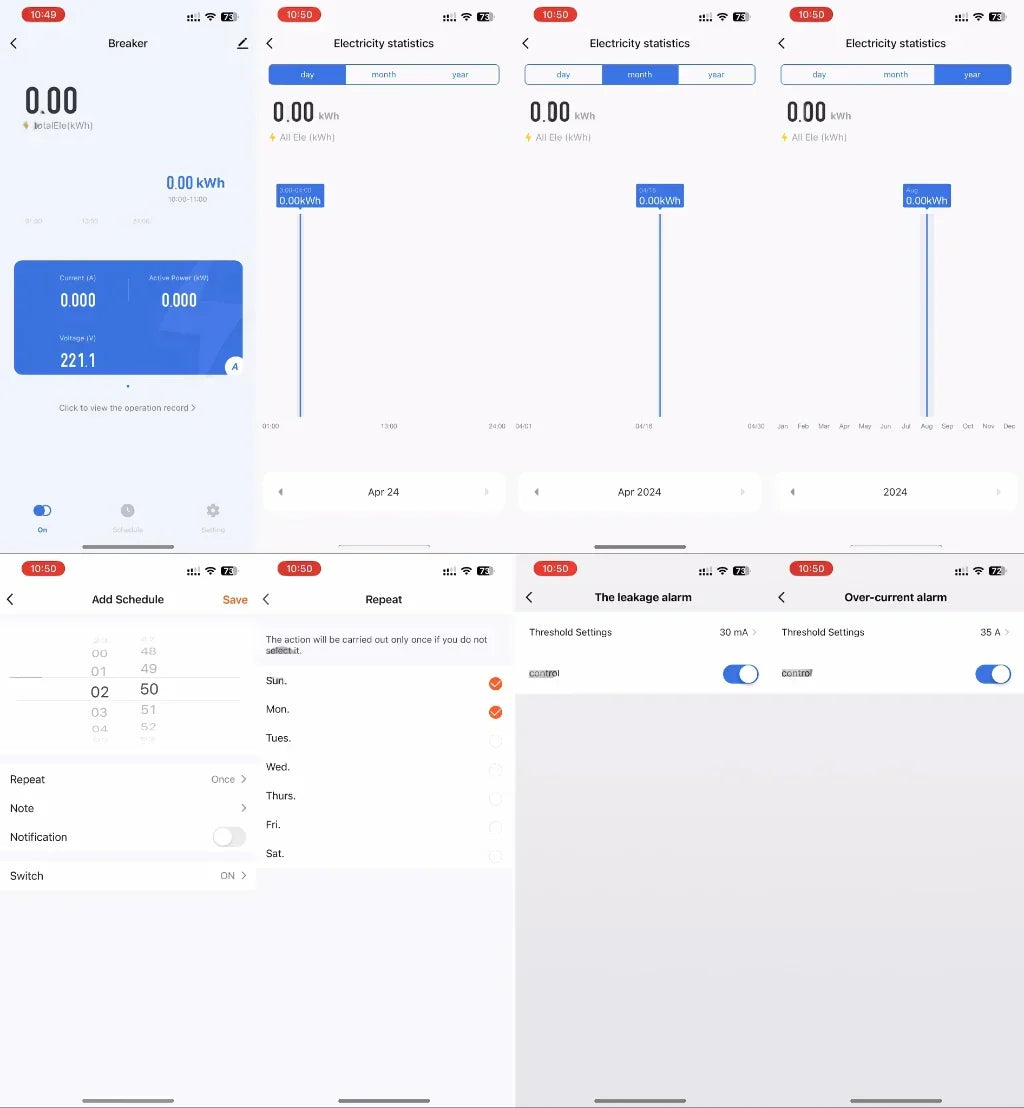

- Remote control at anytime from anywhere by TUYA / Smart Life app on mobile ,no distance limit.

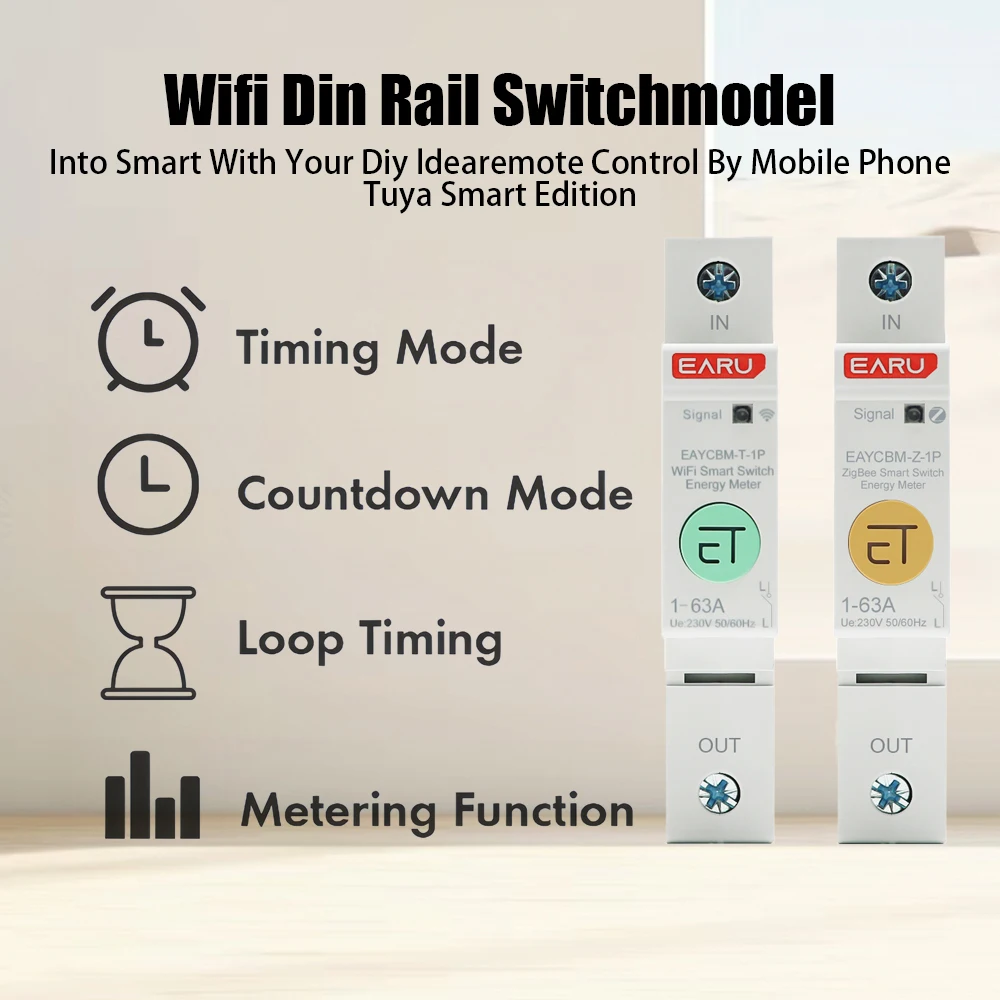

- Schedule /Timing, countdown, cycle timing
Parameter:
- Working voltage:AC90-240V,50/60Hz
- Current type:10-63A
- Wireless type:Wi-Fi 2.4GHz
- Support system:Android\iOS
Function:
- On/off Switch
- Time Relay Switch
- Voltmeter
- Ammeter
- Power Meter
- Over current protection 10A-63A (adjustable) (default: 35A)
- Over voltage proteciton 1V-400V (adjustable) (default: 265V)
- Under voltage protection 50V-300V (adjustable) (default: 180V)
- Current Limit
