Inner Rotor 5KW 2000RPM Axial Flux Coreless Permanent Magnet Generator AC 220V 380V

Character

Our disc coreless PMG have advantage in low Rated speed, Low starting wind speed, Small volume, Energy Small, Light weight, Compact structure,High efficiency etc.
1). Coreless, anhysteresis, slotless, have low starting torque.
2). No iron loss, have high efficiency
3). Adopt unique coreless precision winding technology design precision coil
4). Adopt the rare earth permanent magnet, which is multipole, mean gap, high power density and high output power.
5). Low speed direct driving, no torque fluctuations
6). Compact structure, high ratio of power to volume
7). No iron loss, low calorific value,small temperature rise
8). Simple structure, easy to install
9).The brushless structure, free maintenance
10). Application for vertical axis wind turbine; gasoline generators; hydroelectric generator

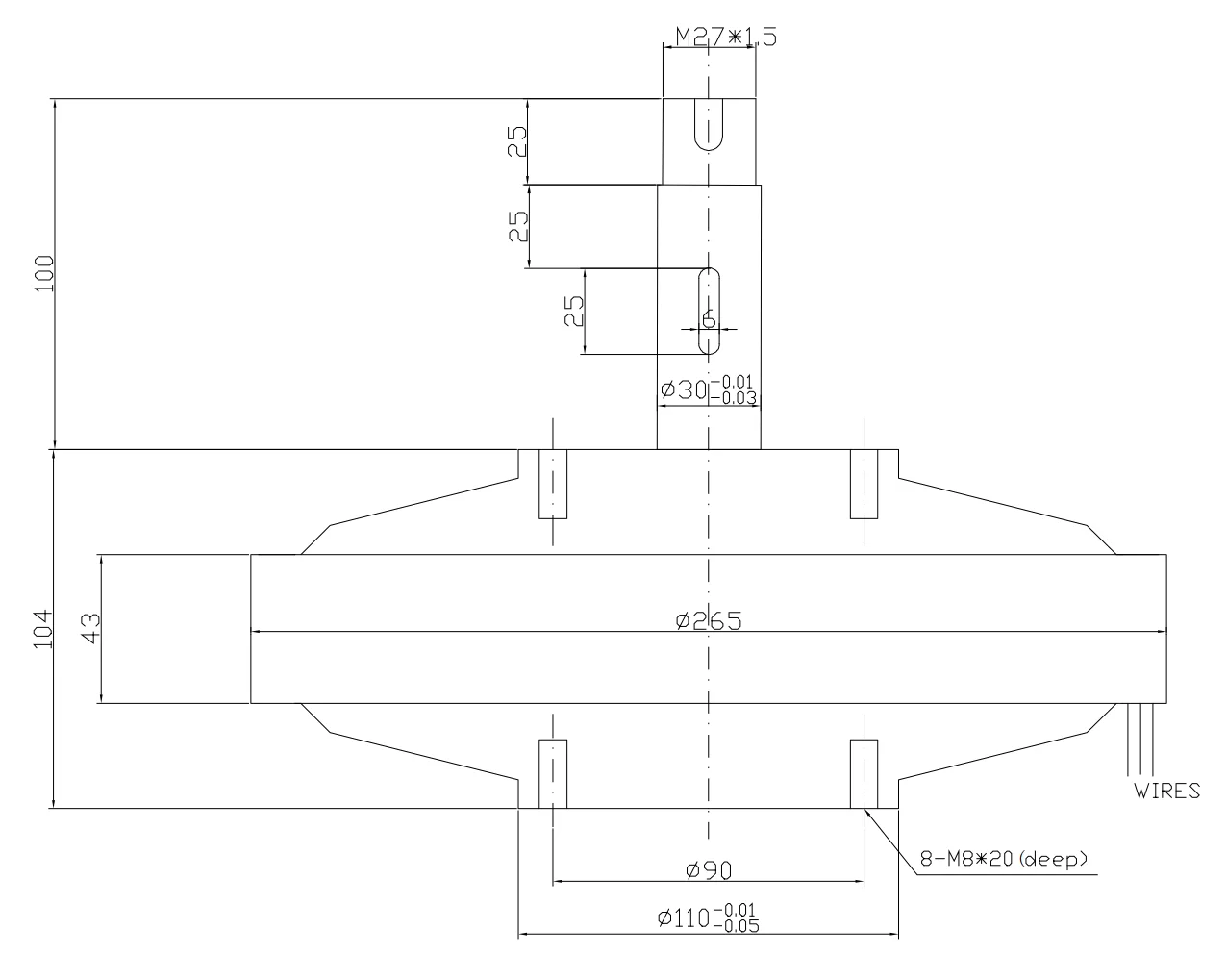

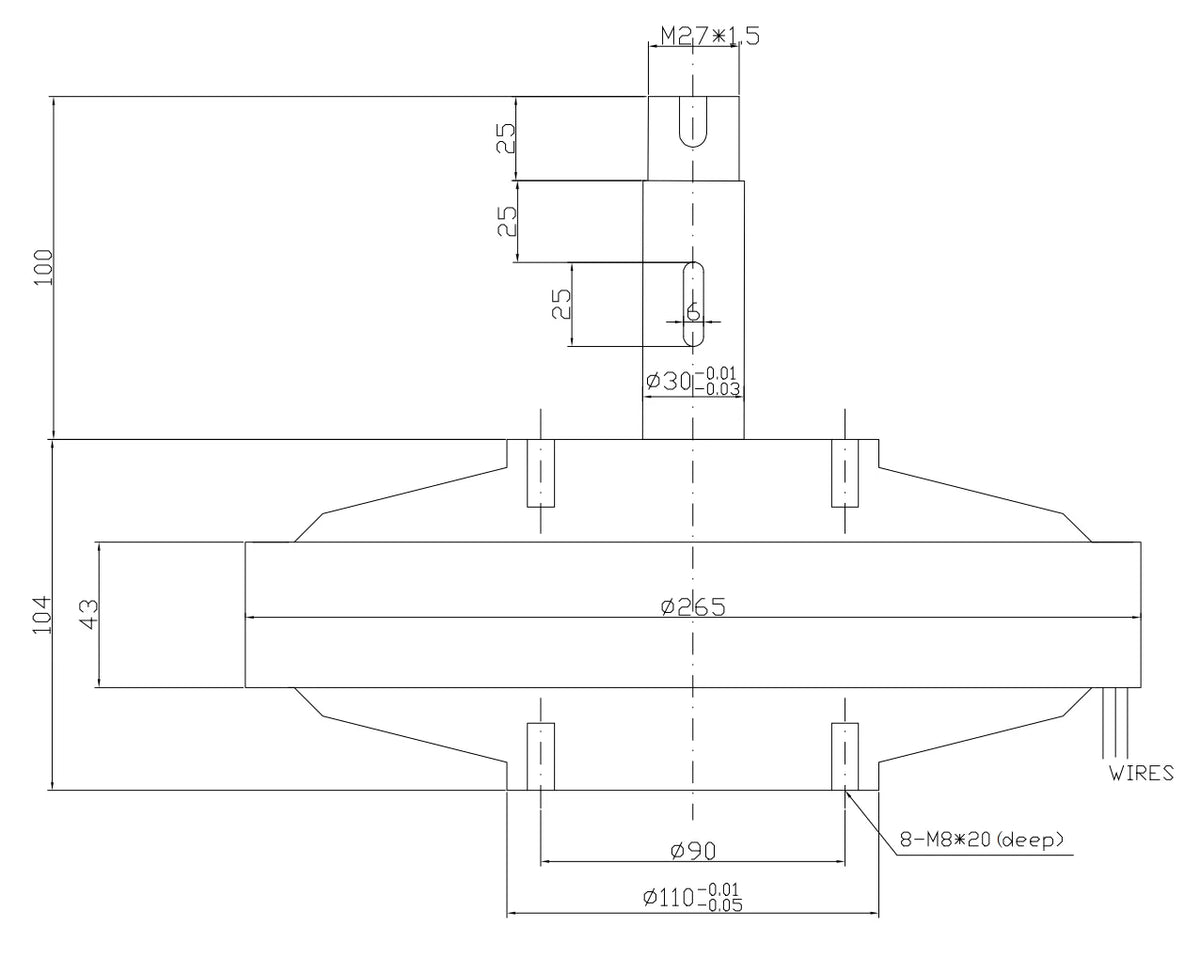

Drawing

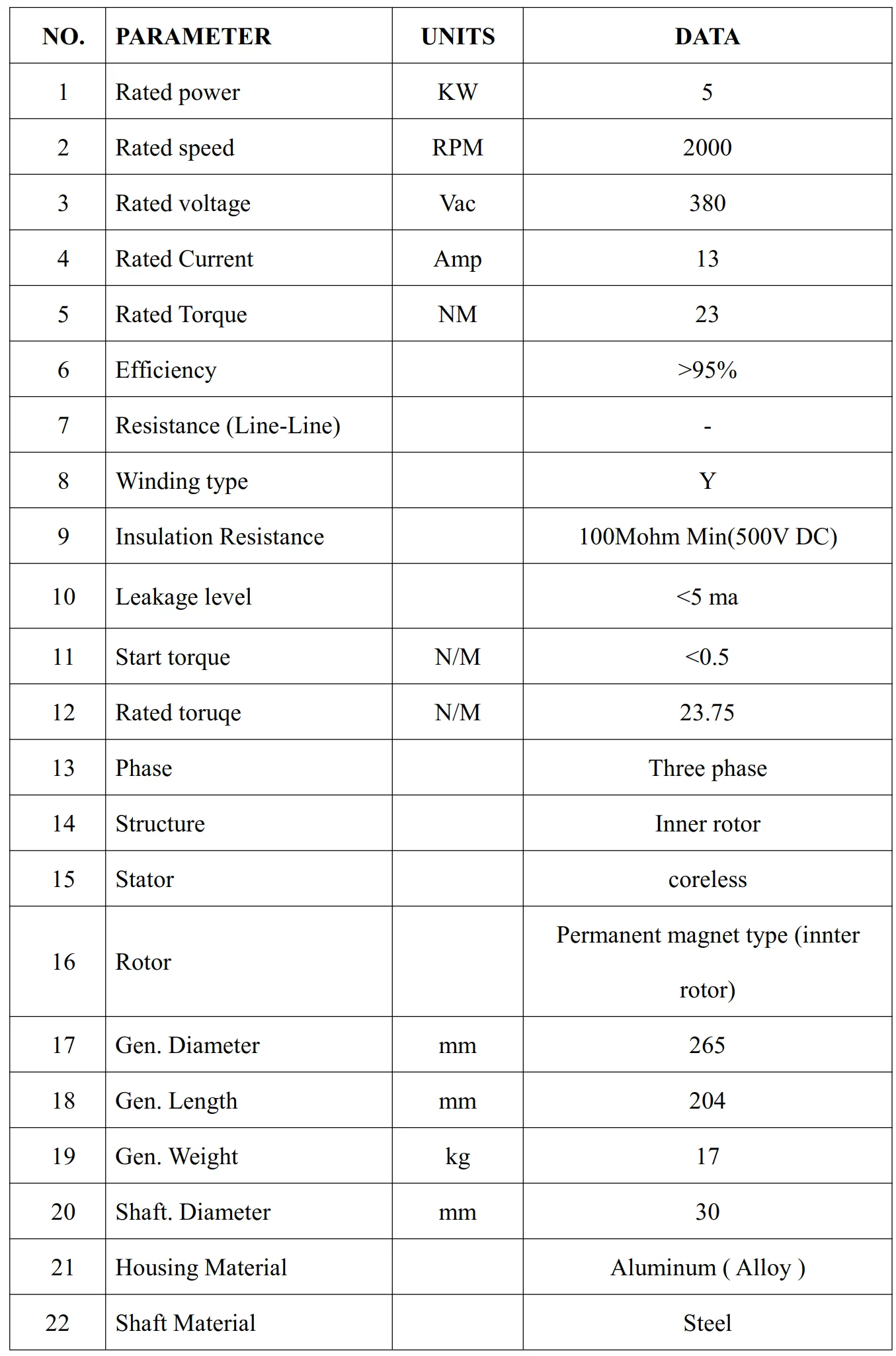

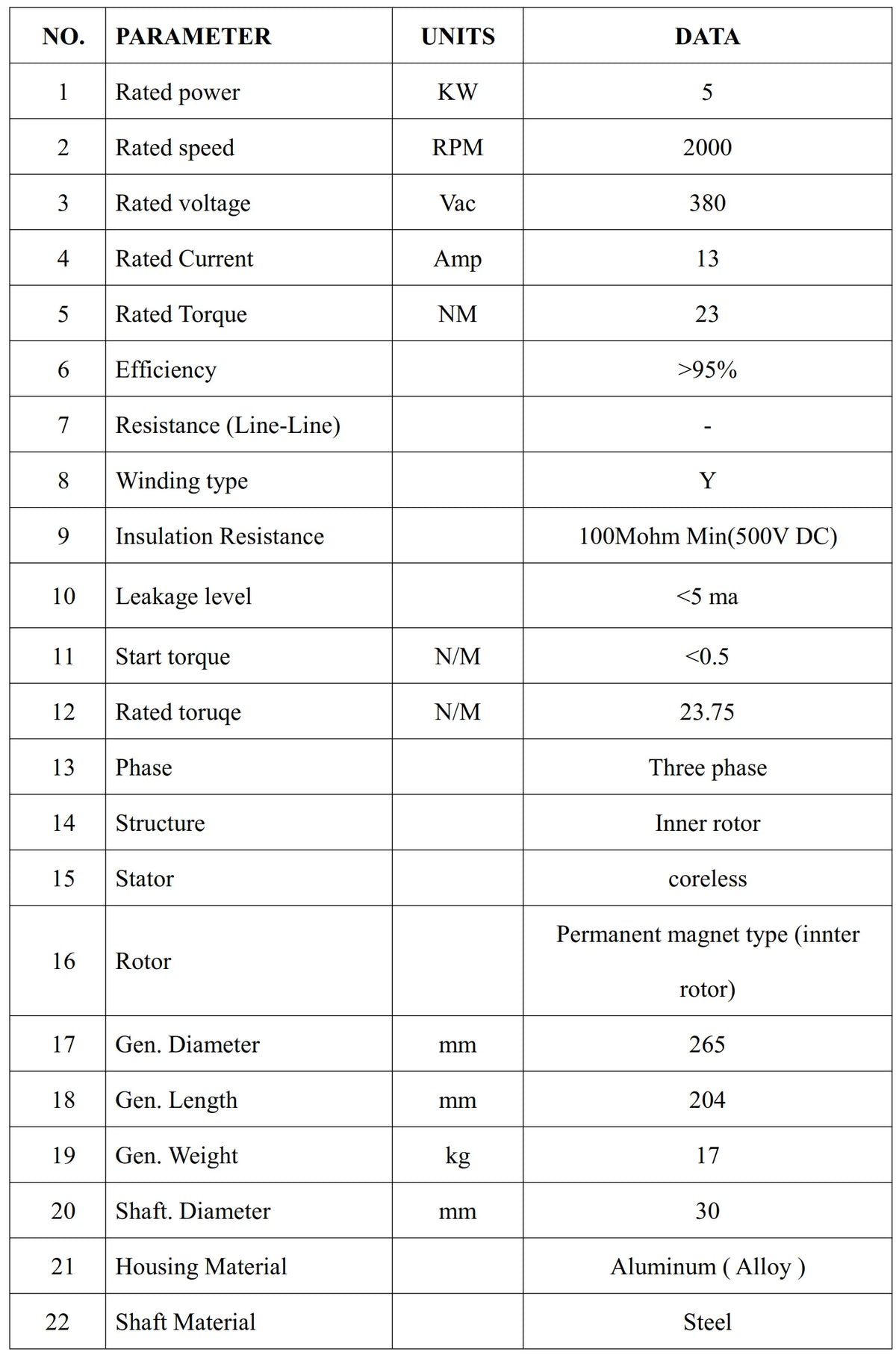

Specification

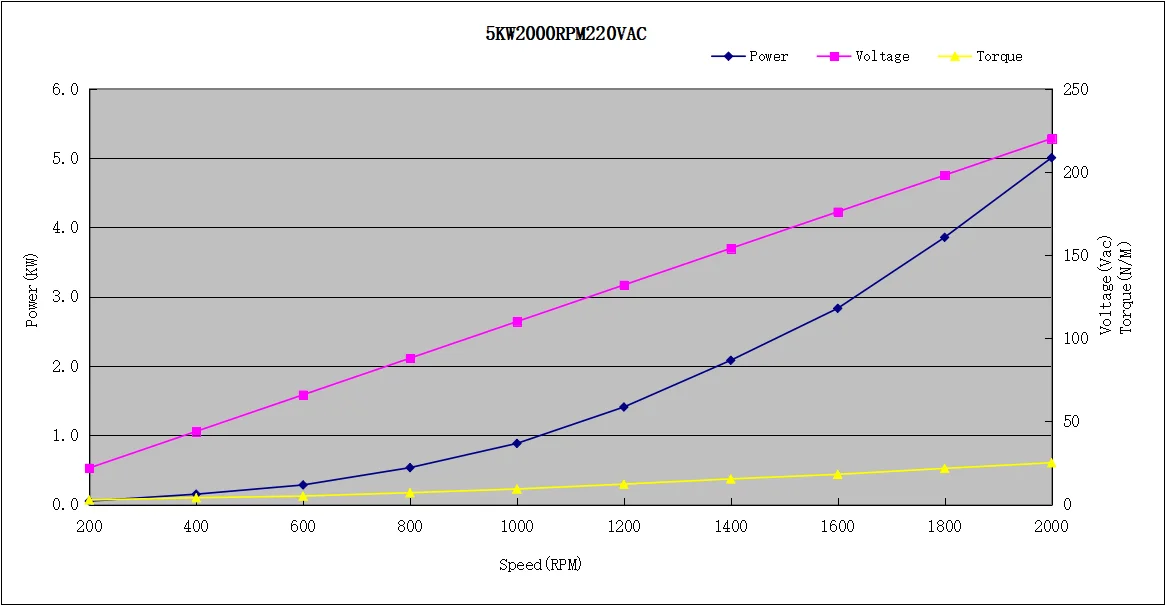

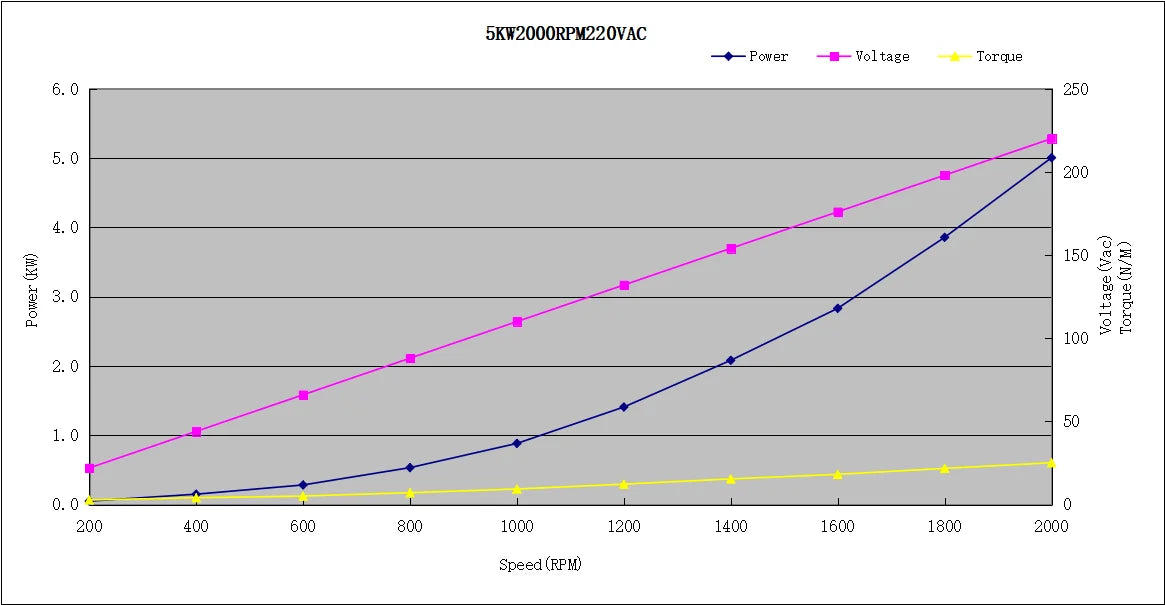

Power Curve

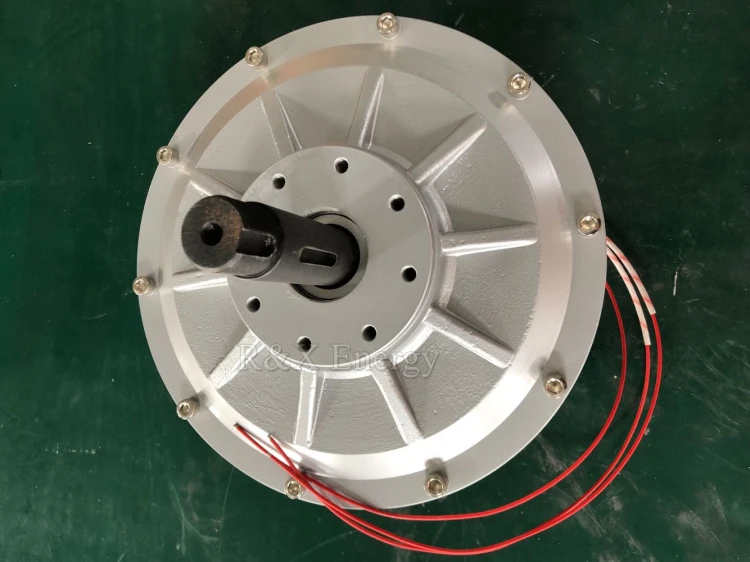

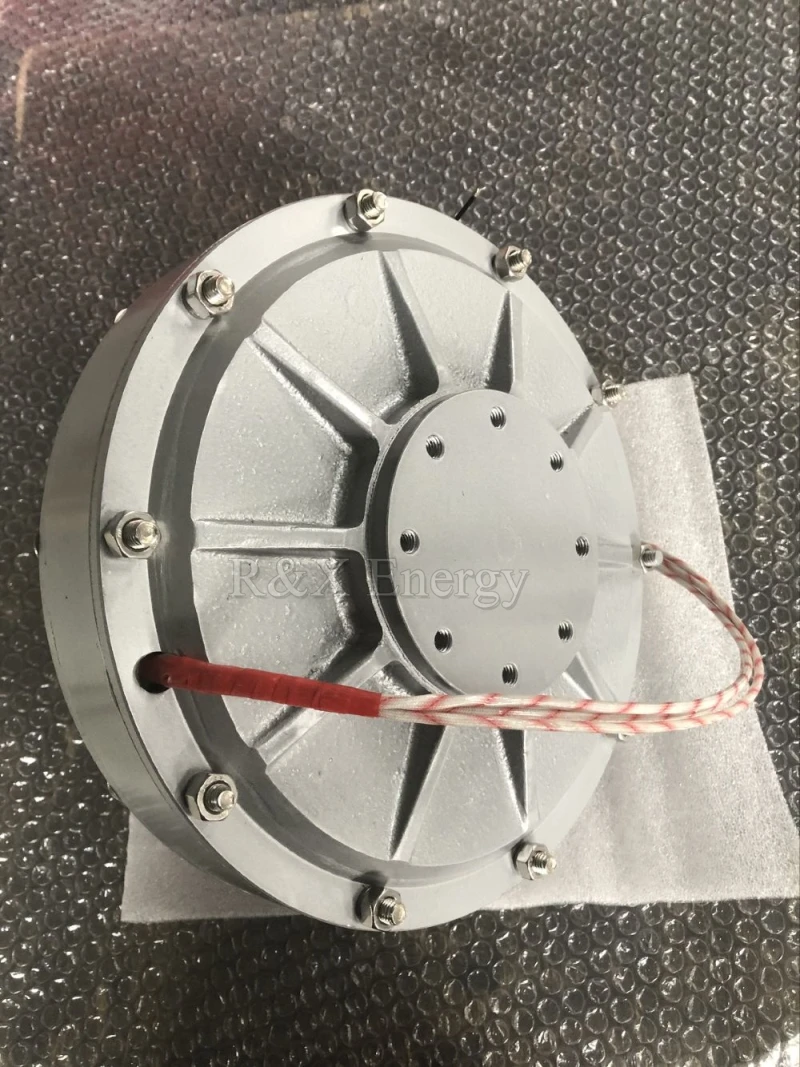

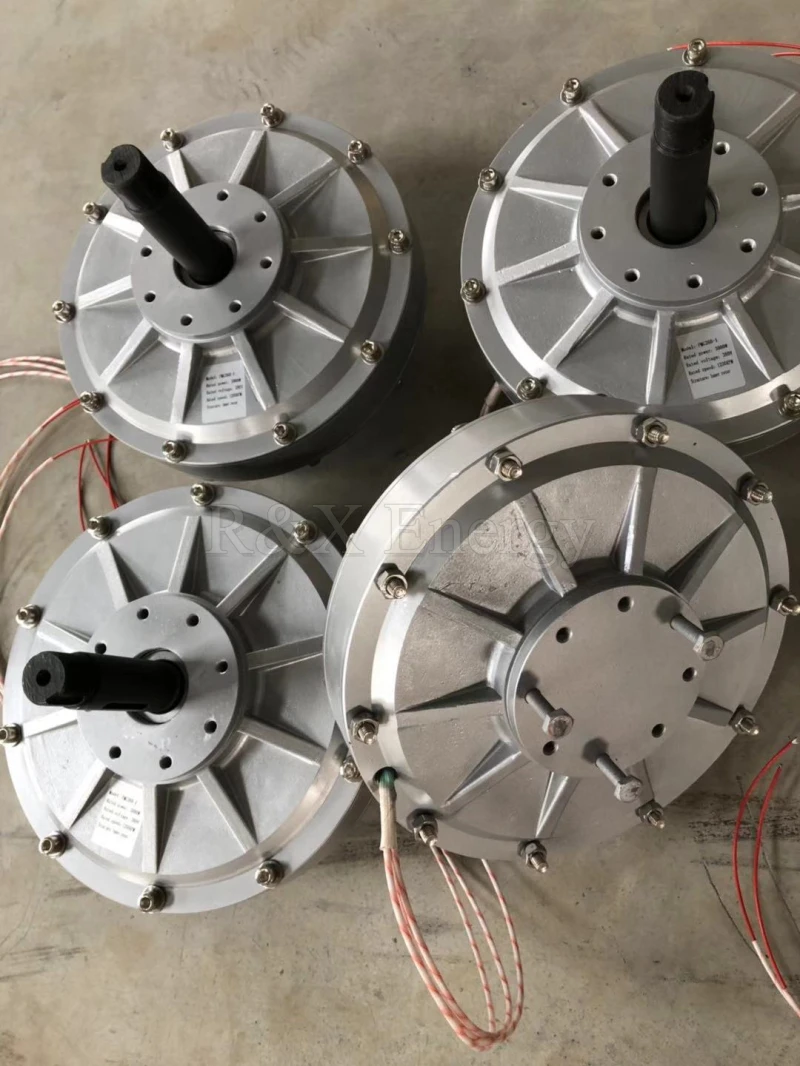

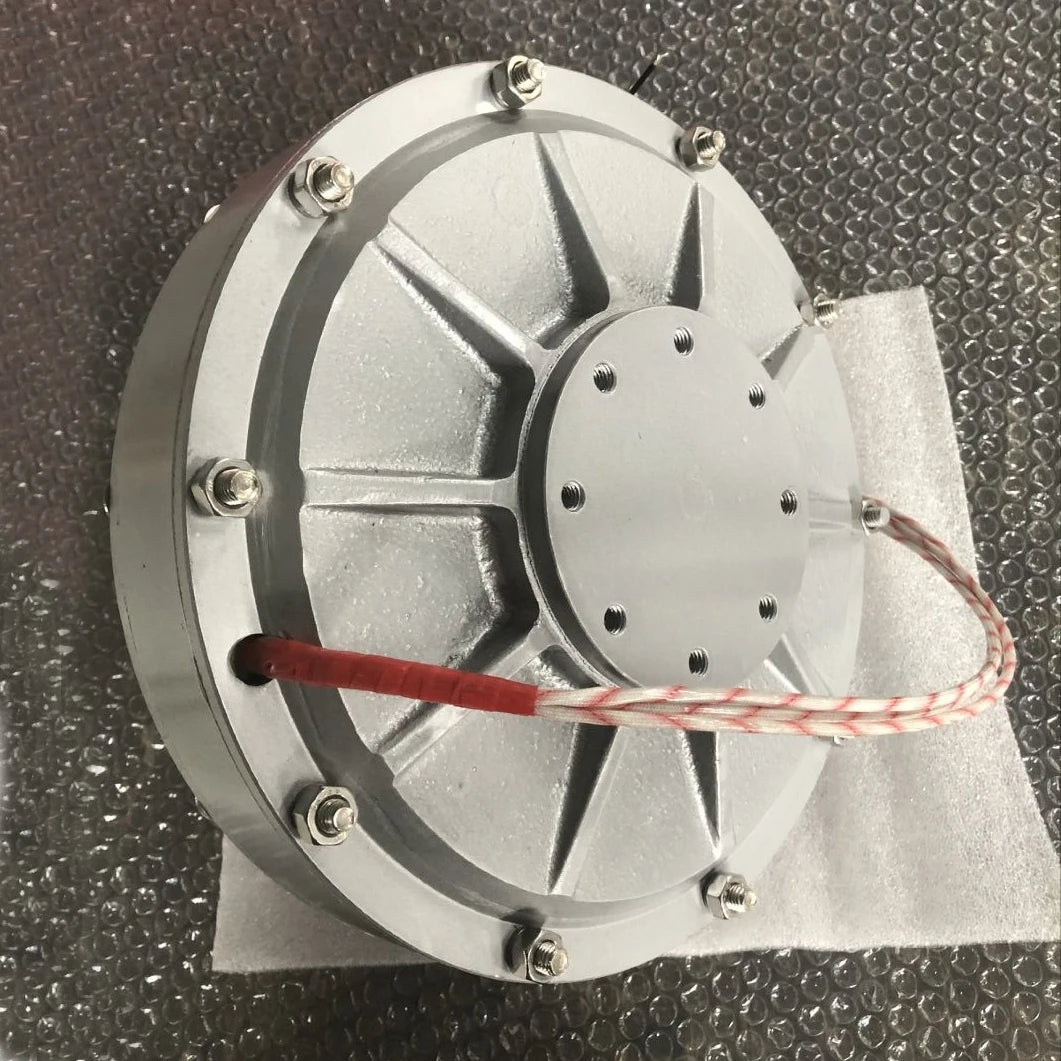

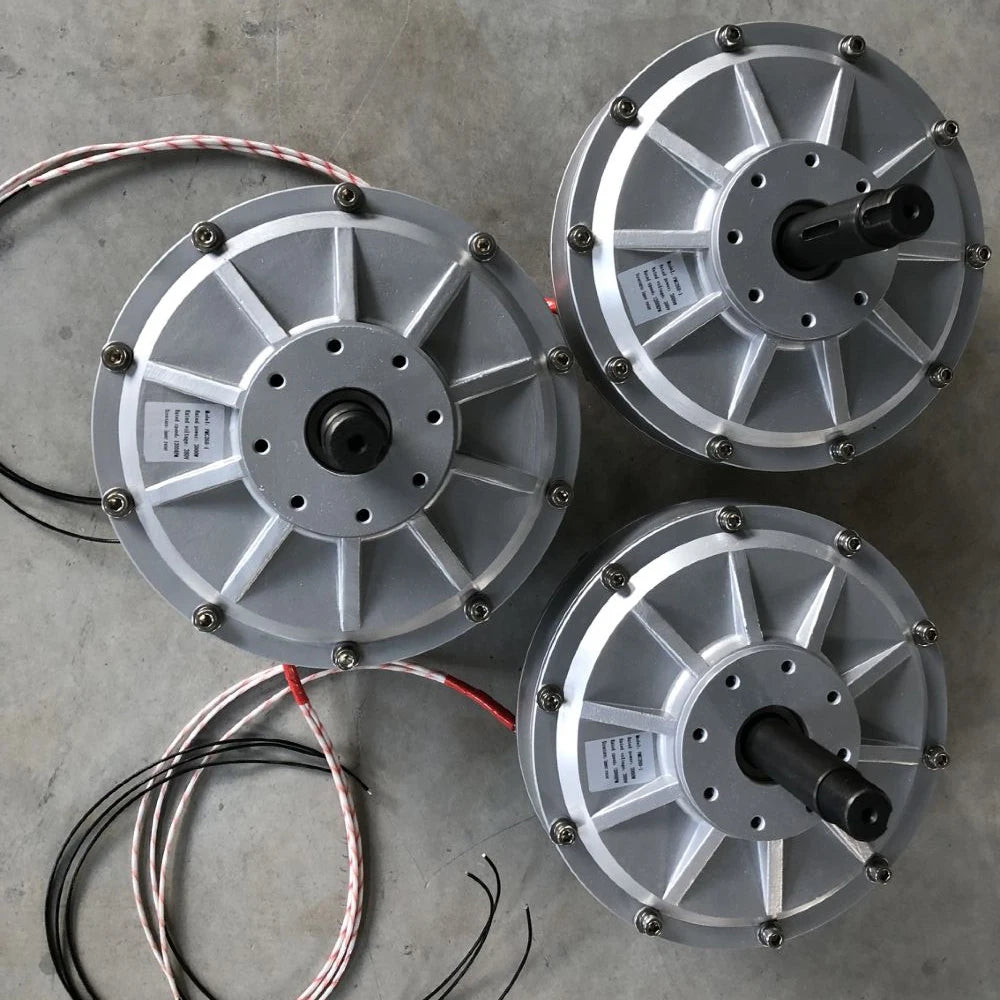

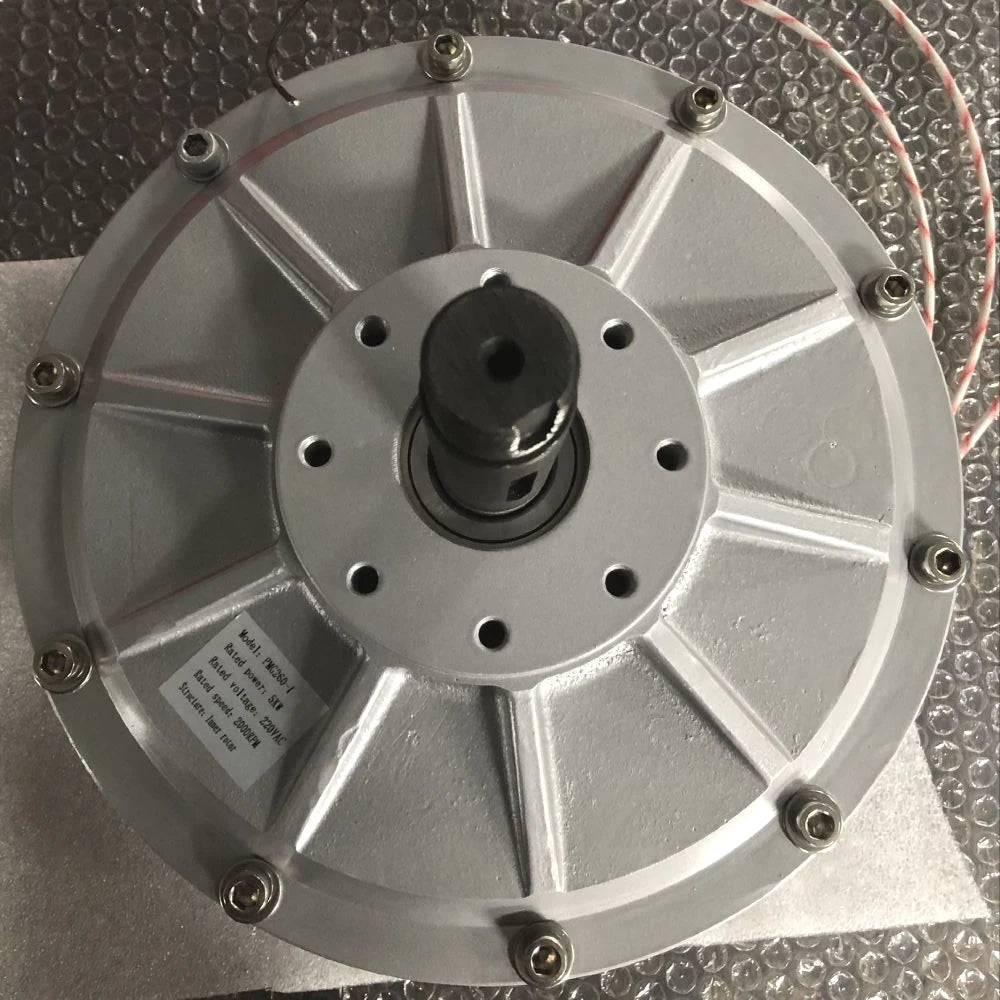

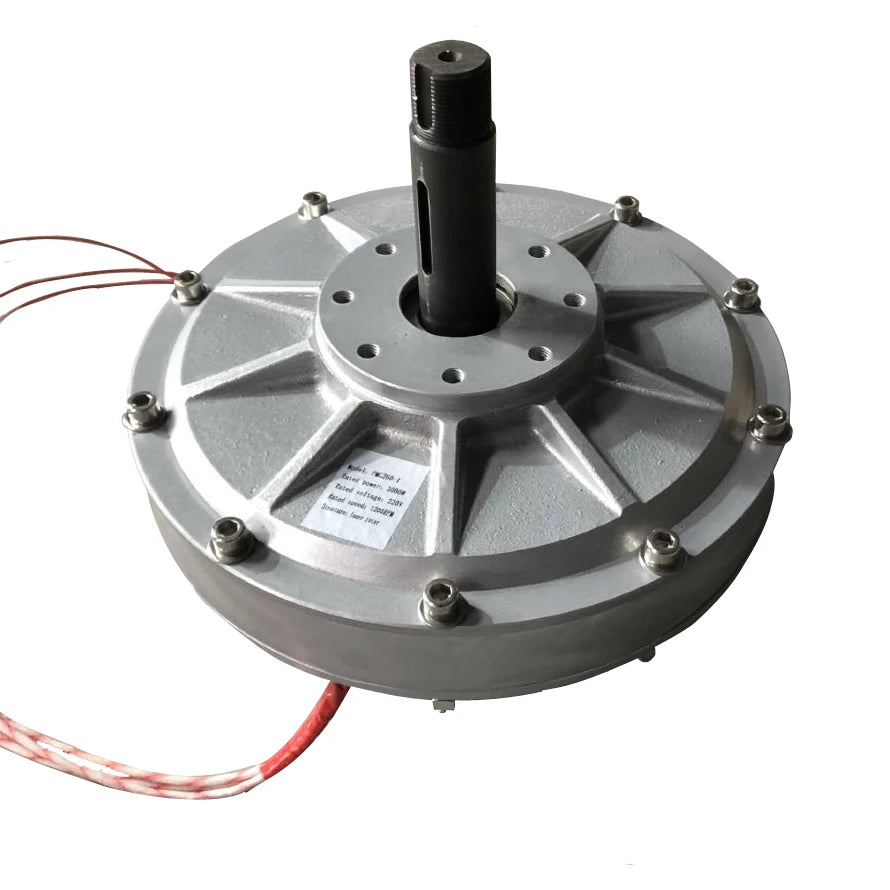

Detail Image

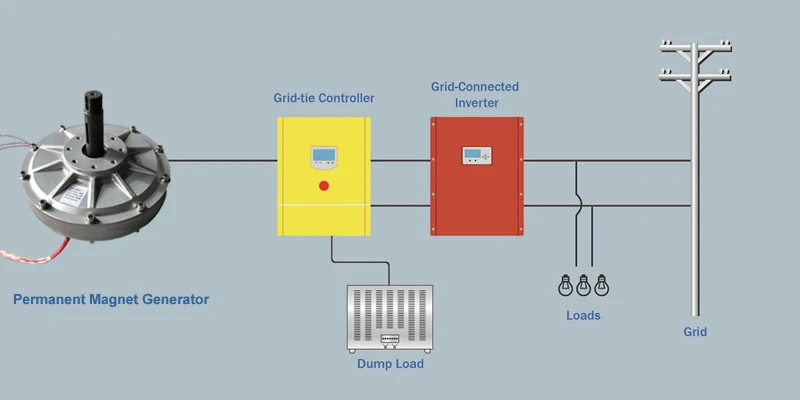

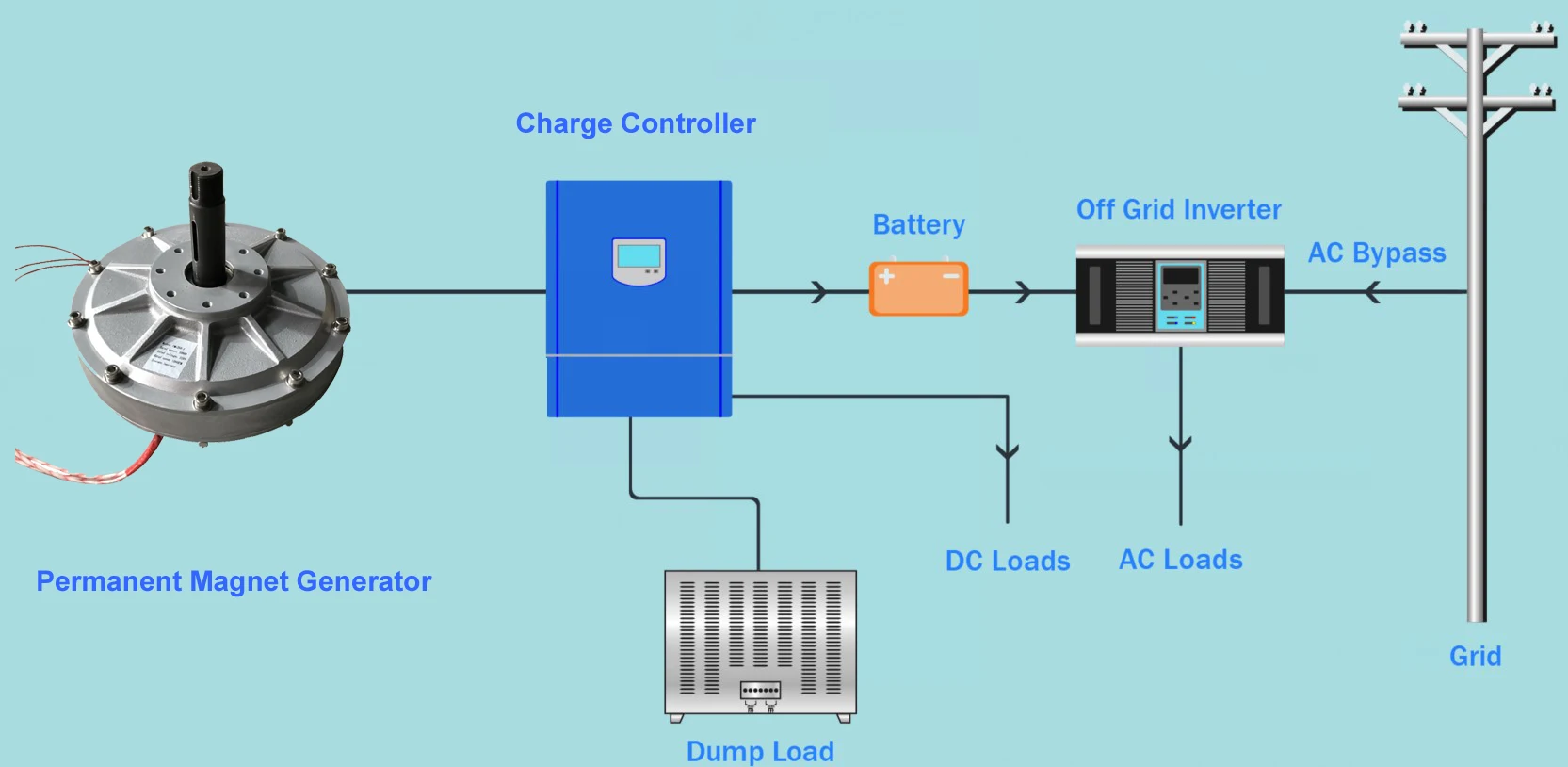

Diagram

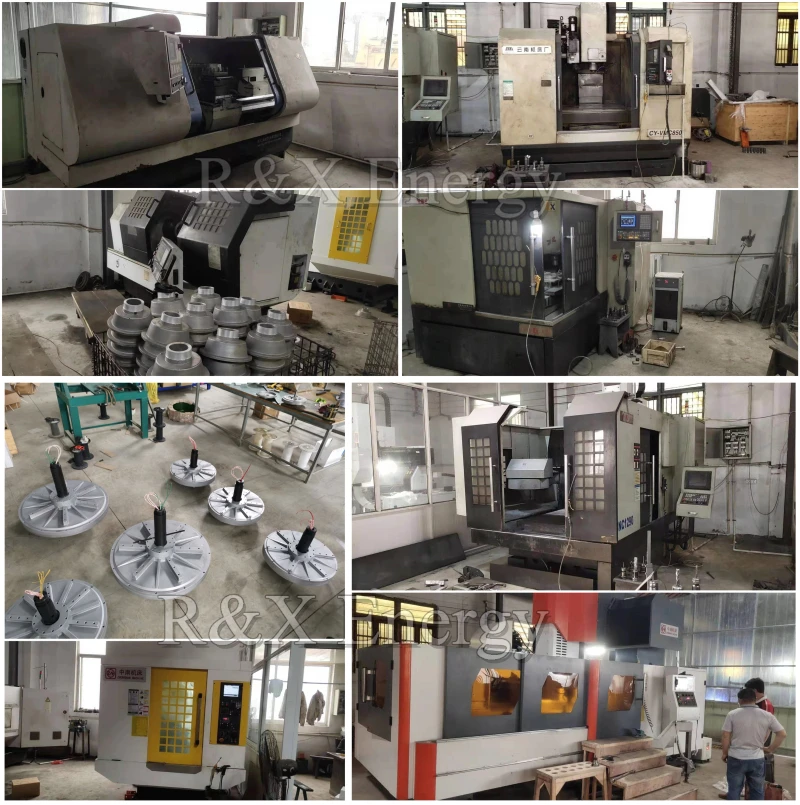

Our Factory
