2000W pure sine wave solar power inverter DC 12V 24V 48V to AC 110V 220V digital display
2000W pure sine wave solar power inverter DC 12V 24V 48V to AC 110V 220V digital display
Couldn't load pickup availability
SPECIFICATIONS;
- Type: DC/AC Inverters
- Size: 450*165*85
- Output Frequency: 50HZ/60HZ
- Output Type: single
- Output Power: 1 - 200KW
- Weight: 4.7KG
- Model Number: SP-2000L
- Certification: CE
- Certification: FCC
- Certification: RoHS
- Output Voltage: 110V/120V/220V/230V
- Input Voltage: 12V/24V/36V/48V/60V/72V/96V/110V
|
Model |
sp12/110-2000L |
sp24/110-2000L |
sp48/110-2000L |
sp12/220-2000L |
sp24/220-2000L |
sp48/220-2000L |
|
Continuous Power |
2000W |
|||||
|
Surge Power |
4000W |
|||||
|
Frequency |
50HZ±0.5HZ or 60HZ±0.5HZ |
|||||
|
Wave Form |
Pure Sine Wave |
|||||
|
AC Regulation |
THD<3%(Linear Load) |
|||||
|
Output Efficiency |
92% |
|||||
|
DC Voltage |
DC12V |
DC24V |
DC48V |
DC12V |
DC24V |
DC48V |
|
AC Voltage |
120VAC ±5% |
230VAC ±5% |
||||
|
No Load Current Draw |
0.9A |
0.45A |
0.25A |
0.9A |
0.45A |
0.25A |
|
DC Voltage Range |
10-15V |
20-30V |
40-60V |
10-15V |
20-30V |
40-60V |
|
Low Voltage Shut Down |
10±0.5V |
20±0.5V |
40±1V |
10±0.5V |
20±0.5V |
40±1V |
|
Over Voltage Shut Down |
15±0.5V |
30±0.5V |
60±1V |
15±0.5V |
30±0.5V |
60±1V |
|
Low Voltage Recovery |
12.5V |
25V |
50V |
12.5V |
25V |
50V |
|
Protection |
Low Voltage/Over Voltage |
LED Alarm and Automatic Recovery. |
||||
|
Overload |
LED Alarm and Automatic Recovery. |
|||||
|
Over Temperature |
LED Alarm and Automatic Recovery. |
|||||
|
Short Circuit |
LED Alarm and Automatic Recovery. |
|||||
|
Working Temperature |
-10°- +50° |
|||||
|
Storage Temperature |
-30°- +70° |
|||||
|

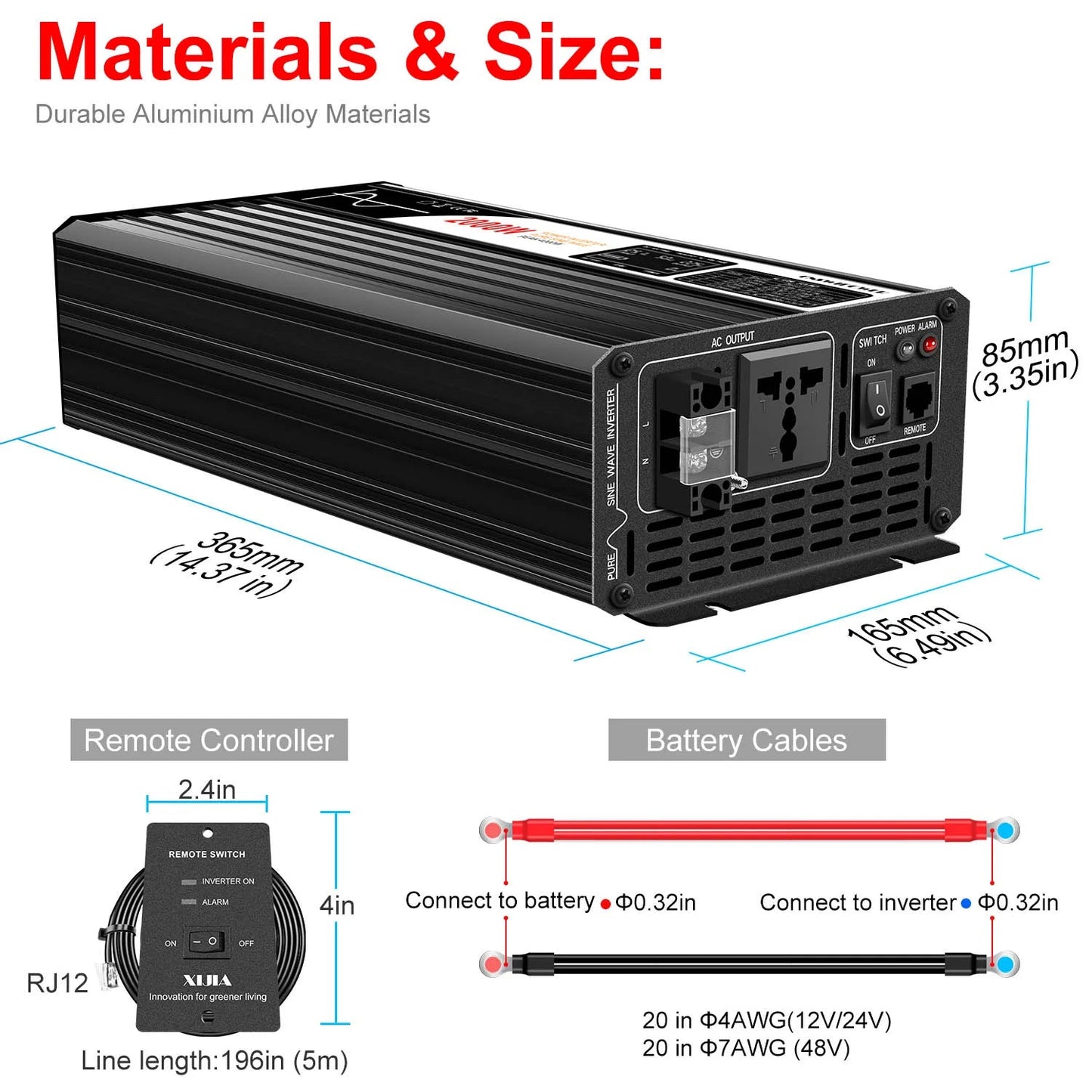

Production Size |
360*165*85(mm) |
|||||
|
Package Size |
420*235*150(mm) |
|||||
|
N.W/G.W |
3.6/ 4.2(kg) |
|||||
|
Start |
soft-start |
|||||
|
Cooling Way |
Intelligent Cooling Fan |
|||||
|
|
||||||
