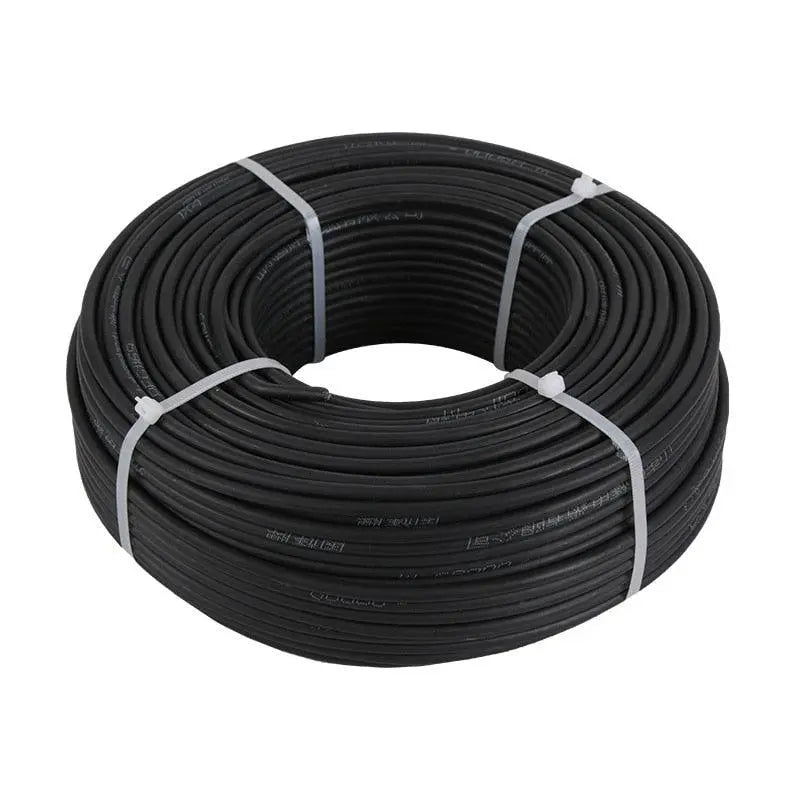

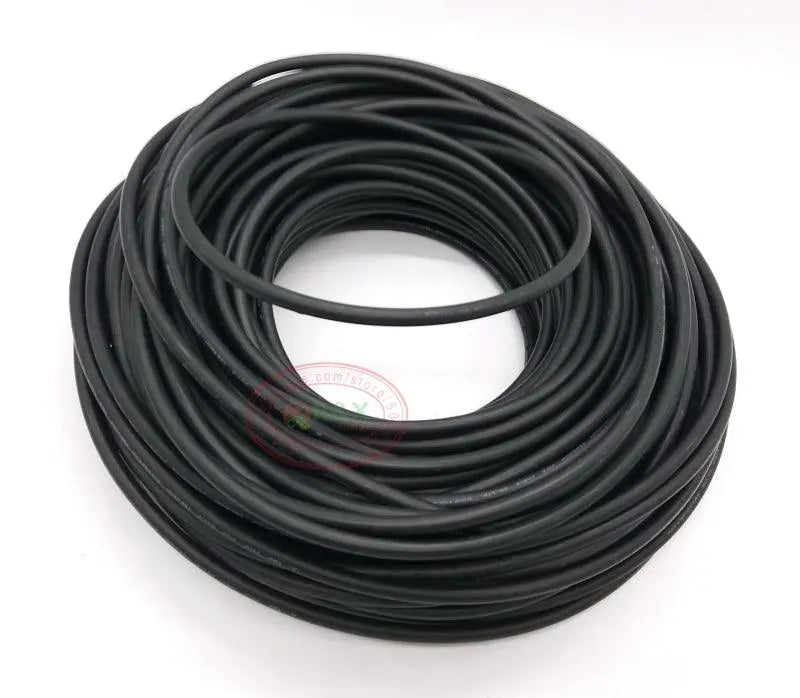

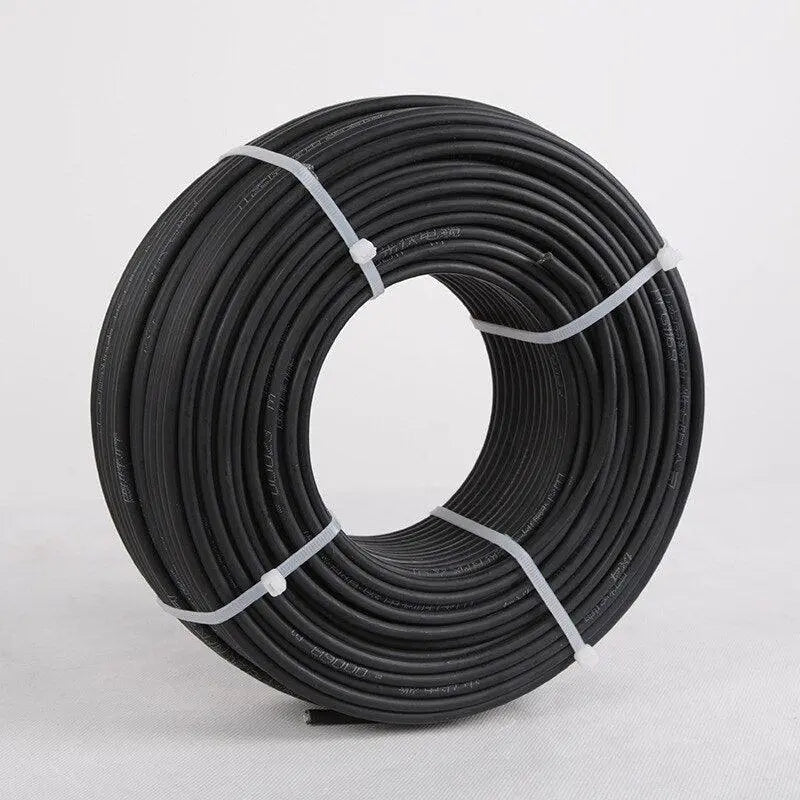

Solar Cable 200meters/roll 1x6mm2 Solar Wire XLPE Jacket Copper Core Solar Cable
Solar Cable 200meters/roll 1x6mm2 Solar Wire XLPE Jacket Copper Core Solar Cable
Couldn't load pickup availability
SPECIFICATIONS:
- Is_customized: Yes
- Type: Medium Voltage
- Model Number: 6mm sq
- Jacket: PE
- Insulation Material: XLPE
- Conductor Material: copper

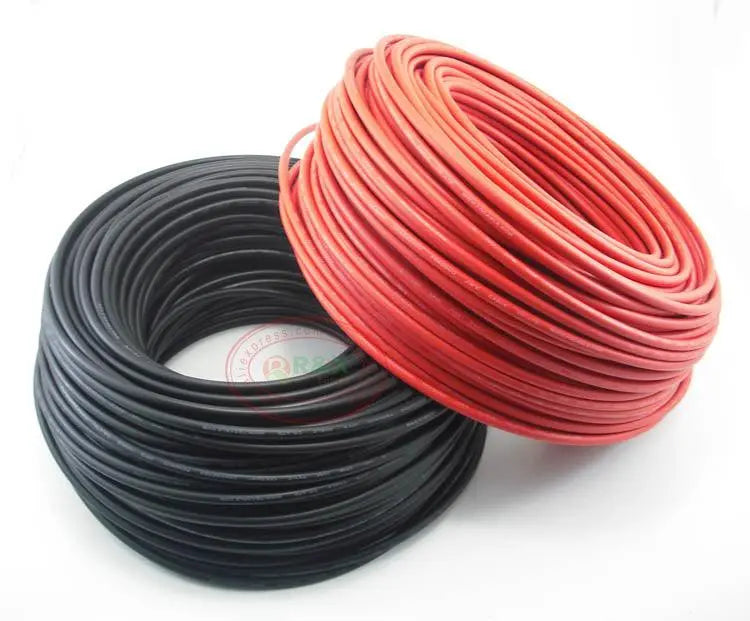

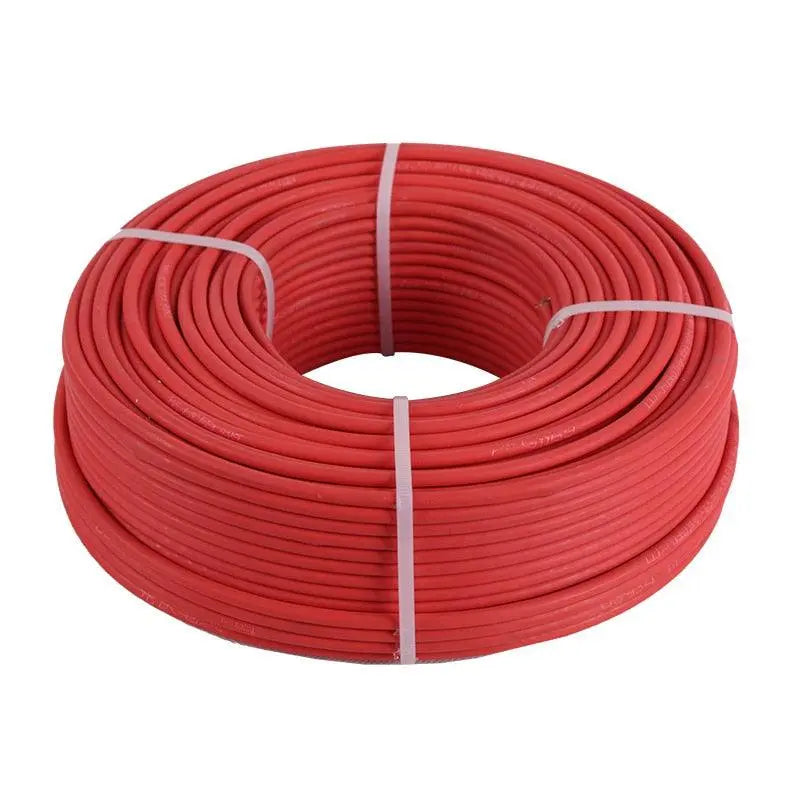

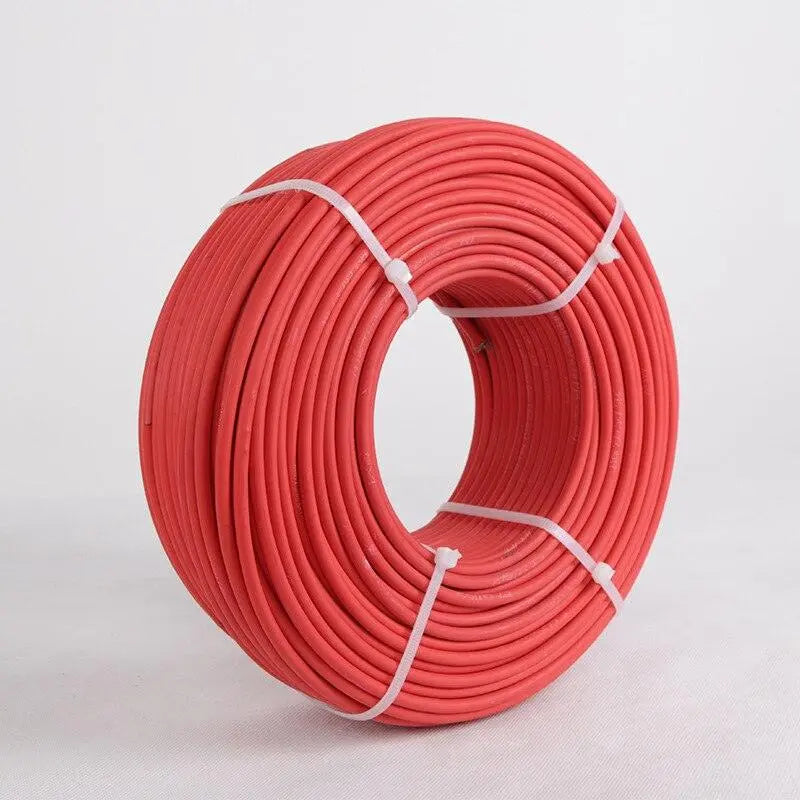

- Color: Black and Red
- Certification: TUV & UL
- Cable Spec: 1x6mm2
- Application: Industrial
|
1x2.5mm2(14AWG) |
1x4.0mm2(12AWG) |
1x6.0mm2(10AWG) |
|
10M/lot |
10M/lot |
10M/lot |
|
50M/lot |
50M/lot |
50M/lot |
|
100M/lot |
100M/lot |
100M/lot |
|
250M/lot |
250M/lot |
200M/lot |
Technical Data:
|
Cross Section (mm2;) |
Conductor Construction (n/mm) |
Conductor Stranded OD.(mm) |
Insulation Min.Wall Thickness(mm) |
Sheath Min.Wall Thickness(mm) |
Cable OD.(mm) |
Conductor Max.Resistance AT20°C (?/km) |
Current Araaing Capacity AT 60°C(A) |
|
1.5mm2; |
TXR30/0.25 |
1.58 |
0.67 |
0.73 |
4.90 |
13.3 |
30 |
|
2.5mm2; |
TXR50/0.25 |
2.02 |
0.67 |
0.73 |
5.45 |
7.98 |
41 |
|
4mm2; |
TXR56/0.30 |
2.60 |
0.67 |
0.73 |
6.10 |
4.95 |
55 |
|
6mm2; |
TXR84/0.30 |
3.42 |
0.8 |
0.80 |
7.20 |
3.30 |
70 |
|
10mm2; |
TXR142/0.30 |
4.56 |
0.9 |
0.90 |
9.00 |
1.91 |
98 |
|
16mm2; |
TXR228/0.30 |
5.60 |
1.00 |
0.90 |
10.20 |
1.21 |
132 |
|
25mm2; |
TXR361/0.30 |
6.95 |
1.19 |
0.92 |
12.00 |
0.780 |
176 |
|
35mm2; |
TXR276/0.40 |
8.74 |
1.20 |
1.00 |
13.80 |
0.554 |
218 |
|
Drawing |
|
||||||
Description:
1.Rating:Voltage: 600/1000V Temperature:-40°C-- 90°C
2. Description: (1)Conductor: Tinned annealed copper
(2)Insulation:120°C XLPE , black
(3)Jacket:120°C XLPE , black or red
3.Marking:TÜV 2 PfG 1169 PV1-F 1×**mm2
4.Application: Specifically designed for connecting photovoltaic system components inside and outside of
building and equipment with high mechanical requirements and extreme weather conditions .
For permanent installations.
5.General characteristics: Cable made of electron-beam cross-linked insulation and coating; high resistance against heat , cold, oil, abrasion, ozone, UV and weather;
with improved reaction in case of fire . low smoke, halogen free , flame free , flame retardant; flexible,
easy to strip, very low space requirement, extremely, extremely mechanically robust, very long lifetime.
