2021 New Type 400W Wind Power Generator 3/5PCS Blades Optional + MPPT Wind Solar Hybrid Charge Controller (LCD Display)

2021 New Type 400W Wind Power Generator 3/5PCS Blades Optional + MPPT Wind Solar Hybrid Charge Controller (LCD Display)

Regular price $342.09 USD
Regular price Sale price $342.09 USD
Sale Sold out
Shipping calculated at checkout.
Voltage
Specification

Specifications:

  • is_customized: Yes
  • Type: Wind Power Generator
  • Start Wind Speed: 2.5M/S
  • Rated watt: 400W
  • Rated Wind Speed: 12M/S
  • Rated Voltage: 12V/24V
  • Number of Blades: 3PCS/5PCS



2021 New Type 400W Wind Power Generator 3/5PCS Blades Optional + MPPT Wind Solar Hybrid Charge Controller (LCD Display)

Technical Parameter:

Model

FT400

Name

Butterfly

Rated Power

400W

Rated Voltage

12V/24VAC

Numbers of Blades

3/5

Rated Rotating Rate

950r/m

Length of Blades

60CM

Start-up Wind Speed

2.5m/s

Cut-in Wind Speed

3.5m/s

Cut-out Wind Speed

17m/s

Security Wind Speed

40m/s

Rated Wind Speed

12m/s

Engine

Permanent Magnet Generator

Rotor Diameter

1300mm

Blade Material

Carbon fiber reinforced plastics

Output Line Anti-winding Device

Overall three-phase commutator

Over-speed Wind Protection

Tip stall protection + turned protection + Electromagnetic brake

Life Span

15 years

Equipment Surface Protection

Aluminum oxide + plastic coating

Working Temperature

-45°C~70°C

N. Weight

6.5KG

G. Weight

9.0KG

Packing Material

Carton box and foam material

Packing Dimension

690*370*230MM

Detailed Photos of Wind Turbine:








Technical Parameter:

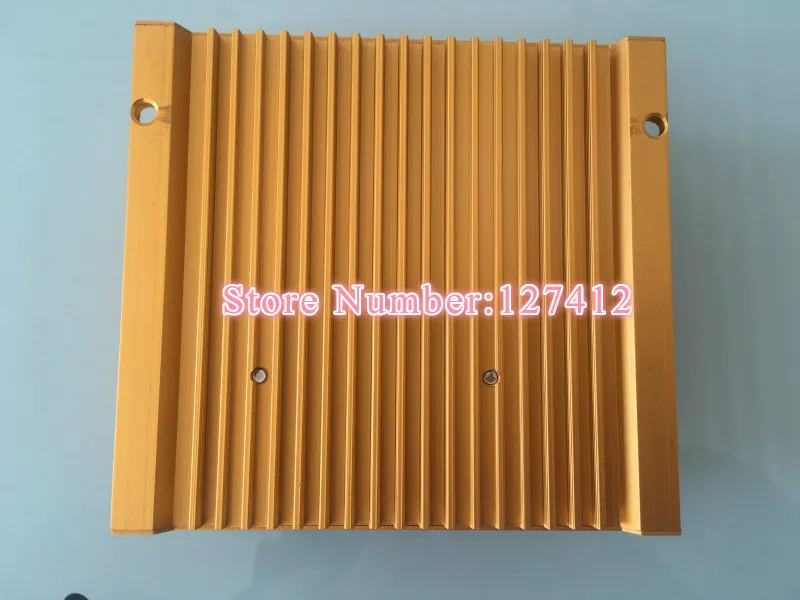

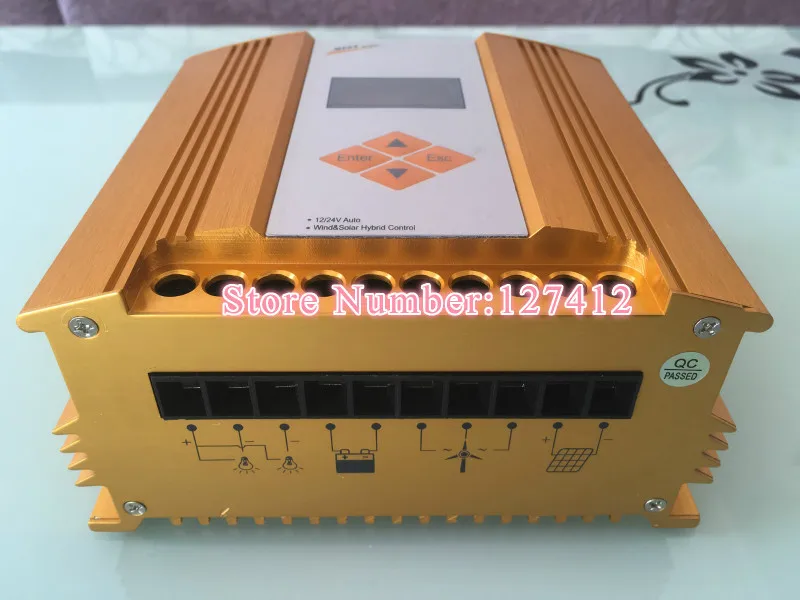

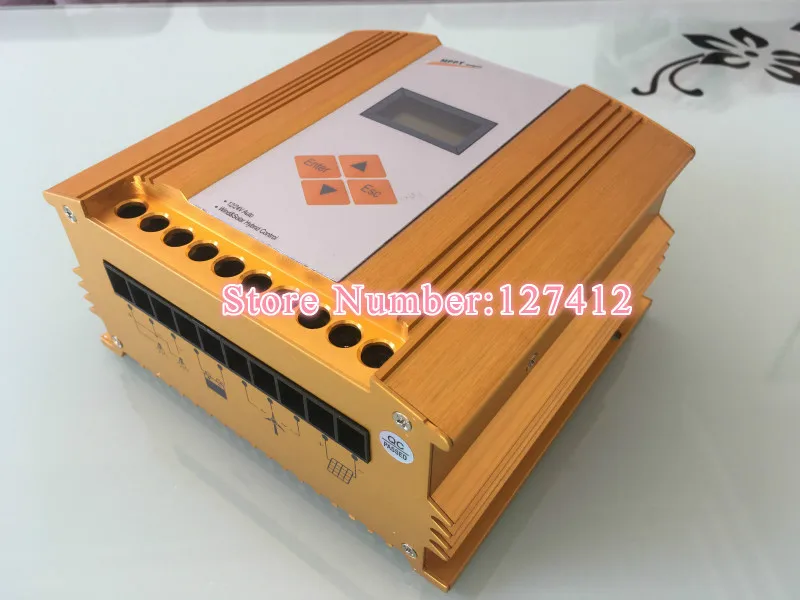

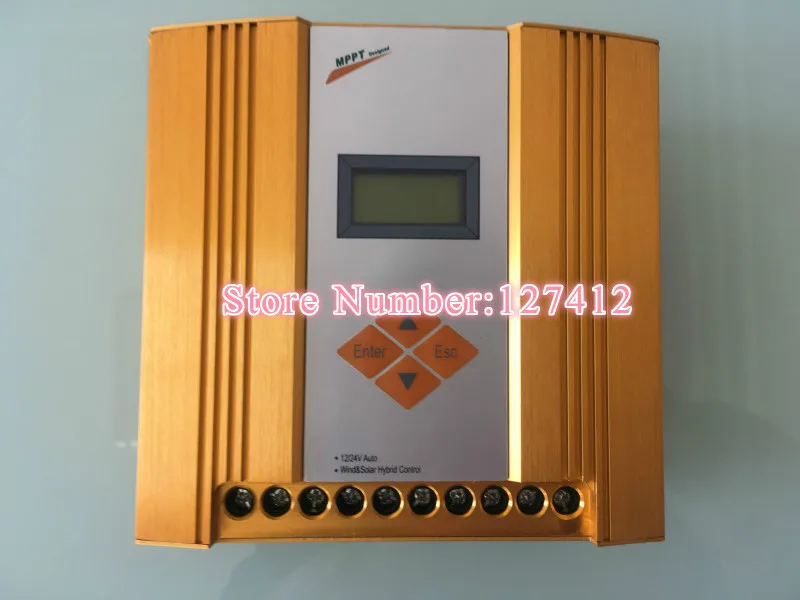

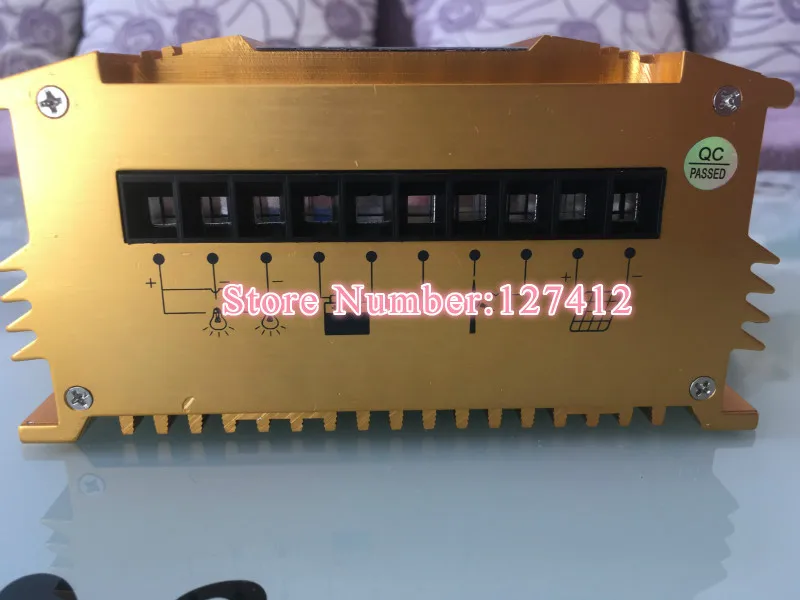

Detailed Photos of Wind Solar Hybrid Controller:
