20A 30A 40A Solar System Charge Controller 12V 24V PV Regulator With Colorful Display

20A 30A 40A Solar System Charge Controller 12V 24V PV Charging Regulator With Colorful Display For 100W 200W 300W 400W Panel

Introducing the 20A 30A 40A Solar System Charge Controller 12V 24V PV Charging Regulator With Colorful Display For 100W 200W 300W 400W Panel. This versatile device is designed to optimize the performance of your solar power system, ensuring efficient energy management and enhanced battery lifespan.

The charge controller features a vibrant display that showcases real-time data, allowing you to monitor your solar charging status with ease. It is engineered with high-performance components and adheres to strict production standards, guaranteeing a long lifespan and stable quality.

Key Features:

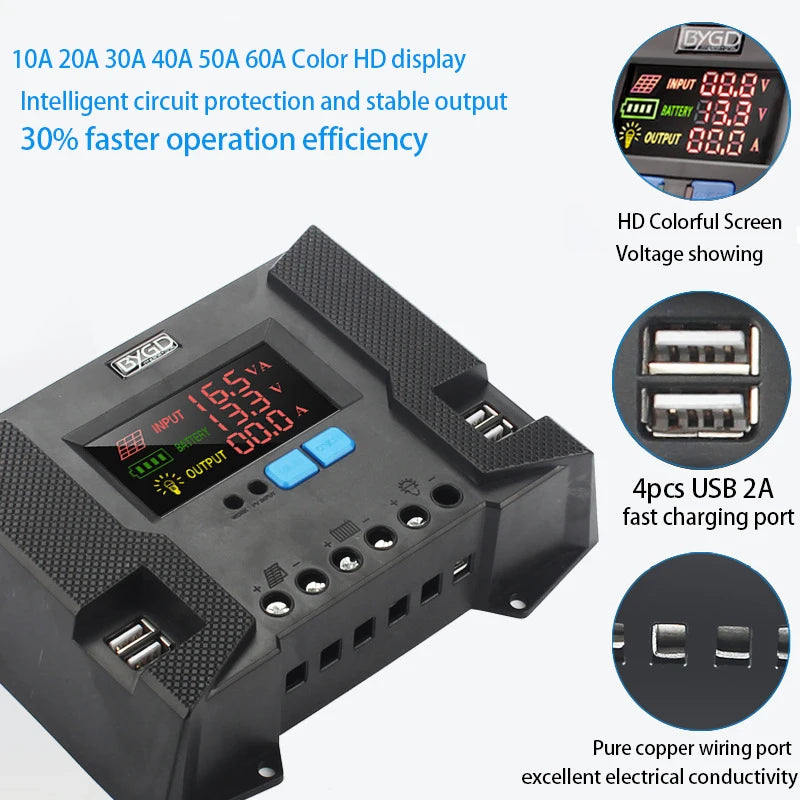

• Current & Voltage Display: Instantly shows input current and voltage from your solar panel, helping you assess its performance.
• Battery Voltage Monitoring: Displays battery voltage and charge status, ensuring you are always aware of your battery life.
• Multiple USB Outputs: Includes 4 USB outputs with 2A current each, perfect for charging multiple devices simultaneously.
• Automatic Voltage Detection: Easily distinguish between 12V and 24V systems without manual adjustments.

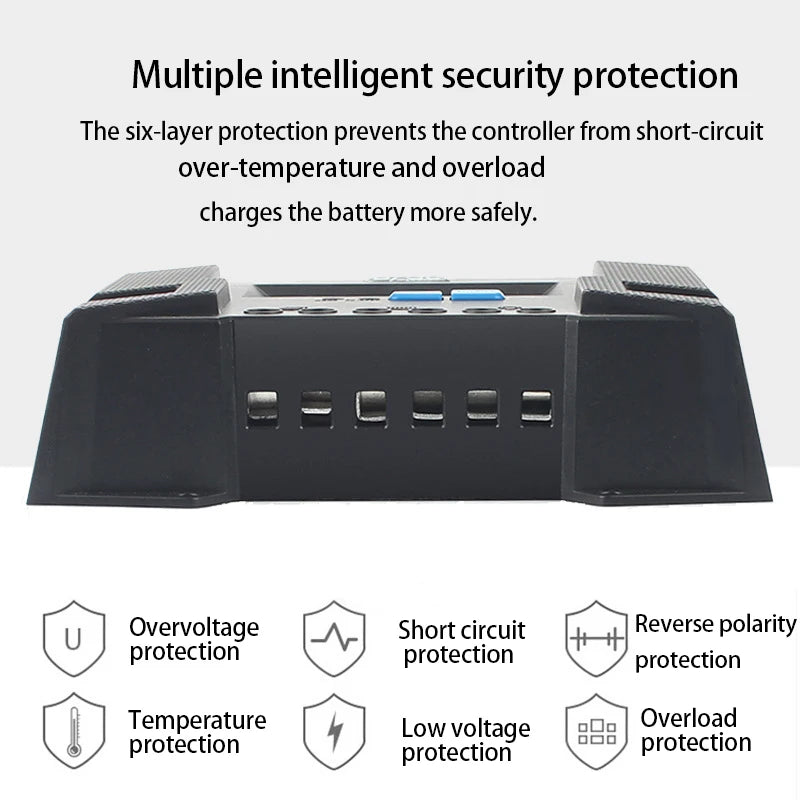

• Safety Protections: Over-charge, over-discharge, and short-circuit protections ensure safe operation and prolonged battery life.
• Temperature Compensation: Adjusts charging based on battery temperature for optimal performance in varying environments.
• Three-Stage Charging: Offers strong charge, constant current, and floating charge intelligent control for efficient energy management.

Technical Specifications:

• Model Options: CP20A, CP30A, CP40A
• Input Voltage: <50V
• Battery Voltage: 12V/24V Auto-detect
• Max Input Current: 20A / 30A / 40A
• Full Voltage Cut-off: 14.4V/28.8V ±0.2
• Low Voltage Cut-off: 10.7V/21.4V ±0.2
• Charge Mode: PWM
• No Load Loss: 20mA
• Temperature Compensation: ~4mV/°C

Enhance your solar energy experience with the 20A 30A 40A Solar System Charge Controller. Order now and bring efficiency to your home solar power system! ⚡
