This 20 AWG pigtail wire ships as a matched male/female pair, ideal for building short 5 V or 12 V DC jumpers between an adapter and a powered device. It is built for creating short, plug-and-play 5 V or 12 V DC jumpers between adapters and devices using matched 5.5 x 2.1 mm male and female barrel jacks, and ships ready to plug into compatible adapters, routers, CCTV cameras, LED lighting, and DIY 12 V projects. Tinned copper conductors and PVC insulation deliver stable performance from -20 °C to +80 °C.
Product Description

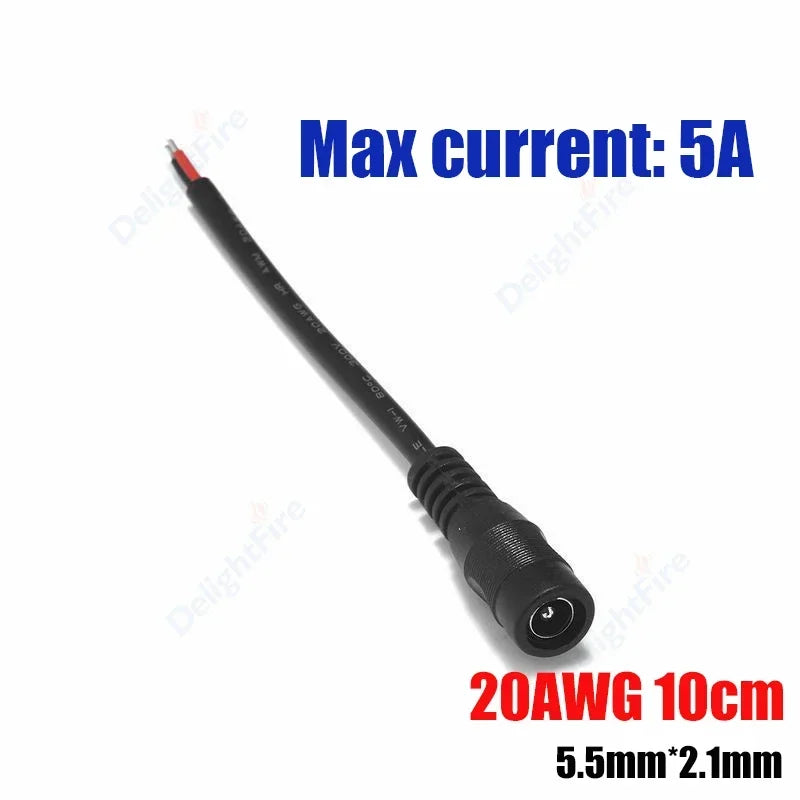

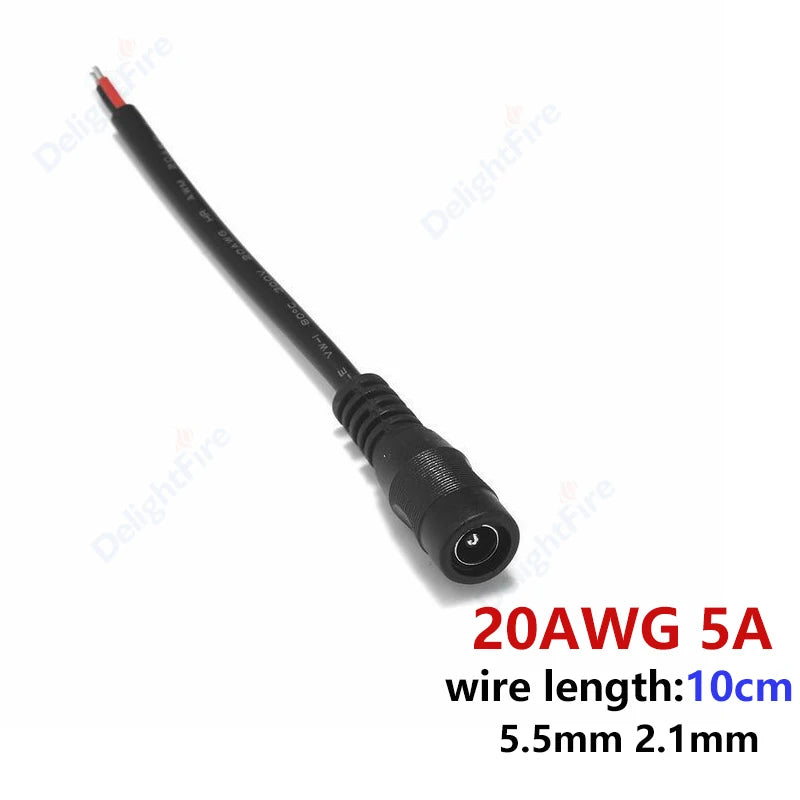

This is a 20 AWG DC pigtail cable rated for 5 V or 12 V DC (variant dependent) at up to 5 A, terminated with a male and female barrel jacks, 5.5 mm OD x 2.1 mm ID (matched pair). It is designed to replace damaged power leads, extend reach between an adapter and a device, or serve as the power input on a custom build. The conductor is tinned copper, which resists oxidation and keeps contact resistance low over time, and the insulation is PVC with standard red-positive / black-negative color coding so polarity is unambiguous during installation.
The cable ships as a finished assembly — no soldering is required to use it as-is — but the open-lead variants are also straightforward to terminate with screw terminals, ferrules, or solder for permanent installs. Total assembled mass is low enough that the cable does not pull on panel-mount jacks or strain the device under normal handling.
Key Benefits
- ⚡ Ready-to-use 20 AWG assembly — no soldering required for plug-and-play replacement
- ✅ Tinned copper conductor for low contact resistance and long service life
- 🛡️ Color-coded insulation (red +, black -) eliminates polarity guesswork
- 🔌 Universal 5.5 mm OD x 2.1 mm ID jack fits the most common DC barrel-jack standard worldwide
- 🌡️ Operating range -20 °C to +80 °C covers indoor, outdoor enclosed, and automotive use
Key Features
The first feature worth flagging is the 20 AWG conductor cross-section, which is sized for the rated current with margin: at 5 A, the cable carries less than 70% of its conservative ampacity, so warm-up under continuous load is minimal. The 5.5 x 2.1 mm matched male/female pair matches the DC standard found on the majority of 5 V and 12 V consumer adapters, making this cable a drop-in jumper between adapter and device. The PVC jacket is flexible enough for tight bends behind enclosures and stiff enough to resist kinking when pulled through wire raceways.
Technical Specifications
The most load-bearing parameter on this product is the 20 AWG / 5 A combination — that is what sets the safe continuous power envelope. Full specs below.
| Parameter | Value |
|---|---|
| Wire gauge | 20 AWG |
| Cable length | 10 cm (3.9 in) - customizable per variant |
| Rated voltage | 5 V or 12 V DC (variant dependent) |
| Rated current | 5 A |
| Maximum power | 60 W at 12 V (12 V x 5 A); 25 W at 5 V (5 V x 5 A) |

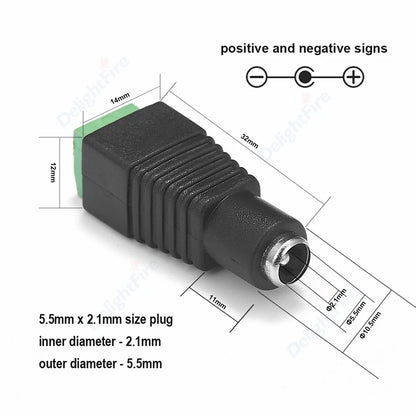

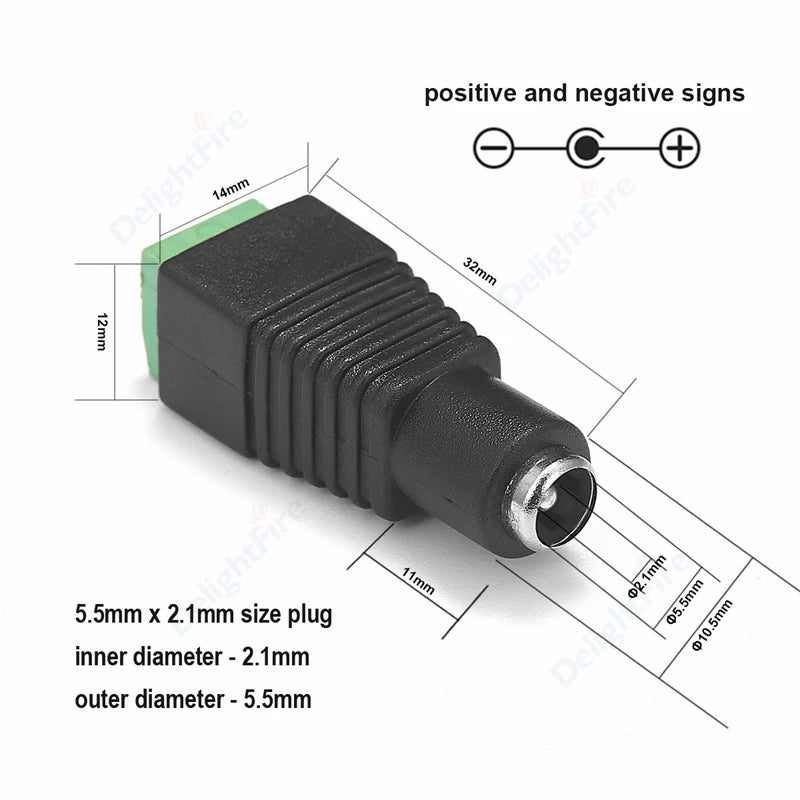

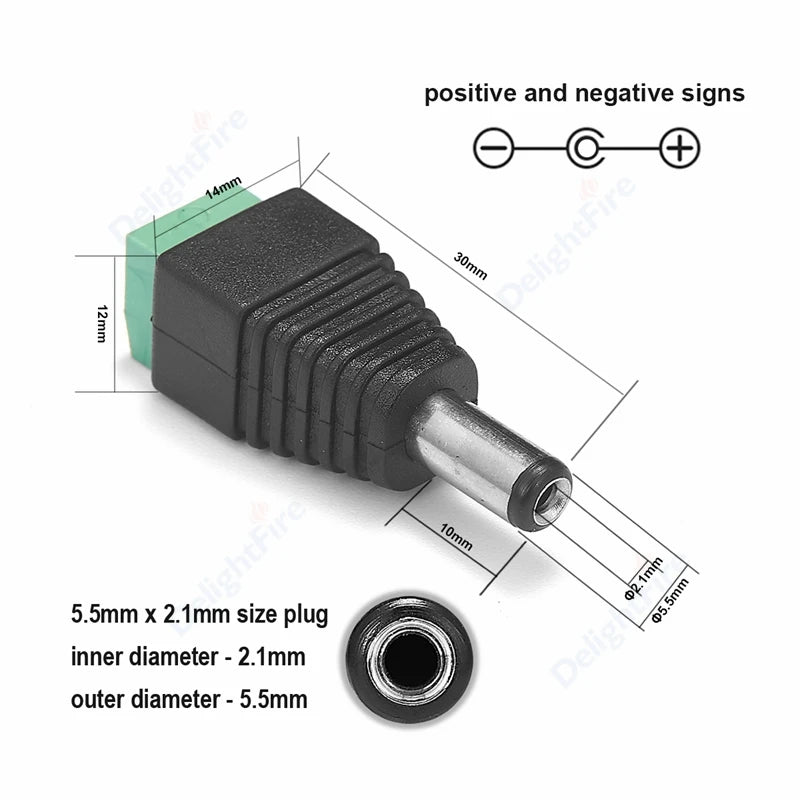

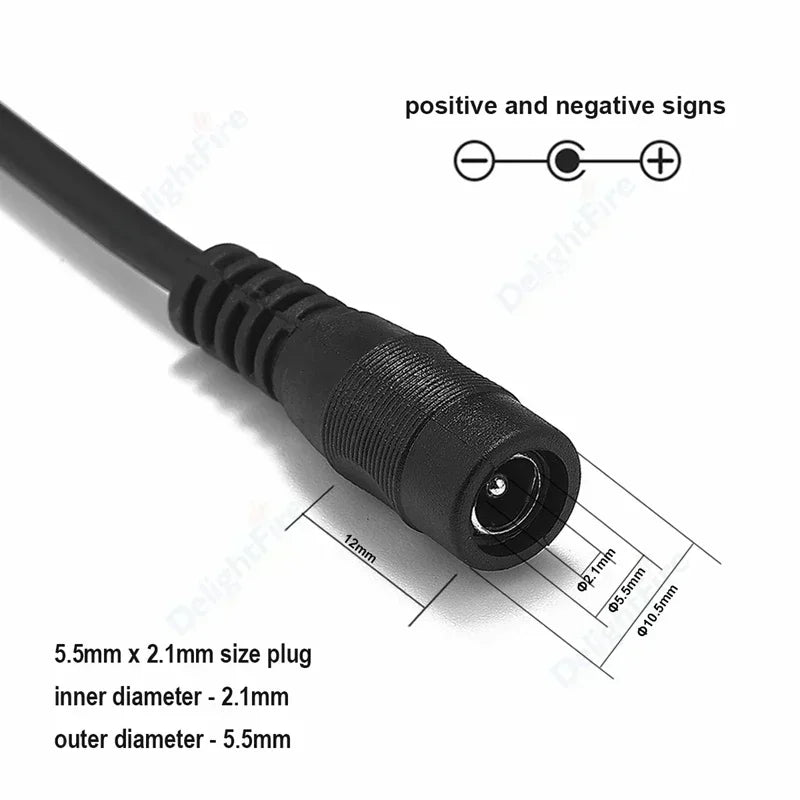

| Connector | Male and female barrel jacks, 5.5 mm OD x 2.1 mm ID (matched pair) |
| Polarity | Center positive (standard) |
| Conductor material | Tinned copper |

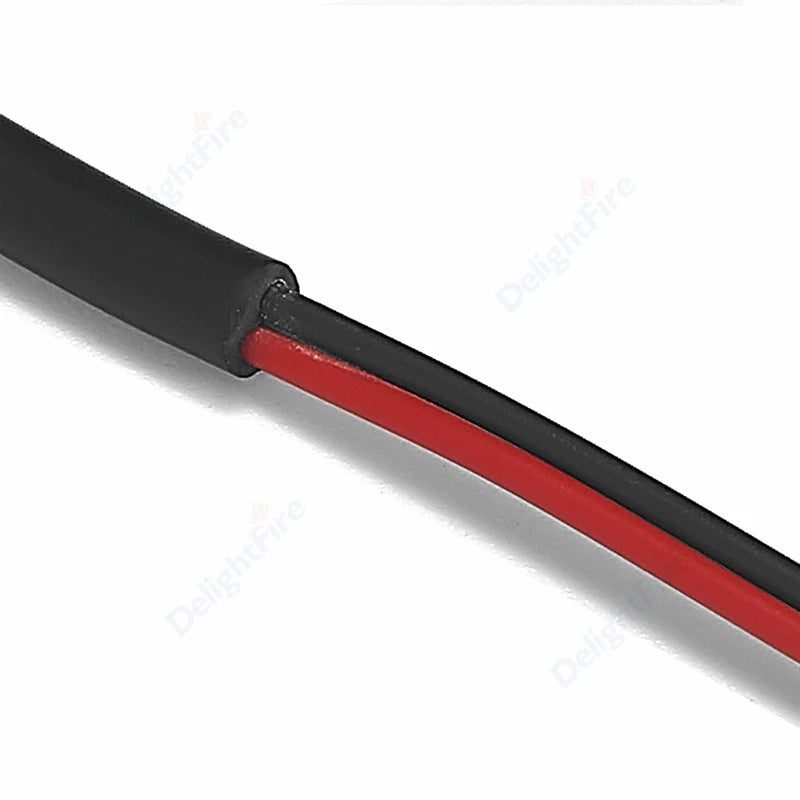

| Insulation | PVC, color-coded (red positive, black negative) |
| Jacket color | Black outer jacket |
| Operating temperature | -20 °C to +80 °C (-4 °F to +176 °F) |
| Operating humidity | 10% to 90% relative humidity, non-condensing |
| Compliance | RoHS compliant (lead-free) |
| Internal SKU | 54G-CBL-PGT-004 |
Technical data sourced from manufacturer documentation.
What's Included
- 1 x 20 AWG DC pigtail cable assembly (per selected variant)
Compatibility & Applications

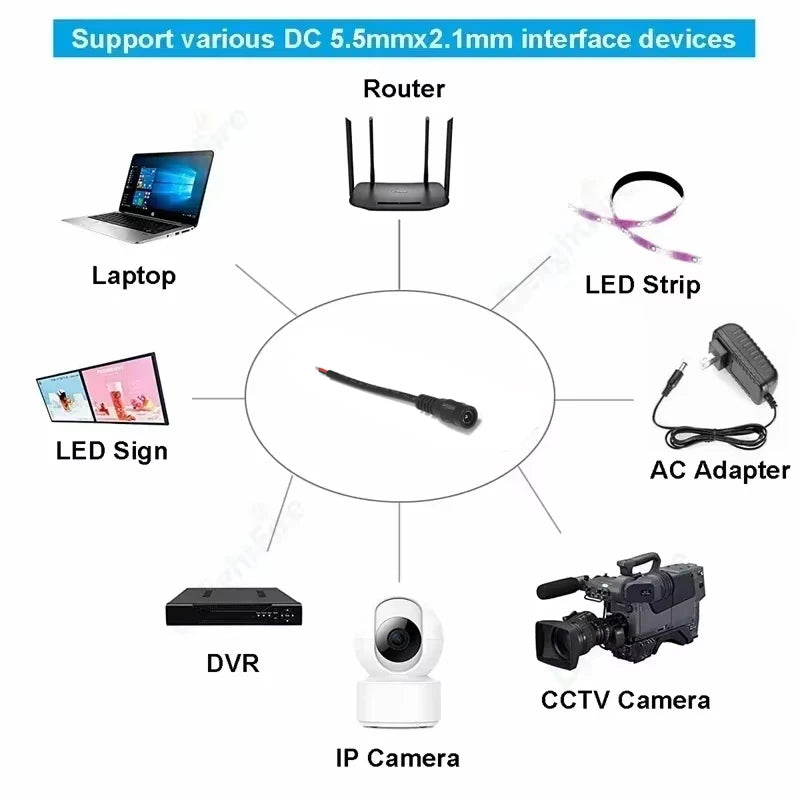

This cable is compatible with any device, adapter, or supply that uses a 5.5 x 2.1 mm center-positive DC barrel jack at 5 V or 12 V DC and that draws no more than 5 A continuous. Typical applications include:
- CCTV camera extension and repair
- LED lighting jumpers
- 12 V battery to load wiring
- Router and DVR power-jack replacement
- Bench-test power-jack adapters

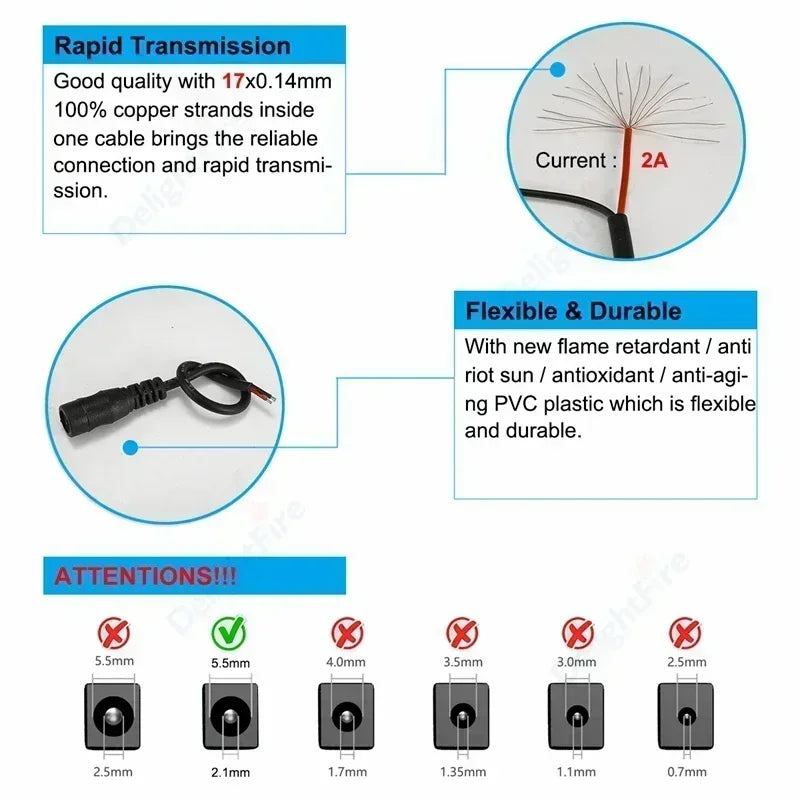

Not compatible with: 5.5 x 2.5 mm jacks (different inner diameter), center-negative devices (polarity reversal will damage the load), and applications requiring more than 5 A continuous current.
Why Trust Us
Operated for 5+ years across 35+ countries by a UK-incorporated company specializing in renewable energy and small-electronics components. Every order ships with tracked delivery, a 30-day return window, and a manufacturer-backed warranty against defects. Technical questions are answered by email at info@54energy.net. Last updated: May 2026.
Frequently Asked Questions
Is this cable compatible with my 5 V or 12 V adapter?
If your adapter or device uses a 5.5 mm outer / 2.1 mm inner DC barrel jack with center-positive polarity at 5 V or 12 V, this cable is a direct fit. The 5.5 x 2.1 mm form factor is the most common DC barrel-jack standard worldwide and is used by the majority of consumer routers, CCTV cameras, LED strip drivers, and small-appliance adapters.
What is the difference between 20 AWG and a heavier gauge for 12 V DC use?
20 AWG is rated for the 5 A continuous load on this cable with margin. A heavier gauge (lower AWG number, e.g. 18 AWG or 16 AWG) reduces voltage drop on long runs and allows higher current, but is overkill for typical 12 V loads under 5 amps over distances under 2 meters.
Can I cut this cable to a custom length?
Yes. The PVC jacket strips cleanly with a standard wire stripper, and the tinned copper conductor accepts solder, ferrules, or screw-terminal connections. After cutting, verify polarity with a multimeter before powering the load — the red conductor is positive and the black conductor is negative.
How fast does shipping take?
Orders are dispatched from regional fulfillment partners in North America, Europe, and Asia. Typical delivery is 5 to 15 business days depending on destination country, with tracked shipping included. Specific timelines per destination are listed in the Shipping Policy.
How does this pigtail wire compare to others in its category?
Within the DC pigtail-wire category, the meaningful comparison points are conductor gauge, jacket flexibility, and polarity-coded insulation. This product uses tinned copper at 20 AWG, color-coded PVC, and a standardized 5.5 x 2.1 mm matched male/female pair — the configuration that fits the largest installed base of consumer 5 V and 12 V devices and drives the lowest return rate within our small-electronics category.
