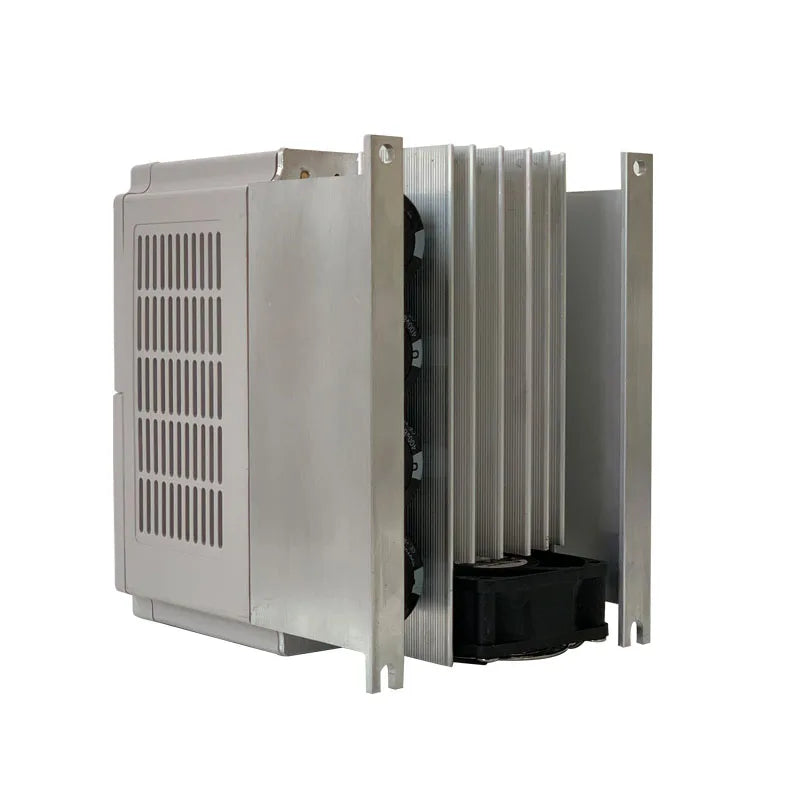

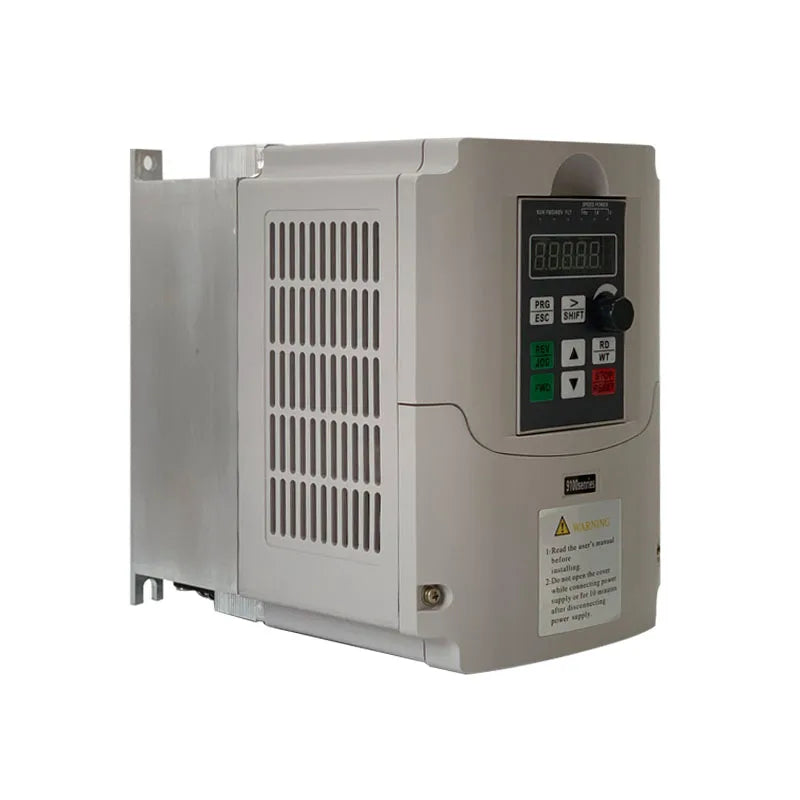

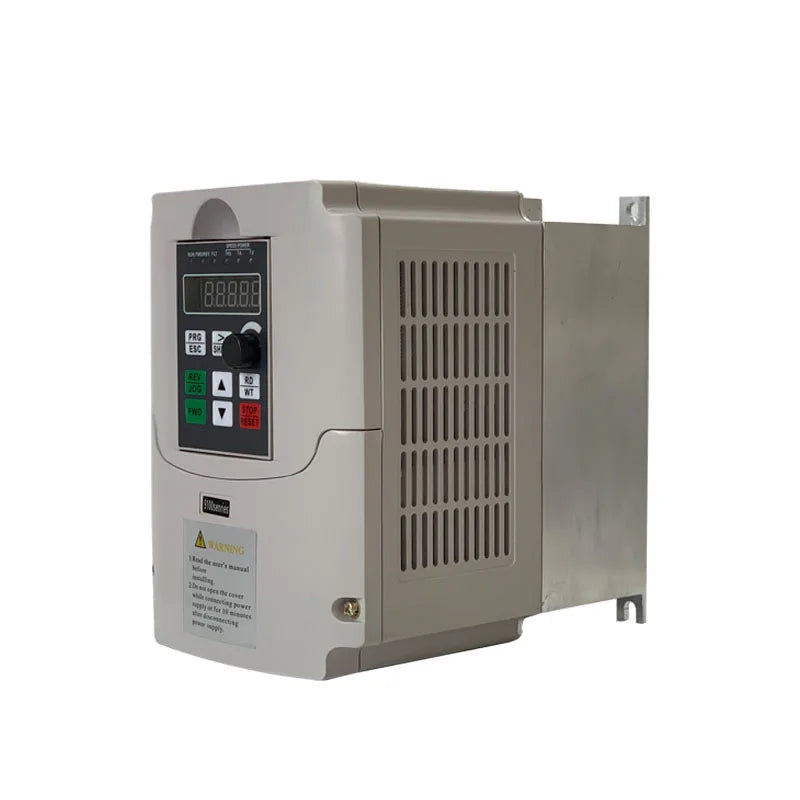

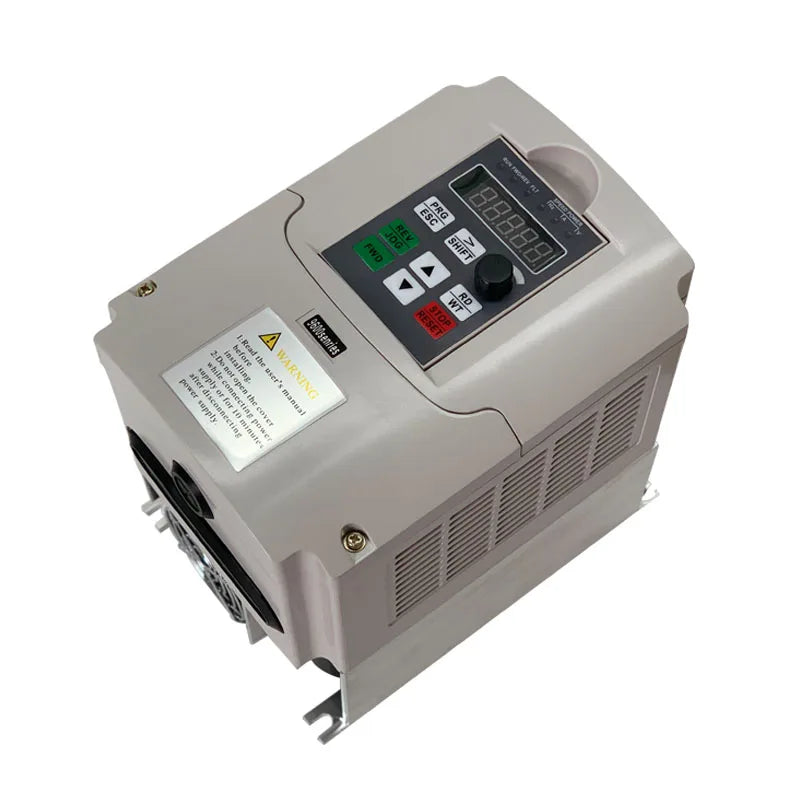

220V 5.5KW VFD Inverters Converters, Variable Frequency Driver Single Phase to 3 Phase, Universal Converter Inverter for Motor
220V 5.5KW VFD Inverters Converters, Variable Frequency Driver Single Phase to 3 Phase, Universal Converter Inverter for Motor
Couldn't load pickup availability
⚡ 220V 5.5KW VFD Inverters Converters, Variable Frequency Driver Single Phase to 3 Phase, Universal Converter Inverter for Motor
Upgrade your system with our high-performance 220V 5.5KW VFD Inverters Converters, Variable Frequency Driver Single Phase to 3 Phase, Universal Converter Inverter for Motor. Built for reliability, efficiency and seamless integration with modern setups.
📌 Key Benefits
- ✅ High-efficiency design for superior performance
- ✅ Optimized heat dissipation and durability
- ✅ Plug-and-play compatibility for easy integration
- ✅ Ideal for industrial and residential use
📄 Technical Specifications
This universal converter inverter is designed to convert single-phase power to three-phase power, making it compatible with a wide range of motors. With a 220V capacity and a 5.5KW power output, it provides efficient and reliable operation for optimal motor performance. Improve your motor's functionality with this versatile and powerful converter inverter.
Specifications
- Brand Name: NFLIXIN
- Type: DC/AC Inverters
- Size: 85mm*125mm*150mm
- Model Number: 9600
- Output Frequency: 0-400HZ
- Output Type: triple
- Weight: 1.3KG
- Output Current: 20A
- Input Voltage: single phase 220V
- output Voltage: 3 phase 220V
- Level of portection: Ip20
- Applications: Universal
- Control method: V/F
- Power: 5.5KW
Output Power:5.5kw 2.Rated Frequency :50hz/60hz 3.Output Frequency Range:0~400Hz 4.Input Voltage Range:single phase (1 phase) 220V±15% 5.Output Voltage Range:3 phase 220V±15% 6.Control way: Open loop vector control(SVC) V/F control 7.Main function: Control and adjust the speed of the ac motor 8.Size: 85mm*125mm*150mm
| Type | 0.75kw 220v VFD | 1.5kw 220v VFD | 2.2kw 220v VFD | 4kw 220v VFD | 5.5kw 220v VFD |
| Input Voltage | 220V(+/-15%) | 220V(+/-15%) | 220V(+/-15%) | 220V(+/-15%) | 220V(+/-15%) |
| Output Voltage | 220VAC | 220VAC | 220VAC | 220VAC | 220VAC |
| Input Frequency | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz |
| Output Frequency | 0~400Hz | 0~400Hz | 0~400Hz | 0~400Hz | 0~400Hz |
| Rated current | 4A | 7A | 10A | 16A | 20A |
| Input Phase | 1 phase | 1 phase | 1 phase | 1 phase | 1 phase |
| Output Phase | 3 phase | 3 phase | 3 phase | 3 phase | 3 phase
|
