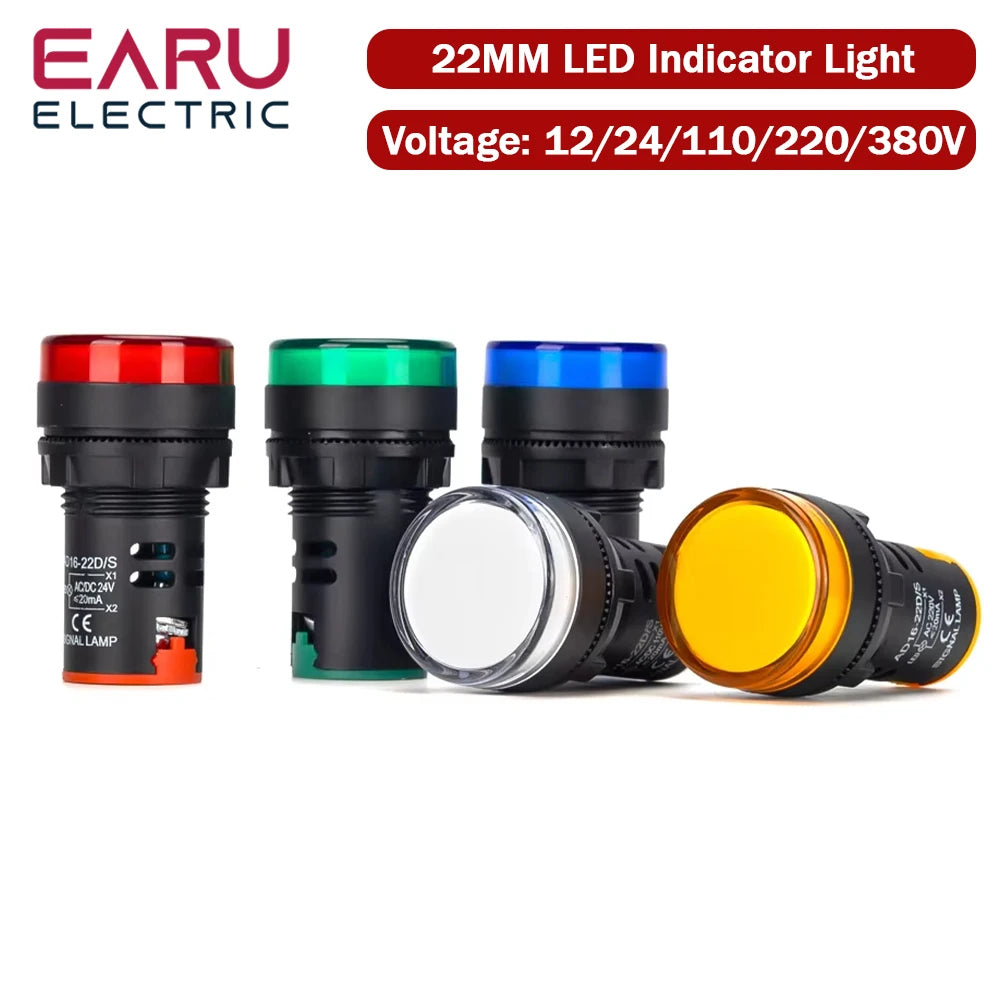

This is a fixed 22 mm panel-mount LED indicator lamp — the most common industrial cabinet panel size — in five colors and five voltages from 12 V DC up to 380 V AC three-phase. AD16-22DS standard form factor, sub-20 mA draw, CE-certified PC body, threaded back ring for solid panel mounting.
Product Description

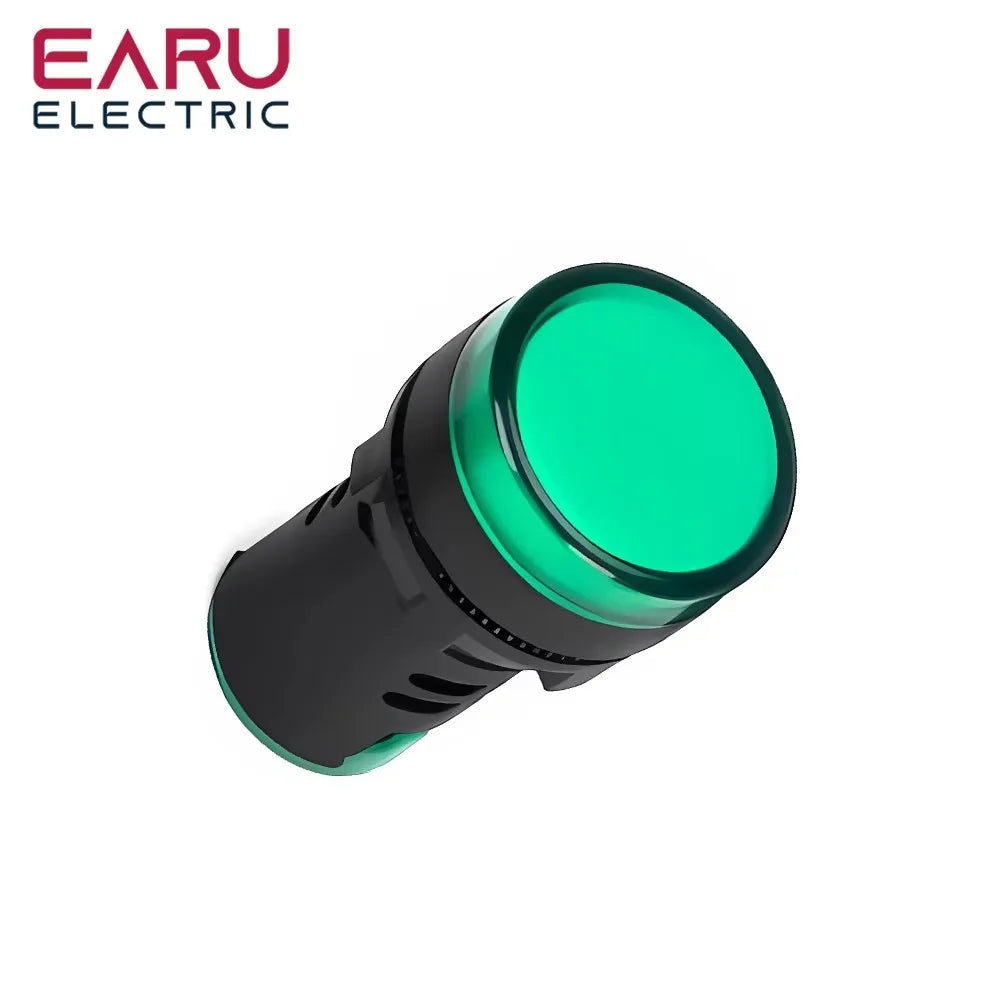

This is a panel-mount LED pilot indicator lamp with a fixed 22 mm mounting cutout, the dominant size in industrial control cabinets, machine tool panels, and electrical distribution boards. The 22 mm cutout standard is widely adopted across European and Asian industrial equipment, making this lamp a drop-in replacement or upgrade for thousands of installed devices that follow the AD16-22DS form factor.

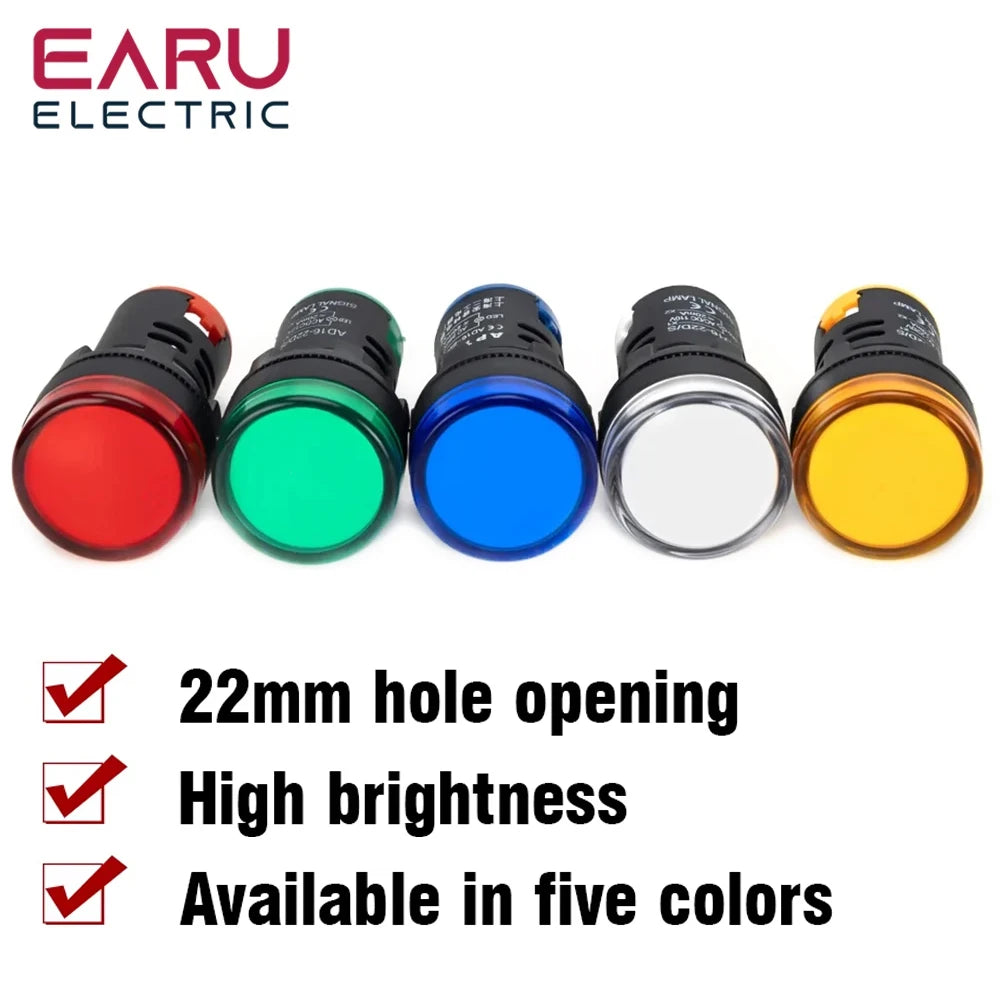

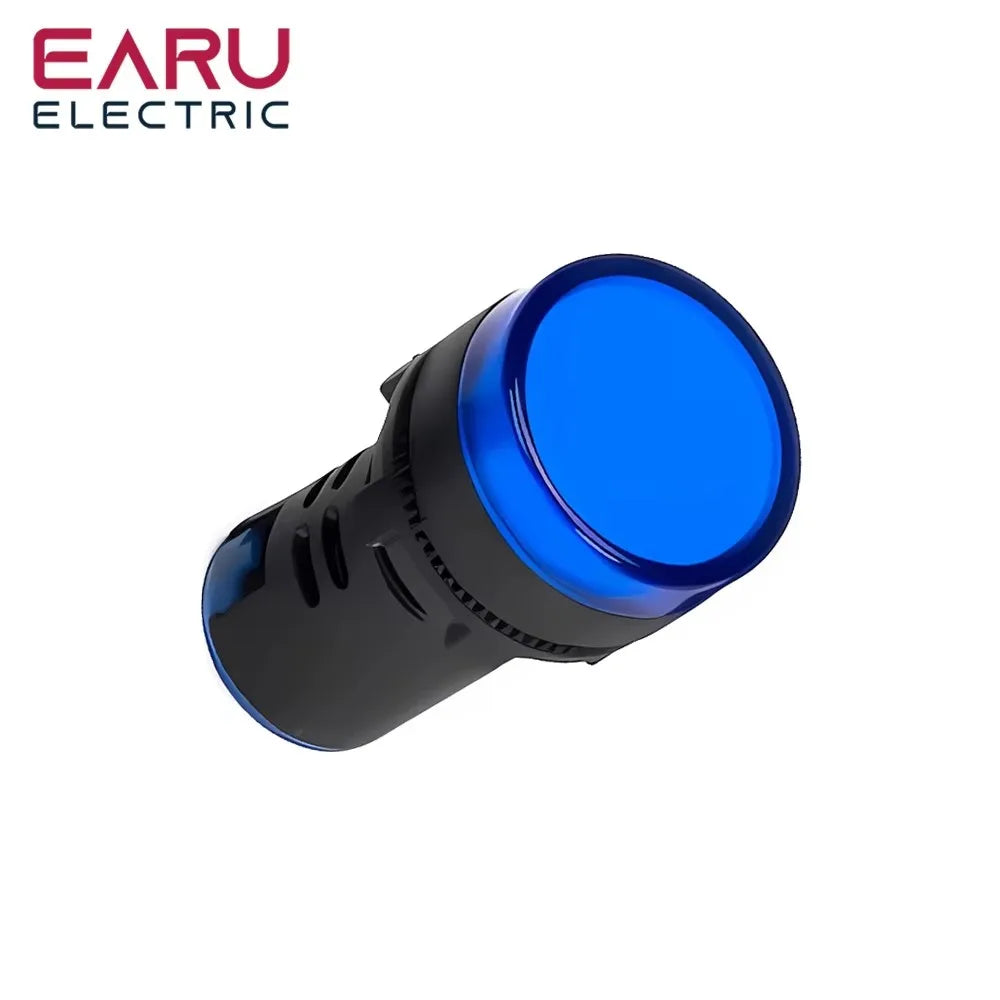

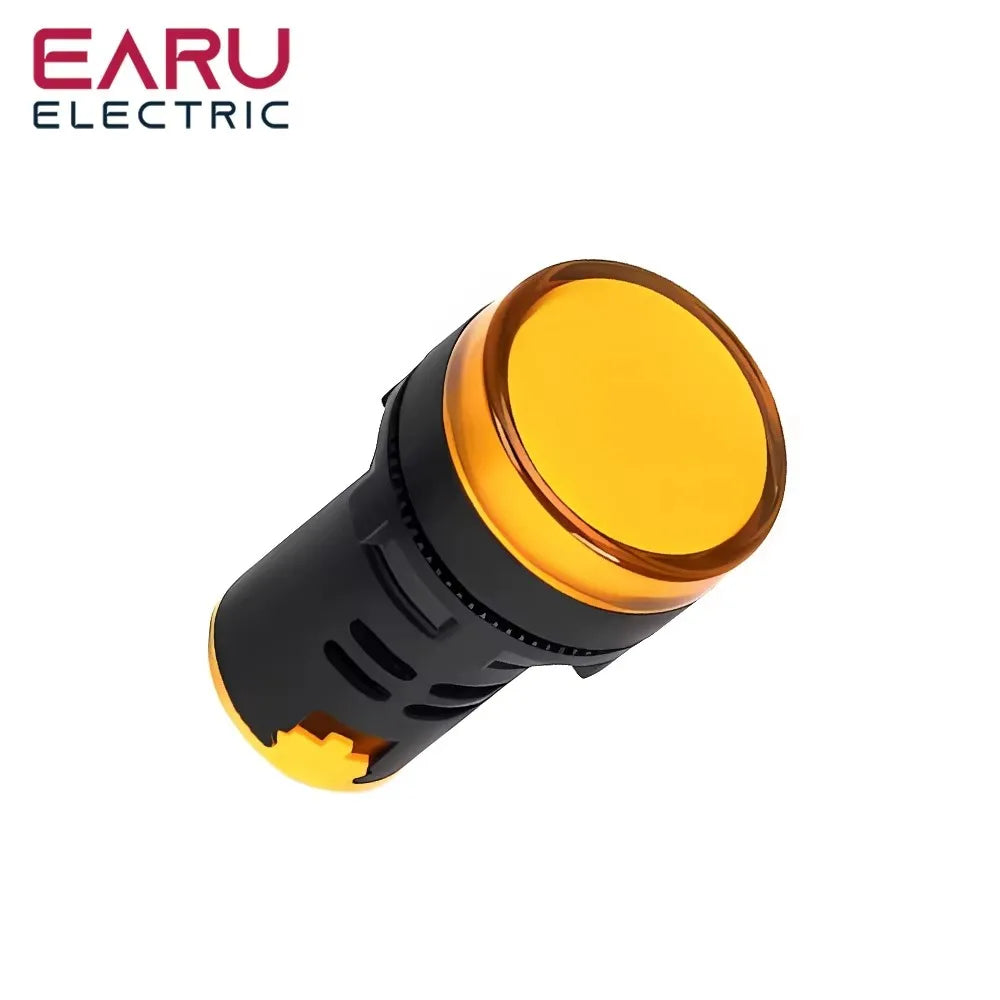

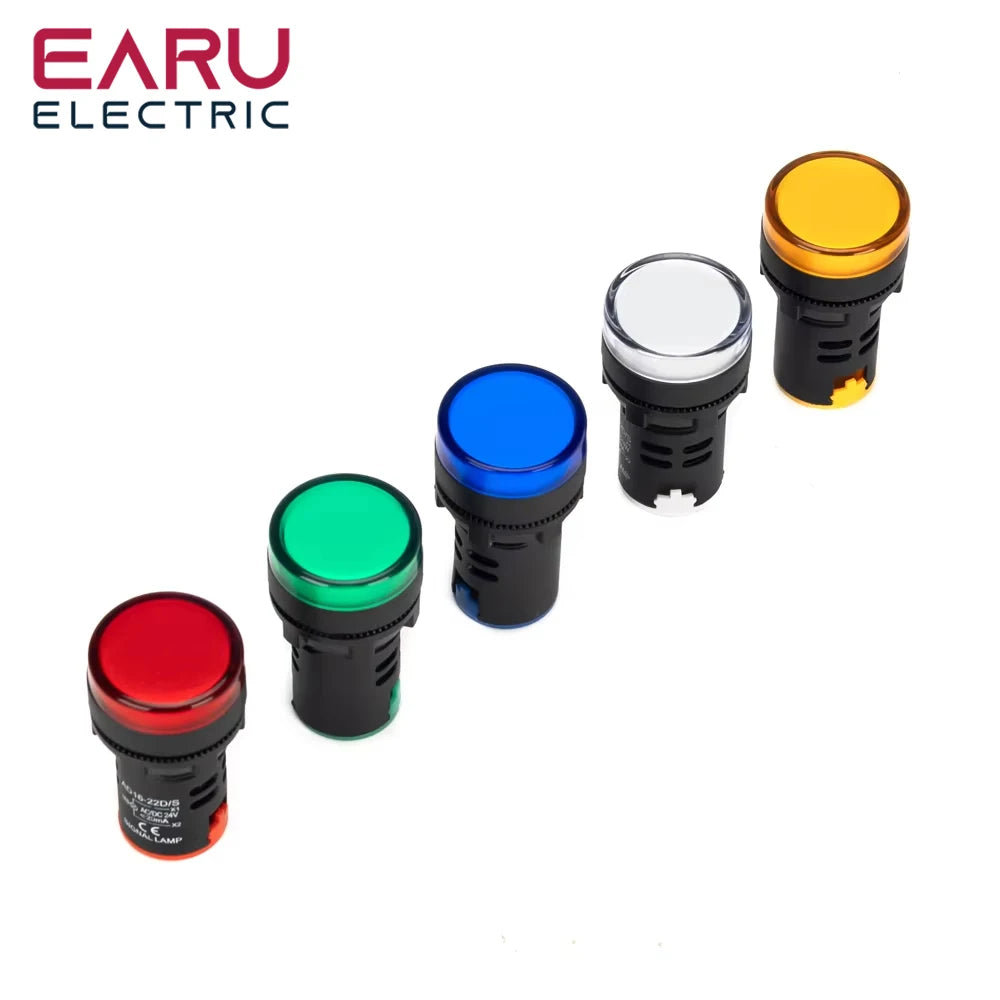

Five voltage variants (12 V DC, 24 V DC, 110 V AC, 220 V AC, 380 V AC) cover the full spectrum from low-voltage logic indication through three-phase mains; the 380 V variant is specifically intended for industrial three-phase power-on indication where many lower-voltage lamps would not survive. Five colors (red, green, blue, yellow, white) follow IEC 60073 standard convention so installations remain readable across operators and shifts.
Key Benefits
- Fixed 22 mm cutout matches industry-standard industrial cabinet panel size
- 380 V AC variant covers three-phase mains indication — most lamp categories stop at 220 V
- AD16-22DS form factor is interchangeable with the largest installed base of pilot lamps

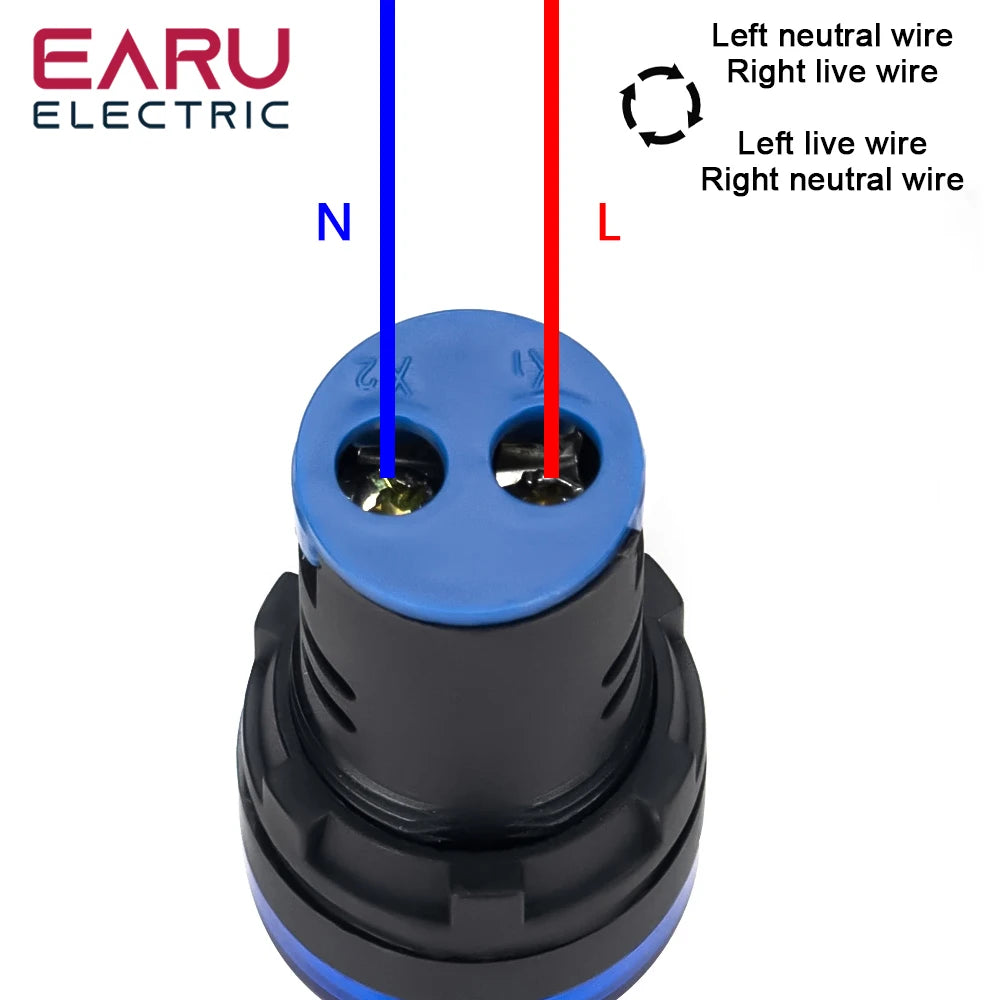

- Built-in driver circuit — wire directly to selected voltage rail without external resistor
- Sub-20 mA per lamp lets large multi-lamp panels run on small auxiliary supplies
Key Features

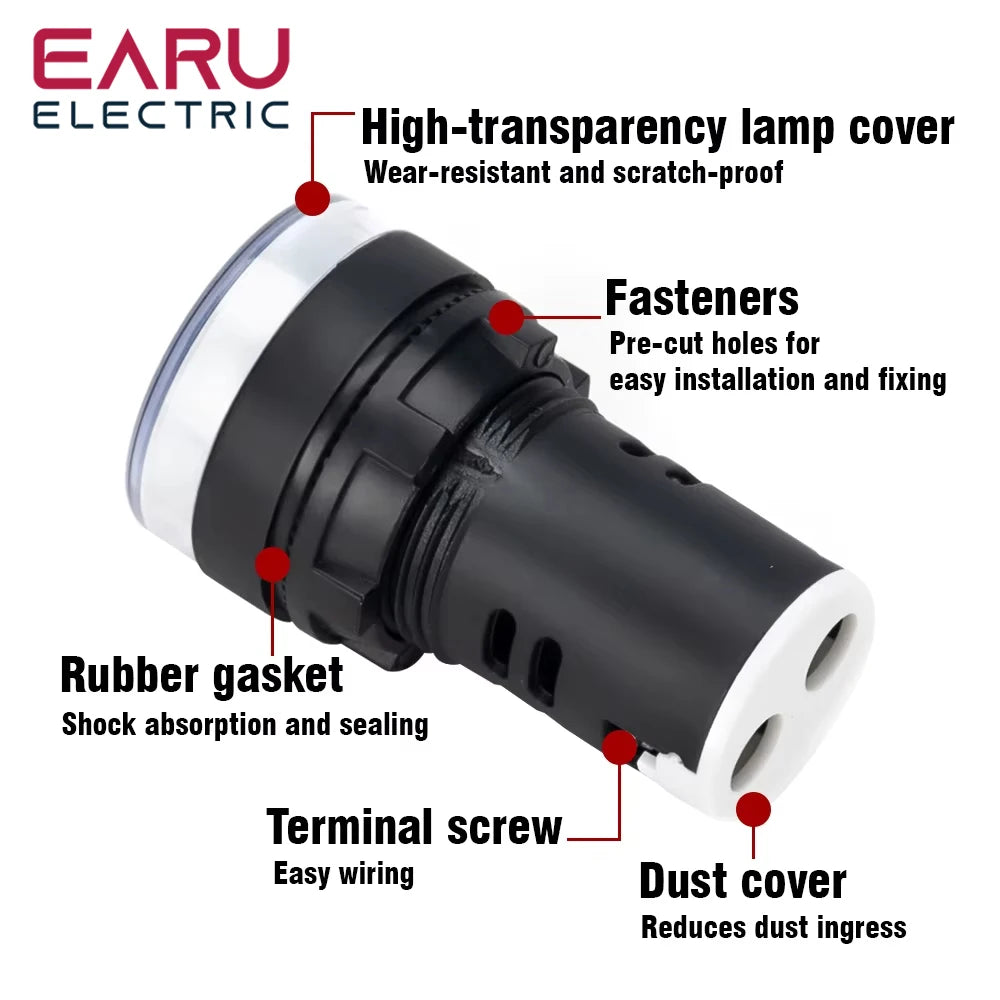

The defining feature is the fixed 22 mm cutout combined with the 380 V three-phase variant availability. 22 mm is the standard cutout for industrial control cabinets across most of Europe, Latin America, and Asia, so this lamp lands as a direct replacement on existing machinery without panel modification. The 380 V variant matters because three-phase industrial systems frequently need a "line live" indicator that survives full mains exposure — cheaper indicator lamps that top out at 220 V will fail on 380 V three-phase between phases.
Technical Specifications
The defining parameters are the fixed 22 mm panel cutout, the five-voltage variant matrix including 380 V AC, and the AD16-22DS form factor. Full specs below.

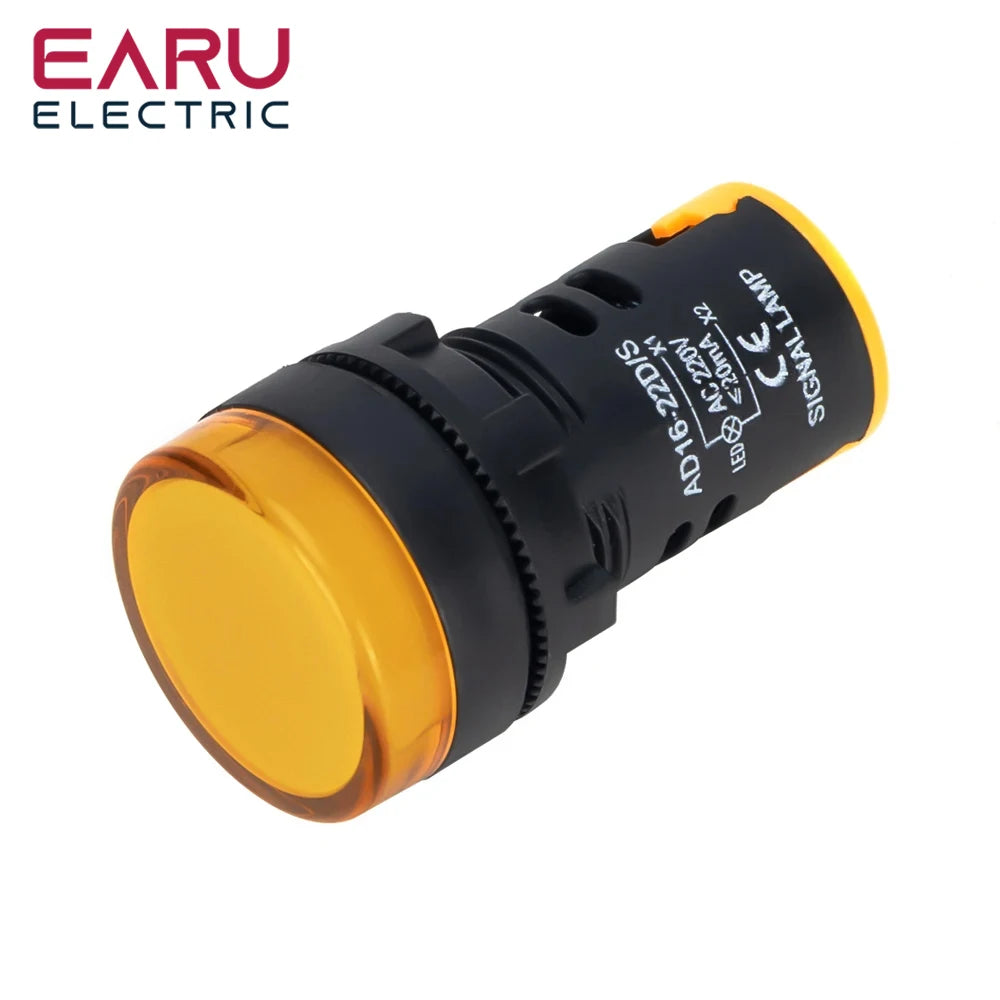

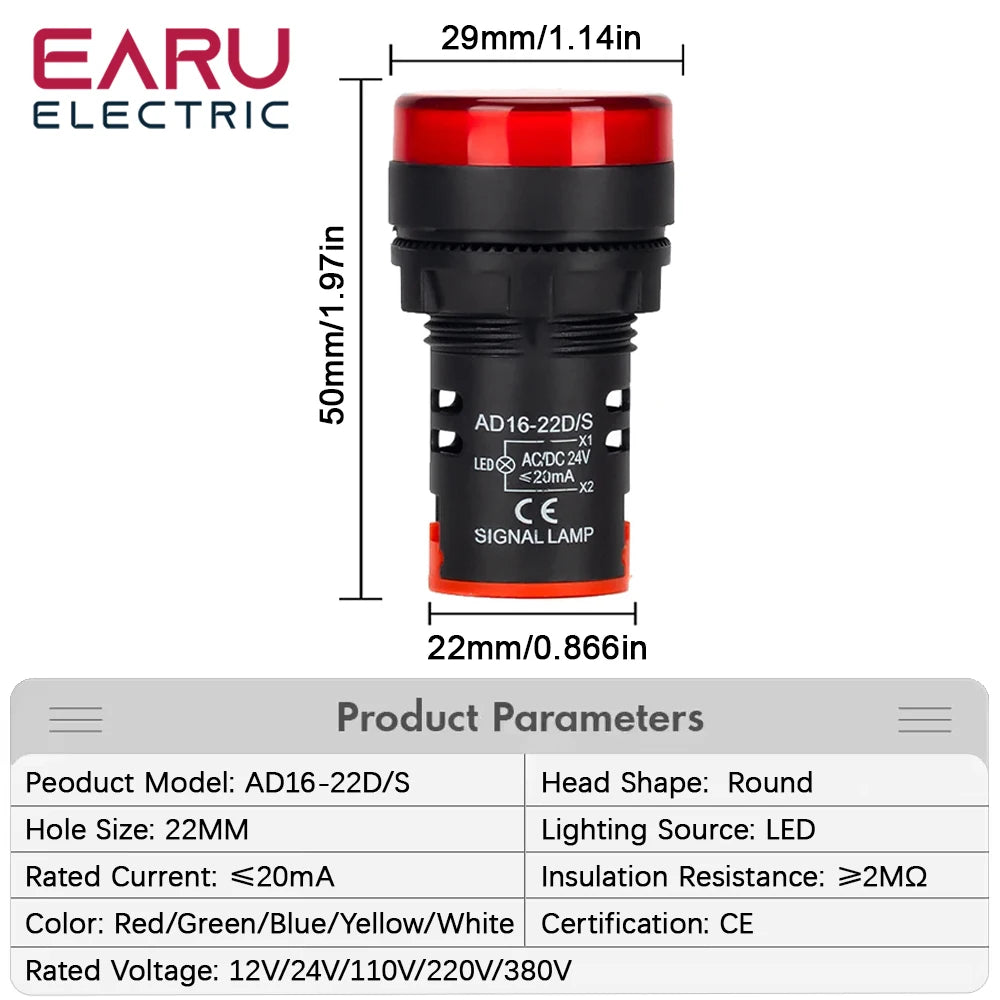

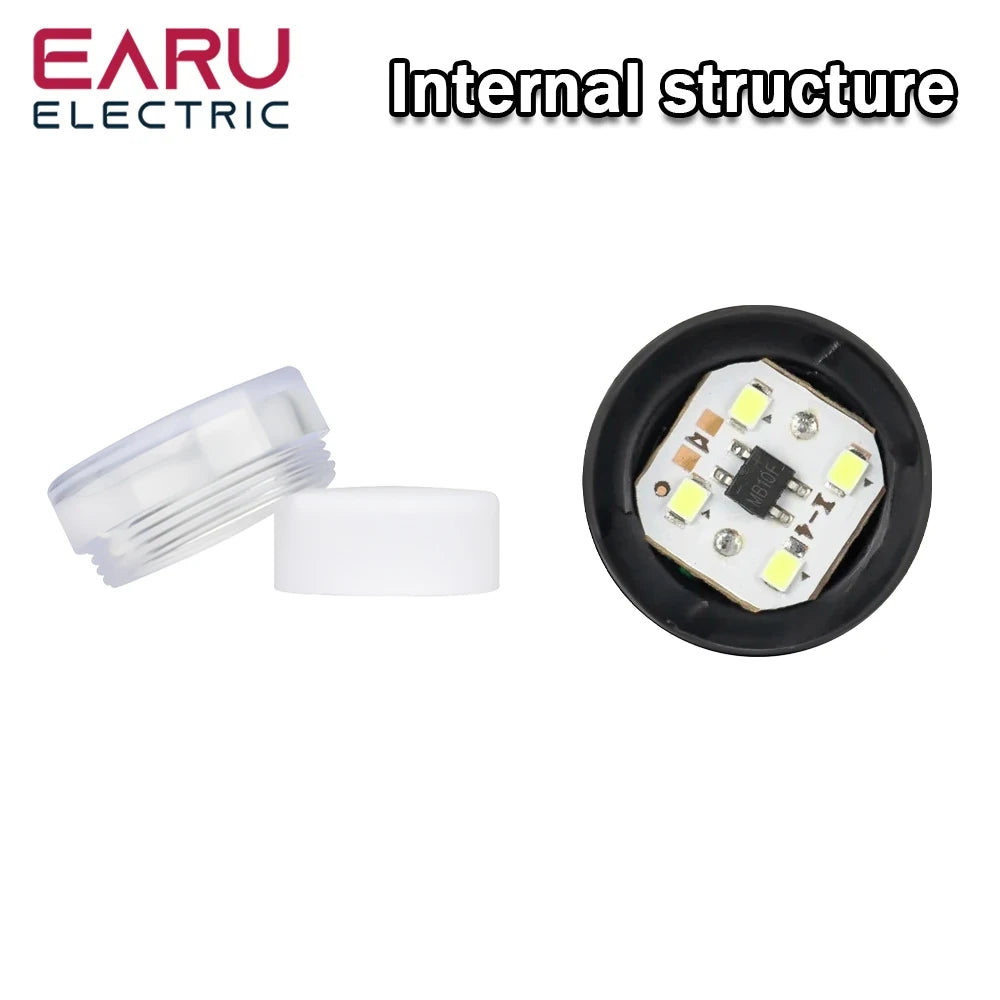

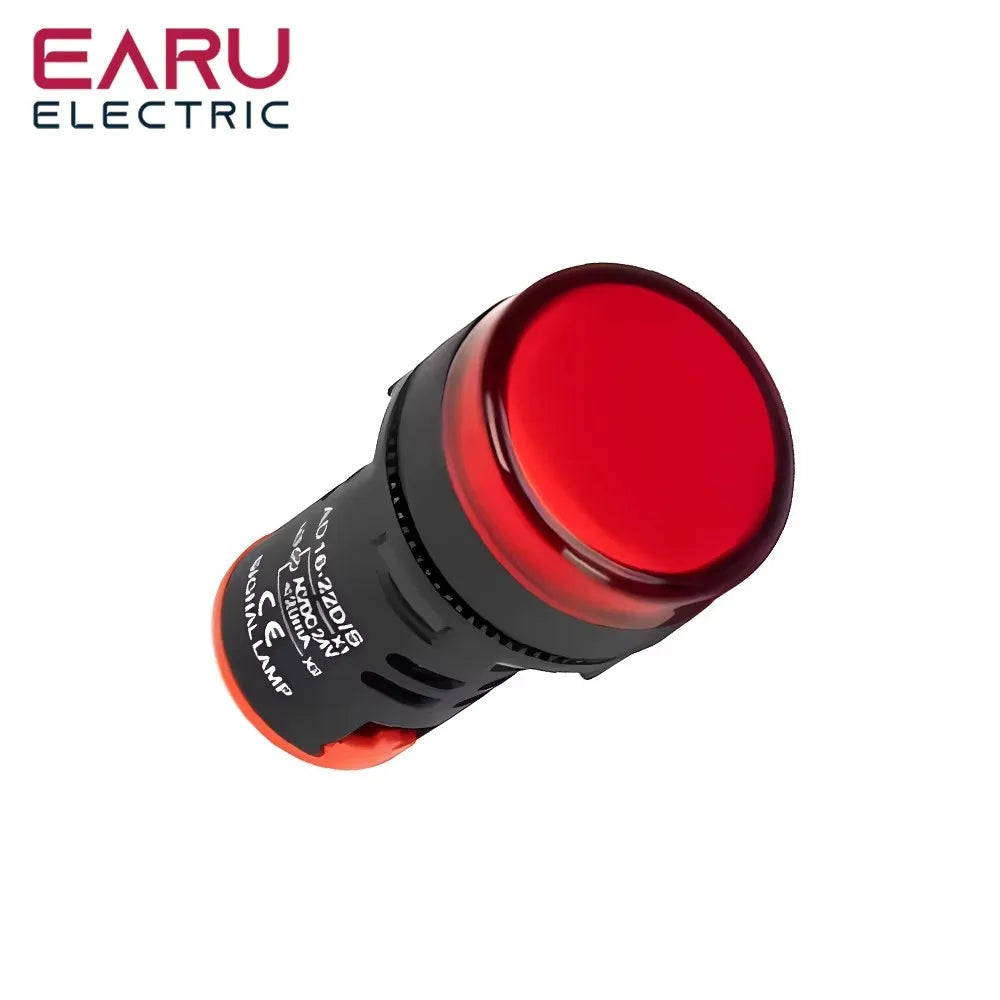

| Parameter | Value |
|---|---|
| Panel cutout diameter | 22 mm (fixed, not adjustable) |
| Operating voltage | 12 V DC, 24 V DC, 110 V AC, 220 V AC, or 380 V AC three-phase |
| LED color | Red, green, blue, yellow, or white (selectable per variant) |
| Operating current | ≤ 20 mA |
| Light source | Solid-state LED with integrated driver |
| Body material | PC (polycarbonate) |
| Mounting type | Panel-mount with threaded back ring |
| Form factor | AD16-22DS standard |
| Certification | CE |
| Internal SKU | 54G-IND-LED-003 |
Technical data sourced from manufacturer documentation.
What's Included
- 1 x 22 mm panel-mount LED indicator lamp (per selected color and voltage variant)
Compatibility & Applications

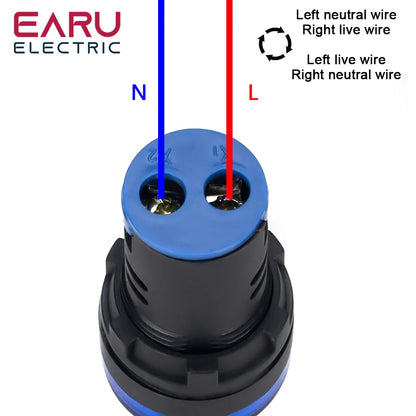

This indicator fits any panel or enclosure with a 22 mm circular cutout, paired with a power source matching the selected variant voltage. Typical applications include:
- Industrial control cabinets and machine tool panels
- Electrical distribution boards and breaker panels
- Three-phase power line indicators (380 V variant)
- Process automation enclosures and PLC interface panels
- Replacement lamps for existing AD16-22DS installations
Not compatible with: 16 mm or 30 mm panel cutouts, voltages outside the 12/24/110/220/380 V supported set, fully submerged use, or applications requiring an audible alarm (use the buzzer indicator variant for that).
