24V Battery Voltage Equalizer Balancer | 2×12V Gel AGM LiFePO4 | CE Certified

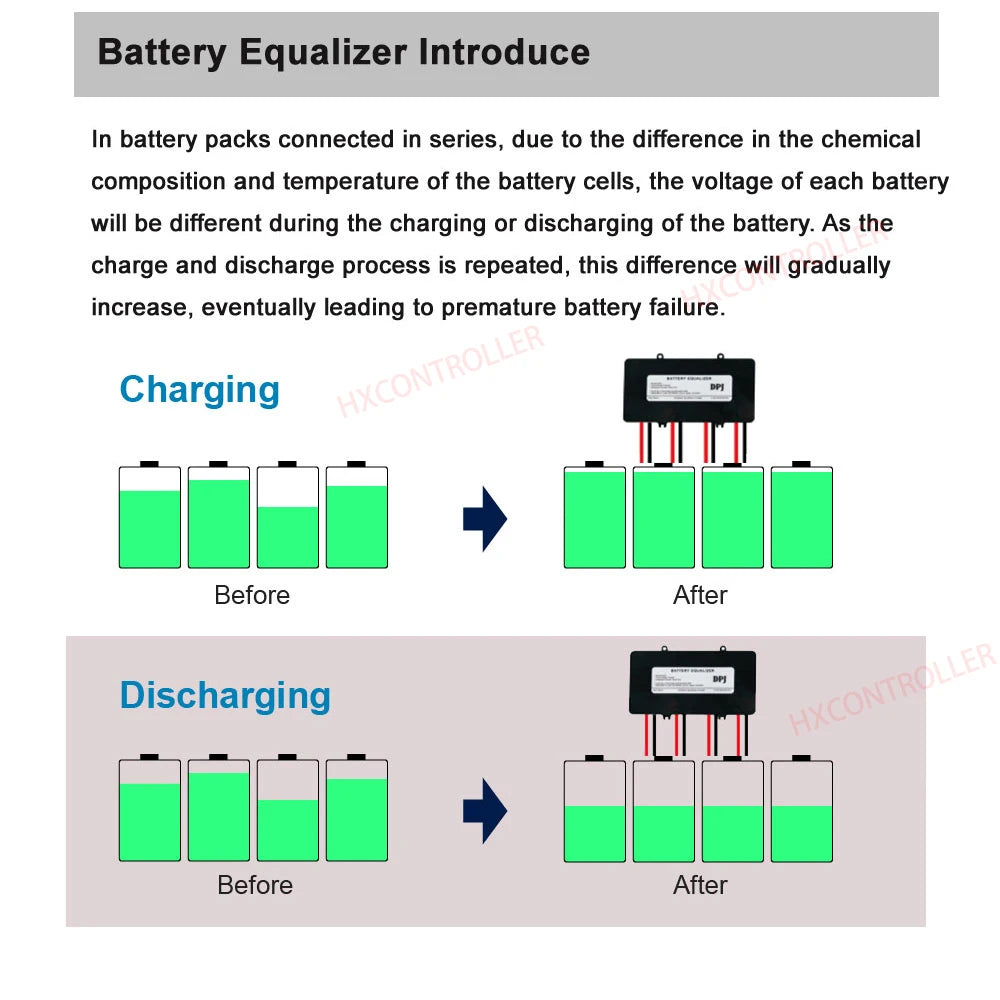

The 24V Battery Voltage Equalizer Balancer actively monitors and balances voltage between two 12V batteries connected in series — preventing capacity loss, overcharging, and premature failure. Compatible with Gel, AGM, and LiFePO4 chemistries. CE certified. Plug-and-play installation.

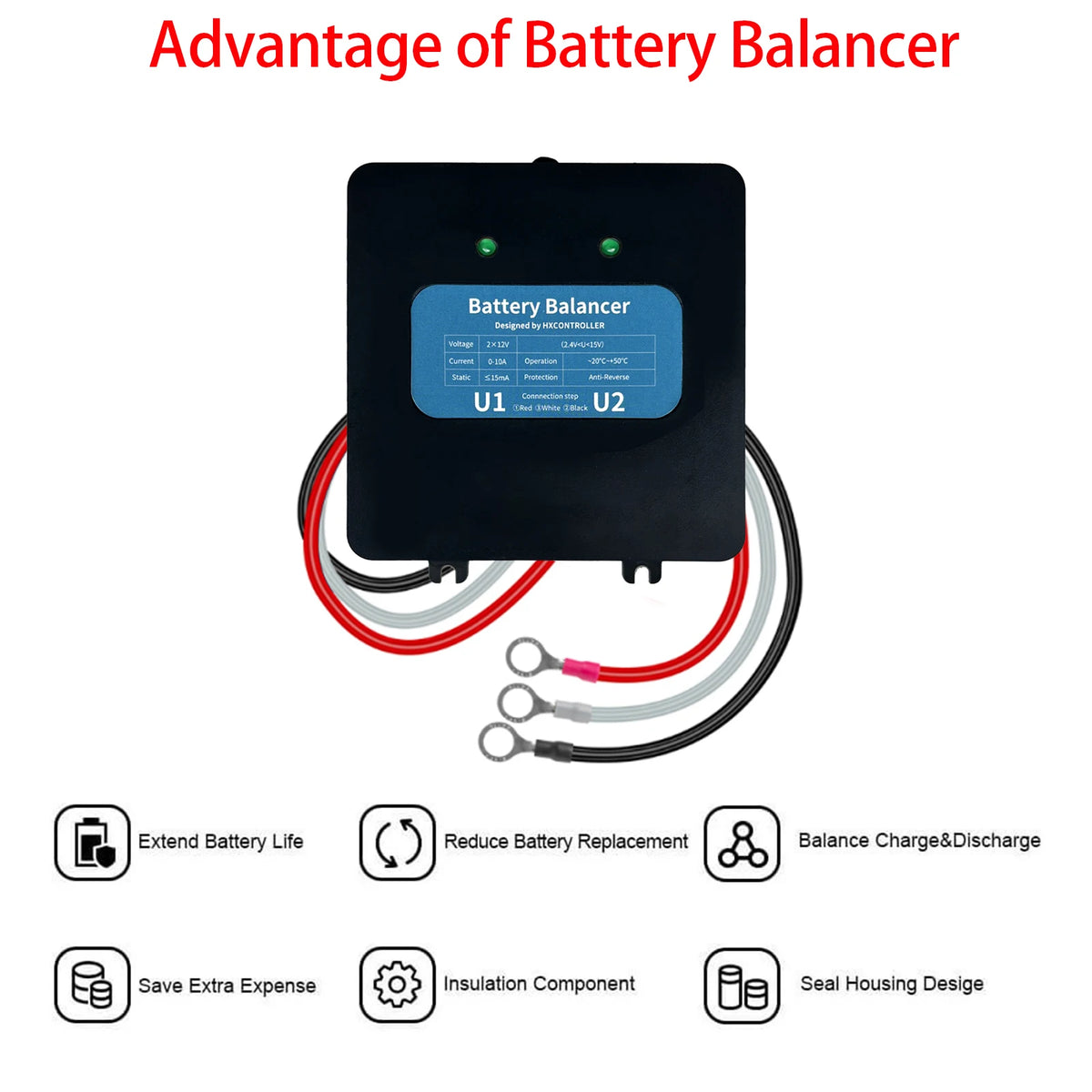

Key Benefits
- Automatically balances voltage when a ≥20mV difference is detected
- Shunts current from the higher-voltage battery to the lower-voltage battery
- Extends battery lifespan and improves overall system efficiency
- Reverse polarity protection — safe for DIY installation
- Scalable: use multiple units for 36V, 48V, 60V, or 72V systems
Technical Specifications
| Parameter | Value |
|---|---|
| System Voltage | 24V (2×12V in series) |
| Maximum Current | 10A |
| Compatible Chemistries | Gel, AGM, Lead Acid, LiFePO4 |
| Activation Threshold | ≥20mV voltage difference |

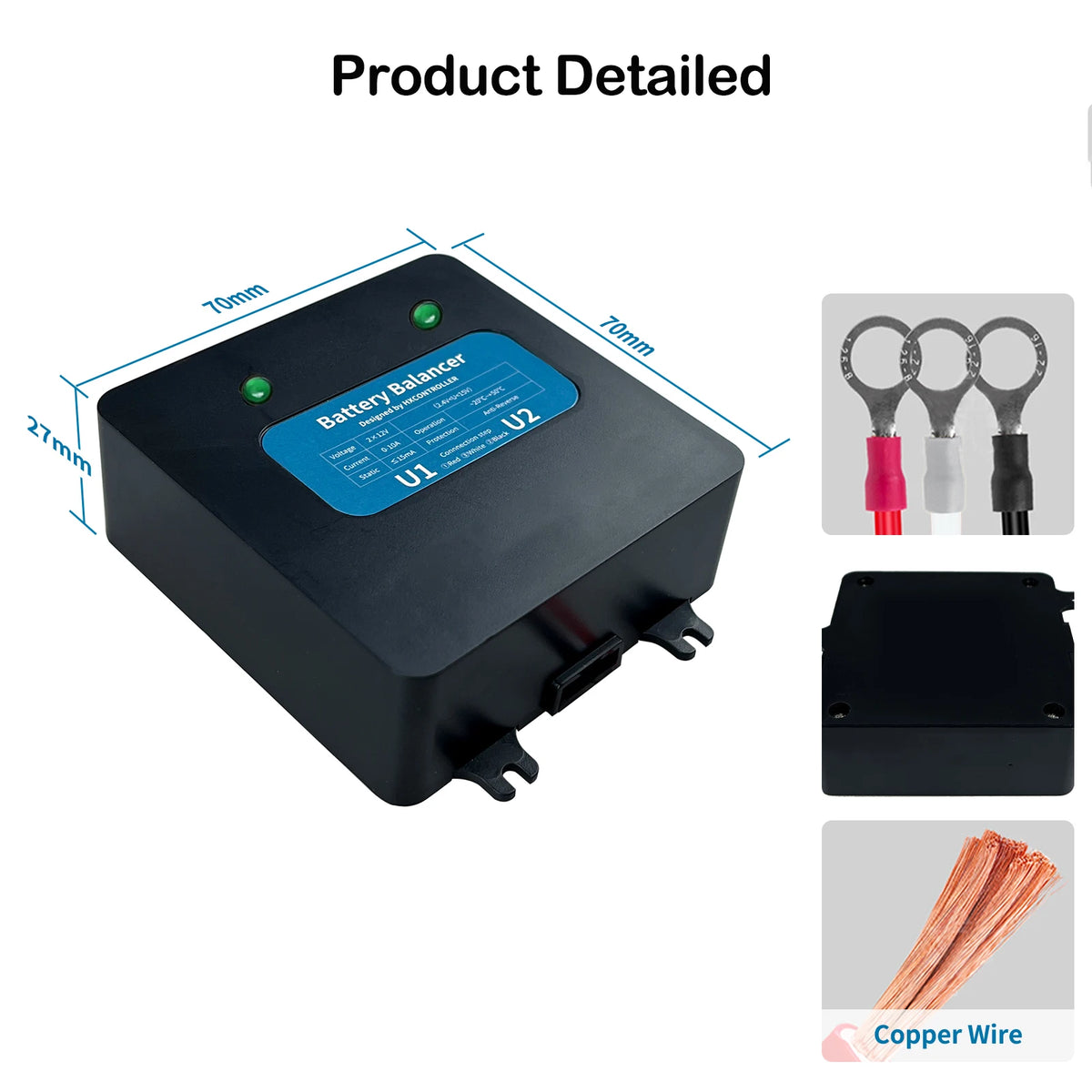

| Dimensions | 75 × 75 × 27 mm |
| Protection | Reverse Polarity |
| Brand | HXCONTROLLER |
| Certification | CE |
| Optional Feature | Voltage display (model variant) |

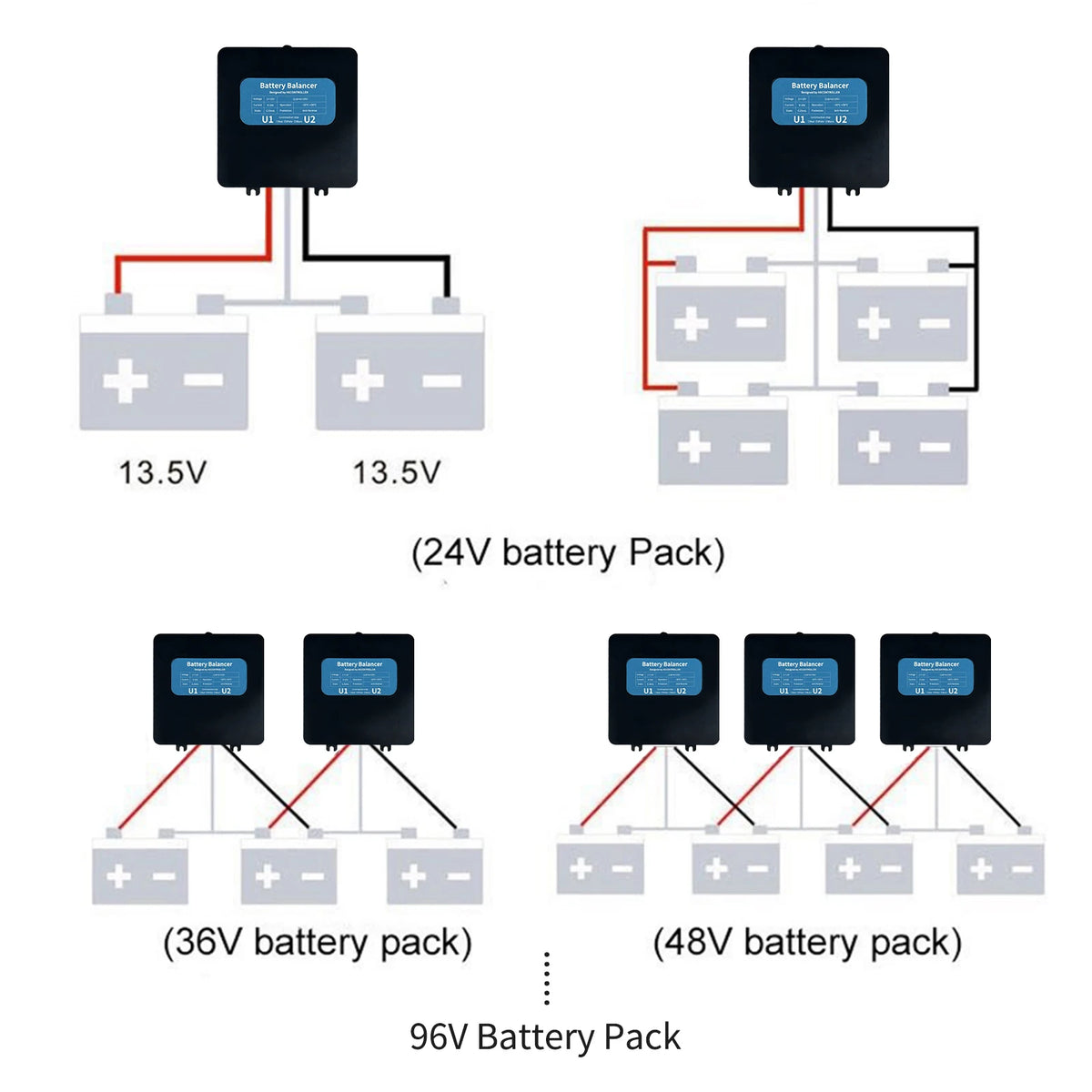

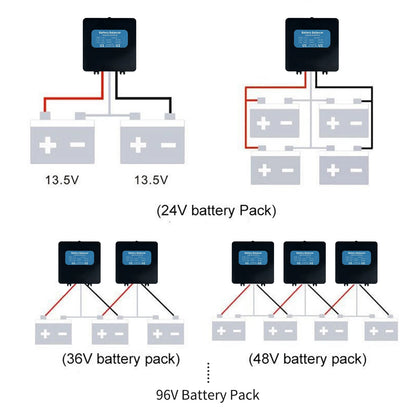

Scalability Guide
| System Voltage | Units Required |
|---|---|
| 24V | 1 unit |
| 36V | 2 units |
| 48V | 3 units |
| 60V | 4 units |
| 72V | 5 units |
Frequently Asked Questions
Is this compatible with LiFePO4 batteries?
Yes. The equalizer is compatible with Gel, AGM, standard Lead Acid, and LiFePO4 batteries in a 24V (2×12V series) configuration.
Can I use this in a 48V solar system?
Yes. For a 48V system (4×12V in series), you need 3 units — one between each pair of batteries.
Does it work while the batteries are charging?
Yes. The equalizer operates continuously during both charging and discharging cycles, maintaining balance at all times.
What is the delivery time?
We ship worldwide. Estimated delivery is 5–15 business days depending on your location.
What payment methods are accepted?
We accept credit card, debit card, and Apple Pay via Stripe — all processed securely on our website.
