2500W Split phase Pure Sine Wave Inverter 24V/36V/48V/72V/96 DC to 110/220V,120/240V AC Converter Solar Panel Power Bank Battery

2500W Split phase Pure Sine Wave Inverter 24V/36V/48V/72V/96 DC to 110/220V,120/240V AC Converter Solar Panel Power Bank Battery

Regular price $923.82 USD
Regular price $0.00 USD Sale price $923.82 USD
Sale Sold out
Shipping calculated at checkout.
Socket Type
Input Voltage
Output Voltage

SPECIFICATIONS:

  • Type: DC/AC Inverters
  • Size: 38*25*13.5CM
  • Output Frequency: 50HZ or 60HZ
  • Output Type: DUAL
  • is_customized: Yes
  • Output Current: depends on the voltage
  • Output Power: 2500 Watts
  • Weight: 7KGS
  • Certification: CE
  • Certification: FCC
  • Inverter Type: Off Grid DC to AC Split Phase Inverters Converters Transformer
  • Efficiency: >95%
  • Color: Black
  • Socket Type: Full Type
  • Packing Type: Carton Packing
  • Shell Type: Iron Shell
  • Output Voltage: 110V/220V, 120V/240V
  • Input Voltage: 24V or 36V or 48V or 60V or 72V or 96V or 110V
  • Input Voltage Range: 21-30VDC or 30V-45VDC or 42-55VDC or 55V-75VDC or 60V-90VDC or 85V-120VDC or 100-130VDC
  • Energy Type: Solar Power, Battery, Car Power,Wind Power

CE/EMC Certified, High Efficiency Full Power 4000 Peak Power 2000W Off Grid Pure Sine Wave Solar Power Split-phase Inverters Converters DC TO AC Voltage Transformer LED Display Iron Shell With Two Output Voltages


About us:

-Our company is the leading and professional manufacturer for 150w to 8000w DC TO AC OFF GRID PURE SINE WAVE INVERTER. Our professional technical department, will support the best technical service and after-sale technical service.

-Our principle is “quality first, customer priority, service best, trade honest”.

-With the high quality, favorable fame, excellent service, our power inverters are sold all over the world. We have many loyal customer in the Europe, America, Asia, etc.

-All inverters are stricktly inspected before leaving factory, Reliable Company Guarantees that each inverter is in its best operating condition.


About avantage of our inverter:

1.High quality transformer

As the core components, transfer the DC power to AC power, we use the high frequency transformer, ensure the stable and full AC output, no failure.

2.Imported capacitor

Adapted the imported capacitor, large electricity, better performance, longer lifetime, safer usage.

3.True copper inductance

High quality true copper inductance, filter the wave form, ensure the true pure sine wave AC output, safeguard your equipment.

4.EMC tested

No electromagnetic interference to your equipment, such as no noise for TV, FM radio, Audio.

5.Radiating flange

With the big radiating flange, better cooling performance, ensure the best inverter working condition.

6.Big mosfet

All big mosfet, larger load capacity, stable the inverter performance, supply the continuous AC output.

7.Earth line connection

Earthe connection for both PCB board and output, more safe for the load and the usage.

8.PCB thickness

The PCB thickness of 2.00mm, thicker than the most inverters on the market, allow the stronger current floating on the circuit, increase the load capacity.

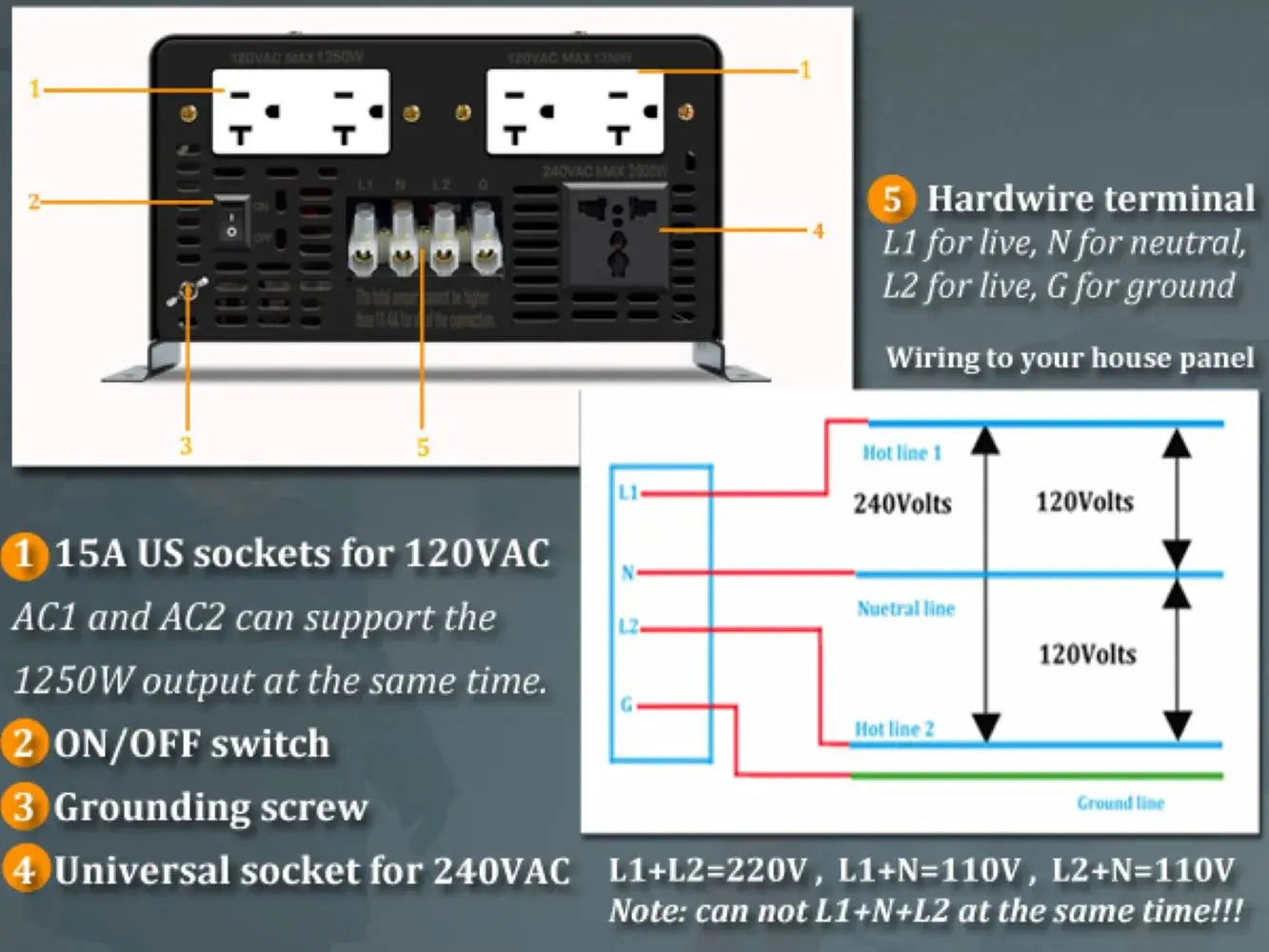

9.Split-phase inverter with two output voltages, suitable for different voltage devices



Applications of Our Customers:


Product Detail Parameters

DC Voltage

24V or 36V or 48V or 60V or 72V or 96V or 110V

Voltage Range

21-30VDC or 30V-45VDC or 42-55VDC or 55V-75VDC or 60V-90VDC or 85V-120VDC or 100-130VDC

NO Load Current Draw

<1A

Efficiency

>90%

DC Connector

Cables With Clips or Car Adaptor

AC Voltage

110V/220V AC, 120V/240VAC

Continuous Power

2000W

Surge Power

40000W

Waveform

Pure Sine Wave

Frequency

50±2Hz/60±2Hz

AC Regulation

3%

Low Voltage Alarm

20.5DC±1V or 32.5VDC±1V or 44.5VDC±1V or 55.5VDC±1V or 68VDC±1V or 92VDC±1V or 105VDC±1V

Low Voltage Shut Down

19.5DC±1V or 31VDC±1V or 42VDC±1V or 55VDC±1V or 60VDC±1V or 84VDC±1V or 100VDC±1V

Over Load

Shut Off Output

Over Voltage Shut Down

30.5V or 45.5V or 55.5V or 75.5V or 90.5V or 110.5V or 120.5V

Over Thermal

Shut Off Output Automatically

Fuses

Short Circuit

Working Temperature

Between -10centi and +50centi

Working Humidity

20%~90%RH non-condensing

Storage Temperature

Between -30centi and +70centi

Start

Soft Start

Cooling Ways

Cooling Fan

Total Harmonic Distortion THD

<5%

Machine Size(mm)

380*250*135

Packing Size(mm)

465*325*212

Net Weight(kgs)

7KG

Gross Weight(kgs)

10KG

Packing Type

Carton Packing



Feartures:

  1. Pure Sine Wave, as good as the grid power

  2. Full Power

  3. Core Technology, German  Design

  4. Most Advanced Program in Software

  5. Complete Protection  Non Defect Rate,

  6. Better EMC - Electro Magnetic Compatibility,

  7. No Noise for TV or Stereo Sound

  8. SMT- Surface Mounting Technology

  9. All Big Imported Mosfet,Strong Driving Capacity

  10. PCB Thickness :2.00m

  11. LED Display

  12. Compact Design, Less Weight, Full Power,

  13. Single Layer Design, Easy to Repair if any.

  14. Earth Connection for Both Inverter and PCB,

  15. Low No Load Current Draw

  16. Durable quality with 10 years usage,

  17. Alarm and LED Indication Light for error warning.New inevrter with LED display, let you monitor the inverter input voltage and output voltage in time. With this function, you will know about the inverter condition more clearly.

  18. Sufficient Heat Radiation

  19. More Vent Holes on the plates and the bottom for heat radiation

  20. Popular Metal Black Design

  21. Big Current Connector,

  22. All kinds of socket are available

  23. Strong Wiring Row on AC End,

  24. Best quality ever in the market

  25. Factory Price.

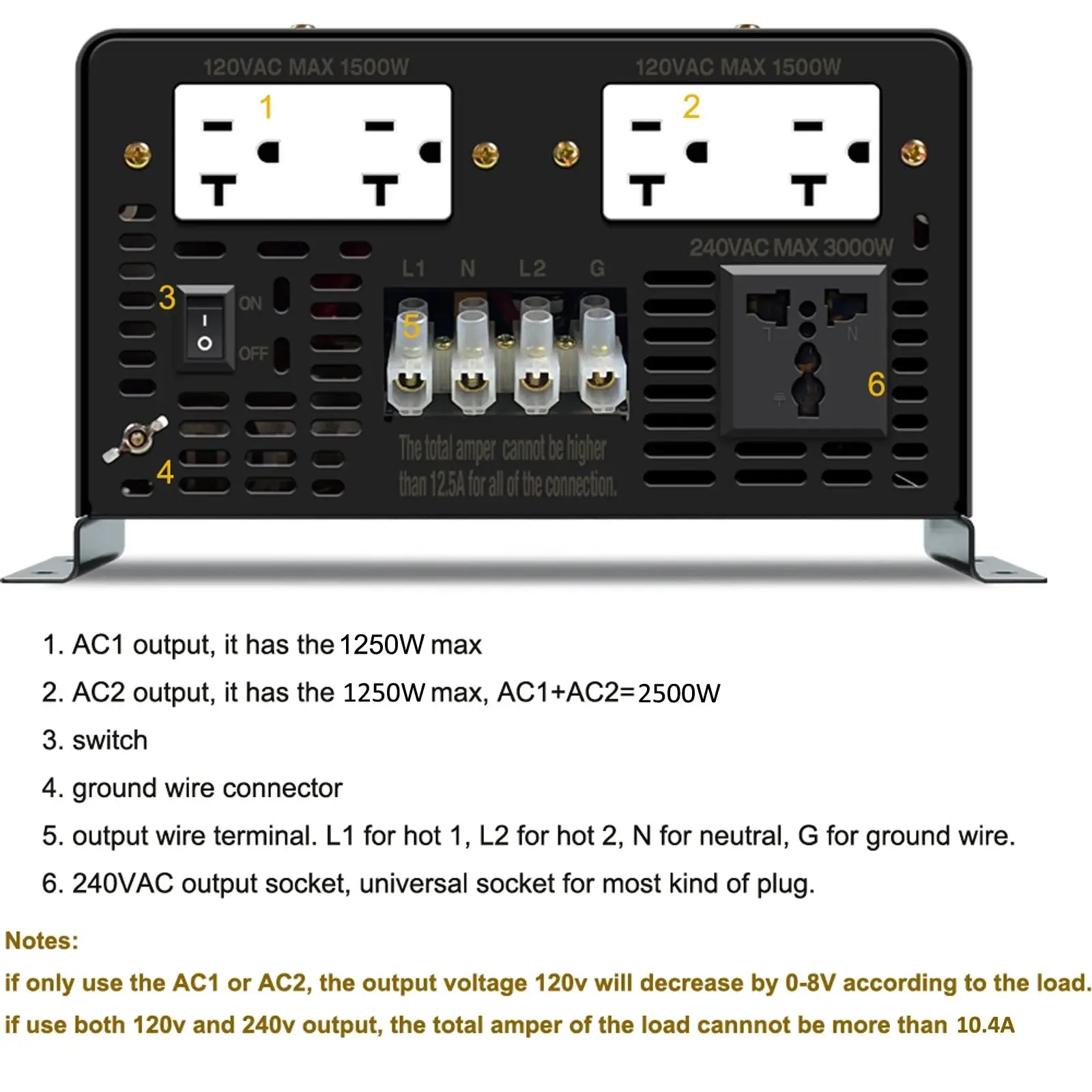

  26. Split-phase, one inverter has two output voltages.


Product Details

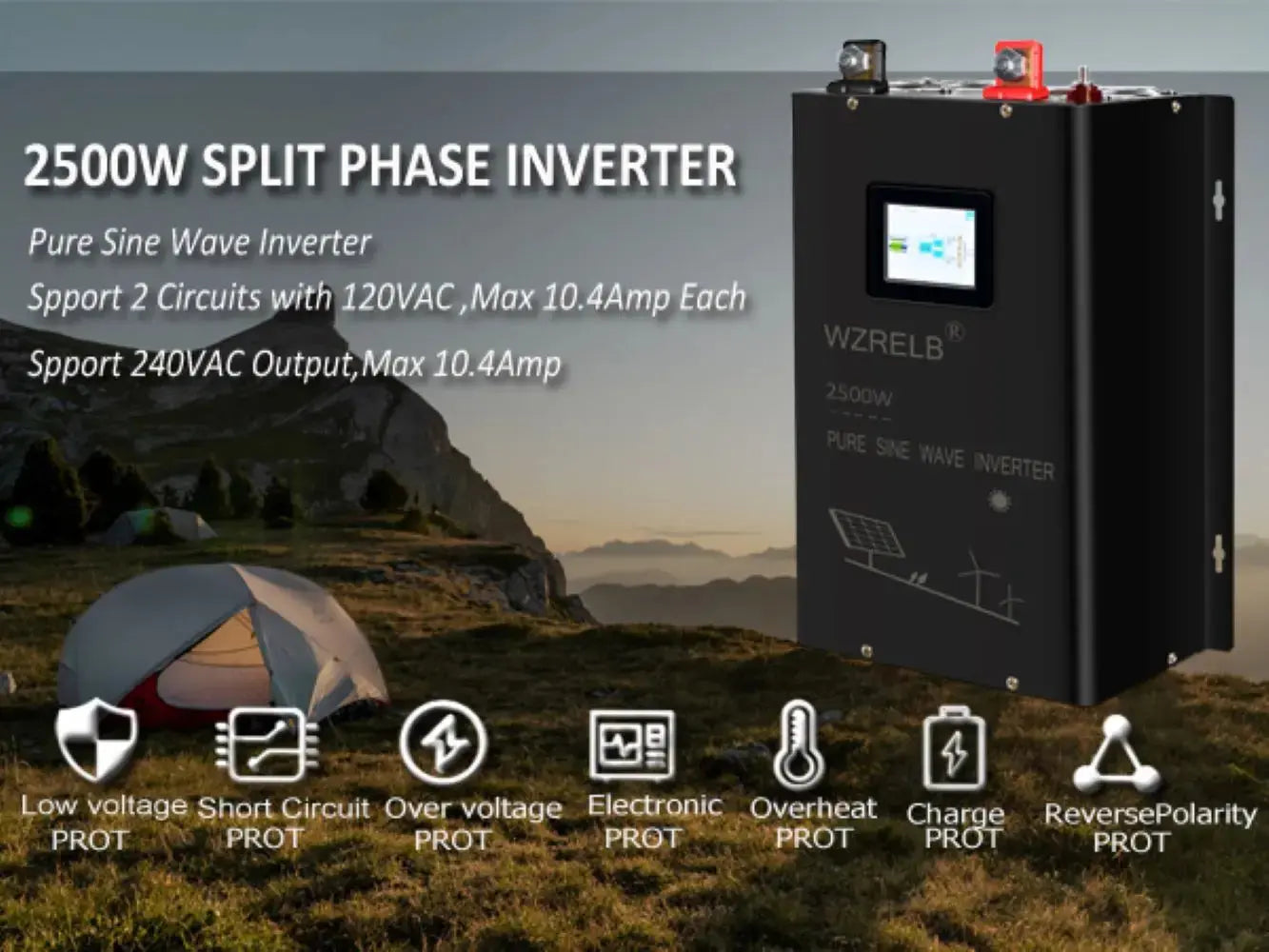

Protection Systems:

Thermal protection, Overload protection, Over Voltage protection, Under Voltage protection, Low Voltage protection alarm. Inverter comes with an LED light to indicate the problem.


9 kinds of protections:

1.Short circuit production.

When the load is short circuit, the inverter will stop working.

2. High temperature production.

When the use environment is stuffy, the heat of the inverter can not be radiated. The temperature is above the rated temperature, the inverter will stop working.

3. High voltage protections.

The battery voltage is above the rated voltage of the inverter, the inverter will stop working.

4. Low voltage protections

The battery’s voltage falls during the usage. When it is lower than the rated voltage, the inverter will automatically cut the input voltage for the self protection.

5. Surge protection.

It can avoid the DC high voltage’s surging attack upon the electronic components inside.

6. Overload protection

When the appliances’ power is higher than the inverter’s power, the inverter will stop working for self protection.

7. Over current Protection

When the appliances’ current is  bigger than the inverter’ current, the protection components on the board will be cut automatically for self protection.

8.Fuse protection.

When the appliance’s resistance is bigger than inverter’s, the fuses on the socket will be automatically cut off for self protection.

9. Reverse protection

It can avoid the accidents of burning the inverter if the positive and the negative poles are reverse connected.



The Resistive Load Applications and  The Inductive Load Applications:

For resistive load applications:
If you need the inverter to run the resistive load (like laptop, TV, electric cooker, LED light), please choose the inverter with continuous power higher than the appliance's rated power.

For example, for the power inverter with continuous power 2500w,it is suggested to run the appliance with rated power less than 2500w. It is best to use 80% of the rated power.

For inductive load applications:
If you need the inverter to run the inductive load (for appliance such as compressor, motor, water pump), please calculate the power of inverter 3 to 7 times higher than the rated power of your appliance.


Product Certification:

Durable and safe quality with many years usage, our pure sine wave inverters are approved by EMC testing in Australia and CE certified. 18 months warranty.


Product Packaging:


The Transportation:

For the small capacity, The inverter will be sent by DHL, EMS, Fedex and e-EMS, it  will take 3-12 days for shipping.

If you need huge quantity, please contact with me about the transport process.



Customer Service:

1. RELIABLE is your trusted partner for long term business.We are the MANUFACTURER of the solar inverter. We are responsible for the quality of the inverter. The inverter has ONE year guarantee. We provide technical support and service for the inverter the whole life.

All inverters would be double tested before shipment to be guaranteed in brand new condition and work perfectly.

2. Returns for exchange are permitted and must be initiated by the buyer within 4 days of receipt. All return items must be in their original condition. Return shipping and handling charge will be at the buyer's expense first. Please do contact with us for return address, details and any other issues.
3. We will not be responsible for any delay during delivery including but not limited to the customs package checking, strike, force majeure, etc.
4. In case there is problem with your order, make sure CONTACT US before leaving negative feedback. Leaving negative feedback without communication is a violation of feedback policy.

5. Please leave us message if you have any question, we will reply in 24 hours, thank you.


How to choose a right inverter:


We accpet the customized made inverter for each customer, please leave me a messages of your inverter specifications:

Leave me all these specifications by sending me a message, so that I can make sure of a fast shipping!

1.What's your input voltage?12v or 24v or 36v or 48v or 72v or 110v?
(attention please: only one voltage can be choose! If  the input is 48v or 72v, the additional 10% price will be needed, if the input is 110v, the additional 15% price will be needed. If you need remote controller, we need more 15 USD.Please contact with me. I'll change your price, or you can pay us by paypal.)
2.What's your output voltage? 100v or 110v or 120v or 220v or 230v or 240v?
3.What's your frequency? 50HZ or 60HZ?
4.What's your socket type? please look at the picture I attached and make a choice.
