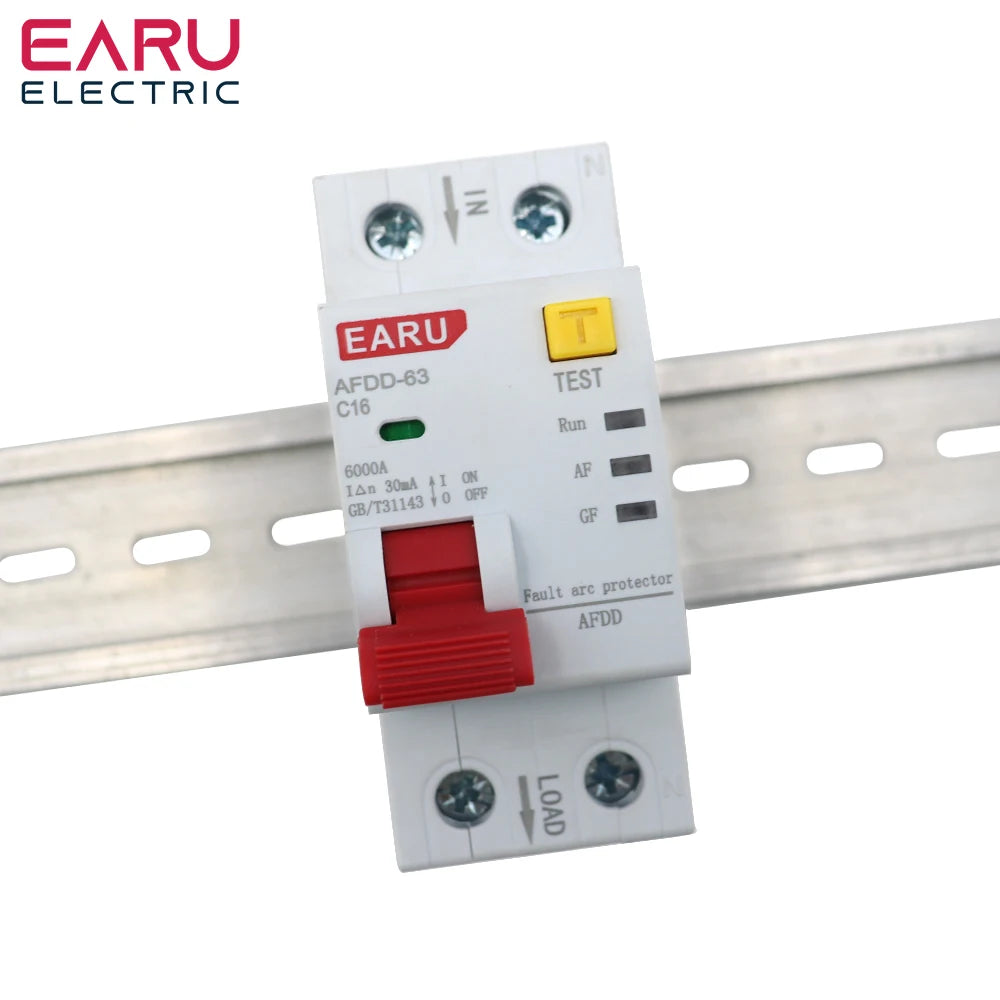

2P 220V AFDD 63 AFCI Arc Fault Protector Device RCBD Circuit Breaker Interrupted Overload Earth Leakage Short Circuit Protection

2P 220V AFDD 63 AFCI Arc Fault Protector Device RCBD Circuit Breaker Interrupted Overload Earth Leakage Short Circuit Protection

Regular price $37.02 USD
Regular price $0.00 USD Sale price $37.02 USD
Sale Sold out
Shipping calculated at checkout.
Rated Current
Poles Number

The 2P 220V AFDD 63 is a high-quality AFCI arc fault protector device with RCBD circuit breaker for ultimate protection against interrupted overload, earth leakage, and short circuit. With 2P 220V capabilities, this device provides reliable and efficient protection for your electrical system.

SPECIFICATIONS

  • Brand Name: EARUELETRIC
  • Type: Mini
  • Type: Circuit breaker
  • Model Number: AFDD-63
  • Feature1: Arc Protection
  • Feature2: Overload Protection
  • Feature3: Leakage Protection
  • Feature4: Short Circuit Protection
  • Rated voltage: 230V 50/60Hz
  • Rated current: 6/10/16/20/25/32/40/50/63A
  • Poles: 2P
  • Segmentation capacity: 6kA
  • Rated residual operating curren: 30mA
  • Action time: ≤0.1S
  • Operating temperature: -40~+85℃
  • Material: flame retardant material
  • Tripping characteristics: Type C (universal)

Our factory can provide OEM service to manufacture this device with your brand, logo, if you get any need, feel free to contact the buyer!

AFDD arc fault circuit breaker is an intelligent circuit protector with an integrated design of MCB and RCCB, which can detect and identify fault arcs and normal working arcs in the line. Prevent fire hazards caused by fault arcs such as poor contact and poor insulation in the circuit. It integrates fault arc protection, overload protection, short circuit protection, overvoltage protection, surge suppression, and leakage protection.

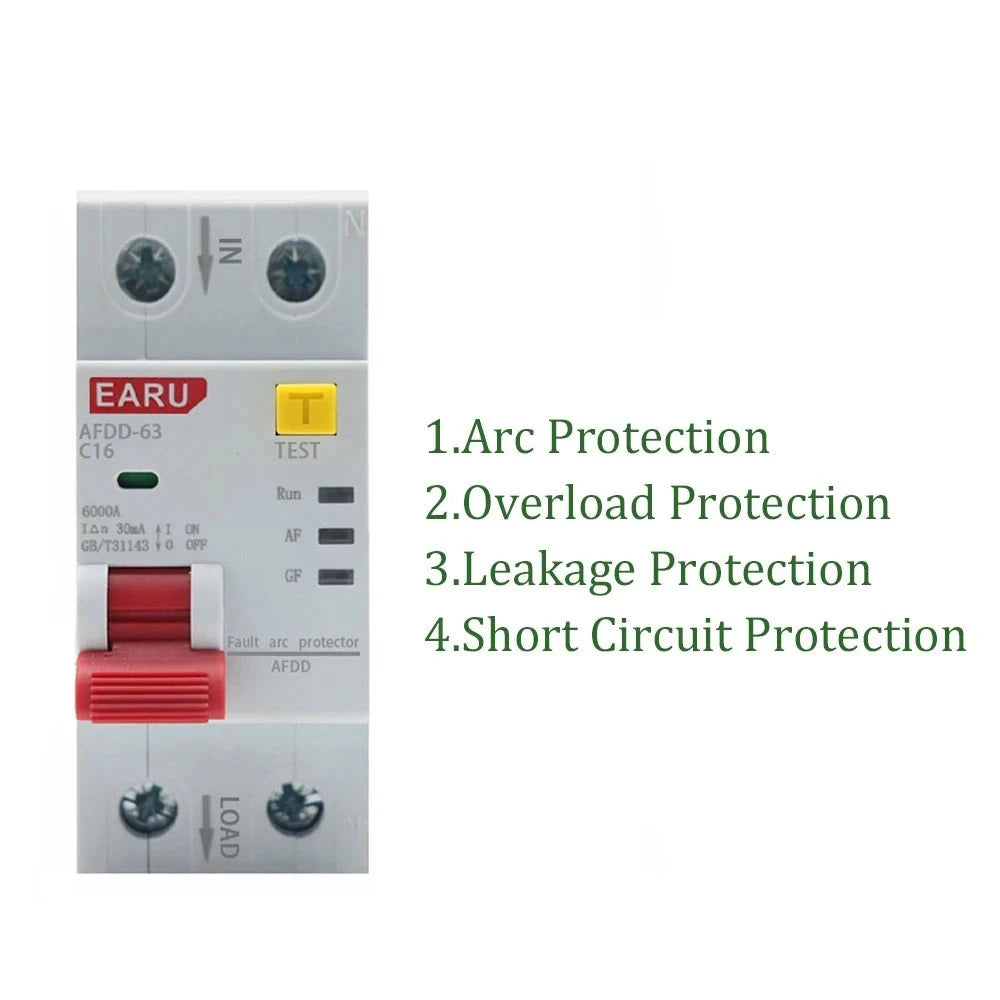

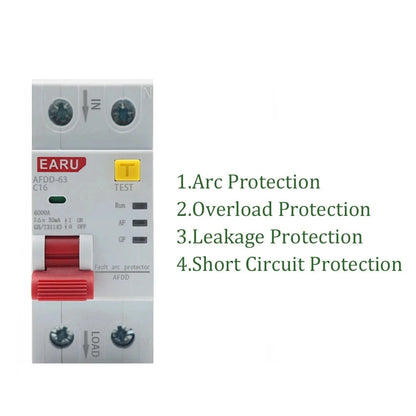

Features

  • Arc Protection
  • Overload Protection
  • Leakage Protection
  • Short Circuit Protection

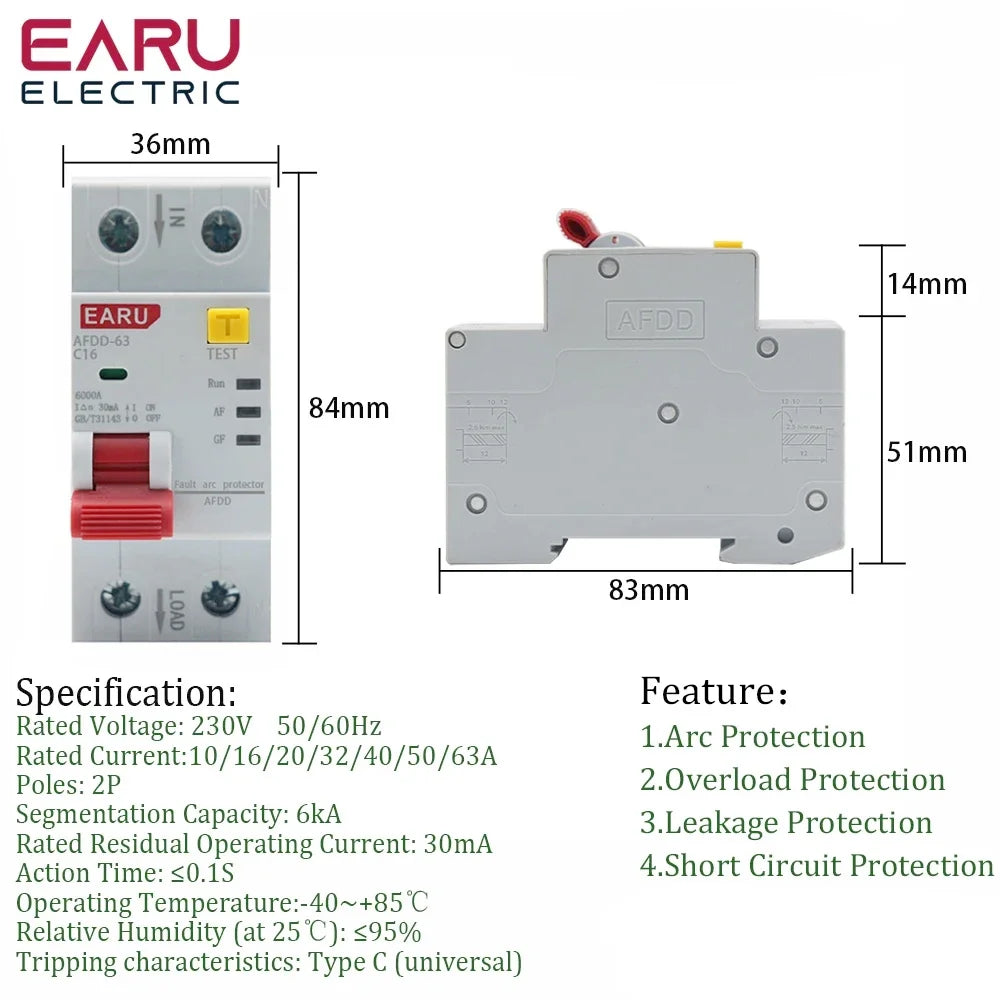

Product specification

  • Rated voltage: 230V. 50/60Hz
  • Rated current: 10/16/20/25/32/40/50/63A
  • Poles: 2P
  • Segmentation capacity: 6kA
  • Rated residual operating current: 30mA
  • Action time: ≤0.1S
  • Operating temperature:-40~+85℃
  • Relative humidity (at 25℃): ≤95%
  • Tripping characteristics: Type C (universal)
