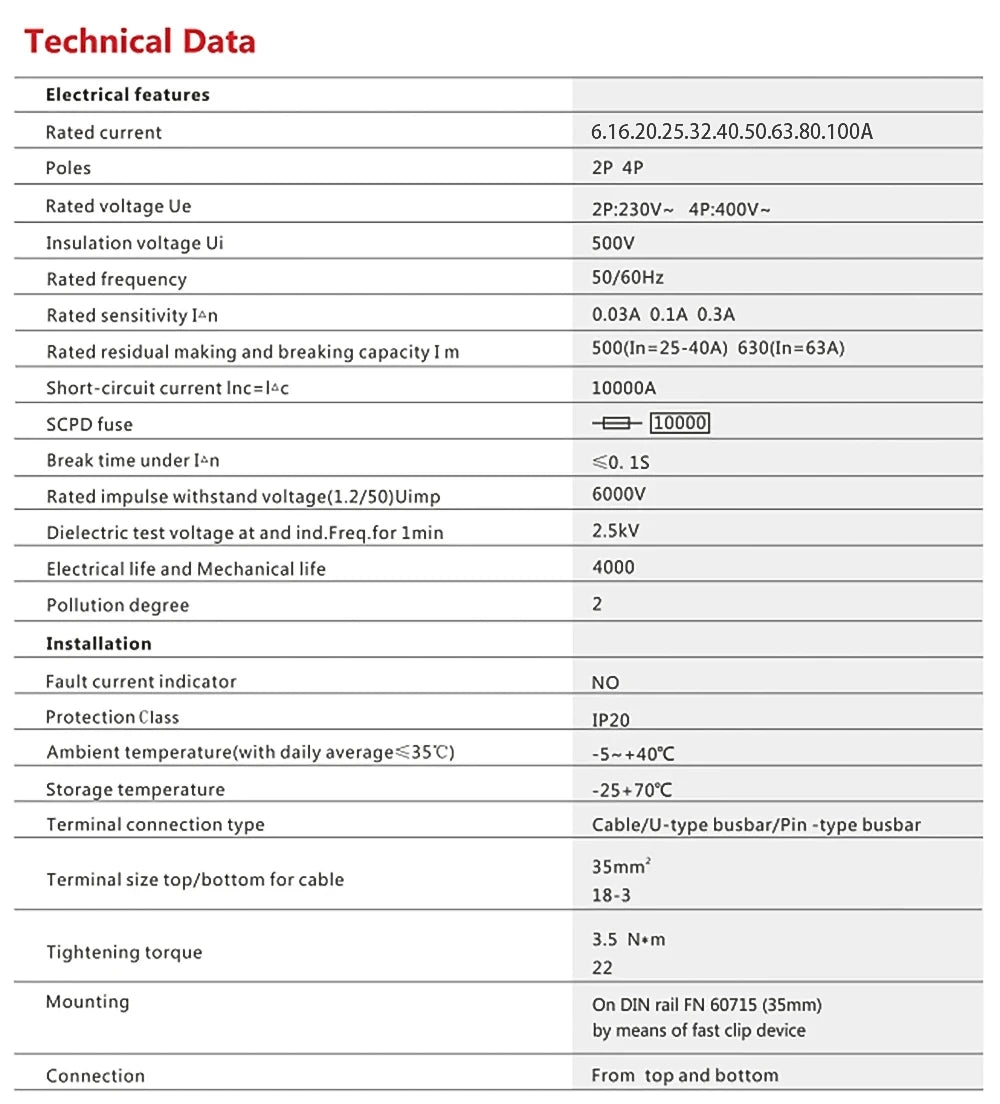

SPECIFICATIONS

Brand Name: EARU

Break time under: ≤0.1s

Breaking Capacity: 6KA

Certification: CE

Choice: yes

Dielectric test voltage at and ind.Freq.for.1min: 2.5kV

Electrical life and Mechanical life: 4000

Faule current indicator: No

Function: Leakage Protection

High-concerned chemical: None

Insulation voltage: 500v

Is Smart Device: No

Material: Flame Retardant Material

Model Number: RCCB

Model Number 2: ELCB

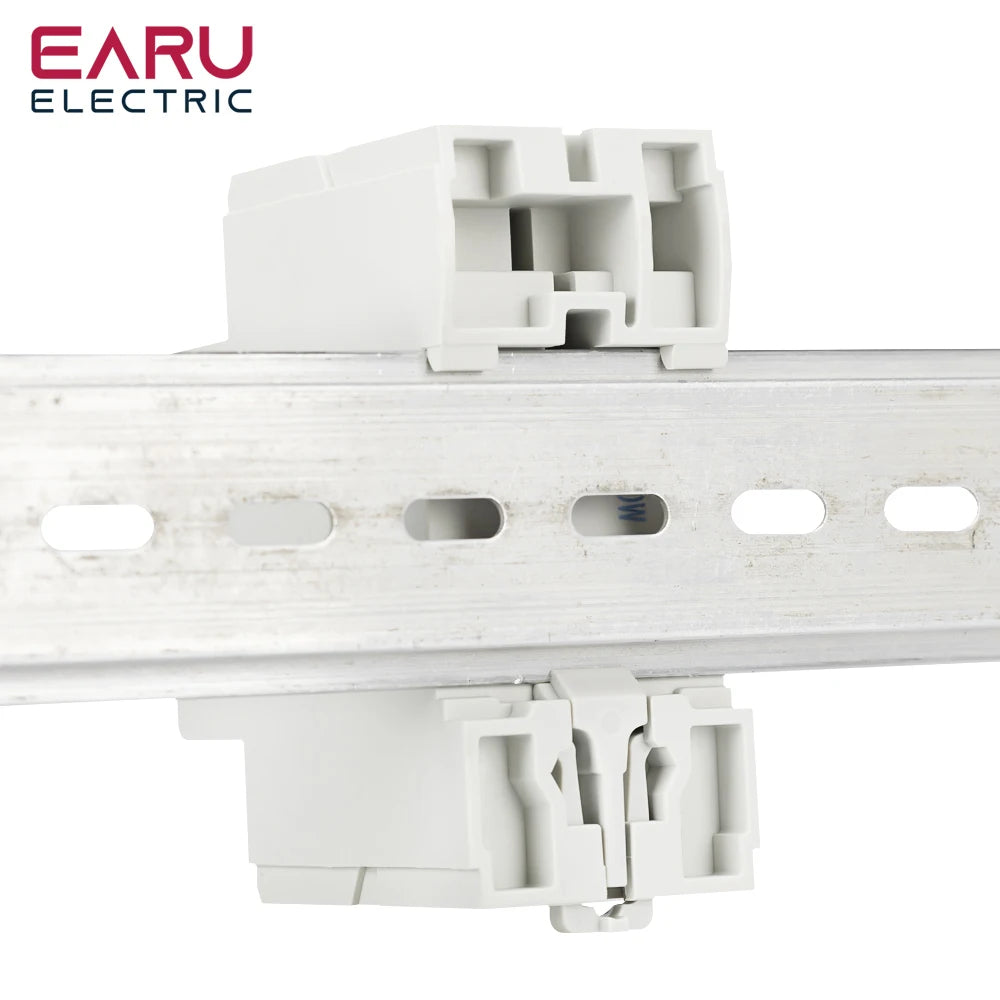

Mounting: Din Rail

Origin: Mainland China

Poles: 2P

Rated Current: 6A.10A.16A.20A.25A.32A.40A.50A.63A

Rated Frequency: 50/60Hz

Rated Sensitivity: 10mA 30mA 100mA 300mA

Rated Voltage: 220V

Rated sensitivity: 0.03A 0.1A 0.3A 0.01A

Rated voltage: 230V

Standard: IEC61008-1

Storage temperature: -25-+70℃

Type: Electromagnetic,Residual Current,RCD

Type of leakage: A Type

is_customized: Yes

semi_Choice: yes

Our factory can provide OEM service to manufacture this device with your brand, logo, if you get any need, feel free to contact the buyer!

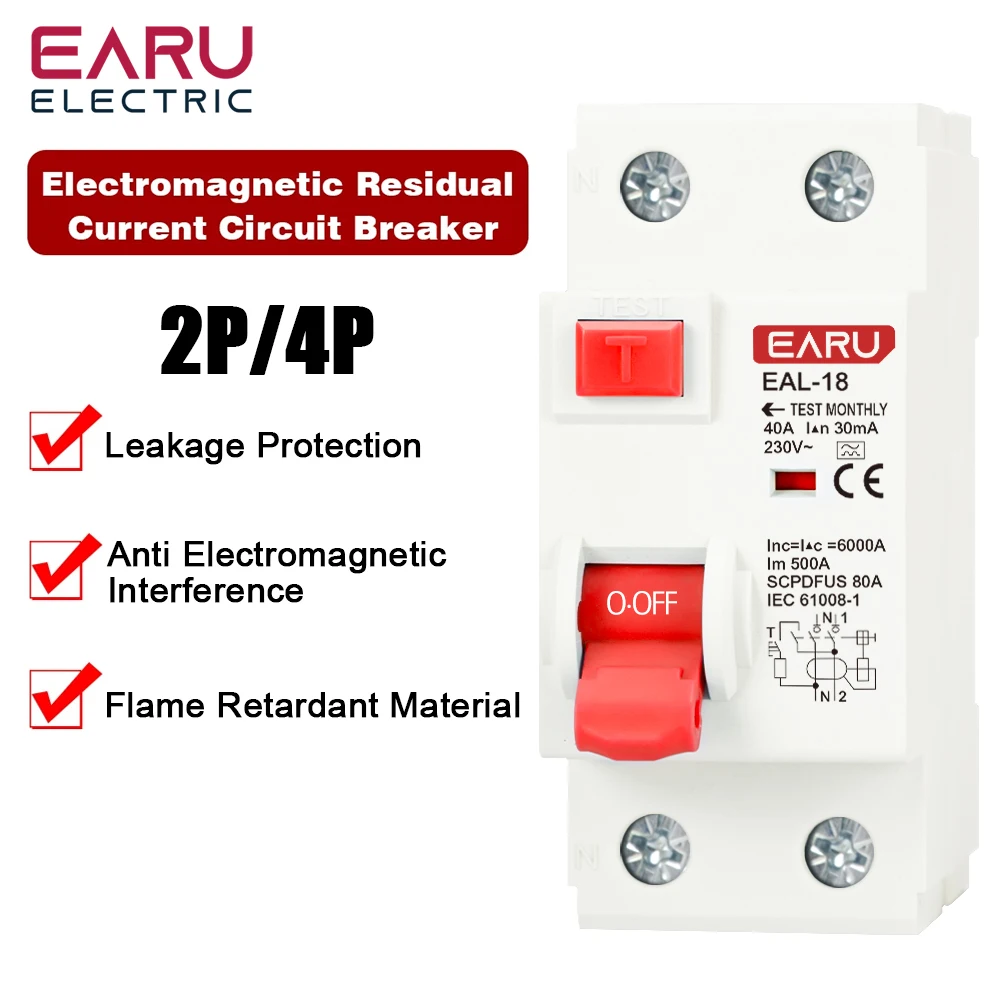

EAL-18 Residual current operated circuit breaker (NO Overcurrent Protection) is suitable for AC 50HZ, rated voltage2P 230V,rated current1-63Aline. When a person gets an electric shock or the grid leakage current exceeds the specified value, the residual current will actuate the circuit breaker to quickly cut off the faulty power supply in a short period of time to protect the safety of personnel and electrical equipment. It can also be used as the infrequent switching and starting function of the line

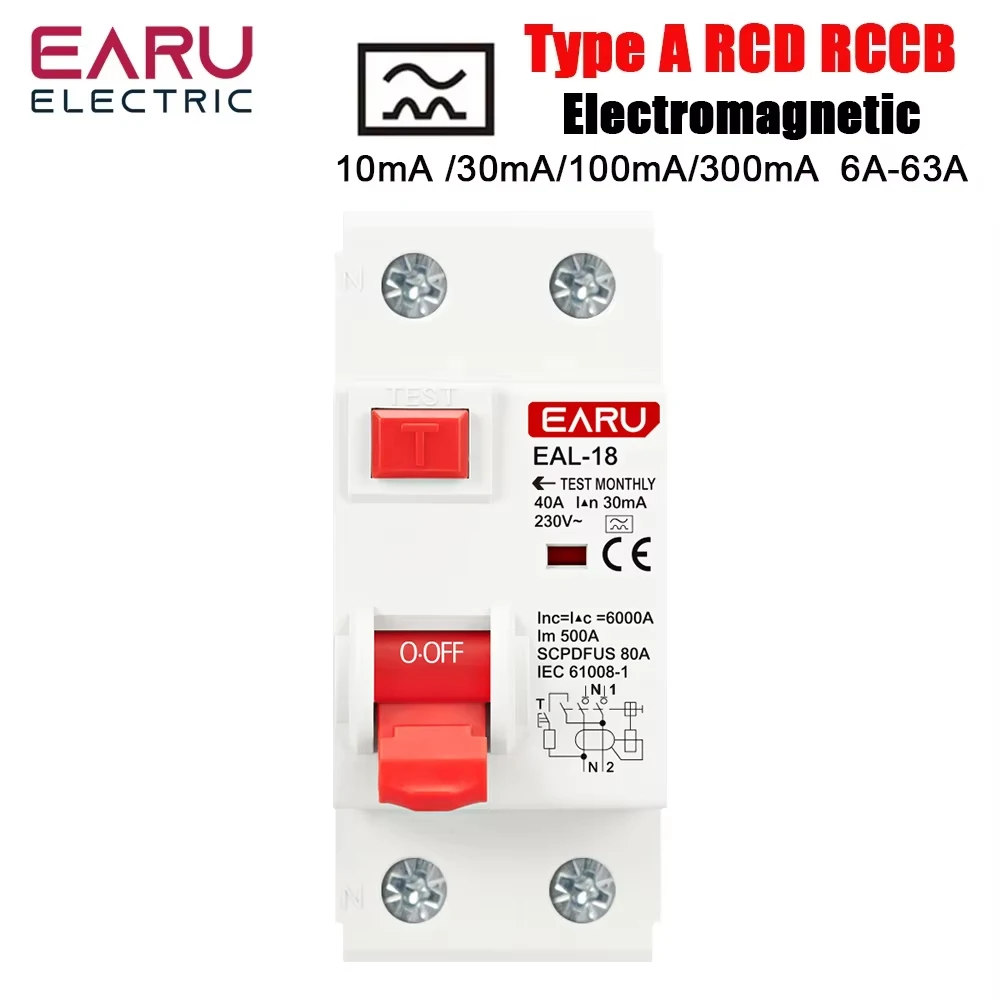

Type A RCD RCCB ELCB detect pulsating DC Residual Current. Type A devices are also suitable for Type AC applications.

Installed to protect circuits where equipment with electronic components such as
-inverters,
-Class 1 IT equipment,
-power supplies for Class II equipment,
-lighting equipment including dimmers and LED drivers,
-electric vehicle charging equipment with smooth residual DC current less than 6 mA.

 ~In compliance with IEC/EN61008-1.

~ Bilateral busbar wiring capabilities to adapt to the wider use of premises.

 ~Maximum connecting ability of 35mm , wiring torque 3.5N*m, applicable to a variety of installing equipment.

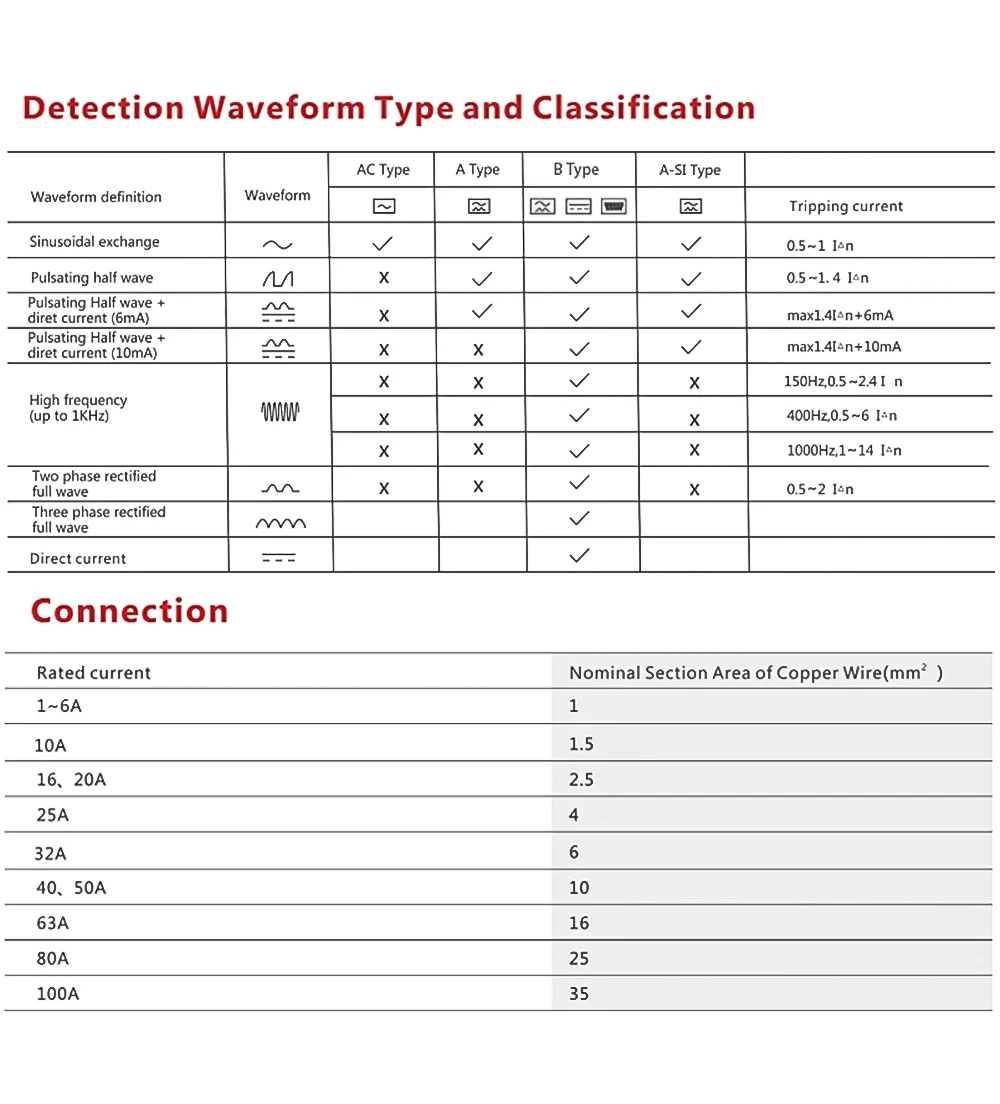

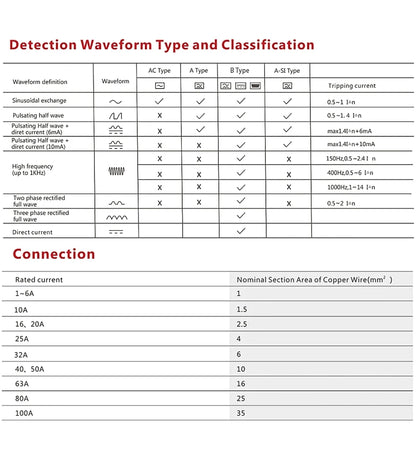

(1) The remaining pulsating DC current is superimposed with A smooth DC current of 0.006a

(2) Residual pulsating DC current.

(3) Of the same type as AC.
