2P 4P 10/30/100/300mA Type A RCCB RCD ELCB Electromagnetic Residual Current Circuit Breaker Differential Breaker Safety Switch

2P 4P 10/30/100/300mA Type A RCCB RCD ELCB Electromagnetic Residual Current Circuit Breaker Differential Breaker Safety Switch

Regular price $16.38 USD
Regular price $0.00 USD Sale price $16.38 USD
Sale Sold out
Shipping calculated at checkout.
Color
Size
Voltage|Standard

This 2P 4P 10/30/100/300mA Type A RCCB RCD ELCB Electromagnetic Residual Current Circuit Breaker Differential Breaker Safety Switch is designed to protect against electrical shocks and fires. With its electromagnetic residual current detection and differential breaker safety switch, this RCCB RCD ELCB provides effective and reliable safety measures for any electrical circuit.

SPECIFICATIONS

  • Standard: IEC61008-1

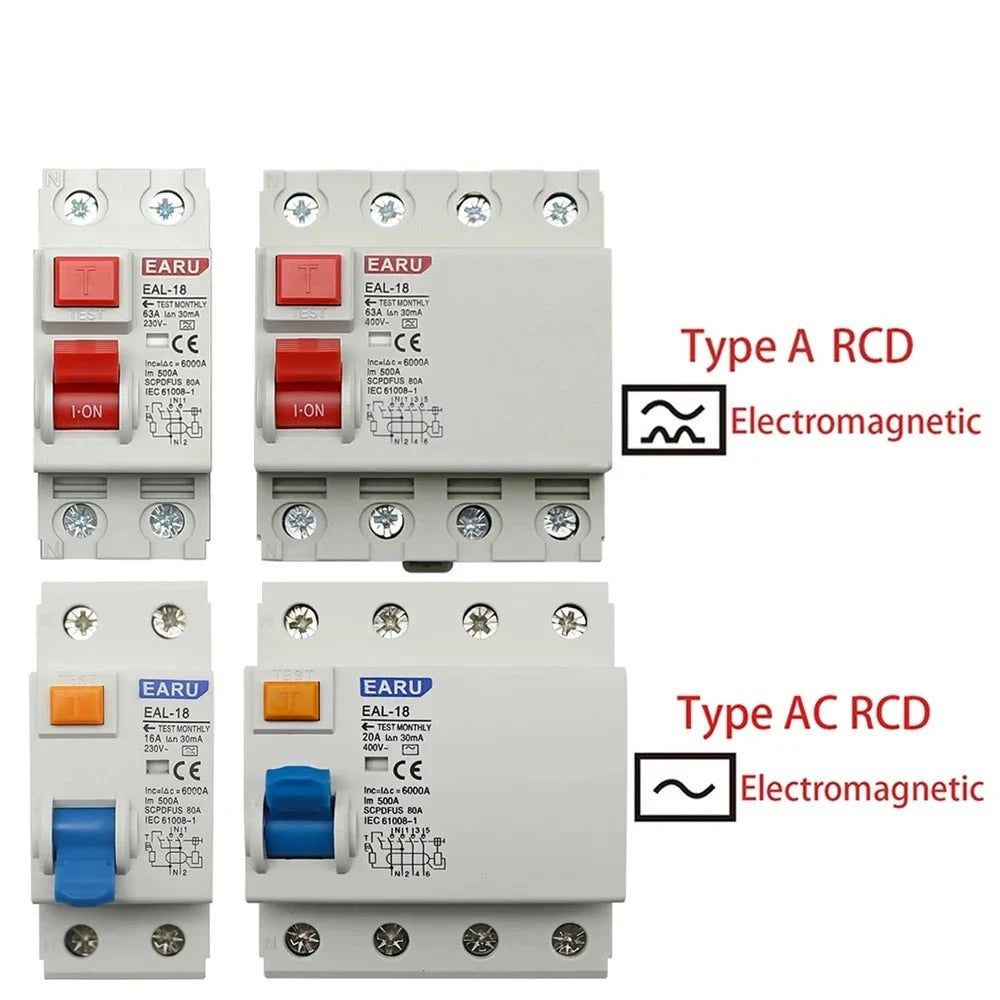

  • Type of leakage: AC Type / A Type
  • Material: Flame Retardant Material
  • Rated voltage: 2P 230V/ 4P 400V
  • Type: Residual Current
  • Type1: RCD
  • Model Number: RCCB
  • Rated Sensitivity: 10mA 30mA 100mA 300mA
  • Rated Current: 6A.10A.16A.20A.25A.32A.40A.50A.63A
  • Rated sensitivity: 0.03A 0.1A 0.3A 0.01A

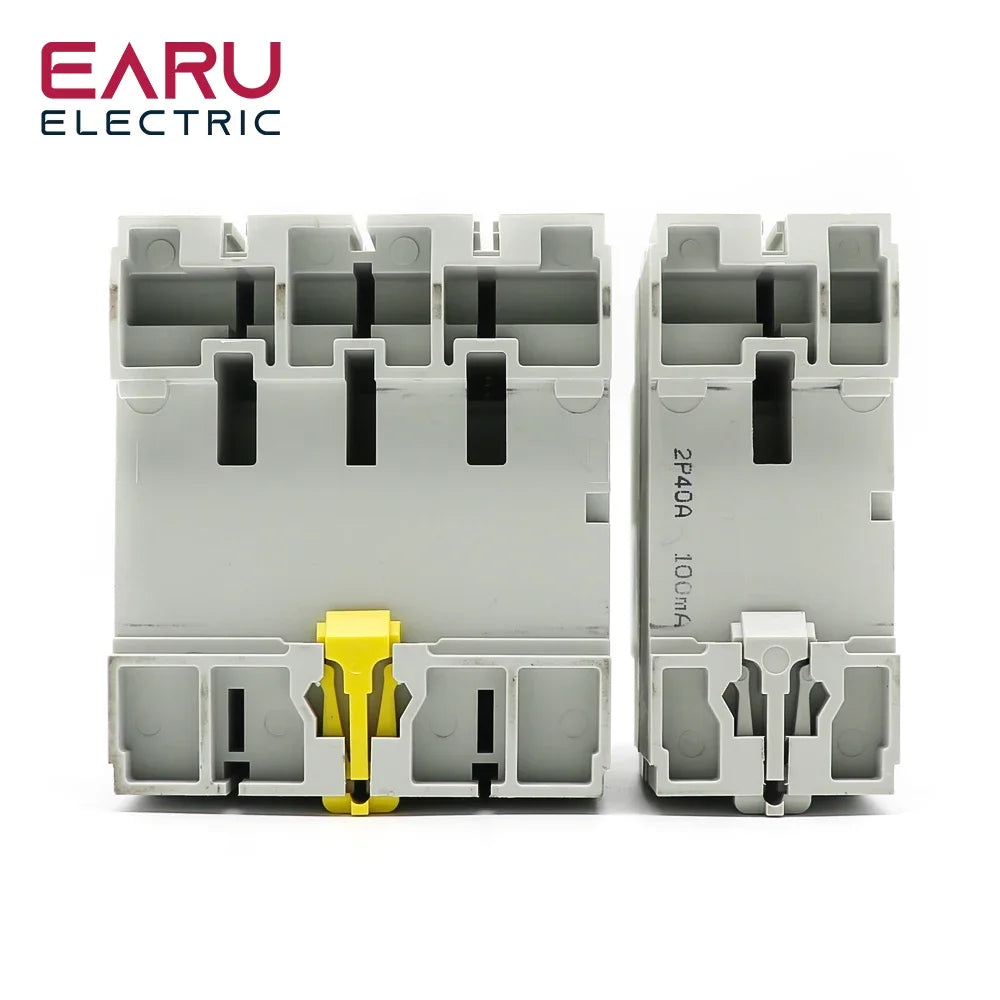

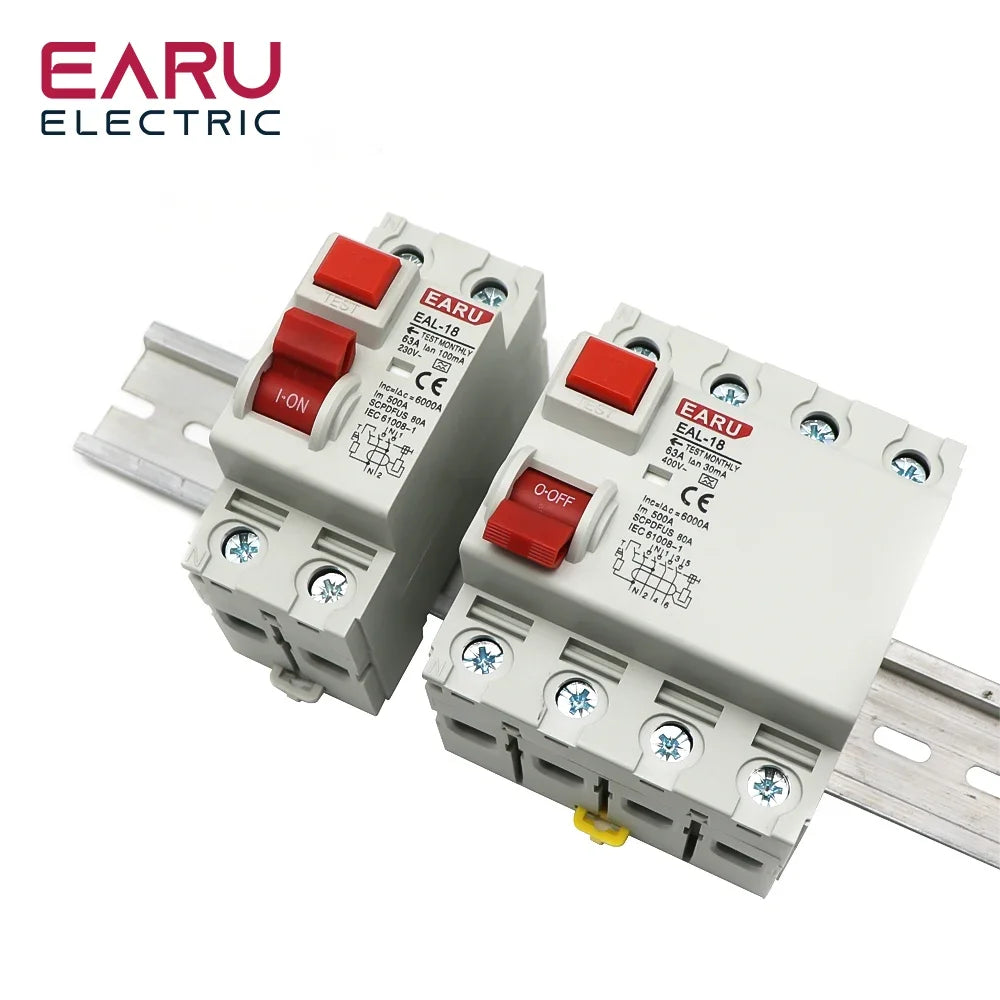

  • Mounting: Din Rail
  • Rated Frequency: 50/60Hz
  • Poles: 2P 4P
  • Function: Leakage Protection
  • Insulation voltage: 500v
  • Storage temperature: -25-+70℃
  • Break time under: ≤0.1s
  • Dielectric test voltage at and ind.Freq.for.1min: 2.5kV
  • Electrical life and Mechanical life: 4000
  • Faule current indicator: No
  • Model Number 2: ELCB
  • Model Number 1: RCD
  • Measurement unit: 100000015
  • Brand Name: EARUELETRIC
  • Item Type: SWITCHES
  • Model Number: ELCB
  • Features: RCCB
  • Current: 400A

EAL-18Residual current operated circuit breaker(NO Overcurrent Protection)is suitable for AC 50HZ, rated voltage2P 240V, 4P 400V,rated current1-63Aline. When a person gets an electric shock or the grid leakage current exceeds the specified value, the residual current will actuate the circuit breaker to quickly cut off the faulty power supply in a short period of time to protect the safety of personnel and electrical equipment. It can also be used as the infrequent switching and starting function of the line

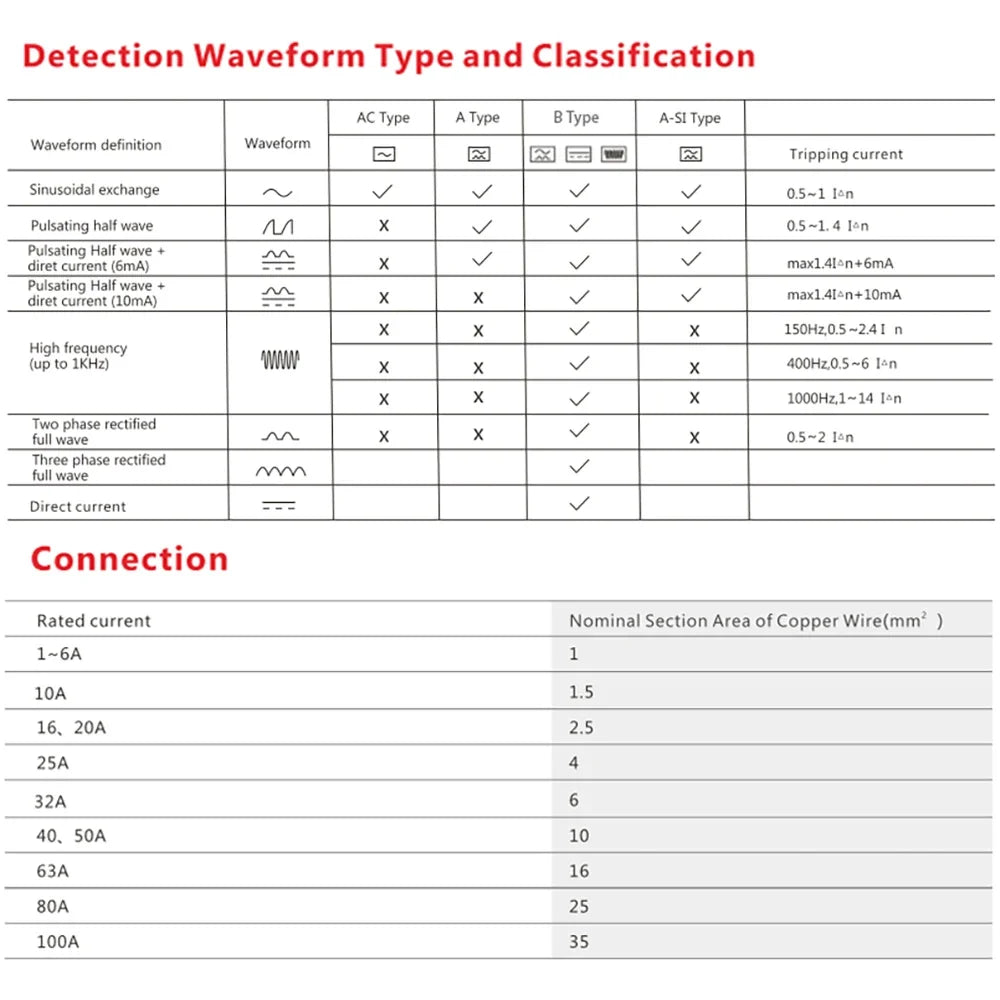

Type A RCDs RCCB ELCB detect pulsating DC Residual Current. Type A devices are also suitable for Type AC applications.
  •  In compliance with IEC/EN61008-1.
  • Bilateral busbar wiring capabilities to adapt to the wider use of premises.
  •  Maximum connecting ability of 35mm , wiring torque 3.5N*m, applicable to a variety of installing equipment.

(1) The remaining pulsating DC current is superimposed with A smooth DC current of 0.006a(

2) Residual pulsating DC current.

(3) Of the same type as AC.


Installed to protect circuits where equipment with electronic components such as
-inverters,
-Class 1 IT equipment,
-power supplies for Class II equipment,
-lighting equipment including dimmers and LED drivers,
-electric vehicle charging equipment with smooth residual DC current less than 6 mA.
