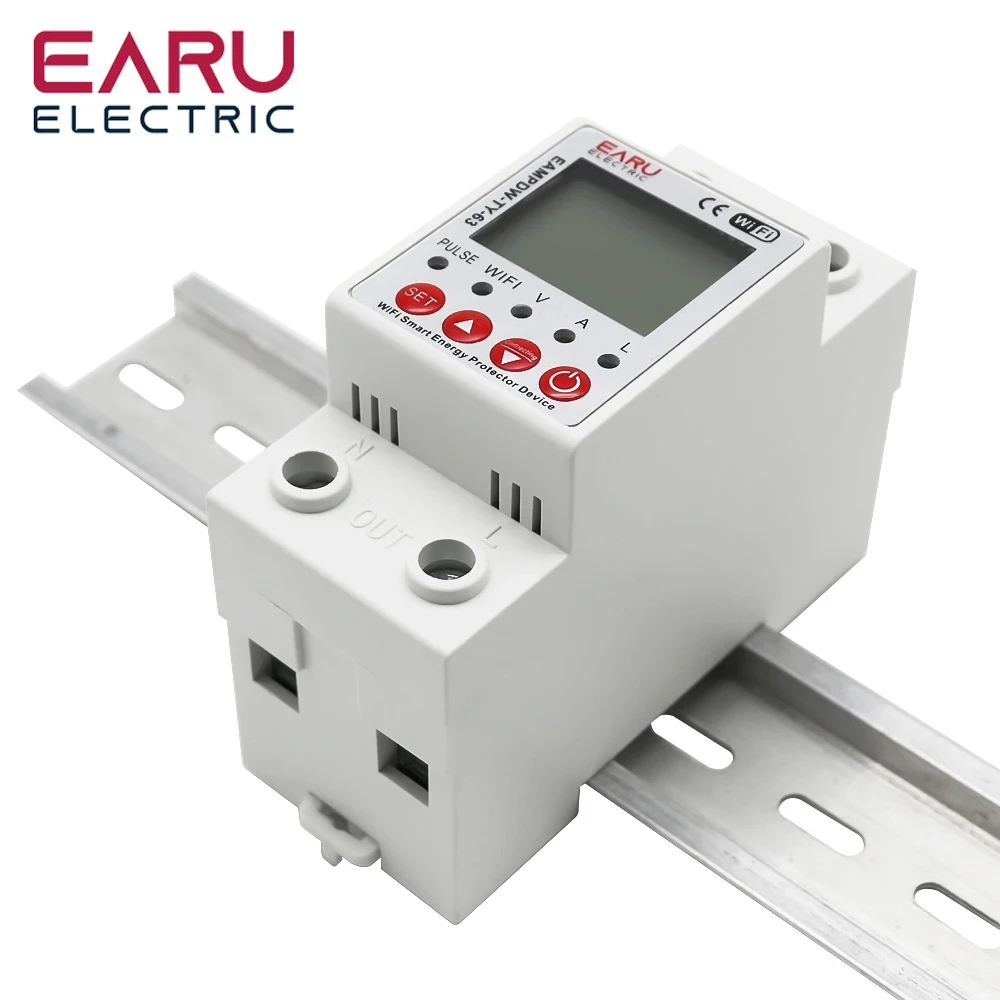

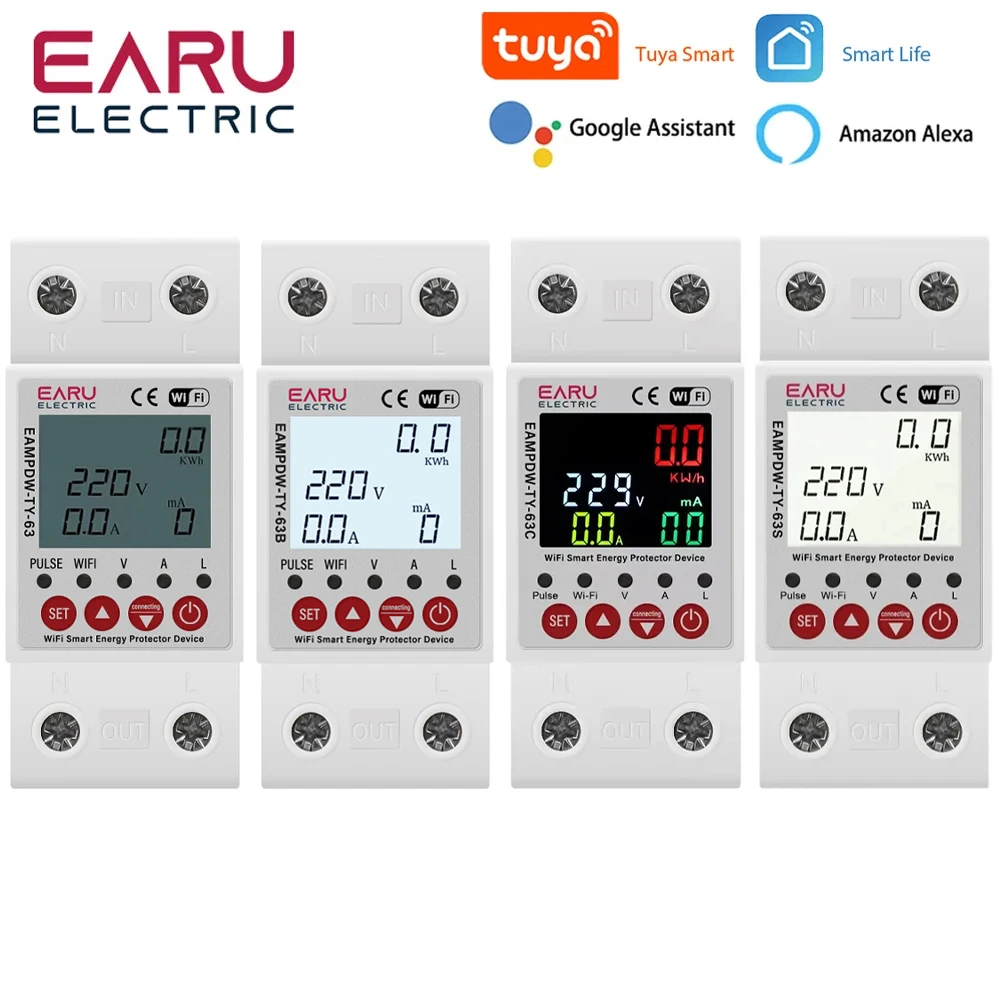

2P 63A 230V Tuya WiFi Smart Energy Meter Power kWh Meter Earth Leakage Over Under Voltage Protector Relay Device Switch Breaker

2P 63A 230V Tuya WiFi Smart Energy Meter Power kWh Meter Earth Leakage Over Under Voltage Protector Relay Device Switch Breaker

Regular price $31.26 USD
Regular price $0.00 USD Sale price $31.26 USD
Sale Sold out
Shipping calculated at checkout.
Color
Size

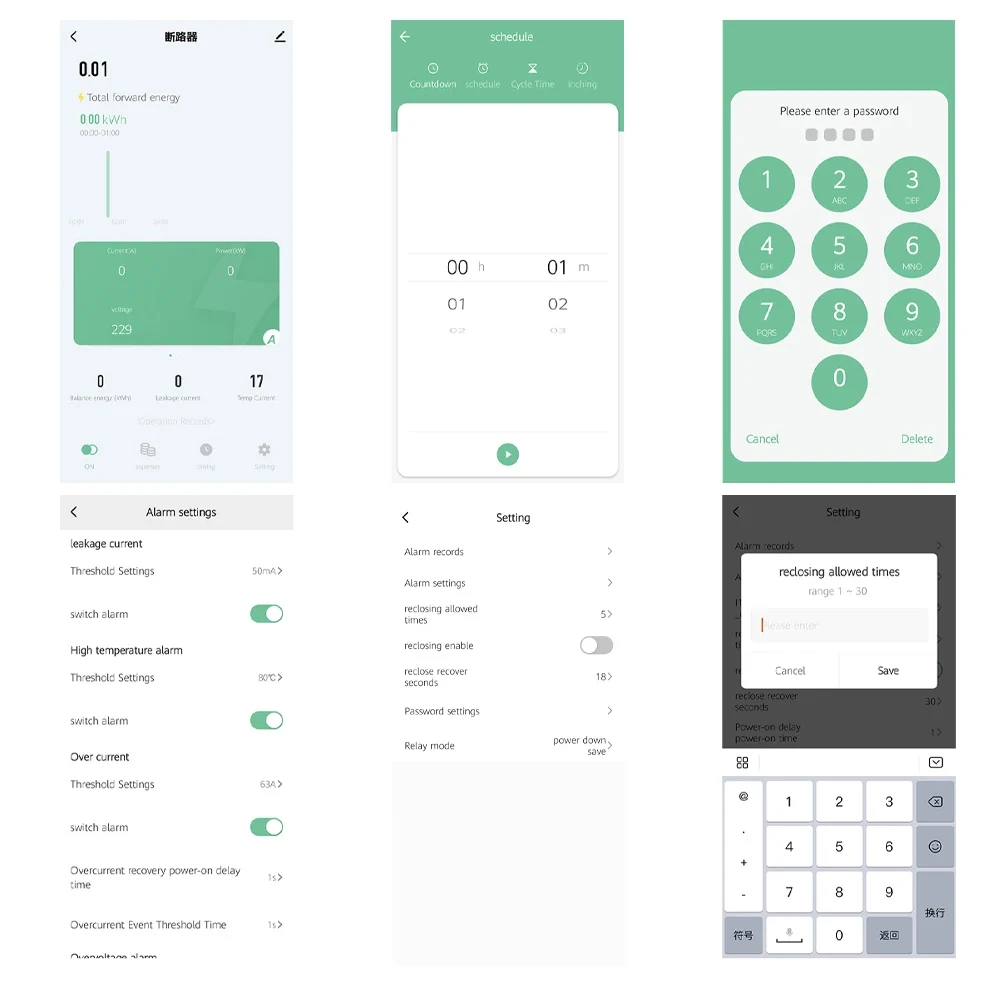

Monitor and control your energy usage with the 2P 63A 230V Tuya WiFi Smart Energy Meter. With its built-in power kWh meter, monitor your electricity consumption and detect potential over or under voltage issues. The earth leakage feature provides added safety for your home. Stay connected with remote control capabilities through the Tuya app.

SPECIFICATIONS

  • Product Name 1: EAMPDW-TY-63-B
  • Product Name 2: EAMPDW-TY-63-C
  • Product Name 3: EAMPDW-TY-63-S
  • Rated Current: 1-63A(Adjustable)
  • Rated Frequency: 50/60Hz
  • Rated Voltage: AC110/230V
  • Installation: 35MM Din Rail
  • Protection Degree: IP20
  • Output Contact: 1NO
  • Measurement Accuracy: ±1%
  • Model 1: RCCB
  • Model 2: RCBO
  • Model 3: RCD
  • Brand Name: EARUELETRIC
  • Power Supply: AC
  • Model Number: EAMPDW-TY-63
  • Display Type: Digital Only
  • Accuracy Class: 1

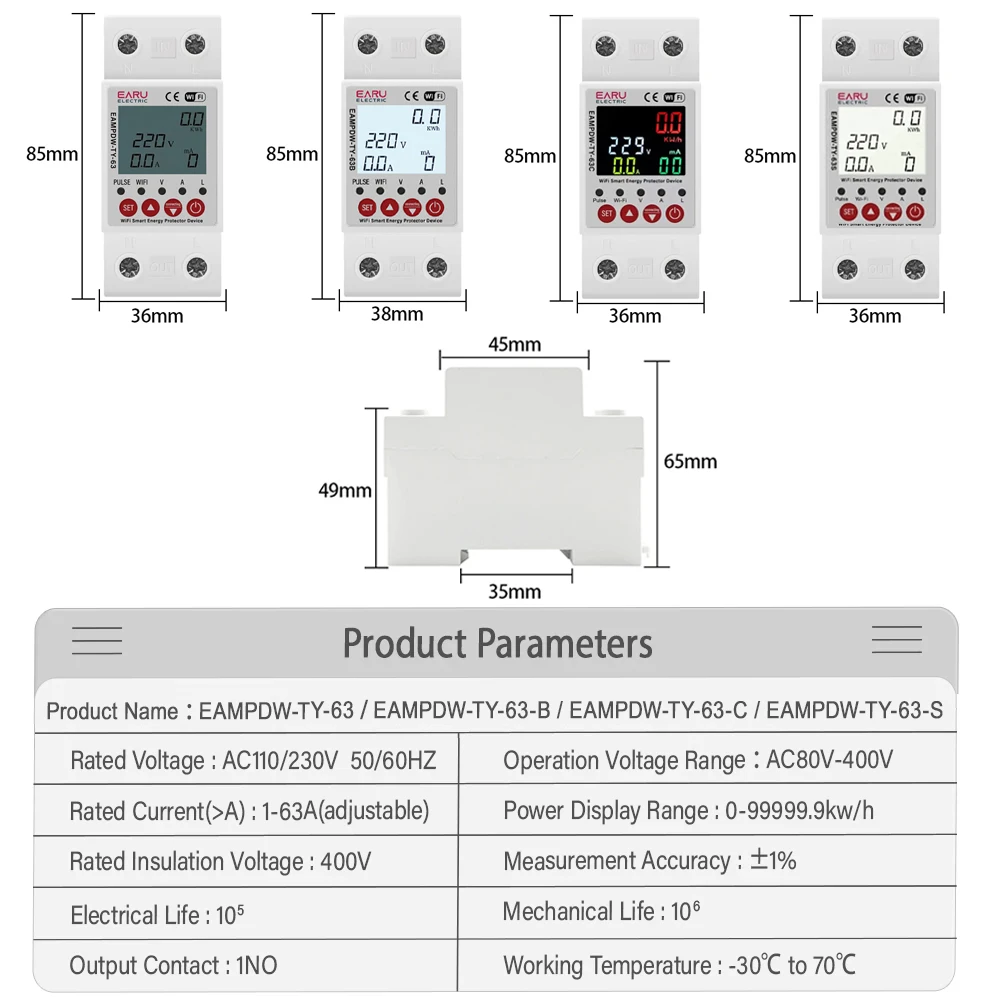

  • Dimensions: 85mm*36mm*65mm
  • Rated Voltage: 230V
  • Operating Temperature: -30℃-70℃
  • Measuring Energy Range: 0-99999.9kw/h
  • Phase: single phase
  • Max Operating Current: 19A & Under
  • Output Voltage: 220V
  • DIY Supplies: ELECTRICAL

Our factory can provide OEM service to manufacture this device with your brand, logo, if you get any need, feel free to contact the buyer!

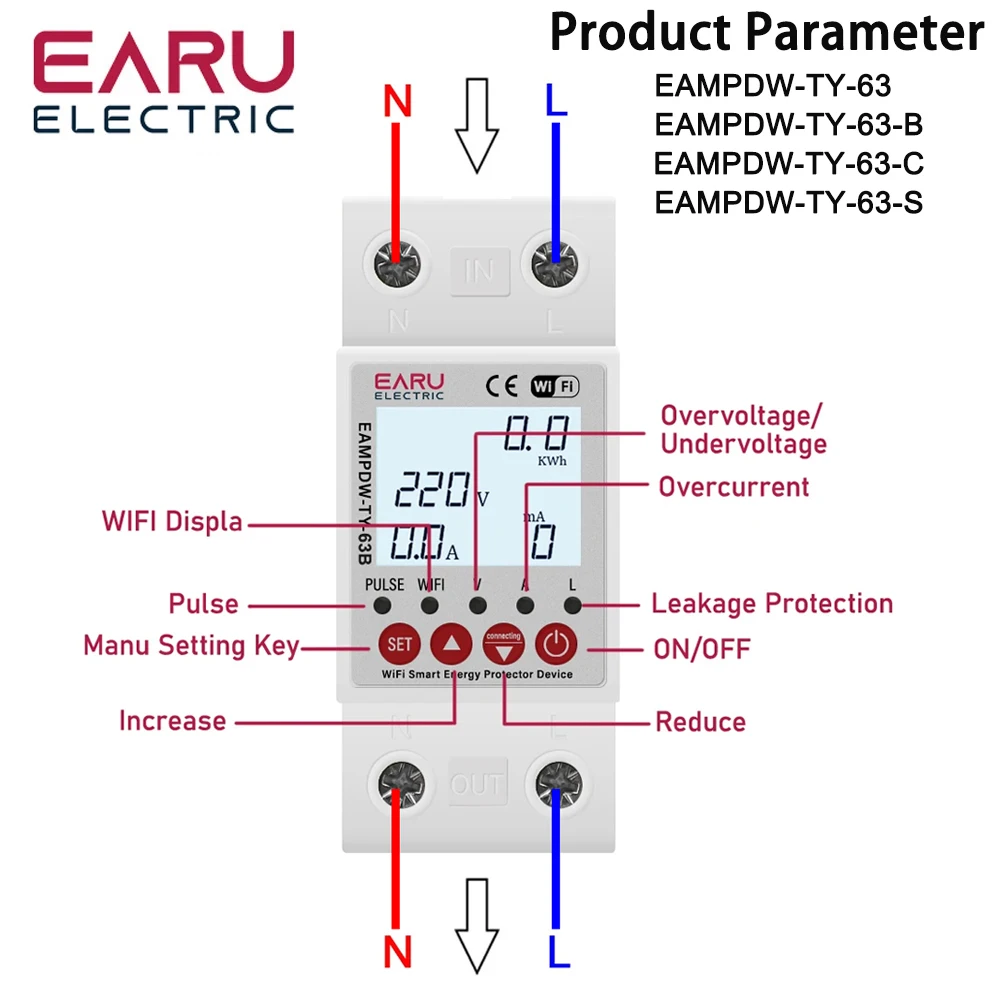

Product Specification

Rated voltage: 230V; Frequency: 50Hz/60HZ

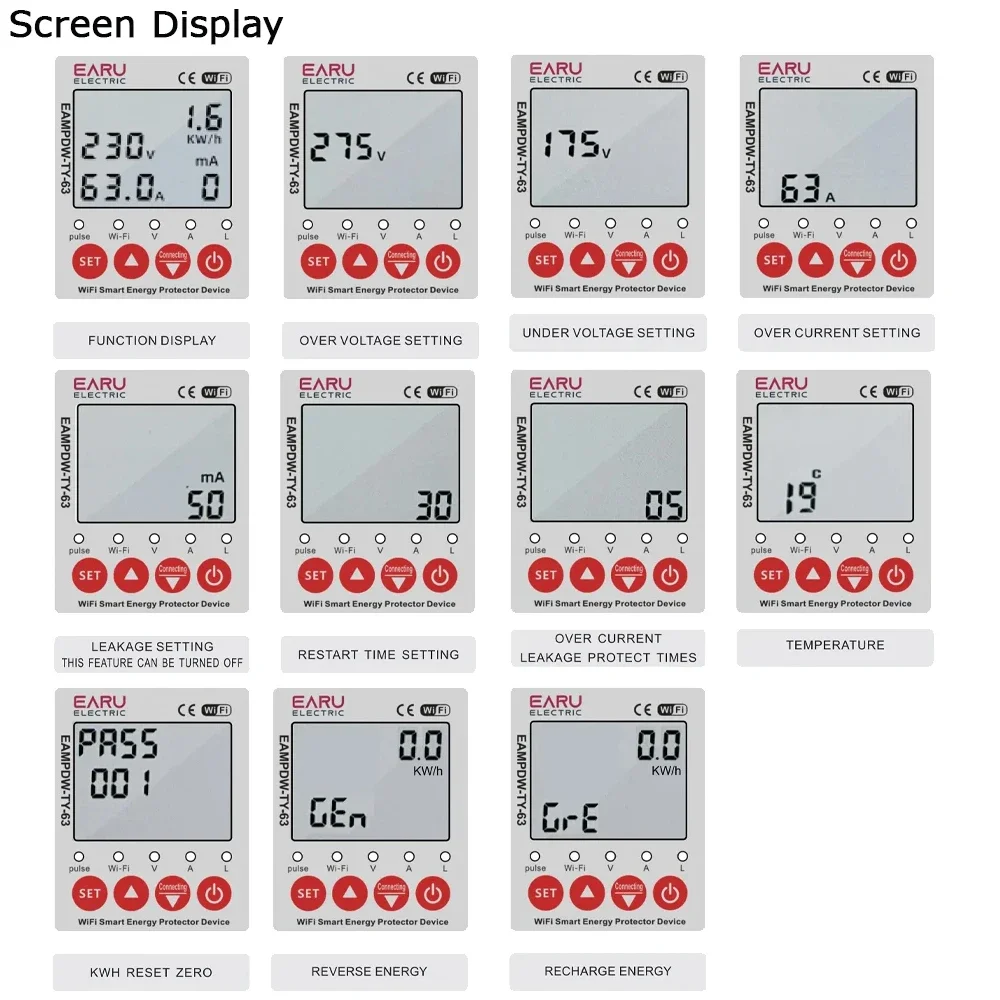

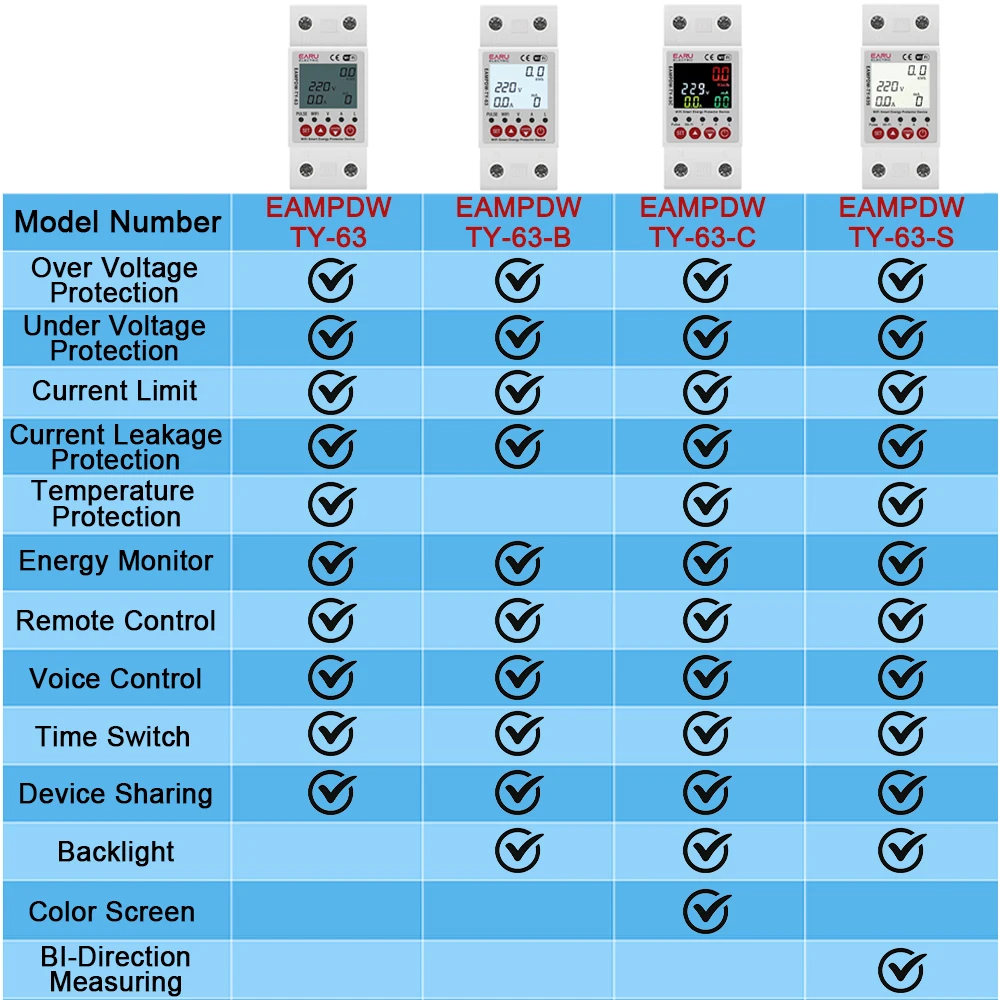

EAMPDW-TY-63B Function:

  • Under voltage protection 90V-190V (adjustable) (default: 170V)
  • Over voltage proteciton 100V-300V (adjustable) (default: 270)
  • Over current protection 10A-80A (adjustable) (default: 50A)
  • Reconnect time (delay on time): 5s-90s (default: 30s)
  • Electric leakage protection:10-99mA
  • Backlight time: Put it out in about 15s
  • Power display range:0-99999.9kWh
  • Energy Consumption Record Range:10-500kWh(default: 30kWh)

EAMPDW-TY-63 / EAMPDW-TY-63C / EAMPDW-TY-63S Function:

  • Under voltage protection 80V-210V (adjustable) (default: 175V)
  • Over voltage proteciton 120V-300V (adjustable) (default: 275)
  • Over current protection 1A-63A (adjustable) (default: 63A)
  • Reconnect time (delay on time): 10s-90s (default: 30s)
  • Current Leakage protection:10-99mA   (This function can be turned off)
  • Over Current and Leakage Reconnect Times  1-30/Off(adjustable)(default:5)  This function can be turned off
  • Temperature Protection:10-85°C(adjustable)    (this parameter only set on App)
  • Power display range:0-99999.9kWh
  • Energy Consumption Record Range:10-500kWh(default: 30kWh)

PS: This device has memory function, when the power is cut off, the device can memory the Kwh, over voltage, under voltage and over current value.
