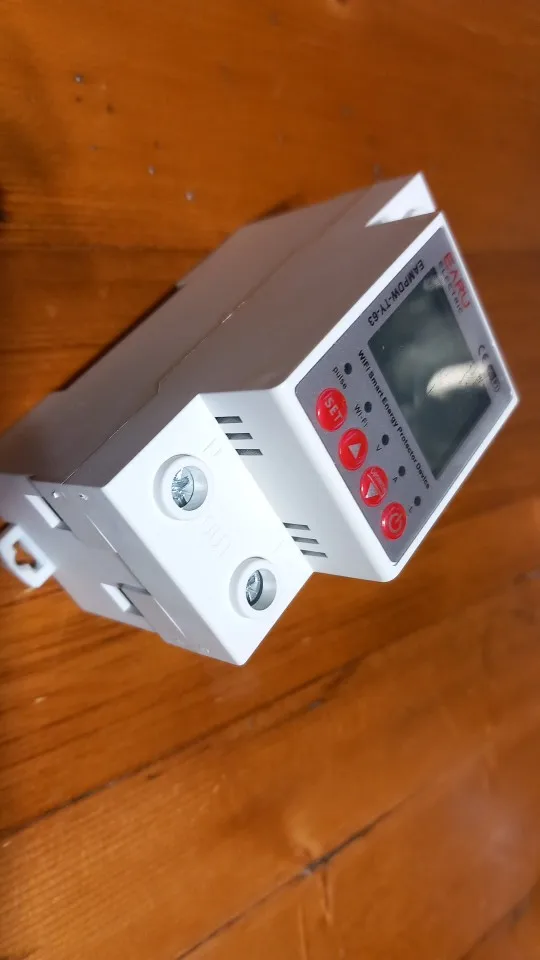

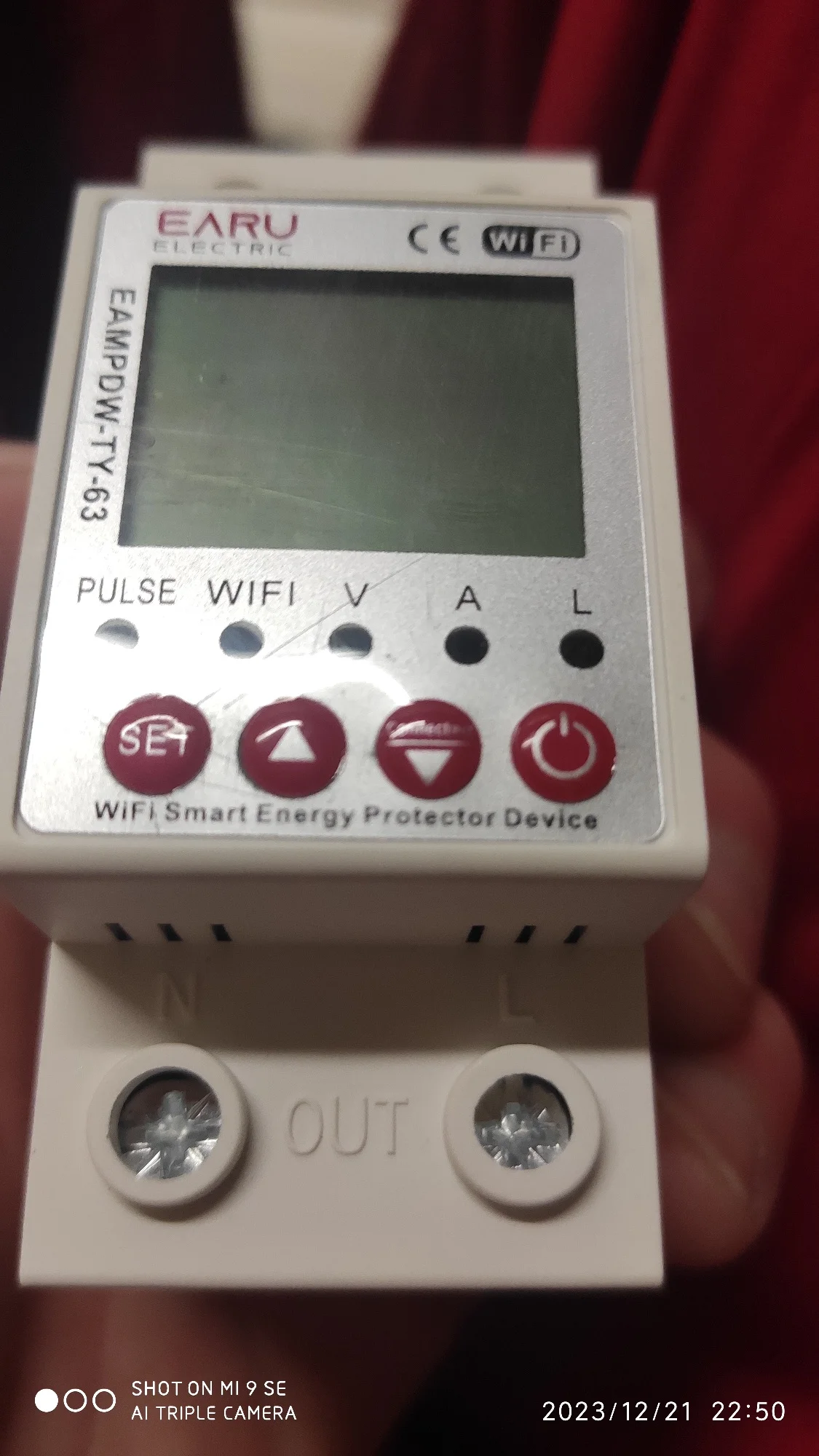

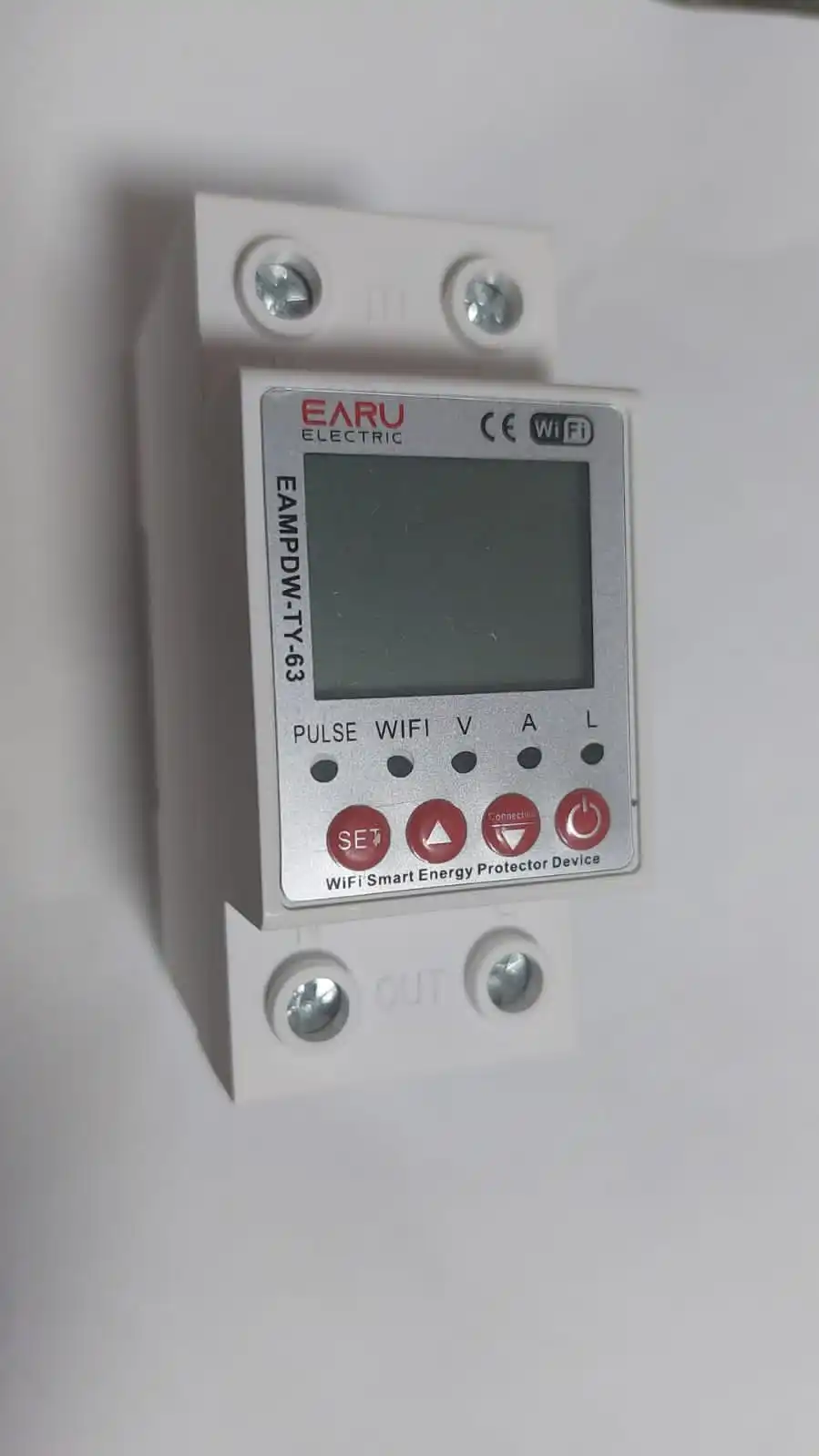

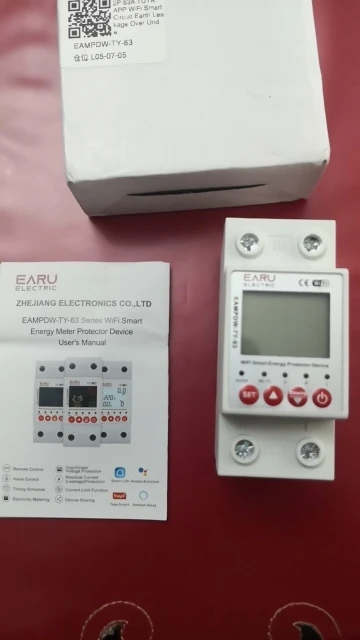

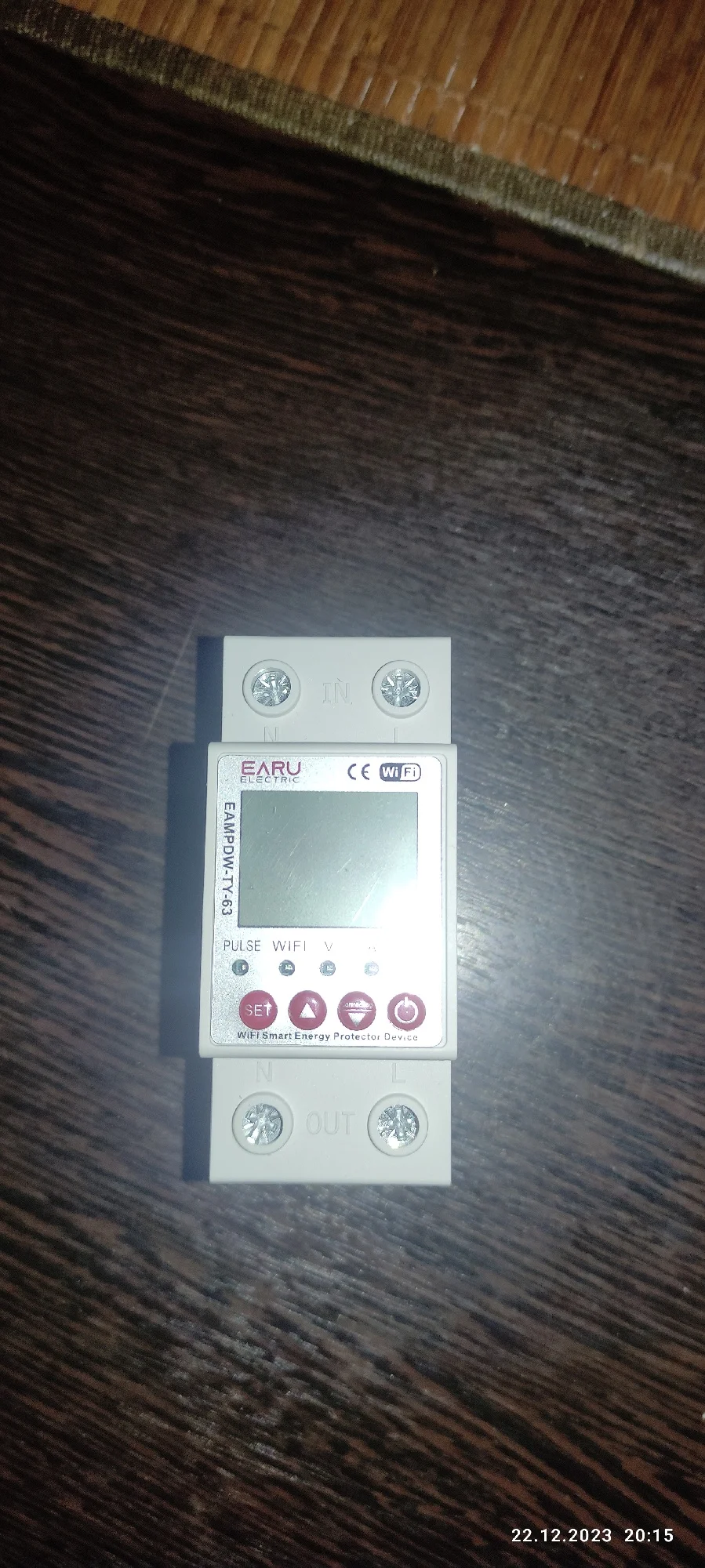

2P 63A TUYA APP WiFi Smart Circuit Earth Leakage Over Under Voltage Protector Relay Device Switch Breaker Energy Power kWh Meter

2P 63A TUYA APP WiFi Smart Circuit Earth Leakage Over Under Voltage Protector Relay Device Switch Breaker Energy Power kWh Meter

Regular price $29.54 USD
Regular price $0.00 USD Sale price $29.54 USD
Sale Sold out
Shipping calculated at checkout.

Experience seamless control with our 2P 63A TUYA APP WiFi Smart Circuit Earth Leakage Protector. Detect and protect against voltage fluctuations and energy overload with accuracy. Manage your energy usage and keep your home safe with this smart device.

SPECIFICATIONS

  • Brand Name: EARUELETRIC
  • EARUELETRIC Model: EAMPDW-TY-63
  • DIY Supplies: ELECTRICAL
  • Measuring Energy Range: 0-99999.9 KW/h
  • Display Type: Digital Only
  • Output Voltage: 220V
  • Model Number: EAMPDW-TY-63
  • Power Supply: AC
  • Phase: single phase
  • Rated Voltage: 230V
  • Dimensions: 85mm*36mm*65mm
  • Operating Temperature: -30℃-70℃
  • Accuracy Class: 1
  • Max Operating Current: 50A - 79A
  • Function 1: Over Voltage Protection
  • Function 2: Under Voltage Protection
  • Function 3: Current Limiter
  • Function 4: Earth Current Leakage Protection
  • Function 5: Energy Consumption Record
  • Current Adjustable Range: 1-63A (adjustable)
  • Earth Leakage Adjustable Range: 10-99mA
  • Energy Consumption Record Range: 0-99999.9 KW/h
  • Model 1: RCCB
  • Model 2: RCBO
  • Model 3: RCD
  • App: Tuya
  • Function 6: Remote Control ON / OFF

We can offer OEM service to print your logo on the circuit breaker, if you get any need, feel free to contact the seller!

Function:

  • Under voltage protection 80V-210V (adjustable) (default: 175V)
  • Over voltage proteciton 120V-300V (adjustable) (default: 275)
  • Over current protection 1A-63A (adjustable) (default: 63A)
  • Reconnect time (delay on time): 10s-90s (default: 30s)
  • Current Leakage protection:10-99mA   (This function can be turned off)
  • Over Current and Leakage Reconnect Times  1-30/Off(adjustable)(default:5)  This function can be turned off
  • Temperature Protection 10-85°C(adjustable)    (this parameter only set on App)
  • Power display range:0-99999.9kWh
  • Energy Consumption Record Range:10-500kWh(default: 30kWh)
  • Voltage meter
  • Ammeter
  • Energy meter
  • Delay time of APP setting program and device: max 20s (It depends on the network speed)

PS: This device has memory function, when the power is cut off, the device can memory the Kwh, over voltage, under voltage and over current value
