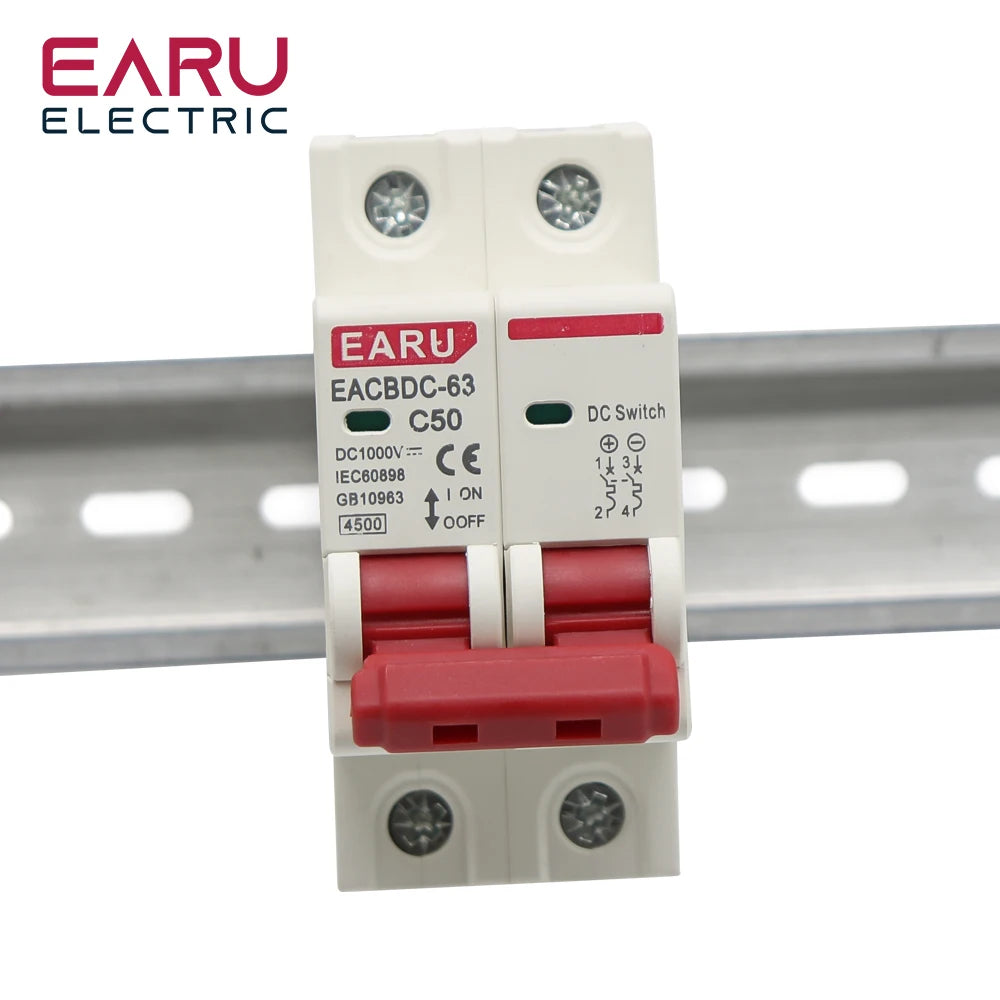

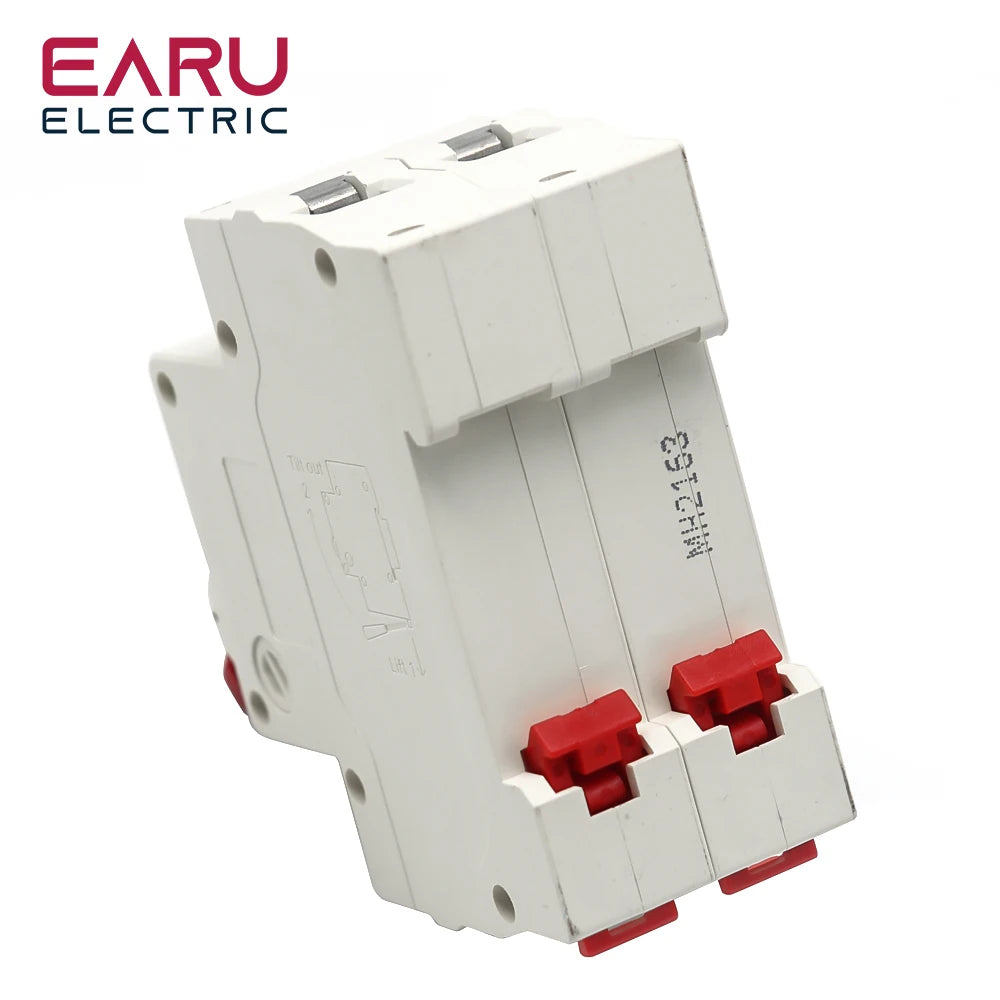

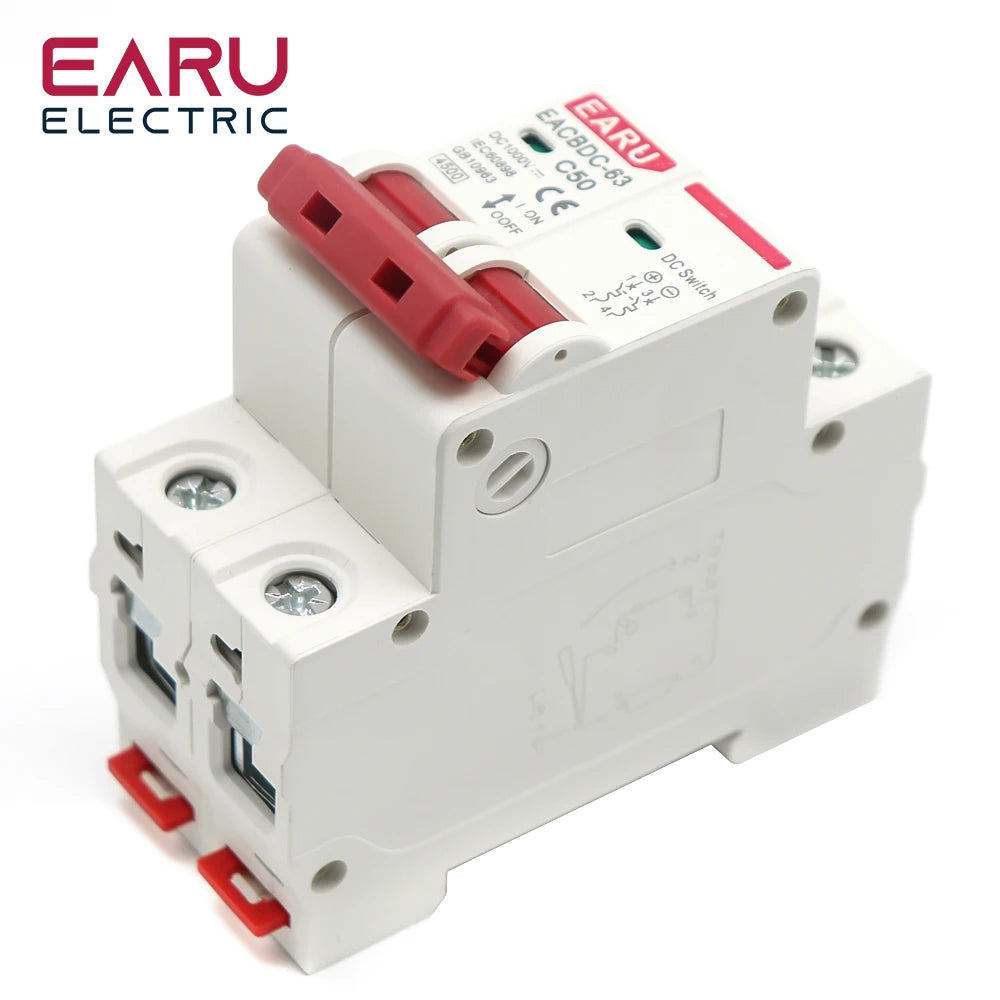

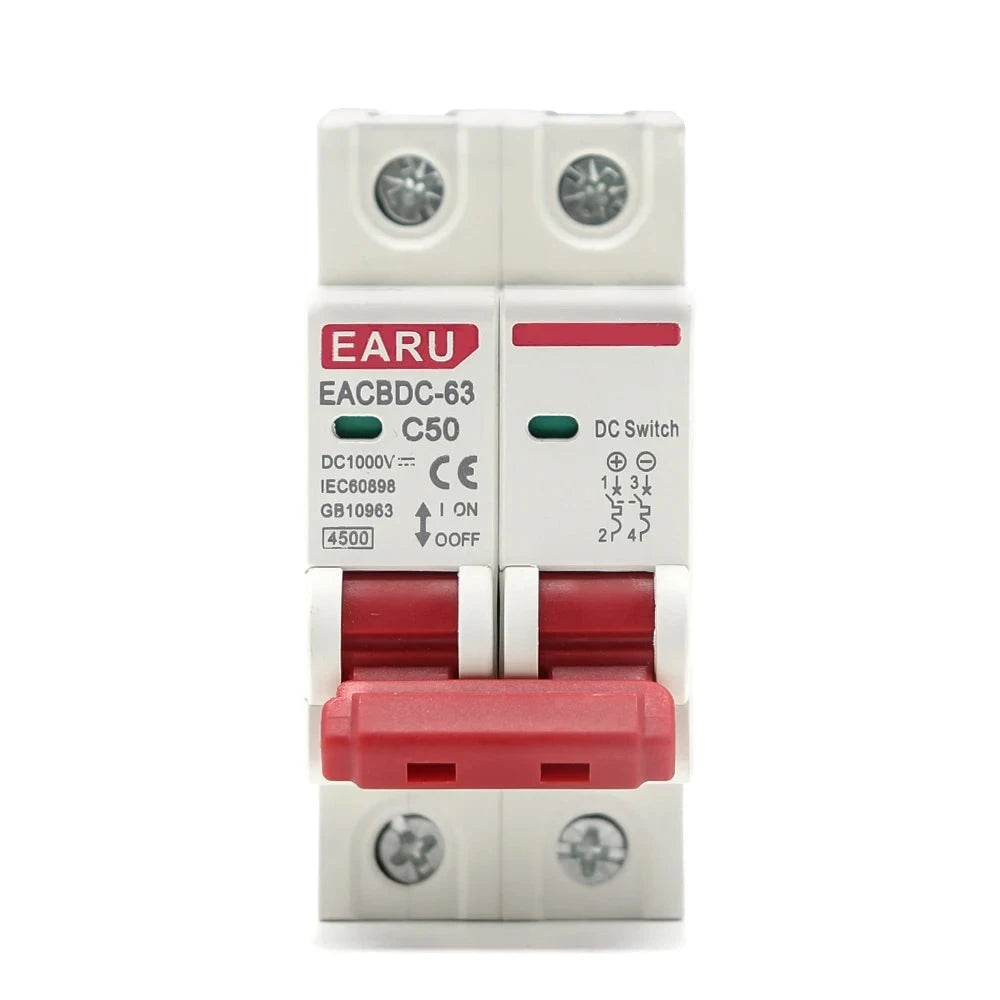

2P DC 1000V MCB Solar Mini Circuit Breaker Overload Protection Switch 6A 10A 16A 20A 25A 32A 40A 50A 63A DC1000V Photovoltaic PV

2P DC 1000V MCB Solar Mini Circuit Breaker Overload Protection Switch 6A 10A 16A 20A 25A 32A 40A 50A 63A DC1000V Photovoltaic PV

Regular price $9.72 USD
Regular price $0.00 USD Sale price $9.72 USD
Sale Sold out
Shipping calculated at checkout.
Rated Current
Poles Number

As an expert in the field, you can trust the 2P DC 1000V MCB Solar Mini Circuit Breaker to provide reliable overload protection. With options ranging from 6A to 63A and a maximum voltage of 1000V, this breaker is perfect for photovoltaic applications. Keep your solar panels safe with this quality switch.

SPECIFICATIONS

  • Brand Name: EARUELETRIC
  • Type: Mini
  • Type: Circuit breaker
  • Model Number: EACBDC
  • Pole number: 2P
  • Breaking current: 4500

DC 1000V Solar Mini Circuit Breaker Overload Protection Switch 2P DC1000V Photovoltaic MCB PV

Our factory can offer OEM/ODM Service, if you need to circuit breaker with your logo,  feel free to contact the seller!

Application

EACBDC-63 Series DC Miniature Circuit Breaker, apply to rating current 63A or less, Direct current rating voltage is 250V for 1 Pole. It is mainly used for the overloading and short circuit protection in DC distribution system Equipment and electric equipment. It can be widely used in electric, post, traffic, mining enterprise and different kinds of fields. In present China, our products in the case grade rating voltage is highest compared to the same products. Products according IEC60898-1, GB14048.2 standard.

Specificaatios

Standard

EN60898(IEC60898) IEC60947-2

Rated current

1-63A

Rated Breaking capacity

6.0kA IEC60898(0.5~63A)
6,10,15kA IEC60947-2(0.5~63A)

Characteristic curve

B,C,D

Max. fuse that can be connected to

100AgL(>10kA)

Selective grade

3

Working ambient temperature

-10℃ ~+40℃

Enclosed protective class

IP20

Electrical life

Not less than 8000 times

Mechanical life

Not less than 20000 times
