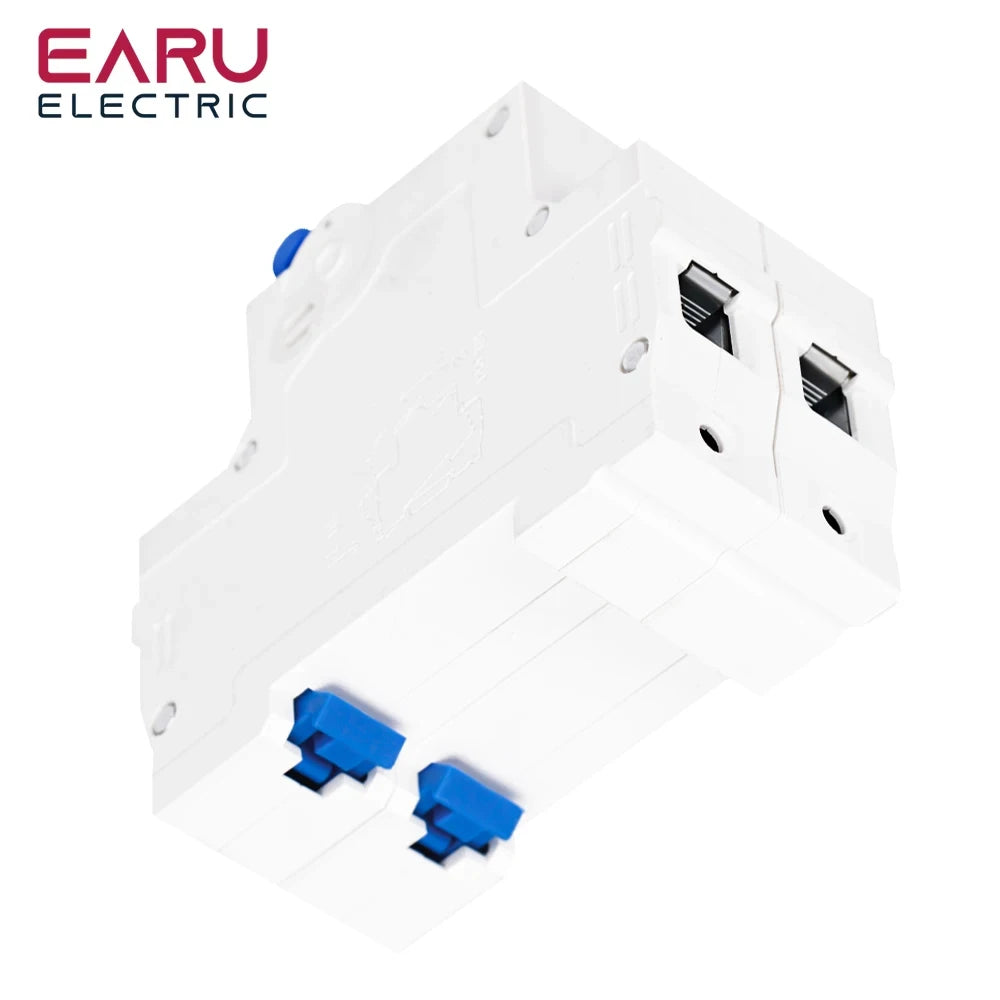

2P Type C AC230V MCB Leakage Protector RCBO Overload Short Circuit Protection Residual Current Circuit Breaker Switch RCCB RCD
2P Type C AC230V MCB Leakage Protector RCBO Overload Short Circuit Protection Residual Current Circuit Breaker Switch RCCB RCD
Couldn't load pickup availability
SPECIFICATIONS
Action Time: ≤0.1S
Brand Name: EARU
Certification: CE
Choice: yes
Electrical life: 10000+ times
Function: Leakage protection
Function1: Overload protection
Function2: Short circuit protection
High-concerned chemical: None
Is Smart Device: No
Mechanical life: 15000+ times
Model Number: EAB6L
Origin: Mainland China
Poles: 2P
Rated Current: 6/10/16/20/25/32/40/50/63A
Rated Residual Operating Current: 30mA
Rated Voltage: 220V,AC230V 50Hz/60Hz
Segmentation Capacity: 6kA
Shell Material: PC flame retardant
Type: Mini,Circuit breaker
Working Temperature: -35~+70℃
is_customized: Yes
semi_Choice: yes
Our factory can offer OEM/ODM Service,if you need to circuit breaker with your logo, feel free to contact the seller!

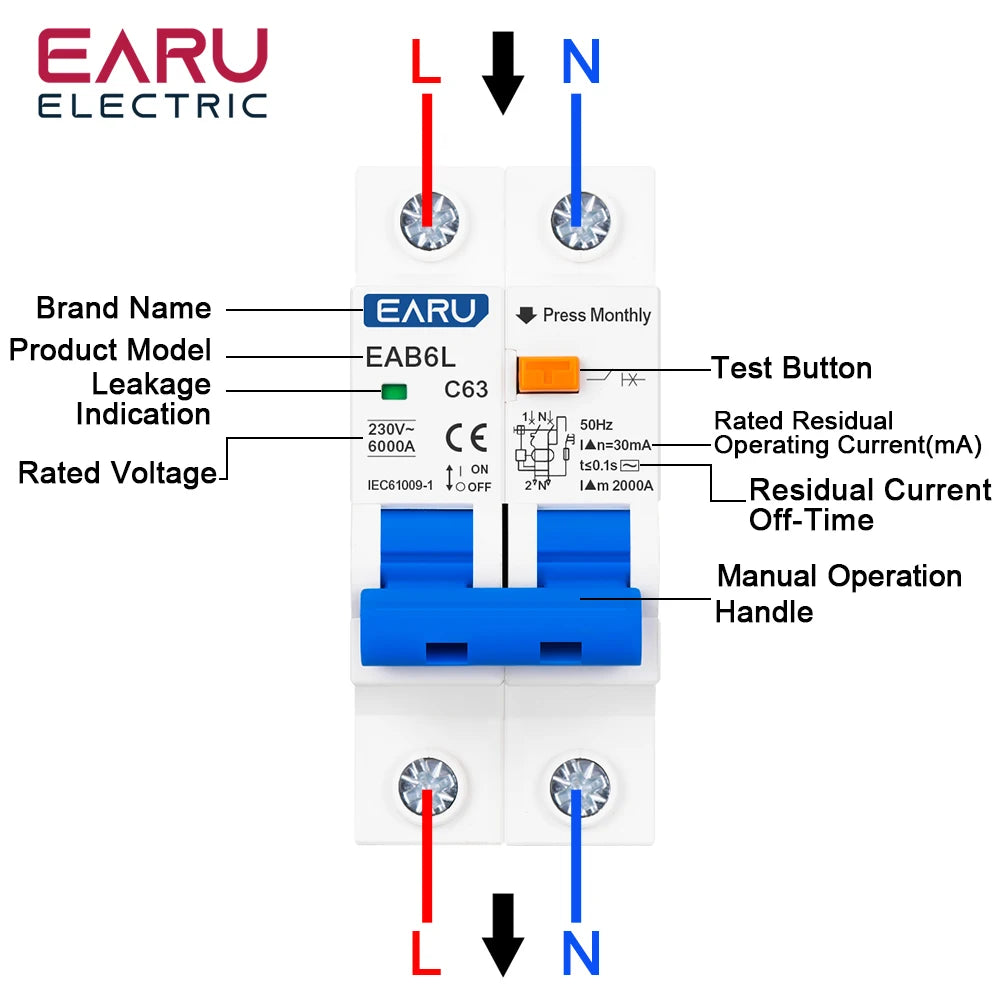

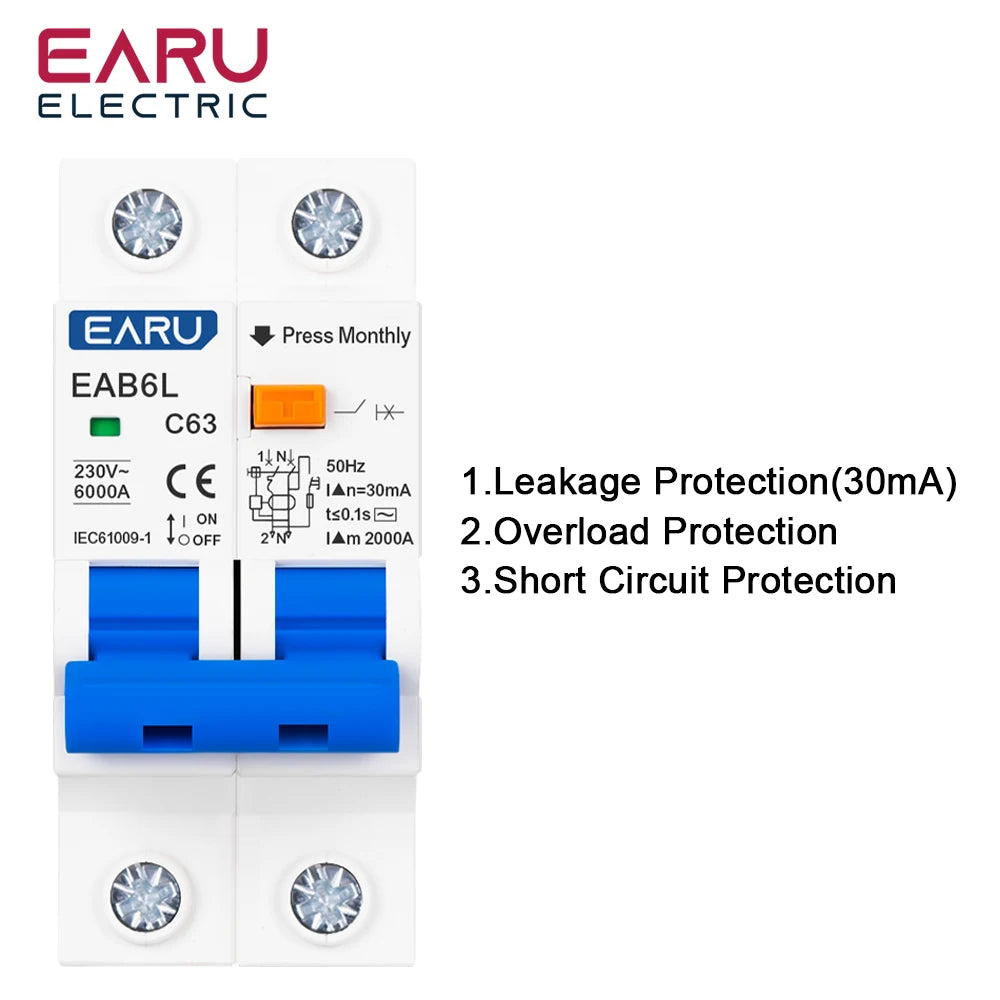

Feature
1.Protection against overload and short-circuit currents.
2.Protection aginst the effects of sinusoidal alternating earth fault currents.
3.Protection against indirect contacts and additional protection against direct contacts.
4.Protectiohn fire hazard caused by insulation faults.
5.Used in residential building.
6.According to the type of instantaneous release classified as follows:type B(3-5)In,type C(5-10)In,type D(10-20)In.

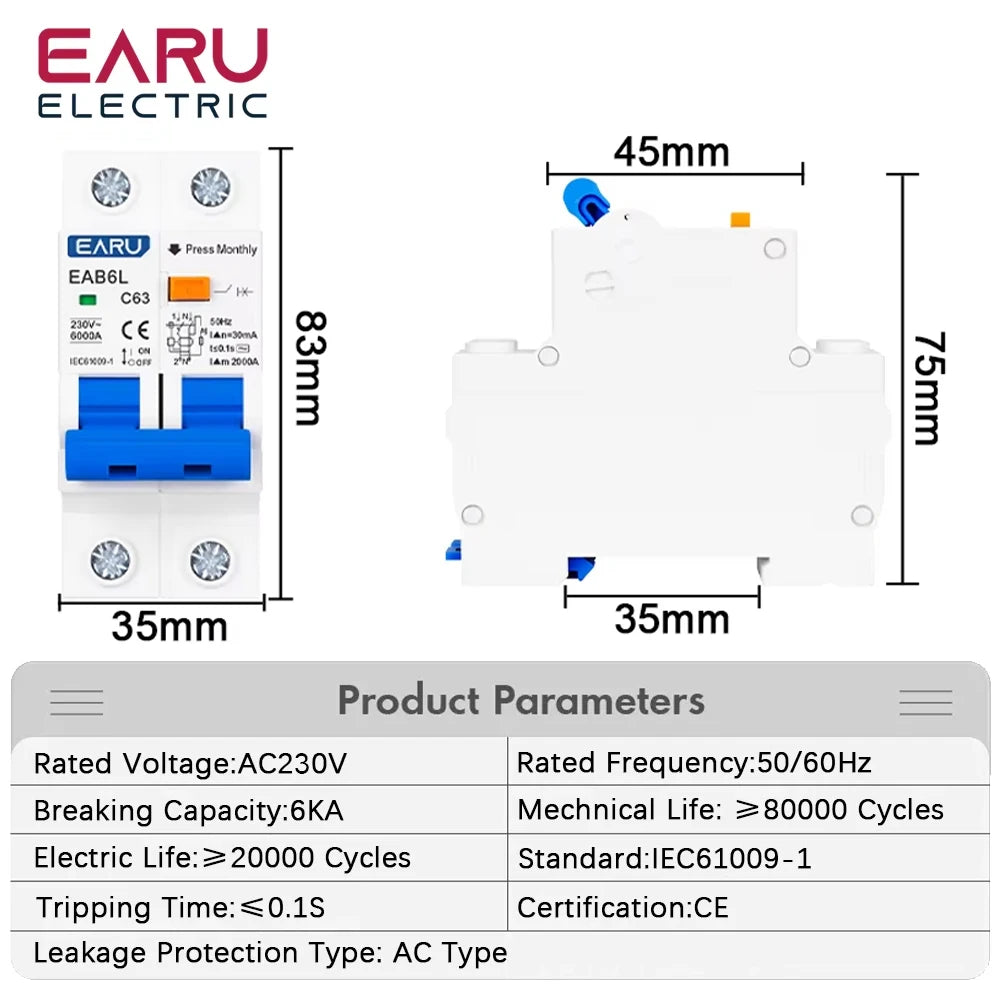

Description
Rated Voltage：AC230 50Hz/60H
In（A）：6,10,16,20,25,32,40,50,63A
Sensitivity：30mA （Send 30mA by default Other specifications need to be customized）
Breaking Capacity：6k
