Rigid Glass Solar Panel Kit — Complete, Ready to Connect
A genuine tempered-glass solar kit that arrives ready to wire: monocrystalline panels, a PWM charge controller, and all the cabling in one box. Choose 1 panel (120W) or 2 panels (240W) depending on the charging capacity you need. Built for off-grid homes, RVs, caravans, boats, and remote sites.
Ships from our US warehouse — tracked delivery in 2–8 business days.
What's in the Box
1pc kit (120W):
- 1 × 120W monocrystalline rigid glass panel
- 1 × PWM charge controller 10A (12/24V)
- 1 × PV connector cable, 3 m / 2.5 mm²
- 1 × alligator-clip cable, 3 m / 2.5 mm²
2pc kit (240W):
- 2 × 120W monocrystalline rigid glass panels
- 1 × PWM charge controller 20A (12/24V)
- 1 × PV connector cable, 3 m / 2.5 mm²
- 1 × alligator-clip cable, 3 m / 2.5 mm²
- 1 × 2-in-1 parallel adapter
Batteries, inverters, and mounting hardware are not included.
Panel Specifications (per panel)
| Rated power | 120 W |
| Operating voltage (Vmp) | 18 V |
| Open-circuit voltage (Voc) | 21.6 V |
| Short-circuit current (Isc) | 6.93 A |
| Working current (Imp) | 6.66 A |
| Cell type | Monocrystalline |

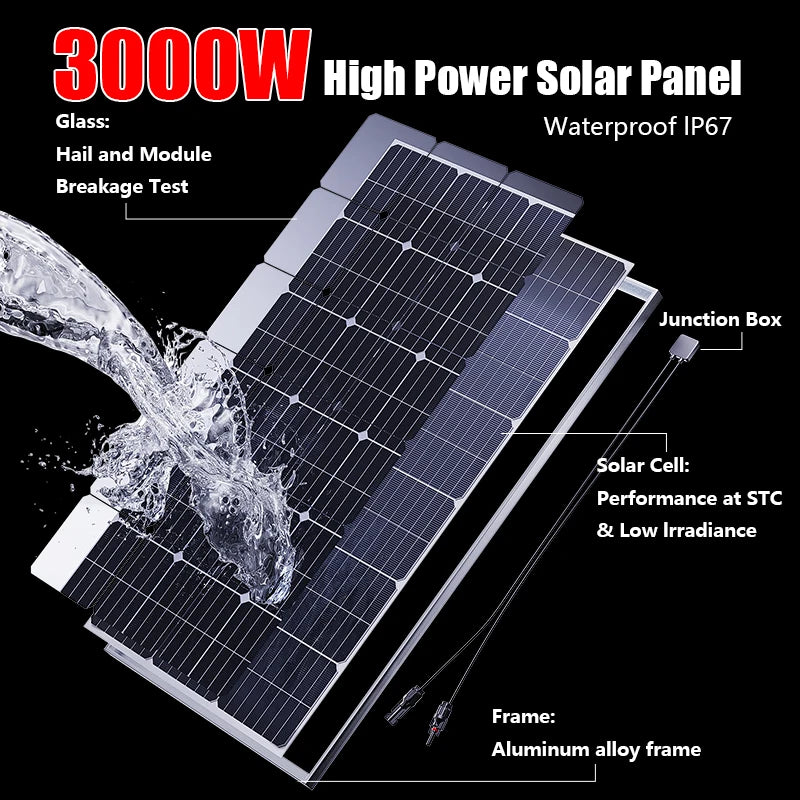

| Glass | 3.2 mm tempered, anti-reflective coated |
| Frame | Anodized aluminium alloy, corrosion resistant |

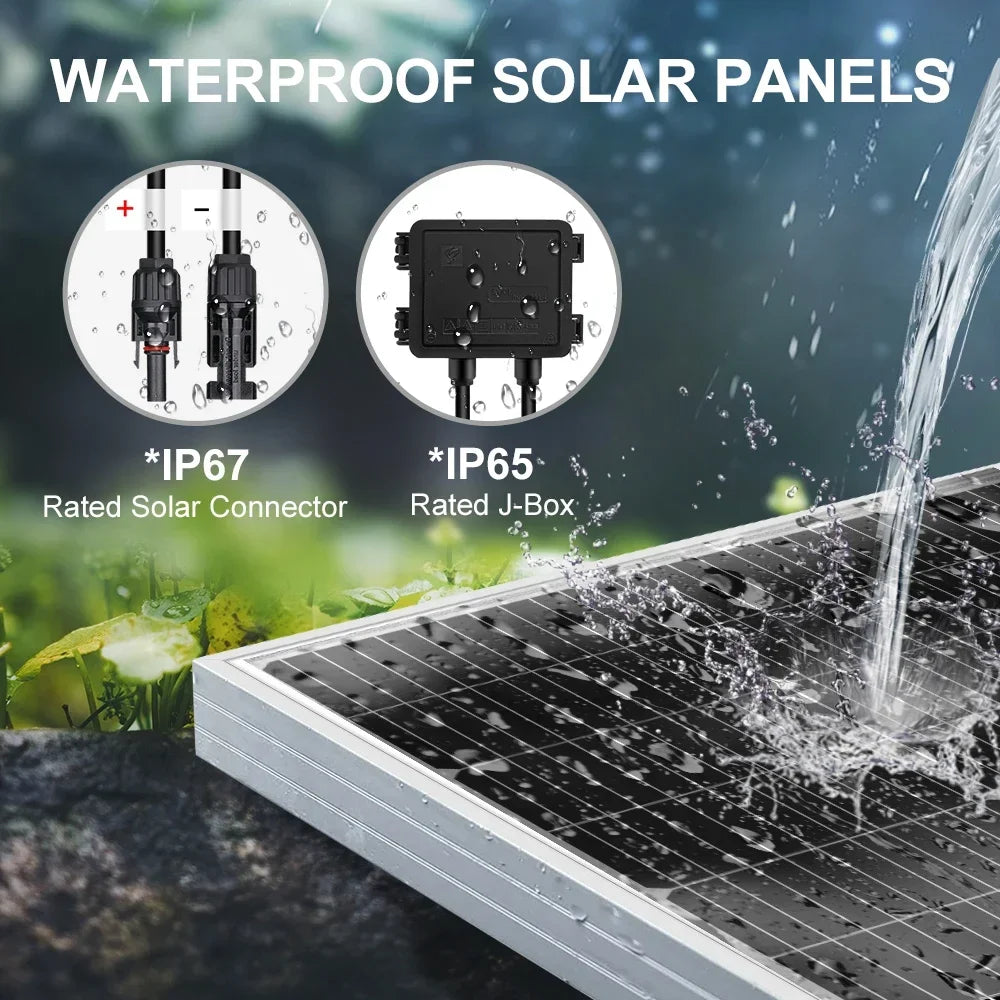

| Junction box | IP65 rated, 2 bypass diodes |
| Output cable | 90 cm with MC4 male/female connectors |
| Max system voltage | 1000 V DC (IEC) / 600 V DC (UL) |
| Wind / snow load | 2400 Pa / 5400 Pa |
| Temperature range | −40 °C to +80 °C |
| Dimensions | 1160 × 530 × 25 mm |
| Weight | 6.5 kg per panel |
| Output tolerance | ±5% |
| Service life | 25-year power output warranty from the manufacturer |
Average yield is roughly 600 Wh per day per 120W panel, depending on sunlight hours, orientation, and temperature. Output must be measured under direct sun; power varies with irradiance and cell temperature.
Why Rigid Glass Instead of Flexible
- Longer life: tempered glass and an aluminium frame last decades outdoors, where flexible laminates degrade far sooner.
- Weather resistance: rated for high winds, snow loads, hail, salt corrosion, and humidity.
- Stable output: rigid mounting keeps cells flat and properly cooled, avoiding the hot-spot losses common to curved panels.
Easy Installation

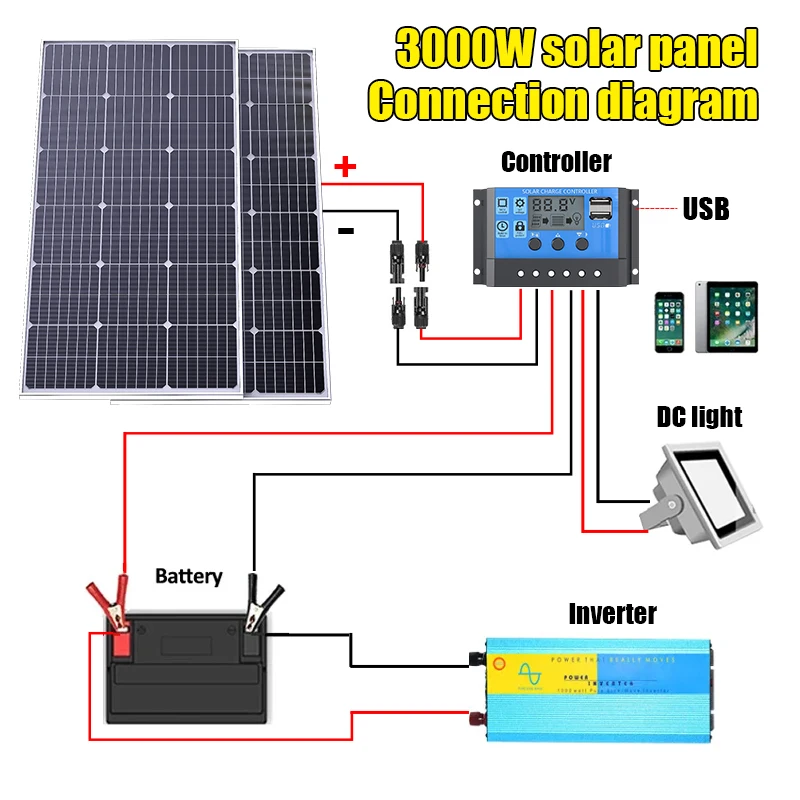

Each panel ships with pre-drilled mounting holes and MC4 quick connectors, so the kit connects without special tools. Wire the panel(s) to the included controller, then the controller to your 12V or 24V battery bank. Bypass diodes limit the impact of partial shading.

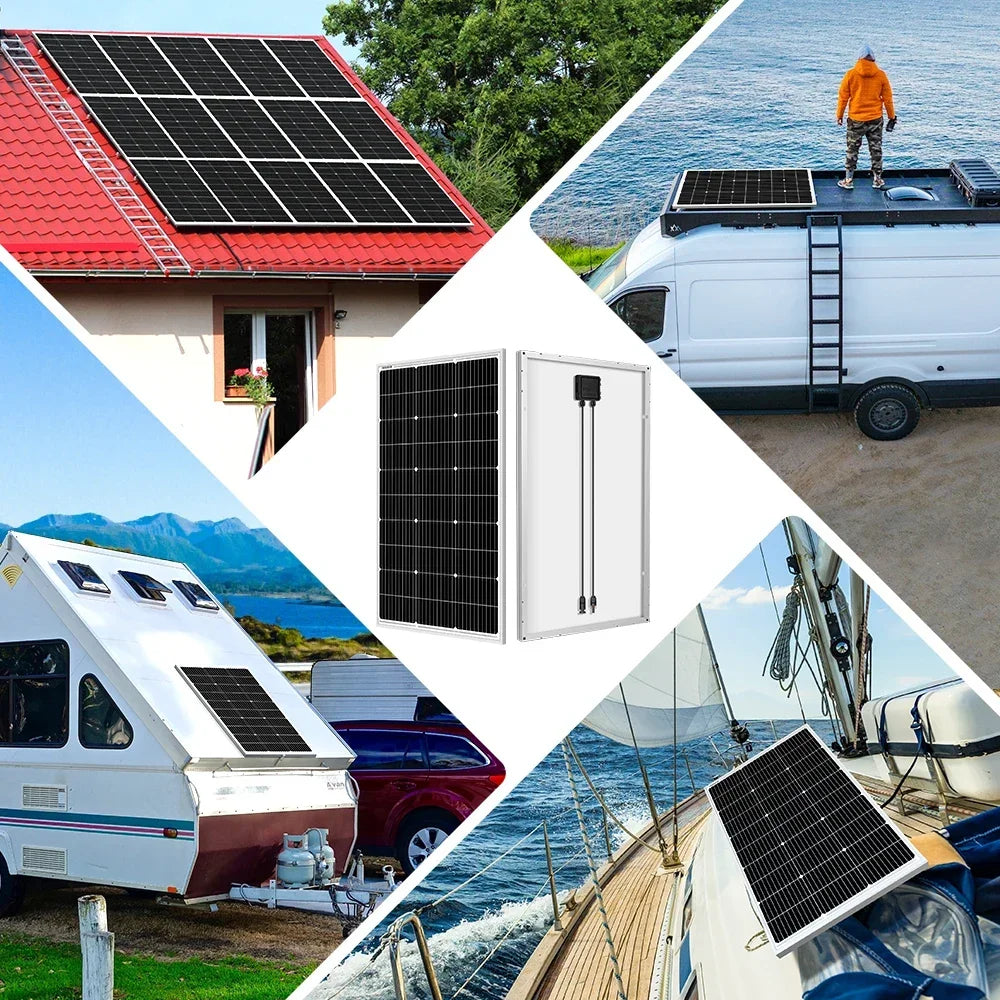

Typical Applications
- Off-grid cabins and remote properties
- RVs, caravans, vans, and boats
- Battery maintenance and backup charging
- Greenhouses, sheds, gates, and pumps
Sizing Your Kit

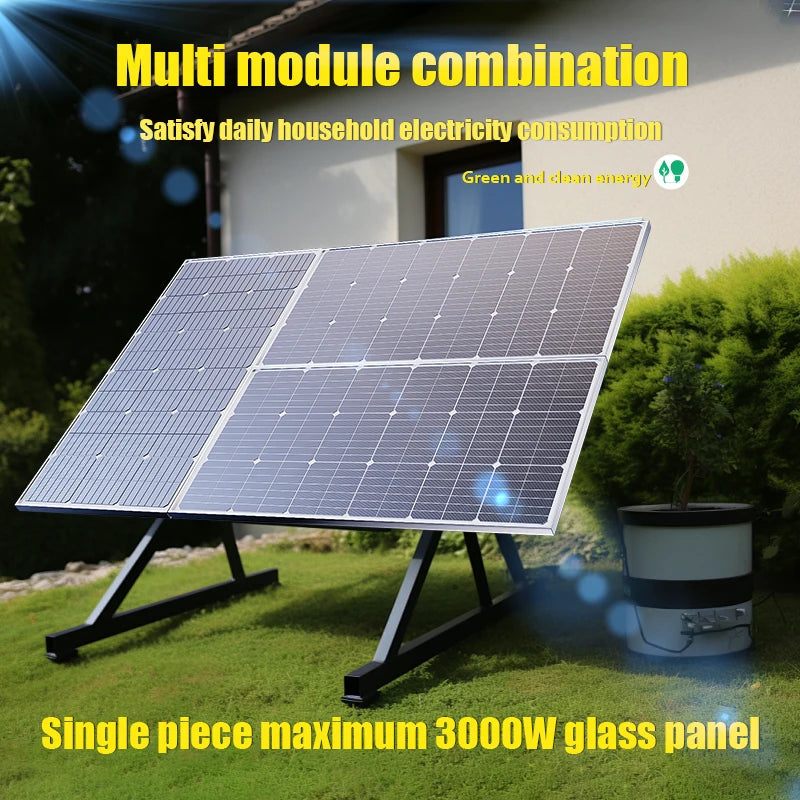

Match the kit to your daily energy need and battery bank. The 120W kit suits battery top-up and small loads such as lighting and charging. The 240W kit roughly doubles daily yield and includes the 20A controller, which better suits a larger battery bank or several loads running together. Panels can be expanded later using the parallel adapter.
Frequently Asked Questions
Is a charge controller included?
Yes. The 1pc kit includes a 10A PWM controller; the 2pc kit includes a 20A PWM controller, along with the cables.
Are batteries or an inverter included?
No. You connect the kit to your own 12V or 24V battery bank. An inverter is only needed if you want AC output.
What is the delivery time?
2–8 business days with tracking, shipped from our US warehouse.
Can I connect both panels together?
Yes — the 2pc kit includes a 2-in-1 parallel adapter for wiring both panels to the controller.
Do you provide installation services?
No. We do not offer installation or personalised technical consulting. Full specifications are listed on this page.
How can I pay?
Credit card, debit card, and Apple Pay via Stripe, processed securely at checkout.
