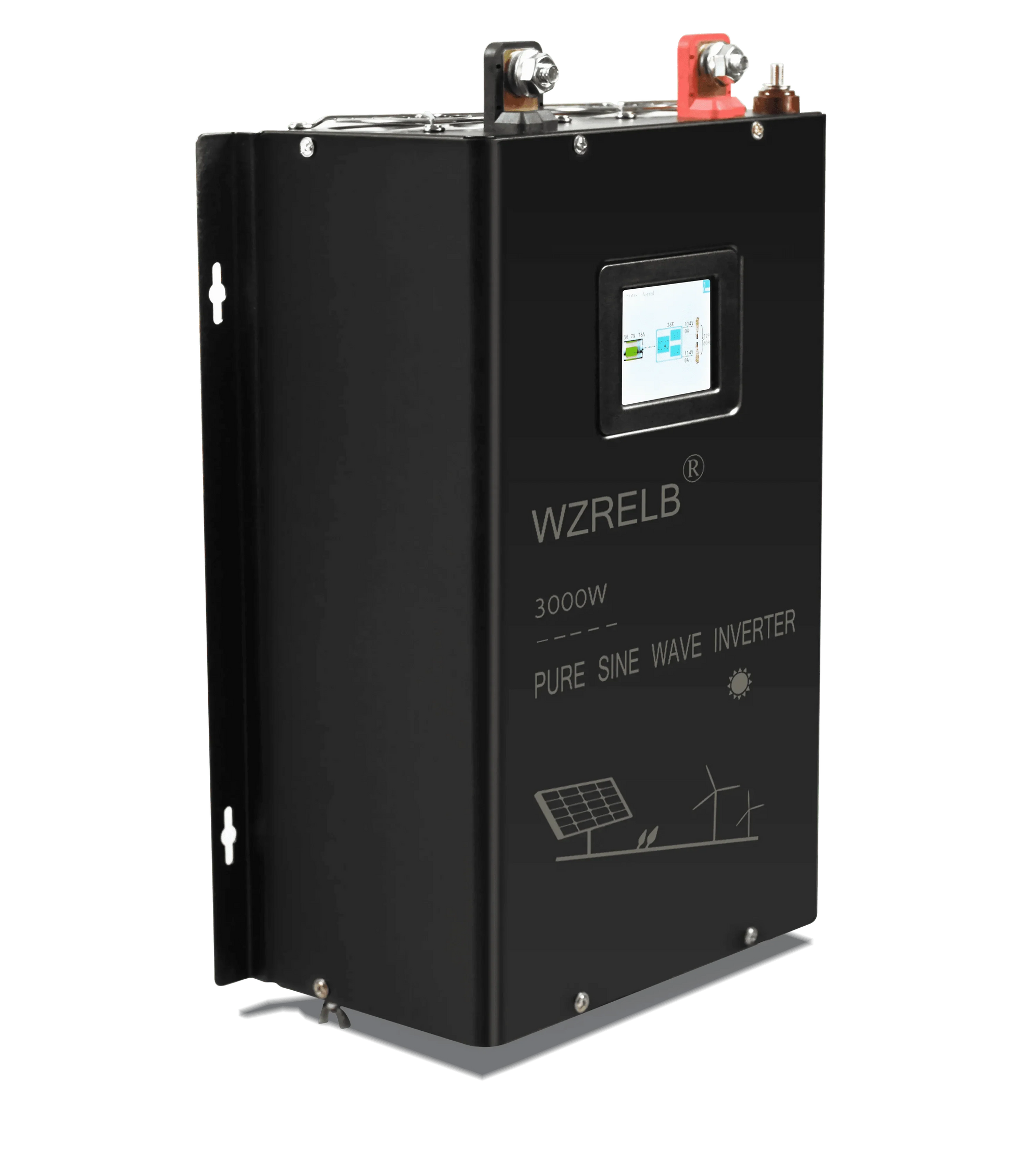

3000W Split-phase Pure Sine Wave Solar Inverter 24V 220V Power Bank Inverter Solar Panel Converter 24V/48V DC to 220V/240V AC
3000W Split-phase Pure Sine Wave Solar Inverter 24V 220V Power Bank Inverter Solar Panel Converter 24V/48V DC to 220V/240V AC
Couldn't load pickup availability
This 3000W split-phase pure sine wave solar inverter is the perfect solution for converting your 24V/48V DC power to 220V/240V AC power. With its powerful capabilities, you can easily power various appliances and devices while enjoying the benefits of clean and efficient energy from your solar panels. Experience reliable performance and peace of mind with this advanced power bank inverter.
SPECIFICATIONS:
- Type: DC/AC Inverters
- Size: 38*25*13.5MM
- Output Frequency: 50HZ or 60HZ
- Output Type: DUAL
- is_customized: Yes
- Output Current: depends on the voltage
- Output Power: 3000 Watt-6000 Watt
- Weight: 7.5KGS
- Model Number: RBP-3000S-LED
- Certification: CE
- Certification: FCC
- Inverter Type: Off Grid DC to AC Split Phase Inverters Converters Transformer
- Efficiency: >95%
- Color: Black
- Socket Type: Full Type
- Packing Type: Carton Packing
- Shell Type: Iron Shell
- Output Voltage: 110V/220V, 120V/240V
- Input Voltage: 24V or 36V or 48V or 60V or 72V or 96V or 110V
- Input Voltage Range: 21-30VDC or 30V-45VDC or 42-55VDC or 55V-75VDC or 60V-90VDC or 85V-120VDC or 100-130VDC
- Energy Type: Solar Power, Battery, Car Power,Wind Power
About us:
- Our company is the leading and professional manufacturer for 150w to 8000w DC TO AC OFF GRID PURE SINE WAVE INVERTER. Our professional technical department, will support the best technical service and after-sale technical service.
- Our principle is “quality first, customer priority, service best, trade honest”.
- With the high quality, favorable fame, excellent service, our power inverters are sold all over the world. We have many loyal customer in the Europe, America, Asia, etc.
- All inverters are stricktly inspected before leaving factory, Reliable Company Guarantees that each inverter is in its best operating condition.
About avantage of our inverter:
- High quality transformer As the core components, transfer the DC power to AC power, we use the high frequency transformer, ensure the stable and full AC output, no failure.
- Imported capacitor Adapted the imported capacitor, large electricity, better performance, longer lifetime, safer usage.
- True copper inductance High quality true copper inductance, filter the wave form, ensure the true pure sine wave AC output, safeguard your equipment.
- EMC tested No electromagnetic interference to your equipment, such as no noise for TV, FM radio, Audio.
- Radiating flange With the big radiating flange, better cooling performance, ensure the best inverter working condition.
- Big mosfet All big mosfet, larger load capacity, stable the inverter performance, supply the continuous AC output.
- Earth line connection Earthe connection for both PCB board and output, more safe for the load and the usage.
- PCB thickness The PCB thickness of 2.00mm, thicker than the most inverters on the market, allow the stronger current floating on the circuit, increase the load capacity.
-

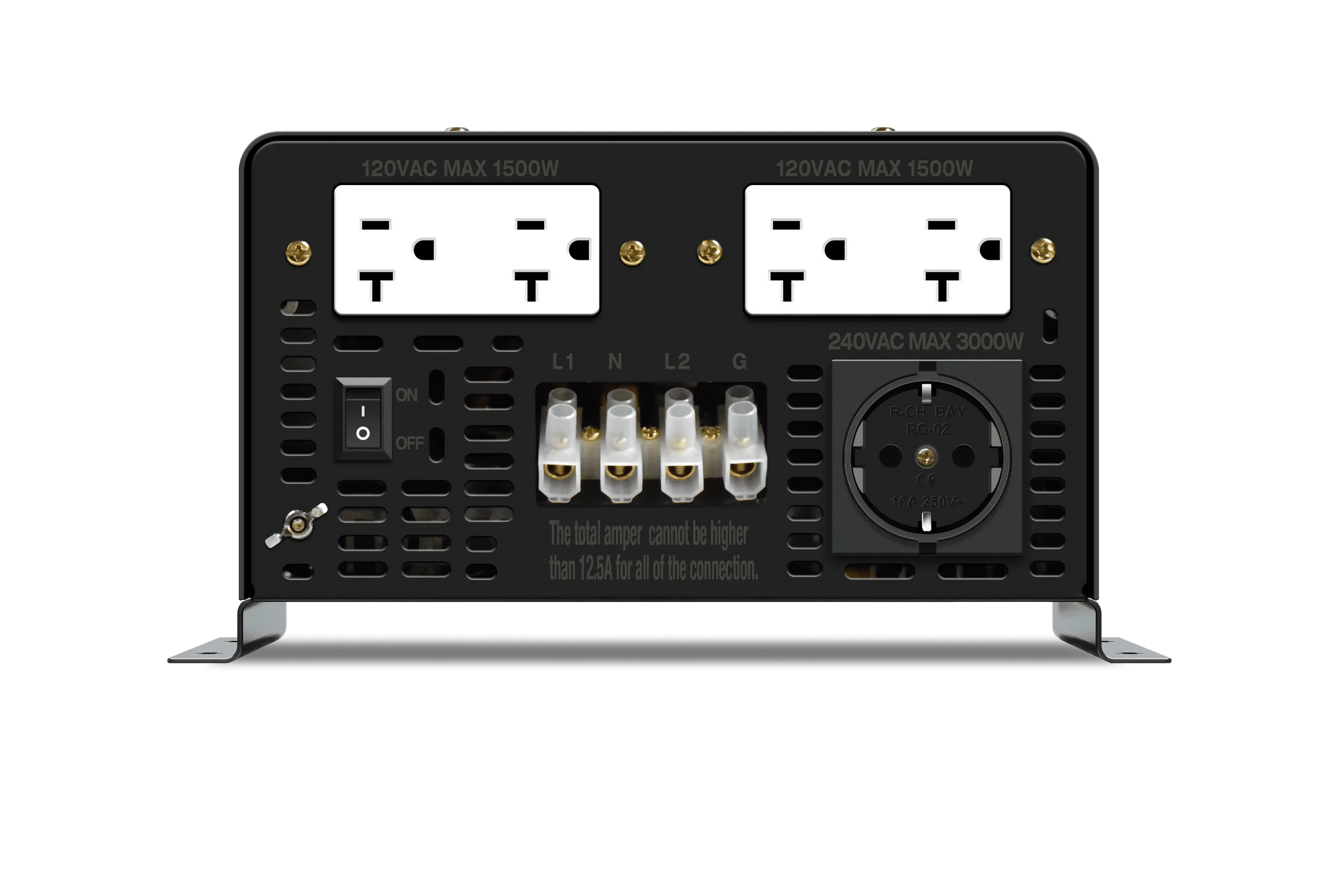

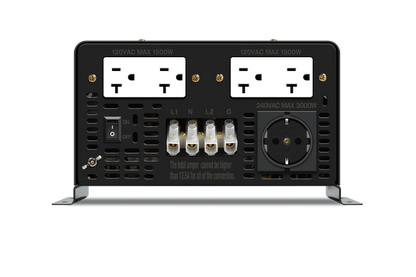

Split-phase inverter with two output voltages, suitable for different voltage devices
Applications of Our Customers:
Product Detail Parameters
|
DC Voltage |
24V or 36V or 48V or 60V or 72V or 96V or 110V |
|
Voltage Range |
21-30VDC or 30V-45VDC or 42-55VDC or 55V-75VDC or 60V-90VDC or 85V-120VDC or 100-130VDC |
|
NO Load Current Draw |
<1A |
|
Efficiency |
>90% |
|
DC Connector |
Cables With Clips or Car Adaptor |
|
AC Voltage |
110/220VAC or 120/240VAC |
|
Continuous Power |
3000W |
|
Surge Power |
6000W |
|
Waveform |
Pure Sine Wave |
|
Frequency |
50±2Hz/60±2Hz |
|
AC Regulation |
3% |
|
Low Voltage Alarm |
20.5DC±1V or 32.5VDC±1V or 44.5VDC±1V or 55.5VDC±1V or 68VDC±1V or 92VDC±1V or 105VDC±1V |
|
Low Voltage Shut Down |
19.5DC±1V or 31VDC±1V or 42VDC±1V or 55VDC±1V or 60VDC±1V or 84VDC±1V or 100VDC±1V |
|
Over Load |
Shut Off Output |
|
Over Voltage Shut Down |
30.5V or 55.5V |
|
Over Thermal |
Shut Off Output Automatically |
|
Fuses |
Short Circuit |
|
Working Temperature |
Between -10centi and +50centi |
|
Working Humidity |
20%~90%RH non-condensing |
|
Storage Temperature |
Between -30centi and +70centi |
|
Start |
Soft Start |
|
Cooling Ways |
Cooling Fan |
|
Total Harmonic Distortion THD |
<5% |
|
Machine Size(mm) |
380*250*135 |
|
Packing Size(mm) |
465*325*212 |
|
Net Weight(kgs) |
7.5KG |
|
Gross Weight(kgs) |
10KG |
|
Packing Type |
Carton Packing |
Feartures:
- Pure Sine Wave, as good as the grid power
- Full Power
- Core Technology, German Design
- Most Advanced Program in Software
- Complete Protection Non Defect Rate,
- Better EMC - Electro Magnetic Compatibility,
- No Noise for TV or Stereo Sound
- SMT- Surface Mounting Technology
- All Big Imported Mosfet,Strong Driving Capacity
- PCB Thickness :2.00m
- LED Display
- Compact Design, Less Weight, Full Power,
- Single Layer Design, Easy to Repair if any.
- Earth Connection for Both Inverter and PCB,
- Low No Load Current Draw
- Durable quality with 10 years usage,

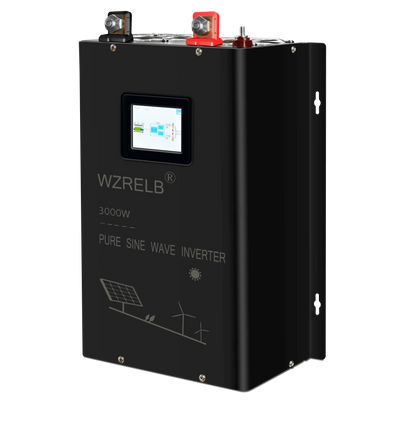

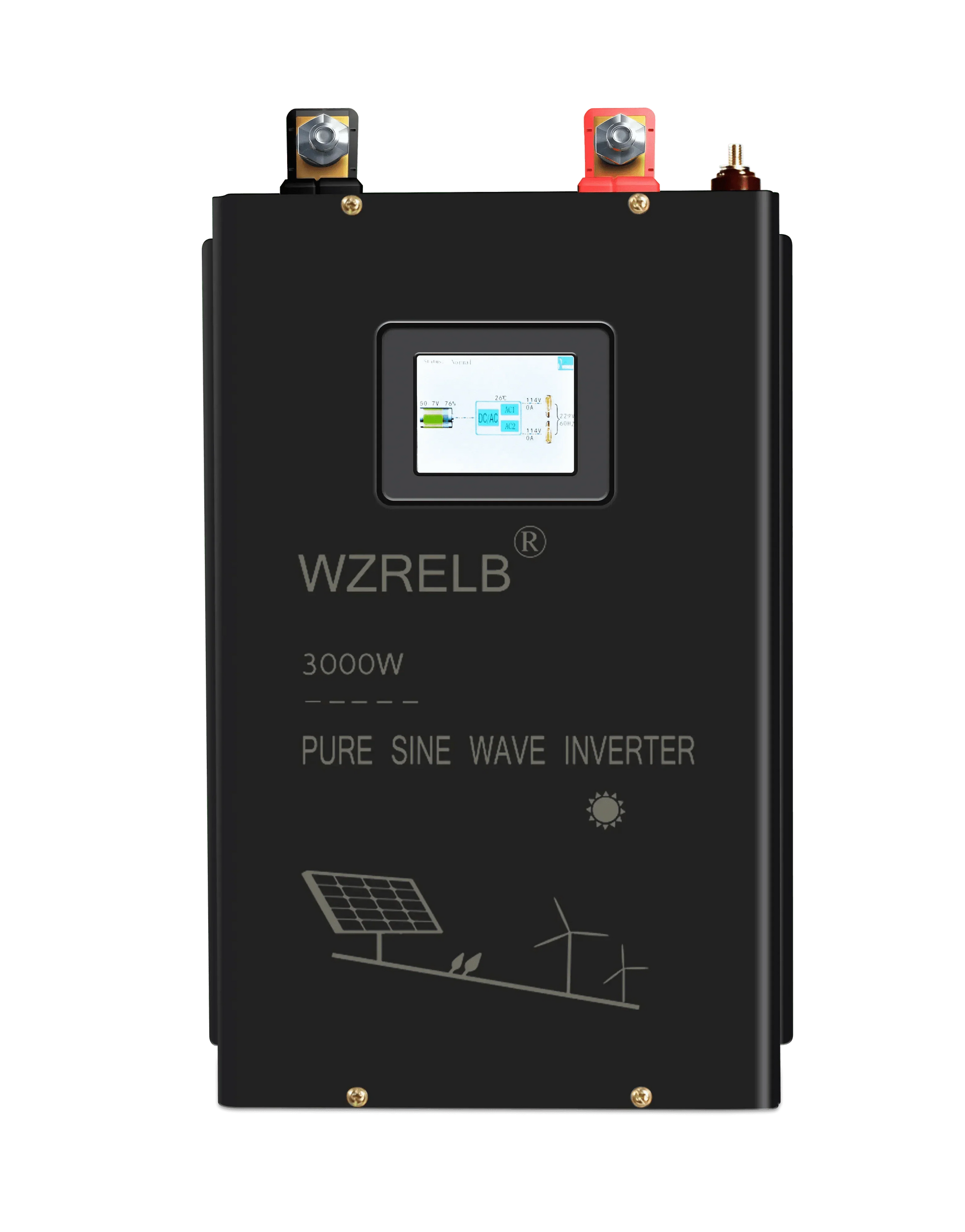

- Alarm and LED Indication Light for error warning.New inevrter with LED display, let you monitor the inverter input voltage and output voltage in time. With this function, you will know about the inverter condition more clearly.
- Sufficient Heat Radiation
- More Vent Holes on the plates and the bottom for heat radiation
- Popular Metal Black Design
- Big Current Connector,
- All kinds of socket are available
- Strong Wiring Row on AC End,
- Best quality ever in the market
- Factory Price.
- Split-phase, one inverter has two output voltages.
