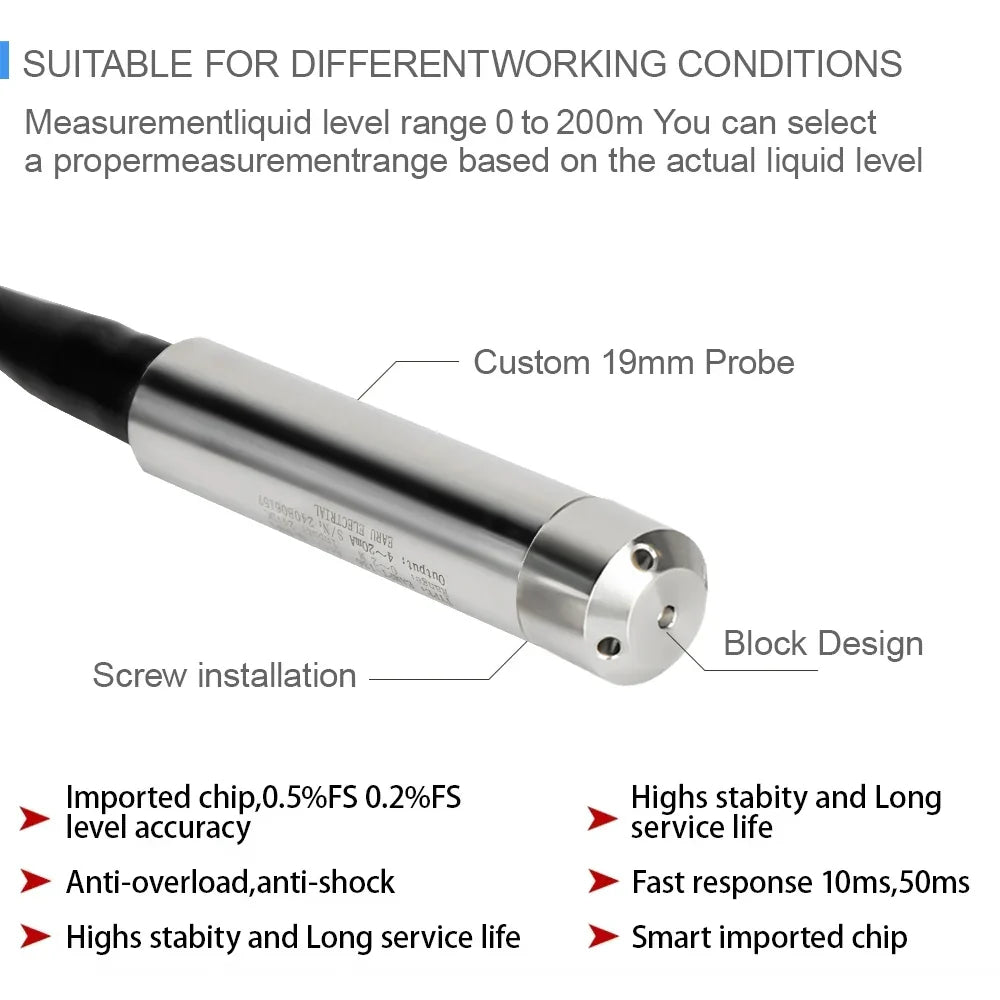

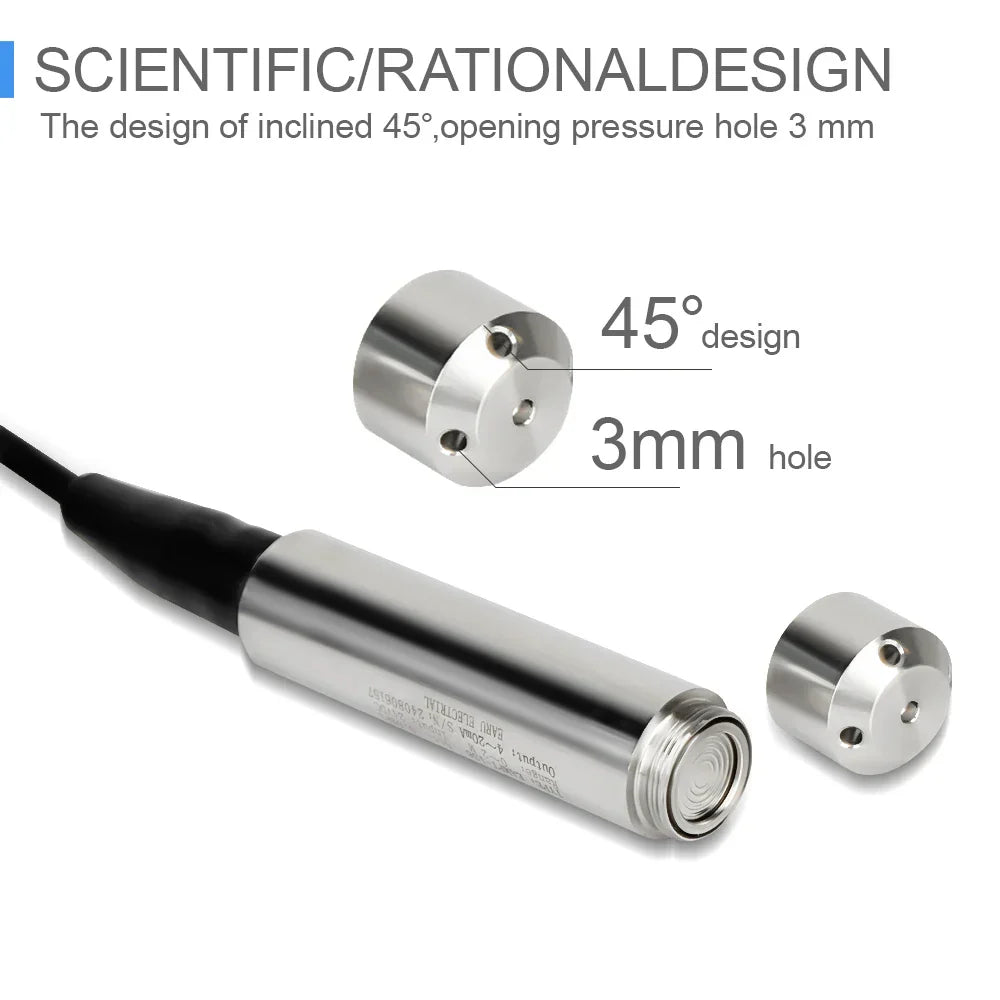

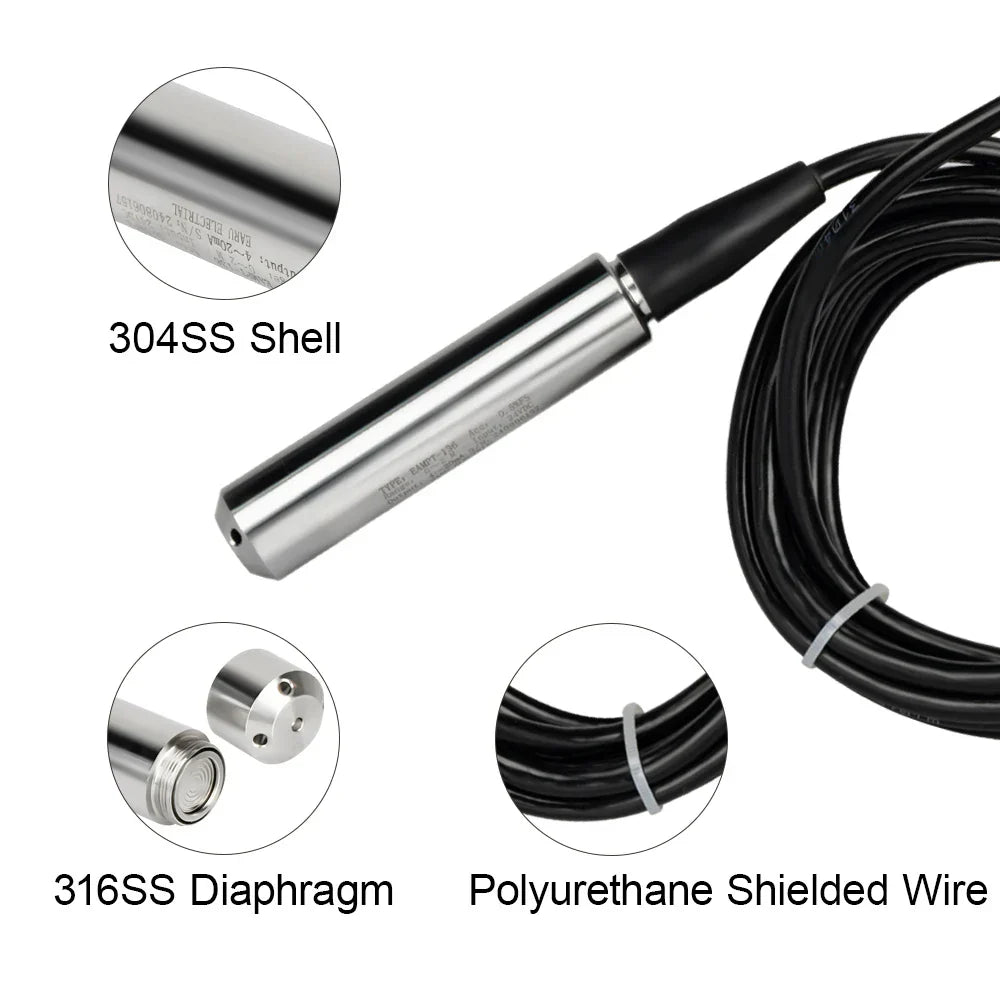

The input level/water level transmitter uses a diffusion silicon chip to encapsulate the diffusion silicone oil-filled core in a stainless steel housing. The front end protective cap functions as a protective sensor diaphragm, and also allows the liquid to smoothly contact the diaphragm. Wire and housing are sealed and connected. The vent pipe is connected to the outside in the cable. The internal structure is designed to prevent condensation. Built-in micro signal processing circuit can be used for remote transmission. It has good stability and reliability.

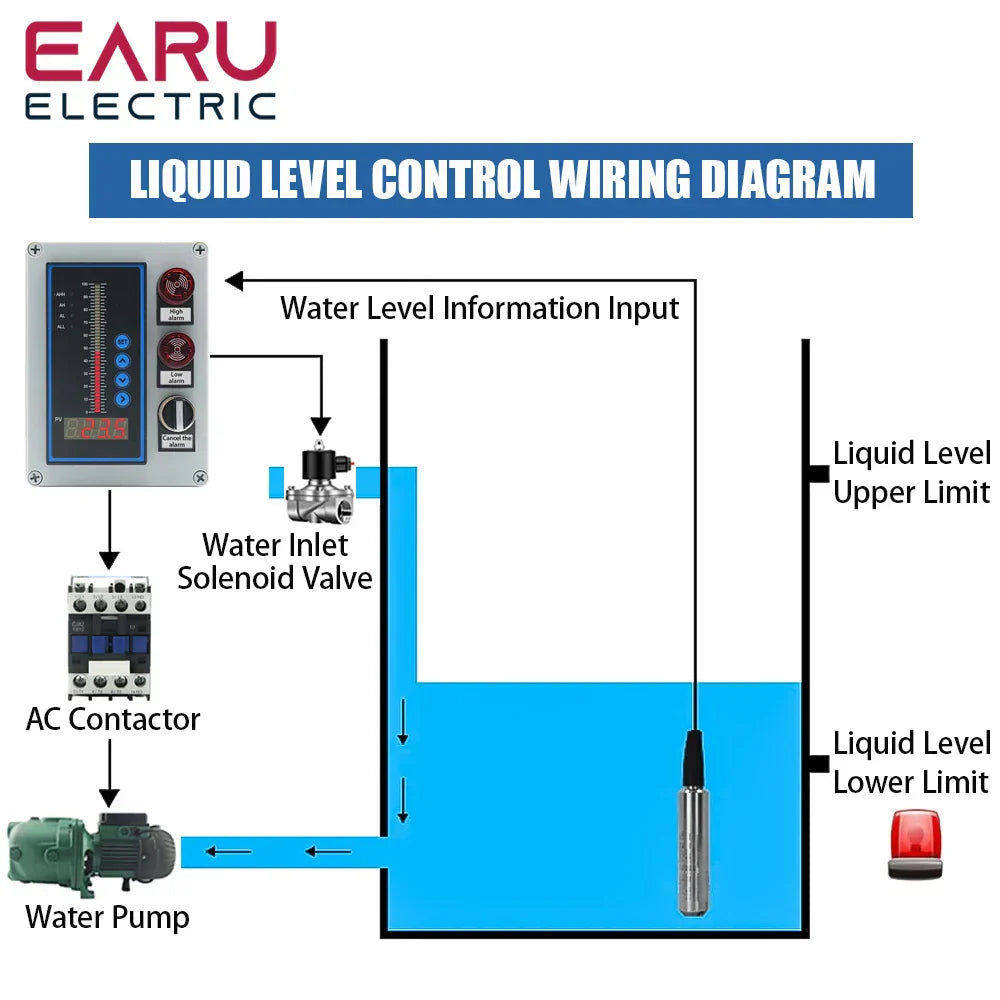

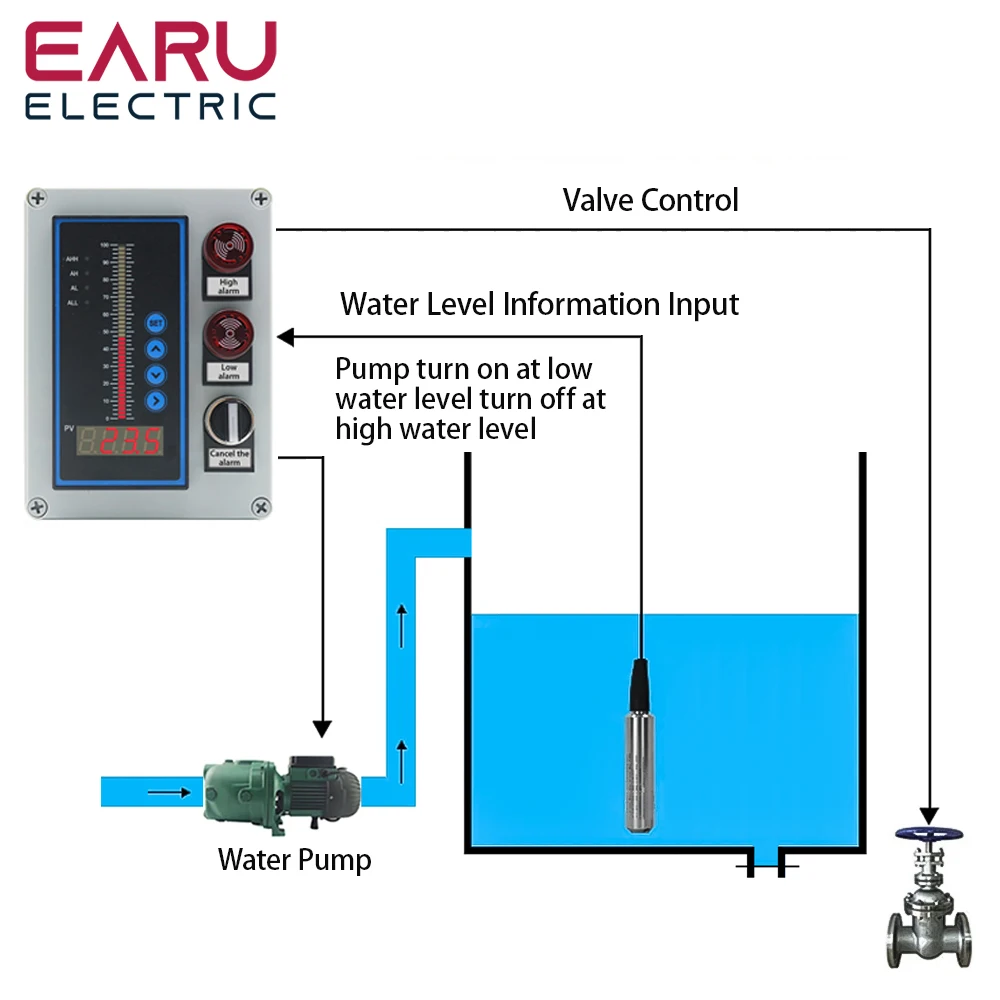

Widely used in water plants, sewage treatment plants, urban water supply, high-rise pools, wells, mines, industrial pools, water tanks, oil pools, hydrogeology, reservoirs, rivers, oceans and other places

◆ fully enclosed circuit, with moisture, condensation, anti-leakage function

◆ Range: 0～200 meters

◆ One-piece

◆ Accuracy: 0.5%FS

◆ Appearance size is about 145mm, diameter 28mm

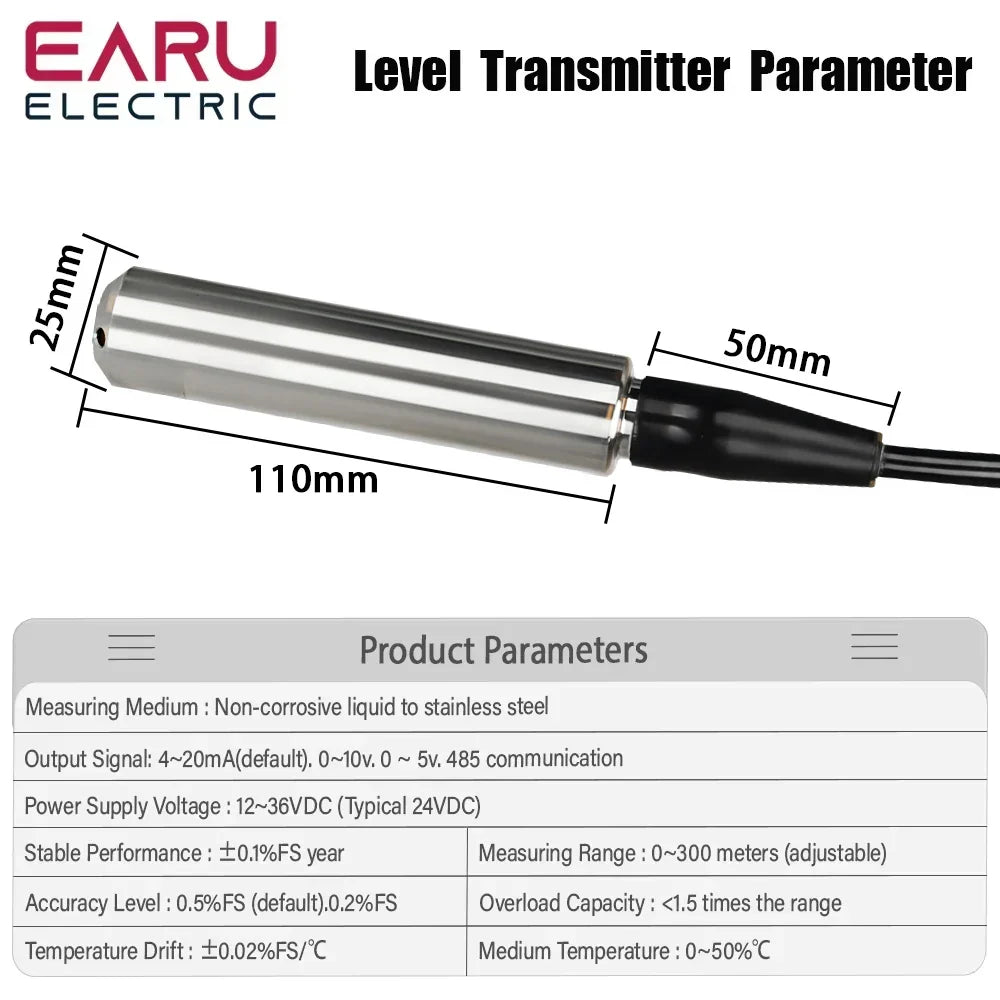

4. Technical parameters:

Measurement form and range 0～1～200mH2O

Allow overload 2 times full scale pressure

Working temperature -20～60°C

Temperature compensation -10～60°C

Storage temperature -40～80°C

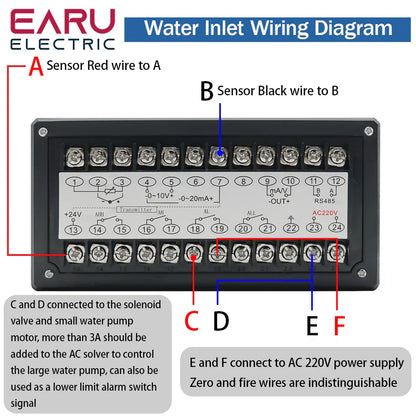

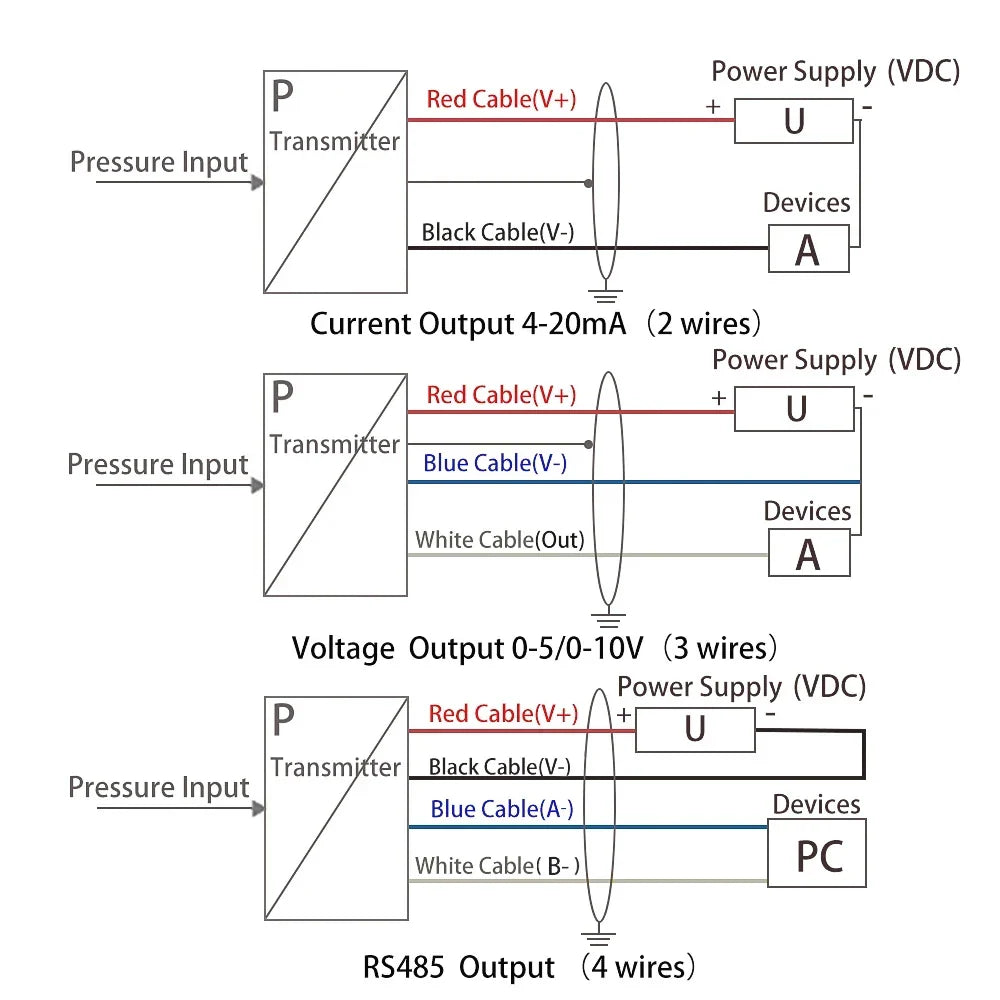

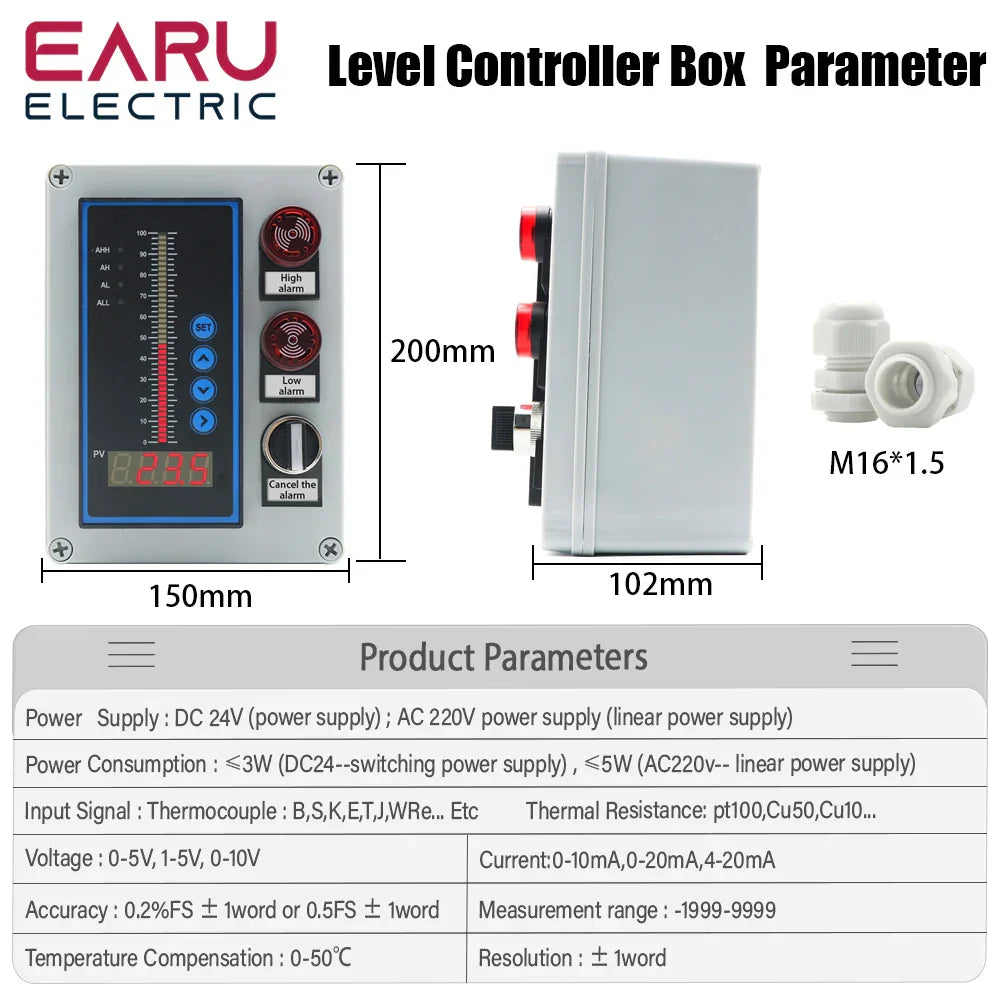

Power supply:

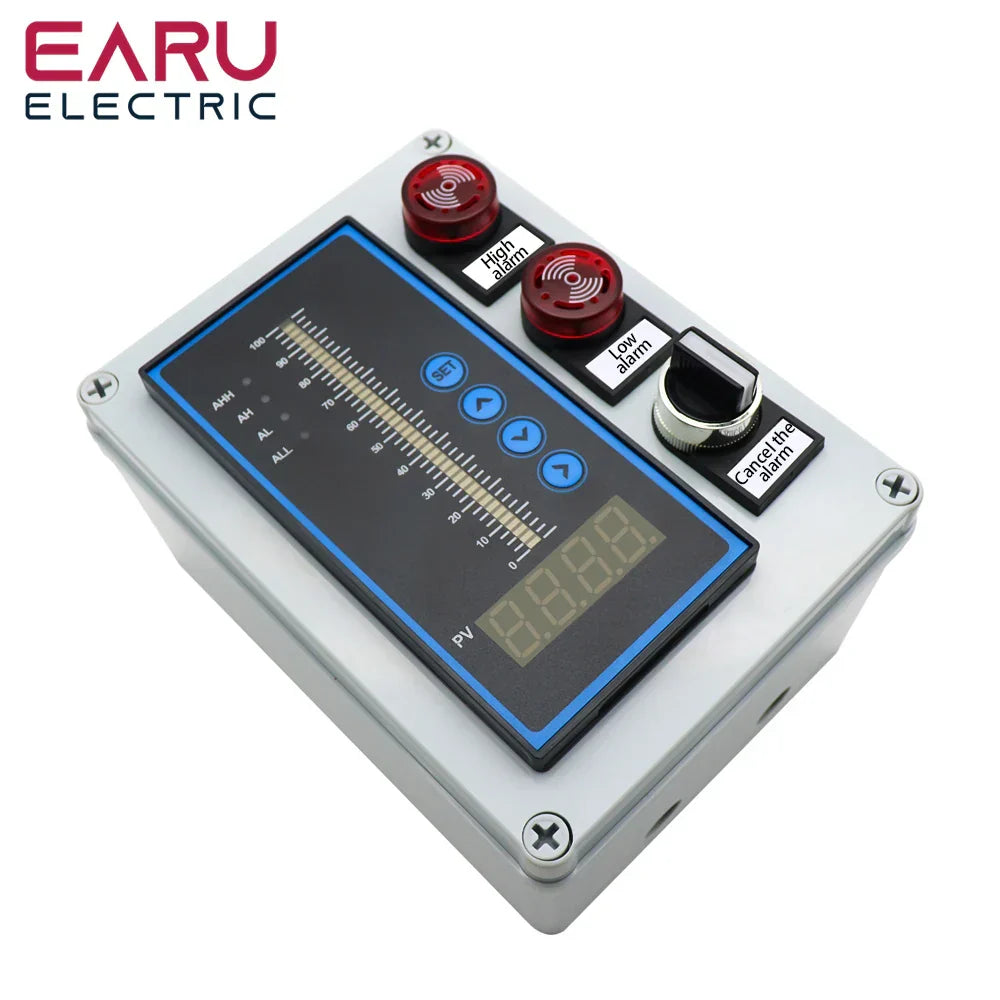

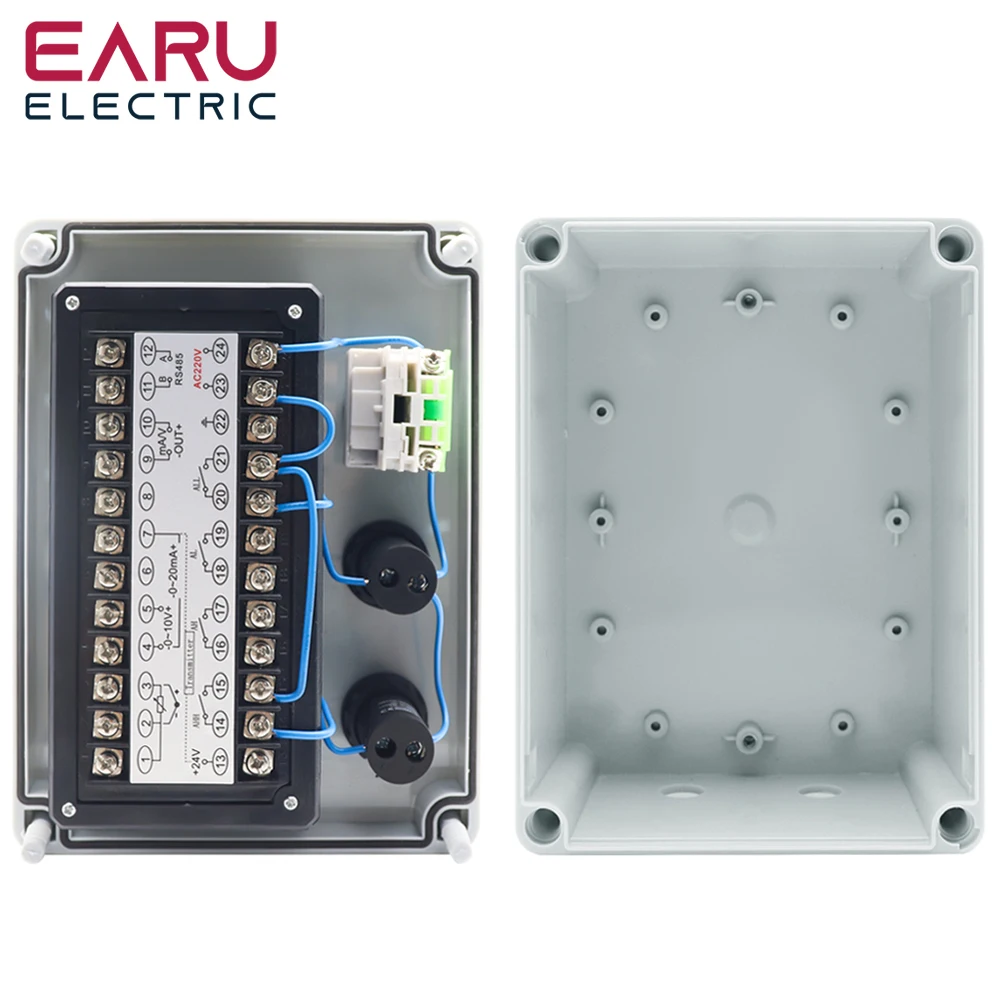

Sensor: 10~30 VDC (standard voltage 24VDC) / Controller：85~260 VAC

Cable waterproof breathable cable

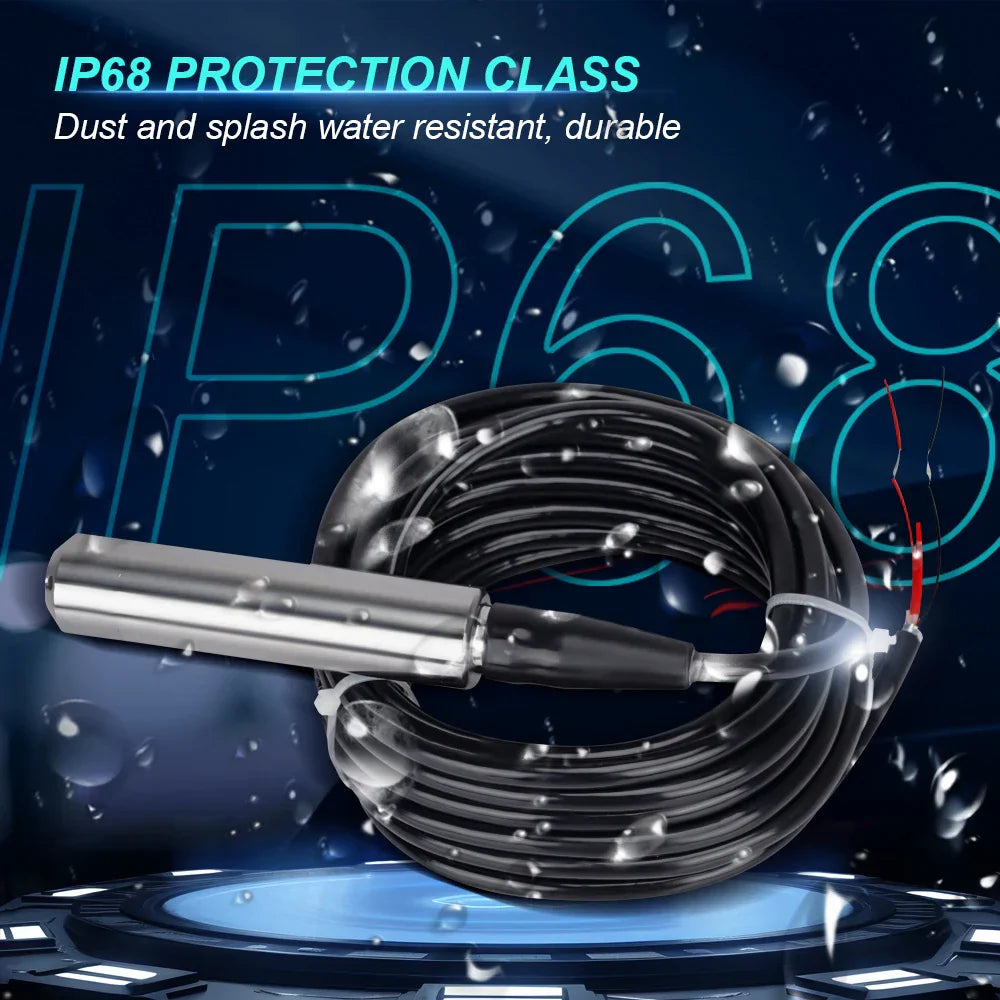

Protection class IP68
