⚡ Wind Solar Hybrid Charge Controller 12V/24V/48V with Automatical Brake Protection 400-600W
Upgrade your system with our high-performance Wind Solar Hybrid Charge Controller 12V/24V/48V with Automatical Brake Protection 400-600W. Built for reliability, efficiency and seamless integration with modern setups.
📌 Key Benefits
- ✅ High-efficiency design for superior performance
- ✅ Optimized heat dissipation and durability
- ✅ Plug-and-play compatibility for easy integration
- ✅ Ideal for industrial and residential use
📄 Technical Specifications
Specifications:
- is_customized: Yes
- Wind Turbine Brake Current: 15A
- Rated Wind Turbine Input Power: 600W
- Rated Solar Input Power: 300W
- Rated Battery Voltage: 12V/24V/48V
- Protection Function: Over Load Protection/Automatic Brake
- Model Number: HYWSC400-12/24/48V
- Maximum Current: 30A
- Application: Charger Controller

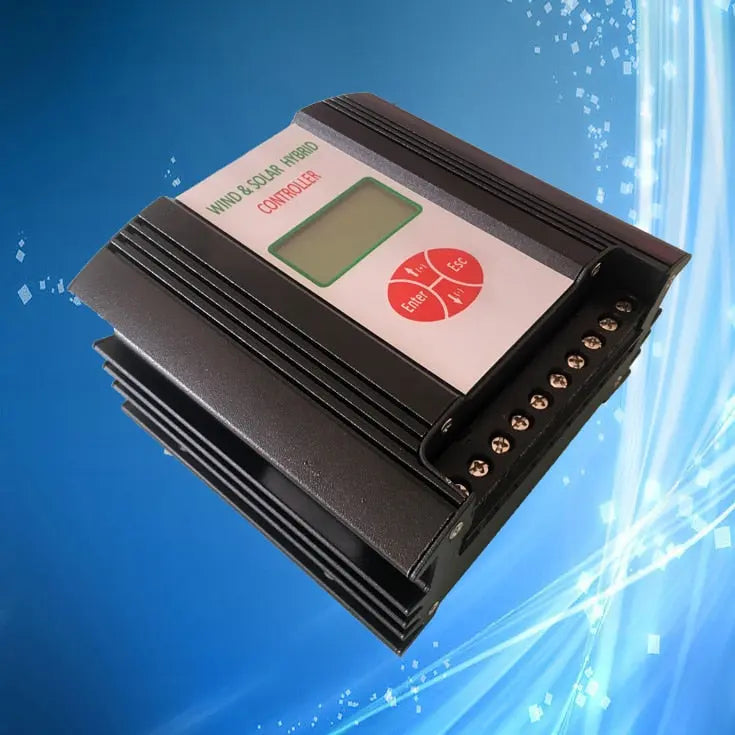

400W 600W Wind Solar Hybrid Charge Controller 12V/24V/48V with Automatical Brake Protection Function, 3 Years Warranty!
Technical Parameter:
|
Product Model |
WWS04-12-N00D |
WWS04-24-N00D |
WWS06-24-N00D |
|
Rated Battery Voltage |
12V |
24V |
24V |
|
Rated Wind Turbine Input Power |
400W |
400W |
600W |
|
Maximum Wind Turbine Input Power |
600W |
600W |
900W |
|
Rated Solar Input Power |
150W |
300W |
300W |
|
Dumpload Start Voltage |
13.5V |
27V |
27V |
|
Charge Shutoff Voltage |
14.5V |
29V |
29V |
|
Wind Turbine Brake Current |
15A |
20A |
30A |
|
Battery Under Voltage Shutoff |
12.8V |
21.6V |
|
|
Battery Under Voltage Recovery |
12V |
24V |
|
|
Input Over Voltage Shutoff |
16V |
32V |
|
|
Light Control On Voltage |
1V |
2V |
|
|
Light Control Off Voltage |
1.5V |
3V |
|
|
Rated Output Current of Load 1 |
10A |
10A |
|
|
Rated Output Current of Load 2 |
10A |
10A |
|
|
Load 1 Output Control Mode |
Light Control On and Light Control Off |
||
|
Load 2 Output Control Mode |
Light Control On and Time Control 5 Hours Off |
||
|
Dumpload Control Mode |
PWM |
||
|
Display Mode |
LCD |
||
|
Quiescent Current |
≤20mA |
||
|
Ambient Temperature & Humidity Range |
-20~+55℃/35~85%RH（Without Condensation） |
||
|
Display Content |
Battery Voltage, Wind Turbine Voltage, PV Voltage, Wind Turbine Current, PV Current, Wind Turbine Power, PV Power, Over Voltage, Under Voltage, Over Load, Short Circuit, Night etc status |
||
|
Protection Function |
Solar reverse charge protection , Solar reverse connection protection, Battery over charge protection, Battery over discharge protection, Battery reverse connection protection, Over load protection, Short circuit protection, Lightning protection Wind turbine current limiting, Wind turbine automatic brake and manual brake. |
||
|
Communication Mode (Optional) |
RS232、RS485、RJ45、GPRS (Optional) |
||
|
Temperature Compensation Function (Optional) |
-4mV/℃/2V ，–35℃--+80℃ ，Precision：±1℃ |
||
|
By-pass function (Optional) |
Auto Switch |
||
|
Dimension (L x W x H) |
142×150×82mm |
||
|
Weight |
1.9kg |
||
|
Product Model |
WWS06-48-N00D |
|
Rated Battery Voltage |
48V |
|
Rated Wind Turbine Input Power |
600W |
|
Maximum Wind Turbine Input Power |
900W |
|
Rated Solar Input Power |
300W |
|
Charge Shutoff Voltage |
58V |
|
Charge Recovery Voltage |
52.8V |
|
Wind Turbine Brake Current |
15A |
|
Battery Under Voltage Shutoff |
43.2V |
|
Battery Under Voltage Recovery |
48V |
|
Input Over Voltage Shutoff |
64V |
|
Light Control On Voltage |
4V |
|
Light Control Off Voltage |
6V |
|
Rated Output Current of Load 1 |
10A |
|
Rated Output Current of Load 2 |
10A |
|
Load 1 Output Control Mode |
Light Control On and Light Control Off |
|
Load 2 Output Control Mode |
Light Control On and Time Control 5 Hours Off |
|
Display |
LCD |
|
Quiescent Current |
≤20mA |
|
Ambient Temperature & Humidity Range |
-20～+55℃/35～85%RH （Without Condensation） |
|
Display Content |
Battery Voltage, Wind Turbine Voltage, PV Voltage, Wind Turbine Current, PV Current, Wind Turbine Power, PV Power, Over Voltage, Under Voltage, Over Load, Short Circuit, Night etc status |
|
Protection Function |
Solar reverse charge protection , Solar reverse connection protection, Battery over charge protection, Battery over discharge protection, Battery reverse connection protection, Over load protection, Short circuit protection, Lightning protection Wind turbine current limiting, Wind turbine automatic brake and manual brake. |
|
Communication Mode (Optional) |
RS232、RS485、RJ45、GPRS optional |
|
Temperature Compensation Function (Optional) |
-4mV/℃/2V ，–35℃--+80℃ ，Precision：±1℃ |
|
By-pass function (Optional) |
Auto Switch |
|
Dimension (L x W x H) |
205×150×82mm |
|
Net Weight |
2.2kg |

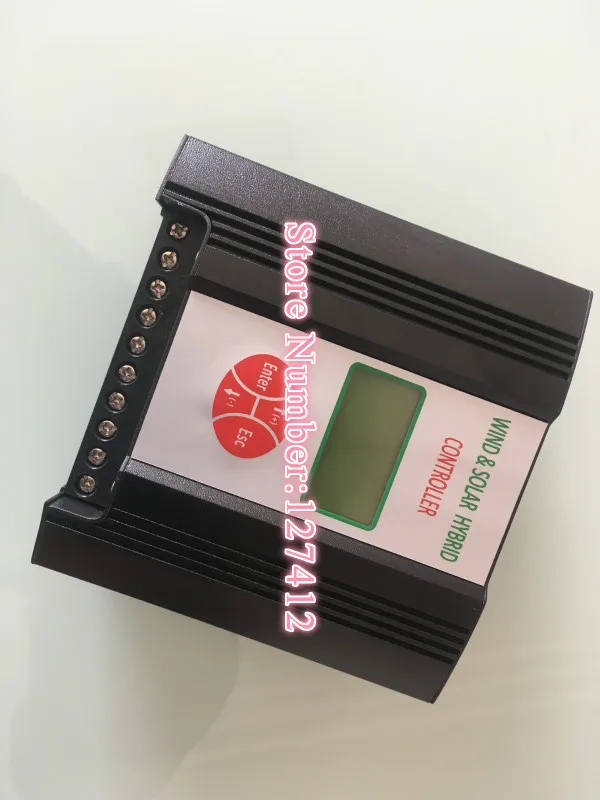

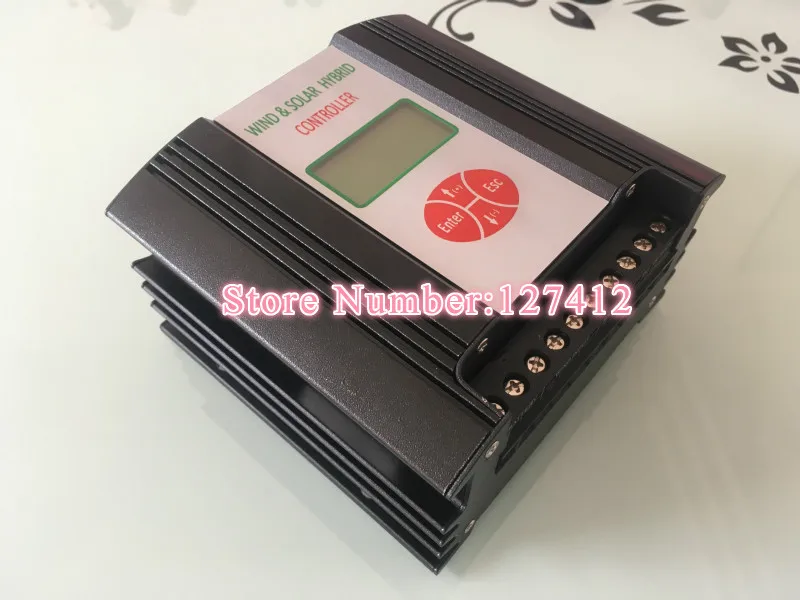

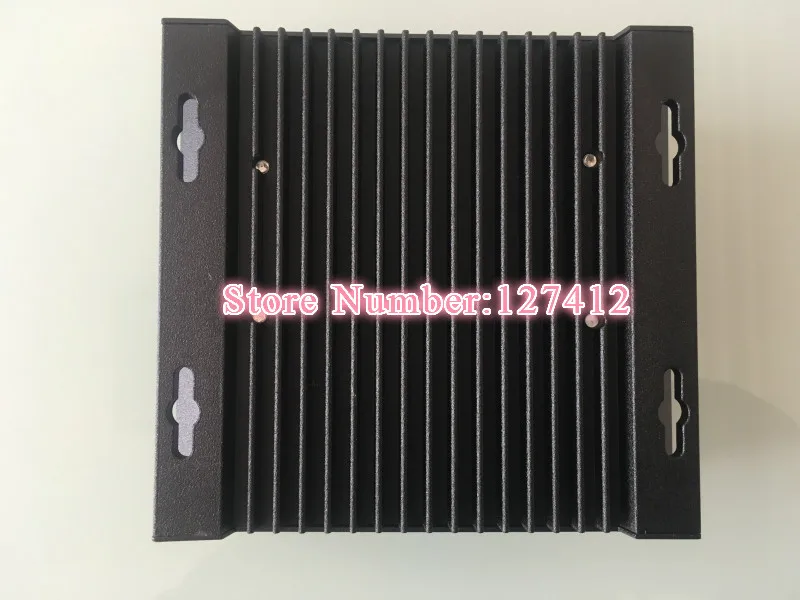

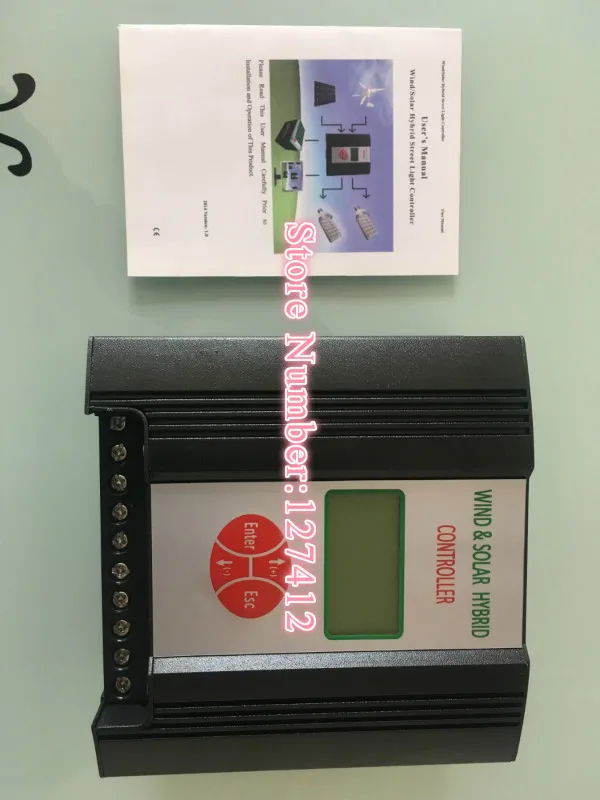

Detailed Product Photos:
