SPECIFICATIONS:
-
Type: DC/AC Inverters
-
Size: 420*217*155mm
-
Output Frequency: 50hz60hz
-
Output Type: single
-
is_customized: Yes
-
Output Current: 22.7A/45A
-
Output Power: 1 - 200KW
-
Weight: 11.5kg
-
Model Number: SP-5000L
-
Certification: CE
-
Certification: FCC
-
Certification: RoHS
Model
|
sp12/120-5000L
|
sp24/120-5000L
|
sp48/120--5000L
|
sp12/230--5000L
|
sp24/230-5000L
|
sp48/230--5000L
|
Continuous Power
|
5000W
|
Surge Power
|
10000W
|
Frequency
|
50HZ±0.5HZ or 60HZ±0.5HZ
|
Wave Form
|
Pure Sine Wave
|
AC Regulation
|
THD<3%(Linear Load)
|
Output Efficiency
|
92%
|
DC Voltage
|
DC12V
|
DC24V
|
DC48V
|
DC12V
|
DC24V
|
DC48V
|
AC Voltage
|
120VAC ±5%
|
230VAC ±5%
|
No Load Current Draw
|
3a
|
1.5a
|
0.75a
|
3a
|
1.5a
|
0.75a
|
DC Voltage Range
|
10-15V
|
20-30V
|
40-60V
|
10-15V
|
20-30V
|
40-60V
|
Low Voltage Shut Down
|
10±0.5V
|
20±0.5V
|
40±1V
|
10±0.5V
|
20±0.5V
|
40±1V
|
Over Voltage Shut Down
|
15±0.5V
|
30±0.5V
|
60±1V
|
15±0.5V
|
30±0.5V
|
60±1V
|
Low Voltage Recovery
|
12.5V
|
25V
|
50V
|
12.5V
|
25V
|
50V
|
Protection
|
Low Voltage/Over Voltage
|
LED Alarm and Automatic Recovery.
|
Overload
|
LED Alarm and Automatic Recovery.
|
Over Temperature
|
LED Alarm and Automatic Recovery.
|
Short Circuit
|
LED Alarm and Automatic Recovery.
|
Working Temperature
|
-10°- +50°
|
Storage Temperature
|
-30°- +70°
|

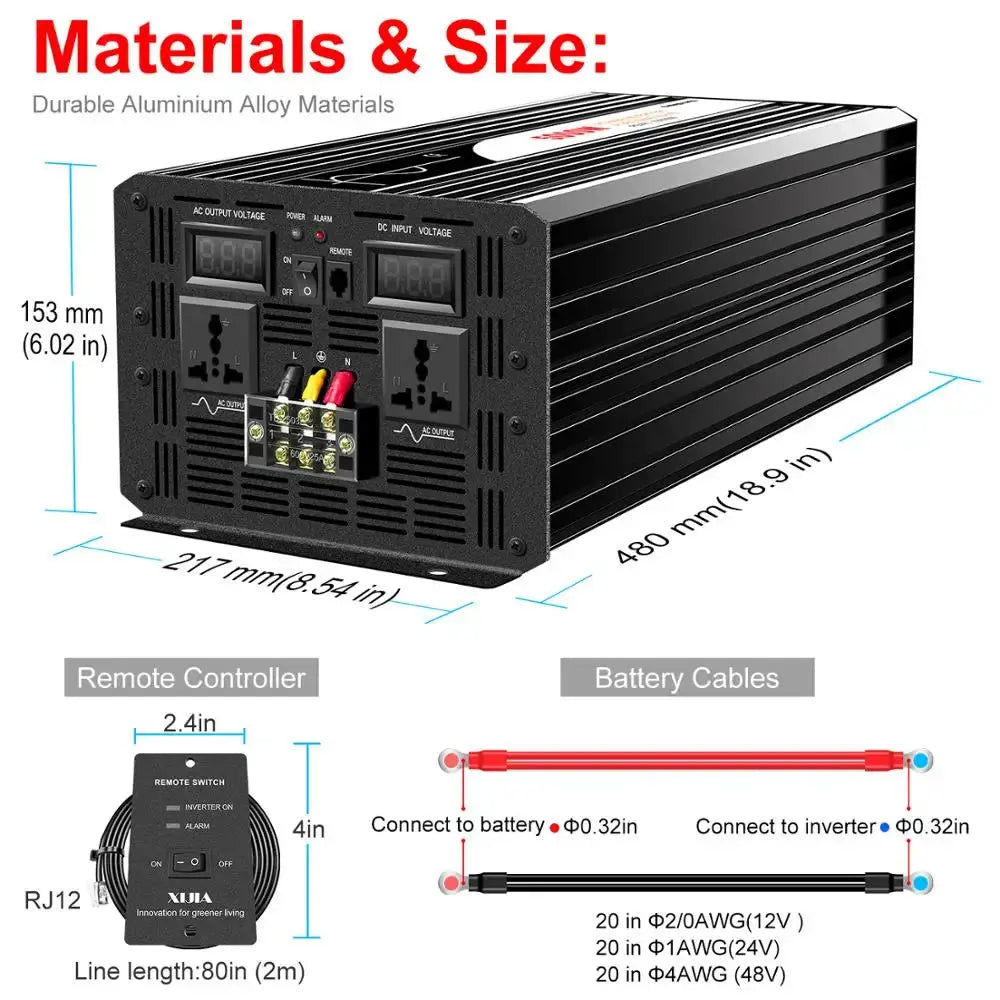

Production Size
|
420*217*155(mm)
|
Package Size
|
570*300*245(mm)
|
N.W/G.W
|
10.8/ 13(kg)
|
Start
|
soft-start
|
Cooling Way
|
Intelligent Cooling Fan
|
|
