500W 800W MPPT Wind Turbine Controller With Overcharge Protection IP67 Waterproof DC12V 24V Charge Controller

500W 800W MPPT Wind Turbine Controller With Overcharge Protection IP67 Waterproof DC12V 24V Three-Wire System Charge Controllers

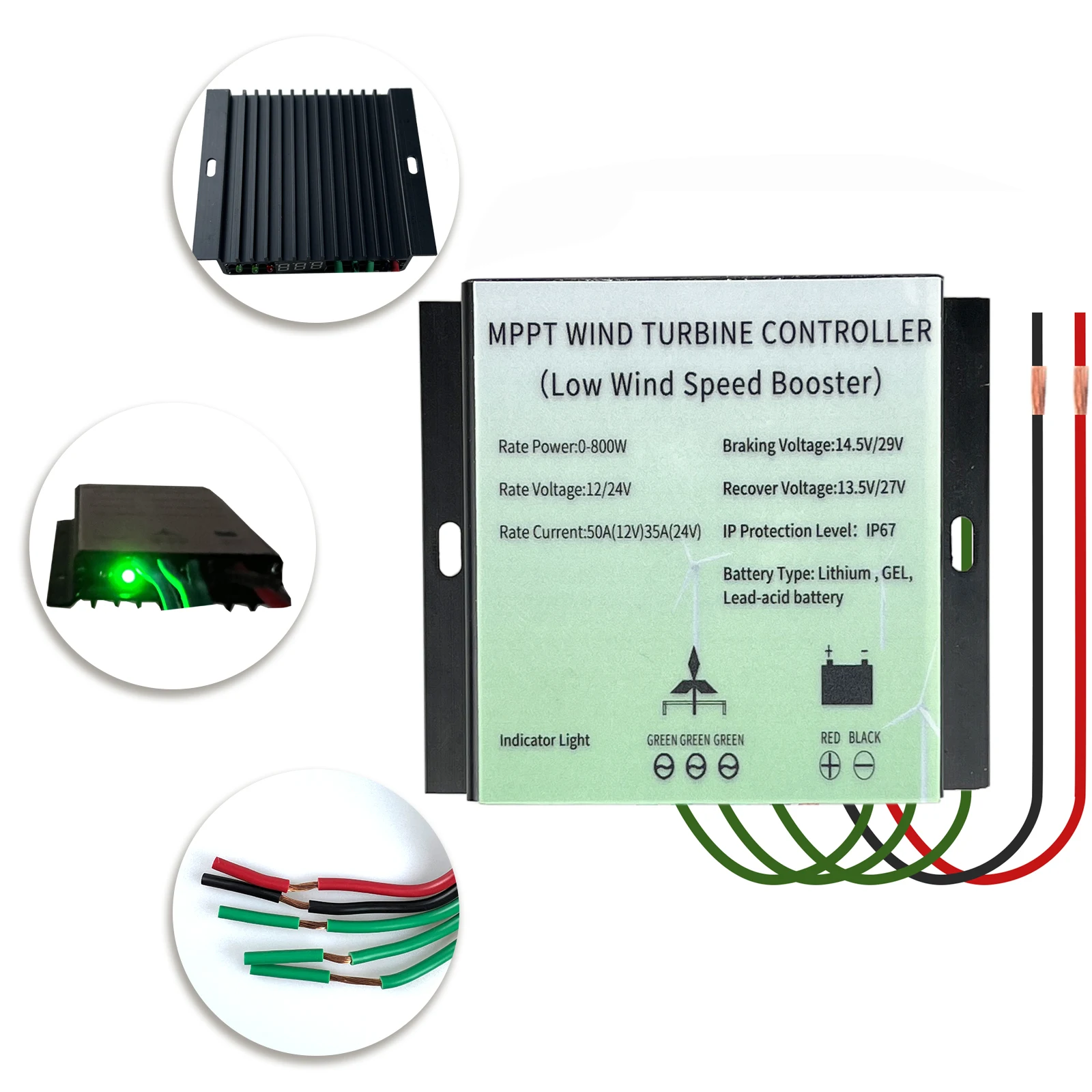

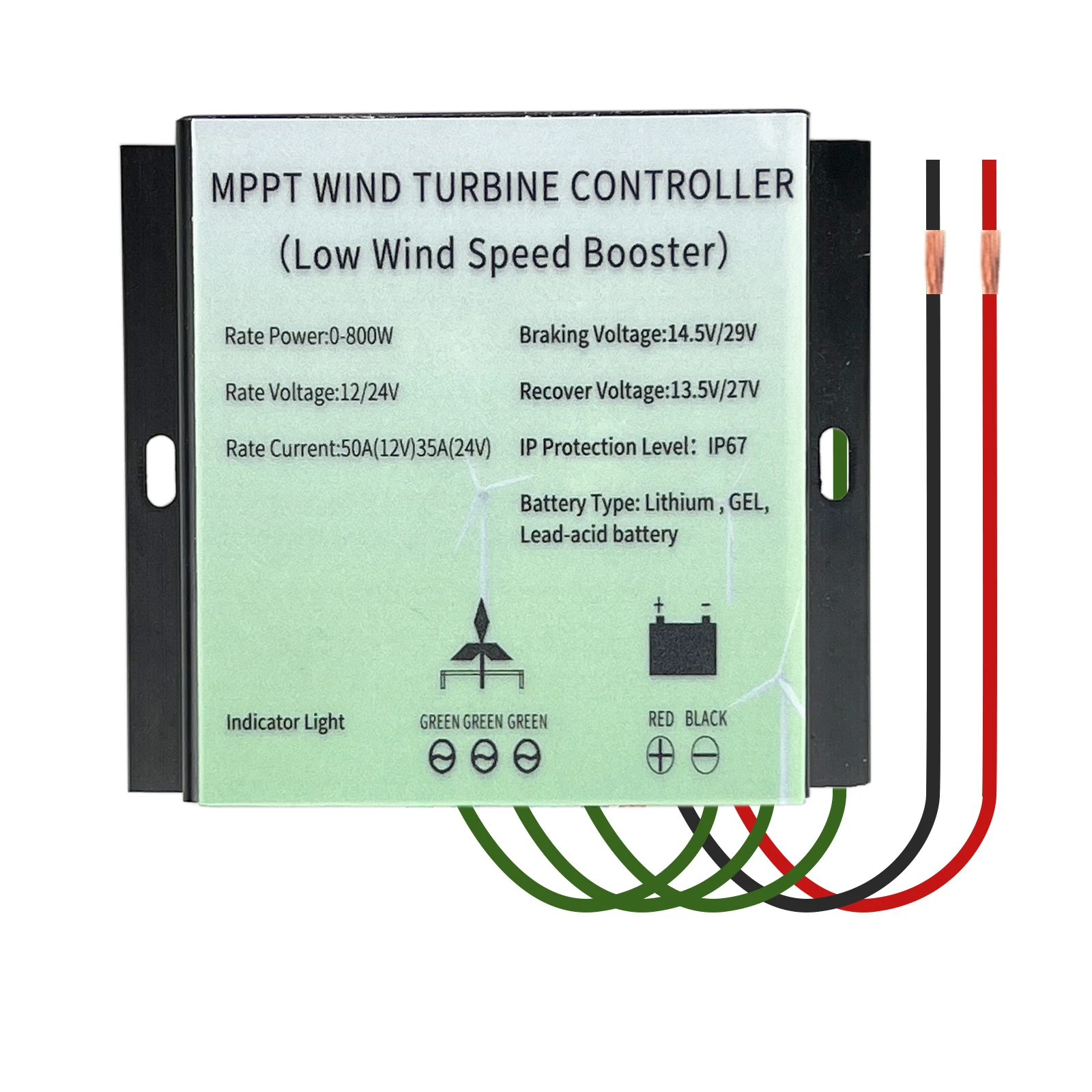

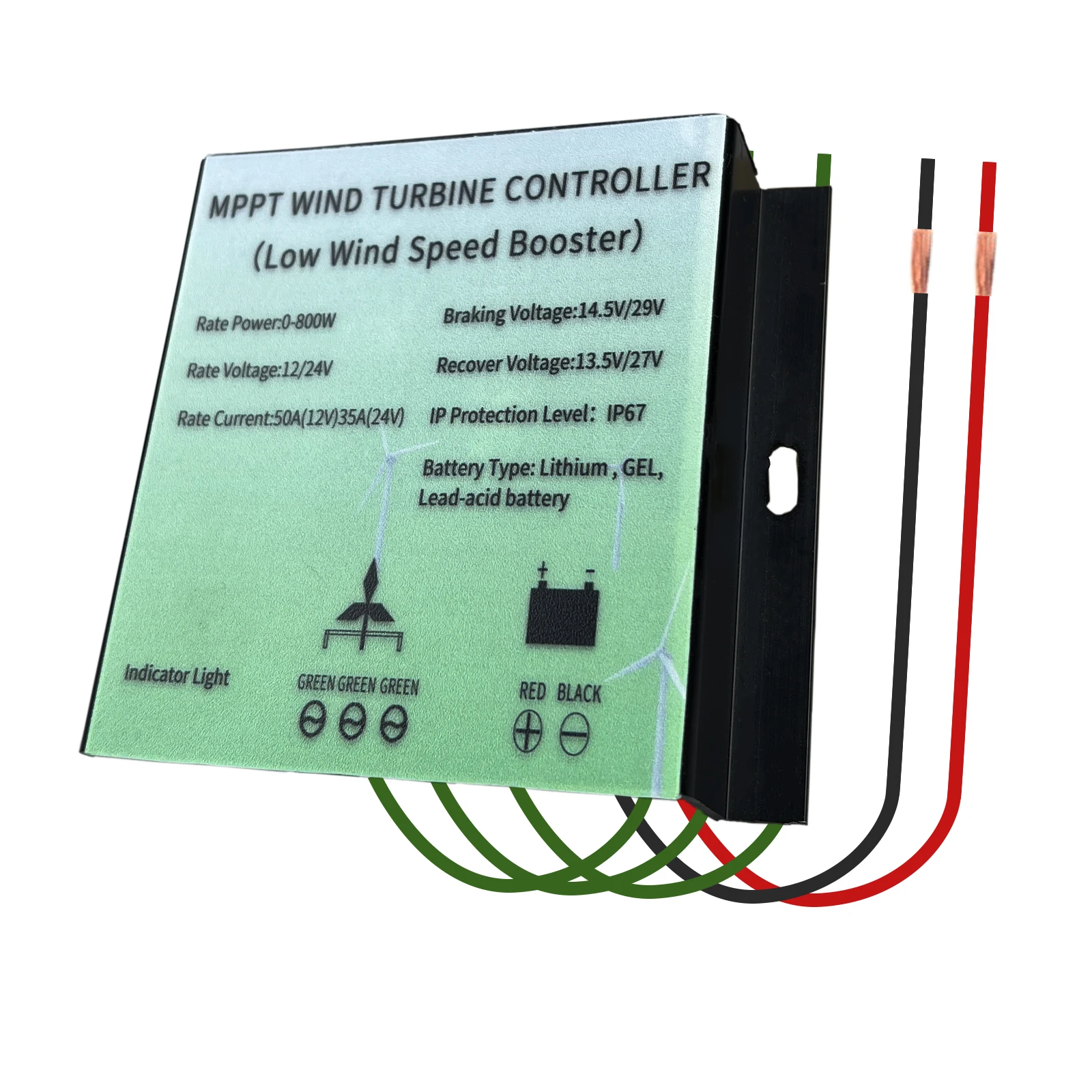

The 500W 800W MPPT Wind Turbine Controller With Overcharge Protection IP67 Waterproof DC12V 24V Three-wire System Charge Controllers is designed to optimize the performance of your wind turbine system while ensuring maximum safety and efficiency. This advanced controller is perfect for various battery types, including Lifepo4, lithium, gel, and lead-acid batteries.

Experience unmatched reliability and protection with our state-of-the-art features:

• Automatic Battery Management: Controls wind turbines to charge batteries automatically; prevents overcharging.
• Voltage and Current Limiting: Ensures optimal charging performance while safeguarding your system.
• Reverse Connect Protection: Avoids the need for fuse replacements; simply reset the connections if reversed.
• LED Indicator: Displays real-time circuit working conditions for easy monitoring.
• Comprehensive Waterproof Design: IP67 rated, making it ideal for humid and saline environments.
• ISO9001 Certified: Manufactured under strict quality management standards for assured reliability.

Technical Specifications

• Power: 800W
• Voltage Options: DC12V / DC24V
• Starting Voltage: 8V (12V system), 17V (24V system)
• Maximum Current: 66A
• Wind Turbine Braking Voltage: 14.5V (12V), 29V (24V)
• Working Temperature: -35°C to 70°C

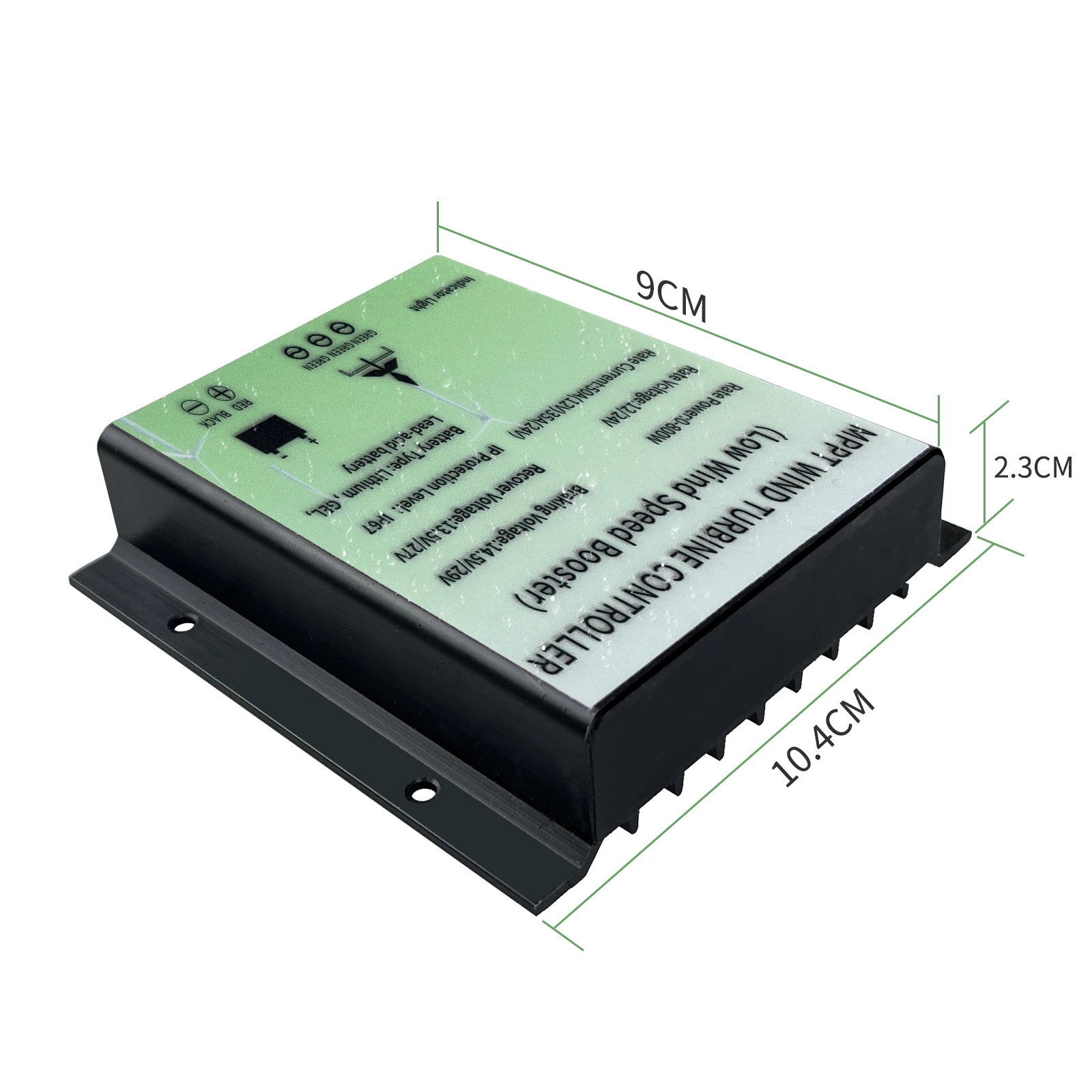

• Dimensions: 10.4 x 9 x 2.3 cm

Upgrade your renewable energy system today with the 500W 800W MPPT Wind Turbine Controller With Overcharge Protection IP67 Waterproof DC12V 24V Three-wire System Charge Controllers. Perfect for both personal and professional applications, this controller is your best choice for maximizing wind power potential.
