Wind Turbine Generator 500W Horizontal 12/24/48V With Waterproof Charger Controller

Wind Turbine 500W Horizontal Generator 12V 24V 48V With Waterproof Charger Controller

Specification

• Wheel diameter: 1.55m/1.35m

• Type: Wind Power Generator
• Stator: Copper Coil
• Start Wind Speed: 2m/s
• Shaft Material: IRON
• Rated Wind Speed: 11m/s
• Rated Rectified Voltage: 12/24/48VDC
• Rated Power: 500W
• Mounting Base: With Mounting Base
• Model Number: B-500M-24
• Max Wind Speed: 45m/s
• Max Power: 520W
• Life-span: 15 years
• Generator: 3 Phase Permanent Magnet Generator
• Double bearing inside of generator: Free running, low noise and long service life.
• Certification: CE
• Brand Name: JSBCXNY
• Blades material: Nylon fiber

Note:

500W horizontal wind turbine generator 12V/24V/48V 3/5 blades windmill home use + 12v/24v/48v waterproof wind charger controller

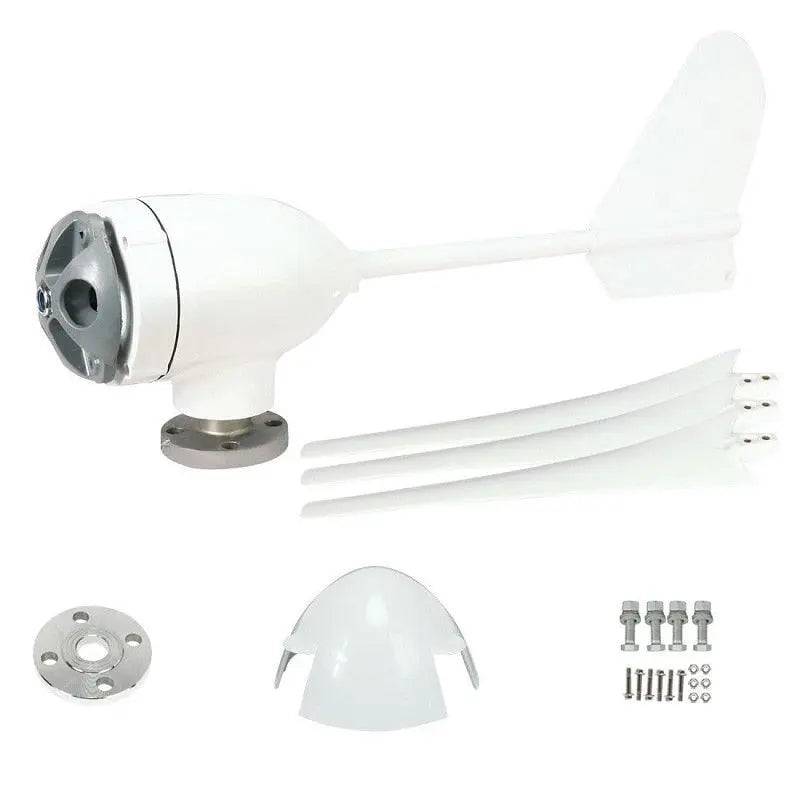

Packing List

1. Wind turbine
2. 3/5/6 PCS of blades
3. Wind turbine hub
4. Screw bolts and nose cone
5. Flange plate

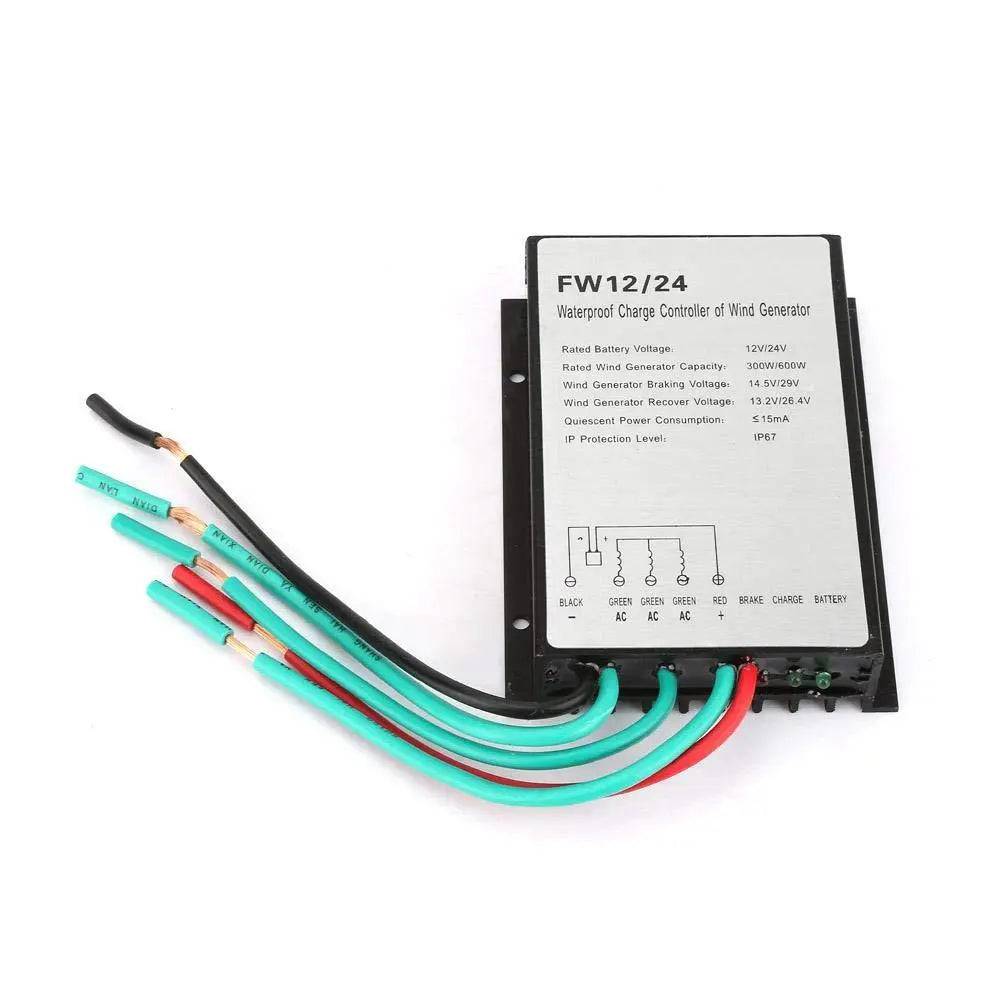

6. Wind controller 12v 24v 48v

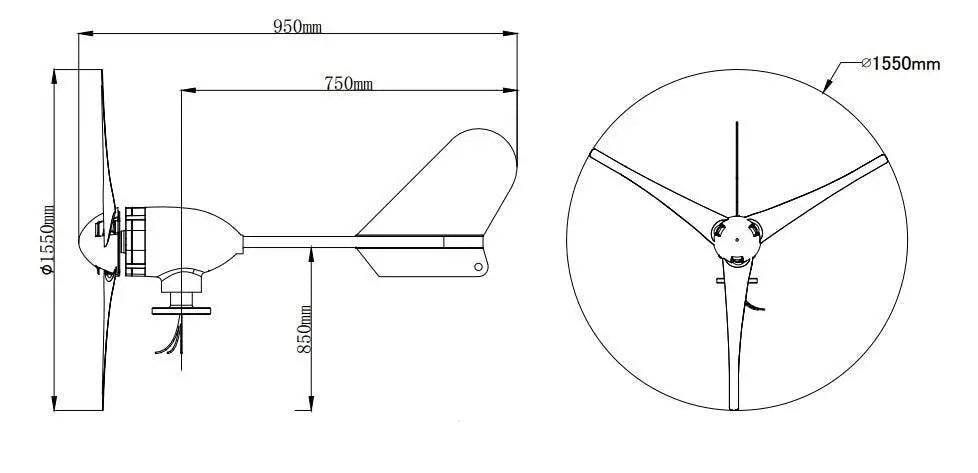

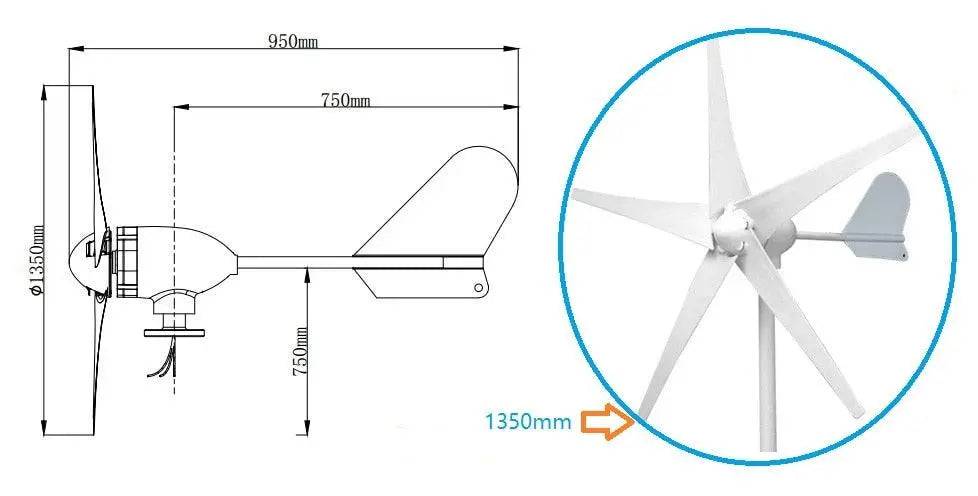

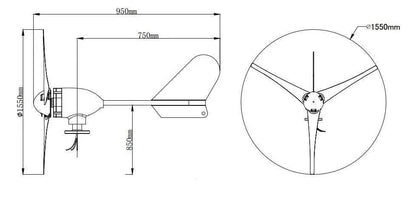

Dimension: 1550 mm /1350 mm wind wheel

Technical Description:

• Reted power: 500w
• Max power: 520w
• Rated voltage: 12/24/48v
• Start up wind speed: 2m/s
• Rated wind speed: 11m/s
• Survival wind speed: 45m/s
• Top net weight: 11.5kg
• Wheel diameter: 1.55m /1.35m / 1.3m
• Blades number: 3/5/6
• Blades material: Nylon fiber
• Generator: 3 phase ac generator
• Magnetic steel: NdFeB
• Generator case: Die-casting aluminum
• Control system: Electromagnet
• Speed regulation: Automatically adjust windward
