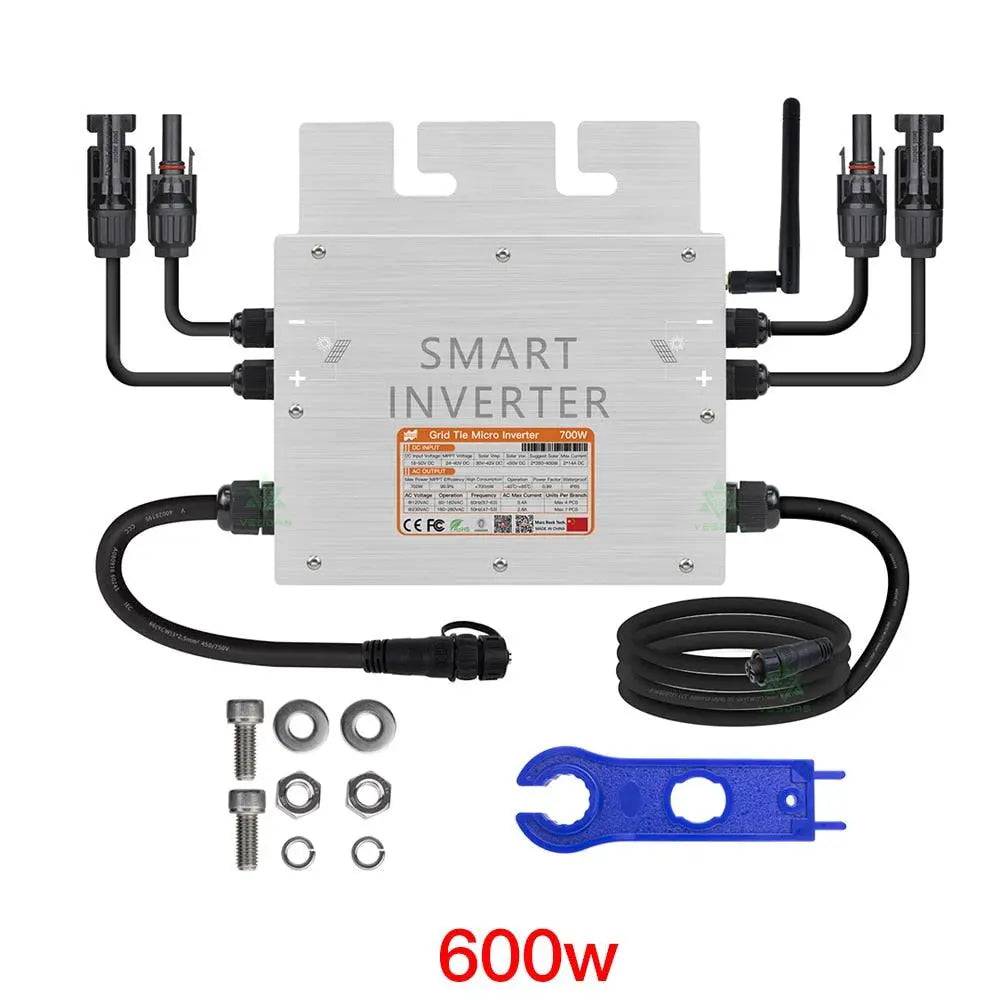

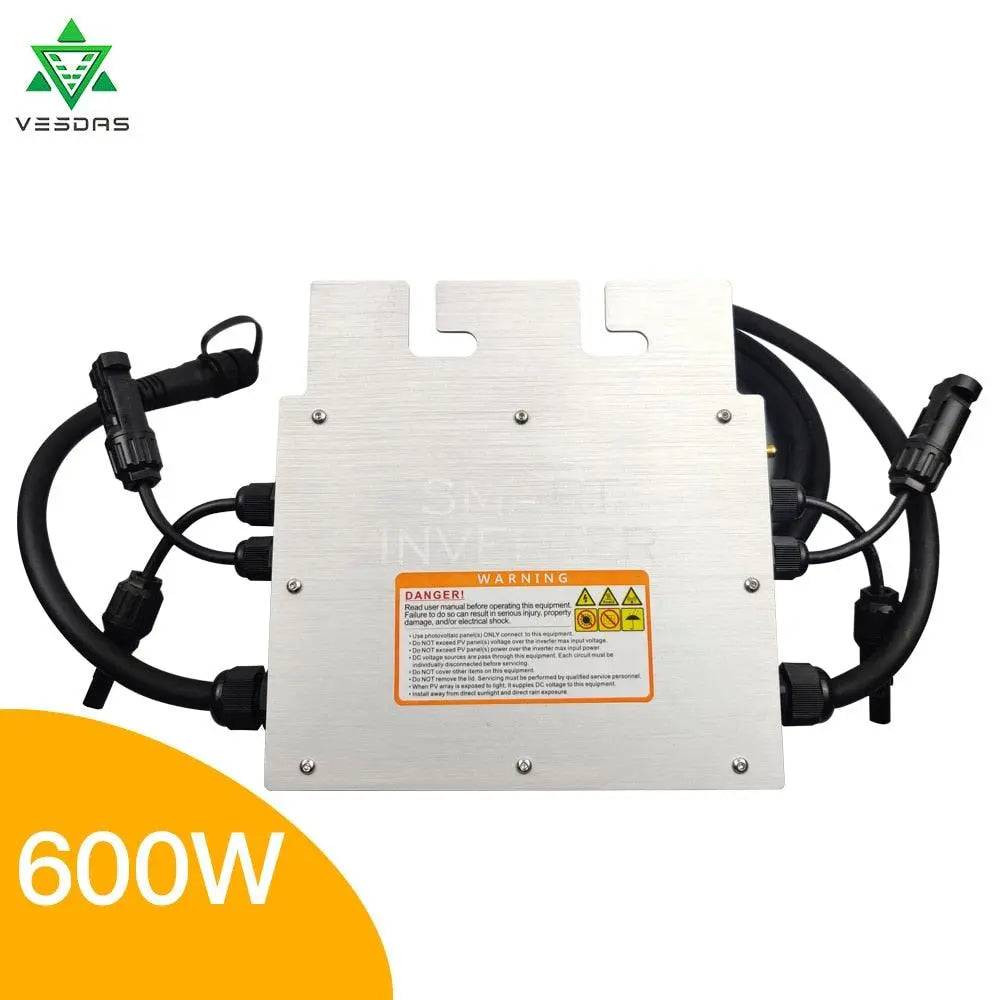

600W 700W Micro Solar Panel Smart Inverter Pure Sine Wave Home Inversor 30V 36V MPPT On Grid Tie Inversor Ip65 for 110V 220V AC

SPECIFICATIONS

is_customized: Yes
Weight: 1.5kg
Size: 185mm x 180mm x 38.5mm
Power Factor: >0.99
Peak Efficiency: 95%
Output Type: Single
Output Power: 401 - 600KW
Output Frequency: 50Hz / 60Hz
Output Current: 12A
Output AC voltage: 110V 220V
Origin: CN(Origin)
Operation Voltage Range: 18V-50V
Nominal Output Frequency: 50Hz / 60Hz
Nominal MPPT Efficiency: 99.9%
Model Number: SG600 Series PV Smart Microinverter
Maximum Input Power: 2*300W
Is Smart Device: Yes


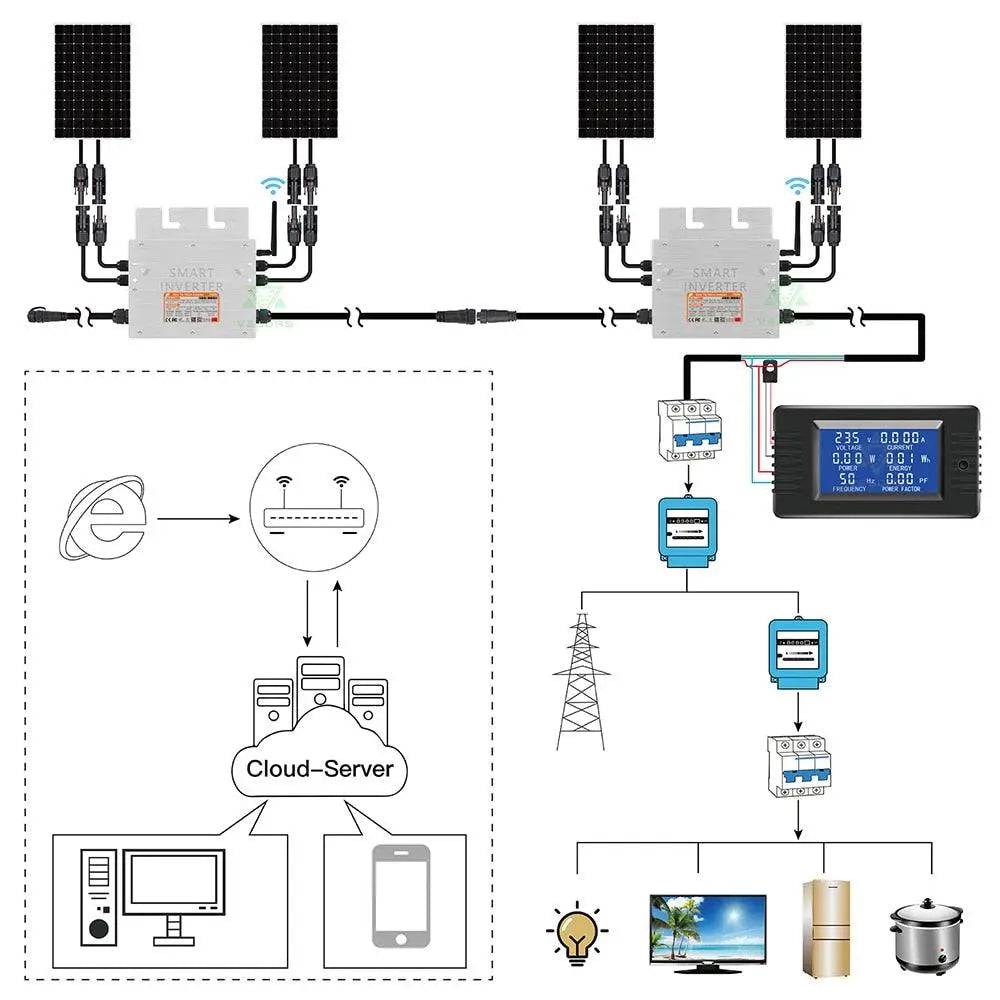

Feature:

1.Single unit connects to one PV module
2.Maximum 600W AC output power
3.Single-phase output, Flexible 3-phase PV systems
4. 2.4G wireless communication and monitoring

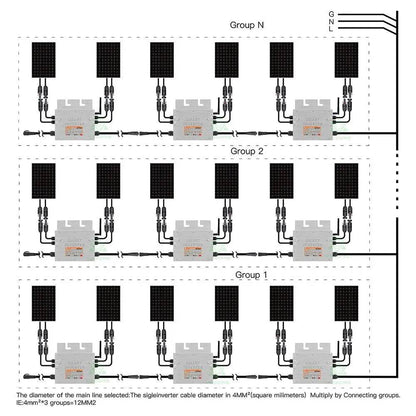

5.Up to 8 units (230V) per branch
6.Customizable various input (DC, PV) voltage range
7.Integrated AC bus cable, Ready-To-Use
8.Low cost, Easy installation
Basic Structure



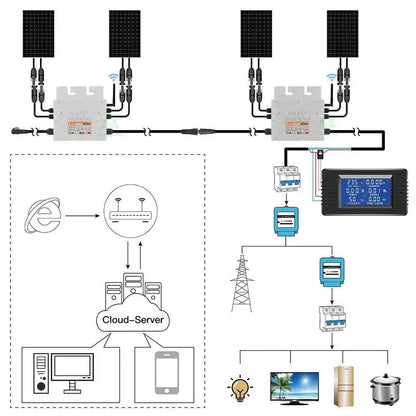

Feature:

1.Single unit connects to one PV module

2.Maximum 600W AC output power

3.Single-phase output, Flexible 3-phase PV systems

4. 2.4G wireless communication and monitoring

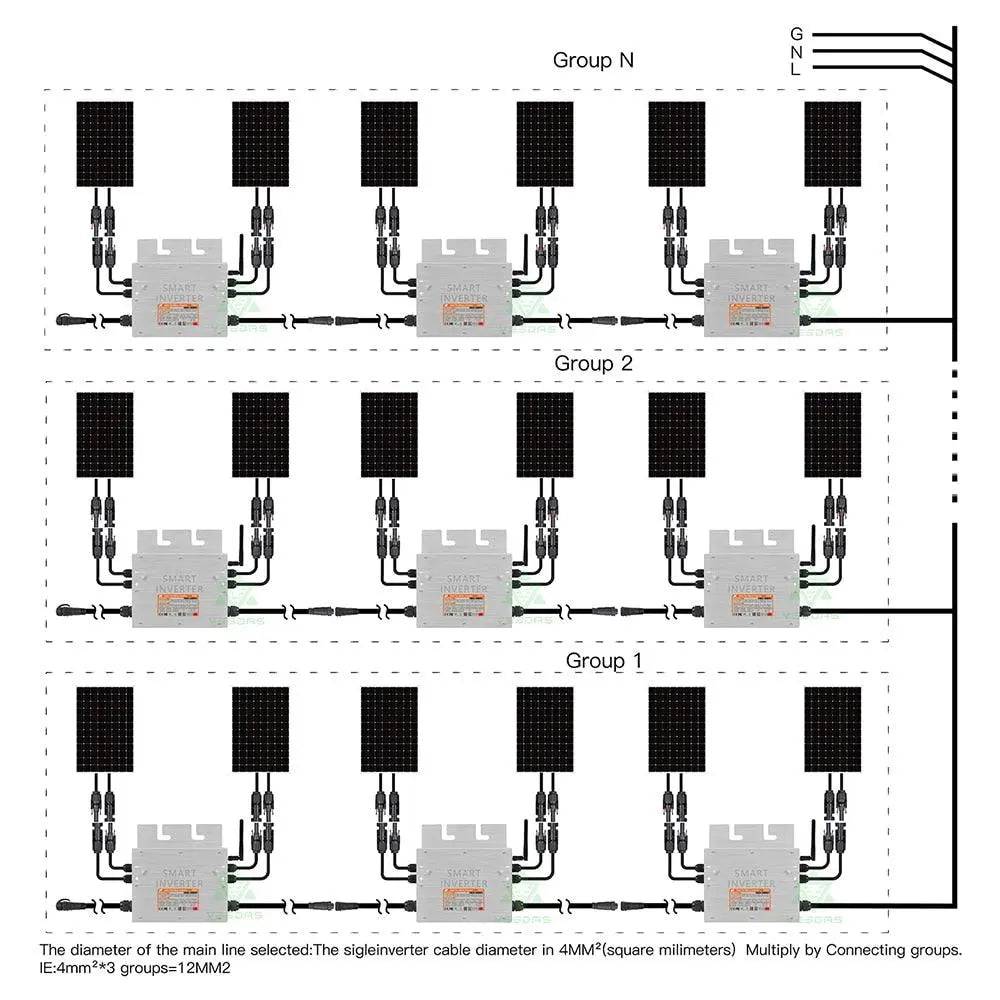

5.Up to 8 units (230V) per branch

6.Customizable various input (DC, PV) voltage range

7.Integrated AC bus cable, Ready-To-Use

8.Low cost, Easy installation

Basic Structure

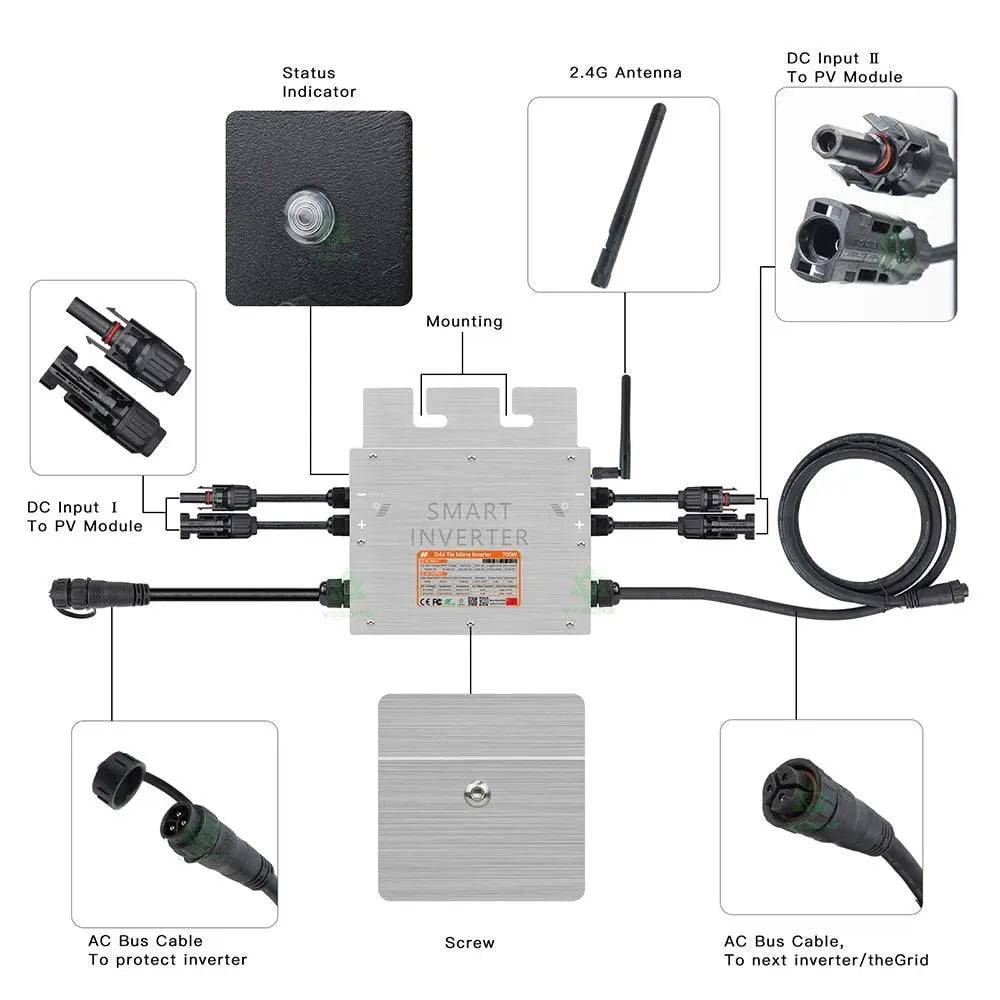

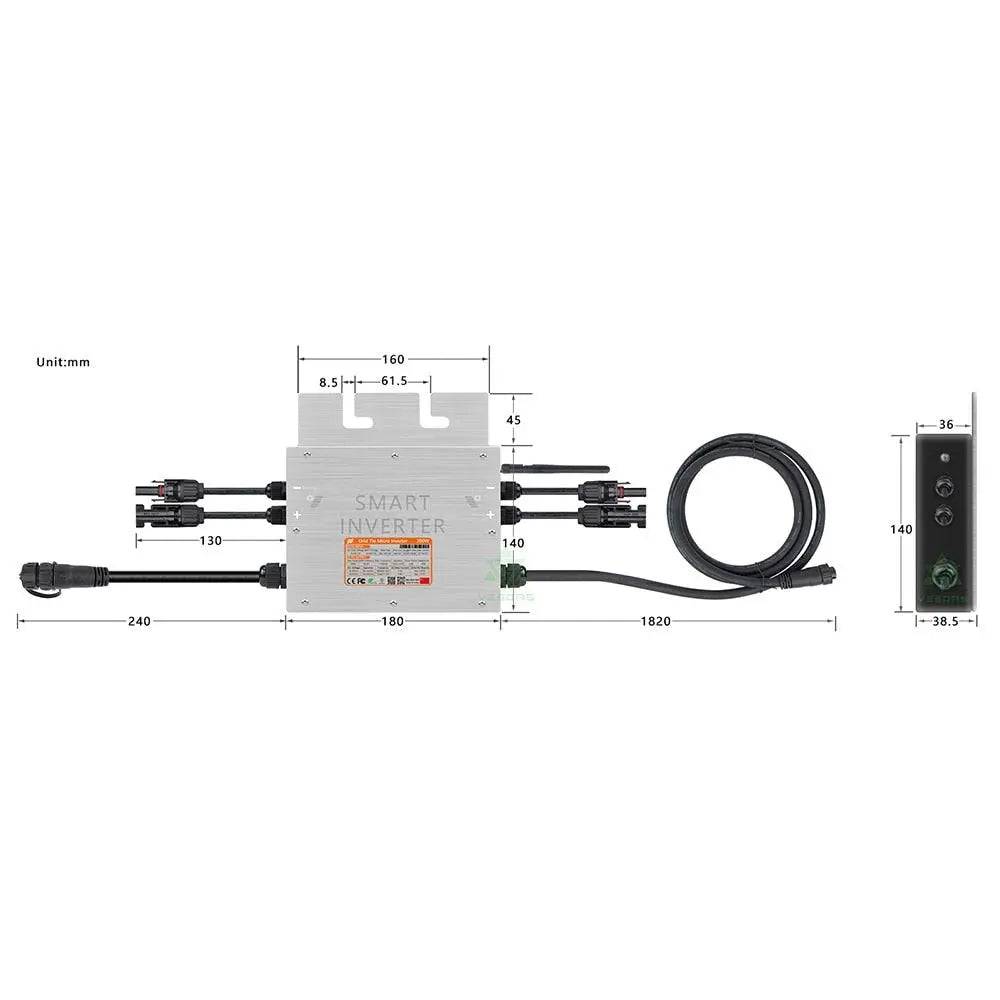

Dimensions

Product Series

SG600 Series

Model

SG600MD

(Regular)

SG600HD

(Custom-made)

SG600TD

(Custom-made)

Input Data(DC,PV)

Number of Input MC4 Connector

2 set

2 set

2 set

MPPT Voltage Range

24V-40V

36V-60V

80V-115V

Operation Voltage Range

18V-50V

30V-70V

70V-120V

Maximum Input Voltage

50V

70V

120V

Startup Voltage

18V

30V

70V

Maximum Input Power

2*300W

2*300W

2*300W

Maximum Input Current

2*12A

2*8.3A

2*3.7A

Output Data(AC)

Single-Phase Grid Type

120V & 230V

Rated Output Power

590W

Maximum Output Power

600W

Nominal Output Current

@120VAC : 5A / @230VAC : 2.6A

Nominal Output Voltage

120VAC / 230VAC

Default Output Voltage Range

@120VAC : 80V-160V / @230VAC : 180V-280V

Nominal Output Frequency

50Hz / 60Hz

Default Output Frequency Range

@50Hz : 47.5Hz-52.5Hz  / @60Hz : 57.5Hz-62.5Hz

Power Factor

>0.99

Total Harmonic Distortion

THD <5%

Maximum Units per Branch

@120VAC : 4 units  / @230VAC : 8 units

Efficiency

Peak Efficiency

95%

CEC Weighted Efficiency

@120VAC : 92.5% / @230VAC : 93.5%

Nominal MPPT Efficiency

99.9%

Night Power Consumption

<700mW

Mechanical Data

Operating Ambient Temperature Range

-40°C to +65°C

Storage Temperature Range

-40°C to +85°C

Dimensions (W x H x D)

185mm x 180mm x 38.5mm (not include connectors and cable)

Weight

1.5kg

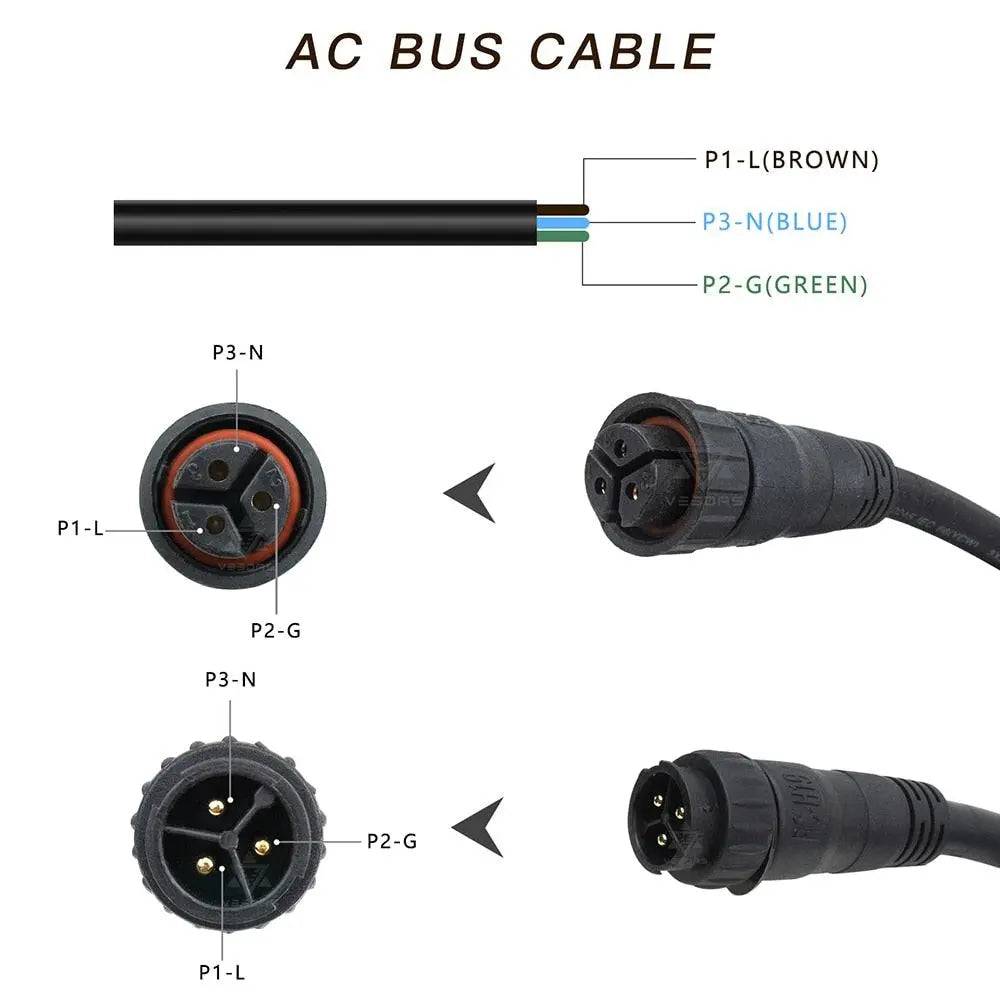

Max Current of AC Bus Cable

20A

Waterproof Grade

IP65

Cooling Mode

Natural Convection - No Fans

OtherFeatures

Communication(Inverter to DataBox)

2.4G Wireless(

Transformer Design

High Frequency Transformers, Galvanically Isolated

Integrated Ground

Equipment ground is provided by the PE in the AC cable. No additional ground is required.

Protection Functions

Isolated Island Protection, Voltage Protection, Frequency Protection, Temperature Protection, Current Protection, etc.

Design Compliance

NB/T32004:2013,NB/T32004:2013,EN61000-3-2,EN62109,VDE0126,UL1741 etc.

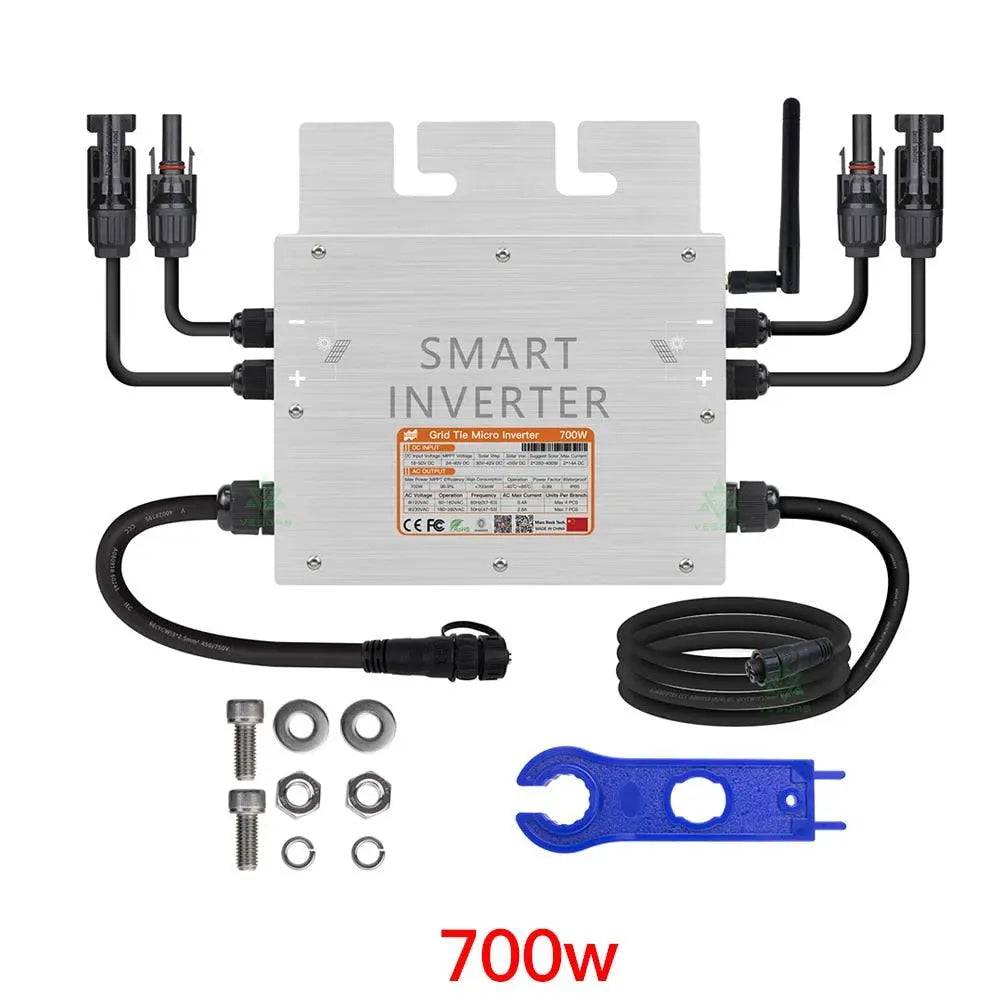

Product Series

SG700 Series

Model

SG700MD

SG700HD

SG700TD

(Regular)

(Custom-made)

(Custom-made)

Input Data(DC,PV)

Number of Input MC4 Connector

2 set

2 set

2 set

MPPT Voltage Range

24V-40V

36V-60V

80V-115V

Operation Voltage Range

18V-50V

30V-70V

70V-120V

Maximum Input Voltage

50V

70V

120V

Startup Voltage

18V

30V

70V

Maximum Input Power

2*350W

2*350W

2*350W

Maximum Input Current

2*14A

2*9.7A

2*4.3A

Output Data(AC)

Single-Phase Grid Type

120V & 230V

Rated Output Power

650W

Maximum Output Power

700W

Nominal Output Current

@120VAC : 5.4A / @230VAC : 2.8A

Nominal Output Voltage

120VAC / 230VAC

Default Output Voltage Range

@120VAC : 80V-160V / @230VAC : 180V-280V

Nominal Output Frequency

50Hz / 60Hz

Default Output Frequency Range

@50Hz : 47.5Hz-52.5Hz  / @60Hz : 57.5Hz-62.5Hz

Power Factor

>0.99

Total Harmonic Distortion

THD <5%

Maximum Units per Branch

@120VAC : 4 units  / @230VAC : 7 units

Efficiency

Peak Efficiency

95%

CEC Weighted Efficiency

@120VAC : 92.5% / @230VAC : 93.5%

Nominal MPPT Efficiency

99.90%

Night Power Consumption

<700mW

Mechanical Data

Operating Ambient Temperature Range

-40°C to +65°C

Storage Temperature Range

-40°C to +85°C

Dimensions (W x H x D)

185mm x 180mm x 38.5mm (not include connectors and cable)

Weight

1.5kg

Max Current of AC Bus Cable

20A

Waterproof Grade

IP65

Cooling Mode

Natural Convection - No Fans

Other Features

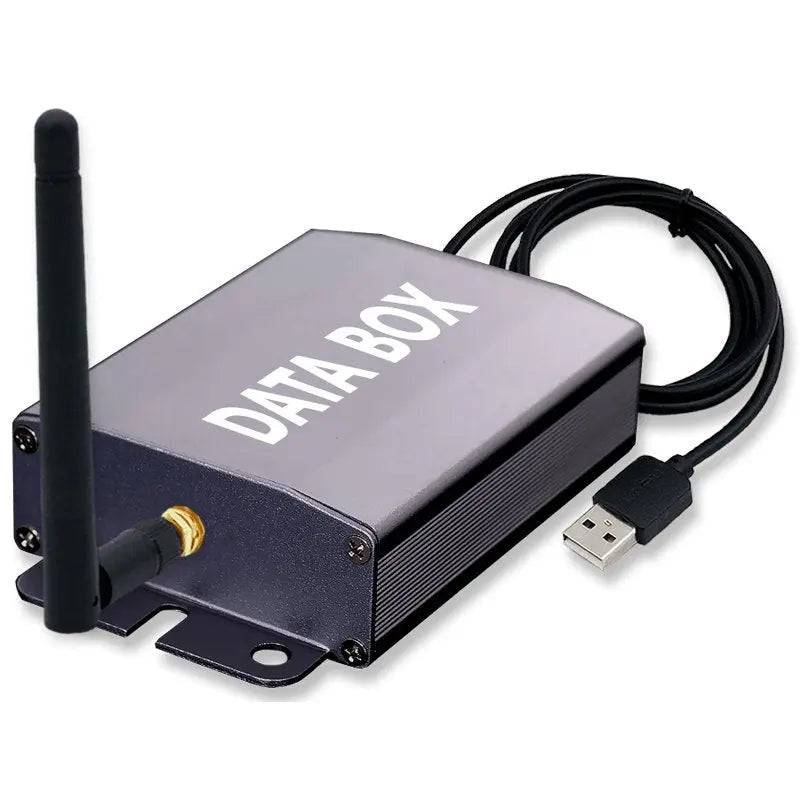

Communication(Inverter to DataBox)

2.4G Wireless(Please buy data box seperately)

Transformer Design

High Frequency Transformers, Galvanically Isolated

Integrated Ground

Equipment ground is provided by the PE in the AC cable. No additional ground is required.

Protection Functions

Isolated Island Protection, Voltage Protection, Frequency Protection, Temperature Protection, Current Protection, etc.

Design Compliance

NB/T32004:2013,NB/T32004:2013,EN61000-3-2,EN62109,VDE0126,UL1741 etc.
